NUTRIBULLET JUICER PRO User manual

User guide.

3
GENERAL SAFETY
INFORMATION
• This juicer system has sharp
blades and moving parts,
and is NOT intended for use
by children or persons with
reduced physical, sensory,
or mental capabilities,
or who lack experience
and knowledge of its safe
operation. Such persons
require close supervision
and thorough instruction
on its proper use and safe
operation. Close supervision is
necessary when any appliance
is used by or near children.
Children should be supervised
to ensure that they do not play
with the appliance.
• To protect against fire, electrical
shock and injury to persons, do
not immerse the juicer, Motor
Base, cord or plug in water or
any other liquid.
• Turn the juicer OFF, then unplug
from the outlet when not in
use, before assembling or
Important safeguards.
Warning! To avoid the risk of serious injury, carefully read all
instructions before operating your NutriBullet Juicer Pro™. When
using any electrical appliance, basic safety precautions should
always be observed, including the following important information.
Save these instructions!
FOR HOUSEHOLD USE ONLY
disassembling parts and before
cleaning. To unplug, grasp the
plug and pull from the outlet.
Never pull from the power cord.
AVOID CONTACT WITH
MOVING PARTS
• Regularly inspect the power
supply cord, plug, and actual
juicer for any damage
• Do not operate this or any
appliance with a damaged
cord or plug or after the
appliance malfunctions, or is
dropped or damaged in any
manner. Contact Customer
Service for assistance at
1 [phone].
• The use of attachments not
recommended or sold by
NutriBullet®may cause fire,
electric shock, or injury.
• This juicer is for household
use only. Do not use this juicer
for anything other than its
intended use. Do not use in
moving vehicles or boats. Do
not use outdoors. Misuse may
cause injury.
!

4
• Do not let the power cord
hang over the edge of a table
or counter top.
• Do not let the power cord
touch hot surfaces, such as a
stove or let it become tangled
or knotted.
• Always make sure the pulp
basin cover is securely in
place (with locking handle
in its upright and locked
position) before the motor is
turned on. Do not unlock the
locking handle while the juicer
is in operation.
Always ensure the
juicer is turned OFF
after each use. Before
disassembling, make sure
the sieve has stopped
rotating and the motor
has completely stopped.
• Do not push food into the feed
chute with your fingers or
utensils. Always use the food
pusher provided. Do not place
your hand or fingers into the
feed chute when it is attached
to the juicer. If food becomes
lodged in the feed chute, use
the food pusher provided
or another piece of fruit or
vegetable to push it down.
Turn the motor o and ensure
that all moving parts have
stopped before disassembling
the juicer to remove the
remaining pulp.
• Do not use the juicer if the
rotating sieve is damaged.
• Do not use the juicer
without the pulp basin and
basin cover attached to
the motor base. Please see
assembly instructions for
proper placement.
• Do not modify the plug in any
way. This juicer has a polarized
plug. To reduce the risk of
electric shock, this plug will fit
in a polarized outlet only one
way. If the plug does not fit fully
in the outlet, reverse the plug.
If it still does not fit, contact a
qualified electrician.
ADDITIONAL
SAFEGUARDS
Remove and safely
discard any packaging
material or promotional
labels before using the
juicer for the first time.
• To eliminate a choking
hazard for young children,
remove and safely discard the
protective cover fitted to the
power plug of this juicer.
• Do not touch the small
cutting blades/teeth on the
bottom/base of the sieve.
BLADES ARE SHARP! HANDLE
WITH EXTREME CARE!
• Keep fingers away from the
sharp blade in the feed chute.

5
Always make sure the
Juicer is properly and
completely assembled
before connecting to power
outlet and operating.
Ensure that the surface
where the appliance
operates is stable, level,
clean and dry.
• Vibration can occur during
normal operation.
• If extreme vibration occurs,
discontinue use and call
Customer Service.
• If the juicer leaks or there
is a spill under or around
the juicer, or onto the juicer
itself, clean and dry before
continuing use.
• When using this juicer, make
sure there is adequate air
space around and under it for
proper air circulation.
This juicer is only
designed to juice fruits
and vegetables. Please
refer to the juicing guide
to determine the correct
speed for the fruits and
vegetables selected for
juicing. Do not use any
frozen fruits or vegetables.
• Hard fruits and vegetables
will put excess strain onto
the motor if a low speed
is selected.
• Remove rind from all citrus
fruits before juicing.
• Do not juice stone fruit
unless pits or seed stone has
been removed.
Do not leave the appliance
unattended while in use.
Keep hands, fingers, hair,
clothing as well as spatulas
and other utensils away
from the appliance during
operation.
Keep the juicer clean. Refer to
care and cleaning section for
further information.
Any maintenance other
than cleaning should be
performed by an authorized
electrician. Do not attempt
to repair or service this juicer,
contact Customer Service for
assistance at 1 [phone].
If any of the instructions or
warnings are not understood
please contact Customer
Service for assistance at
1 [phone].
!
WARNING!

6

7
Contents.
Thank you for purchasing the NutriBullet
Juicer Pro™.
03 Important safeguards
08 What’s included
09 Assembly guide
10 Assembly & use
12 Usage instructions
17 ontrol panel
18 Juicing tips
22 Disassembly
24 Care and maintenance
25 Juice and unit storage
26 Troubleshooting guide
26 Replacement parts
27 NutriBullet Juicer Pro™
one-year limited warranty
30 Warranty registration

8

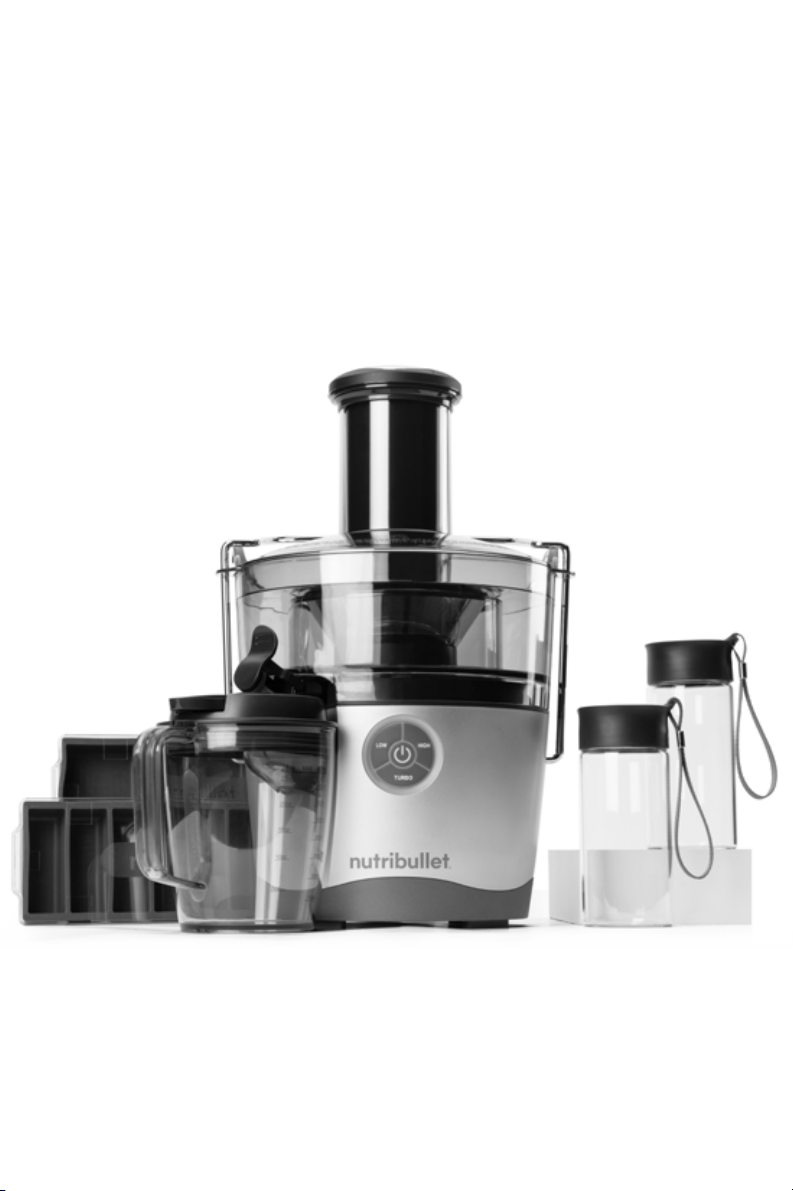

What’s included.
1000 WATT MOTOR
BASE WITH
LOCKING HANDLE
PULP BASIN COVER
WITH 3" FEED CHUTE
DUALSIZE
FOOD PUSHER
2L PULP BASIN
WITH NODRIP SPOUT
STAINLESS STEEL SIEVE 27 OZ JUICE PITCHER
JUICE PITCHER LID
WITH FROTH SEPARATOR
CLEANING BRUSH TWO 12 OZ GLASS
STORAGE BOTTLES
4 OZ FREEZER TRAY2 OZ FREEZER TRAY

9
Assembly guide.
dual-size food pusher
3” feed chute
locking handle
basin cover
2L pulp basin
stainless steel
sieve (inside basin)
no-drip spout
27 oz juice
pitcher
multi-speed
control panel
motor base
juice pitcher lid

10
Assembly & use.

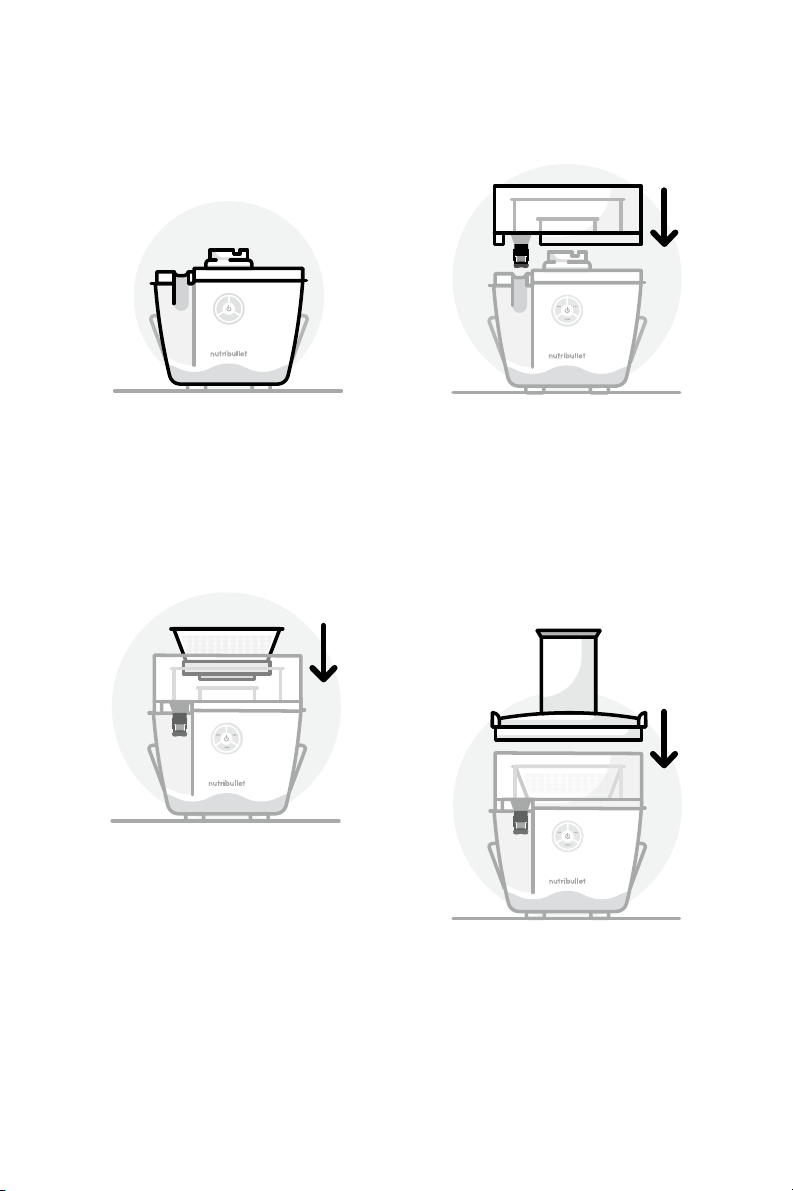

1Place the Motor Base on
a dry, level counter top.
Ensure the dial is set to the
“OFF” position and the unit
is unplugged.
2Place the Pulp Basin on top
of the Motor Base. Align the
Pulp Basin with the Motor
Base so that the spout is
aligned with the dimpled
side of the Motor Base.
3Align the Sieve with the
motor drive coupling and
push down until it clicks into
place. Handle the Sieve
by gripping the top edges
being careful not touch the
sharp teeth on the base of
the Sieve. Ensure the Sieve
is properly seated in place
and securely inside of the
Pulp Basin.
4Place the Basin Cover
over the Sieve and Pulp
Basin. The side “ears” on the
Basin Cover should align
with the “ears” on the sides
of the Pulp Basin.

11

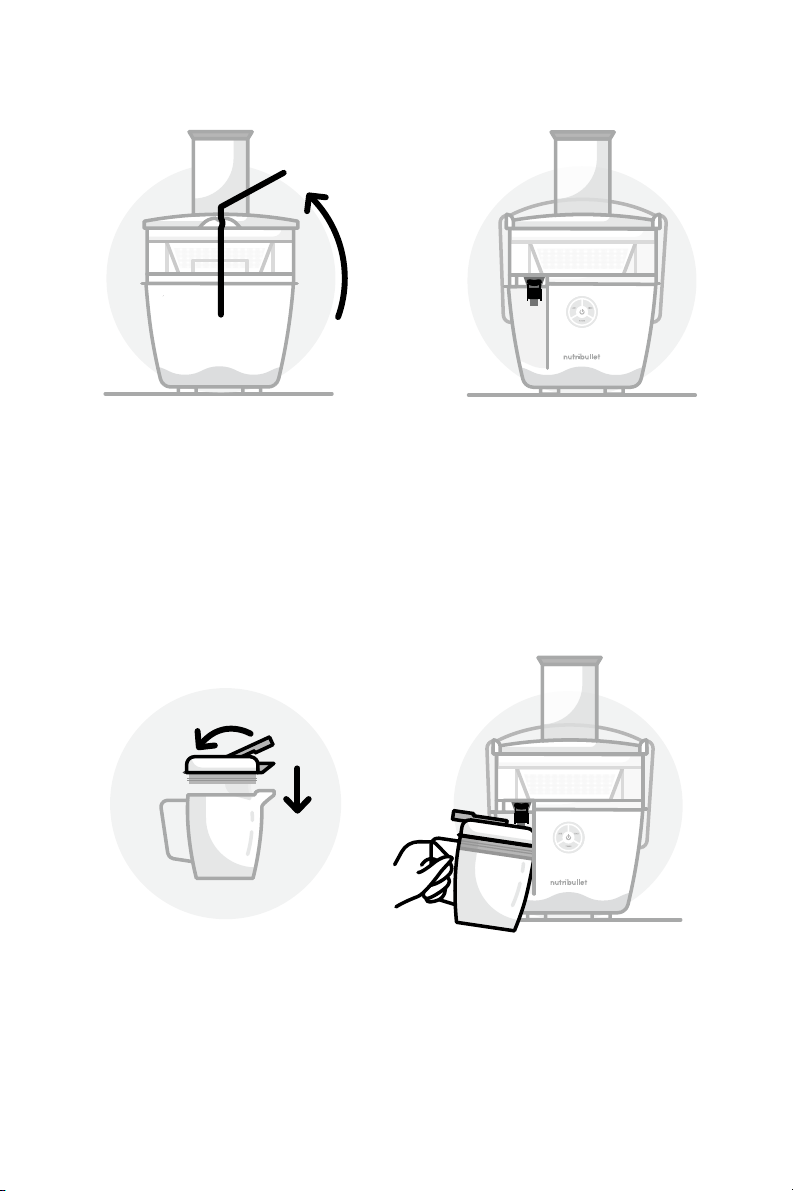

5Raise the Locking Handle
and move it into the “ears” on
each side of the Basin Cover.
The Locking Handle should
be in a vertical position and
locked into place.
NOTE: if the Locking Handle is not
securely in place, the juicer will
not power on.
6Swing the No-Drip Spout
cover up vertically so that
it is no longer covering the
juice spout.
7Place the Juice Pitcher Lid on
top of the Juice Pitcher, and
open the locking lid latch.
8Slightly angle the Juice
Pitcher and place it under
the juice spout. Align the
spout with the hole in the
Juice Pitcher Lid and level
out the Juice Pitcher. It will
fit snuggly into the spout to
hold it in place.

12
Usage instructions.
1Gather all of your desired
ingredients. Wash and
prepare them for juicing.
2After the juicer is fully
assembled, plug the power
cord into an outlet.
NOTE: If no speed is selected after
10 minutes, the unit will power o.

13

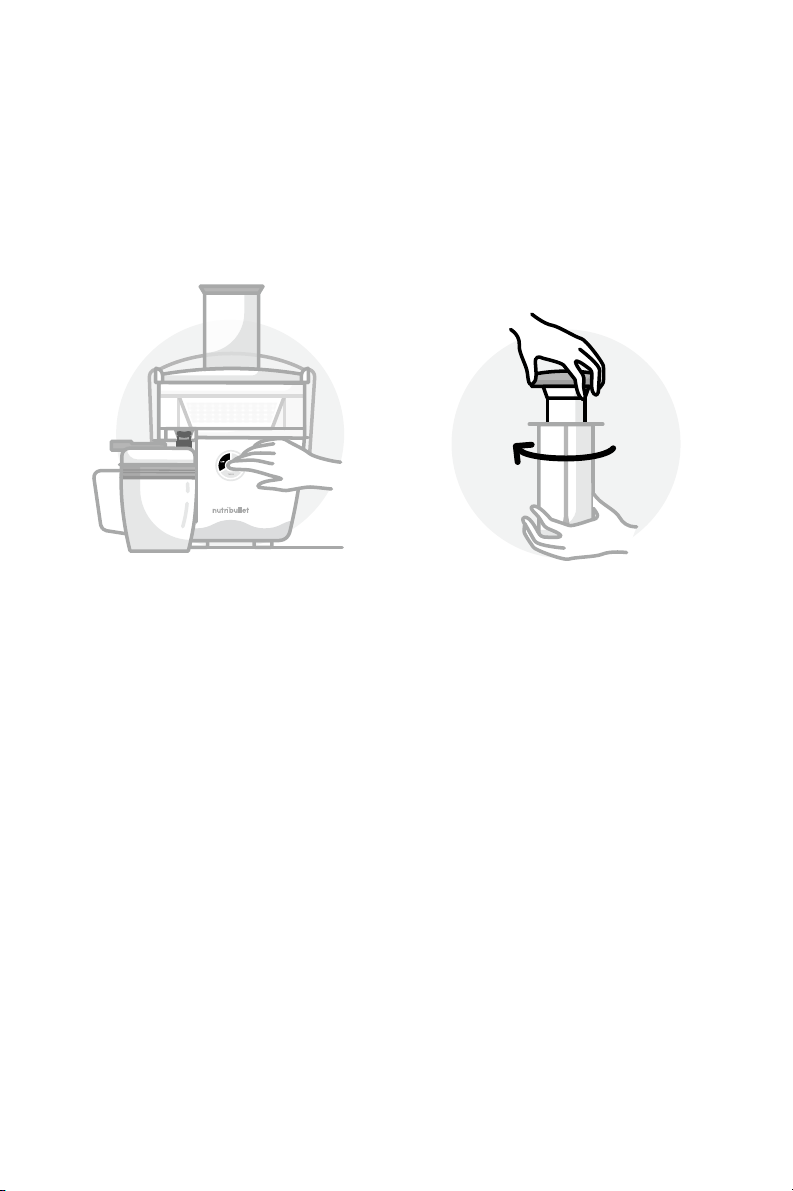

3Select a speed to begin
juicing. The speed selected
will illuminate on the
control panel. You may
start at any speed and can
toggle between speeds as
desired depending on the
type of produce (refer to
the chart on page 18 for
recommended speeds for
each type of produce).
NOTE: always start the juicer before
putting food in the feed chute.
4To operate the Dual-Size
Food Pusher, grip the
outer edge of the top of
the pusher with one hand
and the bottom of the
pusher with the other hand.
Twist the top of the pusher
clockwise to unlock the
inner pusher. (The inner
pusher is thinner than the
full pusher.)

14
5If you are using smaller
ingredients (smaller
fruits, leafy greens, stalk
vegetables like celery or
carrots), place the outer part
of the pusher into the chute,
making the chute more
narrow. While the motor
is running, begin gently
guiding ingredients into
the internal chute using the
inner pusher.
TIP: When using the narrow chute
for juicing leafy greens, take
a small handful of greens and
squeeze them into a tighter bunch.
Place the bunch into the chute
and slowly push down into the
Sieve. Using the narrow chute will
help to prevent any pieces from
flying up out of the chute.
6If you are using larger
ingredients, keep the feed
chute empty (creating a
wider chute) and lock the
inner pusher back inside
the outer pusher. While
the motor is running,
begin gently guiding your
ingredients into the feed
chute using the full Dual-
Size Food Pusher.

15

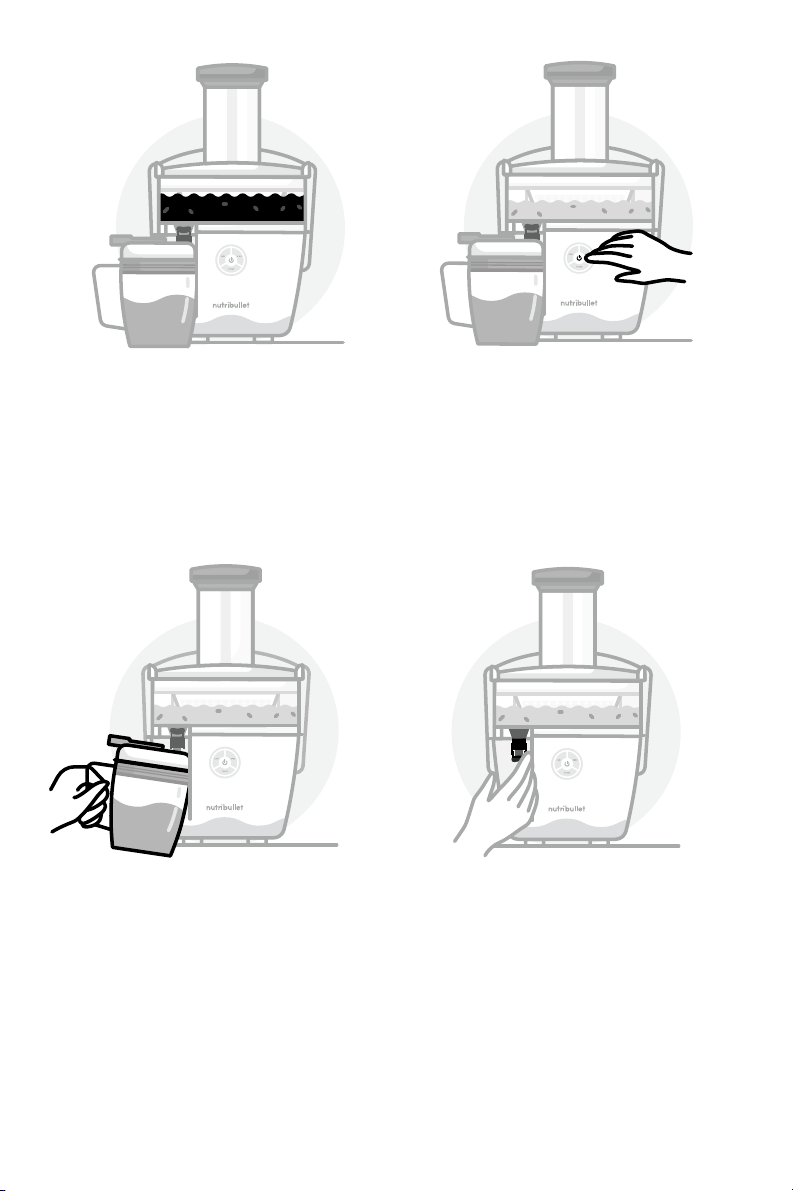

7Juice will begin to flow out
of the spout and into the
Juice Pitcher, while the
pulp will be separated and
stored in the Pulp Basin.
NOTE: You may alternate
between the two chute sizes
(narrow and wide) as you
are juicing.
WARNING: Do not use
excess force when pushing
food down with the Food
Pusher, as it will not allow
for maximum juice yield.
WARNING: Never use
hands/fingers or other tools
to push ingredients down
the feed chute into the
Sieve. Only the Food Pusher
should be used to push
down ingredients.

16
10 Remove the Juice Pitcher
from under the spout. You
may close the Juice Pitcher
Lid and store juice in the
Juice Pitcher if desired.
NOTE: To do this, you’ll first need
to tip the Juice Pitcher forward
at a slight angle, so that the lid’s
large hole has some separation
from the spout, then you can slide
out the pitcher. This is the reverse
of what you did during assembly.
9To stop juicing, press the speed
at which you are currently
juicing. To completely power
o the juicer, press the center
power button and wait for the
Sieve to stop spinning. Unplug
the unit after each use.
8When the Pulp Basin is
completely full, it must be
emptied before continuing
juicing. See disassembly
instructions.
11 Immediately move the
No-Drip Spout cover
downward over the spout
to avoid any residual drips
onto the unit or onto the
surface below the juicer.
TIP: We recommend using your
left hand to pull the Juice Pitcher
away, while using your right hand
to swing the No-Drip Spout cover
down and over the spout opening.

17
Control panel.
OFF:
Power is OFF. If the unit is ON,
the center power button will be
illuminated. Pressing the center
button will turn the unit OFF.
LOW:
Best for juicing softer fruits
and vegetables.
HIGH:
Best for harder produce
like pineapples.
TURBO:
Best for juicing the toughest
vegetables like beets or carrots.
MULTISPEED CONTROL PANEL
& JUICING SETTINGS

18
Juicing tips.
JUICING SPEED SELECTION GUIDE
Apple Turbo All Year
Beets Turbo Summer / Fall / Winter
Blueberry Turbo Summer
Broccoli Turbo Fall / Spring
Brussels Sprouts Turbo Fall / Winter
Cabbage Low Fall / Winter / Spring
Carrots Turbo All Year
Cauliflower Turbo Fall
Celery Turbo All Year
Cucumber High Summer
Fennel Turbo All Year
Ginger Turbo Fall
Grapes Low Fall
Grapefruit Low Winter
Kale High Fall / Winter / Spring
Kiwi Low Fall / Winter / Spring
Lemon Low All Year
Lime Low All Year
Melons (all) Low Summer
Orange Turbo Winter
Peaches High Summer
Pears High Fall / Winter
Pineapple High Fall / Winter / Spring
Plums High Summer
Raspberries Low Summer / Fall
Spinach Low Fall / Spring
Sweet Potato (raw) Turbo Fall / Winter
Tomatoes Low Summer
INGREDIENTS SPEEDS SEASONS

19
source of quercetin
excellent source of folate
good source of vitamin C
high in vitamin C, high in folate, good source of potassium
high in vitamin C, good source of folate
high in vitamin C
excellent source of vitamin A, good source of vitamin C
high in vitamin C, good source of folate
good source of vitamin C, good source of vitamin A
good source of vitamin C
good source of vitamin C and potassium
contains vitamin C, magnesium, and potassium
good source of vitamin K
high in vitamin A, high in vitamin C
excellent source of vitamin A and vitamin C, good source of calcium and potassium
high in vitamin C, good source of potassium and vitamin E
high in vitamin C
high in vitamin C
high in vitamin A, high in vitamin C
high in vitamin C
good source of vitamin C
good source of vitamin C
high in vitamin C
good source of vitamin C
high in vitamin C
high in vitamin A, vitamin C, iron, and folate, good source of magnesium
good source of potassium, high in vitamin A and vitamin C
high in vitamin A, high in vitamin C, good source of potassium
VITAMINS / NUTRIENTS

20
PROPER PRODUCE PREP
Prepare fruit and veggies before
inserting them into the juicer:
• Properly clean produce
(rinse with produce wash, or
lukewarm water and apple
cider vinegar).
• Peel or remove skin as
needed, and chop food items
down to the right size – just
small enough to fit easily into
the feed chute, without having
to force the pieces down with
the Food Pusher.
• Remove rind from all citrus
fruits before juicing.
• Remove large pits and
seeds from stone fruits
before juicing.
FEED CHUTE
Selecting which Food Pusher
to use (narrow or wide) aects
feed chute thickness. If you
pull out the thinner inner food
pusher from within the full
pusher, you’ll place the outer
part into the chute, making the
chute narrow. If you use the full
(wide) pusher, the feed chute
will be wider.
• Never place your hand or
fingers into the feed chute
when it is attached to the juicer.
• Always start the juicer before
adding food to the feed chute.
The unit must be running
when items enter it.
• Do not overload the feed
chute. Items must be added
gradually, at a pace the juicer
can keep up with.
• Use only the provided Food
Pusher to push food into the
feed chute. Never use fingers,
utensils, or any other apparatus.
• Never use excessive force to
push items into the feed chute.
• When juicing, ensure all
produce has moved through
the feed chute and into the
Sieve before adding more.
• If any food gets stuck in the
feed chute, use the Food
Pusher to move it down the
chute and into the Sieve.
