NUTRIBULLET NBJ07100 User manual

User guide.
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 1 8/21/20 2:45 PM

NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 2 8/21/20 2:45 PM

3
PERSONAL SAFETY
This juicer system has sharp
blades and moving parts, and
is NOT intended for use by
children who lack experience
and knowledge of its safe
operation. They require close
supervision and thorough
instruction on its proper use
and safe operation.
Keep the appliance and
its cord out of reach of
children. Children shall not
play with the appliance.
To eliminate a choking
hazard for young children,
remove and safely discard
the protective cover fitted
to the power plug of
this juicer.
AVOID CONTACT WITH
MOVING PARTS.
Keep hands, fingers, hair,
clothing as well as spatulas and
other utensils away from the
appliance during operation.
Important safeguards.
Warning! To avoid the risk of serious injury, carefully
read all instructions before operating your NutriBullet
Juicer™. When using any electrical appliance, basic
safety precautions should always be observed,
including the following important information.
This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
SIEVE AND BLADES ARE SHARP!
HANDLE WITH EXTREME CARE!
Do not touch the small cutting
blades/teeth on the bottom/
base of the sieve. Keep fingers
away from the sharp blade in the
feed chute.
Do not leave the appliance
unattended when in use.
Hard fruits and vegetables
will put excess strain onto
the motor if a low speed
is selected.
If there is a spill under, around or
onto the juicer itself, disconnect
the unit from the power source.
Clean with a cloth and allow
unit to dry completely before
operating.
WARNING!
WARNING!
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 3 8/21/20 2:45 PM

4
Do not push food into the
feed chute with your fingers
or utensils. Only use the food
pusher provided. Do not place
your hand or fingers into the
feed chute when it is attached
to the juicer. If food becomes
lodged in the feed chute, use
the food pusher provided
or another piece of fruit or
vegetable to push it down. Turn
the motor o and ensure that
all moving parts have stopped
before disassembling the
juicer to remove the remaining
pulp.
Do not operate this or any
appliance with a damaged cord
or plug or after the appliance
malfunctions, or is dropped
or damaged in any manner. If
the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
Always ensure the juicer is
turned OFF after each use.
Before disassembling, make
sure the sieve has stopped
rotating and the motor has
completely stopped.
PRODUCT SAFETY
This juicer is only designed to
juice fruits and vegetables.
Please refer to the juicing guide
to determine the correct speed
for the fruits and vegetables
selected for juicing. Do not use
any frozen fruits or vegetables.
Do not use the juicer without
the pulp basin and basin lid
attached to the motor base.
Please see assembly instructions
for proper placement.
Remove and safely discard
any packaging material or
promotional labels before using
the juicer for the first time.
Ensure that the surface
where the appliance operates
is stable, level, clean and dry.
Remove rind from all citrus fruits
before juicing.
Do not juice stone fruit unless
pits of the seed stone has been
removed.
Always make sure the pulp
basin cover is clamped securely
in place (with locking handle)
before the motor is turned on.
Do not unfasten the clamps
(locking handle) while the juicer
is in operation.
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 4 8/21/20 2:45 PM

5
When using this juicer, make
sure there is adequate air space
around and under it for proper
air circulation.
The use of attachments not
recommended or sold by
NutriBullet® may cause fire,
electric shock or injury. This juicer
is for household use only. Do not
use this juicer for anything other
than its intended use. Do not use
in moving vehicles or boats. Do
not use outdoors. Misuse may
cause injury.
If no speed is selected after 10
minutes, the unit will power o.
If the motor stops for any reason,
unplug the power base and let it
cool for at least 15 minutes.
Turn the juicer OFF, then
unplug from the outlet when
not in use, before assembling
or disassembling parts and
before cleaning. To unplug,
grasp the plug and pull from
the outlet. Never pull from the
power cord.
Do not let the power cord hang
over the edge of a table or
counter-top.
Do not let the power cord touch
hot surfaces, such as a stove or
let it become tangled or knotted.
Regularly inspect the
power cord, plug and
the actual juicer for
any damage.
To protect against fire,
electrical shock and injury to
persons, do not immerse the
juicer, Motor Base, cord or plug
in water or any other liquid.
The cleaning brush and sieve
are consumable components.
Over time, if the unit starts to
get louder or make unusual
noises or vibration, it indicates
that this consumable part may
need replacing. The continued
use of worn parts may result
in part failure and/or personal
injury.
Do not use the juicer if the
rotating sieve is damaged; if
the filter mesh is torn, crinkled
or deformed in anyway. For
high use users, we recommend
replacing your sieve every
12 months or as needed for
optimal performance. You can
purchase both the sieve and
the cleaning brush at www.
bulletbrands.com.au / www.
bulletbrands.co.nz or contact
customer service.
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 5 8/21/20 2:45 PM

6
Keep the juicer clean. Refer to
care and cleaning section for
further information.
Vibration can occur during
normal operation.
If extreme vibration occurs,
discontinue use and call
Customer Service.
Any maintenance other than
cleaning should be performed
by an authorized electrician. Do
not attempt to repair or service
the juicer, contact Customer
Service for assistance at www.
bulletbrands.com.au / www.
bulletbrands.co.nz
Save these
instructions!
FOR HOUSEHOLD
USE ONLY
!
WARNING!
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 6 8/21/20 2:45 PM

7
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 7 8/21/20 2:45 PM

8
Contents.
Thank you for purchasing the NutriBullet Juicer™.
03 Important safeguards
09 What’s included
10 Assembly guide
11 Assembly & use
13 Usage instructions
16 Control dial
17 Juicing tips
21 Disassembly
23 Care instructions
21 Replacement parts
21 How to store
24 NutriBullet Juicer™
one-year limited warranty
27 Warranty registration
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 8 8/21/20 2:45 PM

9
What’s included.
800 WATT MOTOR
BASE WITH
LOCKING HANDLE
PULP BASIN COVER
WITH 76 MM
FEED CHUTE
FOOD PUSHER
15L PULP BASIN WITH
NODRIP SPOUT
STAINLESS STEEL SIEVE
CLEANING BRUSH
800 ML JUICE PITCHER
JUICE PITCHER LID
WITH FROTH SEPARATOR
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 9 8/21/20 2:45 PM

10
Assembly guide.
food pusher
76 mm feed chute
locking handle
basin cover
1.5L pulp basin
stainless steel
sieve (inside basin)
juice pitcher lid
no-drip spout
800 ml juice
pitcher
dual-speed
control dial
motor base
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 10 8/21/20 2:45 PM

11
Assembly.

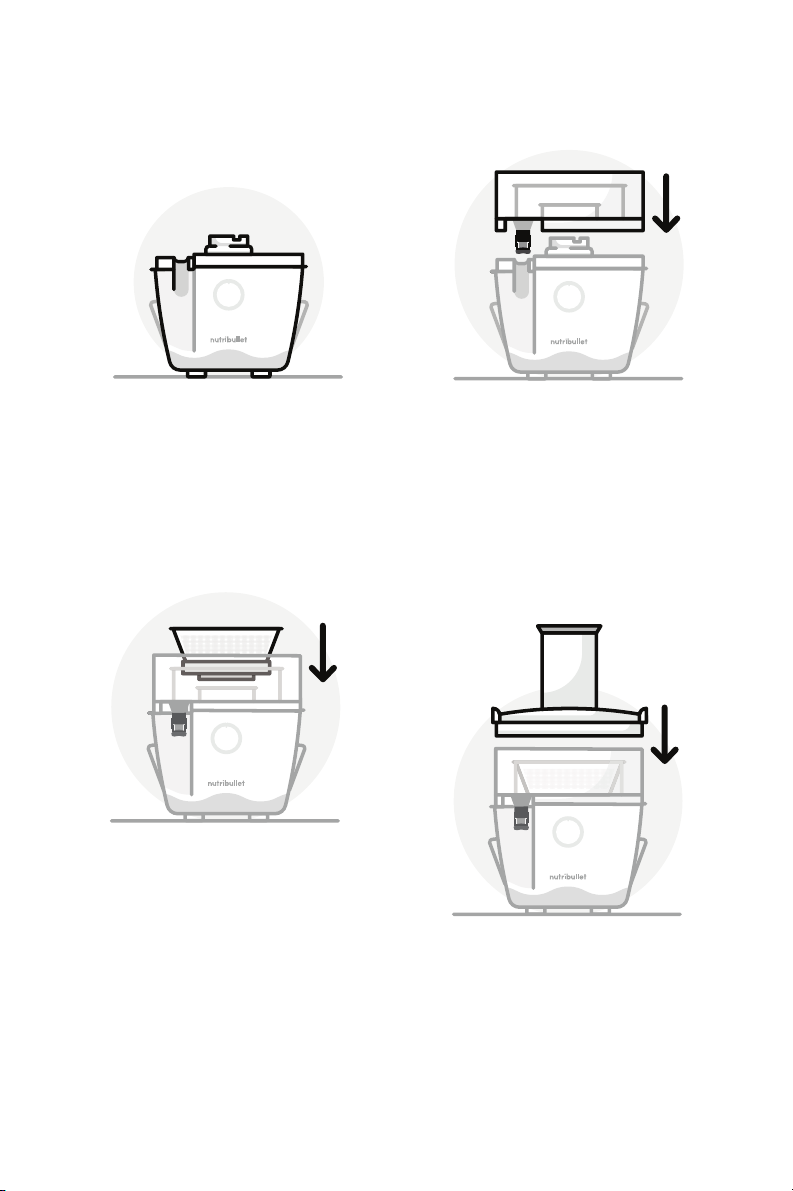

1 Place the Motor Base on
a dry, level counter top.
Ensure the dial is set to the
"OFF" position and the unit
is unplugged.
2 Place the Pulp Basin on top
of the Motor Base. Align the
Pulp Basin with the Motor
Base so that the spout is
aligned with the dimpled
side of the Motor Base.
3 Align the Sieve with the
motor drive coupling and
push down until it clicks into
place. Handle the Sieve
by gripping the top edges
being careful not touch the
sharp teeth on the base of
the Sieve. Ensure the Sieve
is properly seated in place
and securely inside of the
Pulp Basin.
4 Place the Basin Cover
over the Sieve and Pulp
Basin. The side “ears” on
the Basin Cover should
align with the “ears” on the
sides of the Pulp Basin.
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 11 8/21/20 2:45 PM

12
5 Raise the Locking Handle
and move it into the "ears" on
each side of the Basin Cover.
The Locking Handle should
be in a vertical position and
locked into place.
NOTE: if the Locking Handle is not
securely in place, the juicer will
not power on.
6 Swing the No-Drip Spout
cover up vertically, so that
it is no longer covering the
juice spout.
7 Place the Juice Pitcher
Lid on top of the Juice
Pitcher and open the
locking lid latch.
8 Slightly angle the Juice
Pitcher and place it under
the juice spout. Align the
spout with the hole in the
Juice Pitcher Lid and level
out the Juice Pitcher It will
fi t snuggly into the spout to
hold it in place.
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 12 8/21/20 2:45 PM

13
Usage instructions.

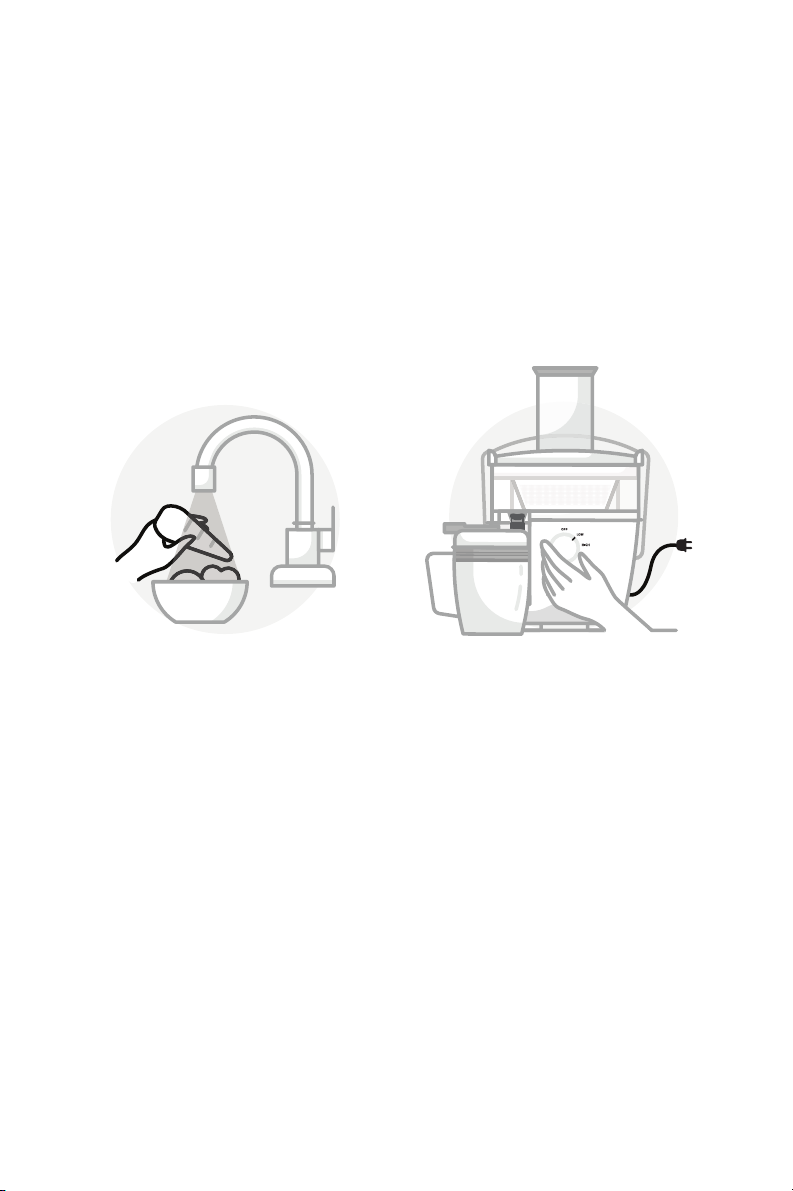

1 Gather all of your desired
ingredients and wash them.
Prepare the ingredients
to be juiced by cutting,
skinning, or removing the
rind, stems, or stone seeds.
2 After the juicer is fully
assembled, plug the power
cord into an outlet. Use
the Dual-Speed Control
Dial to select a speed to
begin juicing. You can
toggle between speeds as
desired depending on the
type of produce. (Refer to
the chart on page 16 for
recommended speeds for
di erent types of produce).
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 13 8/21/20 2:45 PM

14

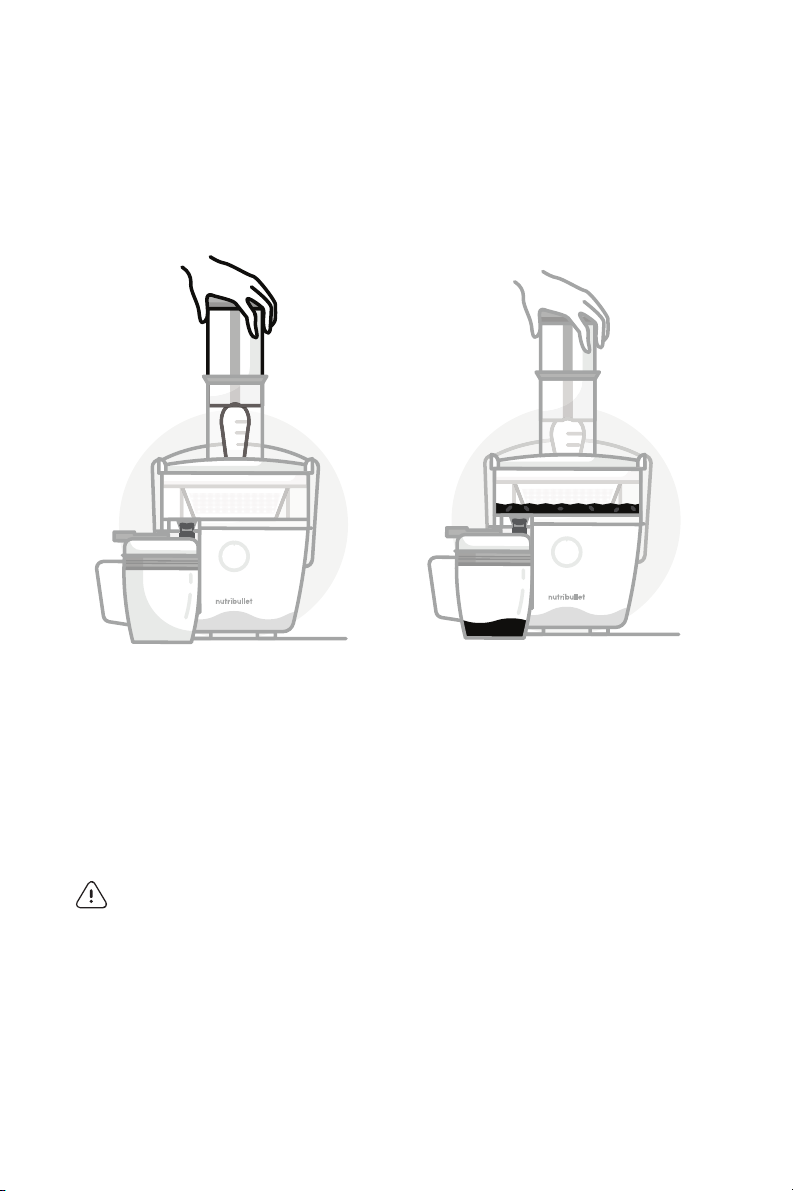

4 Juice will begin to fl ow out
of the spout and into the
Juice Pitcher, while the
pulp will be separated and
stored in the Pulp Basin.
3 While the motor is running,
begin gently guiding your
ingredients into the feed
chute using the Food Pusher.
NOTE: Do not use excess force or
speed when pushing food down
with the Food Pusher, as it will not
allow for maximum juice yield.
WARNING: Never use hands/
fi ngers or other tools to push food
down the feed chute into the Sieve.
Only the Food Pusher should be
used to push down ingredients.
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 14 8/21/20 2:45 PM

15

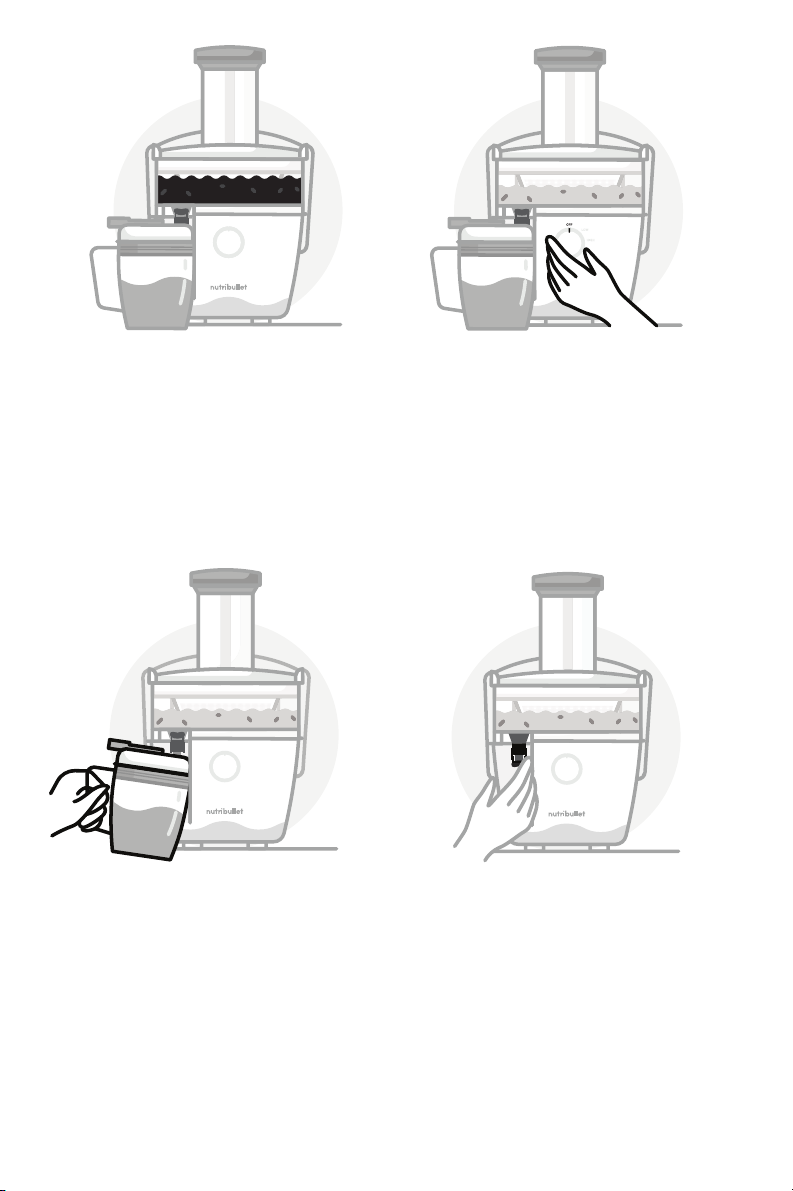

6 Always be sure to turn the
Dual-Speed Control Dial
to the "OFF" position and
wait for the Sieve to stop
spinning before removing
the Juice Pitcher from under
the spout. Unplug the unit
after each use.
5 When the Pulp Basin is
completely full, it must
be emptied before you
continue juicing. See
disassembly instructions.
7 Remove the Juice Pitcher
from under the spout. You
may close the Juice Pitcher
Lid and store juice in the
Juice Pitcher if desired.
NOTE: To do this, you’ll fi rst need
to tip the Juice Pitcher forward
at a slight angle, so that the lid’s
large hole has some separation
from the spout, then you can slide
out the pitcher. This is the reverse
of what you did during assembly.
8 Immediately move the
No-Drip Spout cover
downward over the spout
to avoid any residual drips
onto the unit or onto the
surface below the juicer.
TIP: We recommend using your
left hand to pull the Juice Pitcher
away, while using your right hand
to swing the No-Drip Spout cover
down and over the spout opening.
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 15 8/21/20 2:45 PM

16
Control dial.
OFF:
Power is OFF, the juicer is
not running.
LOW:
Best for juicing softer fruits
and vegetables.
HIGH:
Best for harder produce like
carrots and beets.
OFF
LOW
HIGH
OFF
LOW
HIGH
OFF
LOW
HIGH
DUALSPEED CONTROL DIAL
& JUICING SETTINGS
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 16 8/21/20 2:45 PM

17
Juicing tips.
JUICING SPEED SELECTION GUIDE
INGREDIENTS SPEEDS SEASONS
Apple
Beets
Blueberry
Broccoli
Brussels Sprouts
Cabbage
Carrots
Cauliflower
Celery
Cucumber
Fennel
Ginger
Grapes
Grapefruit
Kale
Kiwi
Lemon
Lime
Melons (all)
Orange
Peaches
Pears
Pineapple
Plums
Raspberries
Spinach
Sweet Potato (raw)
Tomatoes
High
High
High
High
High
Low
High
High
High
Low
High
High
Low
Low
High
Low
Low
Low
Low
High
Low
High
High
High
Low
Low
High
Low
All Year
Spring / Summer
Winter / Spring / Summer
Autumn / Winter / Spring
All Year
Spring / Summer / Autumn
Autumn / Winter / Spring
Spring / Summer
All Year
All Year
All Year
All Year
Spring / Summer
All Year
All Year
All Year
All Year
All Year
Summer
Winter
Spring / Summer
Autumn / Winter
Spring / Summer
Summer / Autumn
Summer / Autumn
Spring / Summer
Summer / Autumn
All Year
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 17 8/21/20 2:45 PM

18
source of quercetin
excellent source of folate
good source of vitamin C
high in vitamin C, high in folate, good source of potassium
high in vitamin C, good source of folate
high in vitamin C
excellent source of vitamin A, good source of vitamin C
high in vitamin C, good source of folate
good source of vitamin C, good source of vitamin A
good source of vitamin C
good source of vitamin C and potassium
contains vitamin C, magnesium, and potassium
good source of vitamin K
high in vitamin A, high in vitamin C
excellent source of vitamin A and vitamin C, good source of calcium and potassium
high in vitamin C, good source of potassium and vitamin E
high in vitamin C
high in vitamin C
high in vitamin A, high in vitamin C
high in vitamin C
good source of vitamin C
good source of vitamin C
high in vitamin C
good source of vitamin C
high in vitamin C
high in vitamin A, vitamin C, iron, and folate, good source of magnesium
good source of potassium, high in vitamin A and vitamin C
high in vitamin A, high in vitamin C, good source of potassium
VITAMINS / NUTRIENTS
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 18 8/21/20 2:45 PM

19
PROPER PRODUCE PREP
Prepare fruit and veggies before
inserting them into the juicer:
• Properly clean produce (rinse
with lukewarm water, produce
wash, or water and apple
cider vinegar).
• Peel or remove skin as
needed, and chop food items
down to the right size – just
small enough to fit easily
into the feed chute, without
having to force the pieces
down with the Food Pusher.
• Remove rind from all citrus
fruits before juicing.
• Remove large pits and
seeds from stone fruits
before juicing.
FEED CHUTE
• Never place your hand or
fingers into the feed chute
when it is attached to
the appliance.
• Always start the juicer before
adding food to the feed
chute. The juicer must be
running when items enter it.
• Do not overload the feed
chute. Items must be added
gradually, at a pace the
juicer can keep up with.
• Use only the provided Food
Pusher to push food into
the feed chute. Never use
fingers, utensils, or any
other apparatus.
• Never use excessive
force to push items into
the feed chute.
• When juicing, ensure all
produce has moved through
the feed chute and into the
Sieve before adding more.
• If any food gets stuck in the
feed chute, use the Food
Pusher to move it down the
chute and into the Sieve.
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 19 8/21/20 2:45 PM

20
PROPER PRODUCE PREP
Prepare fruit and veggies before
inserting them into the juicer:
• Properly clean produce (rinse
with lukewarm water, produce
wash, or water and apple
cider vinegar).
• Peel or remove skin as
needed, and chop food items
down to the right size – just
small enough to fit easily into
the feed chute, without having
to force the pieces down with
the Food Pusher.
• Remove rind from all citrus
fruits before juicing.
• Remove large pits and
seeds from stone fruits
before juicing.
FEED CHUTE
• Never place your hand or
fingers into the feed chute
when it is attached to
the appliance.
• Always start the juicer before
adding food to the feed
chute. The juicer must be
running when items enter it.
• Do not overload the feed
chute. Items must be added
gradually, at a pace the
juicer can keep up with.
• Use only the provided Food
Pusher to push food into
the feed chute. Never use
fingers, utensils, or any
other apparatus.
• Never use excessive
force to push items into
the feed chute.
• When juicing, ensure all
produce has moved through
the feed chute and into the
Sieve before adding more.
• If any food gets stuck in the
feed chute, use the Food
Pusher to move it down the
chute and into the Sieve.
NBJ07100_NB-Juicer_UG_(AUS)_F200821.indd 20 8/21/20 2:45 PM
