Océ CS550/CS6xx Pro
Calibration
Océ User Manual

Océ-Technologies B.V.
© 2009 Océ
All rights reserved. No part of this work may be reproduced, copied, adapted, or transmitted
in any form or by any means without written permission from Océ.
Océ makes no representation or warranties with respect to the contents hereof and specifi-
cally disclaims any implied warranties of merchantability or fitness for any particular purpose.
Further, Océ reserves the right to revise this publication and to make changes from time
to time in the content hereof without obligation to notify any person of such revision or
changes.
Edition: 2009-03

Contents
Chapter 1
Introduction.........................................................................................................5
Basic system configuration.......................................................................6
Why calibration...........................................................................................7
Main steps in calibration...........................................................................8
Chapter 2
Check the print quality.......................................................................................9
2.0 Check the print quality.......................................................................10
Chapter 3
Controller calibration........................................................................................11
3.1 Calibrate the EFI controller................................................................12
3.1 Calibrate the Creo controller.............................................................17
3.1 Calibrate the Océ PRISMAsync controller........................................20
3.2 Check the print quality.......................................................................28
Chapter 4
Printer calibration.............................................................................................29
4.1 Perform the adjustment operation...................................................30
4.2 Adjust the white point (gamma offset).............................................33
4.3 Calibrate the EFI controller................................................................39
4.3 Calibrate the Creo controller.............................................................44
4.3 Calibrate the Océ PRISMAsync controller........................................47
4.4 Check the print quality.......................................................................55
3
Contents

4
Contents

Chapter 1
Introduction
o

Basic system configuration
The basic system configuration contains the following parts.
■Printer
■Controller
■Scanner.
The basic system configuration has one of the following controllers
■Fiery ® PRO80/S450 65C-KM Color Server (IC303/IC305), default including a
photo spectrometer
■Creo controller, IC304/IC304 Plus, default including a photo spectrometer
■Fiery ® X3e TY2 65C-KM (embedded controller (IC408) for which a photo spectrom-
eter is optional.
■Océ PRISMAsync controller (Océ CS655 and Océ CS665 only) for which a photo
spectrometer is optional.
You can only calibrate a controller if you have a photo spectrometer.
Note:
Do not use the ColorCal / Off-the-glass method as described in the controller documen-
tation.
Chapter 1 - Introduction6
Basic system configuration

Why calibration
The printer is calibrated for a screen at installation and at every next service visit. The
default screen is Dot 1. The Océ CS550/CS6xx Pro will hold on to the calibrated level
of print quality by automatically performed adjustments. In normal circumstances there
is no need to do additional calibrations.
External circumstances, for example temperature, humidity and consumables change over
time. These changes effect the colour reproduction. You can perform a calibration as de-
scribed in this document to eliminate the effect of the external circumstance on the colour
reproduction.
There is no need or use to calibrate the scanner.
Chapter 1 - Introduction 7
Why calibration

Main steps in calibration
#
Sub-stepMain step
‘2.0 Check the print quality’ on page 101. Check the print quality
Continue only if the colour reference chart does not meet your requirements.
‘3.1 Calibrate the EFI controller’ on page 12
or
‘3.1 Calibrate the Creo controller’ on page 17
or
‘3.1 Calibrate the Océ PRISMAsync controller’ on page
20
2. Calibrate the controller
‘3.2 Check the print quality’ on page 28
The result of the controller calibration as checked in 3.2 normally meets the required
print quality. If the print quality still does not meet your requirements, you can
consider to proceed with the printer calibration.
‘4.1 Perform the adjustment operation’ on page 30 1
3. Calibrate the printer
‘4.2 Adjust the white point (gamma offset)’ on page 33
1
‘4.3 Calibrate the EFI controller’ on page 39 2
or
‘4.3 Calibrate the Creo controller’ on page 44 2
or
‘4.3 Calibrate the Océ PRISMAsync controller’ on page
472
‘4.4 Check the print quality’ on page 55
Note:
1 Calibration of your copy process only requires step 4.1 and 4.2.
Note:
2 Calibration of the printer requires calibration of the controller because the controller
takes the printer settings into account at controller calibration.
Chapter 1 - Introduction8
Main steps in calibration

Chapter 2
Check the print quality
o

2.0 Check the print quality
Introduction
You can print the Océ Color Reference chart to check the print quality. You can download
the print files used in this document form the Océ website. Before you print this chart,
you need to warm up the machine.
Before you begin
Load the A4/Letter portrait reference media with the correct paper settings.
Load the A3/Tabloid reference media with the correct paper settings.
Note:
Reference media is the media that you use mostly (bulk). The Océ reference media is
Océ Top Color 90 g/m2.
Warm up the printer
1. Print the file 'Océ Startup Page.pdf'.
Result
The Océ CS550/CS6xx Pro is warmed up and ready to evaluate the print quality.
Print the Océ Color Reference chart
1. Print the file 'Océ Color Reference Chart.pdf'.
Result
The result is a printed Océ Color Reference chart to evaluate the print quality.
Chapter 2 - Check the print quality10
2.0 Check the print quality

Chapter 3
Controller calibration
o

3.1 Calibrate the EFI controller
Introduction
The external controller is either an EFI (IC303/IC305/IC408), a Creo (IC304/IC304Plus)
or an Océ PRISMAsync controller. This procedure describes the calibration of the EFI
controller. In case of an IC408 controller you must use CWS on a remote PC. Before
you can calibrate the EFI controller you must print the calibration chart.
Print the calibration chart
1. From 'Command Workstation', click 'Server' - 'Manage color...'.
2. Click 'Calibrator'.
[1] Calibrator button
3. Select or check the measurement method.
[2] Measurement method selection list
Chapter 3 - Controller calibration12
3.1 Calibrate the EFI controller

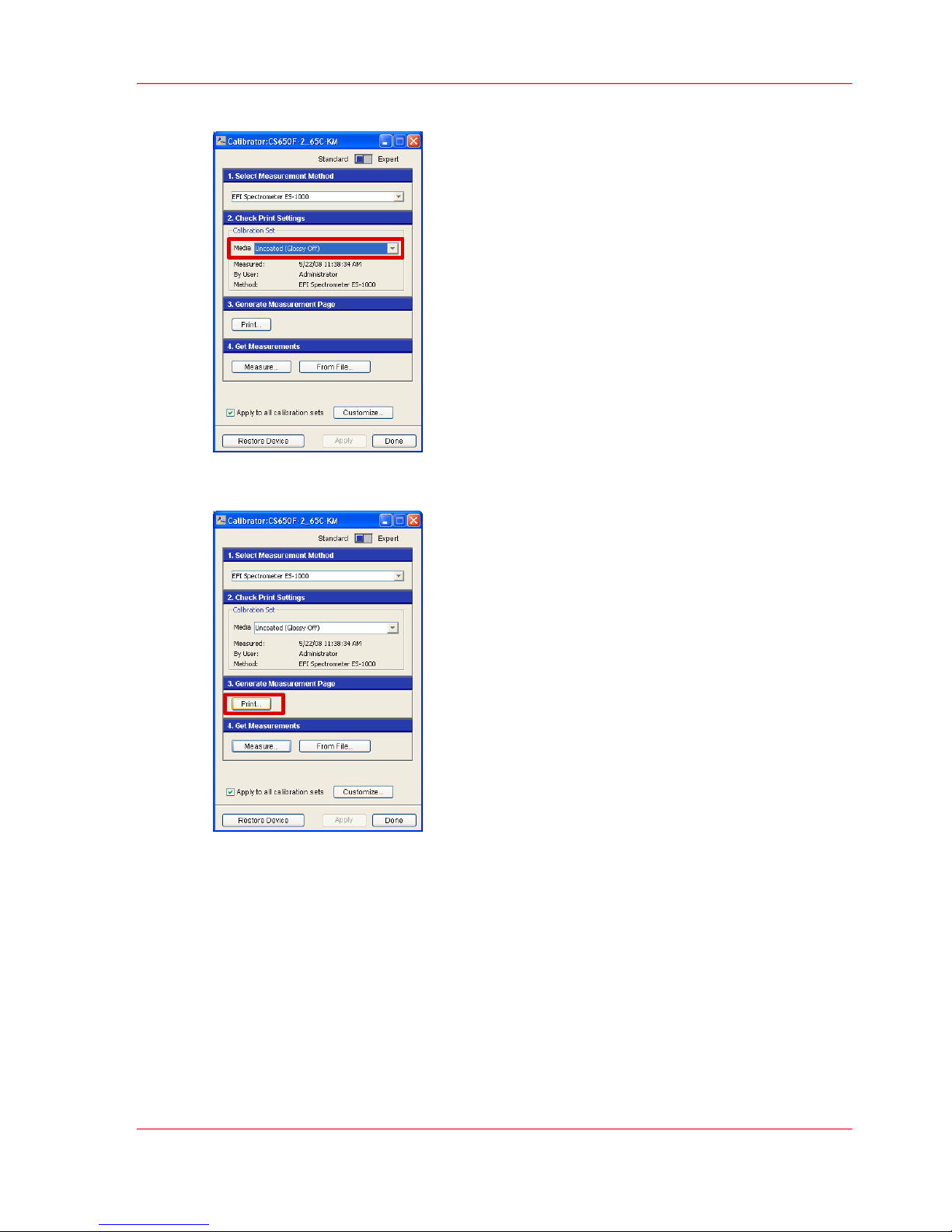

4. Select the media you want to use for calibration.
[3] Media selection list
5. Click 'Print...' to set the print options and print the sorted patches chart.
[4] Print options button
6. Select the following settings.
■At 'Page Type', select '34 Sorted patches' for A3/Tabloid (recommended).
Select '21 Sorted Patches' for A4/Letter.
■At 'Paper Size', select the setting according to the previous step.
■At 'Input tray', select the tray that contains the selected paper type and size.
■At 'Number of copies', select 5.
Use the last print to calibrate.
■At 'Show Advanced Options', check at 'Halftone' the correct screening. The default
is 'Dot1'.
Chapter 3 - Controller calibration 13
3.1 Calibrate the EFI controller

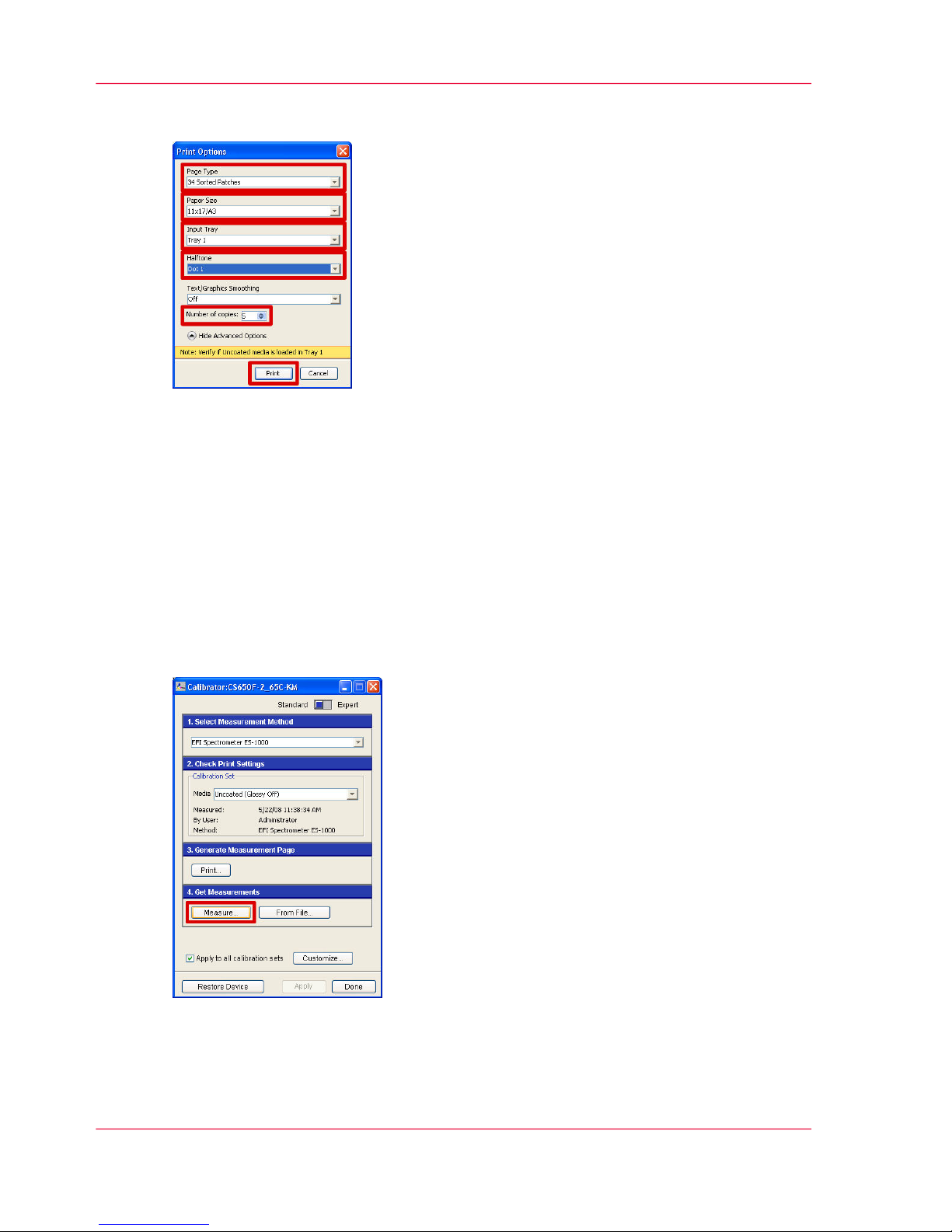

■Click 'Print' to print the sorted patches chart.
[5] Print options lists and print button
7. Click 'OK' to close the information window.
Result
The printer performs an automatic calibration adjustment and prints the sorted patches
chart.
Calibrate the EFI controller
1. Click 'Measure...' to start the calibration.
[6] Measurement options button
Chapter 3 - Controller calibration14
3.1 Calibrate the EFI controller

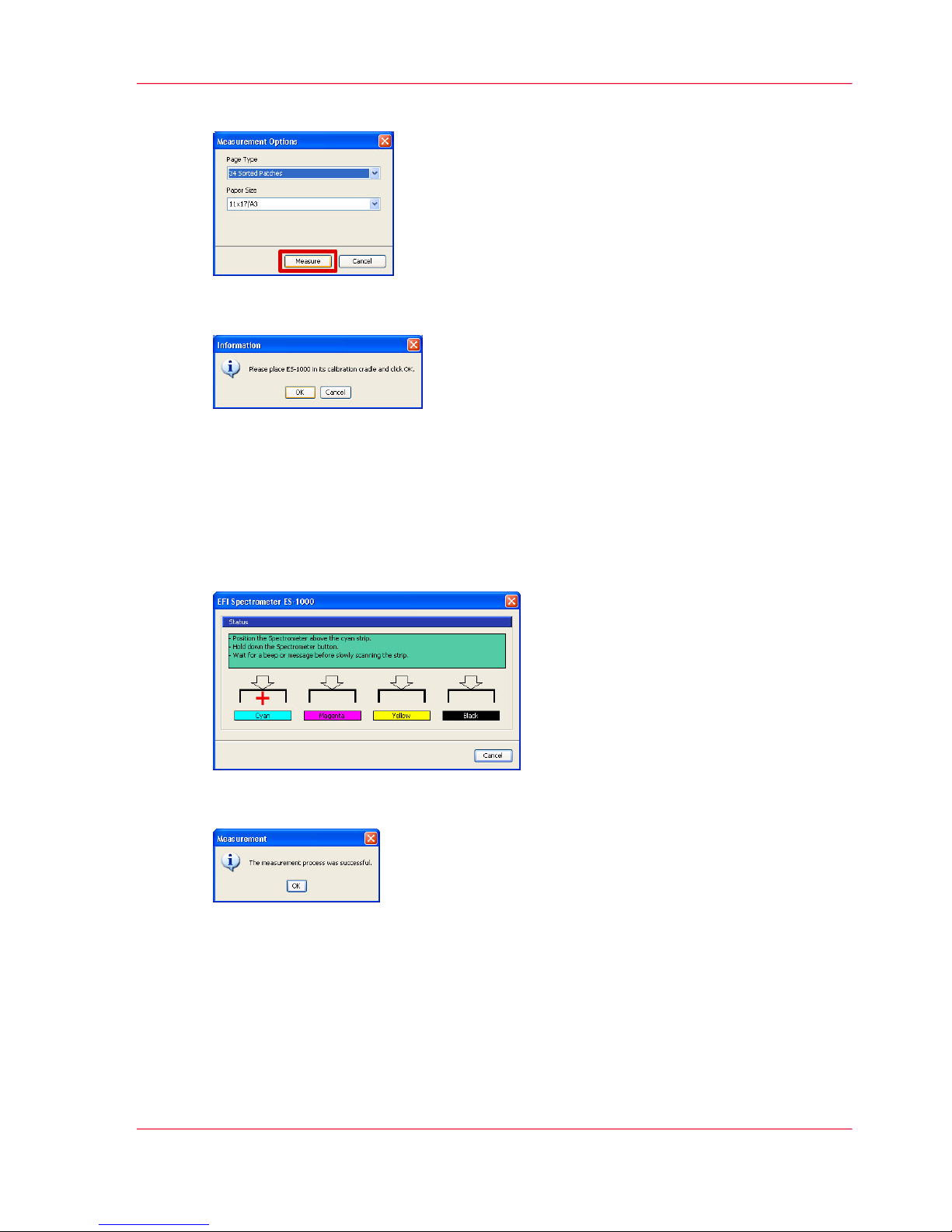

2. Check the measurement options and click 'Measure'.
[7] Measurement button
3. Check the spectrometer and click 'OK'.
[8] Spectrometer ready?
4. Follow the instructions in the EFI Spectrometer window precisely.
Perform the following actions per colour.
■Position the spectrometer at the blinking red cross above the column with coloured
patches.
■Hold down the spectrometer button and wait for the beep.
■Scan the column with patches slowly.
[9] Measurement instructions
5. Click 'OK'.
[10] Measurement successful?
6. Apply the calibration.
■Check 'Apply to all calibration sets' to use this calibration for all media.
Chapter 3 - Controller calibration 15
3.1 Calibrate the EFI controller

■Click 'Apply'.
[11] Apply the measurement for all media?
7. Click 'OK'.
[12] Calibration successful?
8. To calibrate per media, return to step 3 of the 'Print the patches chart' .
Note:
Follow both the above procedures per screen you use.
Result
The EFI controller is calibrated.
Chapter 3 - Controller calibration16
3.1 Calibrate the EFI controller

3.1 Calibrate the Creo controller
Introduction
The external controller is either an EFI (IC303/IC305/IC408), a Creo (IC304/IC304Plus)
or an Océ PRISMAsync controller. This procedure describes the calibration of the Creo
controller. At the beginning of the procedure you print a calibration chart that is used to
calibrate the Creo controller.
Calibrate the Creo controller
1. Click 'Tools' - 'Calibration'.
The 'Color Calibration' window opens.
2. Print the calibration chart.
■At 'Tray', select the location of the media you use mostly.
■At 'Media Type:', define the media you use mostly.
■At 'Screening:', define the screening you use.
The default is 'Dot1'
■At 'Number of copies:', select 5.
Use the last print to calibrate.
■Click 'Print'
The printer performs an automatic calibration adjustment and makes the prints.

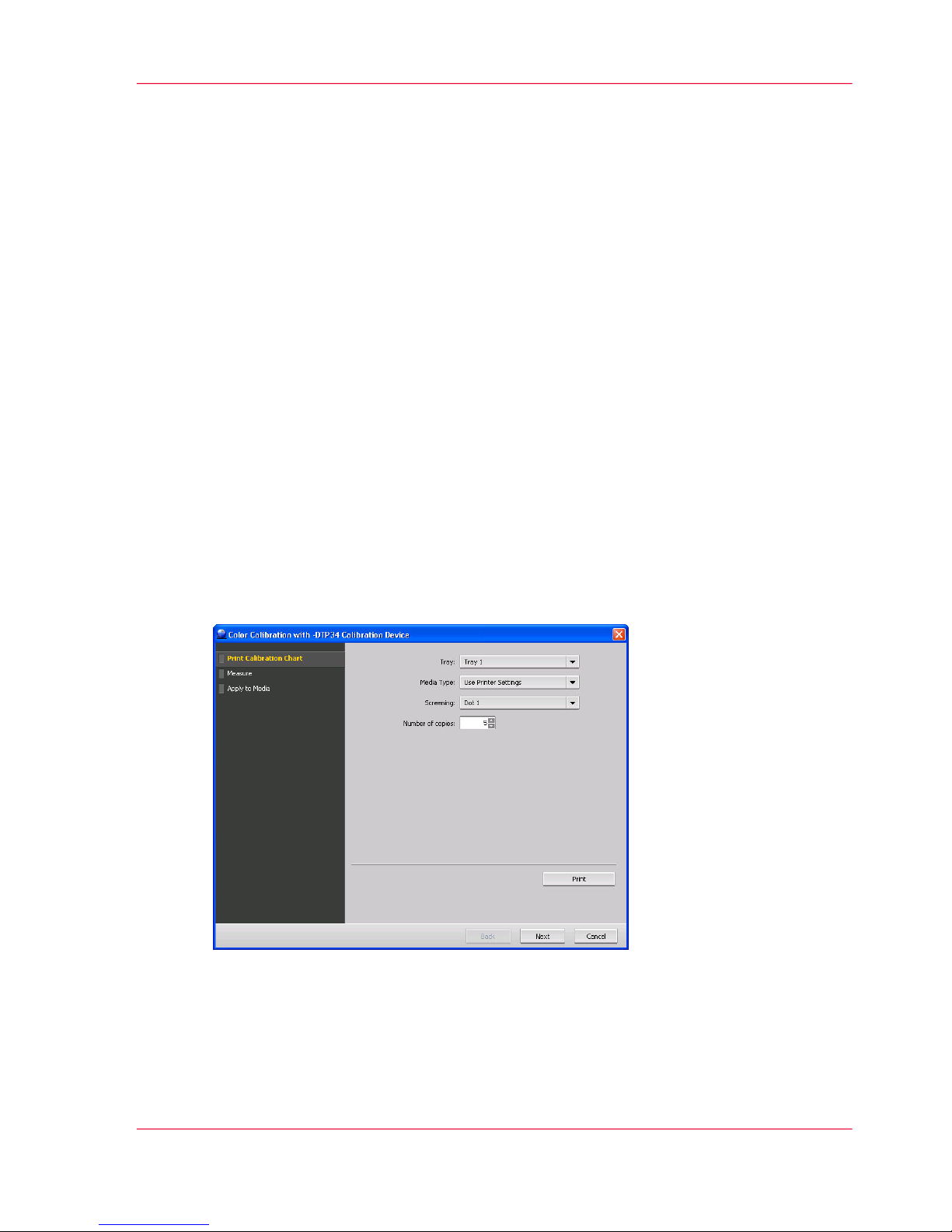

[13] Calibration chart settings
Chapter 3 - Controller calibration 17
3.1 Calibrate the Creo controller

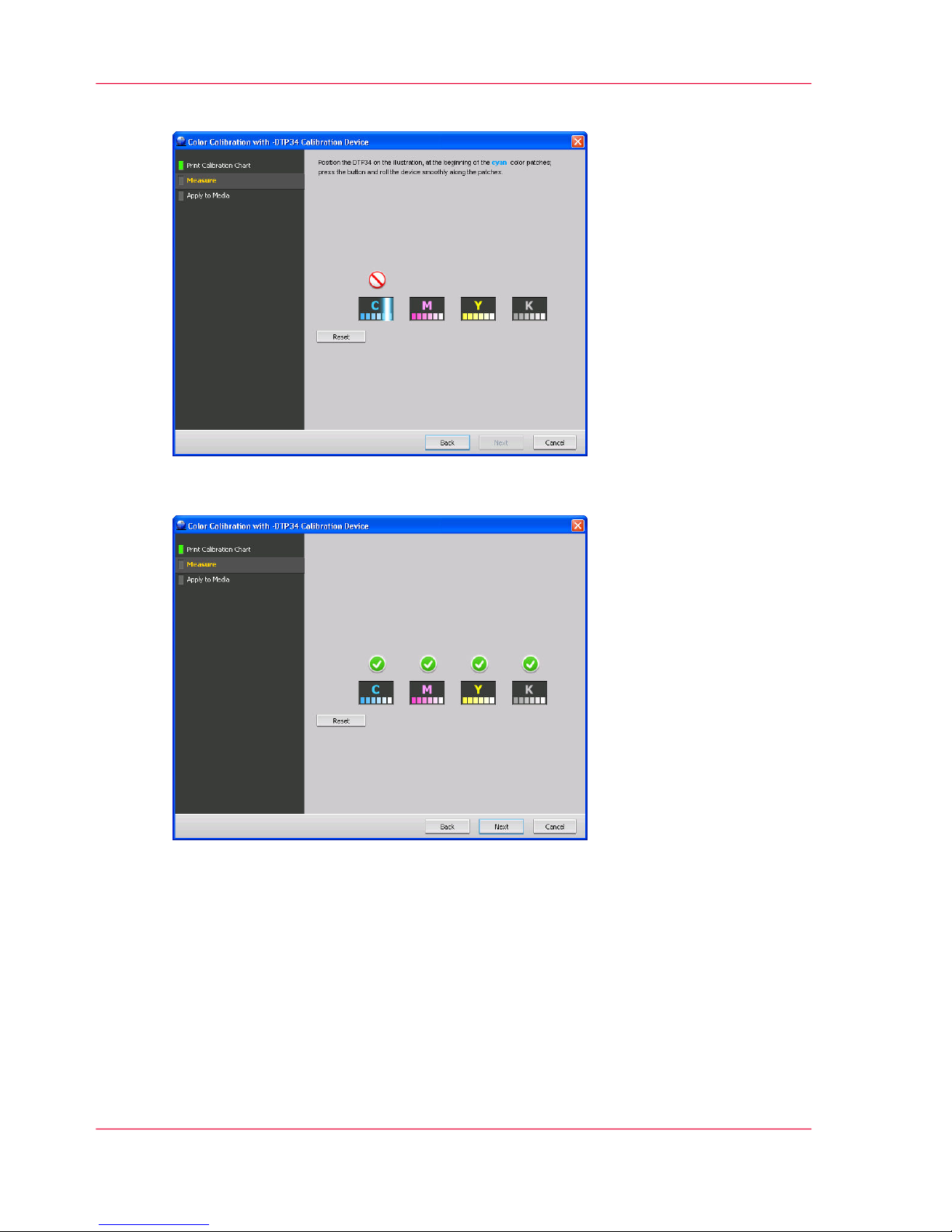

3. Follow the instructions in the 'Color Calibration' window to perform the measurement.
[14] Measurement instructions
4. Click 'Next' after successful calibration.
[15] Calibration successful?
Chapter 3 - Controller calibration18
3.1 Calibrate the Creo controller

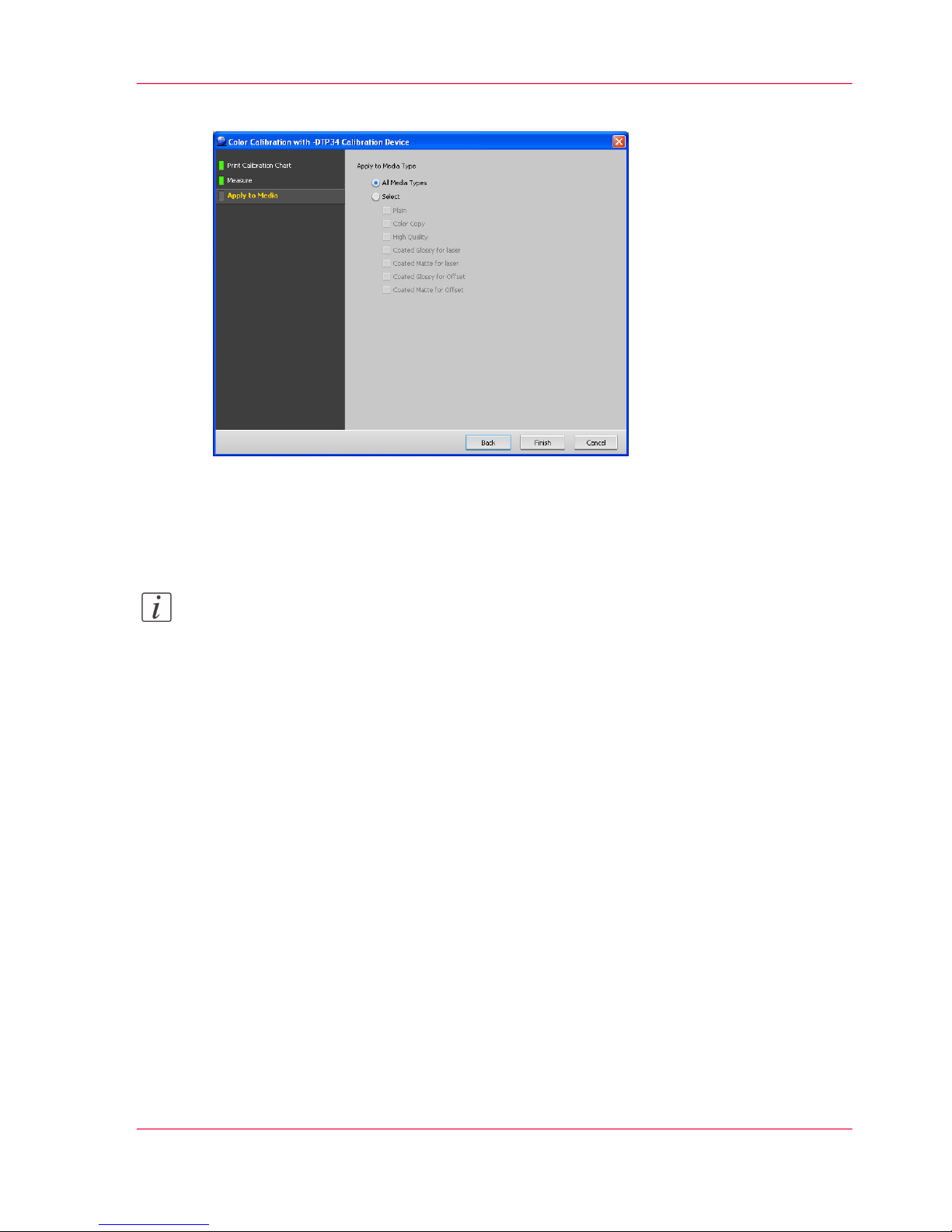

5. Select the media for this calibration.
[16] Media selection window
6. Click 'Finish'.
7. Return to step 2 to calibrate other media you use.
Note:
Follow the above procedure per screen you use.
Result
The Creo controller is calibrated.
Chapter 3 - Controller calibration 19
3.1 Calibrate the Creo controller

3.1 Calibrate the Océ PRISMAsync controller
Introduction
The external controller is either an EFI (IC303/IC305/IC408), a Creo (IC304/IC304Plus)
or an Océ PRISMAsync controller. This procedure describes the calibration of the Océ
PRISMAsync controller. At the beginning of the procedure you print a calibration chart
that is used to calibrate the Océ PRISMAsync controller.
Print a calibration chart
1. From the 'System' view, press 'Calibrate'.
[17] 'System' view
The list of media families appears.
2. Select the 'Media family' you want to calibrate and press 'OK'.
Chapter 3 - Controller calibration20
3.1 Calibrate the Océ PRISMAsync controller
