At least twice a day, perform a velocity
cast and note the cast number.
Note the reading which is at the same
depth as the ES3 head. Input that number
into the ES3 control software.
Using the Digibar software upload and
store the cast on the Hysweep computer.
Convert the cast from a CSV to a VEL.
Using Hysweep, import the cast.
Model DB1200 (DIGIBAR PRO) Procedures

Click to edit Master title style
• Click to edit Master text styles
– Second level
• Third level
– Fourth level
» Fifth level
3Slide 3
odomhydrographic.com, USA, 225.769.3051
Odom
ES3 Setup
3

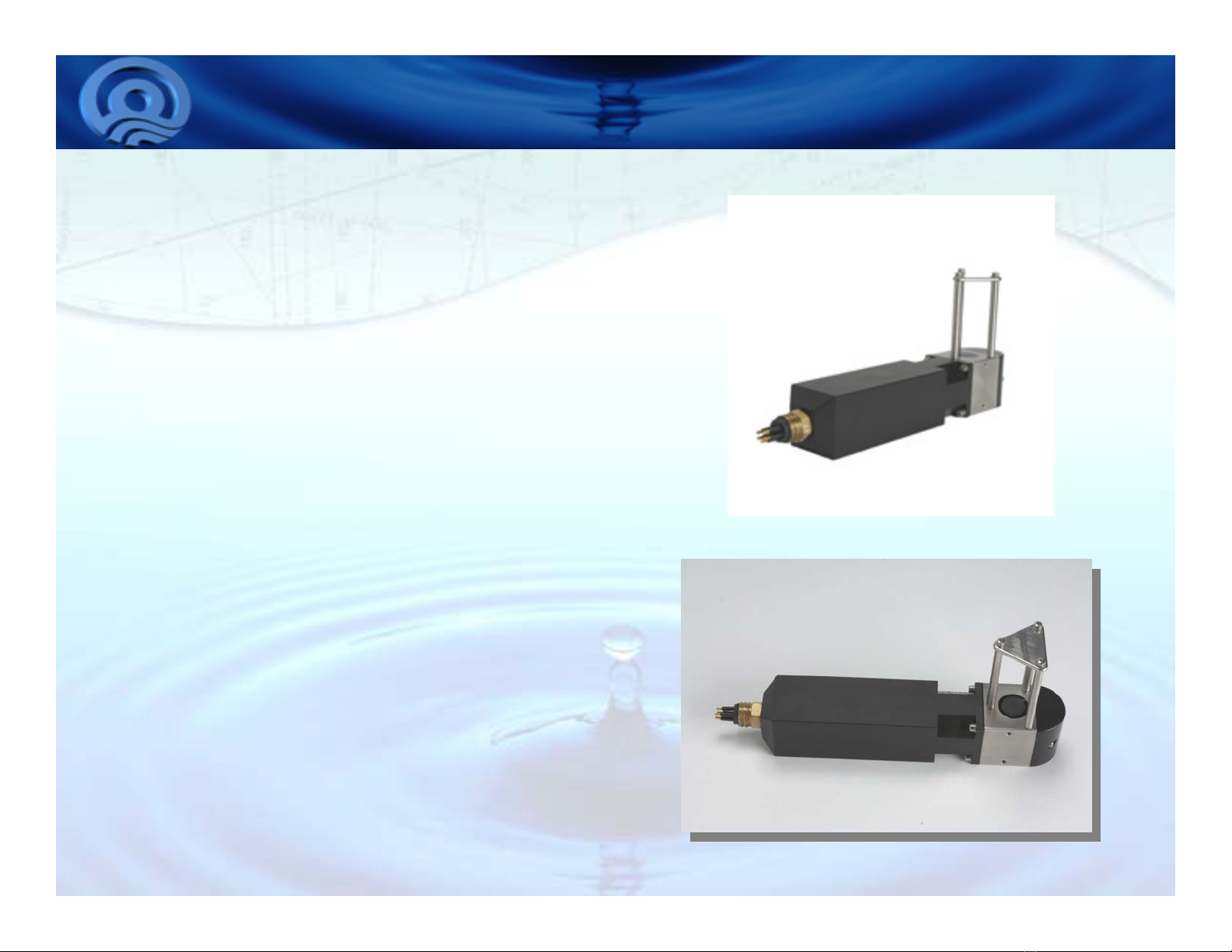

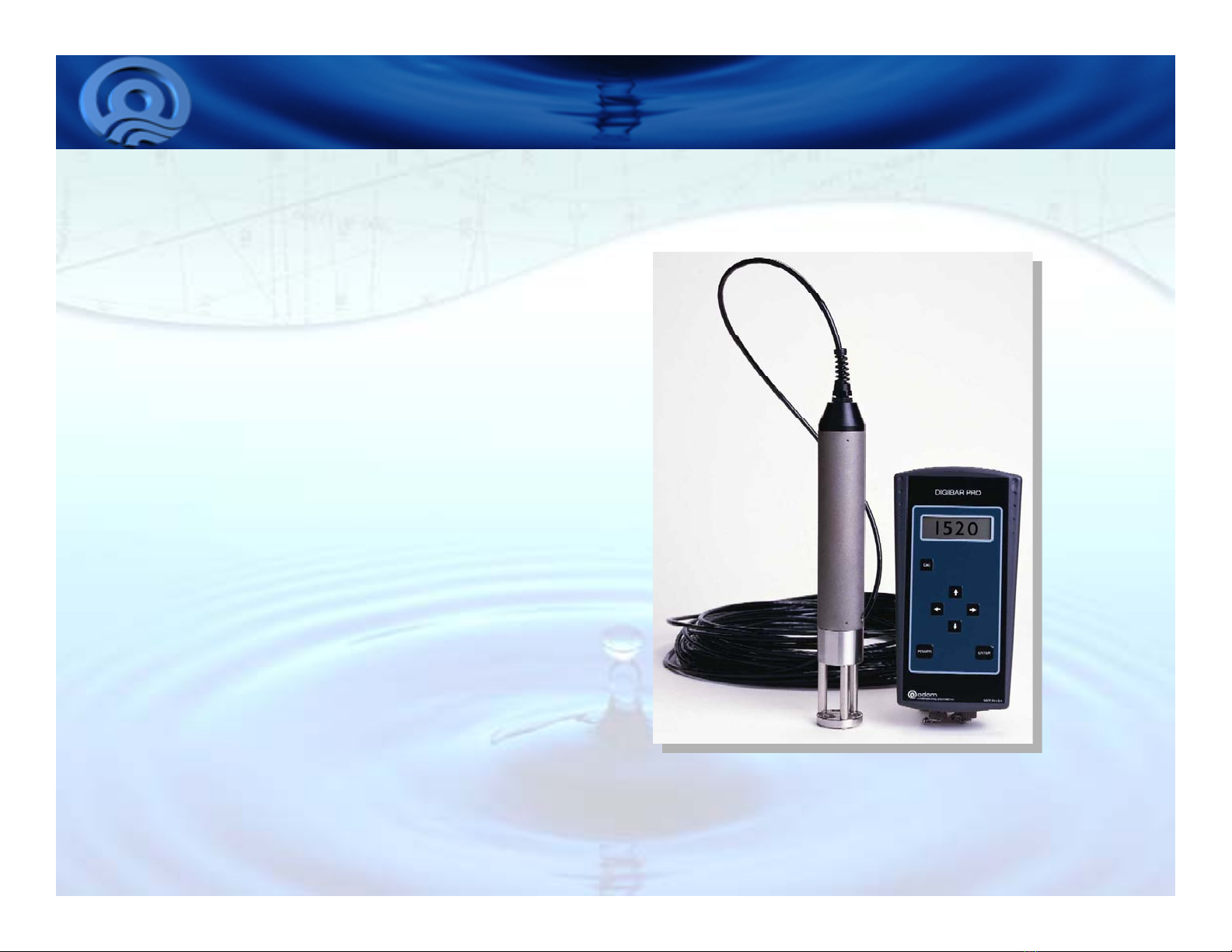

Digibar V
The Digibar V was designed from the beginning to
provide accurate and timely velocity information to
your multibeam system or other acoustic
instrument where knowledge of the speed of
sound in water is required. Output format, update
rate, and baud rates are all adjustable to suit your
application. Digital filtering techniques applied to
the time of flight derived sound velocity, improves
the quality of the data output minimizing false
reading. The compact unit is easy to install
utilizing the tapped holes in the stainless steel
head module and the supplied clamping system.
Connection is via one underwater cable that
supplies both power to the instrument and returns
velocity data to the topside junction box.

Click to edit Master title style
• Click to edit Master text styles
– Second level
• Third level
– Fourth level
» Fifth level
4Slide 4
odomhydrographic.com, USA, 225.769.3051
Odom
ES3 Setup
4

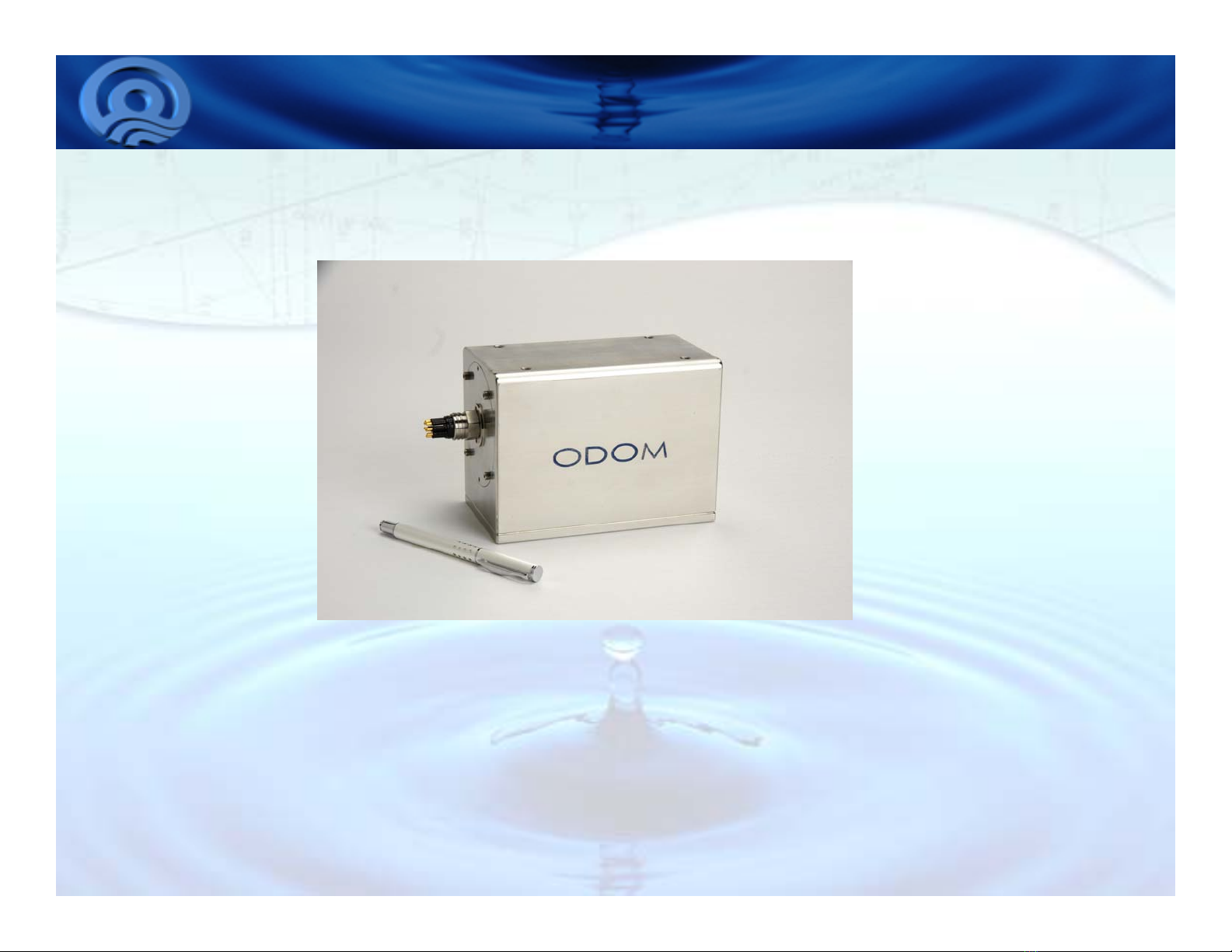

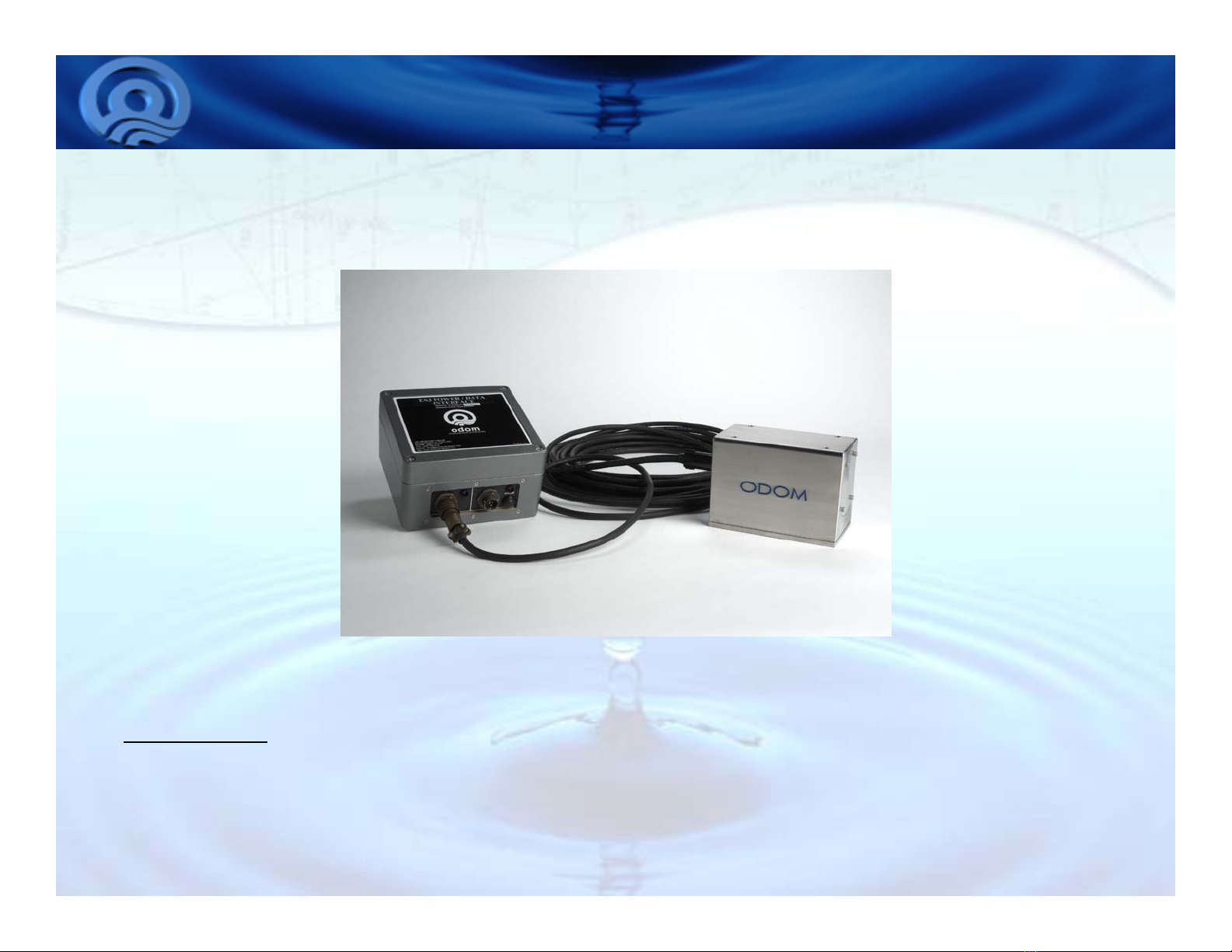

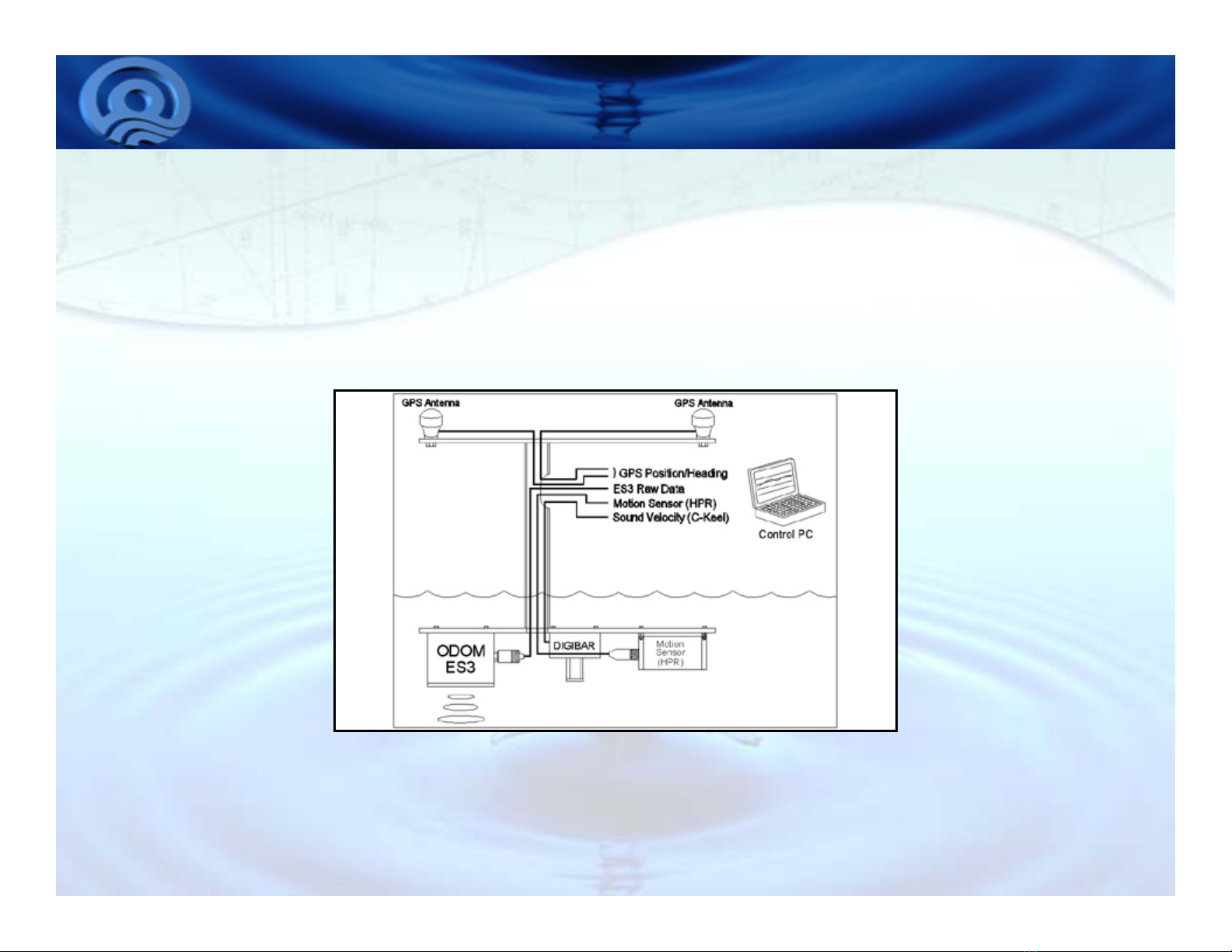

ES3 Multibeam System

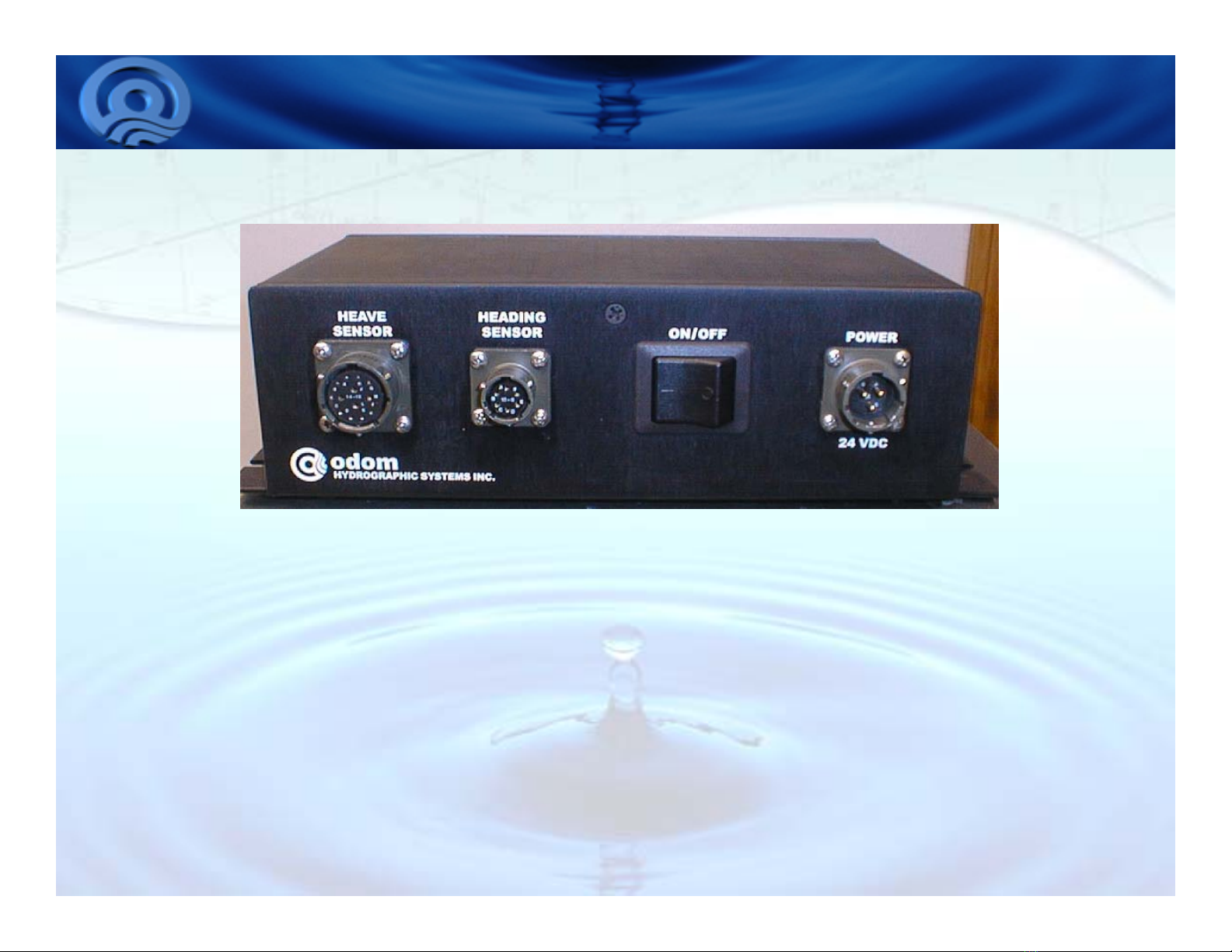

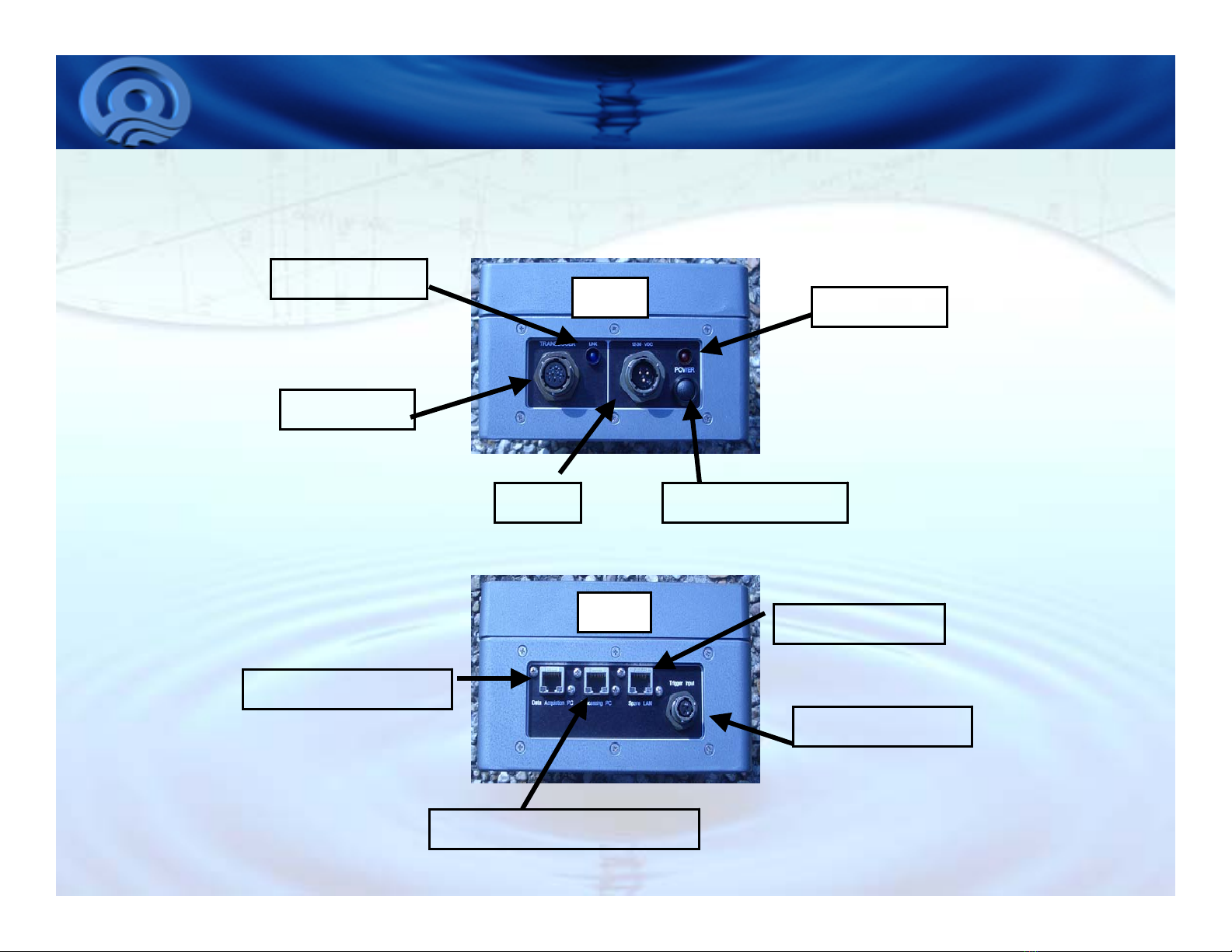

The ES3 is supplied with the transducer/electronics housing, junction box, power cable, transducer cable,
Ethernet cables and software.
* Important Note: A computer is required for the software that is supplied with the ES3. This computer is
in addition to the computer required for the data acquisition computer. Only the software required by the
ES3 should run on this computer during data acquisition. Windows 2000 or Windows XP are compatible
operating systems for this software.

Click to edit Master title style
• Click to edit Master text styles
– Second level
• Third level
– Fourth level
» Fifth level
5Slide 5
odomhydrographic.com, USA, 225.769.3051
Odom
ES3 Setup
5
ES3 Multibeam System
Frequency: 240 kHz, Effective Beam Widths Narrow – 0.75°, Medium – 1.5°, Wide – 3.0°, Number of
Beams : 480, 240 or 120, Range Resolution: .02% of range, Range: 60m (197ft.) water depth,
Ping Rate (PRF)12 Hz at 20m range (Processor and # of real-time beams selected dependent)

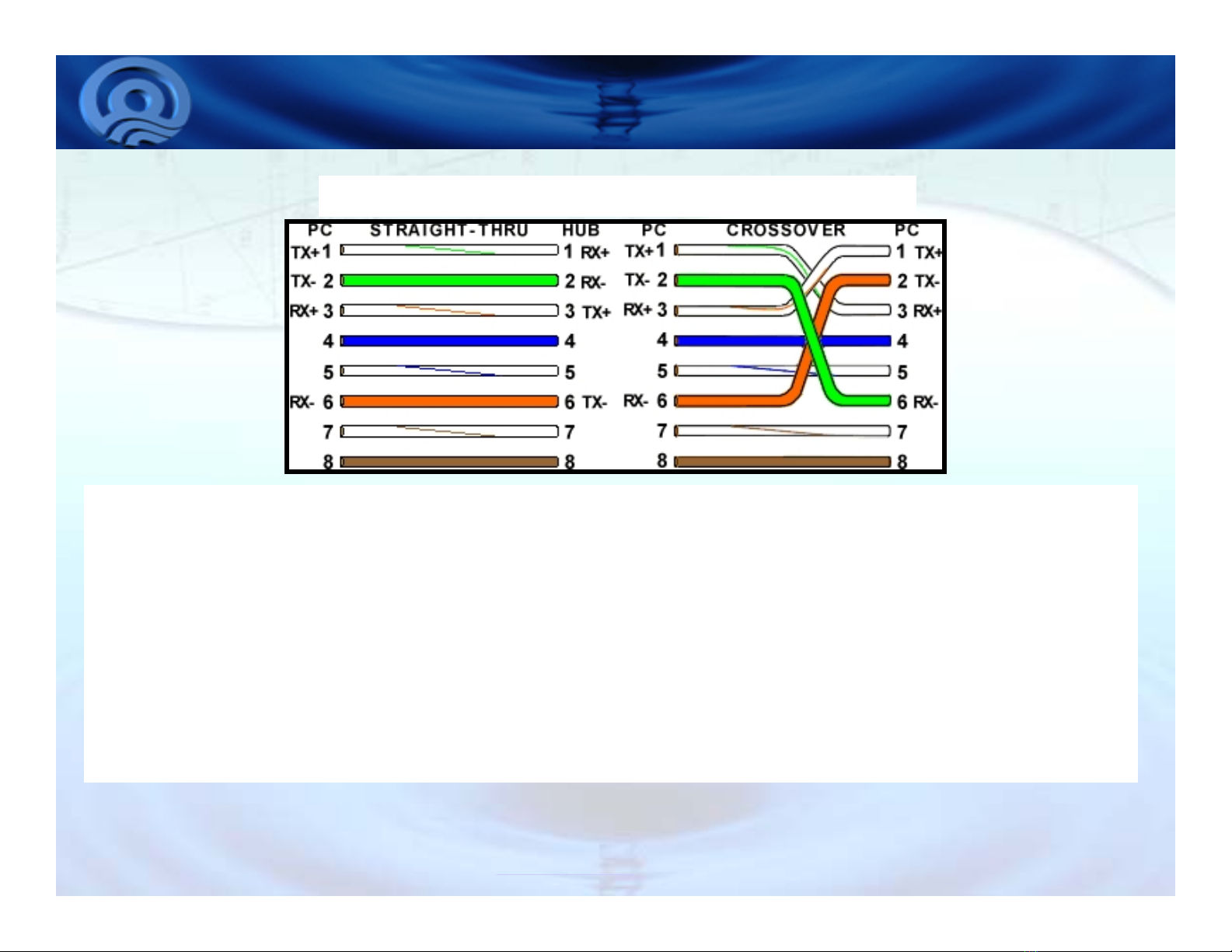

Interface to PC: Ethernet (10 base-T) using TCPIP , Connector:
• Underwater wet-mateable 8
conductor Subconn at transducer end, 8 pin Circular MS type connector at J-Box end, Power Supply 24
VDC nominal (9 to 30 VDC range with J-Box) Dimensions: 193mm (7.86”) L, x 162mm (6.38) H, x 92mm
(3.63) W, Weight: 4kg (10lb) in air, Material: Stainless Steel, Power/Data Interface J-Box: Three (3)
port Ethernet switch (ES3, Data Acquisition PC, and spare)
