OHAUS AS20 User manual

AS20 Compact Stirrer
Instruction Manual
Agitador Compacto AS20
Manual de instrucciones
Agitateur compact AS20
Manuel d’instructions
AS20 便携式搅拌器
使用说明书

AS20 Compact Stirrer EN-1
Table of Contents
1. INTRODUCTION .......................................................................................................... 2
1.1. SAFETY PRECAUTIONS .............................................................................................................. 2
1.2. INTENDED USE ....................................................................................................................... 3
1.3. PACKAGE CONTENTS ............................................................................................................... 3
1.4. CONTROL PANEL..................................................................................................................... 4
2. OPERATION ................................................................................................................ 5
2.1 CONNECTION......................................................................................................................... 5
2.2 OPERATION........................................................................................................................... 5
3. MAINTENANCE ........................................................................................................... 6
3.1 TROUBLESHOOTING................................................................................................................. 6
3.2 CLEANING............................................................................................................................. 6
4. TECHNICAL DATA........................................................................................................ 7
4.1 SPECIFICATIONS...................................................................................................................... 7
5. COMPLIANCE.............................................................................................................. 8

EN-2 AS20 Compact Stirrer
1. INTRODUCTION
This manual contains installation, operation and maintenance instructions for AS20
compact stirrer. Please read it completely before installation and operation.
1.1. Safety precautions
Definition of Signal Warnings and Symbols
Safety notes are marked with signal words and warning symbols. These show safety
issues and warnings. Ignoring the safety notes may lead to personal injury, damage to
the instrument, malfunctions and false results.
WARNING
For a hazardous situation with medium risk, possibly resulting in severe
injuries or death if not avoided.
CAUTION
For a hazardous situation with low risk, resulting in damage to the device
or the property or in loss of data, or minor or medium injuries if not
avoided.
ATTENTION
For important information about the product. May lead to equipment
damage if not avoided.
NOTE
For useful information about the product.
Warning Symbols
General hazard
Explosion hazard
Safety Precautions
CAUTION: Read all safety warnings before installing, making connections, or
servicing this equipment. Failure to comply with these warnings could result
in personal injury and/or property damage. Retain all instructions for future
reference.
Operate the equipment only under ambient conditions specified in these
instructions.
The equipment is for indoor use only.
Do not operate the equipment in wet, hazardous or unstable
environments.
Do not allow liquids to enter the equipment.
Use only approved accessories and peripherals.
Spills should be removed promptly.
Alkalis spills, hydrofluoric acid or phosphoric acid spills may damage the
unit and lead to the unit failure.
Do not immerse the unit for cleaning.
Do not operate the unit if it shows signs of electrical or mechanical
damage.
Place the stirrer on a flat, clean, non-slip workbench, and the non-slip feet
at the bottom must be clean and undamaged.

AS20 Compact Stirrer EN-3
Use a container with suitable size. Place the container in the center of the
container plate, and do not move it
Choose appropriate stirring speed to prevent liquid from spilling out of the
container due to excessively fast speed.
Do not move the stirrer by pulling the power cord to prevent damage to it.
Unplug the power adapter if you do not use the stirrer for a long time.
Make sure the power indicator on the panel goes out.
Service should only be performed by authorized personnel.
In the event of an unexpected power interruption, the stirrer will not
automatically restart.
WARNING: Never work in an environment subject to explosion hazards! The
housing of the instrument is not gas tight. (Explosion hazard due to spark
formation, corrosion caused by the ingress of gases)
WARNING! The protection provided by the unit may be impaired if used with
accessories not provided or recommended by the manufacturer, or used in a
manner not specified by the manufacturer.
WARNING! DO NOT use the unit in a hazardous atmosphere or with
hazardous materials for which the unit was not designed.
CAUTION! To avoid electrical shock, completely cut off power to the unit by
disconnecting the power cord from the unit or unplugging from the wall outlet.
1.2. Intended use
This instrument is intended for use in laboratories, pharmacies, schools, businesses and
light industry. It must only be used for operation described in the manual. Any other type
of use and operation beyond the limits of technical specifications, without written
consent from OHAUS, is considered as not intended. This instrument complies with
current industry standards and the recognized safety regulations; however, it can
constitute a hazard in use. If the instrument is not used according to these operating
instructions, the intended protection provided by the instrument may be impaired.
1.3. Package Contents
AS20 stirrer
Power cord
Stirring bar
User manual
and flyers
AS20 Compact
Stirrer
Instruction Manual

EN-4 AS20 Compact Stirrer
1.4. Control panel
Figure 1-1 Control panel
1. Display screen
2. Power button: press to turn on or off the stirrer.
3. Operation indicator: flashes to display operation status.
4. Power indicator: lights when power is on.
5. Speed control:
a) Press and hold the left side to decrease speed.
b) Press and hold the right side to increase speed.
c) Slide from left to right to increase speed slightly. (10 –40 rpm each time).
d) Slide from right to left to decrease speed slightly. (10 –40 rpm each time).
6. Container plate: place your container on it.
1
3
5
2
4
6

AS20 Compact Stirrer EN-5
2. OPERATION
2.1 Connection
Take out the supplied power cord, and connect each interface to the places according to
the illustration below.

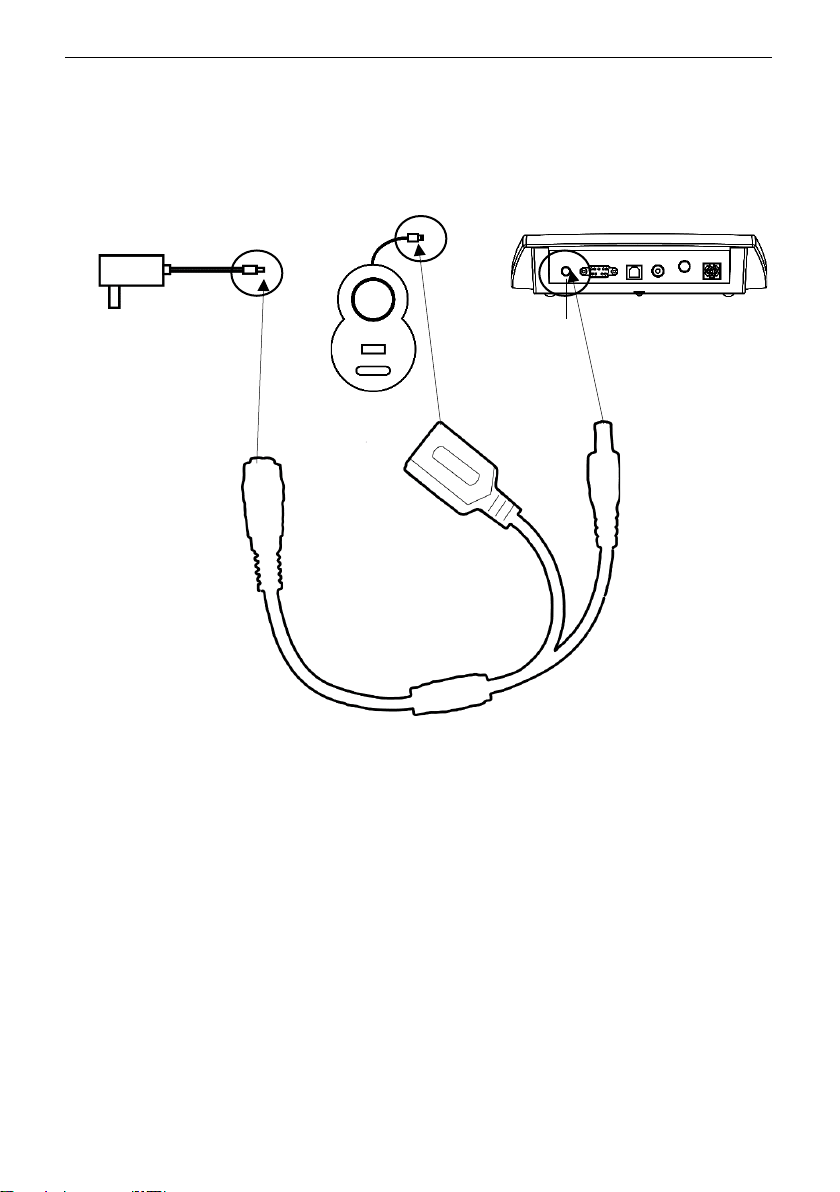

Figure 1-2 Power cord connection
2.2 Operation
1. Connect the stirrer to a bench meter and power supply using the supplied power
cord demonstrated in section 2.1. The power indicator lights up when power is on.
2. Press the power button to turn on the stirrer. The display shows the speed of last
time.
The operation indicator then flashes after 3 seconds while the speed displayed
starts to increase until the speed of the last time is displayed. The operation
indicator thus becomes steady on.
3. You can press or slide the speed control to adjust stirring speed.
a) Press and hold the left side to decrease speed.
b) Press and hold the right side to increase speed.
c) Slide from left to right to increase speed slightly. (10 –40 rpm each time)
d) Slide from right to left to decrease speed slightly. (10 –40 rpm each time)
Connect to the
DC interface of
the bench meter
(Power supply
interface)
Connect to the
interface of the
power adapter
of the bench
meter
Connect to the
AS20 stirrer's
interface
DC

EN-6 AS20 Compact Stirrer
4. After the speed is set, the speed displayed changes to the set one and the
operation indicator returns to being steady on.
3. MAINTENANCE
3.1 Troubleshooting
Error
Possible Solution
Unable to turn on
the stirrer
If the power indicator is off, check the power cord and power
adapter. Make sure they are plugged in and the connection is
correct.
The power indicator should be on if the above is correct.
Stirring bar is not
moving
1. Check if the container is made by an easily magnetized
material. Use a glass container instead.
2. Check if the stirring bar is damaged and replace it with
a new one.
Irregular jumping of
the stirring bar
1. Check if the container deviates from the center of the
container plate. Move the container to the correct
position.
2. Check if the stirring bar is damaged. Replace it with a
new one.
3. Check if the bottom of the container is irregular.
Decrease the stirring speed until the stirring bar
becomes stable, or replace a new container.
Note: If the troubleshooting section does not resolve your problem, contact an OHAUS
technical support agent. For assistance in the United States, call toll-free 1-800-526-
0659 between 8:00 AM and 5:00 PM Eastern Standard Time. An OHAUS Technical
Support Specialist will be available to assist you. Outside the USA, please visit our
website www.ohaus.com to locate the OHAUS office nearest you.
3.2 Cleaning
The housing may be cleaned with a cloth dampened with a mild detergent if necessary.
Wear work gloves when cleaning.
WARNING: Electric Shock Hazard. Disconnect the equipment from
the power supply before cleaning.
Make sure that no liquid enters the interior of the instrument.
Attention: Do not use solvents, harsh chemicals, ammonia or
abrasive cleaning agents.

AS20 Compact Stirrer EN-7
4. TECHNICAL DATA
4.1 Specifications
Equipment Ratings:
Indoor use only
Altitude:
0 to 2000m
Operating temperature:
5 to 40°C
Storage temperature:
-20 to 65°C
Operating Humidity:
20 to 85% relative humidity, non-condensing
Storage Humidity:
20 to 85% relative humidity, non-condensing
Electrical Supply:
12VDC, 0.1A. (For use with certified or approved power
supply, which must have a SELV and limited energy
output.)
Voltage fluctuations:
Mains supply voltage fluctuations up to ±10% of the
nominal voltage.
Overvoltage category
(Installation category):
II
Pollution degree:
2
Model
AS20 compact stirrer
Adjustable speed range
60-1500 r/min
Display
LCD
Length of the stirring bar
20 –30 mm
Maximum stirring capacity
1 liter
Maximum weight capacity
(H2O)
1.5 kg
Working plate material
Polypropylene
Size
190*130*12 mm (diameter)
Weight
0.2 kg
Ambient temperature
5 - 40 °C

EN-8 AS20 Compact Stirrer
5. COMPLIANCE
Compliance to the following standards is indicated by the corresponding mark on the
product.
Mark
Standard
This product complies with the applicable harmonized standards of
EU Directives 2011/65/EU (RoHS), 2014/30/EU (EMC) and
2014/35/EU (LVD). The EU Declaration of Conformity is available
online at www.ohaus.com/ce.
This product complies with the EU Directive 2012/19/EU (WEEE).
Please dispose of this product in accordance with local regulations at
the collecting point specified for electrical and electronic equipment.
For disposal instructions in Europe, refer to www.ohaus.com/weee.
EN 61326-1
ISED Canada Compliance Statement:
CAN ICES-003(A) / NMB-003(A)
ISO 9001 Registration
The management system governing the production of this product is ISO 9001 certified.

AS20 Compact Stirrer EN-9
FCC Supplier Declaration of Conformity
Unintentional Radiator per 47CFR Part B
Trade Name: OHAUS CORPORATION
Model or Family identification: AS20
Issuing Party that Assembled the Product:
Ohaus Instruments (Changzhou) Co., Ltd.
2F, 22 Block, 538 West Hehai Road, Xinbei District, Changzhou
Jiangsu 213022
China
Phone: [phone]
Responsible Party –U.S. Contact Information:
Ohaus Corporation
7 Campus Drive, Suite 310
Parsippany, NJ 07054
United States
Phone: [phone]
Web: www.ohaus.com
FCC Compliance Statement:
Note: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

EN-10 AS20 Compact Stirrer
LIMITED WARRANTY
OHAUS products are warranted against defects in materials and workmanship from the
date of delivery through the duration of the warranty period. During the warranty period
OHAUS will repair, or, at its option, replace any component(s) that proves to be
defective at no charge, provided that the product is returned, freight prepaid, to OHAUS.
This warranty does not apply if the product has been damaged by accident or misuse,
exposed to radioactive or corrosive materials, has foreign material penetrating to the
inside of the product, or as a result of service or modification by other than OHAUS. In
lieu of a properly returned warranty registration card, the warranty period shall begin on
the date of shipment to the authorized dealer. No other express or implied warranty is
given by OHAUS Corporation. OHAUS Corporation shall not be liable for any
consequential damages.
As warranty legislation differs from state to state and country to country, please contact
OHAUS or your local OHAUS dealer for further details.
