Ranger 1000 Series instruction Manual
Manual de Instrucciones de la serie Ranger 1000
Manuel d’instruction Série Ranger 1000
Bedienungsanleitung zur Ranger 1000-Serie
Manuale di istruzioni della Serie Ranger 1000

ii

RANGER 1000 SERIES EN-1
1. INTRODUCTION ............................................................................... EN-2
1.1 Product Description................................................................. EN-2
1.2 General Features..................................................................... EN-2
1.3 Definition of Signal Warnings and Symbols................................EN-3
2. INSTALLATION ................................................................................. EN-5
2.1 Unpacking ............................................................................. EN-5
2.2 Installing Components............................................................. EN-5
2.3 Selecting the Location ............................................................. EN-5
2.4 Leveling the Scale................................................................... EN-5
2.5 Connecting Power................................................................... EN-6
2.5.1 AC Power...................................................................... EN-6
2.5.2 Battery Power................................................................ EN-6
2.6 Initial Calibration .................................................................... EN-6
3. OVERVIEW OF CONTROLS AND FUNCTIONS........................................ EN-7
3.1 Display Symbols .................................................................... EN-7
3.2 Controls and Functions............................................................ EN-7
4. OPERATIONS................................................................................... EN-8
4.1 Switching the Unit On and Off................................................... EN-8
4.2 Manual Tare........................................................................... EN-8
4.3 Zero Operation........................................................................ EN-8
4.4 Changing Weighing Units ........................................................ EN-8
4.5 Accumulation..........................................................................EN-9
5. SCALE SETTINGS ........................................................................... .EN-10
5.1 Backlight ......... .....................................................................EN-10
5.2 Zero Tracking Range ............................................................. .EN-10
5.3 Filtering. .............................................................................. .EN-10
6. CALIBRATION ..................................................................................EN-11
7. RESTORE TO FACTORY SETTINGS ......................................................EN-11
8. TROUBLESHOOTING.........................................................................EN-12
9. TECHNICAL DATA.............................................................................EN-13
WARRANTY ........................................................................................ .EN-16

EN-2 RANGER 1000 SERIES
1. INTRODUCTION
This manual contains installation, operation and maintenance instructions for the
Ranger 1000 Series Weighing Scale. Please read the manual completely before
installation and operation.
1.1 Product Description
The Ranger 1000 Series is an economical compact bench scale that offers accuracy,
durability and portability in an easy-to-use design for light industrial general weighing
applications.
1.2 General Features
  • Capacitymodels:3kg,6kg,15kg,30kgwithmaximumdisplayed 
   resolutionof1:15,000
  • Stainlesssteelweighingpan
  • Durableplastichousing
  • 1-window,backlitLCDwithprominent25mmhighdigits
  • Fastdisplay< 2 seconds of weight and count results
  • kg,g,lbandozweighingunits
  • DedicatedTAREkeyforsimpleandfastoperation
  • Accumulationfunction
  • Applicationmodes:WeighingandAccumulation
  • 80-hourInternalrechargeablebatterywithpower-savingAuto-shutoff

Ranger 1000 Series EN-3
1.3 Definition of Signal Warnings and Symbols
Safety notes are marked with signal words and warning symbols. These show
safety issues and warnings. Ignoring the safety notes may lead to personal
injury, damage to the instrument, malfunctions and false results.
Signal Words
CAUTION For a hazardous situation with low risk, resulting in
damage to the device or the property or in loss of
data, or injuries if not avoided.
Attention For important information about the product
Note For useful information about the product
Warning Symbols
General Hazard Electrical Shock Hazard
Alternating Current Direct current
1.4 Safety Precautions
CAUTION: Read all safety warnings before installing, making
connections, or servicing this equipment. Failure to comply with
these warnings could result in personal injury and/or property
damage. Retain all instructions for future reference.

EN-4Ranger 1000 Series
 Verify that the AC Adapter’s input voltage range and plug type match
the local AC power to be used.
Do not position the scale such that it is difficult to disconnect the
power cord from the power receptacle.
Make sure that the power cord does not pose a potential obstacle or
tripping hazard.
Operate the equipment only under ambient conditions specified in
these instructions.
Do not operate the equipment in hazar dous or unstable environments.
This scale is for indoor use only.
Use the scale in dry locations only.
Do not drop loads on the pan.
Use only approved accessories and peripherals.
Disconnect the equipment from the power supply when cleaning.
Service should only be performed by authorized personnel.

RANGER 1000 SERIES EN-5
2. INSTALLATION
2.1 Unpacking
Unpackandverifythatthefollowingcomponentshavebeenincluded:
 • ScaleUnit
 • WeighingPlatform(plasticpanwithstainlesssteelcover)
 • InstructionManual
 • ACAdapter
Save the packaging material. This packaging ensures the ideal protection for the
storage or transport of the product.
2.2 Installing Components
Position the weighing platform pins into the through-holes on the top housing, then
set the platform securely into place. Secure the in-use cover with double-sided tape
as needed. IMPORTANT:
 • Beforeusingthescale, remove the shipping protection screw located
underneath the scale. This screw ensures protection of the load cell during
transport, but will need to be removed for the scale to operate properly.
 • Itisrecommendedthattheprotectivescrewbere-installediftransportingthe
scale. Do not over-tighten the protective screw as it may damage the load
cell. To re-install, turn the scale on and place a 500g weight on the pan,
then slowly screw in the protection screw until the display shows a value
between 250g to 400g.
2.3 Selecting the Location
Operate the scale on a firm, level surface. Avoid locations with rapid temperature
changes,excessiveaircurrents,vibrations,electromagneticfields,heatordirect
sunlight.
2.4 Leveling the Scale
Adjust the leveling feet until the bubble is centered in the circle of the level indicator
(locatedonthefrontpanel).
Attention:Ensurethatthescaleisleveleachtimeitslocationischanged.

EN-6 RANGER 1000 SERIES
2.5 Connecting Power
2.5.1 AC Power
Verify that the intended AC power source matches the AC adapter rating. Connect the
supplied AC adapter to the power input receptacle underneath the scale. Plug the AC
adapter into a properly grounded power outlet.
2.5.2 Battery Power
The battery will begin charging with the AC adapter connected accordingly. An LED
indicatorbelowandtotherightofthedisplayshowsthestatusofbatterycharging:
 • Green –batteryisfullycharged
 • Yellow –batteryispartiallychargedandcharging
 • Red –batteryisnearlydischarged
When AC power is not available, the scale will operate on the internal rechargeable
battery. The scale will automatically switch to battery operation if there is a power
failure or the power cord is removed. Low battery charge is indicated by the low
batteryannunciatoronthedisplay(thescalewilloperateforapproximately10hours
morebeforeautomaticallyswitchingoff).
Before using the scale for the first time, the internal rechargeable battery should be
fully charged for up to 12 hours. A fully charged battery can operate the scale for
approximately80hoursindependentofACpower.Thescalecanbeoperatedduring
the charging process. The battery is protected against overcharging and the scale can
remain connected to the AC power line.
Attention:
  • Thebatterymustberechargedevery3monthsifthescaleisnotused
for a long time.
  • Replacethebatteryifitdoesnotchargeorholdafullcharge.
  • Disposeoftheleadacidbatteryaccordingtolocallawsandregulations.
CAUTION
BATTERY IS TO BE REPLACED ONLY BY AN AUTHORIZED SERVICE
DEALER. RISK OF EXPLOSION CAN OCCUR IF REPLACED WITH THE
WRONG TYPE OR CONNECTED IMPROPERLY.
2.6 Initial Calibration
When the scale is operated for the first time, a Span Calibration is recommended to
ensure accurate weighing results. Before performing the calibration, be sure to have
the appropriate calibration weights.
Refer to Section 6 for Span Calibration procedures.

RANGER 1000 SERIES EN-7
3. OVERVIEW OF CONTROLS AND FUNCTIONS
3.1 Display Symbols
3.2 Controls and Functions
   • Zerothedisplay     
   • Confirmtheparametersmodificationandmovetonextsettingin
User Menu setting
   • Togglestothenextweighingunit
   • ModifytheparameterinUserMenusetting
• InputstheweightoftheobjectontheweighingpanasaTare 
value
   • Returntothelastparametersettingwithoutconfirmingcurrent
modification
   • Addstheindicatedweightorpiececountingvalueinto 
Accumulation memory
   • LongpresstoentertheUserMenusetting
• Skipstothenextparametersettingorexitstonormaloperation
NET

EN-8 RANGER 1000 SERIES
4. OPERATIONS
4.1 Switching the Unit On and Off
The power switch is located underneath the right-hand side of the scale. Push the
switch to the “I” position to turn the scale on, and to the “O” position to turn the scale
off. Allow 15-30 minutes for the scale to warm up before use.
Note:Makesuretheweighingpanisemptybeforeturningthescaleon.

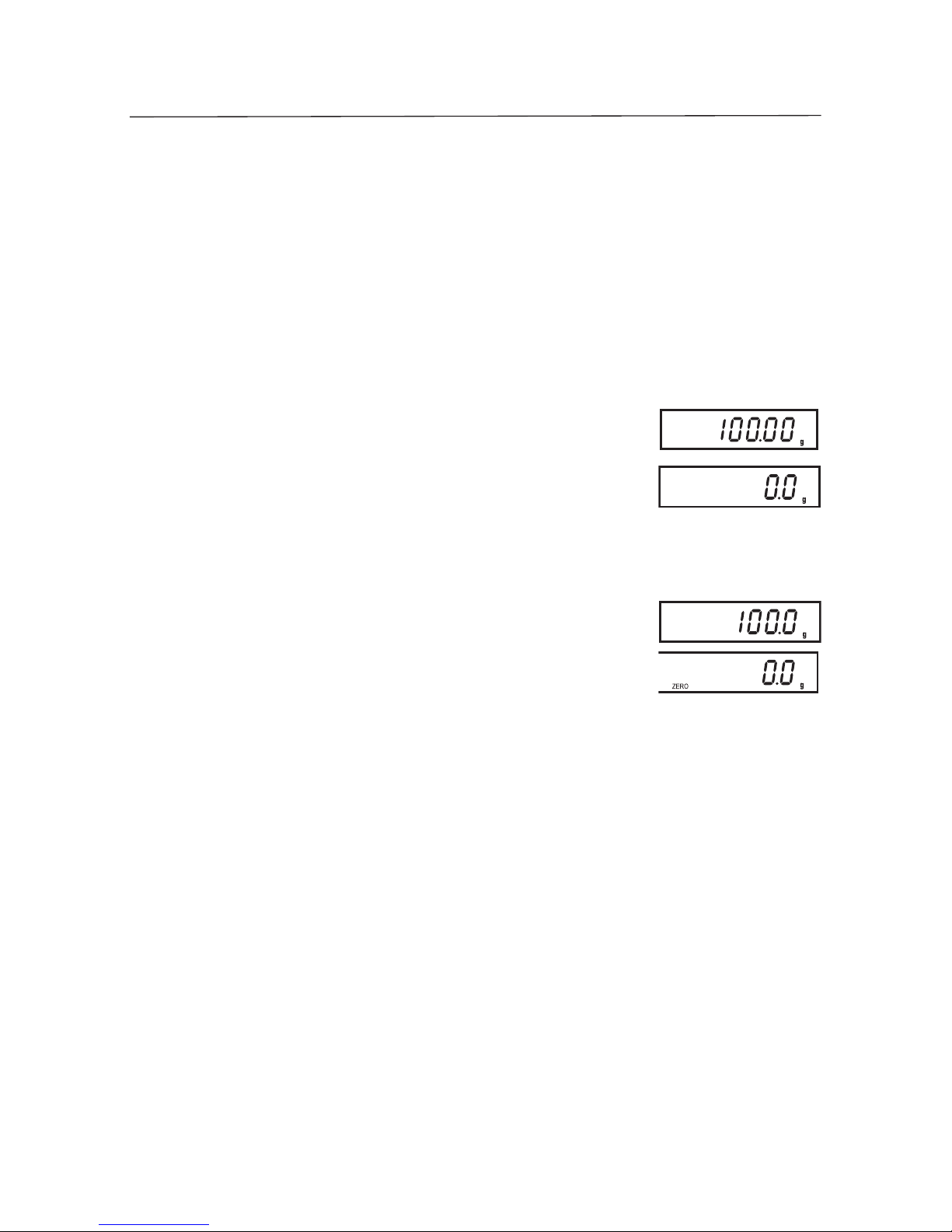

4.2 Manual Tare
A Tare value in memory is indicated by “NET” on the display.
Placethecontainerontheweighingpan(ex.100g),thenpress
TARE.
The weight is tared and display will show “0”.
To clear the Tare value, press TARE with the pan empty.
4.3 Zero Operation
Center of Zero is indicated by “ZERO” on the display.
Press ZERO. “------” will be displayed momentarily before the
displayiszeroed.
4.4 Changing Weighing Units
Press UNITS successively to toggle through the available
weighing units.
NET

RANGER 1000 SERIES EN-9
4.5 Accumulation
Placetheitemtobeweighedonthepan(ex.300g)thenpress
M+. The accumulation entry “ACC 01” is displayed
momentarily indicating number of accumulations before
showing the total weight and then returns to normal weighing
mode.
Toperformthenextaccumulationoperation,thescalemustbe
returnedtozero.
To display the total accumulation times and weight, press
M+ key when the weight on the pan is less than 10d, then
the display will show the accumulation times and total weight
successively before returning to normal weighing mode after 4
seconds.
To clear the accumulation data, when the display shows the
accumulation data press No. key to clear the data.
ACC 01

EN-10 RANGER 1000 SERIES
5. SCALE SETTINGS
• Innormalweighingmode,longpressthe Exit key to enter the User Menu
setting.
  InSetupmode:
o Press No to modify the parameters.
o Press Yes toacceptthedisplayedsettingandproceedtothenext 
parameter
o Press Back to return to last parameter setting without confirming
current modification
o Press Exit toproceedtothenextparameterwithoutsavingany 
changes

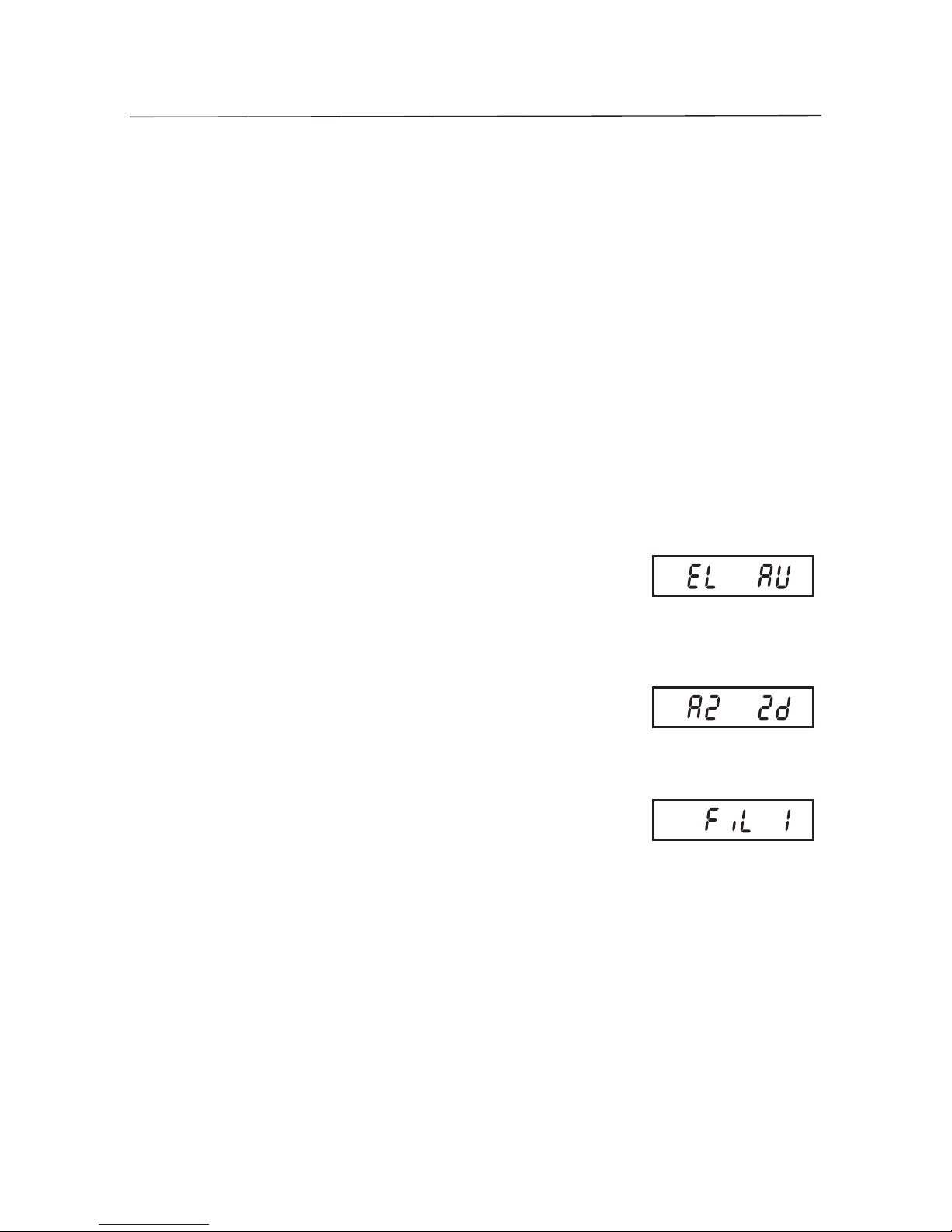

5.1 Backlight
Sets the activation mode of the backlight.
Thefollowingsettingsareavailable:AU(Auto-onwithitems
greater than 9d placed on the pan or any key is pressed; turns
offafter5secondsofinactivity),on,oFF.
Note
Press Yes toconfirmthebacklightsettingandmovetonext
setting; or press Back to return to last setting.
5.2 Zero Tracking Range
Setstherangeinwhichthezeroreadingismaintained.
Thefollowingsettingsareavailable:0.5d,1d,2d,4d(d=
scaledivision)
5.3 Filtering
Sets the level in which the Stable indication turns on; the higher
thesetting,thefasterthestabilizationtime.
Thefollowingsettingsareavailable:0,1,2,3(levels) 

RANGER 1000 SERIES EN-11
6. CALIBRATION
For best results, calibrate the scale at regular intervals. Temperature changes,
gravity variations, altitude changes and abuse are few reasons why a scale may
need recalibration.
When the scale is ideally positioned for operation, enter calibration and proceed as
follows:
Long-press ZERO and UNIT at the same time to initiate
calibration. The required calibration weight flashes on the
display(ex.3000g).
At this time, a different calibration weight value can be selected by pressing UNIT.
Available selections are 1/3, 2/3 and 100% of full capacity.
Once the desired value is displayed, place the corresponding weight on the pan.
The display flashes until the actual weight is registered and the calibration process
ends(thescalere-starts).Atthistime,removetheweightonthepanbeforethe
display count-down sequence ends.
Notes:
•The calibration can be performed only when the unit is g, kg or lb.
•The calibration weight value can be changed by pressing UNIT key when
thevalueisflickering:1/3Max,2/3Maxor3/3Max.
7. RESTORE TO FACTORY SETTINGS
During the self-testing period after power on, press Tare and UNIT key at the same
time to reset the scale. The scale will now be restored to factory settings.

EN-12 RANGER 1000 SERIES
8. MAINTENANCE
8.1 Cleaning
CAUTION: Disconnect the Ranger 1000 Scale from the power supply before
cleaning.
The housing may be cleaned with a cloth dampened with a mild detergent if
necessary.
Attention: Do not use solvents, chemicals, alcohol, ammonia or abrasives to clean
the housing or control panel. Do not allow liquids to enter the housing.
8.2 TROUBLESHOOTING
The following table lists common problems, possible causes and remedies. Should
further problems persist, please contact your local servicing dealer.
Symptom Possible Causes Remedy
Scale will not turn on AC power not connected.
Battery discharged.
Connect scale to power.
Battery fails to charge
fully
Battery defective or past
its useful life.
Replace battery by an
authorizedservicedealer.
Weight reading does
notstabilize
Unstable environment.
Interference under pan.
Ensure a stable
environment.
Ensure that the weighing
pan is unobstructed and
free to move.
Scale does not display
accurately
Improper calibration. Calibrate the scale using
proper calibration weights.
E1 error code displayed EPROM data loss. Replace the scale.
E2 error code displayed
E3 error code displayed
A/D count is not correct.
Display capacity
exceeded
Have the load cell replaced.
Ensure display capacity is
notexceeded
8.3 Service Information
If the troubleshooting section does not resolve or describe your problem,contact your
authorizedOHAUSserviceagent.Forserviceassistanceortechnicalsupportinthe
UnitedStatescalltoll-free1-800-526-0659between8:00AMand5:00PMEST.An
OHAUS product service specialist will be available to provide assistance. Outside the
USA, please visit our web site,www.ohaus.com to locate the OHAUS office nearest
you.

RANGER 1000 SERIES EN-13
Model R11P3 R11P6 R11P15 R11P30
CapacityxReadability 3kgx0.0002kg
3000gx0.2g
6lbx0.0005lb
96x0.01oz
6kgx0.0005kg
6000gx0.5g
15lbx0.001lb
240x0.02oz
15kgx0.001kg
15000gx1g
30lbx0.002lb
480x0.05oz
30kgx0.002kg
30000gx2g
60lbx0.005lb
960x0.1oz
MaximumDisplayed
Resolution 1:15000 1:12000 1:15000 1:15000
Construction Stainless steel pan, plastic housing
Weighing Units kg,g,lb,oz
Application Modes Weighing, Accumulation
Display 1- window backlit LCD display, 25.4 mm/1” High, 6-digit, 7-segment
Display Indicators Stability, Center of Zero, Gross, Tare, Battery status, Units
Hi-Lo Check Indicators Display with Alert beeper
Keyboard 4 Function Membrane switch
Zero Range 4% of Full Scale Capacity
Tare Range Full Capacity by Subtraction
StabilizationTime ≤2seconds
Operating Temperature 0° to 40°C
Power 100-240V~0.3A50/60Hzinput12V1A output AC Adapter
Internal rechargeable sealed lead acid battery
Battery Life 80 hours continuous use with 12 hour recharge time
Calibration Automaticexternalwithkg/gmass,factorycalibrationrecovery
Shipping Protection Shipping screw to avoid damage to sensitive components
Safe Overload Capacity 150% of capacity
PanSize 294x226mm/11.6”x8.9”
Scale Dimensions
WxHxD 325x330.5x114mm/12.8”x13”x4.5”
Shipping Dimensions
WxHxD 440x360x160mm/17.3”x14.2”x6.3”
Net Weight 4.2 kg / 9.3lb
Shipping Weight 5.3kg / 11.7lb
Other Features Auto-ZeroTracking,Accumulation/Totalization
9. TECHNICAL DATA
Thetechnicaldataisvalidunderthefollowingambientconditions:
- Indoor use only
-Operatingtemperature:0°C(32°F)to40°C(104°C)
-Humidity:Maximumrelatviehumidity80%fortemperaturesupto30°Cdecreasinglinearlyto50%relativehumidity
at 40°C
-Altitude:Upto2000m
-Mainssupplyvoltagefluctuations:Upto±10%ofthenominalvoltage
-InstallationCategory:II
-PollutionDegree:2

EN-14 RANGER 1000 SERIES
Compliance
Compliance to the following standards is indicated by the corresponding mark on the
product.
Marking Standard
This product conforms to the EMC Directive 2004/108/EC and
the Low Voltage Directive 2006/95/EC. The complete Declaration
of Conformity is available online at
europe.ohaus.com/europe/en/home/support/compliance.aspx
EC Emissions Note
This device complies with EN55011/CISPR 11 Class B Group 1.
FCC Note
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
ownexpense.
ISO 9001 Registration
In 1994, Ohaus Corporation, USA, was awarded a certificate of registration to
ISO9001byBureauVeritusQualityInternational(BVQI),confirmingthatthe
Ohaus quality management system is compliant with the ISO 9001 standard’s
requirements. On May 21, 2009, Ohaus Corporation, USA, was re-registered to the
ISO9001:2008standard.
Industry Canada Note
This Class A digital apparatus complies with Canadian ICES-001.

RANGER 1000 SERIES EN-15
Disposal
In conformance with the European Directive 2002/96/EC on Waste
ElectricalandElectronicEquipment(WEEE)thisdevicemaynotbe
disposed of in domestic waste. This also applies to countries outside
the EU, per their specific requirements.
The Batteries Directive 2006/66/EC introduces new requirements from
September 2008 on removability of batteries from waste equipment in
EU Member States. To comply with this Directive, this device has been
designed for safe removal of the batteries at end-of-life by a waste
treatment facility.
Please dispose of this product in accordance with local regulations at
the collecting point specified for electrical and electronic equipment.
If you have any questions, please contact the responsible authority or
the distributor from which you purchased this device.
Shouldthisdevicebepassedontootherparties(forprivateor
professionaluse),thecontentofthisregulationmustalsoberelated.
For disposal instructions in Europe, refer to
europe.ohaus.com/europe/en/home/support/weee.aspx.
Thank you for your contribution to environmental protection.

EN-16 RANGER 1000 SERIES
LIMITED WARRANTY
Ohaus products are warranted against defects in materials and workmanship from
the date of delivery through the duration of the warranty period. During the warranty
period,Ohauswillrepair,or,atitsoption,replaceanycomponent(s)thatprovesto
be defective at no charge, provided that the product is returned, freight prepaid, to
Ohaus.
This warranty does not apply if the product has been damaged by accident
ormisuse,exposedtoradioactiveorcorrosivematerials,hasforeignmaterial
penetrating to the inside of the product, or as a result of service or modification
by other than Ohaus. In lieu of a properly returned warranty registration card,
thewarrantyperiodshallbeginonthedateofshipmenttotheauthorizeddealer.
NootherexpressorimpliedwarrantyisgivenbyOhausCorporation.Ohaus
Corporation shall not be liable for any consequential damages.
As warranty legislation differs from state to state and country to country, please
contact Ohaus or your local Ohaus dealer for further details.

SERIE RANGER 1000 ES-1
1. INTRODUCCIÓN............................................................................... ES-2
1.1 Descripción del producto ......................................................... ES-2
1.2 Características generales ........................................................ ES-2
1.3 Medidas de seguridad............................................................. ES-2
2. INSTALACIÓN .................................................................................. ES-3
2.1 Desembalaje.......................................................................... ES-3
2.2 Instalación de componentes .................................................... ES-3
2.3 Selección del emplazamiento................................................... ES-3
2.4 Nivelación de la báscula ......................................................... ES-3
2.5 Conexión a la fuente de corriente.............................................. ES-4
2.5.1 Corriente alterna ............................................................ ES-4
2.5.2 Suministro con baterías.................................................. ES-4
2.6 Calibración inicial................................................................... ES-4
3. VISIÓN GENERAL DE LOS CONTROLES Y FUNCIONES........................... ES-5
3.1 Símbolos de la pantalla........................................................... ES-5
3.2 Controles y funciones.............................................................. ES-5
4. OPERACIONES................................................................................. ES-6
4.1 Encendido y apagado de la unidad .......................................... ES-6
4.2 Tara manual .......................................................................... ES-6
4.3 Operación de cero .................................................................. ES-6
4.4 Cambio de las unidades de pesaje ........................................... ES-6
4.5 Acumulación.......................................................................... ES-7
5. CONFIGURACIONES DE LA BÁSCULA ............................................... ..ES-8
5.1 Iluminación de fondo ........................................................... .. ES-8
5.2 Rango de rastreo de cero...................................................... .. ES-8
5.3 Filtrado............................................................................... .. ES-8
6. CALIBRACIÓN...................................................................................ES-9
7. RESTAURAR AJUSTES DE FÁBRICA......................................................ES-9
8. SOLUCIÓN DE PROBLEMAS..............................................................ES-10
9. DATOS TÉCNICOS............................................................................ES-11
GARANTÍA .......................................................................................... ES-12

ES-2 SERIE RANGER 1000
1. INTRODUCCIÓN
Este manual contiene instrucciones de instalación, operación y mantenimiento para
la báscula de pesaje de la serie Ranger 1000. Por favor lea el manual completa-
mente antes de la instalación y la operación.
1.1 Descripción del producto
La serie Ranger 1000 es una báscula de mesa compacta y económica que ofrece
exactitud, durabilidad y portabilidad en un diseño fácil de usar para aplicaciones de
pesaje generales en la industria liviana.
1.2 Características generales
  • Capacidaddelosmodelos:3kg,6kg,15kgy30kgconuna
   resoluciónmáximaenpantallade1:15000
  • Bandejadepesajeenaceroinoxidable
  • Cajaplásticadurable
  • 1ventanaLCDconiluminacióndefondocondígitosde25mmdealto
• Visualización rápida en < 2 segundos del pesaje y resultados de los conteos
  • Unidadesdepesajeenkg,g,lbyoz
  • TecladeTARAparaunaoperaciónrápidayfácil
  • Funcióndeacumulaciónparapesoyconteodepartes
  • Modosdeaplicación:comprobacióndepeso,conteoyporcentaje
  • MododecomprobaciónHI/LOdepesoypartesprogramablesporel
usuario con alarma audible
  • Niveldefiltradoajustableparapesajebajovariascondiciones
  • Bateríainternarecargablede80horasconahorrodeenergíay
apagado automático
1.3 Medidas de seguridad
Para una operación segura y confiable de esta báscula, aplique
   lassiguientesmedidasdeseguridad:
  • Verifiquequeelvoltajedeentradaimpresoeneladaptadordecorriente
   alternayeltipodeenchufecoincidanconelsuministrodecorrientelo
cal de corriente alterna.
  • Asegúresedequeelcabledecorrientenosuponeunobstáculooestá
   colocadoenalgúnsitiodondeesfáciltropezarseconél
  • Cuandolimpielabásculadesconecteelsuministrodecorriente
  • Nooperelabásculaenambientespeligrososoinestables
  • Nodejecaercargassobrelaplataforma
  • Utilicesolamenteaccesoriosyperiféricosaprobados,segúnestén
disponibles
  • Operelabásculasolamentebajolascondicionesambientales
especificadas en estas instrucciones
  • Elmantenimientodebeserrealizadoúnicamenteporpersonalautorizado .
