OHAUS defender 7000 User manual

Quick Start Guide Defender™7000
Ohaus Corporation www.ohaus.com iDefender™ 7000 (with T71 Indicators)
ASSEMBLY
Attach Indicator Mounting
and secure Load Cell Cable.
Remove Scale and
Accessories from carton.
Attach Indicator to Bracket.
Attach Bracket to Column.
Connect Power Cord to Indicator.
Plug Power Su ly to Wall Outlet.
Install Platform.
Adjust leveling feet.
Remove Shi ing
S acers.**
**Not included with
some models. x 4
The T71XW is su lied with a grounded ower cable.
Use only with a com atible grounded ower outlet.
Calle 23B No. 81A - 62 Modelia PBX: (571) 410 28 48 Fax: [phone] Bogotá, D.C. - Colombia.
www.tecnipesaje.com [email protected] [email protected]
Calidad & Servicio, Razones de Peso

Defender™7000 Quick Start Guide
Defender™ 7000 (with T71 Indicators) ii Ohaus Corporation www.ohaus.com
SAFETY PRECAUTIONS
For safe and dependable operation of this product, please comply with the following
safety precautions:
•Verify that the input voltage printed on the power Adapter and the plug type matches
the local power supply.
•Make sure that the power cord does not pose an obstacle or tripping hazard.
•Disconnect the product from the power supply when cleaning.
•Do not operate this product in hazardous or unstable environments.
•Do not drop loads on the pan.
•Use only approved accessories and peripherals, as available.
•Operate the product only under ambient conditions specified in the Instruction Manual.
•Service should be performed by authorized personnel only.
CONTROLS
Button
Primary
Function
(Short Press)
ON/ZERO
Turns the Indicator on
If on, sets zero.
PRINT
Sends current value to COM
ort if AUTOPRINT is Off.
FUNCTION
Initiates a mode.
Dis lays reference data.
TARE
Performs tare
o eration.
LIBRARY
Dis lay library data.
Secondary
Function
(Long Press)
Off
Turns the Indicator
off.
Units
Changes the weighing unit.
Mode
Change mode.
Press and hold: scroll
through modes.
Menu
Enter the User
menu.
Edit
Edit current library
record.
Menu
Function
(Short Press)
Yes
Acce ts the current
menu or setting.
No
Advances to next item.
Rejects current setting;
advances to the next.
Increments the value.
Bac
Moves back
to revious item.
Decrements the value.
Exit
Exits the User
menu.
Aborts a calibration
in rogress.
Library
Function
(Short Press)
Yes
Acce ts current
setting.
No
Advances to next.
Increments dis layed value.
Bac
Moves back to revious.
Decrements value.
Exit
Exits the library.
Stability symbol
Preset Tare, Tare,
Bruto, Gross,
Memory symbols
7-segment, 6-digit
LED display
Control Buttons
Capacity label
window
Net symbol
Center of Zero
Negative symbol Kilogram, Gram,
Percent, Pound, Ounce,
Pound:Ounce, Tonne,
Pieces symbols
Battery charge
symbol
Scale symbol
Range symbol
Dynamic symbol
Calle 23B No. 81A - 62 Modelia PBX: (571) 410 28 48 Fax: [phone] Bogotá, D.C. - Colombia.
www.tecnipesaje.com [email protected] [email protected]

Quick Start Guide Defender™7000
Ohaus Corporation www.ohaus.com iii Defender™ 7000 (with T71 Indicators)

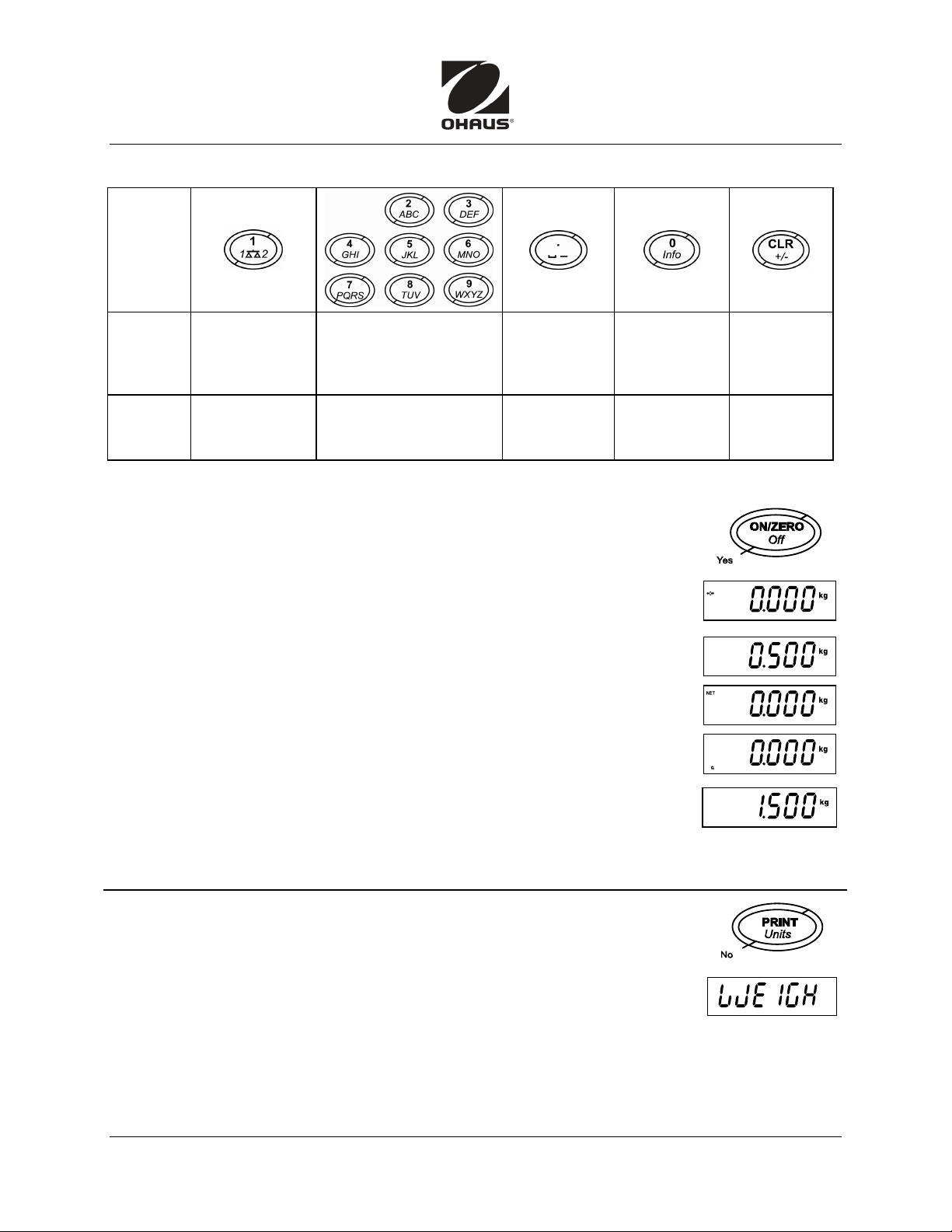

FUNCTIONS OF THE DISPLAY KEYPAD
Button
Primary
Function
(Short Press)
1
Enter 1 on
the dis lay.
2ABC through 9WXYZ
Enter al hanumeric values on the
dis lay using the multi-ta text
entry method .
. _ -
Enter decimal oint,
s ace or dash on
dis lay.
0
Enter 0 on
the dis lay.
CLR
Clear last
character from the
dis lay
Secondary
Function
(Long Press)
1s2
Change dis lay
between Scales 1 & 2.
Info
Show accumulation
statistics on dis lay.
+/-
Change olarity of
dis layed value.
OPERATION
On: Press ON. Indicator runs a display test, shows a series of
informational displays, and enters active weighing mode.
Off: Press and hold Off until OFF appears.
Press ZERO to zero the weight display. Scale must be stable.
Scale zeros automatically at Power On.
Manual Tare: If weighing an item in a container, place empty container on
the scale. Before taring, container’s weight is shown (example 0.5 kg).
Press TARE. Display shows zero.
(If container is removed, display shows container’s weight as negative.)
To clear the Tare value, empty the scale and press TARE.
The display shows gross weight (zero if scale is empty).
Weighing: Place the item to be weighed on the scale.
(Sample shown: 1.5 kg, Gross weight.)
Verify the indicator: place a known mass on the scale and check if the reading is accurate.
If not, calibrate, using the Calibration Guide.
ADDITIONAL OPERATIONS
Changing Units of Measure: Press and hold Units until desired unit
appears. Only measuring units enabled in the Unit Menu are displayed.
Application Modes: Press and hold the Mode button until the desired
application mode appears. WEIGH is default mode.
To have other modes accessible through the Mode button, first turn
them On in the MODE menu. (See back page.)
When modes are On, choose by toggling through available options
by pressing Mode.
For details on various application modes, see Instruction Manual.
Weigh
Count
Percent
Dynamic
Checkweigh
Off, On
Off, On
Off, On
Off, Manual
Off, On
Calle 23B No. 81A - 62 Modelia PBX: (571) 410 28 48 Fax: [phone] Bogotá, D.C. - Colombia.
www.tecnipesaje.com [email protected] [email protected]

Defender™7000 Quick Start Guide
Defender™ 7000 (with T71 Indicators) iv Ohaus Corporation www.ohaus.com
MENU NAVIGATION
Press and hold the Menu button until MENU appears on the display.
Use Yes, No, Back,and Exit to navigate in Menu Mode:
– Yes Allows entry / Accepts displayed setting and advances to next menu item.
– No Skips displayed menu / Rejects setting or item, advances to next available item.
– Back Moves backwards through menus.
– Exit Exits directly to active weighing mode.
MENU STRUCTURE (For more details, see Instruction Manual.)
CALIBRATION SETUP READOUT MODE UNIT GMP PRINT-1
Zero1
Zero2
S an1
S an2
3 t Linear1
3 t Linear2
5 t Linear1
5 t Linear2
CAL Test1
CAL Test2
GEO
Reset
Dual Scale
Range1
Range2
Ca acity1
Ca acity2
Graduation1
Graduation2
Power on Unit
Zero Range
Auto Tare
Accumulation
Retain Zero
Legal For Trade
Bee er Volume
Bee er Signal
Key Bee
Library
Alibi
End Setu
Reset
Language
Stable Range
Filter
Auto Zero
Backlight
Auto Off
Gross Indicator
End Readout
Reset
Weigh
Count
Percent
Dynamic
Check Weigh
End Mode
Reset
Kilogram
Pound
Gram
Ounce
Pound Ounce
Tonne
Custom
End Unit
Reset
Date
Time
User ID
Project ID
Scale ID
End GMP
Reset
Stable Print
Auto Print
Content
Layout
End Print-1
PRINT-2 COM1 COM2 I-O LOCK MENU LOCK KEY END
Reset
Stable Print
Auto Print
Content
Layout
End Print-2
Reset
Baud
Parity
Sto
Handshake
Alt. Command
End COM1
Reset
Baud
Parity
Sto
Address
Handshake
Alt. Command
End COM2
Reset
Ext. In ut
In ut Bee
Relay Out ut
Stable
End I-O
Reset
Lock Cal
Lock Setu
Lock Readout
Lock Mode
Lock Unit
Lock Print1
Lock Print2
Lock COM1
Lock COM2
Lock GMP
Lock I-O
End Lock Menu
Reset
Lock All
Lock Off
Lock Zero
Lock Print
Lock Unit
Lock Function
Lock Mode
Lock Tare
Lock Menu
Lock Library
Lock Info
End Lock Key
*80252992* P/N 80252992
