Oki ES1624n MFP Use and care manual

Every effort has been made to ensure that the information in this
document is complete, accurate, and up-to-date. The manufacturer
assumes no responsibility for the resultsoferrors beyond its control.
The manufacturer also cannot guarantee that changes in software
and equipment made by other manufacturers and referred to in this
Guide will not affect the applicability of the information in it. Mention
of software products manufactured by other companies does not
necessarily constitute endorsement by the manufacturer.
While all reasonable efforts have been made to make this document
as accurate and helpful as possible, we make no warranty of any
kind, expressed or implied, as to the accuracy or completeness of
the information contained herein.
The most up-to-date drivers and manuals are available from
http://my.okidata.com.
Copyright © 2004. All rights reserved.
As an ENERGY STAR®Program Participant, the
manufacturer has determined that this product meets the
ENERGY STAR guidelines for energy efficiency.
Oki is a registered trademark of Oki Electric Industry Company Ltd. Executive
Series is a trademark of Oki Data Americas, Inc. ENERGY STAR is a registered
trademark of the United States Environmental Protection Agency. Hewlett-
Packard, HP, and LaserJet are registered trademarks of Hewlett-Packard
Company. Microsoft, MS-DOS and Windows are registered trademarks of
Microsoft Corporation. Apple, Macintosh and Mac OS are registered
trademarksofAppleComputersInc.Otherproductnamesandbrandnamesare
registered trademarks or trademarks of their proprietors.
59363901 Rev 1.0

3
Contents
Color Print Matching . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Factors That Affect the Appearance of Printed Documents . . . . . . .6
Range of Colors: Monitors Versus Printers . . . . . . . . . . . . . . . . .6
Viewing conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Printer driver color settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Monitor settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
How Your Software Application Displays Color . . . . . . . . . . . . .8
Paper Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Choosing a Color Matching Method . . . . . . . . . . . . . . . . . . . . . . . . .9
RGB or CMYK? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Matching Photographic Images . . . . . . . . . . . . . . . . . . . . . . . . . .9
Matching Specific Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Printing Vivid Colors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Macintosh OS 9x. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Printer Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Driver Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Color Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Job Option List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Job Accounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Job Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Setting Up a Secure Print Job . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Proof and Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
General Printing Directions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Multiple Pages on One Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Duplex (Printing on Both Sides of the Sheet). . . . . . . . . . . . . . .38
Collating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Storage Device Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Admin Setup Utility for Macintosh . . . . . . . . . . . . . . . . . . . . . .41
Job Accounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Storage Device Manager (SDM) Operation . . . . . . . . . . . . . . . . . .43
Open Storage Device Manager (SDM). . . . . . . . . . . . . . . . . . . .43
SDM Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
SDM Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Admin Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Open Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

4
Macintosh OS X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Printer Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Adjusting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Printer Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Feature Sets: Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Feature Sets: Job Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Feature Sets: Paper Feed Options . . . . . . . . . . . . . . . . . . . . . . . .64
Feature Sets: Quality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
General Printing Directions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Collating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Multiple Pages on One Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Duplex (Printing on Both Sides of the Sheet). . . . . . . . . . . . . . .69
Paper Feed/Type Select. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Apple ColorSync Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Setting the Display (Monitor) Profile . . . . . . . . . . . . . . . . . . . . .72
Setting the Printer Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
PS Gamma Adjuster Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Installing PS Gamma Adjuster . . . . . . . . . . . . . . . . . . . . . . . . . .76
Using PS Gamma Adjuster . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

5
Note / Important Boxes
Generic Screen Shots
NOTE
A note appears like this. A note provides additional
information to supplement the main text which helps
you to use and understand the product.
Important!
An important message appears like this. An important message
provides supplemental information which can prevent potential
problems.
NOTE

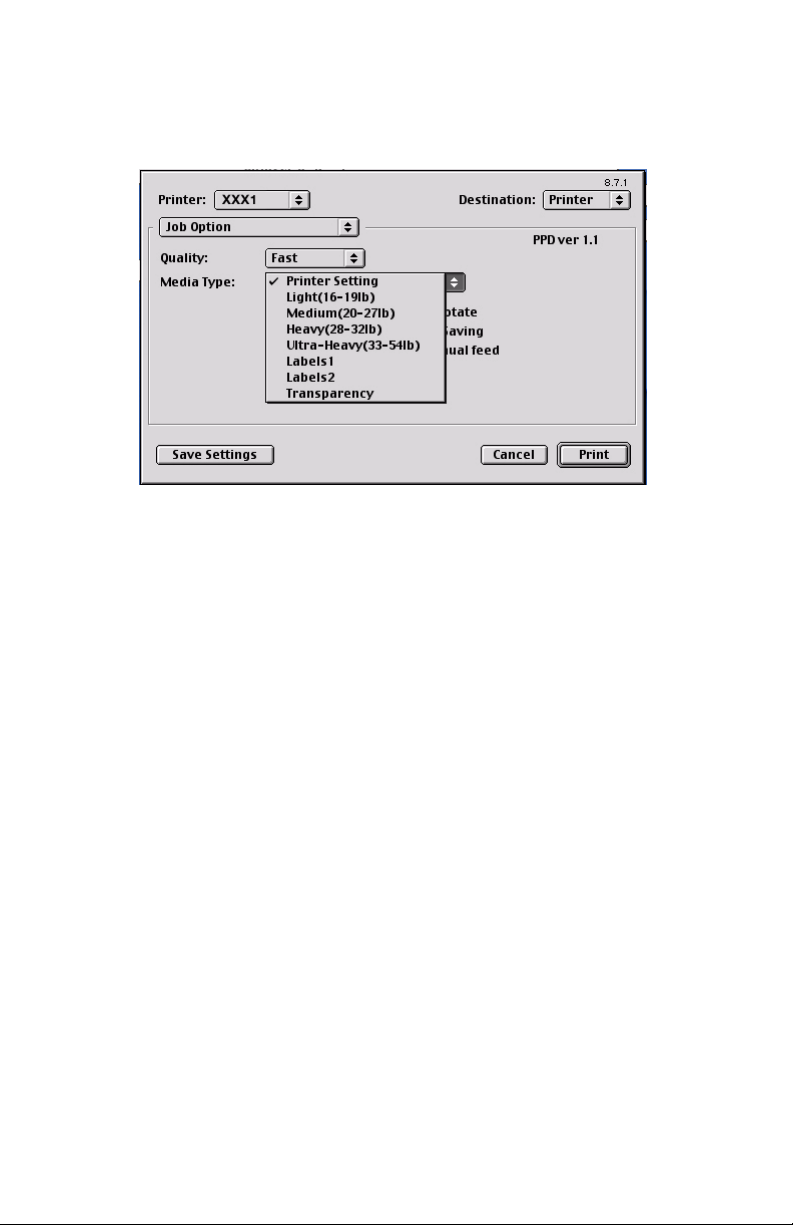

The screen shots in this manual are generic. When
you see XXX1, XXX2, etc., in a screen, they represent
aspecificmodelnumberwhichwillvary dependingon
which model is being used in your system.
For example:

Color Print Matching • 6
Color Print Matching
The install utility provides a color matching profile for your printer. In
general, using these Color Matching settings will provide reasonable
default settings that produce good results for most documents.
Many applications have theirown color settings and these may override
the settings in the printer driver. Please refer to the documentation for
your software application for details on how that particular program’s
color management functions.
Factors That Affect the Appearance of
Printed Documents
Ifyou wish to manually adjust the colorsettings in your printer driver,
please be aware that color reproduction is a complex topic, and
there are many factors to take into consideration. Some of the most
important factors are listed below.
Range of Colors: Monitors Versus Printers
•Neither a printer nor a monitor is capable of reproducing the full
range of colors visible to the human eye. Each device is restricted to
a certain range of colors. In addition to this, a printer cannot
reproduce all of the colors displayed on a monitor, and vice versa.
•Both devices use very different technologies to represent color. A
monitor uses Red, Green and Blue (RGB) phosphors (or LCDs), a
printer uses Cyan, Magenta, Yellow and Black (CMYK) toner or ink.
•A monitor can display very vivid colors such as intense reds and
blues and these cannot be easily produced on any printer using
toner or ink. Similarly, there are certain colors, (some yellows for
example), that can be printed, but cannot be displayed accurately on
a monitor. This disparity between monitors and printers is often the
main reason that printed colors do not match the colors displayed on
screen.

Color Print Matching • 7
Viewing conditions
A printed document can look very different under different lighting
conditions. For example, the colors may look different when viewed
standing next to a sunlit window, compared to how they look under
standard office fluorescent lighting.
Printer driver color settings
The driver settings for Manual color can change the appearance of
a printed document. There are several options available to help
match the printed colors with those displayed on screen. These
options are explained in subsequent sections.
To access the color matching options in the driver discussed below:
1. Access the printer settings page via the Print dialog from any
application (usually accessed via File →Print).
2. Click on the General drop down menu and select Color Option.
Monitor settings
The brightness and contrast controls on your monitor can change
how your document looks on-screen. Additionally, your monitor’s
color temperature influences how “warm” or “cool” the colors look.
NOTE
Several of the Color Matching options make reference
to your monitor’s Color Temperature. Many modern
monitors allow the color temperature to be adjusted
using the monitor’s control panel.

Color Print Matching • 8
There are several settings found on a typical monitor:
• 5000k*
Warmest; yellowish lighting, typically used in graphics arts
environments.
• 6500k
Cooler; approximates daylight conditions.
• 9300k
Cool; the default setting for many monitors and television sets.
*k = degrees Kelvin, a measurement of temperature
How Your Software Application Displays Color
Some graphics applications such as CorelDRAW®or Adobe®
Photoshop®may display color differently from "office" applications
such as Microsoft®Word. Please see your application’s on-line help
or user manual for more information.
Paper Type
The type of paper used can also significantly affect the printed color.
For example, a printout on recycled paper can look duller than one
on specially formulated glossy paper.

Color Print Matching • 9
Choosing a Color Matching Method
There is no one correct way to achieve a good match between the
document displayed on your monitor and its printed equivalent.
There are many factors involved in achieving accurate and
reproducible color.
The following guidelines may help in achieving good color output
from your printer. There are several suggested methods, depending
on the type of document you are printing.
RGB or CMYK?
The guidelines for choosing a color matching method make
distinctions between Red, Green, Blue (RGB) and Cyan, Magenta,
Yellow, Black (CMYK).
Generally, most documents you print will be in RGB format. This is
the most common, and if you do not know your document’s color
mode, assume that it is RGB.
Typically CMYK documents are only supported in professional
Desktop Publishing and Graphics applications.
Matching Photographic Images
RGB only
Oki Color Matching (found in the printer driver under Color Control)
is a generally a good choice. Select a matching method appropriate
to your monitor.
NOTE
These suggestions are for guidance only. Your results
may vary depending on the application from which you
are printing. Some applications will override any color
matching settings in the printer driver without warning.

Color Print Matching • 10
RGB or CMYK
If you are printing photographic images from a graphics application
such as Adobe Photoshop, you may be able to use Soft-Proofing to
simulate the printed image on your monitor. To do this, you can use
the ICC-Profiles provided by the manufacturer, and then print using
the ICC profiles as the Print Space (or Output space).
Matching Specific Colors
(For instance, a company logo.)
RGB only
•Oki Color Matching, and the sRGB setting.
•PostScript Color Matching using the Absolute Colorimetric option.
•Use the Swatch Utility to print out a chart of RGB swatches and enter
your desired RGB values in your application's color picker.
RGB or CMYK
•If you are printing from a graphics application such as Adobe
Photoshop, you may be able to use Soft-Proofing to simulate the
printed image on your monitor. To do this, you can use the ICC
Profiles provided with your printer, and then print using the ICC
profiles as the Print Space (or Output space).
•Alternatively, use PostScript Color Matching with the Absolute
Colorimetric setting.
Printing Vivid Colors
RGB only
•Use Oki Color Matching, with either the Monitor 6500k Vivid, sRGB
or Digital Camera settings.
RGB or CMYK
•Use PostScript Color Matching with the Saturation option.

Macintosh OS 9x: Printer Drivers • 11
Macintosh OS 9x
Printer Drivers_________________
See your printed Computer Connections & Software Installation
Guide for information on installing printer drivers.
You can also go to http://my.okidata.com to see and/or download
a copy of the Computer Connections & Software Installation Guide
or for the latest information on printer drivers.

Macintosh OS 9x: Operation • 12
Operation_____________________
This section will only detail options as they apply to the LaserWriter®
8 driver. Refer to manufacturer’s guidelines regarding other driver
operations.
Driver Options
This section discusses only the driver selections supplied with your
printer, Color Option and Job Option, as well as the plug-ins Job
Accounting and Job Type - if available.
Color Option
To access Color Option:
1. Select your desired printer from an application using
File →Print.
2. Open the drop-down menu directly underneath Printer: and
select Color Option.

Macintosh OS 9x: Operation • 13
Color Control
Color Control allows you to determine the scheme in which the
printer will display colors.
OKI Color Matching
This is OKI’s proprietary color matching system and affects RGB
data only. This is the default setting and provides the fastest, best
color matching for your printer.
Postscript Color Matching
This uses PostScript Color Rendering Dictionaries built-in to the
printer, and affects both RGB and CMYK data.
No Color Matching
No color correction occurs when selected. This option is beneficial
when other matching regimens are used, specifically if you select a
Color Simulation option.
Print In Grayscale
No color will print. The printer will interpret all colors as a variation of
grays.
Color Setting
This option allows you to select your color settings as they appear
on your monitor.
Monitor(6500k) Auto
The default setting that selects the best options for your printer. This
selection works best for office situations.

Macintosh OS 9x: Operation • 14
Monitor (6500k) Perceptual
Optimized for printing photographs when using a monitor with a color
temperature of 6500K, This is best for printing photographic images.
Monitor (6500k) Vivid
Optimized for printing bright colors when using a monitor with a color
temperature of 6500K. Ideal for office graphics and text. Vivid or
Digital Camera settings produce brightest colors.
Monitor (9300k)
Optimized for printing photographs when using a monitor with a color
temperature of 6500K.
Digital Camera
Optimized for printing photographs taken with a digital camera. This
tends to produce prints with lighter and brighter colors. For some
photographs,other settingsmay bebetterdependingon the subjects
and the conditions under which they were taken. Vivid or Digital
Camera settings produce brightest colors.
sRGB
Optimized for matching specific colors, such as a company logo
color. This option attempts to simulate RGB color. The colors within
the printer's color gamut are printed without any modification, and
only colors that fall outside the printable colors are modified.
Rendering
When a document is printed, a conversion takes place from the
document's color space to the printer color space. The rendering
intents are essentially a set of rules that determine how this color
conversion takes place.
Auto
The default. Auto uses the optimum settings for a general office
environment.

Macintosh OS 9x: Operation • 15
Perceptual
Best choice for printing photographs. Compresses the source gamut
into the printer's gamut while maintaining the overall appearance of
an image. This may change the overall appearance of an image as
all the colors are shifted together.
Saturation
Best choice for printing bright & saturated colors if you don't
necessarily care how accurate the colors are. This makes it the
recommended choice for graphs, charts, diagrams etc. Maps fully
saturated colors in the source gamut to fully saturated colors in the
printer's gamut.
Relative Colorimetric
Good for proofing CMYK color images on a desktop printer. Much
like Absolute Colorimetric, except that it scales the source white to
the (usually) paper white; i.e. unlike Absolute Colorimetric, this
attempts to take the paper white into account.
Absolute Colorimetric
Best for printing solid colors and tints, such as company logos etc.
Matches colors common to both devices exactly, and clips the out of
gamut colors to their nearest printed equivalent. Tries to print white
as it appears on screen. The white of amonitor is often very different
from paper white, so this may result in color casts, especially in the
lighter areas of an image.
Color Simulation
This affects CMYK output only and is usually used only in offset
printer environments.
This option simulates what the output will look like on a printing
press using the ink types SWOP, Euroscale or Japan. If you are
using CMYK Ink Simulation, it is recommended that you switch off
all other printer color matching by selecting No Color Matching
under the Color Match option in the printer driver.

Macintosh OS 9x: Operation • 16
Black Finish
This setting determines black toner usage.
Auto
This option is best for an office environment, with the printer
determining which style is better.
Glossy
This option uses more CMYK and less black, producing a shinier
black.
Matte
This option uses more black and less CMYK, producing a flatter
black.
Separations
This option affects output only, allowing you to print all colors as
separate plates.
NOTE
You must select a non-generic PostScript Printer
Description (PPD) file for a printer that supports color
separations.

Macintosh OS 9x: Operation • 17
Custom Gamma Adjustment
You need to create custom gamma profiles using the SDM utility
before selecting one here.
Click on the arrows to select the profile required.
Black Overprint
This option prevents registration errors and only works for 100%
black text.
Click on the checkbox to enable the option.
Printer Halftone
This option prevents the halftone of a high-end graphics application
from printing.
Click on the checkbox to enable the option.
NOTE
This option requires the installation and use of the
Storage Device Manager (SDM) utility. See the SDM
section for further instructions.

Macintosh OS 9x: Operation • 18
Job Option
1. To access Job Option, first select your desired printer from an
application using File →Print.
2. Then open the drop-down menu directly underneath Printer and
select Job Option.
Quality
A straightforward selection of the print quality desired.
•Fine (the default) = high resolution, slower speed. Provides
optimum results when printing graphics.
•Fast = lower resolution, fast speed. Choose this one for quick
proofing of drafts.

Macintosh OS 9x: Operation • 19
Media Type
Many options are available for selecting the thickness of the paper
type. Normally Printer Setting is sufficient.
Select your desired Media Type. Any option, other than Printer
Setting, will override the setting at the printer.

Macintosh OS 9x: Operation • 20
Job Option List
A list of options to modify the printer.
Collate
Media Check
Sets whether or not the printer checks to be sure that the media size
selected matches the media size in the tray. Only standard sizes are
checked.
MP tray is handled as manual feed
Selecting this will cause the MP tray to be used in manual feed
situations.
NOTE
Ifthesoftwareapplicationbeingusedhasacollateprint
option, it is recommended to use only one collate
option to prevent any conflicts in printing, i.e. collate
from the software application or collate from the printer
driver
1
1
2
1
