Olive PMMA Parts list manual

Instruction & Operating
Manual

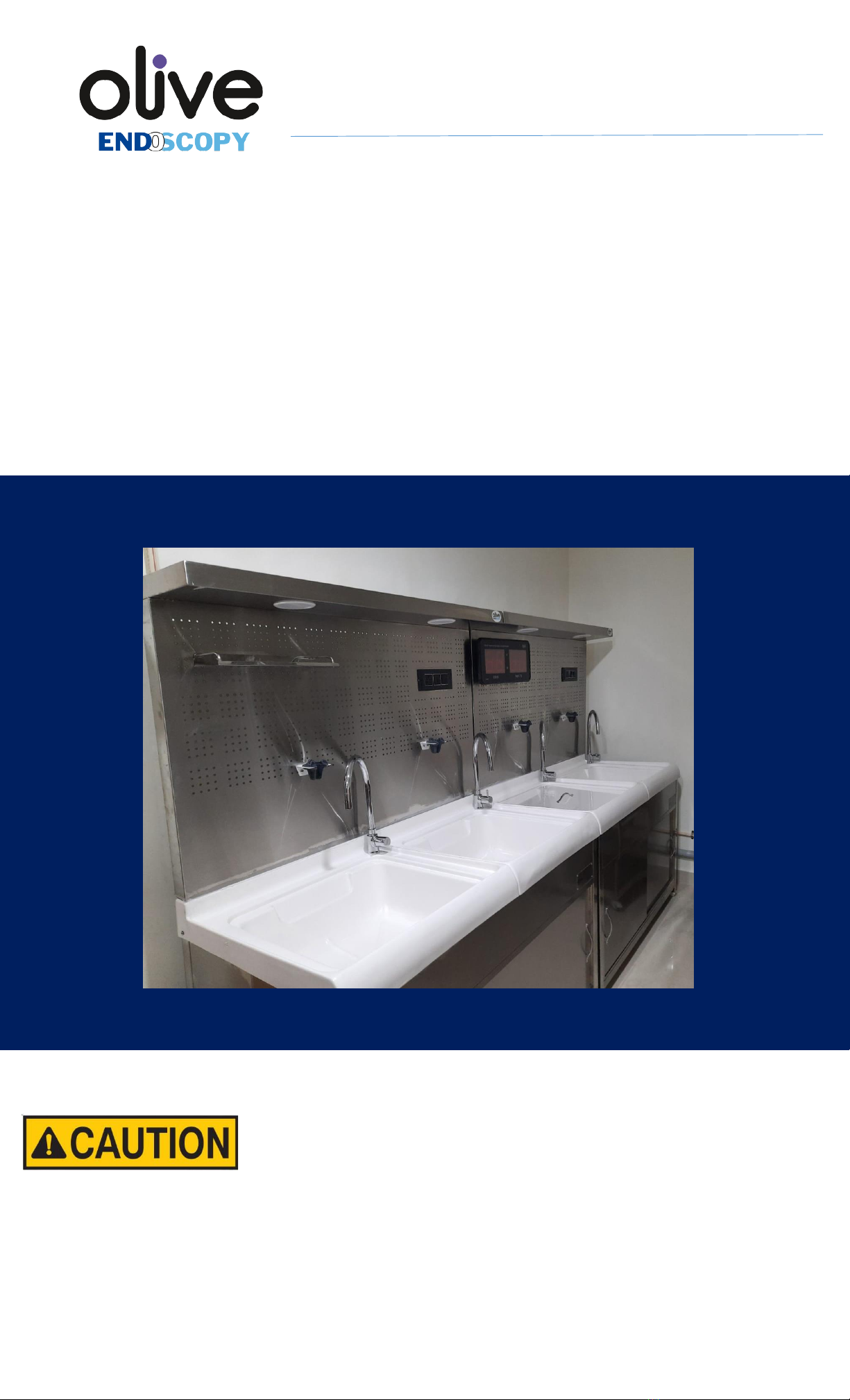

OLIVE PMMA MANUAL
CLEANING STATION/SINKS
Read and understand all of the instructions and safety information in this manual
before operating this product.

Instruction & Operating
Manual
Yellow triangle with exclamation mark indicates potential minor injury to
personnel or damage to equipment
Yellow triangle with lightning bolt indicates possible electric shock hazard
This manual provides user instructions in the installation, operation, and maintenance of Olive PMMA Fiber
Manual Cleaning station/sinks manufactured by Olive Health Care.
User Attention : All employees who will use the Olive PMMA Fiber Sink must be briefed in its proper use and
operation before using it. All employees who will utilise the Olive PMMA Fiber Sink should be aware that
reasonable precautions must be taken to ensure patient safety and the Endoscope sink’s optimal performance
Intended Use Notice: This product is designed for healthcare workers to utilise in order to clean & disinfect
flexible endoscopes used in the treatment of gastrointestinal patients.
This product should only be used for the purpose for which it was created. Using this device in a way that is not
recommended by Olive Health Care may void the equipment manufacturer's warranty. Olive Health Care
disclaims all responsibility for the effects of using this product for purposes other than those for which it was
intended. Misuse or alteration of a product can be dangerous. Olive Health Care disclaims all obligation for the
results of product modifications, as well as the repercussions of using this product in combination with other
products.
WARNING- INJURY HAZARD
Use of unqualified persons may lead to injury to personnel and/or damage to equipment. Personnel using the
olive PMMA Fiber Sink must be educated on best practices, use, and maintenance of the product to avoid injury
or damage. Repair and adjustments should be attempted by persons qualified as representatives of the
manufacturer
WARNING- ELECTRIC SHOCK HAZARD
Contact with live wire is possible. Ensure to switch off power supply before undertaking any repairs/inspection.
Get in touch with Olive Health Care service team for repairs and electrical work

Instruction & Operating
Manual
730,00
730,00

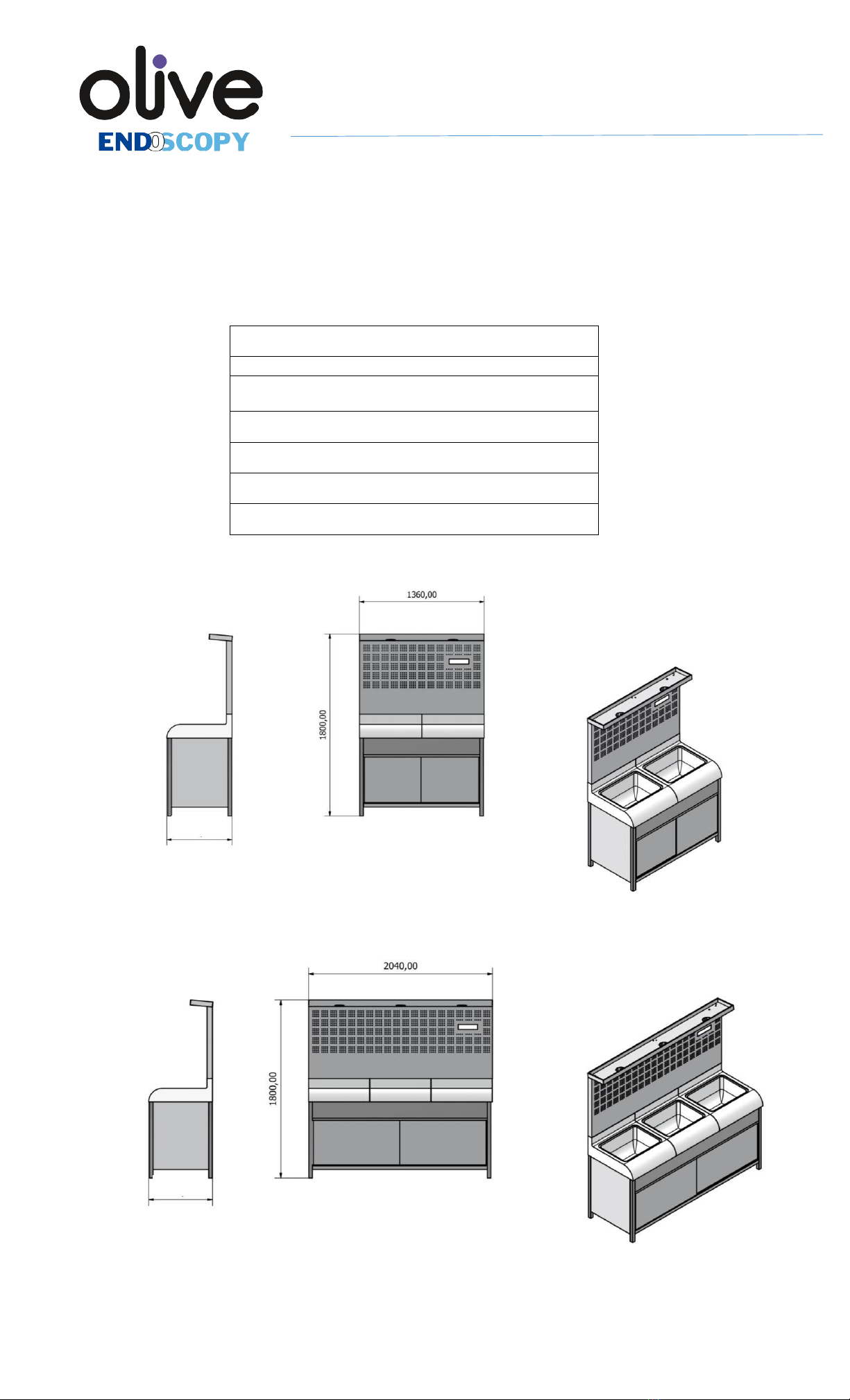

GENERAL SPECIFICATIONS
Design: Olive Sinks are ergonomically designed for optimum utilization of space
Power Requirement: 230V AC
Dimensions & Features:
Built with PMMA and Stainless Steel combination
Solid Back Wall
Built-in LED lights for clear visualization during leak tests
and cleaning
Size (Single sink): 680 X 730 X 1800
Size (Duel Sink): 1360 X 730 X 1800
Size (Triple Sink): 2040 X 730 X 1800
Storage shelf below the sink basin

Instruction & Operating
Manual
LIST OF PARTS
Item Name
Model No.
Units
PMMA Sink
OWSPMMA01/02/03
1/2/3
Body
OWSB01
1
Door
OWSSSD
-
Door handle
OWSSSDH
-
Back Frame 1
OWSSSBS01
1
Back Frame 2
OWSSSBS01
1
Boot
OWSPB04
4
LED light 4 inch
OWSLEDL
1 per sink
Switches 6 Amps
OWS6AS
-
1 Sink
OWS6A1S02
2
2 Sink
OWS6AS2S04
3
3 Sink
OWS6AS3S04
4
Socket 6 Amps
OWS6AS01
1
Wiring Set
OWSPWS
1 set
Nut and bolts (Body & frame)
OWSSSNB
1 set
40 mm PVC ball Valve
OWSPVCV02
2
Sink waste coupling
OWSPWC01
1 per sink
PVC fittings
OWSPVCF
1 set
Drain hose
OWSPWH
1 per sink
Water Inlet pipe
OWSPWIP
1 per sink
U Type Faucet
OWSSSF
1 per sink
Support hanger
OWSSHSS
custom
Clock (optional)
OWSCL01
1
Umbilical Cord Support (optional)
OWSUCS
custom
Lid (optional)
OWSFL
custom
INSTALLATION
Place the Olive PMMA Manual cleaning sink in a separate clean and secure location close to the procedure room.
IMPORTANT: Clean and thoroughly disinfect the sinks prior to its first use. Then afterwards follow a regular
schedule for cleaning and disinfecting the sink.
OPERATION AND BEST PRACTICES
CAUTION: The user is responsible for thoroughly cleaning the endoscopes used in any medical procedures
BEFORE placing them in the sinks for leak testing, cleaning & disinfection. Follow your institution’s cleaning and
disinfection procedures.
IMPORTANT : To obtain the maximum benefit of the sinks, certain procedures must be followed:
1. Do NOT coil the insertion tube or the universal cord of the endoscope with a diameter of less than 12 cm.
2. Attach the water resistant cap (as per manufacturer’s IFU) BEFORE immersing the endoscope in fluids
3. Cover the sink with lid provided when immersing scope in disinfection solution
4. Clean and disinfect the sinks thoroughly on a regular cleaning protocol, or when the sinks becomes soiled.
CLEANING, DISINFECTION & CARE
Cleaning the PMMA Fiber Manual Cleaning Sink
Do not use abrasives, such as steel wool, wire brushes or scrapers on the stainless steel and PMMA fiber surface.
CAUTION: For plastic surfaces and acrylic plastic (PMMA Fiber) components, use a hospital-approved
disinfectant. Avoid disinfectants that have glycol ethers as an ingredient. Do not use alcohol or ammonia.
Cleaning Stainless Steel Body of Sink
1. Remove dirt, blood, and other organic soil.
2. Always clean the sinks prior to disinfection to avoid compromising the disinfectant’s effectiveness.

Instruction & Operating
Manual
3. Dust first, then remove any stubborn deposits with a damp sponge.
4. Using a soft cloth, clean with a non-abrasive, neutral liquid detergent at a 10-20% solution. Use a stronger
concentration in the presence of excessive dirt.
5. Lightly rinse before disinfection, being careful to minimize moisture in the sinks.
6. Avoid using bleach for cleaning or disinfecting your sink’s surface, as bleach causes permanent damage through
oxidation and staining.
CLEANING MATERIALS TO AVOID
CLEANING AGENTS TO AVOID
Abrasive pearls
Hard water (water with a pH above 7.0)
Scrapers (metal or plastic)
Hydrochloric Acid
Steel wool
Steam or high pressure water on PMMA Surface *
Wire brushes
Bleach/ any compounds containing chlorine or sodium
hypochlorite, or ammonium chloride salts
*steam or high-pressure water may be used to care for SS surfaces
Given below is a list of materials/ agents that are approved to be used to clean Olive PMMA Fiber Sinks:
1. Soft, lint-free cloth
2. Mild detergents
3. White vinegar in a spray bottle
4. Sodium bicarbonate (Baking Soda)
5. Cleaners approved for use on Stainless
Steel/Galvanized Iron
6. Non-abrasive cleaning pads
7. Isopropyl alcohol
8. Soft bristle brushes
9. Distilled water (pH rating 7.0) solely or with mild
detergent
10. Hospital-grade non-bleach detergents
NOTES AND DISCUSSIONS

Instruction & Operating
Manual
1 YEAR WARRANTY
Olive Health Care warrants to the original purchaser of the Olive PMMA Fiber Manual Cleaning Station/sinks that
defective products/components shall be repaired/replaced by Olive Health care, so long as owned by the original
purchases with limitations set forth as under:
The customer must obtain a return authorization supplied by the customer service team of Olive Health Care. The
product must be returned adequately packed so as to avoid damages during transit, with copy of original sales receipt
and copy of the RMA authorization
The customer must pay freight charges to and from Olive Health Care manufacturing unit. Olive Health Care does
not warrant any damage charges caused during transit. Customer shall be responsible for detailed inspection before
signing the BOL
This warranty shall not apply to product(s)/components that have been subject to misuse, negligence, modification,
alteration, lack of routine maintenance and/or misapplication, or products damaged due to servicing other than Olive
Health Care representatives
This warranty shall not apply to components or parts not manufactured by Olive Health Care. Olive Health Care
will pass on the original manufacturer’s warranty to the original purchaser. Please consult the service team for
warranty details of such components.
UNLESS EXPRESSLY SET FORTH, THERE SHALL BE NO OTHER WARRANTIES, WHETHER EXPRESS
OR IMPLIED, OF FITNESS AND/OR MERCHNATABILITY OR ANY OTHER WARRANTIES IMPLIED BY
CUTOM,USAGE OR COURSE OF DEALING
Olive Health Care’s liability in this agreement is limited to repair/ replacement of any product or component
purchased by the original purchaser. Olive Health Care disclaims responsibility for any incidental or consequential
damages claimed to have arisen from any defect in workmanship or materials. No representative of Olive Health
Care has the authority to change or enlarge the above warranty agreement.
