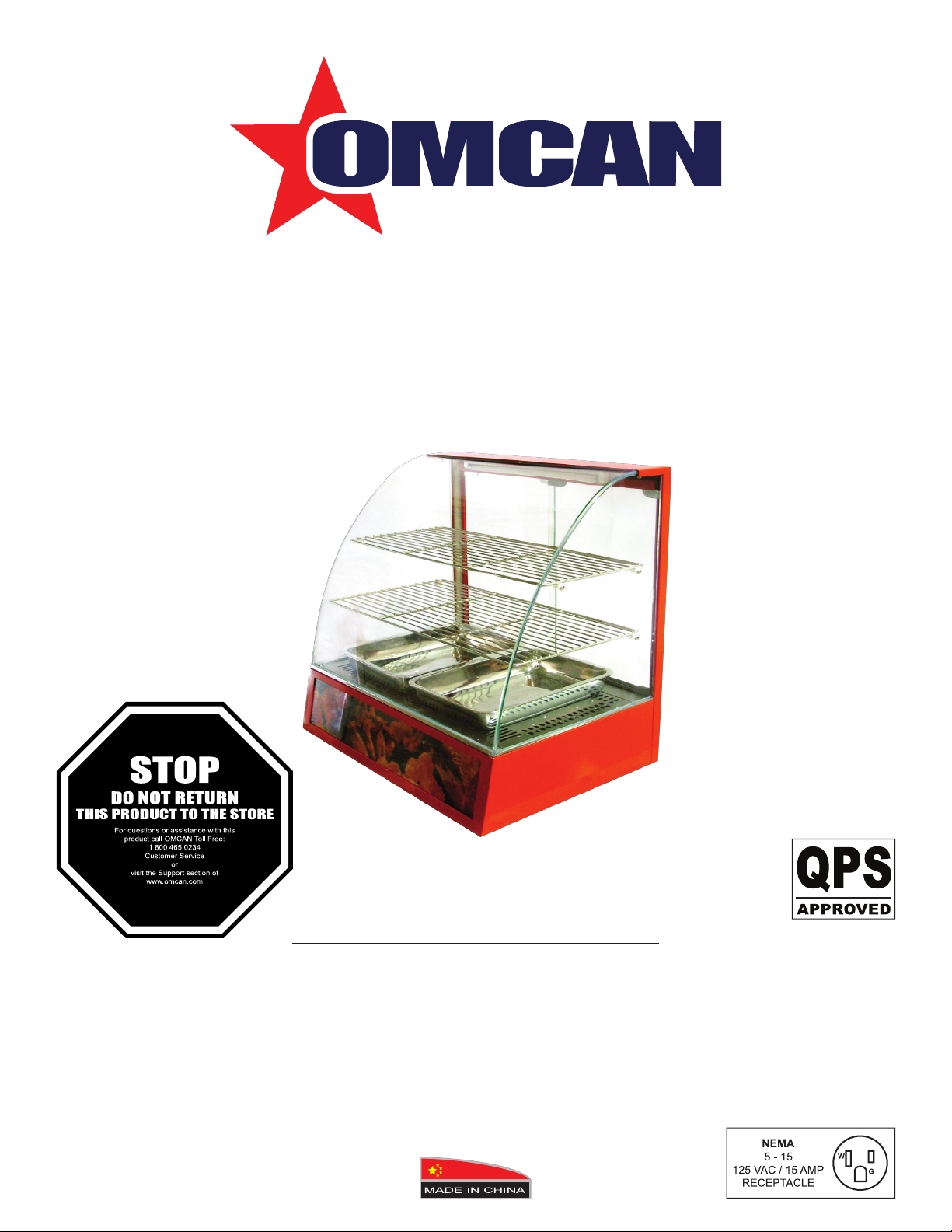

Display Warmer
Model DW-CN-0660
Item 21479
Instruction Manual

2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 5
-------------------------------------------------------------------------- 6
-------------------------------------------------------------------------------------------- 6
----------------------------------------------------------------------------------------- 6 - 7
------------------------------------------------------------------------------------ 7 - 8
------------------------------------------------------------------------------- 8 - 9
---------------------------------------------------------------------------- 10
---------------------------------------------------------------------------- 11
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
Parts Breakdown
Electrical Schematics
Warranty Registration
Model DW-CN-0660

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
Safety and Warranty
General Information
• Repairs must be performed by qualied technicians or those who are authorized by Omcan.
• When installing, operating or performing maintenance, following the instructions in this manual to ensure
the safety use of all persons.
• Keep this instruction manual for future reference and give it to the next user (if applicable).
• When unpacking, make sure none of the parts are missing or damaged. In this case, contact the dealer or
Omcan at 1-800-465-0234.
• Keep the packing material out of reach of the children to avoid accidents.
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.

5
Safety and Warranty
• This appliance is to be only operated by those familiar with the unit.
• Do not operate the unit unsupervised.
• Only use original spare parts when repairing the unit.
• The unit is for commercial use only.
• Do not rinse the equipment with water directly or pressurized jets.
• Clean the surface of stainless steel periodically.
Omcan display warmers are engineered and designed to maintain previously cooked foods at serving
temperatures.
Improper use of this machine’s maximum temperature for extended periods of time, in an attempt to
thoroughly cook food products, is prohibited. Such operation will void the manufacturer’s warranty
and may result in under cooked and therefore unsafe food.
1 YEAR PART AND LABOUR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components (cardboard, polyethylene, and others) are classied as normal solid urban waste
and can therefore be disposed of without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

6
Operation
Before using the machine, a complete cleaning of the machine must be performed.
Installation
Technical Specications
Model DW-CN-0660
Power 1.2 kW
Shelf Sizes 10.25” x 25” / 260 x 635mm
12.75” x 25” / 324 x 635mm
Pan Size 13.75” x 9.75” x 1.5” / 349 x 248 x 38mm
Temperature Range 30° - 85°C / 86° - 185°F
Exterior Lights Incandescent x 2
Interior Lights Fluorescent x 1
Electrical 110V / 60Hz / 1Ph
Dimensions 19” x 26” x 23.5” / 483 x 660 x 597mm
Weight 59.4 lbs. / 26.9 kgs.
Item Number 21479
1. Before using this machine, please make sure the machine is safely grounded.
2. The voltage supply must be correspond with the rated voltage of the warmer.
3. Screw the side glass into place with the 8 screw provided.
4. Each time before using the machine, add 0.6 liters (0.16 gallons) of water into the water tray of this
machine.
5. After connecting the machine to the power supply, the power indicator will be on. Turn on the heating
switch to select the desired temperature. Air convection will keep the desired temperature throughout the
machine.
6. If light is needed, use the light bulb type equipped with the machine.
7. After using, always clean the machine. For safety reasons, cut off power supply and unplug before any
cleaning.
8. If any abnormal objects, substances or noises, turn the machine off and contact a qualied technician.
NOTE: THIS UNIT IS DESIGNED TO HOLD FOOD WARM. IT IS NOT DESIGNED
TO COOK FOOD. ALL FOOD MUST BE FULLY COOKED AND HEATED PRIOR TO
PLACING IT INTO THE WARMER. DO NOT OPERATE THIS MACHINE AT THE MAXIMUM
TEMPERATURE SETTING FOR AN EXTENDED PERIOD OF TIME.

7
Maintenance
CLEANING
To increase service life, clean equipment daily.
NOTE: Do not use detergents which are acidic, corrosive or contain chlorine.
NOTE: Do not immerse the cord, plug or machine in water or any other liquid. Do not
use pressurized water jets to clean the machine.
1. Turn the machine off and unplug it from the electrical socket. Let the machine cool completely before
cleaning.
2. Use a damp cloth or sponge, use detergent and water to clean the equipment.
3. A high quality, non-toxic glass cleaner can be used to clean the glass on the machine.
Operation
Before placing food in the warmer, let the machine operate at desired temperature for 15 minutes.
Food must already be cooked and heated before placing in the machine. This machine is not designed
to cook food.
Check the temperature inside the machine regularly.
NOTE: Monitor food temperature closely to ensure food safety. DO NOT maintain a temperature of 85°C
for extended periods of time.
All numbers in brackets below refer to the Parts Breakdown.
1. Plug the machine in and press the power switch. The indicator light (28) will light to indicate power.
2. Then choose the desired temperature by adjusting the switch button (32).
3. After adjusting the temperature, the processing indicator light (29) will turn on. This shows that the unit is in
the process of heating up or is already heated up.
4. When nished with the machine, turn the temperature control to the lowest setting and switch OFF. Then
unplug the unit. If removing hot items from the unit, use protective gloves.
5. Proceed to clean the machine by the instructions listed.
DO NOT WASH ANY PART OF APPLIANCE DIRECTLY WITH WATER.
TRANSPORTATION AND STORAGE
During transportation, the machine should be careful handled. There should be no shaking. It should not be put
up-side-down. The unit should be stored in a ventilated warehouse.

8
Maintenance
4. Completely dry the machine before using.
REFERENCE
Item Number Model Number Description Manufacturer Model
Number
21479 DW-CN-0660 Display Warmer 26” / 660mm Wide Red
1200 W 110V/60/1 cQPSus FW-3
Parts Breakdown
Model DW-CN-0660 21479
Item No. Description Position Item No. Description Position Item No. Description Position
24702 Power Cord for FW-3 1 24715 Support for FW-3 14 AC137 Baseboard for FW-3 26
24703 Power Cord Holder for FW-3 2 24716 Side Glass for FW-3 15 24728 40 W Light Holder for FW-3 27
24704 PVC Sticker for FW-3 3 24717 Fixed Plate for FW-3 16 24729 40 W Light for FW-3 28
24705 Light Switch for FW-3 4 AC135 Gasket for FW-3 17 37496 Relay for FW-3 29
25172 Temperature Controller for FW-3 5, 10 AC136 Light Box Glass for FW-3 18 AC138 Relay Socket for FW-3 30
24707 Indicator Light for FW-3 6 24720 Decorate Board (including 2 Glass and 1
PVC Color Board) for FW-3 19 AC139 Halogen Lamp Holder for FW-3 31
24708 24 H Plastic Feet for FW-3 7 24721 320mm Shelf for FW-3 20 AC140 Food Tray for FW-3 32
24709 Door Guide Slot for FW-3 8 24722 260mm Shelf for FW-3 21 AC141 Halogen Lamp Holder Socket for FW-3 33
24710 Heater for FW-3 9 24723 Curved Glass for FW-3 22 AC142 Door Glass Handle for FW-3 34
24712 Base for FW-3 11 24724 Door Glass for FW-3 23 AC143 Heater Strator for FW-3 35
24713 Cover Board for FW-3 12 24725 Halogen Lamp for FW-3 24 AC144 Bulb Holder Socket for FW-3 36
24714 M5x12 Screw for FW-3 13 24726 Bottom Cover for FW-3 25 AC145 Power Switch for FW-3 37

9
Parts Breakdown
Model DW-CN-0660 21479

10

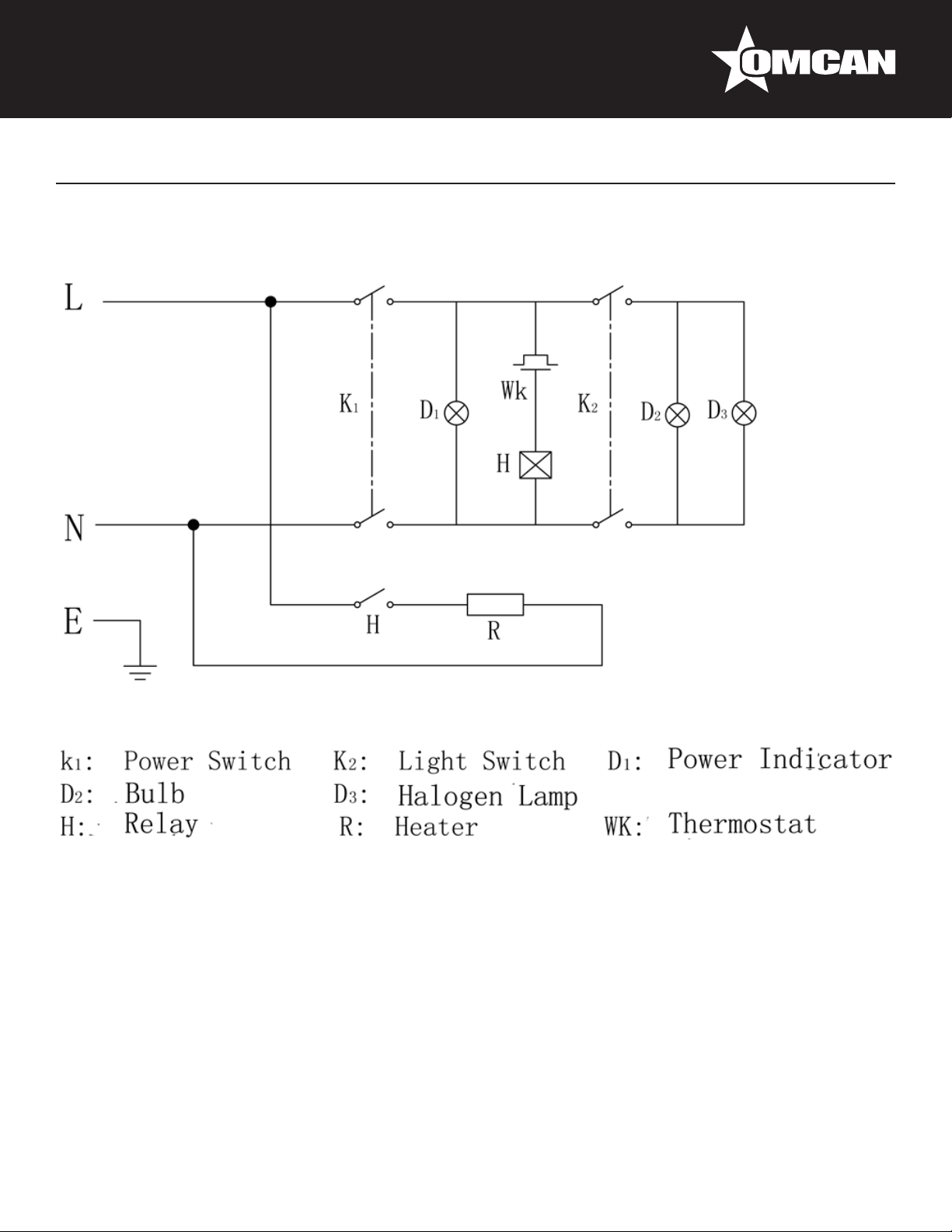

Electrical Schematics
Model DW-CN-0660 21479

11
Warranty Registration
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at
the perforation and then send to the address specied below. You can also register online by visiting:
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
https://omcan.com/warranty-registration/
or email to: [email protected]
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No

Por correo en Canadá
Pour postale au Canada
For mailing in Canada
Por correo en los EE.UU.
Pour diffusion aux États-Unis
For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 5,000 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 5,000 productos con origen a nivel mundial.
