Omcan Rs-cn-0118-e User manual

Revised - 11/18/2019

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

Countertop Refrigerated Display

Model RS-CN-0118-E

Item 43074

Instruction Manual

2

Page

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 6

-------------------------------------------------------------------------- 6

----------------------------------------------------------------------------------------- 6 - 7

------------------------------------------------------------------------------------ 7 - 8

-------------------------------------------------------------------------------- 8 - 9

----------------------------------------------------------------------------- 9 - 10

---------------------------------------------------------------------------- 11

------------------------------------------------------------------------------------------ 12 - 14

---------------------------------------------------------------------------- 15

Table of Contents

Section

General Information

Safety and Warranty

Technical Specications

Operation

Maintenance

Troubleshooting

Parts Breakdown

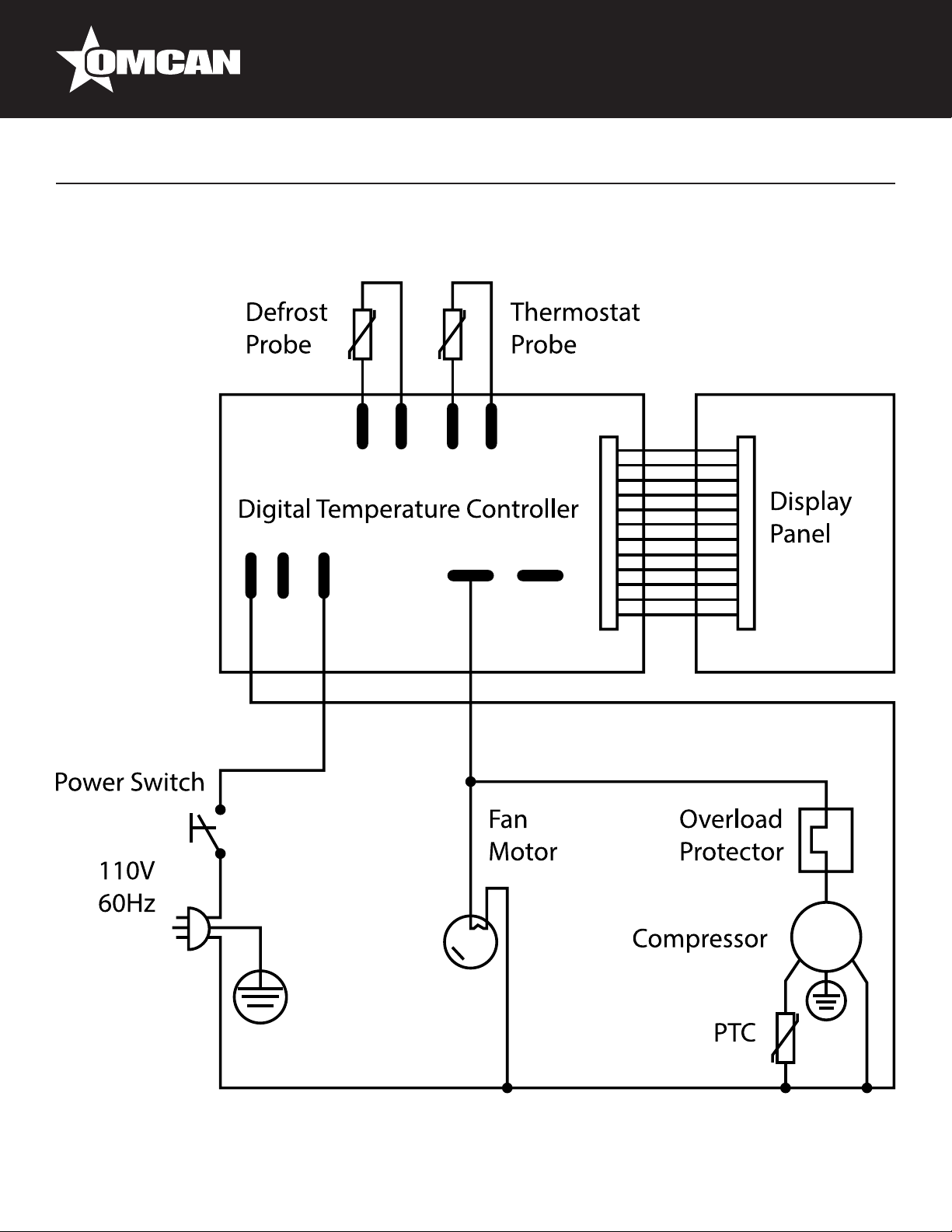

Electrical Schematics

Notes

Warranty Registration

Model RS-CN-0118-E

3

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

4

Safety and Warranty

General Information

HANDLING AND INSTALLATION

Handle with care

Unplug wall socket before moving. Never tilt the

refrigerator over 45 degrees during handling.

Storage

Always store the refrigerator in a dry place.

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para

salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

5

Safety and Warranty

Sufcient space

To allow for proper air circulation and increased

refrigeration capabilities, the refrigerator must have at

least 4 inches of space between wall and unit.

Proper ventilation

Always place the refrigerator in an area with good

ventilation. For rst time use, wait at least 2 hours

before plugging into wall socket.

Away from heat source

Never place the refrigerator near any type of heat

source or in direct sunlight, as it reduces refrigeration

capabilities.

No heavy load

Never put heavy items on top of the refrigerator.

No alterations/tampering

Never tamper with or make changes to the

refrigerator. Changes and add-ons should not be

installed to the inside or outside of the refrigerator.

Stable location

Unpack and place the refrigerator on at, solid

ground.

PREPARATION AND POWER SUPPLY

Exclusive power outlet

Power supply should be 110V, single phase AC with

exclusive single phase three pin outlet (125V/15A)

and fuse. The power outlet must be in close proximity

to the ground.

No shared power outlets

Refrigerator cable should never share the power

outlet with any other appliance, as cable will overheat

and may result in a re.

Protect cables

Extra caution should be used when handling cables,

as broken or damaged cables can cause sparking

and may result in a re.

No water ushing

Never ush the refrigerator surface. This can cause

leakage, which may result in electrical damage or re.

Never store ammables and explosives

No explosives or ammables should be stored in,

or in proximity to, the refrigerator, such as gasoline,

alcohol, and adhesives.

No spray

Never spray ammables such as paint or coating

near the refrigerator. This may cause re or

malfunction.

After power outage

After a power outage or the unplugging of the

refrigerator, wait at least 5 minutes before plugging it

back in.

No medicine

Medicine should not be stored inside of the

refrigerator.

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either

an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see https://omcan.com/disclaimer for complete info.

6

Technical Specications

Model RS-CN-0118-E

Capacity 118 L / 4.2 cu. ft.

Temperature Range 2 - 12°C / 35.6 - 53.6°F

Amps 1.6 A

Power 110 W

Electrical 110V / 60Hz / 1Ph

Coolant and Injection R134a (80g)

Foaming Agent C5H10

Interior Dimensions 27.4” x 34.7” x 16.4” / 695 x 882 x 417mm

Exterior Dimensions 30.5” x 37.6” x 19.3” / 775 x 955 x 490mm

Weight 84.9 lbs. / 38.5 kgs.

Item Number 43074

Operation

BEFORE USE

• Plug refrigerator into the 110V exclusive socket.

• After the refrigerator is running, conrm that air suction/ltration is in order and that it is sufciently cold.

After checking to make sure the refrigerator is working properly, it may be used.

Safety and Warranty

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of

without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

7

Operation

Maintenance

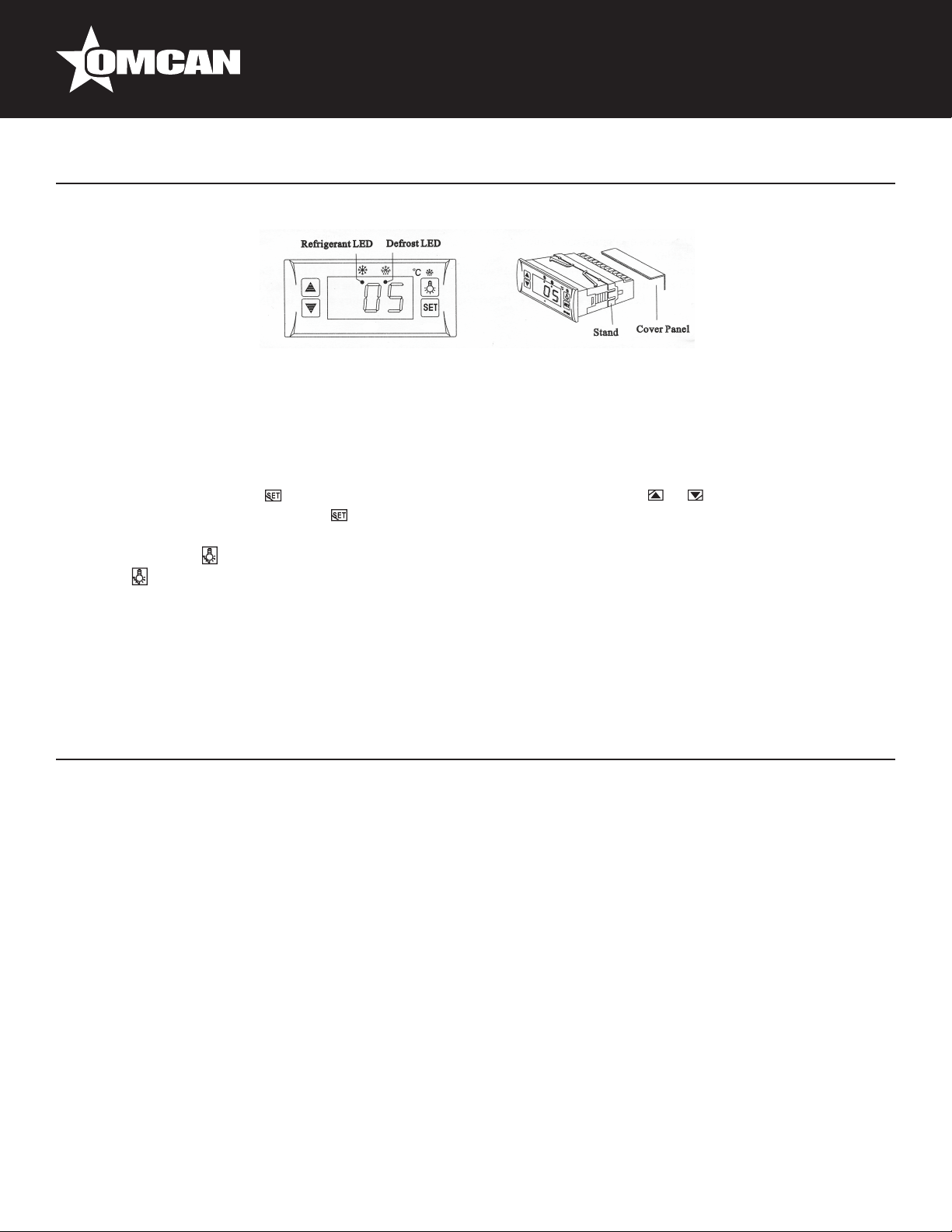

DIGITAL TEMPERATURE CONTROLLER

Small, integrated digital controller, which is applicable to the compressor of 1 Hp.

Main functions are: Temperature Display/Temperature Control/Manual-Automatic /Light Control/Value Storing/

Self-Testing/Parameter Locking.

FRONT PANEL OPERATION

1. Set temperature: Press button; set temperature will be displayed. Press or button to modify and

store the displayed value. Press button to exit the adjustment and display the cold-room temperature.

2. If no button is pressed within 10 seconds, the cold-room temperature will be displayed.

3. Lighting: Press button to activate light in refrigerator; press again to turn off. Manual start/stop defrost:

Press button and hold for 6 seconds to either defrost or to stop defrost.

4. Refrigeration LED: During refrigeration, the LED is on. When the cold room temperature is constant, the

LED is off. During delay start, the LED ashes.

5. Defrost LED: During defrosting, the LED is on. When it stops defrosting, the LED is off. During the delay of

defrost, the LED ashed.

1. Cabinet Cleaning:

a. The product should be maintained and cleaned periodically with power supply disconnected. when

cleaning, use mild-rinsing water or non-corrosive products. Do not wash directly with water faucet.

b. Clean outside of unit using a soft cloth with neutral detergent, and dry with a separate soft cloth.

c. Clean inside racks by removing them from the unit and clean with water.

2. When shutting down unit for a long period of time, take out all food and unplug wall socket. Clean inside

and outside thoroughly, and keep door open to sufciently dry.

3. As glass breaks easily, keep far away from children.

4. Replacement of Lamp in Light Box: If the LED lamp is damaged, it must be replaced by Omcan or its

service agent.

5. Frequently observe the operation of the product. In case of any abnormal noise or smell, cut off the power

supply immediately and call professionals. Do not restart the product before source of trouble is found.

6. We will not be responsible for any accidents acquired through failure to follow previous notices

CAUTIONS

• Minimizing time the time and frequency that the door is open will maintain temperature.

8

Maintenance

• Never block the air outlet and suction to keep the air circulation and refrigeration capability constant.

• Do not overll refrigerator with food, as it will inuence the cooling effect. If needed, adjust the rack height

for proper food storage.

• Cool down hot food to room temperature before placing inside the refrigerator.

• During power interruptions, reduce opening times and maintain cool temperature in refrigerator.

• To avoid scalding, never touch the compressor.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly

qualied persons in order to avoid hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

WARNING: Keep ventilation openings clear of obstructions.

WARNING: Do not use mechanical devices of other means to accelerate the defrosting process, other than

those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless

they are of the type recommended by the manufacturer.

Troubleshooting

Trouble Cause and Remedy

No Refrigeration Is the plug tting in the socket?

Is the fuse broken?

Is there no power?

Unsatisfactory Refrigeration Is it under direct sunshine? Is there any heat source

nearby?

Is the surrounding ventilation poor?

Is the door closed? Is the door open for a long period

of time?

Is the door seal strip deformed or damaged?

Is there too much food?

Does food block the air suction or outlet?

Regulate the temperature controller.

Noisy The refrigerator is not level.

The refrigerator contacts the wall or other matter.

There is loose part in refrigerator.

Contact Omcan for help if simple troubleshooting does not solve the problems.

9

Troubleshooting

NOTE

Following occurrences are not problems:

• The murmur of water is heard when the refrigerator is working. It is a normal occurrence as the coolant is

circulating in the system.

• When the weather is damp, condensation might be found on the outside of the refrigerator. It is caused by

high humidity. Simply use cloth to wipe it off.

REFERENCE

Item Number Model Number Description Manufacturer Model Number

43074 RS-CN-0118-E Refrigerated Showcase Countertop

118 L / 4.2 cu. ft. 110V/60/1 cQPSus RTW-118L

Parts Breakdown

Model RS-CN-0118-E 43074

Item No. Description Position Item No. Description Position Item No. Description Position

77885 Handle for RTW118L 1 77898 Right Glass for RTW118L 14 77911 Middle Pulley Pin for RTW118L 24

77886 A-Pillar for RTW118L 2 77899 Right Fixer for Glass Cover for RTW118L 15 77912 Inside Pulley Pin for RTW118L 25

77887 Glass Cover for RTW118L 3 77900 Left Fixer for Glass Cover for RTW118L 16 77913 Upper Cover for Condenser for

RTW118L 26

77888 Pillar for Glass for RTW118L 4 77901 Left Plate for Glass Cover for RTW118L 17 77914 Cover for Condenser for RTW118L 27

77889 Upper Front Panel for RTW118L 5 77902 Right Plate for Glass Cover for RTW118L 18 77915 Compressor for RTW118L 28

77890 Foam Base for RTW118L 6 77903 Temperature Display for RTW118L 19 77916 Condenser for RTW118L 29

77891 Door Handle for RTW118L 7 77904 Temperature Probe for RTW118L 19-A 77917 Adjustable Feet for RTW118L 30

77892 Door Glass for RTW118L 8 77905 Defrost Probe for RTW118L 19-B 77918 Control Box for RTW118L 31

77893 Rear Panel for RTW118L 9 77906 Main Circuit Board for RTW118L 19-C 77919 Control Panel for RTW118L 32

77894 Baseboard for Compressor for RTW118L 10 77907 Switch for RTW118L 20 77920 Wire Clip for RTW118L 33

77895 Cover Board for Compressor for

RTW118L 11 77908 Fan Motor for RTW118L 21 77921 Accumulator for RTW118L 34

77896 Evaporator for RTW118L 12 77909 Pulley Pin for RTW118L 22 77922 Power Cord for RTW118L 35

77897 Left Glass for RTW118L 13 77910 Outside Pulley Pin for RTW118L 23

10

Parts Breakdown

Model RS-CN-0118-E 43074

11

Electrical Schematics

Model RS-CN-0118-E 43074

12

Notes

________________________________________________________________________________________

13

Notes

________________________________________________________________________________________

14

Notes

________________________________________________________________________________________

15

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

https://omcan.com/warranty-registration/

or email to: [email protected]

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour diffusion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 5,000 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 5,000 productos con origen a nivel mundial.

Omcan RS-CN-0118-E User manual

Popular Display Case manuals by other brands
