Omcan FR-CN-1200-D User manual

2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 6
-------------------------------------------------------------------------- 6
----------------------------------------------------------------------------------------- 6 - 7
------------------------------------------------------------------------------------- 7 - 8
-------------------------------------------------------------------------------- 8 - 9
---------------------------------------------------------------------------- 10 - 11
---------------------------------------------------------------------------- 12
------------------------------------------------------------------------------------------- 13 - 14
---------------------------------------------------------------------------- 15
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Troubleshooting
Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model FR-CN-1200-D
marchia
IDC36/48/60 Gelato Display Case

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
General Information
Safety and Warranty
HANDLING AND INSTALLATION
Handle with care
Unplug from the wall socket before moving. Never tilt
the refrigerator over 45 degrees during handling.
Storage
Always store the refrigerator in a dry place.
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre leer y familiarizarse con todas las instrucciones de
operación y seguridad.
Omcan quisiera darles las gracias por la compra de esta máquina. Es de la máxima importancia para
guardar estas instrucciones para referencias en el futuro. También guarde la caja original y el embalaje
para envío del equipo si el mantenimiento o la devolución de la máquina es necesaria.

5
Safety and Warranty
Sufcient space
To allow for proper air circulation and increased
refrigeration capabilities, the refrigerator must have at
least 4”/10cm of space between wall/ceiling and the
machine.
Proper ventilation
Always place the refrigerator in an area with good
ventilation. For rst time use, set in location and wait
at least 2 hours before plugging into wall socket.
Away from heat source
Never place the refrigerator near any type of heat
source or in direct sunlight, as it reduces refrigeration
capabilities.
No heavy load
Never put heavy items on top of the refrigerator.
No altercations/tampering
Never tamper with or make changes to the
refrigerator. Changes and add-ons should not be
installed to the inside or outside of the refrigerator.
Stable location
Unpack and place the refrigerator on at, solid
ground.
PREPARATION AND POWER SUPPLY
Exclusive power outlet
Power supply should be 220V, single phase AC with
exclusive single phase three pin outlet (250V/10A)
and fuse (6A). The power outlet must be in close
proximity to the ground.
No shared power outlets
Refrigerator cable should never share the power
outlet with any other appliance, as cable will overheat
and may result in a re.
Protect cables
Extra caution should be used when handling cables,
as broken or damaged cables can cause sparking
and may result in a re.
No water ushing
Never ush the refrigerator surface. This can cause
leakage, which may result in electrical damage or re.
Never store ammables and explosives
No explosives or ammables should be stored in,
or in proximity to, the refrigerator, such as gasoline,
alcohol, and adhesives.
No spray
Never spray ammables such as paint or coating
near the refrigerator. This may cause re or
malfunction.
After power outage
After a power outage or the unplugging of the
refrigerator, wait at least 5 minutes before plugging it
back in.
No medicine
Medicine should not be stored inside of the
refrigerator.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures not
improper use.
Please see https://omcan.com/disclaimer for complete info.

6
Technical Specications
Model FR-CN-1200-D
Storage Volume 600 L / 21.18 cu. ft.
Temperature Range -18° - -24°C / -0.4° - -11.2°F
General Rated Input Power 650 W
Defrost Power 1050 W
Rated Current 4.6A
Foaming Agent C5H10
Refrigerant and Injection R404 (310g)
Type of Climate 4
Lamp Power 6 W (LED)
Electrical 220V / 60Hz / 1Ph
Pan Dimensions 14.1” x 6.5” x 4.5” / 359 x 165 x 114mm
Dimensions 41.9” x 48.8” x 55.5” / 1064 x 1240 x 1410mm
Weight 542.3 lbs. / 246 kgs.
Item Number 43118
Safety and Warranty
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Operation
BEFORE USE
• Plug refrigerator into the 220V exclusive socket.
• After the refrigerator is running, conrm that air suction/ltration is in working order and that it is sufciently
cold. After checking to make sure the refrigerator is working properly, it may be used.

7
Operation
DIGITAL TEMPERATURE CONTROLLER
FEATURES OF FUNCTION
• Small, integrated digital controller, which is applicable to the compressor of 1 Hp. Located behind the front
grill.
• Main functions are: Temperature Display/Temperature Control/Manual-Automatic /Light Control/Value
Storing/Self-Testing/Parameter Locking.
FRONT PANEL OPERATION
1. Set temperature: Press button; set temperature will be displayed. Press or button to modify and
store the displayed value. Press button to exit the adjustment and display the cold-room temperature.
2. If no button is pressed within 10 seconds, the cold-room temperature will be displayed.
3. Lighting: Press button to activate light in refrigerator; press again to turn off. Manual start/stop defrost:
Press button and hold for 6 seconds to either defrost or to stop defrost.
4. Refrigeration LED: During refrigeration, the LED is on. When the cold room temperature is constant, the
LED is off. During delay start, the LED ashes.
5. Defrost LED: During defrosting, the LED is on. When it stops defrosting, the LED is off. During the delay of
defrost, the LED ashed.
Maintenance
CABINET CLEANING
The product should be cleaned once a week with the power supply disconnected. When cleaning please use a
mild cleansing agent. Only use a damp cloth.
CLEANING THE FILTER
When message “EE4” appears on the display, please clean the lter immediately. If the error message still
appears after cleaning the lter, please contact Omcan.
INSTRUCTIONS FOR CLEANING THE FILTER
1. Remove the four screws from the top of the front grill.
2. Pull out the front grill.

8
Maintenance
Troubleshooting
3. Take out the lter.
CHECK FOR LEAKS
Observe all connectors and welding joints for oil stains. This indicates that there is a leak, please call Omcan if
you notice any oil stains.
ALWAYS OBSERVE THE OPERATION OF THE UNIT, IN THE EVENT OF ANY ABNORMAL SOUNDS OR
SMELLS, OR IF THE UNIT BEGINS TO SMOKE, DISCONNECT THE UNIT FROM THE POWER SUPPLY
AND CALL OMCAN.
Trouble Causes Solutions
Strange noise under the
bottom shelf.
Fan blade broken. Power off and x the blade.
Non-refrigerating in spite of
normal operation.
Unit off. Power on.
Melting process. Stop melting.
Refrigerant leaking. Patch the leak and rell refrigerant.
Unit failure. Call Omcan.
Weak air from air curtain,
and higher cabinet
temperature.
Evaporator blocked by frost. Increase melting frequency.
Inside fan damaged. Replace the fan.
Too low point of temperature
controller.
Adjust the set point.
Vent blocked by storage. Remove the storage.
Normal air curtain, but
higher cabinet temperature.
Insufcient refrigerant. Rell the refrigerant.
Too high set point of temperature
controllers.
Adjust the set point for the
temperature controller.
The wind curtain disturbed by strong
air ow.
Removing the disturbing factors.
Ambient temperature or humidity
beyond standards.
Improve the conditions.
Melting water overows. Heating pipe for melting water
damaged.
Replace the heating pipe.
Water level controller failure. Replace the water level controller.
Ambient temperature or humidity
beyond standards.
Improve the conditions.

9
Troubleshooting
Normal air curtain, but
periodical uctuation of
cabinet temperature.
Condenser contaminated. Clean the condenser.
Poor venting of the unit. Improve the venting conditions.
Heat protection of compressor failure. Replace the heat protection.
Capillary is blocked by ice. Replace the drying lter.
Temperature controller failure. Replace the temperature controller.
NOTE
Following occurrences are not problems:
• The murmur of water is heard when the refrigerator is working. It is a normal occurrence as the coolant is
circulating in the system.
• When the weather is damp, condensation might be found on the outside of the refrigerator. It is caused by
high humidity. Simply use cloth to wipe it off.
REFERENCE
Item Number Model Number Description Manufacturer Model Number
43118 FR-CN-1200-D Ice Cream Display Showcase
48” / 1200mm 220V/60/1 cQPSus ARD-600L

10

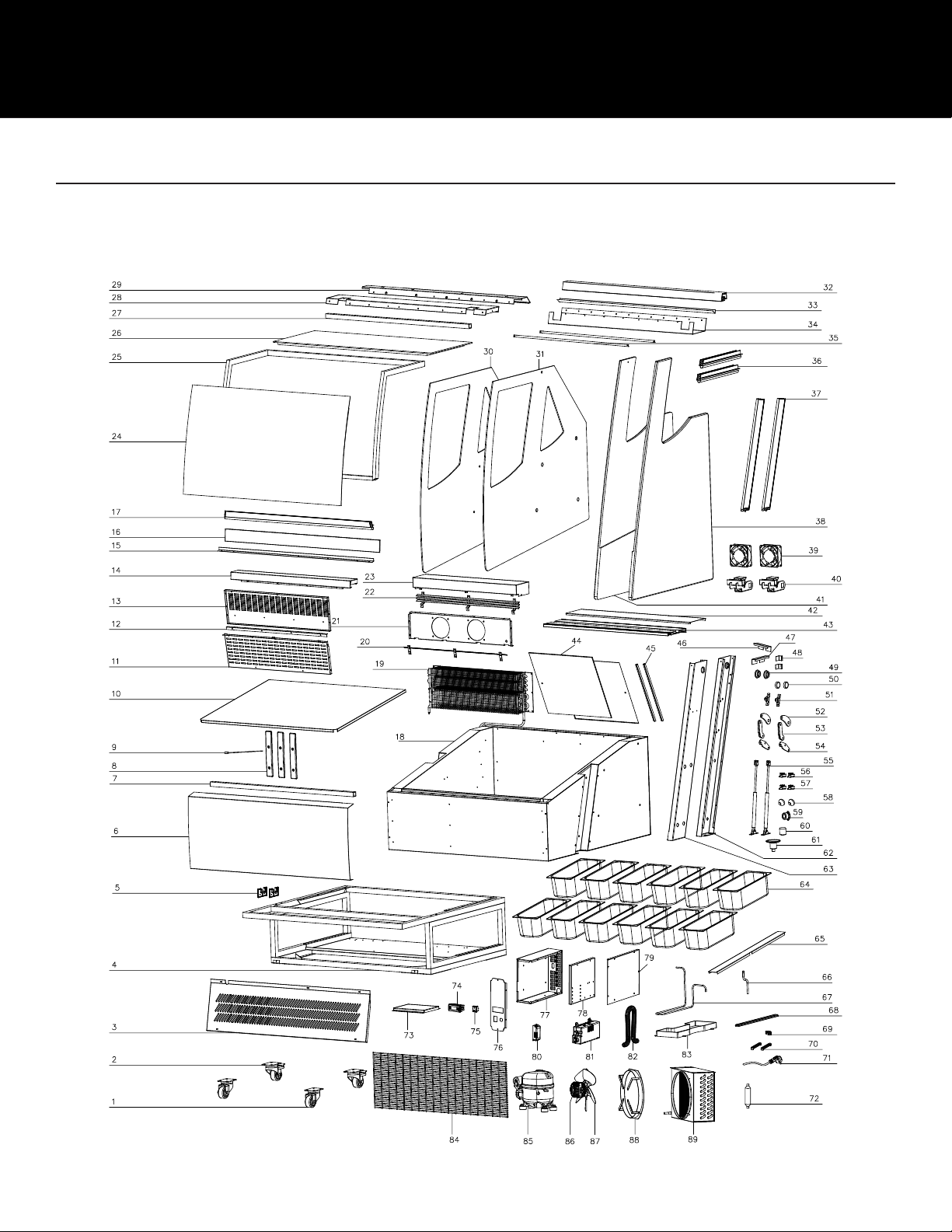

Parts Breakdown
Model FR-CN-1200-D 43118

11
Parts Breakdown
Model FR-CN-1200-D 43118
Item No. Description Position Item No. Description Position Item No. Description Position
79763 Swivel Front Castor without Brake for
ARD600L 1 62869 Right Glass for ARD600L 31 62899 Sewer Joints Large for ARD600L 61
71042 Rear Swivel Castor with Brake for
ARD600L 2 62870 On the Beam for ARD600L 32 62900 Right Column for ARD600L 62
62841 Before the Wind Board for ARD600L 3 62871 Door Seal On for ARD600L 33 62901 Left Column for ARD600L 63
62842 Base for ARD600L 4 62872 Rocker Under the Cover for ARD600L 34 62902 Ice Cream Plate for ARD600L 64
62843 Crosspiece Support for ARD600L 5 62873 LED Light for ARD600L 35 62903 Middle Bar for ARD600L 65
62844 Front Decorative Panels for ARD600L 6 62874 Door Seal-1 for ARD600L 36 62904 Return Air Tube for ARD600L 66
62845 Crossed Square Tube for ARD600L 7 62875 Door Seal-2 for ARD600L 37 62905 High Pressure Pipe for ARD600L 67
62846 Front Decorative Panels Supporting Item
for ARD600L 8 62876 Right Trim Plate for ARD600L 38 62906 Slide Rails for ARD600L 68
62847 Waterproof Power Cord for ARD600L 9 62877 Evaporator Fan for ARD600L 39 62907 Pressure Plate for ARD600L 69
62848 Ice Cream Barrels Floor for ARD600L 10 62878 Rocker Arm for ARD600L 40 62908 High Pressure Pipe Block for ARD600L 70
62849 Front Bucket Fixed Plate for ARD600L 11 62879 Left Trim Plate for ARD600L 41 62909 Power Cable for ARD600L 71
62850 Front Bucket Bafe Fixed Strip for
ARD600L 12 62880 Rear Beam Cover for ARD600L 42 30624 Dry Filter for ARD600L 72
62851 Back Bucket Fixed Plate for ARD600L 13 62881 Rear Beam for ARD600L 43 62910 Compressor Fixing Plate for ARD600L 73
62852 Front Bafe for ARD600L 14 62882 Door Glass for ARD600L 44 62911 Thermostat for ARD600L 74
62853 Front Bafe Glass Fixing Strip for
ARD600L 15 62883 Type A Seal for ARD600L 45 62912 Switch for ARD600L 75
62854 Glass Bafe for ARD600L 16 62884 Top Left Decorative Plate Fixture for
ARD600L 46 62913 Temperature Control Panel for ARD600L 76
62855 Door Seal-3 for ARD600L 17 62885 Top Right Decorative Plate Fixture for
ARD600L 47 62914 Power Control Box for ARD600L 77
62856 Foam Bucket for ARD600L 18 62886 Rear Decorative Plate Fixture for
ARD600L 48 62915 Power Box Base for ARD600L 78
62857 Evaporator for ARD600L 19 62887 Bushings for ARD600L 49 62916 Power Box Cover for ARD600L 79
62858 Forward Air Outlet for ARD600L 20 62888 Bearing for ARD600L 50 60145 #6 LED Driver for ARD600L 80
62859 Evaporator Fan Fixing Plate for ARD600L 21 62889 Pole Head for ARD600L 51 62917 Motherboard Fixing Box for ARD600L 81
62860 After the Outlet for ARD600L 22 62890 On the Hinge for ARD600L 52 62918 Bellows for ARD600L 82
62861 Back Bafe for ARD600L 23 62891 In the Hinge for ARD600L 53 62919 Water Box for ARD600L 83
62862 Front Glass for ARD600L 24 62892 Under the Hinge for ARD600L 54 62920 Net Cover for ARD600L 84
62863 Front Door Frame for ARD600L 25 62893 Gas Spring for ARD600L 55 62921 Compressor for ARD600L 85
62864 Top Glass for ARD600L 26 62894 Front Door Frame Left Corner for
ARD600L 56 62922 Condenser Motor for ARD600L 86
62865 Rocker Square Tube for ARD600L 27 62895 Front Door Frame Right Corner for
ARD600L 57 62923 Leaves for ARD600L 87
62866 Rocker Cover Plate for ARD600L 28 62896 Door Handle for ARD600L 58 62924 Flange for ARD600L 88
62867 Curtain Fixed Plate for ARD600L 29 62897 Waterproof Thermostat for ARD600L 59 62925 Condenser for ARD600L 89
62868 Left Glass for ARD600L 30 62898 Sewer Joints are Small for ARD600L 60

12
Electrical Schematics
Model FR-CN-1200-D 43118
