General Information
Safety & Warranty
Technical Specications
Installation
Operation
Maintenance
Disposal
Parts Breakdowns
Electrical Schematics
Warranty Registration
Model S40

3
General Information
Safety & Warranty
Omcan Manufacturing and Distributing Company Inc. and Food Machinery Of America, Inc. dba Omcan
are not responsible for any harm or injury caused due to any person’s improper or negligent use of
this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and
not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this
machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any
warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while
in operation.
Thank you for choosing our appliance. The following are instructions for installation, use and maintenance
which will ensure the long life and correct operation of your appliance. Follow these instructions carefully. We
have designed and manufactured this appliance with the latest technological developments in mind.
READ THE INSTRUCTIONS CAREFULLY BEFORE INSTALLING THE MACHINE
WARNING: FAILURE TO COMPLY (EVEN PARTIALLY) WITH THE RULES GIVEN IN THIS MANUAL
WILL INVALIDATE THE PRODUCT WARRANTY AND RELIEVES THE MANUFACTURER OF ANY
RESPONSIBILITY.
WARNINGS
It is very important to keep this instruction manual near the appliance for future consultation. If the appliance is
sold or transferred to another user, make sure this manual remains with the machine so that the new owner is
informed about the warnings and operation of the appliance. These instructions are given for safety reasons.
They must be read carefully before installing and using the appliance.
• If the appliance seems damaged after removing the packaging, contact the retailer before using it.
• Anychangesmadetotheelectriccircuitwheninstallingtheappliancemustbedonebyaqualied
technician.
• Make sure that the electric circuit is properly grounded and conforms to the regulations in force.
• The appliance must be used by adults only.
• After the use it is suggested to disconnect the appliance from the electric supply by switching the machine
off and unplugging the power cord from the socket.
The main wall switch must be of the multipolar type with a contact opening of at least 3 mm.
• Anyinterventiontorepairtheapplianceisnotallowedfortheuser.Pleasecontactaqualiedtechnician.
• Undernocircumstancesshouldtheuserattempttocarryoutrepairs.Contactaqualiedandauthorized
technician.
Please use only original spare parts. Otherwise the product guarantee and the manufacturer’s
responsibility is forfeited.

4
Safety & Warranty
• This appliance shall be used exclusively for the purpose for which it was designed. Any other use shall be
considered improper and therefore dangerous. Do not use the appliance to mix dangerous liquids or any
other non-organic liquid.
• When using this appliance, it is important to observe the following rules:
1. Never touch the appliance with wet hands or feet;
2. The appliance should never be used by persons with bare feet;
3. Do not install the appliance in areas exposed to pressurised water spray;
4. Never pull on the power cord to disconnect the appliance from the mains.
• This appliance can work until a maximum room temperature of 35°C.
The Manufacturer cannot be held responsible for damage or injury caused by failure to observe the
above rules.
1 YEAR BENCH WARRANTY
WARNING:
Thepackagingcomponentsareclassiedasnormalsolidurbanwasteandcanthereforebedisposedof
withoutdifculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Technical Specications
SPECIFICATIONS S40
Dimensions (mm) 240 × 180 × 320
Power supply 110V
Frequency 60Hz
Absorbed power (Watts) 250
The packing consists of the following:
• A wooden pallet;
• A nylon (LDPE) bag;
• A multilayer cardboard box;
• A polystyrene foam (PS);
• Polypropylene (PP) straps.
Please dispose of the materials listed above, according to the current regulations.

5
Technical Specications
Installation
Operation
INSTALLATION TO BE DONE BY LICENSED PROFESSIONALS ONLY.
UNPACKING AND PREPARING THE APPLIANCE FOR USE
• Unpack the appliance and remove the packing material.
• Place the appliance on a surface which is not slippery.
CONNECTION TO THE MAINS
The connection to the electric supply have to be made by a magnetothermic omnipolar switch, with distance
of3mmbetweenanyobjects,fuses,orbyadifferentialproperlysizedaccordingtotheelectricnormsinforce.
This socket must be dedicated to the appliance. Make sure that there is a proper grounded connection.
The appliance is equipped with a 110V/60 Hz connection.
Plug the juicer into a standard wall socket. Press switch 0-1 (A) to position (1) for operation.
Whentheswitchhasbeenpressed,cutthefruittobesqueezedinequalhalves,takeoneofthemandplaceit
on the spinner, being careful not to turn it.

6
Operation
Maintenance
Disposal
Thejuicewillpassthroughthelterintothebowlwhereitrunsintoadrainagetubeandiscollectedinthejuice
collector cup placed beneath the tube.
Useful advice
Thejuicershouldonlybeusedforthetimeperiodnecessarytosqueezethefruit.Therefore,donotoperate
the appliance for long periods of time when it is empty. After using the appliance, it is advisable to disconnect
it from the mains by means of the main wall switch. In case of prolonged work, the gear has a thermic switch
which will temporarily turn off the gear to let it cool.
Before proceeding with maintenance or cleaning, make sure that the appliance is disconnected from the power
main.Noparticularmaintenanceisrequired.Itisadvisabletoalwayscleantheappliance,thereamer,thelter
andthebowl.Todoso,useadampcloth.Thelterandthecrowncanberemovedbyextractingthemupand
rinsed under running water. It is suggested not to wash the appliance under water jets because the item is not
protectedagainstpressurizedwatersprays.Neverusebleachorchlorinedetergentstocleantheappliance.
The use of the WEEE Symbol indicates that this product may not be treated as household waste. By ensuring
this product is disposed of correctly you will help protect the environment. For more detailed information
about the recycling of this product, please contact your local authority, your household waste disposal service
provider or the shop where you purchased the product. For the disposal of the machine or one of its part,
please follow the directives 2002/95/CE,2002/96/CE and following changes and/or the legislative decrees
of application. This product or parts of it cannot be disposed of as domestic waste but must be treated by
means of separate collection (see barred waste container symbol on product). At the time of product disposal,
theusermustrefertothespecicwastecollectionsystemsforelectricandelectronicappliances(WEEE).
The manufacturer guarantees the absence of dangerous substances in the EEE’s used incompliance with
the 200/95/CE Directive. In the case of failure to comply with that prescribed, the user will be subject to the
sanctions envisioned by the local government. Disconnect the machine from the electrical and water supply
before disposal. Cut off the electrical cable in order to make any other use impossible. All the metal parts are
recyclable as they are in stainless steel. Recyclable plastic parts are marked with the symbol of the plastic
material.

7

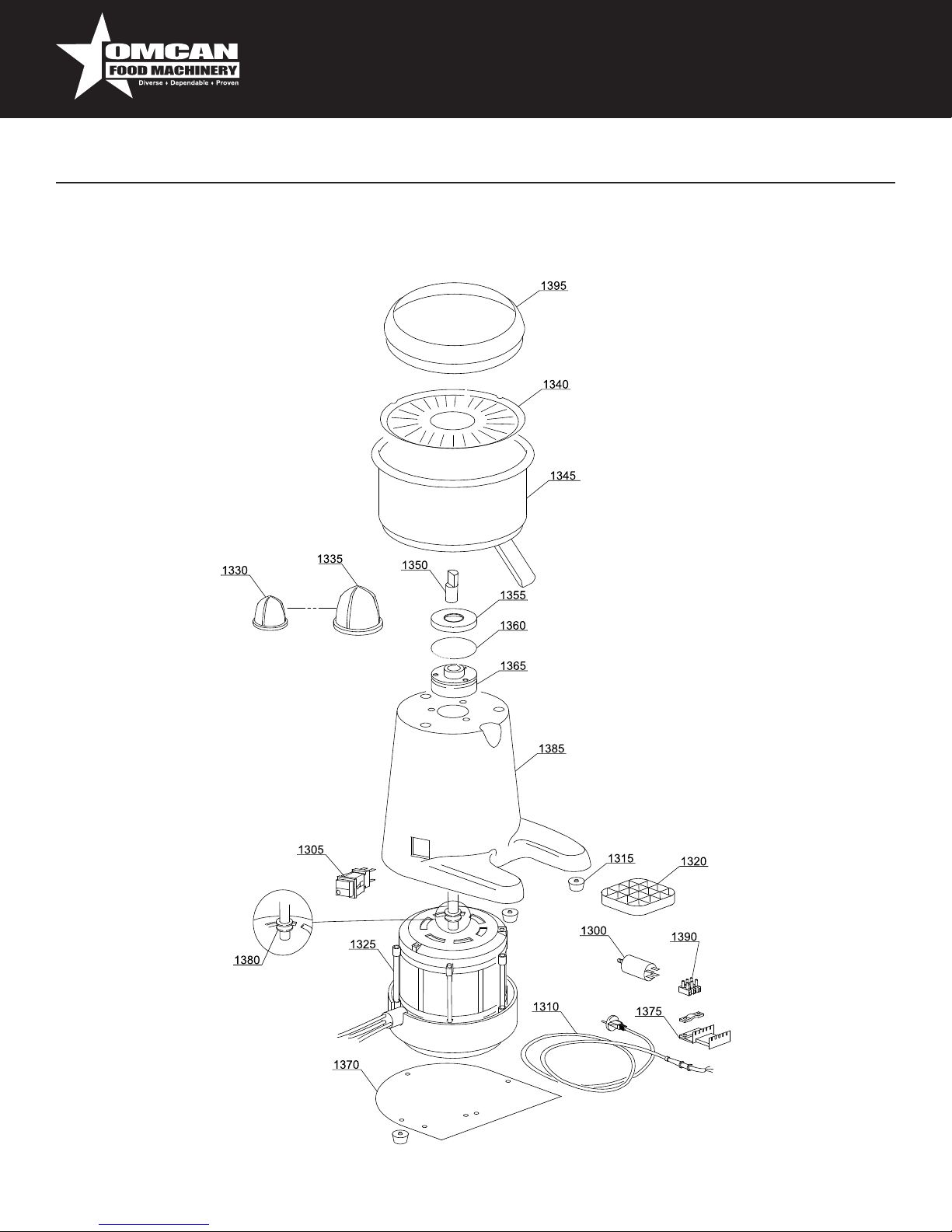

Parts Breakdown
Model S40 13660

8
Parts Breakdown
Model S40 13660
Diagram
No. Description Diagram No. Description Diagram No. Description
1300 Capacitor 1335 Large Spinner 1370 Protective Bottom
1305 Single Green Button Switch 1340 Stainless Steel Sieve 1375 Cable Terminal
1310 Power Cable 1345 Stainless Steel Tank 1380 V-Ring
1315 Rubber Foot 1350 Slot for Spinner 1385 Aluminum Frame
1320 Sauce Cup Holder 1355 Washer 1390 Terminal
1325 Motor 1360 O-Ring 16.64 x3.53 1395 Plastic Guard
1330 Small Spinner 1365 Support Tray

9
Model S40 13660

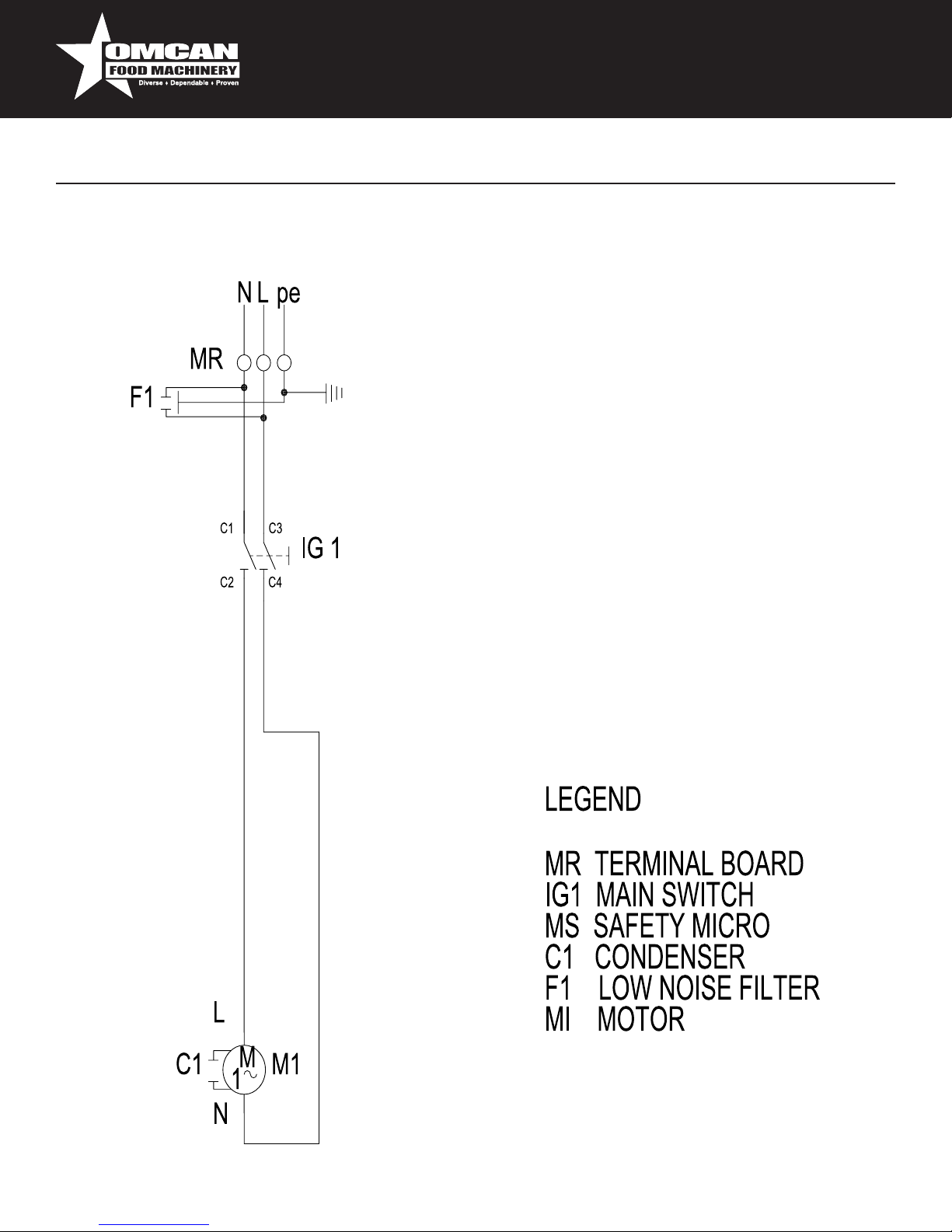

Electrical Schematics
