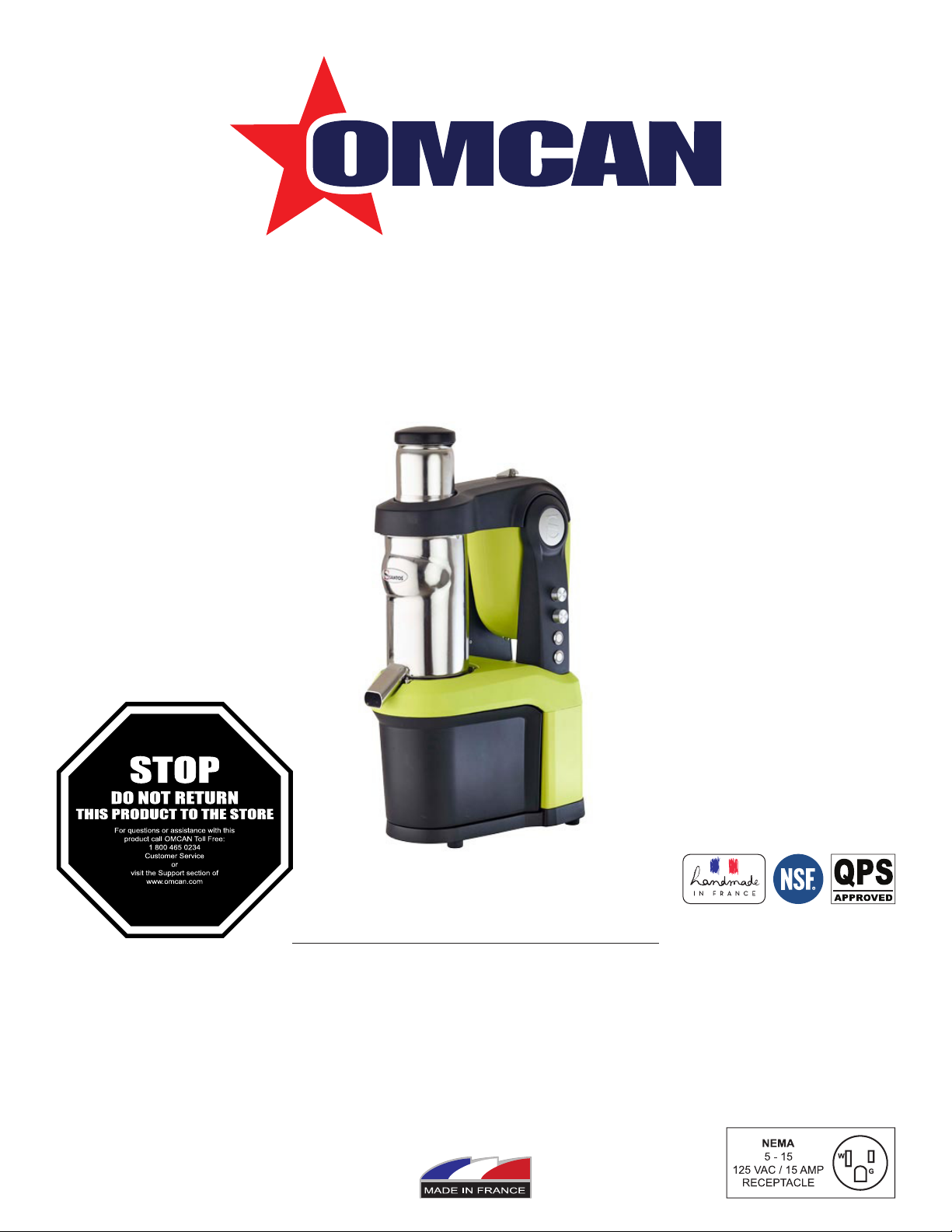

Santos Cold Press Juicer
Model Santos 65
Item 45923
Instruction Manual

2
Page
--------------------------------------------------------------------------- 3 - 4
--------------------------------------------------------------------------- 4 - 6
-------------------------------------------------------------------------- 7
----------------------------------------------------------------------------------------- 7 - 8
------------------------------------------------------------------------------------ 8 - 9
------------------------------------------------------------------------------- 9 - 10
----------------------------------------------------------------------------- 10 - 13
---------------------------------------------------------------------------- 14 - 16
---------------------------------------------------------------------------- 17
------------------------------------------------------------------------------------------------- 18
---------------------------------------------------------------------------- 19
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Troubleshooting
Figure Drawings
Parts Breakdown

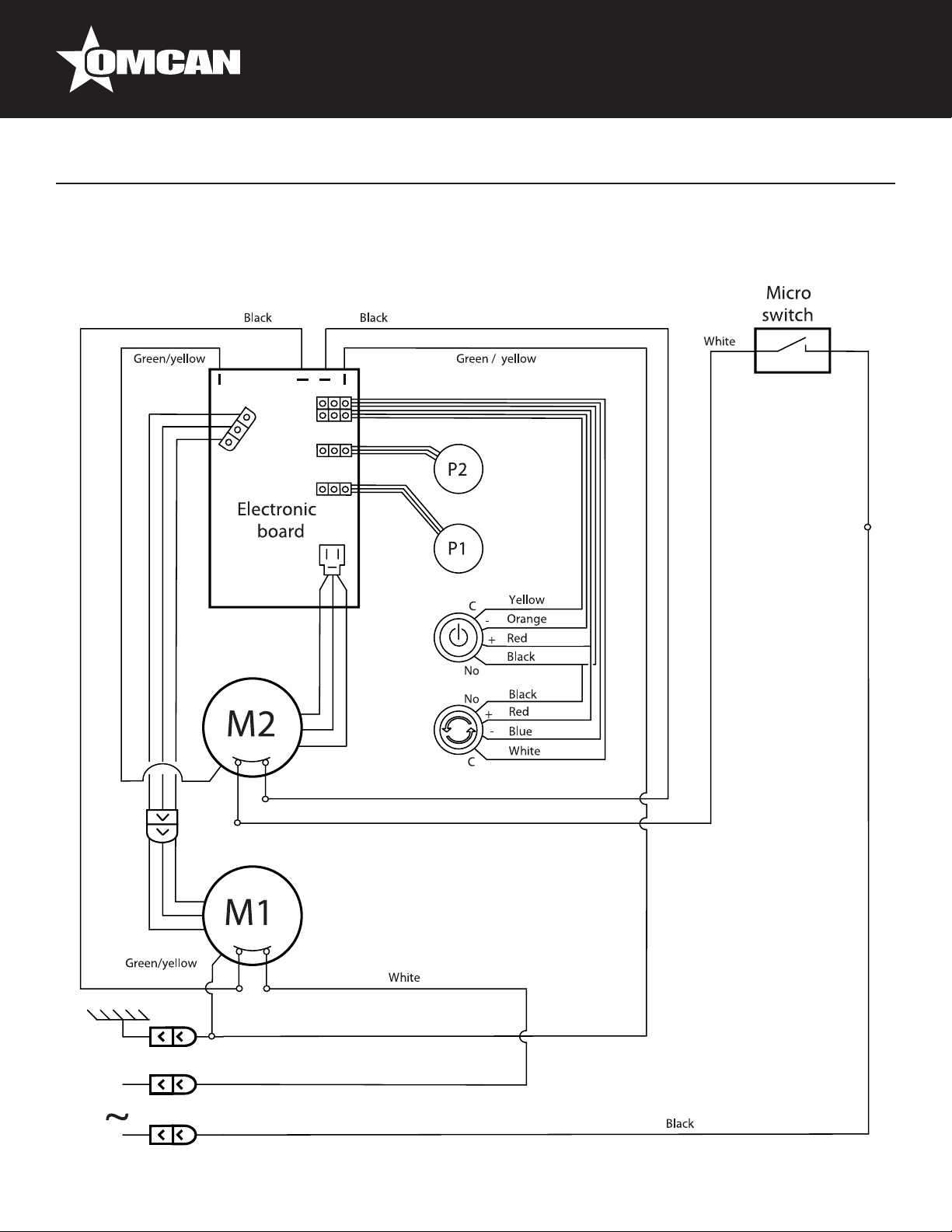

Electrical Schematics
Notes
Warranty Registration
Model Santos 65

3
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has su󰀨ered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.

4
Safety and Warranty
General Information
When using, maintaining or disposing of the machine, always follow these basic instructions.
Read all instructions
Note: you will nd it easier to understand the next few paragraphs if you refer to the diagrams at the end of this
manual.
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.

5
Safety and Warranty
INSTALLATION AND HANDLING
During unpacking in particular, you are advised to have 2 people to handle the machine. For ease of use, it is
recommended the machine is placed on a table or work surface so as to have the juice spout in front of you
(recommended height: 90 cm, to be adapted as required to the user).
Warning: watch out for a possible slippery oor adjacent to the appliance.
During cleaning and installation, handle the sieve (13), carefully so as not to put it out of shape thus preventing
the machine from working properly.
IMPROPER USE
1. Do not place food in the feed channel and press with the plunger before you have started the machine.
2. The appliance is not designed for handling frozen foods.
3. Remove stones from fruit before processing it in the machine (e.g. mangoes, apricots, peaches). Do not let
the stones go into the machine.
4. Do not place anything other than food in the feed channel.
5. Do not place hard food in the feed channel.
6. The machine must not be left to operate without supervision.
7. Neither a hose nor a pressure hose should be used for cleaning.
8. Do not use abrasive sponges for cleaning the basket.
9. The appliance must not be used on any surface which has a slope of more than 10° relative to the
horizontal. The machine’s 4 feet must always be resting on this surface. The machine’s motor spindle must
always be vertical relative to this surface.
10. Never plunge the base in water or any other liquid for reasons of protection against risks of electrocution.
11. The appliance must be unplugged before any intervention on it: cleaning, servicing, maintenance.
12. The use of spare parts other than certied original Omcan parts is prohibited.
13. Do not use the appliance if the power supply cord is damaged. It must be replaced by either a Omcan
approved dealer, Omcan or a person with similar qualications to avoid any danger.
14. Never connect several appliances to the same power socket.
15. Never use the appliance outdoors.
16. Never place the appliance close to or on a source of heat.
17. This appliance is a professional machine designed exclusively for professional use. It is not designed for
household use.
18. This appliance is not designed for use by people (including children) whose physical, sensorial or mental
capacities are impaired or by people with no experience or knowledge, unless they have been supervised
or given training in the use of the appliance beforehand by a person responsible for their safety.
Supervise children to ensure they do not play with the appliance.
CAREFUL:
• Before connecting the machine, check that the mains electrical voltage is the same as the voltage for your
appliance. Its value is shown:
- either on the identication plate under or behind the machine.

6
Safety and Warranty
- or in the technical specication section of this manual.
• If the power supply cable (22) is damaged, it should be replaced by a Omcan approved dealer, Omcan or a
person with similar qualications to avoid any danger.
• The plug must remain easily accessible while the appliance is in use.
USING FOR THE 1ST TIME
1. Lift up the cover (2) after turning the unlocking lever (6) by one quarter of a turn. Fig. 2.
2. Lock the cover (2) in the top position.

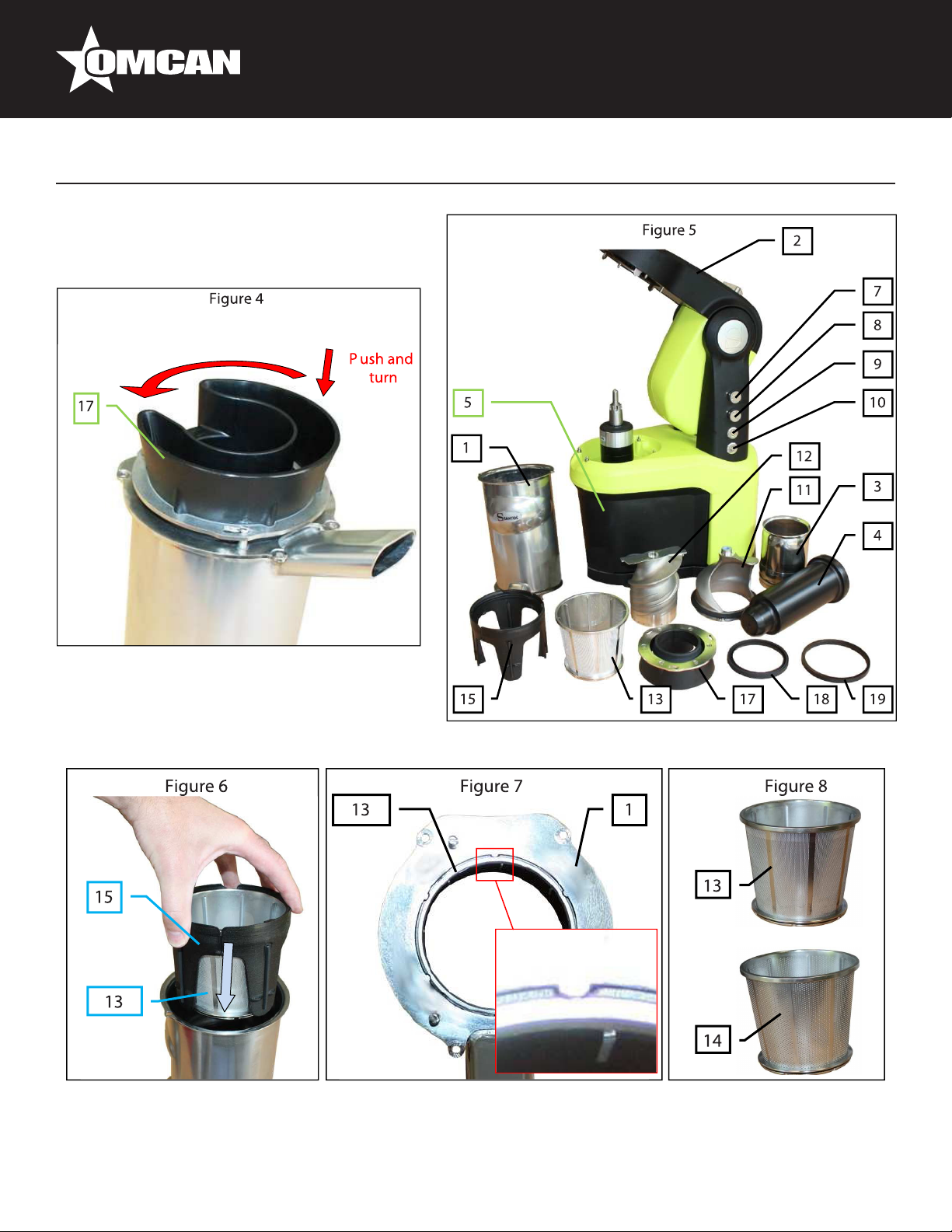

3. Turn and remove the bowl (1). Fig. 3.
4. Remove the top screw (11).
5. Remove the bottom screw (12).
6. Remove the sieve (13) with the 2 scrapers (15).
7. Unscrew the discharge cone (17) by pressing down and remove the seal (18) and the ring (19). Fig.4.
8. Wash all the components in contact with the food in clean water: the plunger (4), the feed channel (3), the
bowl (1), the top screw (11), the bottom screw (12), the sieve (13), the scrapers (15), the discharge cone
(17), the seal (18), the ring (19) and the pulp container (5). Fig.5.
1 YEAR PARTS AND LABOUR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop o󰀨 to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without di󰀩culty.
In any case, for suitable recycling, we suggest disposing of the products separately (di󰀨erentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

7
Technical Specications
Operation
Model SANTOS 65
Power 650 W
Electrical 120V / 60Hz / 1
Current 5A
RPM 80 RPM
Dimensions 9.3” x 16.2” x 25.3” / 236 x 411 x 643mm
Weight 61.7 lbs. / 28 kgs.
Packaging Weight 70.5 lbs. / 32 kgs.
Item Number 45923
STARTING UP
ASSEMBLY AND PREPARATION
1. Fit the scrapers (15) around the sieve (13) and insert the assembly into the bottom of the bowl (1). Fig.6.
Careful: line up the pins of the bowl (1) with the housings of the sieve (13). Fig.7.
2. Turn over the bowl (1) and t the ring (19), the seal (18) before screwing in the discharge cone (17). Fig.9
and Fig.10.
3. Place the bowl (1) on the machine.
4. Position the bottom screw (12). Fig.11.
Careful: position the 2 bosses of the screw (12) in the 2 housings of the scrapers (15). Fig.14.
5. Position the top screw (11). Fig.12.
6. Turn the unlocking lever (6) a quarter of a turn and lower the cover (2).
Careful: if the cover (2) is not locked (unlocking lever not aligned with the appliance, Fig.13), raise it
and turn the top screw slightly (11) or check the position of the internal screw (12).

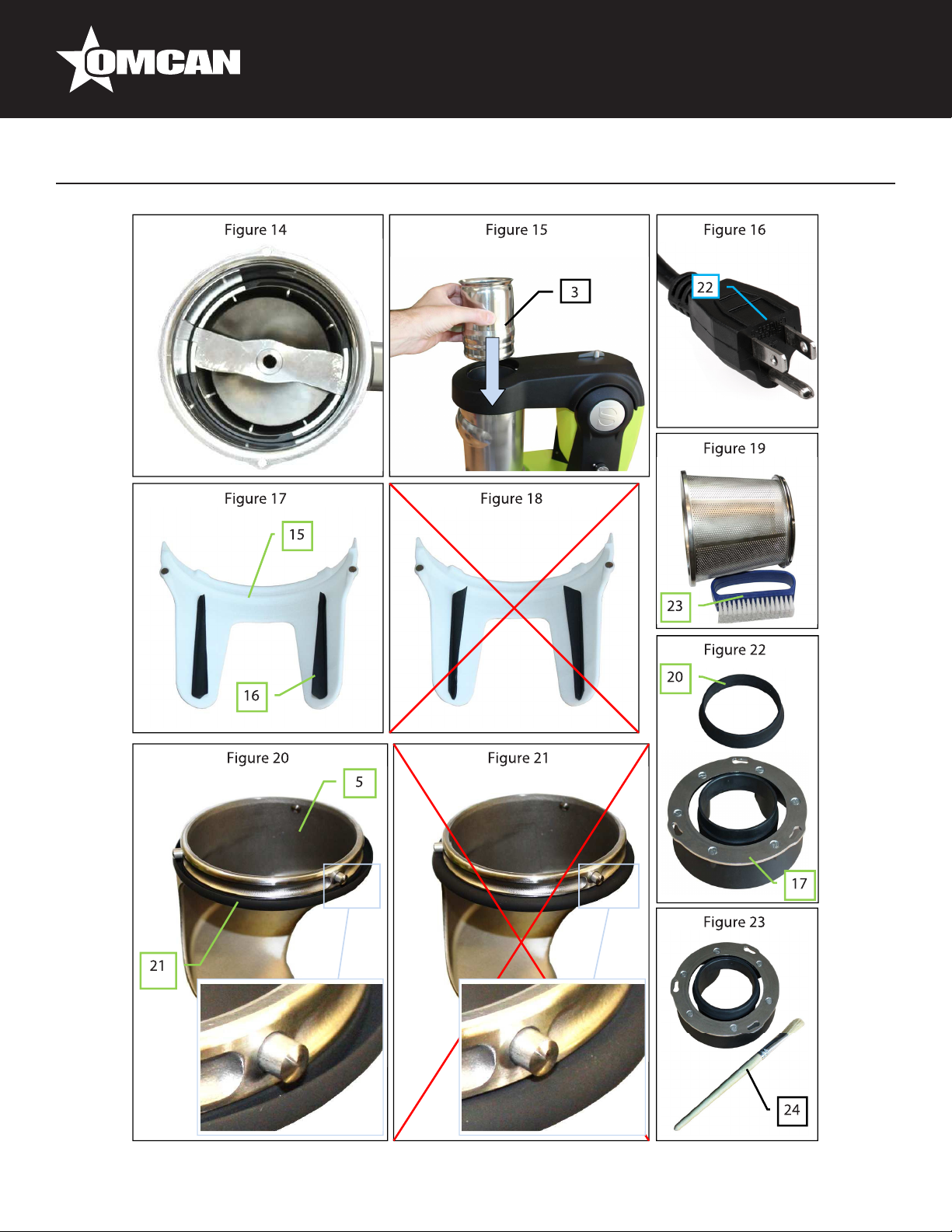

7. Position the feed channel (3). Fig.15.
8. Install the scrap bucket (5).
9. Connect the power supply cord plug (22) to your mains support socket. Fig.16.
10. Remove the fruit plunger (4) from the feed channel (3).
USE
1. Place the recipient under the bowl spout (1).
2. Start the machine, by operating the “On/O󰀨” button (9).
3. Introduce the food into the feed channel (3) and, if required, push it down with the fruit plunger (4).
4. Continue this operation until the juice recipient is full or all the fruit and vegetables to be processed have
been used. Also keep an eye on the level of pulp in the pulp container (5).
SIEVE
The appliance comes with a sieve (13) with small holes for juices. A sieve (14) with big holes for coulis is avail-

8
Operation
Maintenance
able as an option. Fig.8.
HOW TO STOP THE MACHINE
The appliance is stopped:
1. By pushing the “On/O󰀨” push button (9).
2. By unplugging the mains cord plug (22).
DETECTION OF HARD FOOD
The machine can detect when hard food is inserted inside. In this case, it automatically performs up to 3 suc-
cessive reciprocating movements to try and unblock the screws. If after this operation, there is still local friction,
the machine will stop. It is then necessary to take down the screws and clean them.
JAMMING
Food may get jammed in the screw and prevent more from going through. You are advised to perform a back-
ward operation for a few seconds by pressing the backward operation button (10) for a few seconds. Repeat
this operation several times as required. If the jam persists, take down the screws and clean them.
CLEANING
Handle the sieve (13) and the screws (11/12) carefully so as not to put them out of shape thus preventing the
machine from working properly. To clean the sieve (13), it is recommended to use the brush (23) supplied with
the machine, for proper cleaning of the lter sieve holes. Do not use abrasive sponges for cleaning the ma-
chine. Take down the seals (16), (18), (20) and (21) to clean them with the brushes (23) and (24) and put them
back as shown in the photos Fig.17, Fig.9, Fig.22, and Fig.20. Cleaning will be easier if you do not wait for the
food remains to dry in the moving parts of the machine.
PRECAUTIONS AND RISKS
Do not place any objects other than food in the machine. During preparation, the level in the pulp container (5)
should be monitored to prevent the pulp outlet from clogging. Such clogging could result in a machine dysfunc-
tion. The quantity of products to be processed before reaching the maximum lling level in the container (5)
varies according on the products being processed.
MOTOR OVERHEATING SAFETY FEATURE
In the event of one of the 2 motors overheating, the appliance stops automatically. The safety features have an
automatic reset, so wait for the motors to cool (15 to 30 minutes), before restarting the machine. If the problem
persists, switch o󰀨 the power supply to the machine (unplug the cord from the mains socket (22)) and call in
the maintenance service or contact a Omcan approved dealer.

9
Maintenance
Troubleshooting
SAFE ACCESS TO THE TOOLS
The juice extractor can only be started if the feed channel (3) and bowl (1) are positioned correctly and the
cover (2) is locked in the lowered position. Removing the feed channel (3) or lifting the cover (2) results in the
machine stopping. Re-starting the juice extractor requires specic operation of the “On/O󰀨” push button (9)
again. A cut in the mains power supply stops the machine.
MAINTENANCE
Before carrying out any work on the cold press juicer, it must in all cases be unplugged from the mains power
supply and wait 20 seconds for the capacitor of the electronic board to discharge.
SPARE PARTS
IMPORTANT: The use of spare parts other than certied original Omcan parts is prohibited.
This machine requires no specic maintenance because the bearings are lubricated for life. If any intervention
is necessary to replace parts subject to wear, such as the sieve (13), the scrapers (15), the seals (16), (18),
(20), (21), the electrical or other components, please refer to the parts list (see the exploded view at the end of
this manual). For all spare part orders (see references in the exploded view at the end of the manual), state the
type, the machine serial number and the electrical specications recorded under the machine.
SERVICING
Neither a hose nor a pressure hose should be used for cleaning.
• After use, clean the plunger (4), the feed channel (3), the bowl (1), the top screw (11), the bottom screw
(12), the sieve (13), the scrapers (15), the discharge cone (17), the seal (18), the ring (19) and the pulp
container (5) in clean water or with a dish washing detergent product designed for this purpose. Then rinse
and dry. Do not use abrasive products or materials to clean the basket assembly.
• The base is to be cleaned with a soft damp sponge, then dried.
CAREFUL
For easier cleaning, do not leave food remains to dry on the parts in contact with the food and clean all these
parts of the machine immediately after the work is nished.
THE MACHINE WILL NOT START
• Check: the mains supply and the condition of the power supply cord.
• Check: the presence of the feed channel (3) and the locking of the cover (2) in the lowered position Fig.13.

10
Troubleshooting
Figure Drawings
THE MACHINE STOPS BECAUSE THE MOTOR HAS OVERHEATED (THE CASINGS AROUND THE
MOTOR UNITS ARE HOT)
• Remove the plug from the power supply socket and follow the instructions in the section on “motor over-
heat safety feature”.
THE MACHINE STOPS BECAUSE OF A JAM
• See the section on “jamming”.
THE MACHINE IS NOISY
• Check the parts are positioned correctly.
• Check no part has been damaged by a fall or the suchlike: if so, replace this part.

11
Figure Drawings

12
Figure Drawings

13
Figure Drawings

14
Parts Breakdown
Model SANTOS 65 45923

15
Parts Breakdown
Model SANTOS 65 45923
Item No. Description Position Item No. Description Position Item No. Description Position
AD958 Pusher for 45923 65101 AD999 Locking Spring for 45923 65318 AE040 Spacer M3x20 for 45923 65387
AD959 Feeding Tube for 45923 65102 AE000 Locking Handle Axle for 45923 65321 AE041 Top Motor Casing for 45923 65391
AD960 Container Cap for 45923 65104 AE001 Locking Handle for 45923 65322 AE042 Motor Casing Seal for 45923 65392
AD961 Pulp Tube for 45923 65105 AE002 Screw CBX M3x6 for 45923 65323 AE043 Screw M5x10 Stainless Steel for 45923 65393
AD962 Complete Filter Body for 45923 65201 AE003 Pulleys Holding Plate for 45923 65331 AE044 Upper Belt for 45923 65396
AD963 Stainless Steel Upper Screw (01/2018)
for 45923 65202 AE004 Safety Switch for 45923 65332 AE045 Right Arm for 45923 65401
AD964 Driving Pin for 45923 65203 AE005 Screw Safety Axle for 45923 65333 AE046 Left Arm for 45923 65402
AD965 Top Screw Seal for 45923 65204 AE006 Spacer 5x8x6 for 45923 65334 AE047 Right Arm Plate for 45923 65403
AD966 Stainless Steel Lower Screw for 45923 65206 AE007 Screw 5x20 for 45923 65335 AE048 Left Arm Plate for 45923 65404
AD967 Bottom Screw Seal for 45923 65207 AE008 Spacer M4x24 for 45923 65336 AE049 Screw CHC M6x60 for 45923 65405
AD968 Locking Axle for 45923 65208 AE009 Screw H M4x12 ZN for 45923 65337 AE050 Screw 6x25 for 45923 65406
AD969 Locking Screw for 45923 65209 AE010 Split Washer Diam 4 ZN for 45923 65338 AE051 Grower Washer W 6 ZN for 45923 65407
AD970 Stainless Steel Upper Screw for 45923 65210 AE011 Screw H M4x16 for 45923 65339 AE052 Screw FZ M3x10 ZN for 45923 65408
AD971 O-Ring 85x2 for 45923 65219 AE012 Upper Tensioning Axle for 45923 65341 AE053 Locking Ring for 45923 65409
AD972 0.3 Mesh with O-Ring Seal 85x2 for
45923 65220 AE013 Washer 8x130 for 45923 65342 AE054 Right Arm with 2 Rings for 45923 65410
AD973 Complete 0.8 Mesh (Option) for 45923 65221 AE014 Bronze Bearing 25x30x25 for 45923 65343 AE055 Potentiometer for 45923 65411
AD974 Complete Wiper for 45923 65260 AE015 Grower Washer W 6 ZN for 45923 65344 AE056 Stainless Steel Pin 2x4 for 45923 65412
AD975 Outside Screw Seal for 45923 65263 AE016 Screw H M6x20 ZN for 45923 65345 AE057 Button for 45923 65413
AD976 Rubber Scraper for 45923 65264 AE017 Tube Safety Axle for 45923 65346 AE058 Screw HC M4x6 for 45923 65414
AD977 Scraper Holder with Magnets for 45923 65265 AE018 Washer 6x14 for 45923 65347 AE059 Pin 3x14 Stainless Steel for 45923 65418
AD978 Seal Outside Ring for 45923 65266 AE019 Safety Spring for 45923 65348 AE060 Left Arm with 2 Rings for 45923 65420
AD979 Cone Holder Plate for 45923 65271 AE020 Safety Spring Tube for 45923 65349 AE061 On Off Push Button for 45923 65421
AD980 Waste Output Cone for 45923 65272 AE021 PCB Assembly CPJ65 110V for 45923 65350B AE062 Reverse Push Button for 45923 65422
AD981 Screw Seal (Inside) for 45923 65273 AE022 Top Motor Holding Plate for 45923 65361 AE063 Mask for 45923 65431
AD982 Screw 3.5x10 Stainless Steel for 45923 65274 AE023 Top Motor Cage for 45923 65362 AE064 Middle Cast for 45923 65501
AD983 Top Screw with Pins for 45923 65280 AE024 Screw FX M4x16 for 45923 65363 AE065 Lower Motor Holding Plate for 45923 65502
AD984 Upper Screw Brushing for 45923 65282 AE025 Bronze Bearing 16x20x20 for 45923 65364 AE066 110V 300W Motor for 45923 65503B
AD985 Top Casing for 45923 65301 AE026 Top Driving Pulley for 45923 65365 AE067 Spacer 6x9x16 for 45923 65504
AD986 Safety Ring for 45923 65302 AE027 Washer 4x14 for 45923 65366 AE068 Screw H M6x30 ZN for 45923 65505
AD987 Body Top Guide for 45923 65303 AE028 17 Teeth Pinion for 45923 65371 AE069 Grower Washer W 6 ZN for 45923 65506
AD988 Screw CHC (+Step) M6x10 for 45923 65304 AE029 100W Motor 110V for 45923 65372B AE070 Screw H M6x12 ZN for 45923 65507
AD989 Top Casing with Rings for 45923 65305 AE030 Pinion + 110V Motor Assembly for 45923 65373B AE071 Nut H M6 ZN for 45923 65508
AD990 Screw H M5x12 ZN for 45923 65306 AE031 Gearbox Motor Top Spacer for 45923 65374 AE072 Lower Pulley for 45923 65511
AD991 Plastic Bearing 5x7x10 for 45923 65307 AE032 Planetary Gearbox for 45923 65375 AE073 Locking Washer for 45923 65512
AD992 Locking Cam for 45923 65311 AE033 Screw H M5x10 ZN for 45923 65377 AE074 Parallel Key 4x4x12 for 45923 65513
AD993 Locking Plate for 45923 65312 AE034 Washer AZ 5 ZN for 45923 65378 AE075 Screw FX M4x10 for 45923 65514
AD994 Pin 3x20 for 45923 65313 AE035 Top Coupling for 45923 65382 AE076 Main Gearbox Axle for 45923 65521
AD995 Lock for 45923 65314 AE036 Upper Ring for 45923 65383 AE077 Bearing 6002 ZZ for 45923 65522
AD996 Pin 3x12 for 45923 65315 AE037 Top Cover Sheet for 45923 65384 AE078 Screw M5x12 IN for 45923 65524
AD997 Locking Washer 3 for 45923 65316 AE038 Screw H M4x8 ZN Auto for 45923 65385 AE079 Main Gearbox Axle Assembly for 45923 65525
AD998 Screw CS M3x16 ZN for 45923 65317 AE039 Screw FZ M3x10 ZN for 45923 65386 AE080 Lower Belt for 45923 65526

16
Parts Breakdown
Model SANTOS 65 45923
Item No. Description Position Item No. Description Position Item No. Description Position
AE081 Planetary Gearbox for 45923 65531 AE092 Screw H M5x16 ZN Auto for 45923 65548 AE103 Screw H M6x16 for 45923 65604
AE082 Driving Axle for 45923 65532 AE093 Lower Body for 45923 65561 AE104 Bottom Plate for 45923 65611
AE083 Screw HC M3x5 for 45923 65533 AE094 Large Motor Sheet for 45923 65562 AE105 Foot for 45923 65612
AE084 Main Gearbox Shield for 45923 65534 AE095 Screw RLS M4x8 Stainless Steel for
45923 65563 AE106 Screw H M5x10 ZN for 45923 65613
AE085 14 Teeth Pinion for 45923 65536 AE096 Lower Transmission Cover for 45923 65564 AE107 Power Cord with USA Plug for 45923 65615
AE086 Main Gearbox Protection Sheet for 45923 65537 AE097 Lower Body Guide for 45923 65565 AE108 Screw H M4x8 ZN Auto for 45923 65616
AE087 Spring Plate for 45923 65541 AE098 Spacer M3x20 for 45923 65566 AE109 EMC Filter 230V for 45923 65625
AE088 Main Tensioner Axle for 45923 65542 AE099 Screw FZ M3x10 ZN for 45923 65567 AE110 Nut HM 4 ZN for 45923 65626
AE089 Ball Bearing 6203 for 45923 65543 AE100 Painted Base for 45923 65601 AE111 Washer AZ 4 ZN for 45923 65627
AE090 Screw H M6x20 ZN for 45923 65544 AE101 Screw H M5x12 ZN for 45923 65602 AE112 Screw H M4x12 ZN for 45923 65628
AE091 Nut Autolock H M6 for 45923 65547 AE102 Washer AZ 6 for 45923 65603

17
Electrical Schematics
Model SANTOS 65 45923

18
Notes
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________

19
Warranty Registration
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear o󰀨 the card at
the perforation and then send to the address specied below. You can also register online by visiting:
OMCAN
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
https://omcan.com/warranty-registration/
or email to: [email protected]
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):
Would you like to extend the warranty? Yes No

Por correo en Canadá
Pour postale au Canada
For mailing in Canada
Por correo en los EE.UU.
Pour di󰀨usion aux États-Unis
For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 5,000 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 5,000 productos con origen a nivel mundial.
