Omega CL-355A User manual

omega.com
e-mail: [email protected]
For latest product manuals:
omegamanual.info
User’s Guide
CL-355A
Dry-Block Calibrator
Shop online at
®
MADE IN UK

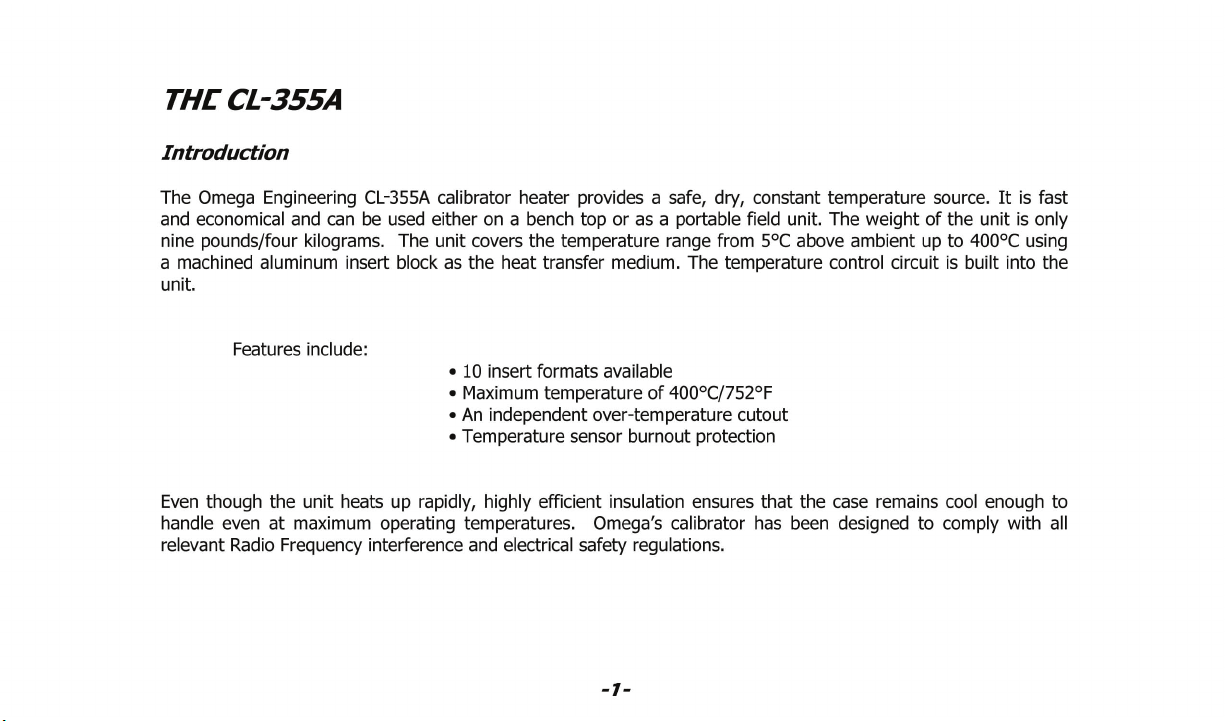

THE CL355A
Itroductio
The Omega Engineering CL355A calibrator heater provides a safe, dry, constant temperature source. It is fast
and economical and can be used either on a bench top or as a portable field unit. The weight of the unit is only
nine pounds/four kilograms. The unit covers the temperature range from 5°C above ambient up to 400°C using
a machined aluminum insert block as the heat transfer medium. The temperature control circuit is built into the
unit.
Features include:
• 10 insert formats available
• Maximum temperature of 400°C/752°F
• An independent over-temperature cutout
• Temperature sensor burnout protection
Even though the unit heats up rapidly, highly efficient insulation ensures that the case remains cool enough to
handle even at maximum operating temperatures. Omega’s calibrator has been designed to comply with all
relevant Radio Frequency interference and electrical safety regulations.
Specificatio
Figures quoted are at the base of the well at the time of calibration.
Temperature range: 5°C/9°F above ambient to 400°C/752°F
Over-temperature limit: 450°C/842°F (approximately)
Display resolution: 0.1°
Accuracy: +/-0.6°C (1.1°F)
tability: +/-0.15°C (0.27°F)
Heat up time 20° C to 400°C: 12 minutes
Cool down 400°C to 100°C: 21 minutes
Immersion Depth: 4.5" (114.3mm)
Fan Cooling: Automatic
Weight: 9 lbs (4 Kg)
Dimensions* (H x W x D): 8.75 x 8 x 8 inches/222.25 x 203.2 x 203.2 mm
*excluding the carrying strap
Electrical supply
Voltage Cycles Power
230V 50/60Hz 900W
120V 50/60Hz 900W
Note: The above specifications are quoted for an ambient temperature range of 10°C/50°F to 30°C/86°F.
Outside this range, the quoted figures may deteriorate but the unit will still work safely.
-2-

Worki g e viro me t
The calibrator units are designed to work safely under the following conditions:
Ambient temperature range: 5°C/9°F to 40°C/104°F
Humidity: Up to 95% relative humidity, non-condensing
War i g
Warning: HIGH TEMPERATURE ARE DANGEROU
Avertissement: DANGER DE TEMPERATURE ELEVEE
Warnung: HOHE TEMPERATUREN IND GEFÄHRLICH
Aviso: LA TEMPERATURA ELEVADA ON PELI
HIGH TEMPERATURE ARE DANGEROU : They can cause serious burns to operators and ignite combustible
material. Omega has taken great care in the design of these units to protect operators from hazards, but
operators should pay attention to the following points:
• U E CARE AND WEAR PROTECTIVE GLOVE TO PROTECT HAND
• DO NOT put hot objects on or near combustible objects
• DO NOT operate the unit close to inflammable liquids or gases
• DO NOT place any liquid directly in your unit
• At all times U E COMMON EN E
Operator Safety
All operators of Omega Engineering equipment must have available the relevant literature needed to ensure their
safety. It is important that only suitably trained personnel operate this equipment in accordance with the
instructions contained in this manual and with general safety standards and procedures. If the equipment is used
in a manner not specified by Omega, the protection provided by the equipment to the operator may be impaired.
All Omega Engineering units have been designed to conform to international safety requirements and are fitted
with a preset over-temperature cutout. If a safety problem is encountered, switch off at the mains socket and
remove the plug from the supply.
-3-
Istallatio
1. All Omega units are supplied with a power cable.
2. Before connecting the mains supply, check the voltage against the rating plate. Connect the mains
cable to a suitable plug according to the table below. Note that the unit must be earth grounded
to ensure proper electrical safety.
Electrical connections:
220V-240V 110V-120V
Live Brown Black
Neutral Blue White
Earth ground Green/yellow Green
The fused plug supplied with the mains lead for use in the UK is fitted with the following value fuse to
protect the cable: 230V UK 4 AMP
The fuse in the unit protects the unit and the operator
Note that units marked 230V on the rating plate work at 220V; units marked 120V work at 110V. In
both cases, however, the heating rate will degrade by approximately 8%. The rating plate is on the
rear of the unit.
3. Plug the mains cable into the socket on the rear of the unit.
4. Place the unit on a suitable bench or flat workspace, or in a fume cupboard if required, ensuring that
the air inlet vents on the underside are free from obstruction.
After use, when you have finished heating samples, remember that parts of the unit may be very hot.
Take the precautions listed earlier.
-4-

Worki g e viro me t
The calibrator units are designed to work safely under the following conditions:
Ambient temperature range: 5°C/9°F to 40°C/104°F
Humidity: Up to 95% relative humidity, non-condensing
War i g
Warning: HIGH TEMPERATURE ARE DANGEROU
Avertissement: DANGER DE TEMPERATURE ELEVEE
Warnung: HOHE TEMPERATUREN IND GEFÄHRLICH
Aviso: LA TEMPERATURA ELEVADA ON PELI
HIGH TEMPERATURE ARE DANGEROU : They can cause serious burns to operators and ignite combustible
material. Omega has taken great care in the design of these units to protect operators from hazards, but
operators should pay attention to the following points:
• U E CARE AND WEAR PROTECTIVE GLOVE TO PROTECT HAND
• DO NOT put hot objects on or near combustible objects
• DO NOT operate the unit close to inflammable liquids or gases
• DO NOT place any liquid directly in your unit
• At all times U E COMMON EN E
Operator Safety
All operators of Omega Engineering equipment must have available the relevant literature needed to ensure their
safety. It is important that only suitably trained personnel operate this equipment in accordance with the
instructions contained in this manual and with general safety standards and procedures. If the equipment is used
in a manner not specified by Omega, the protection provided by the equipment to the operator may be impaired.
All Omega Engineering units have been designed to conform to international safety requirements and are fitted
with a preset over-temperature cutout. If a safety problem is encountered, switch off at the mains socket and
remove the plug from the supply.
-3-
Istallatio
1. All Omega units are supplied with a power cable.
2. Before connecting the mains supply, check the voltage against the rating plate. Connect the mains
cable to a suitable plug according to the table below. Note that the unit must be earth grounded
to ensure proper electrical safety.
Electrical connections:
220V-240V 110V-120V
Live Brown Black
Neutral Blue White
Earth ground Green/yellow Green
The fused plug supplied with the mains lead for use in the UK is fitted with the following value fuse to
protect the cable: 230V UK 4 AMP
The fuse in the unit protects the unit and the operator
Note that units marked 230V on the rating plate work at 220V; units marked 120V work at 110V. In
both cases, however, the heating rate will degrade by approximately 8%. The rating plate is on the
rear of the unit.
3. Plug the mains cable into the socket on the rear of the unit.
4. Place the unit on a suitable bench or flat workspace, or in a fume cupboard if required, ensuring that
the air inlet vents on the underside are free from obstruction.
After use, when you have finished heating samples, remember that parts of the unit may be very hot.
Take the precautions listed earlier.
-4-

OPERATION
Preparatio
1. The heater design, temperature sensor and control circuit give good temperature control and
uniformity, but make sure that there is a close fit of the probes in the block to allow efficient heat
transfer.
2. Plug the power cable into the socket in the back of the unit. Connect the mains cable to the
electricity supply.
-5-
Setti g the operati g temperature
1. To set the temperature required, press and hold the star button and either the up or down button
depending on the direction you need to take the set point.
2. When you have the correct set temperature displayed, release the up or down button and the unit
will start to heat or cool to the set point.
3. Once the process value/actual temperature reaches the set point, allow the block to stabilize for 15
minutes before performing a calibration.
4. The controller is factory pre-set and only the set-temperature should be changed.
THE CONTROLLER MUST NOT BE SET TO CONTROL ABOVE 400°C/752°F OR DAMAGE TO THE UNIT
MAY RESULT.
After use
1. When you have finished calibrating, remember that parts of the unit and the probe may be very hot,
so precautions should be taken to prevent injury.
2. For safety, set the set temperature and allow the unit to cool to below 50°C/122°F before placing
the unit in a carrying case or shipping carton.

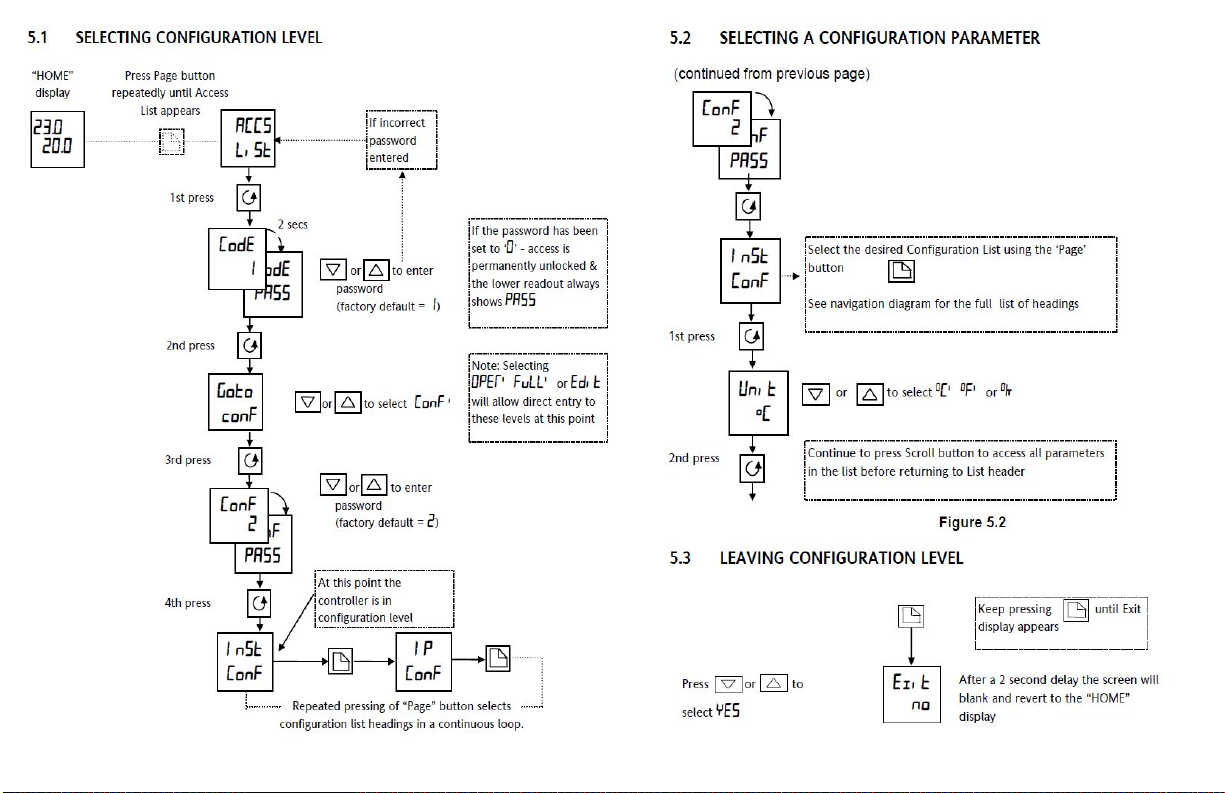

Cha gi g from °C to °F
The controller is preset to display/operate in degrees C; however it may be changed to read in Degrees F. Refer
to the CN9400 User’s guide for instructions on changing from C to °F.
Be careful ot to cha ge a y of the other setti gs i the co figuratio me u as performa ce will be
affected a d/or damage to the u it will occur!
-6-
-5-

OPERATION
Preparatio
1. The heater design, temperature sensor and control circuit give good temperature control and
uniformity, but make sure that there is a close fit of the probes in the block to allow efficient heat
transfer.
2. Plug the power cable into the socket in the back of the unit. Connect the mains cable to the
electricity supply.
Setti g the operati g temperature
1. To set the temperature required, press and hold either the up or down button
depending on the direction you need to take the set point.
2. When you have the correct set temperature displayed, release the up or down button and the unit
will start to heat or cool to the set point.
3. Once the process value/actual temperature reaches the set point, allow the block to stabilize for 15
minutes before performing a calibration.
4. The controller is factory pre-set and only the set-temperature should be changed.
THE CONTROLLER MUST NOT BE SET TO CONTROL ABOVE 430°C/806°F OR DAMAGE TO THE
UNIT MAY RESULT.
After use
1. When you have finished calibrating, remember that parts of the unit and the probe may be very hot,
so precautions should be taken to prevent injury.
2. For safety, set the set temperature and allow the unit to cool to below 50°C/122°F before placing
the unit in a carrying case or shipping carton.
Cha gi g from °C to °F
°F.
Be careful ot to cha ge a y of the other setti gs i the co figuratio me u as performa ce will be
affected a d/or damage to the u it will occur!
-6-
The controller is preset to display/operate in degrees C; however it may be changed to read in Degrees F. Refer
to section 5-2 of the 2216E Eurotherm Controller manual for instructions on changing from ° C to

Operator mai te a ce
NOTE THAT THI EQUIPMENT HOULD ONLY BE DI MANTLED BY PROPERLY TRAINED PER ONNEL. REMOVING
THE FRONT OR REAR PANEL EXPO E POTENTIALLY LETHAL MAIN VOLTAGE . THERE ARE NO OPERATOR
MAINTAINABLE PART WITHIN THE EQUIPMENT.
In the unlikely event that you experience any problems with your unit which cannot easily be remedied, you
should contact your supplier and return the unit if necessary. Please include any details of the fault observed and
remember to return the unit in its original packing. Omega will accept no responsibility for any damage to units
that are improperly packed for shipment. If in doubt, contact your supplier. ee the Decontamination Certificate
supplied with your unit.
1. Cleaning: Before cleaning your unit, ALWAY disconnect it from the power supply and allow it to
cool below 50° C. Your unit can be cleaned by wiping with a damp soapy cloth. Care should be
exercised to prevent water from running inside the unit. Do not use abrasive cleaners.
2. Fuses: Your unit is protected by two fuses. They should only be changed by suitably qualified
personnel. If the fuses blow persistently, a serious fault is indicated and you may need to return the
unit to your supplier for repair.
ADDITIONAL INFORMATION
The controller is factory preset. ee the Controller book for further details.
For safety reasons, the configuration settings of the controller are password protected.
Please contact your dealer for further information.
-7-
Replaceme t Parts
The following parts may be obtained from Omega Engineering if replacements or alternatives are required:
Part Number Description
FCABLEUK UK 240 volt Mains cable with 13amp UK plug (5 amp fuse)
FCABLEEU Euro style 240 volt Mains cable with R/A chuko plug
7002705 U 120 volt Mains cable
7032722 insert extractor
7032718 Carrying case
Part Number Available i serts Insert well izes
CL701B insert 5 x 1/4”
CL702B insert 1 each 1/8”, 3/16”, 1/4”, 5/16”, 3/8”
CL703B insert 2 x 1/4” & 2 x 3/8”
CL704B insert 2 x 1/4” & 2 x 1/2”
CL705B insert 1 x 1/4”
CL706B insert blank
CL707B insert 1 x 9/16” & 1 x 1/4”
CL708B insert 1 x 5/8” & 1 x 1/4”
CL709B insert 1 x 11/16” & 1 x 1/4”
CL710B insert 1 x 3/4” & 1 x 1/4”
Part Number Spare Parts Description
7002695 225 watt, 120 volt heater
7002697 PRT
7002698 olid state relay
7007201 8 amp fuse (120 volt units)
6500131 4 amp fuse (240 volt units)
-8-

Operator mai te a ce
NOTE THAT THI EQUIPMENT HOULD ONLY BE DI MANTLED BY PROPERLY TRAINED PER ONNEL. REMOVING
THE FRONT OR REAR PANEL EXPO E POTENTIALLY LETHAL MAIN VOLTAGE . THERE ARE NO OPERATOR
MAINTAINABLE PART WITHIN THE EQUIPMENT.
In the unlikely event that you experience any problems with your unit which cannot easily be remedied, you
should contact your supplier and return the unit if necessary. Please include any details of the fault observed and
remember to return the unit in its original packing. Omega will accept no responsibility for any damage to units
that are improperly packed for shipment. If in doubt, contact your supplier. ee the Decontamination Certificate
supplied with your unit.
1. Cleaning: Before cleaning your unit, ALWAY disconnect it from the power supply and allow it to
cool below 50° C. Your unit can be cleaned by wiping with a damp soapy cloth. Care should be
exercised to prevent water from running inside the unit. Do not use abrasive cleaners.
2. Fuses: Your unit is protected by two fuses. They should only be changed by suitably qualified
personnel. If the fuses blow persistently, a serious fault is indicated and you may need to return the
unit to your supplier for repair.
ADDITIONAL INFORMATION
The controller is factory preset. ee the Controller book for further details.
For safety reasons, the configuration settings of the controller are password protected.
Please contact your dealer for further information.
Listed below are important control parameters for the unit.
Level 1> band=11, int.t =1.5, dEr.t=12, DAC=1.0, Cyc.t=0.3, Bnd.2=15, Cyc.2=20,
Level 2 > SP2.A=cool, diSP=0.1, Hi.Sc=400.0, inpt=rtd,
Level 3 > SP1.d=SSR, SP3.d=rly
-7-
Replaceme t Parts
The following parts may be obtained from Omega Engineering if replacements or alternatives are required:
Part Number Description
FCABLEUK UK 240 volt Mains cable with 13amp UK plug (5 amp fuse)
FCABLEEU Euro style 240 volt Mains cable with R/A chuko plug
7002705 U 120 volt Mains cable
7032722 insert extractor
7032718 Carrying case
Part Number Available i serts Insert well izes
CL701B insert 5 x 1/4”
CL702B insert 1 each 1/8”, 3/16”, 1/4”, 5/16”, 3/8”
CL703B insert 2 x 1/4” & 2 x 3/8”
CL704B insert 2 x 1/4” & 2 x 1/2”
CL705B insert 1 x 1/4”
CL706B insert blank
CL707B insert 1 x 9/16” & 1 x 1/4”
CL708B insert 1 x 5/8” & 1 x 1/4”
CL709B insert 1 x 11/16” & 1 x 1/4”
CL710B insert 1 x 3/4” & 1 x 1/4”
Part Number Spare Parts Description
7002695 225 watt, 120 volt heater
7002697 PRT
7002698 olid state relay
7007201 8 amp fuse (120 volt units)
6500131 4 amp fuse (240 volt units)
-8-

Servicing North America:
U.S.A.: OMEGA Engineering, Inc., One Omega Drive, P.O. Box 4047
ISO 9001 Certified Stamford, CT 06907-0047 USA
Toll-Free: 1-800-826-6342 TEL: [phone]
FAX: [phone] e-mail: [email protected]
Canada: 976 Bergar
Laval (Quebec), H7L 5A1 Canada
Toll-Free: 1-800-826-6342 TEL: [phone]
FAX: [phone] e-mail: [email protected]
For immediate technical or application assistance:
U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA®
Customer Service: 1-800-622-2378/1-800-622-BEST®
Engineering Service: 1-800-872-9436/1-800-USA-WHEN®
Mexico/ En Español: 001 [phone] FAX: [phone]
Latin America [email protected] e-mail: [email protected]
Servicing Europe:
Benelux: Managed by the United Kingdom Office
Toll-Free: 0800 099 3344 TEL: [phone]
FAX: [phone] e-mail: [email protected]
Czech Republic: Frystatska 184
733 01 Karviná, Czech Republic
Toll-Free: 0800-1-66342 TEL: [phone]
FAX: [phone] e-mail: [email protected]
France: Managed by the United Kingdom Office
Toll-Free: 0800 466 342 TEL: [phone]
FAX: [phone] e-mail: [email protected]
Germany/Austria: Daimlerstrasse 26
D-75392 Deckenpfronn, Germany
Toll-Free: 0800 6397678 TEL: [phone]
FAX: [phone] e-mail: [email protected]
United Kingdom: OMEGA Engineering Ltd.
ISO 9001 Certified One Omega Drive, River Bend Technology Centre, Northbank
Irlam, Manchester M44 5BD United Kingdom
Toll-Free: 0800-488-488 TEL: [phone]
FAX: [phone] e-mail: [email protected]
OMEGAnet®On-Line Service Internet e-mail
omega.com [email protected]
FOR WARRANTY RETURNS, please have the following
information available BEFORE contacting OMEGA:
1. Purchase Order number under which the product was
PURCHASED,
2. Model and serial number of the product under warranty,
and
3. Repair instructions and/or specific problems relative to
the product.
FOR NON-WARRANTY REPAIRS, consult OMEGA for current
repair charges. Have the following information available BEFORE
contacting OMEGA:
1. Purchase Order number to cover the COST of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems relative to the
product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the
latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2010 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced, translated,
or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA
ENGINEERING, INC.
WARRANTY / DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 37 months
from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal three (3) year
product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on
each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an
Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found
to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any
action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered
with or shows evidence of having been damaged as a result of excessive corrosion; or current, heat, moisture or vibration;
improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components in which
wear is not warranted, include but are not limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes
responsibility for any omissions or errors nor assumes liability for any damages that result from the use of its
products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only
that the parts manufactured by the company will be as specified and free of defects. OMEGA MAKES NO OTHER
WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set
forth herein are exclusive, and the total liability of OMEGA with respect to this order, whether based on
contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price
of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental
or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10
CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any
Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way,
OMEGA assumes no responsibility as set forth in our basic WARRANTY/ DISCLAIMER language, and, additionally, purchaser
will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.
RETURN REQUESTS / INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE RETURNING ANY
PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER
SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the
outside of the return package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.
It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European
New Approach Directives. OMEGA will add the CE mark to every appropriate device upon
certification.
The information contained in this document is believed to be correct, but OMEGA Engineering,
Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications
without notice. WARNING: These products are not designed for use in, and should not be used
for, human applications. M4961/0511
