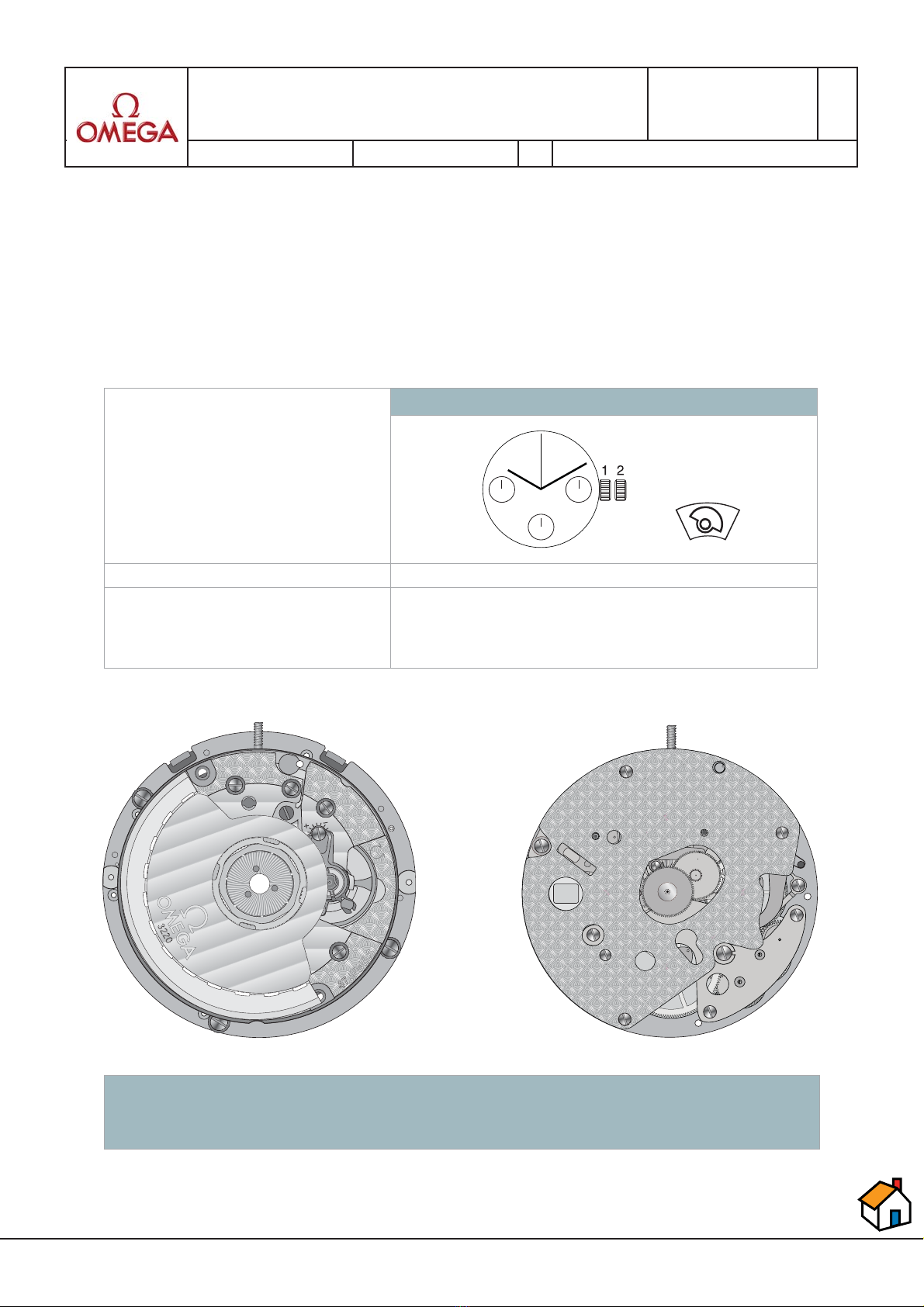

Omega 3220 Quick start guide

OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220 /1
131/4’’’
Ø 30 mm
Version A
Height on movement 6.50 mm
Power reserve
Number of jewels
Frequency
Lift angle
40 h
47
4 Hz (28’800 A/h)
51°
CALIBRE
3220
Automatic movement with chronograph. Swiss lever escapement, minute counter (30 min.) at 9 o’clock, hour
counter (12 h) at 6 o’clock + small second at 3 o’clock. Glucydur balance with Etachron system.
Display of hour, minute and second in centre.
Technical Guide TG-19-C-024-E C
Produced by: pelrom Date: 20.09.2010 3 Modifications: see last page
3220
3220 A
32203220

/2
Contents
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
Page
Calibre 3220 1
General information for Calibre 3220 3
Basic movement assembly 3
Lubricating the Swiss-lever escapement 3
Measuring instruments 3
Tightening and untightening torques according to screw thread 3
Mandatory tools / Lubricants 3
Exploded views for calibre 3220 4-16
Assembly - chronograph module 4-16
Specific information for calibre 3220 17-22
Disassembling the chronograph module 17
Inspection during re-assembly 17-19
Inspection + adjusting the hammer 19-20
Chronograph System Operation 20
Setting the time / Chronograph Operation 21
Runners for hand setting and hand setting force / Instantaneous rate 22
Spare parts list for calibre 3220 23-32
List and plate for chronograph module supplies 23-27
List and plate for movement supplies 28-31
List of jewels and bushes 32
Modifications of Technical Guide version for Calibre 3220 33

/3
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
General information for calibre 3220
The chronograph must be dismantled in the Start position
(START).
Some lubrication takes place on the top of pins
Basic movement assembly
See Calibre 1120 Technical Guide
Lubricating the Swiss-lever escapement
See Working Instruction 40.
Measuring instruments depending on operation types
Tightening and untightening torques according to screw
thread
Mandatory tools:
To fit the hands, the movement must be placed in a
suitable, well-adjusted movement holder.
Hand fitting Reference
Hand fitting tool kit 507 0011
Movement holder for hand fitting 507 0026
Basic movement Reference
Mainspring winder 502 150 0009
ETACHRON stud extraction key 502 200 0062
ETACHRON adjustment key 502 200 0061
ETACHRON holder 502 100 0311
Ball bearing set 502 S09 SET
Chronograph Reference
Movement holder (ring) 502 110 0211
Lubricants Reference
Moebius HP-500 504 5012
Moebius SYNT HP-1300 Sans Colorant 504 5013
Molycote DX 504 100 0052
Moebius SYNT-A-LUBE 9010 (2ml) 504 200 0001
Operation Minimum equipment required
Rate adjustement after full
or partial maintenance service 4 Hz
- Watch Expert II (white case)
- Chronoscope S1
- Watch Expert (red case)
- Wicomètre Professionnel
- Chronoscope M1
Screw Ø Tightening torque target cNm Untightening torque mini cNm
Øthreads ≤S 0.50 mm 1.0 0.7
Øthreads S 0.6 mm 1.4 0.8
Øthreads S 0.7 mm 1.8 0.9
Øthreads S 0.8 mm 2.2 1.1
Øthreads S 0.9 mm 2.6 1.3
Øthreads S 1.0 mm 3.0 1.6
Øthreads S 1.2 mm 3.5 2.0
Øthreads S 1.4 and > 4.0 2.5
!
!
!

/4

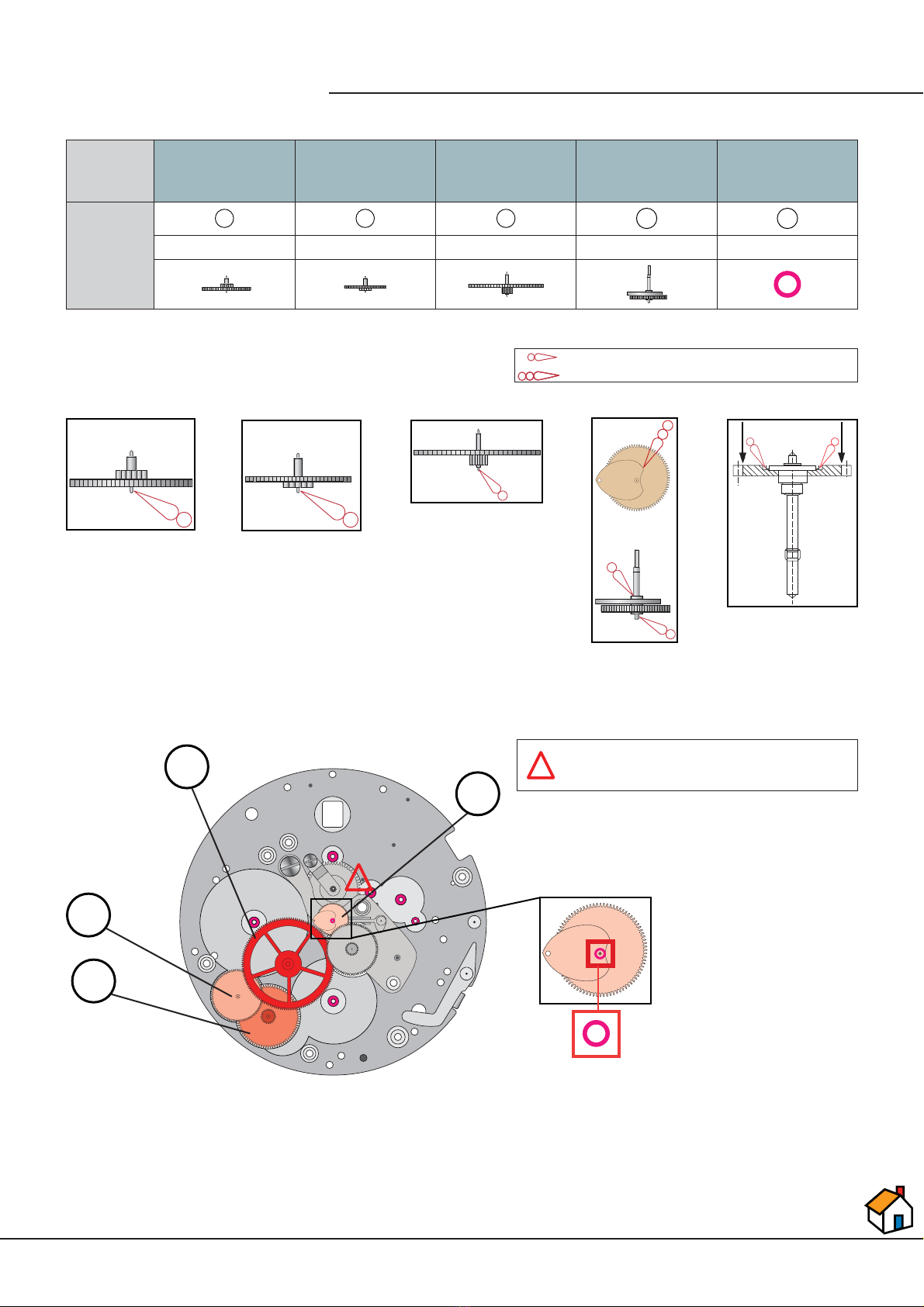

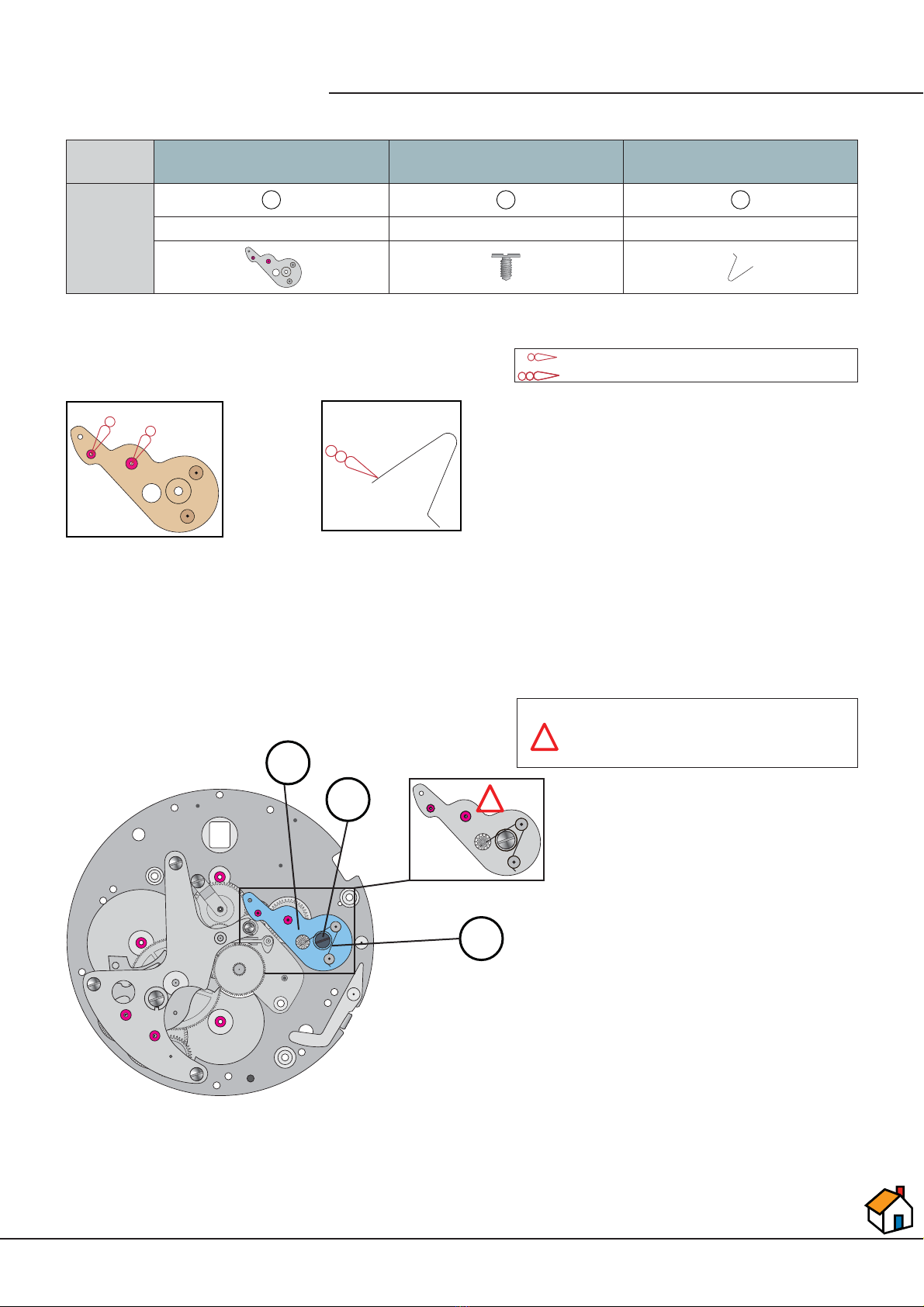

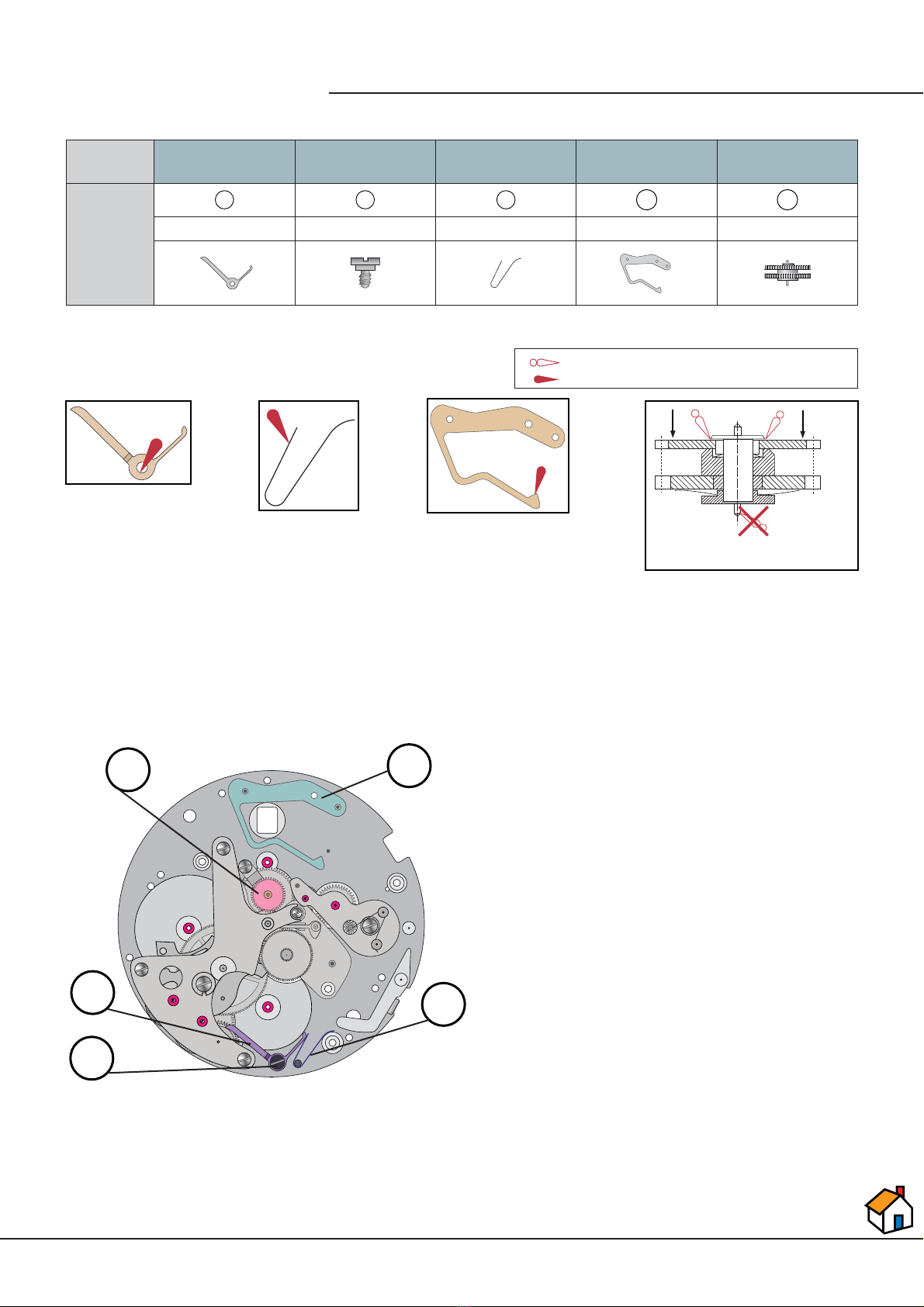

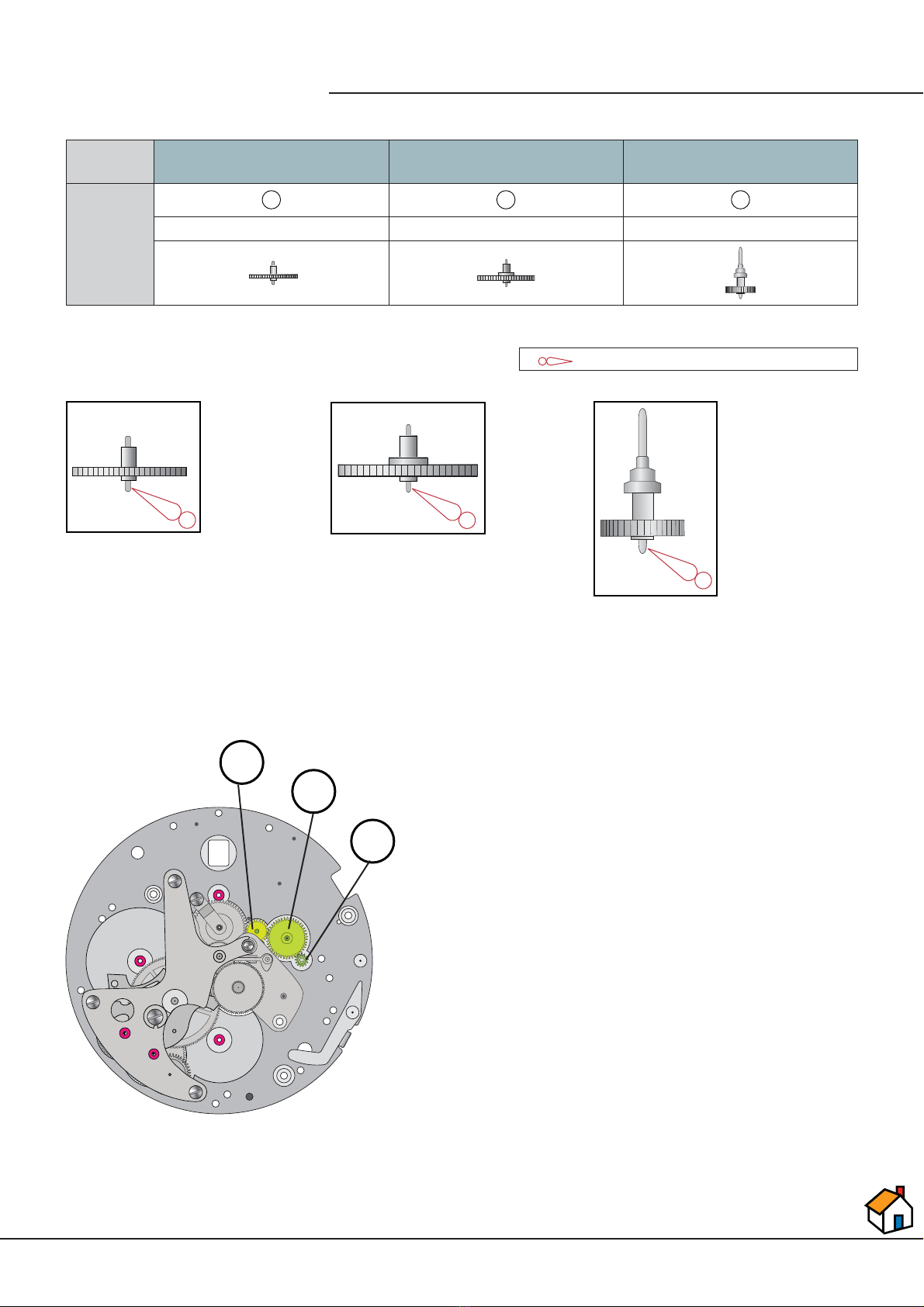

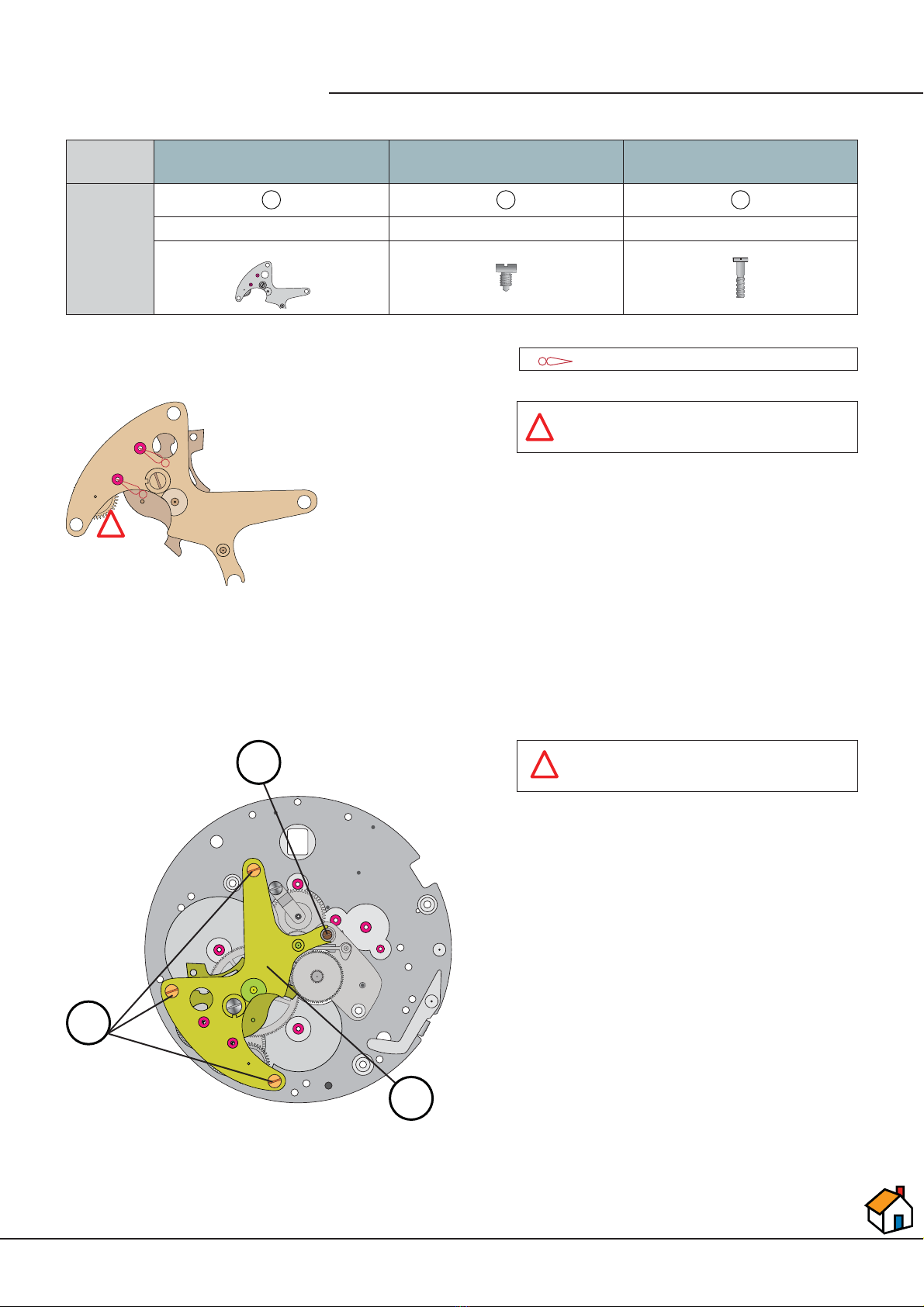

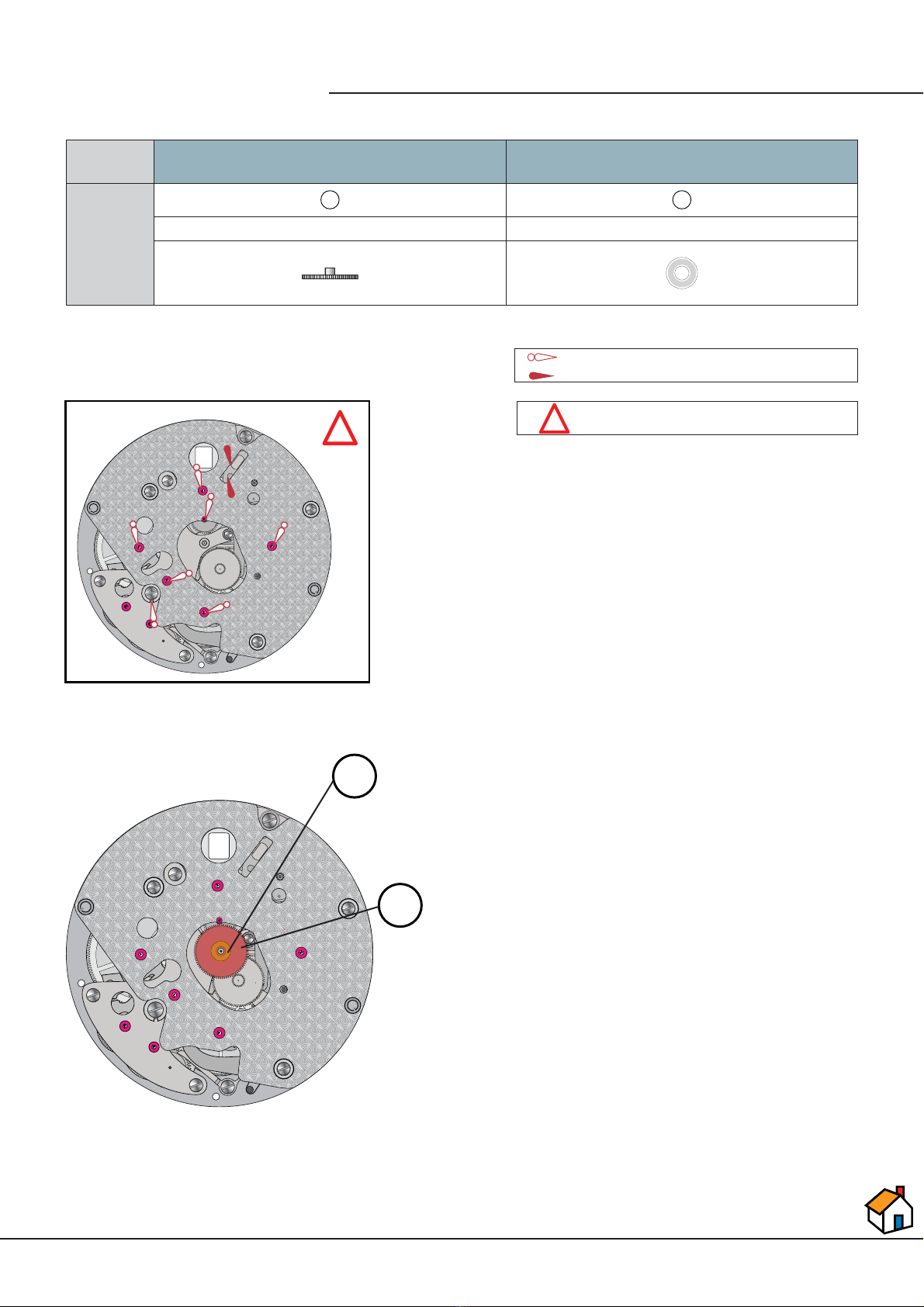

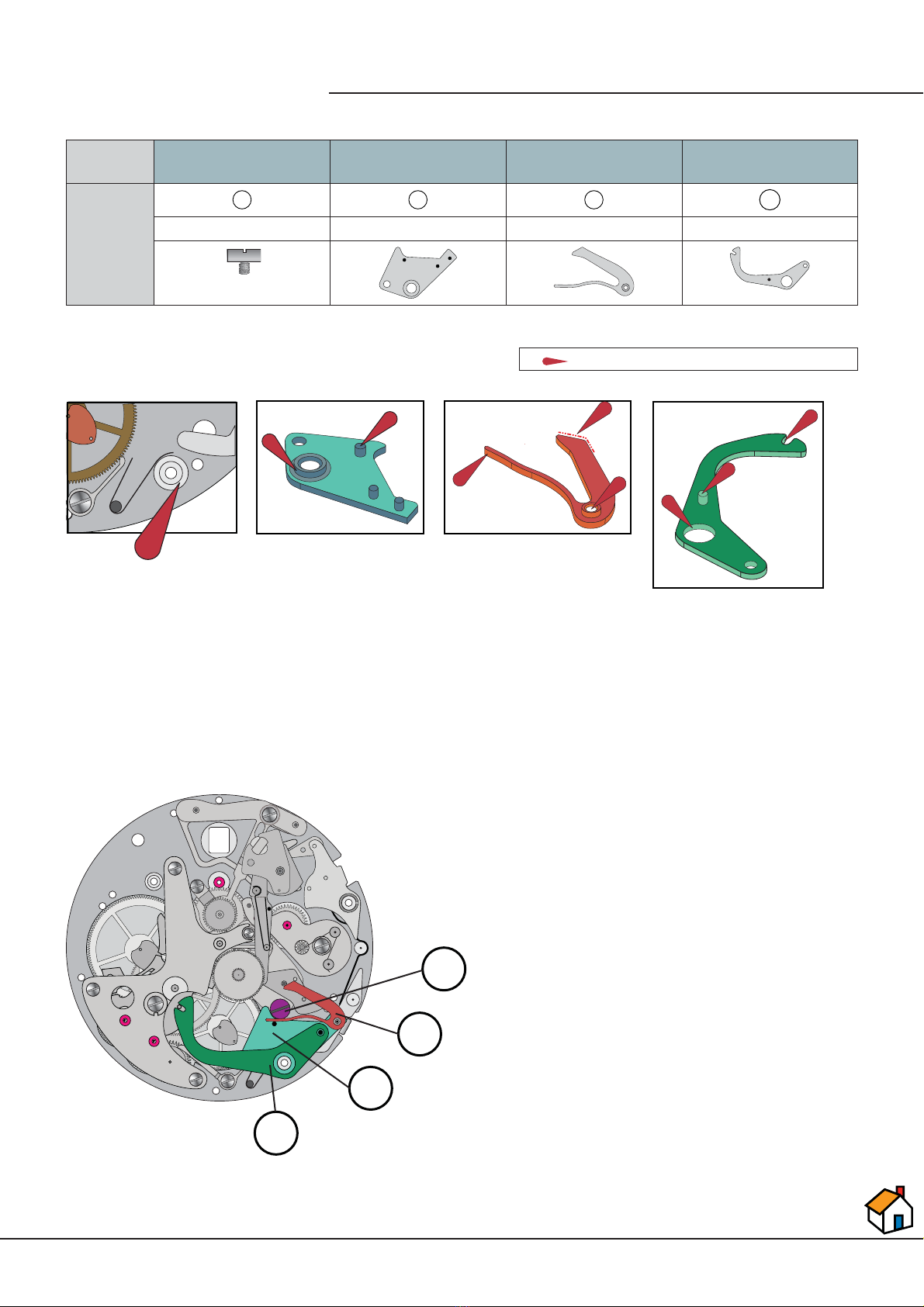

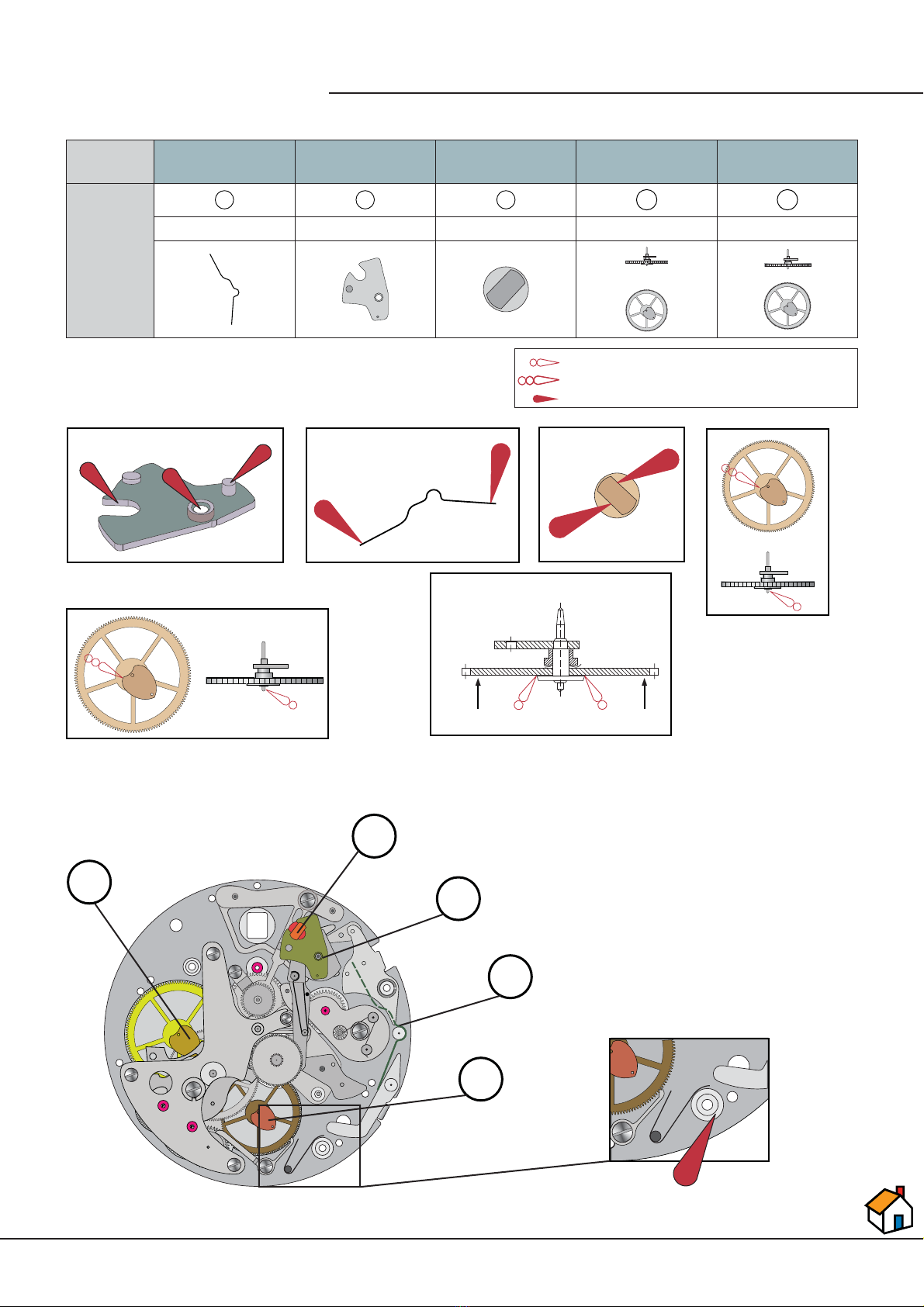

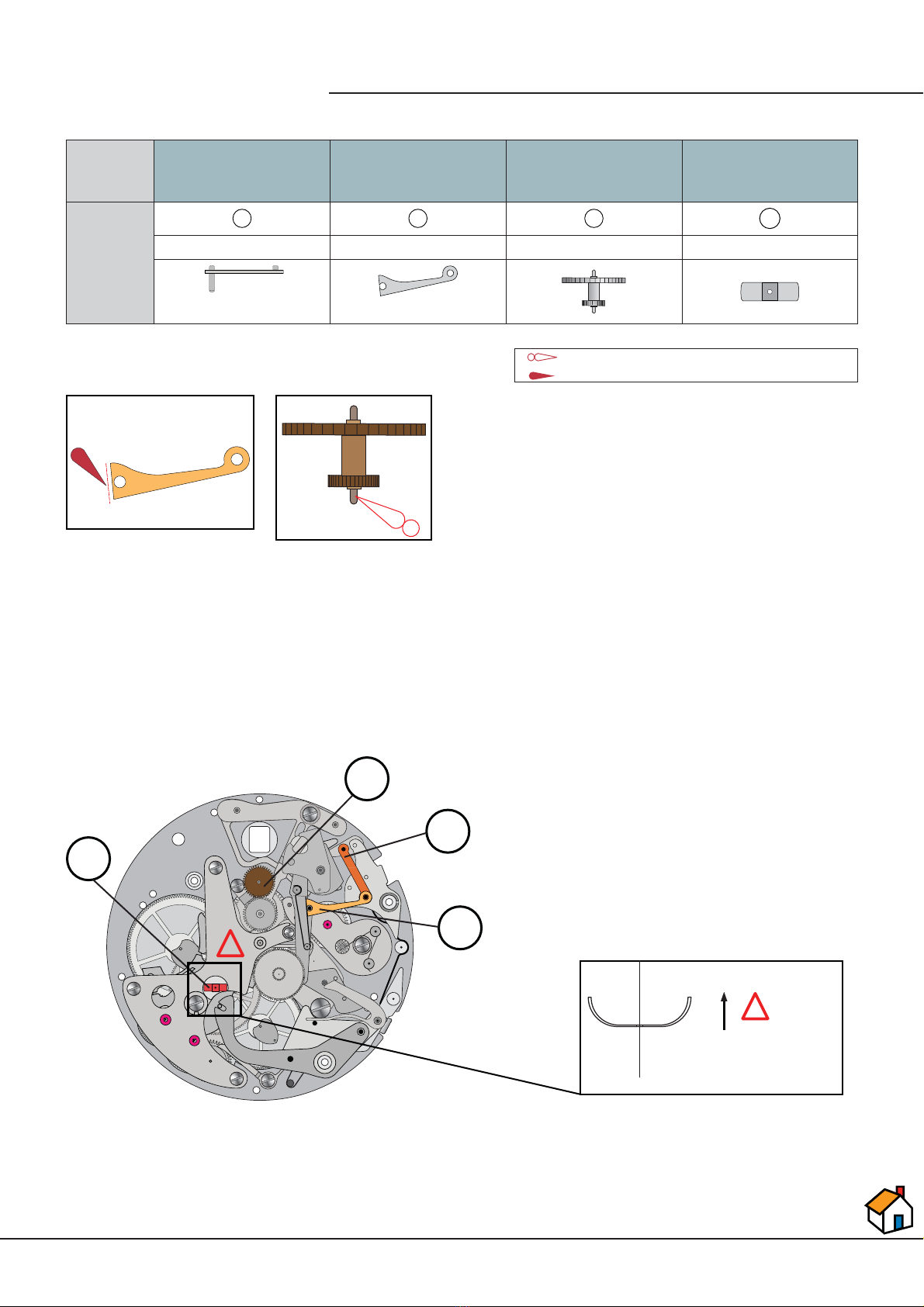

Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
31.044
31.040
1251
Press
Movement
holder
Second train
driving wheel
Second train
wheel small plate
Screw for second
train driving
wheel small plate
Additional minute
train bridge
assembled
Screw for
additional
minute train
Ref.
1234 5
Ref. 30.029 Ref. 15.050 Ref. 3448 Ref. 10.062 Ref. 3445
1.0 Parts for assembling
Check that the wheel is free
(ref. 30.029) use an air blower. Do not
lubricate the second gear train driving
wheel pivoting.
!
Moebius SYNT HP-1300 Sans Colorant
2.0 Pre-lubrication
3.0 Order of assembly
2
3
1
5
4
!
Check the height of the friction spring (see page 18).

/5
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
Moebius SYNT HP-500
Moebius SYNT HP-1300 Sans Colorant
Movement
holder
Hour counter
intermediate
wheel
Hour counter
driving wheel
Minute counter
driving wheel
Chronograph
wheel
Support jewel for
center wheel
Ref.
1234 5
Ref. 35.033 Ref. 35.031 Ref. 35.013 Ref. 35.010 Ref. 1594
1.0 Parts for assembling
2.0 Pre-lubrication
3.0 Order of assembly
1
2
34
Press
Check that the friction spring is
positioned correctly (see page 18).
!
!

/6
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
Movement
holder Chronograph bridge Screw for chronograph bridge Screw for chronograph bridge
Ref.
123
Ref. 10.047 Ref. 3513 Ref. 2837
2.0 Pre-lubrication
3.0 Order of assembly
Check that the wheel is free use an air
blower.
!
!
2
3
1
Check the end shake of moving
chronograph parts!
!
1.0 Parts for assembling
Moebius SYNT HP-500

/7
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
2.0 Pre-lubrication
3.0 Order of assembly
1.0 Parts for assembling
Movement
holder Second wheel driving pinion Intermediate second wheel Second pinion
Ref.
123
Ref. 1544 Ref. 1542 Ref.30.027
3
12
Moebius SYNT HP-500

/8
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
Movement
holder Second train bridge Screw for second train bridge Second pinion friction spring
Ref.
123
Ref. 15.051 Ref. 3450 Ref. 120
2.0 Pre-lubrication
3.0 Order of assembly
1.0 Parts for assembling
3
1
2
Check the friction spring tension (see
page 18) + end shake of moving parts!
!
!
Moebius SYNT HP-500
Moebius SYNT HP-1300 Sans Colorant

/9
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
1.0 Parts for assembling
2.0 Pre-lubrication
3.0 Order of assembly
Movement
holder Lock Screw for lock Lock spring Cam jumper Clutch wheel
Ref.
1234 5
Ref. 55.281 Ref. 2838 Ref. 65.210 Ref. 55.138 Ref. 35.062
2
3
1
4
5
Press
Do not lubricate th
e
bottom pivot
Moebius SYNT HP-500
Molycote DX

/10
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
1.0 Parts for assembling
2.0 Pre-lubrication
Movement
holder Clutch spring
Clutch spring
maintaining
washer
Screw for clutch
spring and
cam jumper
Chronograph cam Reversing yoke
Ref.
1234 5
Ref. 65.046 Ref. 80.282 Ref. 2839 Ref. 55.200 Ref. 55.086
4
5
2
3
1
Check the uncoupling spring position
(see page 19)
!
2.1 Pre-assembly Molycote DX
3.0 Order of assembly

/11
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
1.0 Parts for assembling
Movement
holder
Operating lever,
2 functions Maintaining ring Fixing shuttle Fly-back yoke bolt
Connecting rod +
Connecting yoke
lever spring
Ref.
1234 5
Ref. 55.041 Ref. 1175 Ref. 55.186 Ref. 55.341 Ref. 55.269 + 65.074
2.0 Pre-lubrication
3.0 Order of assembly
5
2
3
4
1
!
!
Make sure the connecting rod is
positioned correctly
Molycote DX
!
Check that the control is free after
fitting the maintaining ring.
!

/12
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
1.0 Parts for assembling
Movement
holder
Operating
lever spring Upper wig-wag Clutch operating lever
Hour counting
wheel
Minute counting
wheel
Ref.
1234 5
Ref. 65.041 Ref. 55.185 Ref. 55.187 Ref. 35.030 Ref. 35.012
2.0 Pre-lubrication
3.0 Order of assembly
52
3
4
1
Moebius SYNT HP-500
Moebius SYNT HP-1300 Sans Colorant
Molycote DX
Press
Ref. 35.030
+
Ref. 35.012

/13
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
1.0 Parts for assembling
Movement
holder
Screw for additional
minute train bridge Fly-back yoke Fly-back yoke jumper Hammer operating lever
Ref.
1234
Ref. 3445 Ref. 55.081 Ref. 55.142 Ref. 55.047
2.0 Pre-lubrication
3.0 Order of assembly
3
1
4
2
Molycote DX

/14
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
1.0 Parts for assembling
Movement
holder Reversing yoke lever Connecting rod lever Chronograph second wheel
Friction spring for
minute counter
driving wheel
Ref.
1234
Ref. 55.272 Ref. 55.321 Ref. 1543 Ref. 1532
2.0 Pre-lubrication
3.0 Order of assembly
41
2
3
Moebius SYNT HP-500
Molycote DX
!
Attention au sens de montage!
!
Fit the spring as shown

/15
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
1.0 Parts for assembling
Movement
holder Chronograph mechanism cover Screw for chronograph mechanism cover Free cannon pinion
Ref.
123
Ref. 15.150 Ref. 2081 Ref. 31.081
2.0 Pre-lubrication
3.0 Order of assembly
1
2
3
!
!Checking end shakes + functions before
oiling! Adjustments see pages 19-20
Centre tube
Moebius SYNT HP-9010
Moebius SYNT HP-1300 Sans Colorant

/16
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
1.0 Parts for assembling
Movement
holder Chronograph hour wheel Hour wheel friction spring
Ref.
12
Ref. 31.046 Ref. 1449
2.0 Order of assembly
1
2
2.0 Pre-lubrication Moebius SYNT HP-500
Molycote DX
Oil only after chrono settings!
!
!

/17
Specific Information for calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
2.0 Disassembling the chronograph module
The chronograph is always disassembled in the START
position.
The chronograph module must be completely disas-
sembled. All parts should be cleaned carefully. We do,
however, advise you to keep the parts below assembled
during cleaning.
Components which must not be disassembled during cleaning
Do not turn the eccentric screw needlessly! The dial screws must be tightened well
before cleaning to avoid losing them.
3.1 Fitting the chronograph driving wheel
35.060 R
31.080 P
1411.039.71
0,65
0,30
0,60 mm
Check the wheel height:
Check also that the wheel turns flat and round!
3.0 Inspection during re-assembly

/18
Specific Information for calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
0,6 à 0,7mm
under the blade
3.2 Check the friction height:
3.3 Check that the friction spring on positioned correctly:


3.4 Check the friction spring tension on the second pinion:
Adjusting the tension

15.051
15.020
30.027
15.051
15.051
15.020
30.027
15.051
~ 1º to 2º

15.051
15.020
30.027
15.051
+2º


/19
Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
3.5 Check the uncoupling spring position:
4.0 Inspection + Adjusting the hammer
There is no need to adjust the hammer if the chrono-
graph wheel bridge eccentric (ref. 10.047) has not been
loosened during the service, as the movement is factory-
adjusted.
You can nevertheless check as follows :
1. Fit the chronograph hands (without the dial).
2. Carry out a START-STOP and then reset to zero.
3. Check that the hands are free using a wooden pin:
a. the chrono second hand + minute counter must not
move when the reset is held down;
b. there must be a slight freedom play of the hour coun-
ter (~1° to 5°).
If OK : check finished, move to point 9.
If not OK : move to point 4.

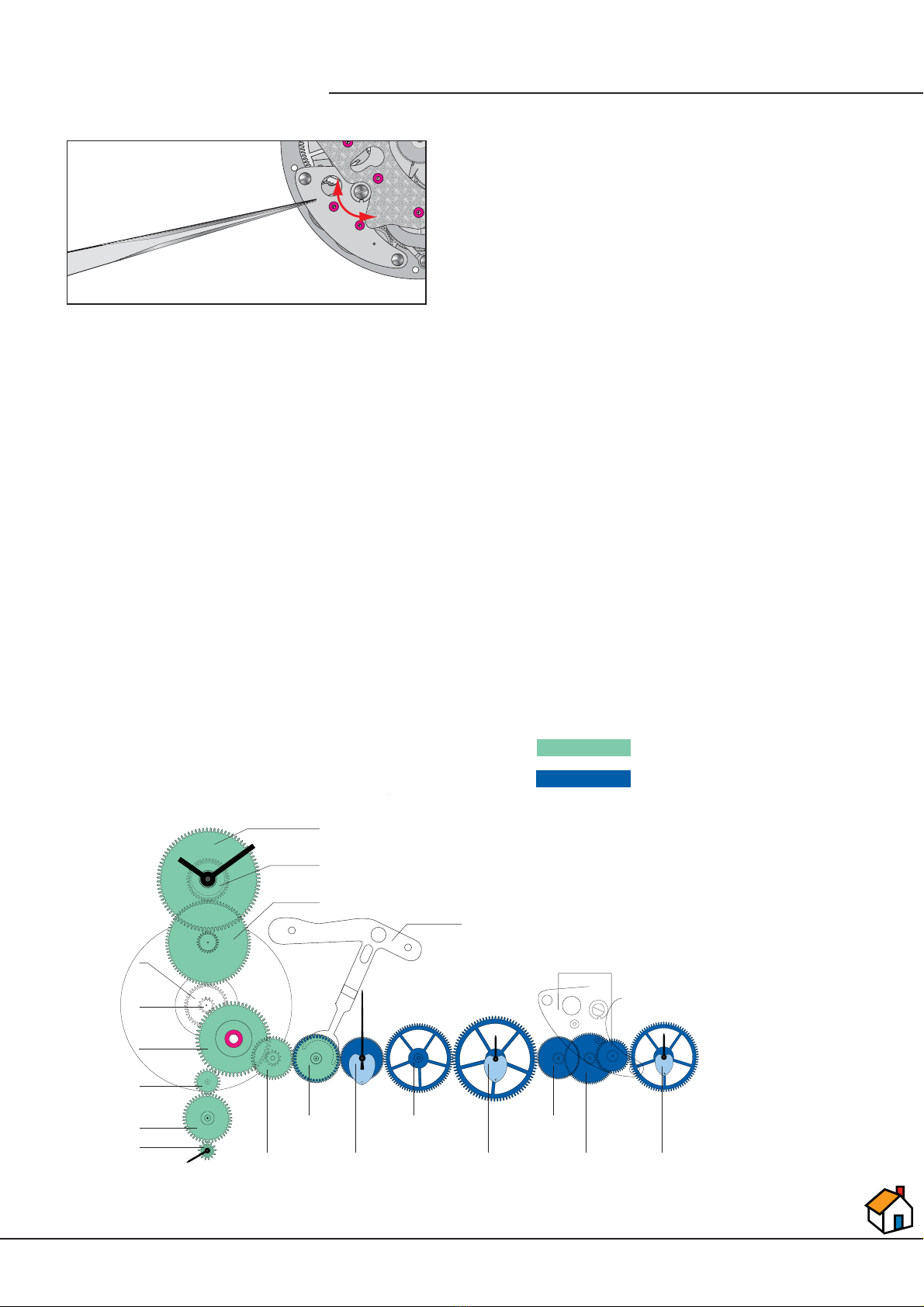

4. Loosen the eccentric screw.
~ 1º to 5º

/20
Specific Information for calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
31.081 P
31.046 R
31.044 M1 + 31.040 M1
31.083.05
35.060 R
30.029 M1
1544 R
1542 M1
30.027 P
1543 M1 35.010 M1 35.012 M1 35.033 M1 35.030 M1
35.062 M2 35.031 M1
10.047 M1
35.013 M1
65.046
Affichage heures, minutes et secondes
Système de chronographe
5.0 Chronograph System Operation
5. Whilst holding the reset down, turn the eccentric until the
chronograph hand can be blocked (under tension). Then
tighten the eccentric screw.
6. Check the freedom of the hour counter (~1°to 5°). If not
OK, start again at point 4.
7. Check that the minute counter is blocked
If OK (no play): move to point 9.
If not OK (free): move the hammer pean aside gently
using a screwdriver. This adjustement takes place in the
START position.
Reset and check that there is no freedom in the minute
counter.
8. Carry out a START-STOP and then reset to zero. Then
check again from point 3.
9. Oil the eccentric pivoting lightly and oil the module
according to the drawing on page 16.
Hour, minute and second display
Chronograph System
