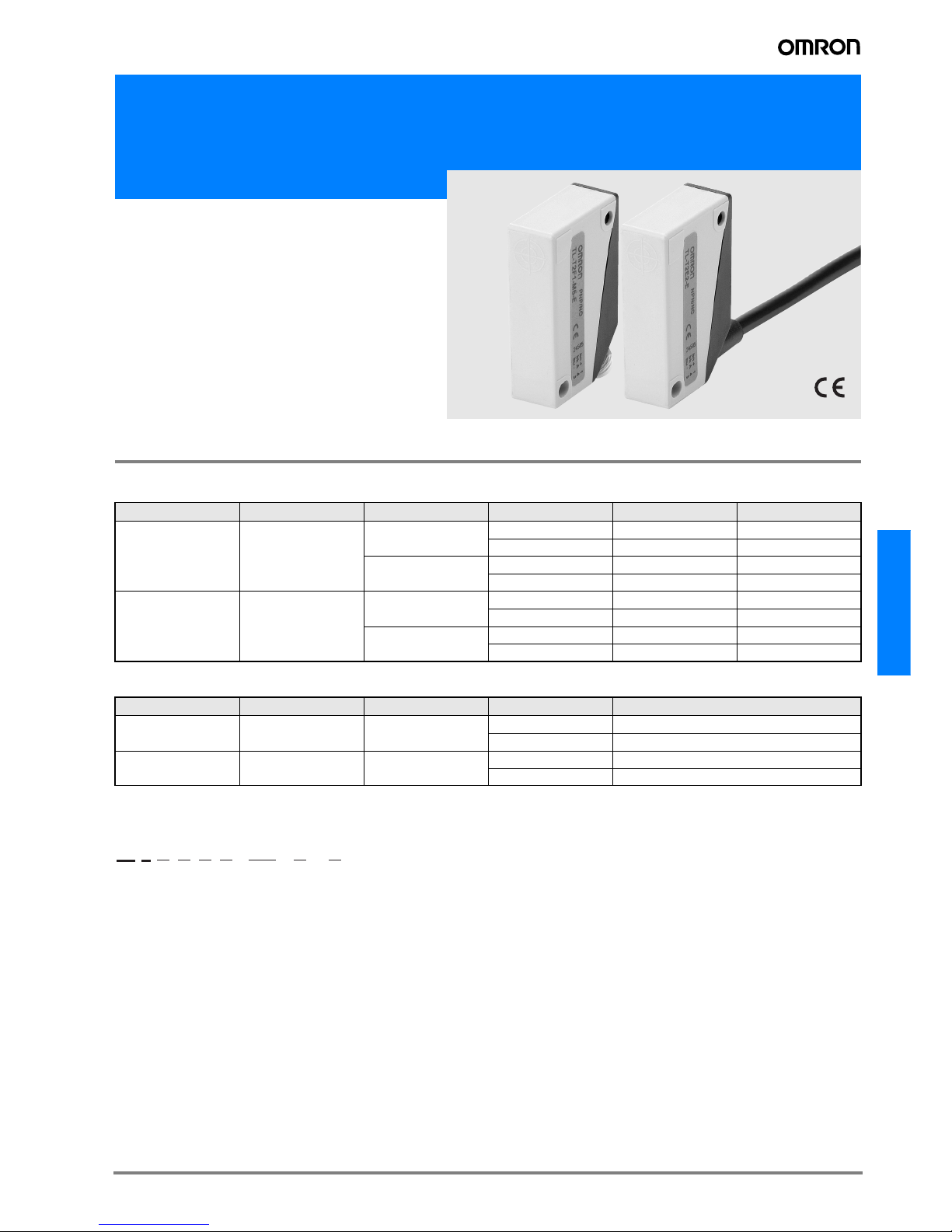

Standard (thin shape) Inductive Proximity Sensor
TL-T
• Thin shape for space saving surface mounting
• Direct side wall mounting for bracket-less installation
Ordering Information
DC 3-wire Models
DC 4-wire Models (NO + NC)
Model Number Legend
Example: TL-T2F1-E 2M Square housing (40x12x26 mm), Sn=2 mm, shielded, PNP-NO,
made by OMG, pre-wired PVC cable (3x0,25 mm²) 2 m
TL-T4MF1-M5-E Square housing (40x12x26 mm), Sn=4 mm, not shielded,
PNP-NO, M8 (3-pole) connector, made by OMG
1. Basic name
TL
2. Housing & shape material
Square plastic 40 x 12 x 26 mm
3. Sensing distance
2: 2mm
4: 4mm
4. Shield
Blank: Shielded
M: Non-shielded
5. Power source & output
E: NPN voltage output
F: PNP voltage output
6. Operation mode
1: Normally open (NO)
2: Normally closed (NC)
3: Antivalent (NO + NC)
7. Kind of connection
Blank: Pre-wired, PVC dia 4mm
WA: Pre-wired, PUR/PVC dia 4mm
WR: Robot cable, PVC dia 4mm
M5: M8 connector (3-pole)
M1J: M12 connector (4-pole)
with pig-tail cable (PVC)
M3J: M8 connector (4-pole)
with pig-tail cable (PVC)
M5J: M8 connector (3-pole)
with pig-tail cable (PVC)
8. Production site
E: European Union
9. Cable length
Blank: Connector type
Numeral: Cable type
Installation Sensing distance Connection Output configuration Operation mode NO Operation mode NC
Shielded 2.0 mm Pre-wired NPN TL-T2E1-E TL-T2E2-E
PNP TL-T2F1-E TL-T2F2-E
M8 Connector (3-pin) NPN TL-T2E1-M5-E TL-T2E2-M5-E
PNP TL-T2F1-M5-E TL-T2F2-M5-E
Non-Shielded 4.0 mm Pre-wired NPN TL-T4ME1-E TL-T4ME2-E
PNP TL-T4MF1-E TL-T4MF2-E
M8 Connector (3-pin) NPN TL-T4ME1-M5-E TL-T4ME2-M5-E
PNP TL-T4MF1-M5-E TL-T4MF2-M5-E
Installation Sensing distance Connection Output configuration Operation mode antivalent (NO + NC)
Shielded 2.0 mm Pre-wired NPN TL-T2E3-E
PNP TL-T2F3-E
Non-Shielded 4.0 mm Pre-wired NPN TL-T4ME3-E
PNP TL-T4MF3-E
TL-T
@@@@- @@ - @@
1 2 3 5 7 8 946

D-62 Inductive Sensors
Specifications
DC 3-wire and DC 4-wire Models
Note: 1. The response frequency is an average value. Measurement conditions are as follows: standard target, a distance of twice the standard target distance between
targets, and a setting distance of half the sensing distance
2. PUR Cable and other legth request
Type
Item
Shielded Non-shielded
TL-T2E1-@@-E
TL-T2F1-@@-E
TL-T2E2-@@-E
TL-T2F2-@@-E
TL-T2E3-E
TL-T2F3-E
TL-T4ME1-@@-E
TL-T4MF1-@@-E
TL-T4ME2-@@-E
TL-T4MF2-@@-E
TL-T4ME3-E
TL-T4MF3-E
Sensing distance 2 mm ±10% 4 mm ±10%
Setting distance 0 to 1.6 mm 0 to 3.2 mm
Differential travel 15% max. of sensing distance
Target Ferrous metal (The sensing distance decreases with non-ferrous metal)
Standard target 12 x 12 x 1 mm 12 x 12 x 1 mm
Response frequency (See note 1.) 3000 Hz 1500 Hz
Rated power supply voltage
(operating voltage range)
24 VDC. Ripple (p-p): 10% max.
(10 to 35 VDC)
Current consumption DC 3-wire: ≤15 mA at 24 VDC
DC 4-wire: ≤15 mA at 24 VDC
Output type TL-T@@Emodels: NPN voltage output
TL-T@@Fmodels: NPN voltage output
Control output
Load current 300 mA max. each output
Residual volt-
age
≤2.0 VDC
Leakage current DC 3-wire: <0,5 mA
DC 4-wire: <1 mA each output
Indicator Output indicator (Yellow LED)
Operation mode
(with sensing object approaching)
TL-T@@E1/F1 models: NO
TL-T@@E2/F2 models: NC
TL-T@@E3/F3 models: NO + NC
For details, refer to Timing Charts.
Protection circuits Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor,
Short-circuit protection
Ambient air temperature Operating/Storage: –25°C to 70°C
Temperature influence ≤±10% max. of Sn at 23°C in temperature range of –25°C to 70°C
Humidity 35% to 95% RH
Voltage influence ±1% max. of sensing distance in the rated voltage range ±15%
Insulation resistance >10 MΩbetween current-carrying parts and case
Dielectric strength 1000 VAC at 50/60 Hz between current-carrying parts and case
Vibration resistance 0 to 55 Hz with 30 min. dwell time at resonance frequency or 55 Hz each in X, Y, and Z directions
55 to 2000 Hz, 150 m/s2, double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance 300 m/s26 times each in X, Y, and Z directions
Degree of protection
in accordance with IEC 60529:
Pre-wired models: IP67
M8 connector models: IP65
Product standard EN60947-5-2
Connection method
Pre-wired (See
note 2)
2m cable, 3x 0,25 mm2 for DC 3-wire models
4x 0,25 mm2 for DC 4-wire models
Connector M8 connector
Weight
(packaged)
Pre-wired model Approx. 70 g
M8 connector
models
Approx. 20 g
Material Case PBT
Cable PVC

D-63TL-T
TL-T
Engineering Data

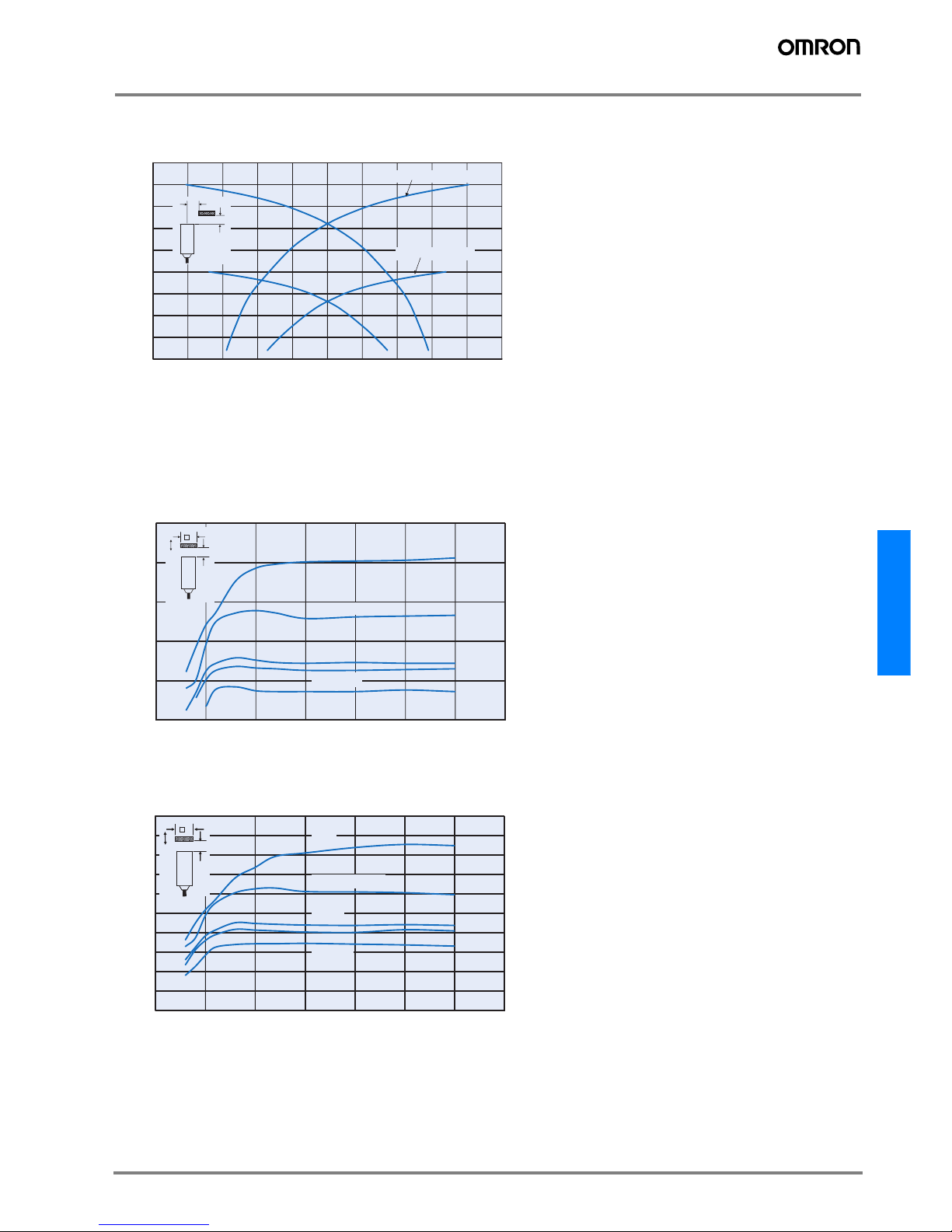

Operating Range (Typical)
Shielded and non-shielded models
Influence of Sensing Object Size and Material
Shielded models
Non-shielded models
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
-5,0 -4,0 -3,0 -2,0 -1,0 0,0 1,0 2,0 3,0 4,0 5,0
Distance Y (mm)
Sensing distance X (mm)
X
Y
TL-T2 @@-@@ -@
TL-T4M@@-@@
- @
0,0
0,5
1,0
1,5
2,0
2,5
0 5 10 15 20 25 30 35
Side length of sensing object d (mm)
Sensing distance x (mm)
Iron
Stainless steel
Brass
Aluminum
Copper
X
d
TL-T2@@ -@@ -@
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
0 5 10 15 20 25 30 35
Side length of sensing object d (mm)
Sensing distance x (mm)
X
d
Iron
Stainless steel
Brass
Aluminum
Copper

D-64 Inductive Sensors

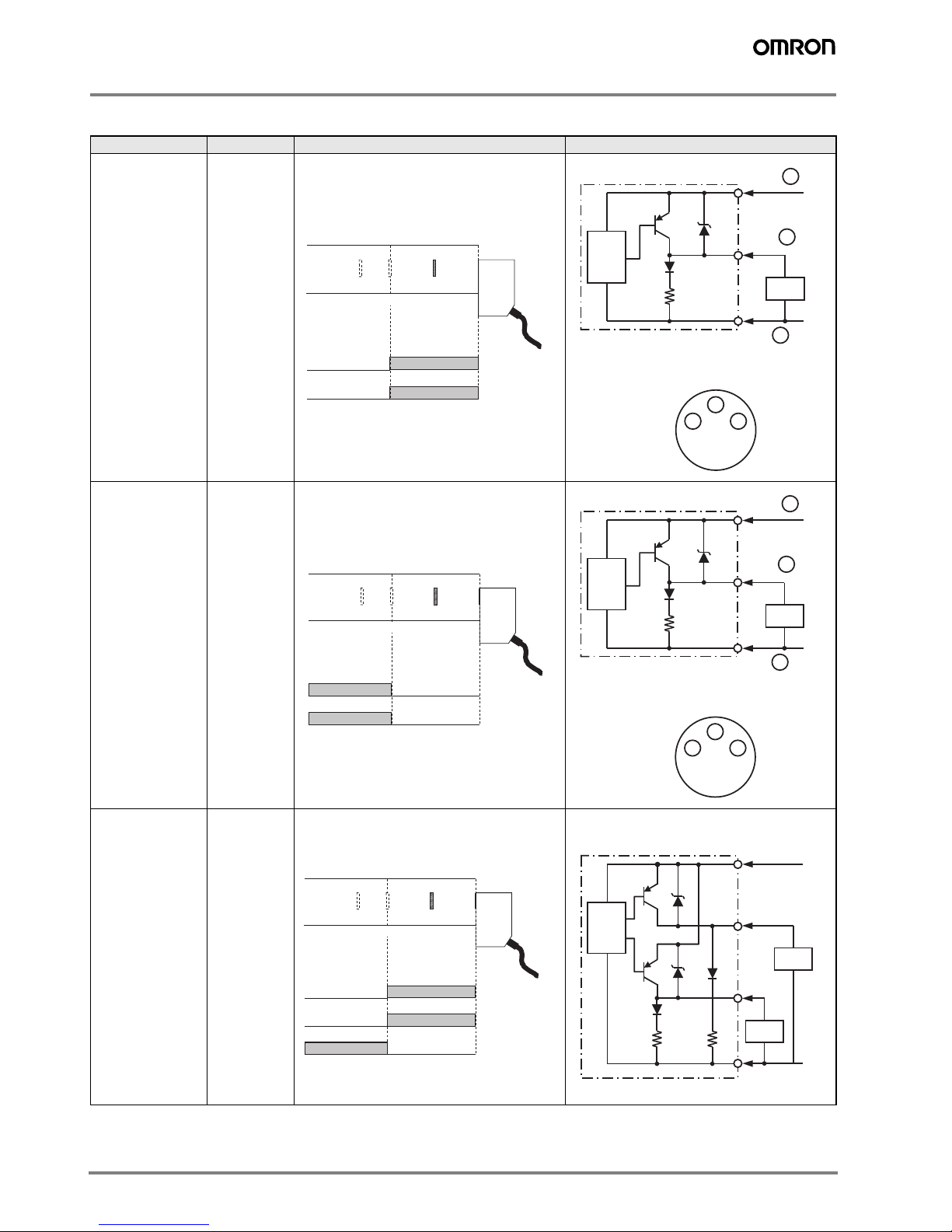

Operation
PNP Output
Operation mode Model Timing chart Output circuit
NO TL-T@-F1-@-@
NC TL-T@-F2-@-@
NO+NC TL-T@-F3-@-@
ON
OFF
ON
OFF
Non-sensing zone Sensing zone
Control output
Y
ellow indicato
r
(%) 100 0
Sensing
object
Rated sensing distance
Load
Main
circuit
+V
0 V
Brown 1
Black 4
Blue 3
1
4
3
M8 connector (3 pin)
Pin Arrangement
ON
OFF
ON
OFF
Non-sensing zone Sensing zone
Control output
Yellow indicato
r
(%) 100 0
Sensing
object
Rated sensing distance
Load
+V
0 V
Brown 1
Black 4
Blue 3
1
4
3
Main
circuit
M8 connector (3 pin)
Pin Arrangement
ON
OFF NC output
ON
OFF
ON
OFF
Non-sensing zone Sensing zone
NO output
Yellow indicato
r
(%) 100 0
Sensing
object
Rated sensing distance
0 V
Blue
+V
Brown
Load
Black NO output
Load
White
NC output
Main
circuit

D-65TL-T
TL-T
NPN Output
Operation mode Model Timing chart Output circuit
NO TL-T@-E1-@-@
NC TL-T@-E2-@-@
NO+NC TL-T@-E3-@-@
ON
OFF
ON
OFF
Non-sensing zone Sensing zone
Control output
Yellow indicato
r
(%) 100 0
Sensing
object
Rated sensing distance
+V
Load
Brown 1
Black 4
Blue 3
M8 connector (3 pin)
Pin Arrangement
1
4
3
Main
circuit
0 V
ON
OFF
ON
OFF
Non-sensing zone Sensing zone
Control output
Yellow indicato
r
(%) 100 0
Sensing
distance
Rated sensing distance
+V
Load
Brown 1
Black 4
Blue 3
M8 connector (3 pin)
Pin Arrangement
1
4
3
Main
circuit
0 V
ON
OFF NC output
ON
OF
ON
OFF
Non-sensing zone Sensing zone
NO output
Yellow indicato
r
(%) 100 0
Sensing
object
Rated sensing distance
Blue
0 V
+V
Brown
Load
Black
NO output
Load
White NC output
Main
circuit

D-66 Inductive Sensors

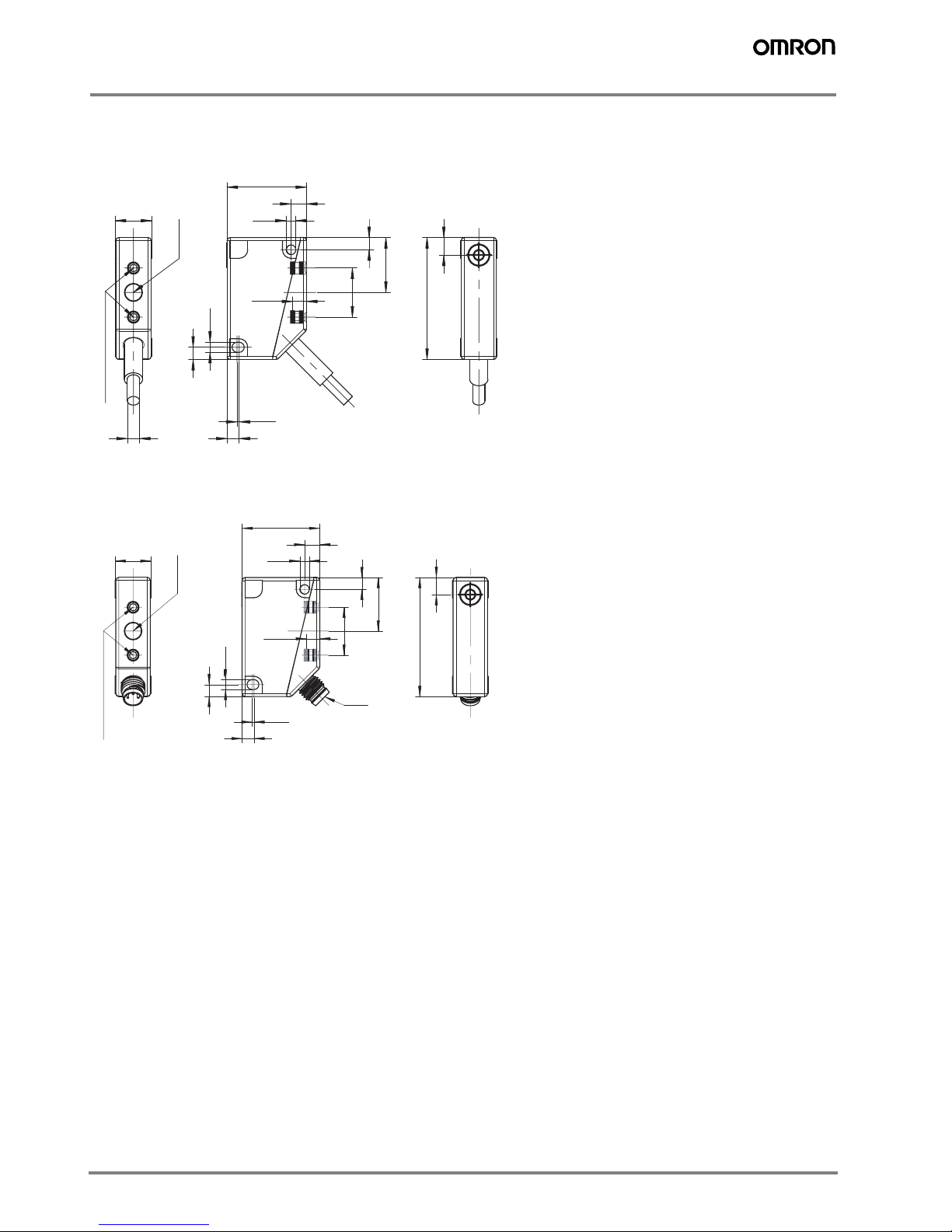

Dimensions
Note: All units are in millimeters unless otherwise stated
Pre-wired Models (shielded and non-shielded)
TL-T2@@-E 2M and TL-T4M@@-E 2M
M8 Connector Models (shielded and non-shielded)
TL-T2@@-M5-E and TL-T4M@@-M5-E
26
4
5
3.2
4
3.3
4
0.7
6
40
12
4
4.5
16
18
LED
insert nut M3
4
3.2
3.3
40
12
26
5
6
16
18
4
0.7
4
4.5
M8
LED
insert nut M3

D-67TL-T
TL-T
Precautions
Safety Precautions
Power Supply
Do not impose an excessive voltage on the TL-T, otherwise it may be
damaged. Do not impose AC current (100 to 240 VAC) on any DC
model, otherwise it may be damaged.
Load Short-circuit
Do not short-circuit the load, or the TL-T may be damaged.
The TL-T’s short-circuit protection function will be valid if the polarity
of the supply voltage imposed is correct and within the rated voltage
range.
Wiring
Be sure to wire the TL-T and load correctly, otherwise it may be
damaged.
Do not expose the product to flammable or explosive gases.
Do not disassemble, repair, or modify the product.
Correct Use
Designing
Power Reset Time
The Proximity Sensor is ready to operate within 100 ms after power
is supplied. If power supplies are connected to the Proximity Sensor
and load respectively, be sure to supply power to the Proximity
Sensor before supplying power to the load.

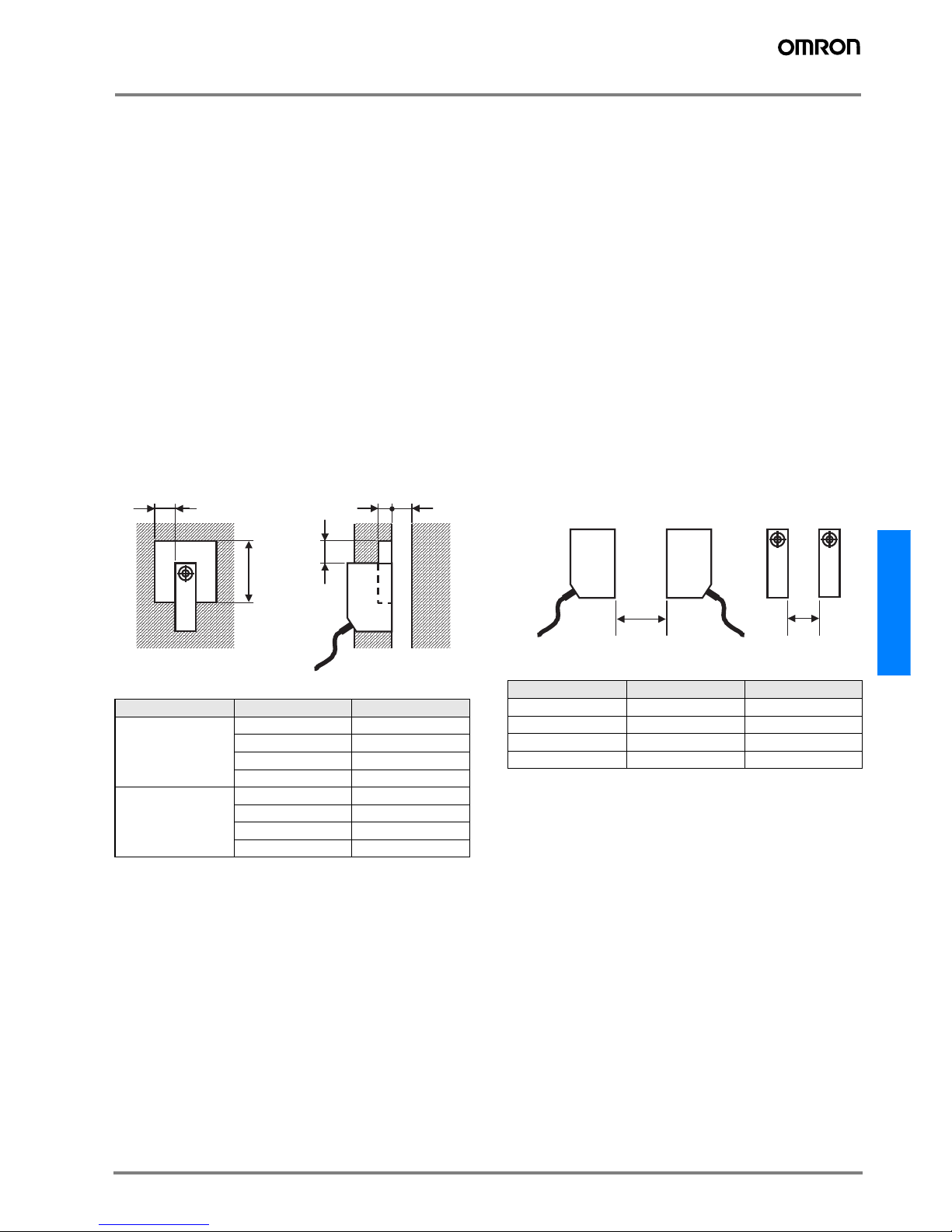

Effects of Surrounding Metal
When mounting the TL-T within a metal panel, ensure that the
clearances given in the following table are maintained.
Power OFF
The Proximity Sensor may output a pulse signal when it is turned
OFF. Therefore, it is recommended that the load be turned OFF
before turning OFF the Proximity Sensor.
Power Supply Transformer
When using a DC power supply, make sure that the DC power
supply has an insulated transformer. Do not use a DC power supply
with an auto-transformer.
Mutual Interference
When installing two or more Sensors face-to-face or side-by-side,
ensure that the minimum distances given in the following table are
maintained.
Type Dimension Minimum value
Shielded
w0
n-
D0
m6
Non-shielded
w12
n36
D8
m12
w
n
mD
w
(Unit: mm)
Type Dimension Minimum value
Shielded A 30
B10
Non-shielded A 40
B20
A B
(Unit: mm)

D-68 Inductive Sensors
Wiring
High-tension Lines
Wiring through Metal Conduit:
If there is a power or high-tension line near the cable of the Proximity
Sensor, wire the cable through an independent metal conduit to
prevent against Proximity Sensor damage or malfunctioning.
Cable Extension
Standard cable length is less than 200 m.
The tractive force is 50 N.
Mounting
The Proximity Sensor must not be subjected to excessive shock with
a hammer when it is installed, otherwise the Proximity Sensor may
be damaged or lose its water-resistivity.
Do not tighten the screw with excessive force. A washer must be
used with the screw.
Maintenance and Inspection
Periodically perform the following checks to ensure stable operation
of the Proximity Sensor over a long period of time.
1. Check for mounting position, dislocation, looseness, or distortion
of the Proximity Sensor and sensing objects.
2. Check for loose wiring and connections, improper contacts, and
line breakage.
3. Check for attachment or accumulation of metal powder or dust.
4. Check for abnormal temperature conditions and other environ-
mental conditions.
5. Check for proper lighting of indicators (for models with a set indi-
cator.)
Never disassemble or repair the Sensor.
Environment
Water Resistivity
The Proximity Sensors are tested intensively on water resistance, but
in order to ensure maximum performance and life expectancy avoid
immersion in water and provide protection from rain or snow.
Operating Environment
Ensure storage and operation of the Proximity Sensor within the
given specifications.
Inrush Current
A load that has a large inrush current (e.g., a lamp or motor) will
damage the Proximity Sensor, in which case connect the load to the
Proximity Sensor through a relay.
<SUITABILITY FOR USE>
OMRON shall not be responsible for conformity with any standards,
codes, or regulations that apply to the combination of the products in
the customer’s application or use of the products.
Take all necessary steps to determine the suitability of the product
for the systems, machines, and equipment with which it will be used.
<CHANGE IN SPECIFICATIONS>
Product specifications and accessories may be changed at any time
based on improvements and other reasons. Consult with your
OMRON representative at any time to confirm actual specifications
of purchased product.
In the interest of product improvement, specifications are subject to change without notice.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. E38E-EN-01
