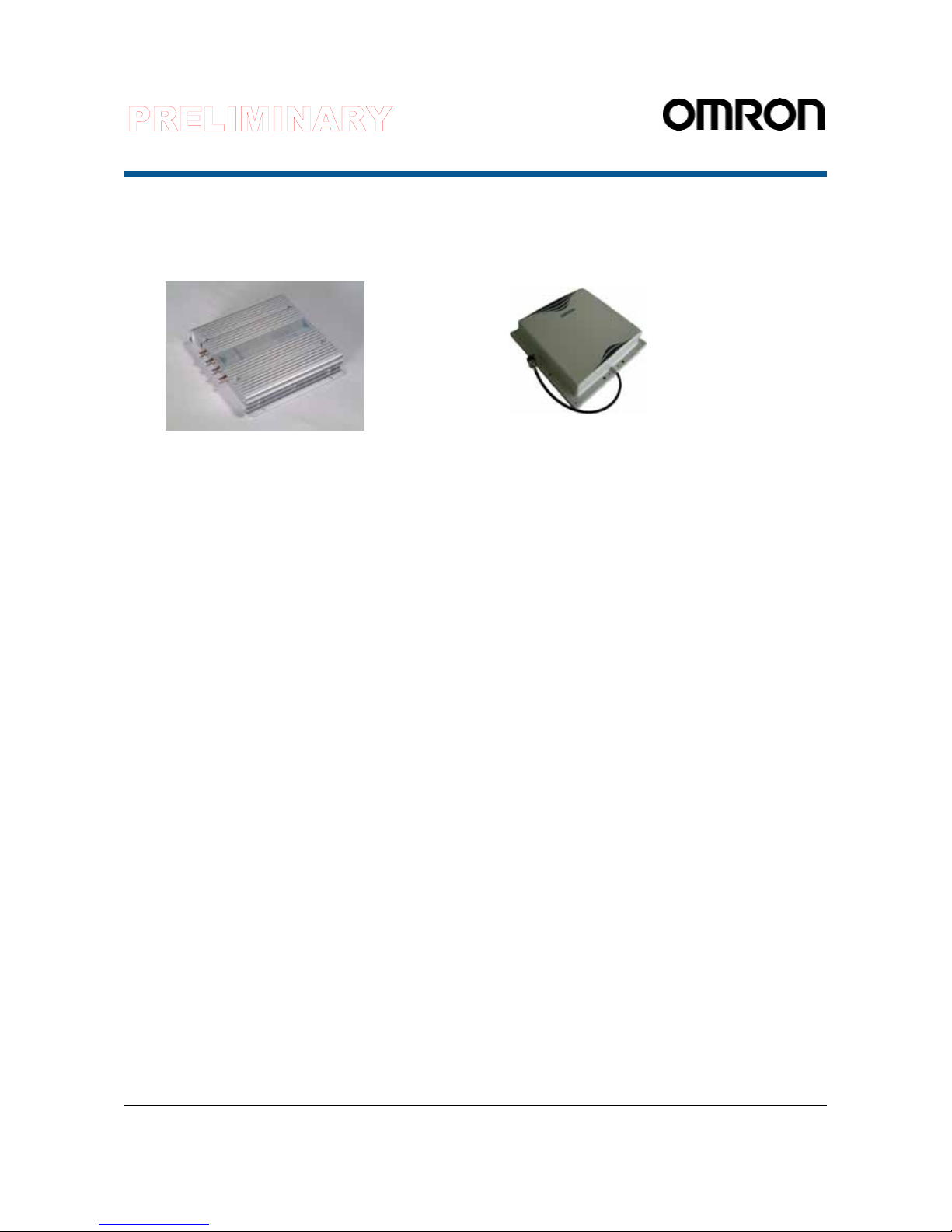

Omron V750-BA50C04-US User manual

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 1 of 110 ©OMRON CORPORATION 2006
V750-series
UHF RFID System
Operation Manual
V750-BA50C04-US (Mono-static Reader/Writer)
V740-HS01CA (Circular Antenna)
V740-HS01LA (Liner Antenna)
Cat. No. SRFM – 012 – A
Reader/Writer
Antenna

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 2 of 110 ©OMRON CORPORATION 2006
PRECAUTIONS
Please read and understand this manual before using the products. Please consult your OMRON representative if you
have any question or comments.
WARRANTY: OMRON’S EXCLUSIVE WARRANTY IS THAT THE PRODUCTS ARE FREE FROM DEFECTS IN MATERIALS AND
WORKMANSHIP FOR A PERIOD OF ONE YEAR (OR OTHER PERIOD IF SPECIFIED) FROM DATE OF SALE BY OMRON.
OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT,
MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT
THE BUYER OR USER ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE PREQUIREMENTS OF THEIR
INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.
LIMITATIONS OF LIABILITY: OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM
IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY.
IN NO EVENT SHALL THE RESPONSIBILITY OF OMRON FOR ANY ACT EXCEED THE INDIVIDUAL PRICE OF THE PRODUCT ON
WHICH LIABILITY IS ASSERTED.
IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS
UNLESS OMRON'S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND
MAINTAINED AND NOT SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.
SUITABLITY FOR USE : OMRON SHALL NOT BE RESPONSIBLE FOR CONFORMITY WITH ANY STANDARDS, CODES, OR
REGULATIONS THAT APPLY TO THE COMBINATION OF THE PRODUCTS IN THE CUSTOMER'S APPLICATION OR USE OF THE
PRODUCT.
TAKE ALL NECESSARY STEPS TO DETERMINE THE SUITABILITY OF THE PRODUCT FOR THE SYSTEMS, MACHINES, AND
EQUIPMENT WITH WHICH IT WILL BE USED.
KNOW AND OBSERVE ALL PROHIBITIONS OF USE APPLICABLE TO THIS PRODUCT.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING
THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS
PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
CHANGE IN SPECIFICATIONS : PRODUCT SPECIFICATIONS AND ACCESSORIES MAY BE CHANGED AT ANY TIME BASED
ON IMPROVEMENTS AND OTHER REASONS. CONSULT WITH YOUR OMORN REPRESENTATIVE AT ANY TIME TO CONFIRM
ACTUAL SPECIFICATIONS OF PURCHASED PRODUCT.
Warranty, Limitations of Liability
Application Precautions, Change in Specifications

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 3 of 110 ©OMRON CORPORATION 2006
Regulatory Compliance
EMC...................................................................47 CFR, Part 15
................................................................................RSS210
Safety........................................................................... UL 60950
....................................................Can/CSA C22.2 No 60950
FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
FCC COMPLIANCE: This equipment complies with Part 15 of the FCC rules for intentional radiators and Class A digital
devices when installed and used in accordance with the operation manual. Following these rules provides reasonable
protection against harmful interference from equipment operated in a commercial area. This equipment should not be
installed in a residential area as it can radiate radio frequency energy that could interfere with radio communications, a
situation the user would have to fix at their own expense.
EQUIPMENT MODIFICATION CAUTION: Equipment changes or modifications not expressly approved by OMRON
Corporation, the party responsible for FCC compliance, could void the user's authority to operate the equipment and
could create a hazardous condition.
IMPORTANT USER INFORMATION: This equipment complies with FCC radiation exposure limits set forth for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This
equipment should be installed and operated with at least 23cm (9.1in) and more between the radiator and person’s body
(excluding extremities: hands, wrists, feet and legs).
This device complies with RSS-Gen of IC Rules. Operation is subject to the following two conditions:
(1) this device may not causeinterference, and (2) this device must accept any interference, including interference that
may cause undesired operation of this device.
©Copyright OMRON Corporation 2006. All rights reserved.
This document is protected by copyright and is intended solely for use in conjunction with the product. Notify your
OMRON representative before copying or reproducing this document in any manner, for any other purpose.
Declarations

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 4 of 110 ©OMRON CORPORATION 2006
Safety Precautions
This chapter provides important information for the safe use of this product.
Ensure to read the information carefully before use.
IN THE SAFETY PRECAUTIONS BELOW, SEVERITY IS CATEGORIZED AS EITHER ”WARNING”
OR “CAUTION”.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could
result in minor or moderate injury, or may result in serious injury or
death. Additionally there may be significant property damage.
CAUTION Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury, or property damage.
Property damage refers to extended damage caused to house/household
goods or livestock/pets.
●Description of Symbols
Prohibition
Indicates an action or activity not permitted.
Observe strictly
Indicates the need to ensure the safe use of the product.
Ensure to establish a solid grounding
A label indicating that a device with a grounding terminal should always be
grounded.
Electric shock hazard
A notification that alerts the possibility of electric shock under certain
conditions.
Do not disassemble
A notification that prohibits disassembly when injuries caused by electric
shocks may result.
Please ensure that all cautions and prohibitions are adhered to, since non-compliance may lead to serious injury
or damage, in certain circumstances.

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 5 of 110 ©OMRON CORPORATION 2006
警 WARNING
Never disassemble, repair, or modify the main unit and cables.
 Do not disassemble, repair, or modify this product. Doing so may result in electric shock, fire, or personal
injury.
Do not handle the device with wet hands. Do not touch the terminals while the device is
connected to the power supply.
 Electric shock hazard.
Do not allow the cables to be in contact with heaters.
 The cable sheaths may melt and the exposed wire may cause electric shock or fire.
Be sure to connect to a grounded main outlet for AC adapter power cord.
 Electric shock hazard.
Do not use the power cords and power adapters not supplied with the products.
 Failure to do so may results in electric shock, fire, or personal injury.
Connect and disconnect cables as described in the following procedures when installing,
moving, on this product or attached devices.
To connect: To disconnect:
1. Attached all cables to devices. 1. Remove power cords from outlet.
2. Attached power cords to outlet. 2. Remove all cables from devices.
Failure to do so may result In spark or deform or damage the device.
Always turn OFF the power supply to the PC before attempting any of the following. Not
turning OFF the power supply may result in malfunction or electric shock.
•Assembling the Units.
•Connecting or disconnecting the Expansion I/O Units or Expansion Units.
•Connecting or wiring the cables.
•Connecting or disconnecting the connectors.

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 6 of 110 ©OMRON CORPORATION 2006
CAUTION
Do not drop the device you may receive major shocks.
 Doing so may result in personal injury or device damage.
Do not apply strong force to, or place heavy items on the device or cables.
 Doing so may deform or damage the device, resulting in electric shock or fire.
Use and store the product in an environment that is specified in the catalog or operation
manual.
 Failure to do so may cause failure of the device, electric shock, or fire. Do not use or store the devices
(Reader/Write ,antenna ,antenna cable) in the following locations:
・ Locations that do not satisfy the specified operating conditions (0 to +40℃, 35%RH to 85%RH,non-
condensing).
・ Locations that do not satisfy the specified storage conditions (-25 to +65℃, 35%RH to 85%RH,non-
condensing).
・ Locations where the Reader/Writer is exposed to direct sunlight.
・ Locations where the Reader/Writer is exposed to dust, corrosive gas, saline, or flammable gas.
・ Locations where the Reader/Writer is exposed to direct heat.
・ Locations subject to condensation due to high humidity.
・ Locations subject to vibration or impact that exceed the limits outlined in the specifications.
・ Locations where the device may be exposed to water, oil, or chemical agents. (This applies to
the models other than waterproof types.)
・ Outdoor
Be sure to tighten the devices screws securely.
 Failure to do so may result in personal injury or device damage.
Cables with screw attachments must be secured before use.
 Failure to do so may damage the device.
To avoid interferences with other systems, adhere to the following items and check them
before using the product.
 The product uses a publicly available ISM frequency band of 902-928MHz to communicate with Tags. Some
transceivers, motors, monitoring devices, power supplies (power supply ICs), and other similar RFID systems
may generate noise, which cause radio interference and may affect communication with Tags. If the product is
required in the vicinity of these items, check for any interferences prior to use.
 On the contrary, the system itself may affect radio station transmissions or medical devices. Be cautious
when using the system in the environments where such effects might occur.
 To minimize noise effects, adhere to the following:
・Establish a Class D grounding (former Class 3 grounding) for metal objects placed in the vicinity of the
system.
・Keep cables away from those with high voltages or heavy currents.

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 7 of 110 ©OMRON CORPORATION 2006
Do not allow the device or cables to be exposed to water.
 Doing so may result in electric shock, fire or failure of non-waterproof devices or cables.
If the device fails or is exposed to water (non-waterproof devices or parts), or an unusual
smell, smoke, or sparks are detected, immediately refrain from using the device and
contact OMRON or a sales representative for service and repair.
 Continued use of the failed device may result in electric shock or fire.
Do not use damaged cables.
 Continued use of the damaged cables may result in electric shock or fire.
Fail-safe measures must be taken by the customer to ensure safety in the event of
incorrect, missing, or abnormal signals caused by broken signal lines, momentary power
interruptions, or other causes.
Be sure that all the mounting screws, terminal screws, and cable connector screws are
tightened to the torque specified in the relevant manuals.
Incorrect tightening torque may result in malfunction.
Be sure that terminal blocks and connectors are connected in the specified direction with
the correct polarity. Not doing so may result in malfunction.
If the power supply for the I/O circuits is turned ON with the input and output
connectors reversed, the fuse of output transistor may be blown.
Do not apply voltages to the input terminals in excess of the rated input voltage. Excess
voltages may result in burning.
Do not apply voltages or connect loads to the output terminals in excess of the maximum
switching capacity. Excess voltage or loads may result in burning.
When transporting the Units, use special packing boxes. Be careful not to apply excessive
vibration or shock, or not to expose to water during transportation and not to drop the
product.
Do not install or keep the V750-BA50C04-US in the following locations:
-Locations subject to shock or vibration.
-Locations subject to condensation as the result of severe changes in temperature.
-Where the device may be exposed to water, oil, chemicals or organic solvents.
Do not use the system in an environment subject to flammable, explosive, or corrosive
gases.
Provide an enough space around the device for ventilation
Keep cables away from those with high voltages or heavy current.

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 8 of 110 ©OMRON CORPORATION 2006
To avoid interferences with other systems, adhere to the following items and check them
before using the product:
-The product uses a publicly available ISM frequency band of 902-928MHz to
communicate with Tags. Some transceivers, motors, monitoring devices, power supplies,
and other similar RFID systems may generate noise, which cause radio interference and
may affect communication with Tags. If the product is required in the vicinity of these
items, check for any interferences prior to use.
In order to comply with FCC requirements for RF exposure safety, a separation distance
of at least 23cm(9.1in) needs to be maintained between the radiating elements of the
antenna and the bodies of nearby persons.
To avoid interferences with other systems, adhere to the following items and check them
before using the product:
-On the contrary, the system itself may affect radio station transmissions or medical
devices. Be cautions when using the system in the environments where such effects might
occur.
Keep cables away from those with high voltages or heavy current.
Properly shielded a grounded cables and connectors must be used for connection to host
computer and / or peripherals in order to meet FCC emission limits.

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 9 of 110 ©OMRON CORPORATION 2006
Table of Contents
Feature of V750 series RFID system ..11
1. Installation and Usage Guide ..........15
1.1 Before You Begin.......................................................................................................................15
1.1.1 Installation Requirements..............15
1.1.2 Performance Considerations......... 15
1.2 Authorized Antennas .................................................................................................................17
1.2.1 Antennas.......................................17
1.2.2 Antenna Cables.............................17
1.2.3 Setting the Reader RF Power....... 17
1.3 Reader Installation.....................................................................................................................18
1.3.1 Install the Reader..........................18
1.3.2 Install the Antennas.......................19
1.3.3 Connect the Reader......................20
1.3.4 Antenna Port .................................21
1.3.5 LED Indicators...............................23
1.3.6 I/O Interface...................................25
1.3.7 RS232C Interface..........................28
1.3.8 Ethernet Interface..........................30
1.4 Specifications.............................................................................................................................31
2. Functions and Control .....................33
2.1 System Interface........................................................................................................................33
2.1.1 Command I/F function...................33
2.1.2 Ethernet Protocol...........................36
2.1.3 Web browser function ...................38
2.2 Functions ...................................................................................................................................39
2.2.1 Command execution.....................39
2.2.2 Self-operation................................39
2.2.3 Digital Input / Output .....................39
2.2.4 Firmware Upgrade.........................40
2.3 Communication..........................................................................................................................41
2.3.1 Communication Process...............41
2.3.2 Communication Sequence............ 42
2.3.3 Session Setting .............................45
2.3.4 Communication Data Control........46
2.4 Tag Fundamentals.....................................................................................................................47
3. Command Line Interfaceエラー! ブックマークが定義されていません。
3.1 Command Interface ............................................エラー! ブックマークが定義されていません。
3.1.1 Command Frame Structureエラー! ブックマークが定義されていません。
3.1.2 Command Code Listエラー! ブックマークが定義されていません。
3.1.3 Response Code Listエラー! ブックマークが定義されていません。
3.1.4 Command / Response Formatエラー! ブックマークが定義されていません。
3.1.5 Command Specificationエラー! ブックマークが定義されていません。
3.1.5.1 Communication Commandエラー! ブックマークが定義されていません。
3.1.5.2 Information of the Reader/Writer - Conditions of the Reader/Writer function エラー! ブッ
クマークが定義されていません。

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 10 of 110 ©OMRON CORPORATION 2006
3.1.5.3 Reader/Writer operation conditionsエラー! ブックマークが定義されていません。
3.1.5.4 Setting for Communication Conditions エラー! ブックマークが定義されていません。
3.1.5.5 Control Commandエラー! ブックマークが定義されていません。
3.2 Examples...................................................................................................................................88
3.2.1 Example １....................................88
3.2.2 Example 2 .....................................88
3.2.3 Example 3 .....................................90
3.2.4 Example 4 .....................................91
3.2.5 Example 5 .....................................92
4. Browser-Based Interface .................93
4.1 Using the Browser-Based Interface 詳細仕様作成中！.........................................................93
4.2 Web Operation...........................................................................................................................95
4.3 Safe Mode................................................................................................................................102
5 Characteristics(Reference) ............104
5.1 Communications Range ..........................................................................................................104
5.2 Communications Time.............................................................................................................105
APPENDIX: OUTLINE DRAWINGS....106
Reader / Writer: (V750-BA50C04-US). 106
Antenna : ( V740-HS01LA，V740-HS01CA) 107
Antenna Cable:.....................................108

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 11 of 110 ©OMRON CORPORATION 2006
Feature of V750 series RFID system
V750 Series RFID Reader / Writer, Antenna
Operation Manual
V750-BA50C04-US Mono-static
Reader/Writer(4ports) V740-HS01CA Mono-static Antenna (Circular)
V740-HS01LA Mono-static
Antenna (Liner)
The OMRON V750 RFID Reader (herein after denoted as the V750 Reader) uses RFID (radio frequency
identification) technology to read data stored on RFID tags.
The reader supports UHF (ultra high frequency) antennas, which are available separately. The reader supports
multiple configurations of UHF antenna ports and transfers data to a remote computer over a network
connection.

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 12 of 110 ©OMRON CORPORATION 2006

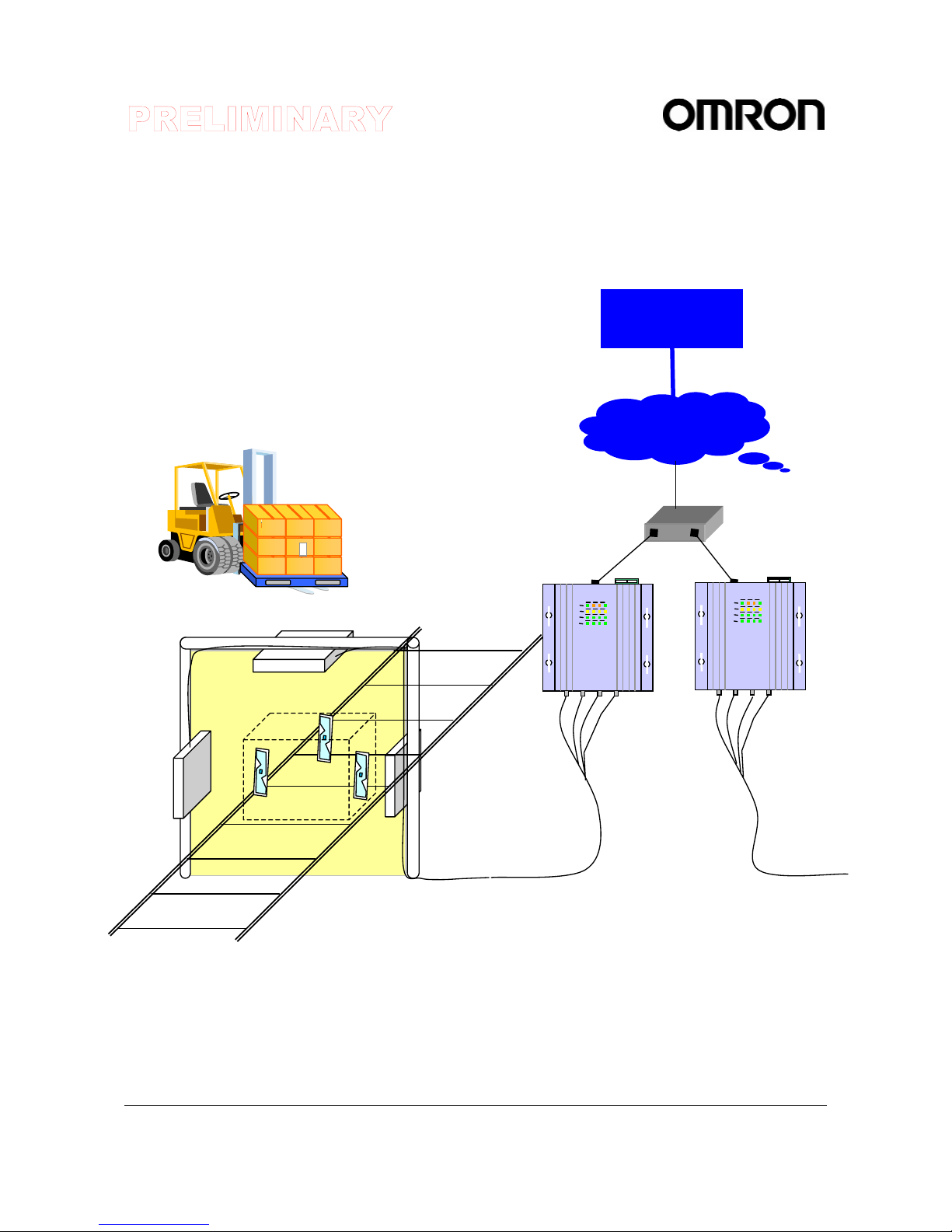

V750-series Radio wave propatative RFID system is ideal for long range communication and for the system
construction used in the production process or distribution control.
It is designed to increase “basic performance of communication with tag” and “Quick and simple operability”
most as a unique feature.






EPC IS
Middleware
Ethernet
OMRON
V750 OMRON

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 13 of 110 ©OMRON CORPORATION 2006
Main Features 英語内容確認
(1) Various communication performances and functions for various customers’ applications.
1) Selective communication modes to meet various applications.
Multi-access: optimizes a sequence automatically according to the number of tags existing in the read field.
Single-access: reads a tag in high speed if there is a single tag in the read field.
2) Wide-choice communication condition setting.
Multiple communication conditions can be combined for suitable usage..
3) Self-operation function that can build system at low cost.
Using two function; command register function and programmable function, the Reader/Writer can implement
simple judgment or processing without instruction from the host.
Command setting function
Can set the commands so that the command starts when power is on or input terminal signal is ON.
Programmable output terminals
4 outputs can be used for output terminals to show reader status or communication test results judgment.
When the output terminal is used for communication test resultsjudgment, the judgment conditions can be
changed by choosing criteria objective such as data value or tag numbers.
(2) Various Maintenance Functions and On-site Verification Functions.
1) Monitoring and Setting via Web browser.
Via Web browser, you can set functions to display an operation state or setting conditions or to set the
operation parameters easily by using PC.
2) Communication monitoring function that reduces the time to verify the system.
A tag communication test (Query), an on-site environmental monitoring function (a noise check, Channel, radio
wave monitor), and error logging function are equipped. This function shows the status of radio waves and
enables you to verify performance of tag-reader or analyze phenomenon that may change depending on on-
site RF environment.
3) Multiple LED operation displays
The multiple LED lamps show the reader operation state clearly and simply so that you can understand the
reader’s status and handle an error quickly if the error occurs.
4) Automatic antenna detection.
This function enables you to check the connection status of antennas and the R/W when a command is
executed. It helps to detect an error or problem of antenna(s) or wiring.
(3) Extendibility applicable to broad usage
1) Firmware upgradeable.
Via an Ethernet port, you can upgrade its software. It means that countermeasures can be taken easily against
an error and future functions are expandable. In addition to this, Safe Mode is also equipped so that the
reader/writer can recover from the upgrade error.

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 14 of 110 ©OMRON CORPORATION 2006
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Properly shielded a grounded cables and connectors must be used for connection to host computer and / or
peripherals in order to meet FCC emission limits.
（AC adaptor）with ferrite core must be used for RF interference suppression.

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 15 of 110 ©OMRON CORPORATION 2006
1. Installation and Usage Guide
About this Guide
This installation and usage guide explains how to install the V750 Reader, how to use the browser-based
interface, and how to control the reader remotely.
1.1 Before You Begin
1.1.1 Installation Requirements
• The reader is shipped with a power source with a cable length of 4.2m (13ft9in).
• Use only authorized antennas and cables to maintain FCC approval .
• In order to comply with FCC requirements for RF exposure safety, a separation distance of at least 23 cm
(9.1 in) needs to be maintained between the radiating elements of the antenna and the bodies of nearby
persons.
• Provide strain relief for all reader connections.
• The minimum screw size for mounting the reader is M4. Use suitable wall anchors when mounting to
drywall or masonry whose thickness is 16mm or more.(Refer to 1.3.1 Install the Reader)
• A Shielded Ethernet cable must be used to communicate with other devices.
• Multiple readers and antennas can be used in combination to enhance detection at specific locations
provided the software application is able to synchronize antenna operation.
1.1.2 Performance Considerations
Reader performance may be affected by external factors including tag variables and environment.
Performance tests conducted under typical operating conditions at your site are recommended to help you
optimize system performance.
Tag Variables
There are several variables associated with tags that can affect reader performance:
• Application surface — Some materials interfere with tag performance including metal and moisture. Tags
applied to items made from or containing these materials may not perform as expected.
• Tag orientation — Reader performance is affected by the orientation of the tag in the antenna field.
• Tag model — many tag models are available. Each model has its own performance characteristics (refer to
Chapter 3).
Environment
Reader performance may be affected by the following:
• Metal surfaces such as desks, filing cabinets, bookshelves, and wastebaskets may enhance or degrade
reader performance.
Mount antennas as far as possible from metal surfaces that are adversely affecting system performance.

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 16 of 110 ©OMRON CORPORATION 2006
• Devices that operate at 900 MHz, such as cordless phones and wireless LANs, can interfere with reader
performance.
These devices may degrade performance of the reader. The reader may also adversely affect performance
of 900 MHz devices.
• Antennas operating in close proximity may interfere with one another, thus degrading reader performance.
• Interference from other antennas may be eliminated or reduced by using either one or both of the following
strategies:
– Affected antennas may be synchronized by a separate user application using a time-multiplexing strategy.
– Antenna power can be reduced by reconfiguring the RF Transmit Power setting for the reader.

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 17 of 110 ©OMRON CORPORATION 2006
1.2 Authorized Antennas
The antenna authorized by the FCC for use with the V750 Reader is described below.
IMPORTANT: No other antennas may be used with the V750 Reader without violating FCC regulations. It is
the responsibility of the user to comply with this requirement.
1.2.1 Antennas
Mono-static Circular Antenna (Options) Mono-static Liner Antenna (Options)
Model: V740-HS01CA Model: V740-HS01LA
Polarization: Circular Polarization: Liner
Gain: 6dBi max. Gain: 6dBi max.
Connector: N-Female Connector: N-Female
Cable length: 0.3m (0.98’) Cable length: 0.3m (0.98’)
1.2.2 Antenna Cables
The only cables authorized by the FCC for use with the V750 Reader are listed below:
Short cable (Options) Long cable
(Options)
Model: V740-A01-3.0M Model: V740-A01-10M
Length: 3.0m (9.8') Length: 10m (32.8')
Insertion Loss: 1.5 dB min. Insertion Loss: 1.5 dB min.
Cable Type: 3D-2V Cable Type: 5D-SFA
Connector: Reverse TNC to Type N Connector: Reverse TNC to Type N
Cable Diameter:5.5mm (0.22’’) Cable Diameter:7.6mm (0.30’’)
1.2.3 Setting the Reader RF Power
During initial installation, the reader must be properly configured to use the correct RF power to comply with
FCC regulations. DO NOT increase the power beyond the recommended power setting as calculated below.
The maximum RF power is determined from antenna gain and antenna cable loss using the formula:
Pmax = 36 dBm - Antenna Gain + Cable Loss
For example, if the antenna has a maximum gain of 6 dBi, and the cable has a minimum loss of 1.5 dB, the
maximum RF power that may be set is (36 - 6 + 1.5) = 31.5 dBm.
The Reader RF Power is set through the Settings Page as described on Page18.
Note that in no case may the power be set higher than 32.0 dBm.
Recommended Power Settings
Antenna Type Short Cable/Long Cable
V740-HS01CA
V740-HS01LA 31.5 dBm

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 18 of 110 ©OMRON CORPORATION 2006
1.3 Reader Installation
The following parts are provided with the reader:
Part Quantity Part Number
V750-Reader/Writer 1 V750-BA50C04-US
Power Supply 1 -
I/O Port Connector 1 -
IMPORTANT: Be sure the user reads the section on Declarations to maintain compliance with FCC regulations.
The Reader and the antennas are to be installed only by professionals at specific locations For human safety
maintain a 23 cm (9.1 in) distance from the antennas.
IMPORTANT: This product is intended to be supplied by a Listed AC Adapter (Switching Power Adapter)
marked LPS and rated 12 Vdc, 4 A
1.3.1 Install the Reader
You can place the reader on a shelf or mount it to a wall. Mounting shelf and wall should be flat to fix the
reader securely.
To mount the reader on a wall:
1. Hold the reader in its four mounting location and mark the position of the mounting screws
2. Drill holes for the screws and install wall anchors if required. Be sure anchors must have enough strength
to fixed the reader against vibration.
3. Hold the reader at the position on the mark and insert the M4x16 screws with spring washers and flat
washers, and tighten until almost flush with the wall. Two persons (one for hold the reader and the other for
tighten the screws) are required for this installation for the safety.
4. Tighten the screws securely.
5. Place the AC adaptor where it is not obstructed and Fix it so that not to move by vibration and tense DC
plug cables. Do not bundle the adaptor cable with other signal or power lines.
IMPORTANT: Be sure to remain within the rated voltage and current of the power cord and outlet.
Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not
achieved due to uneven mechanical loading.
Mountin
g
holes
V750
画像

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 19 of 110 ©OMRON CORPORATION 2006
1.3.2 Install the Antennas
The antennas can be mounted directly to a variety of surfaces. Mounting surfaces should be flat to fix the
antenna securely.
To mount the reader on a wall :
1. Hold the antenna in its mounting location and mark the position of the mounting screws with minimum (4)
points. The antenna has several mounting holes for each side. Choose 4 of those with diagonal position
according to the mounting location.
2. Drill holes for the screws and install wall anchors if required.
3. Insert the M4x20 screws with spring washers and flat washers and tighten until almost flush with the wall.
4. Tighten the screws securely.
Note: For best performance, mount the antenna in the horizontal orientation as pictured above.
Mountin
g
holes

V750 RFID READER/WRITER, ANTENNA 2006-06, REV.C
OPERATION MANUAL 20 of 110 ©OMRON CORPORATION 2006
1.3.3 Connect the Reader
Interface name and function
Note: MAC Address is displayed on the lower part of RJ-45 Ethernet port.
Name Function Connector specifications
Antenna port
ANT1- ANT4 Connects with UHF mono-static type antenna specified by OMRON with attachment cables. Max 4
cables can be connected to.
Reverse TNC
Ethernet port
ETHERNET Connects with the host by a commercially available 10/100Base-T cable. RJ-45 LED Left: Link, Right: Act
RS-232C port
RS-232C Connects with the host by a commercially available cable for DOS/V RS-232C. D-SUB 9pin (male) Inch screw (#4-40)
Input/Output port
IN 1,2,3,4,C
OUT 1,2,3,4,C
4 Inputs: connects with the sensor that works as a
trigger signal for communication start.
4 Output: connects with the light or actuator that is
driven by output signal.
MC1.5/10-SFT-3.81 (produced
by PHOENIX CONTACT
GmbH & Co.KG).
DC Power input
POWER DC12V Connects with the attachment AC adaptor to receive +12V electric power.
* Extension of AC adaptor cable is not allowable.
Exclusive connector
Control port
CTRL PORT For future expansion. Exclusive connector
Mode switch
(Not indicated) Pushing this button for 1 second or more makes the system rebooting with default setting, which will be
useful in case of system error or setting unknown.
-
Ethernet
RS-232C I/O
p
ort
Mode switch
DC power
input
Control port Antenna port
Mono-Static x 4
LED Indicators
