Omron HBP-1320 User manual

Professional Blood Pressure Monitor
HBP-1320
• Instruction Manual
• Mode d’emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
•
Р УКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
• Kullanım Kılavuzu
20C0710
Thank you for purchasing this OMRON Professional Blood Pressure Monitor.
Please completely read this Instruction Manual before using the monitor for the first time.
Read this manual to ensure the safe and accurate use of the monitor.
EN
FR
DE
IT
ES
NL
TR
RU
AR
IM-HBP-1320-E-03-04/2021
2829490-0B
Issue Date/Date de publication/Ausgabedatum/
Data di pubblicazione/Fecha de publicación/ : 2021-03-26
Uitgiftedatum/ /Yayın Tarihi/ 
HBP-1320-E.fm Page -1 Thursday, April 8, 2021 12:07 PM

Contents
Introduction
Intended Use .................................................................................................................1
Exemptions....................................................................................................................1
Notes on Safety.............................................................................................................2
Warnings and Cautions .................................................................................................3
Using the Unit

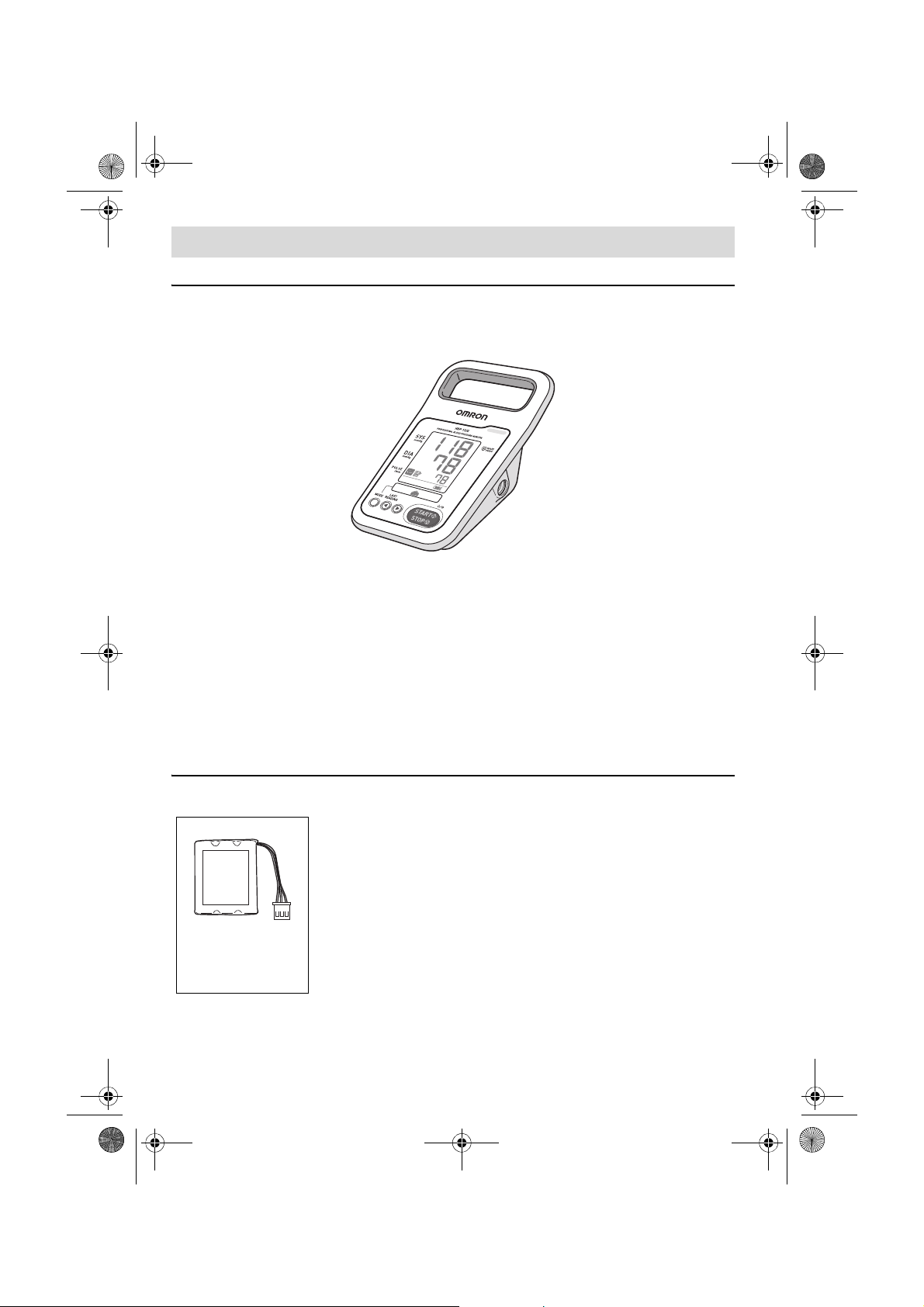

Components of the Product.........................................................................................10
Options ........................................................................................................................10

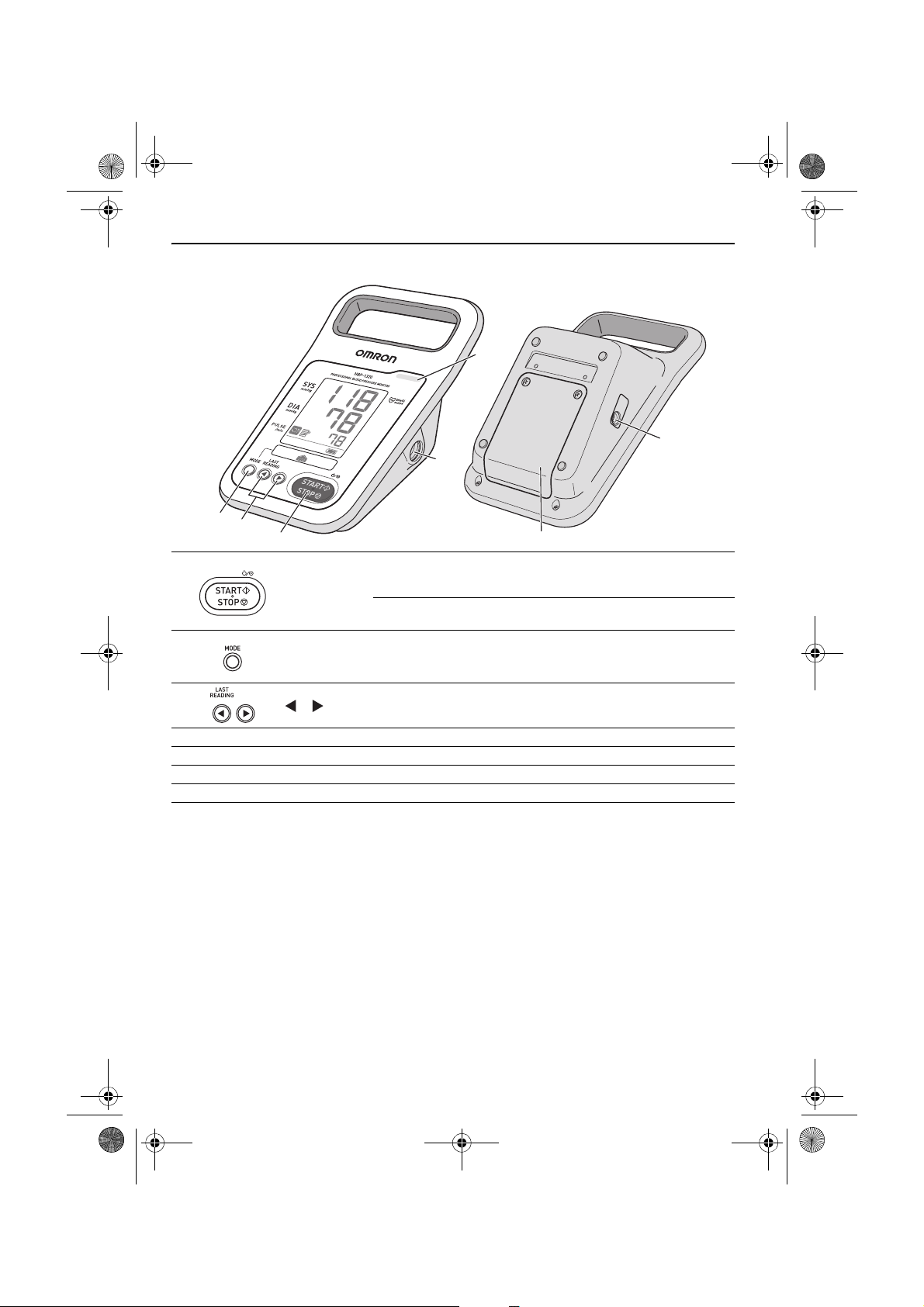

Features of the Product...............................................................................................11

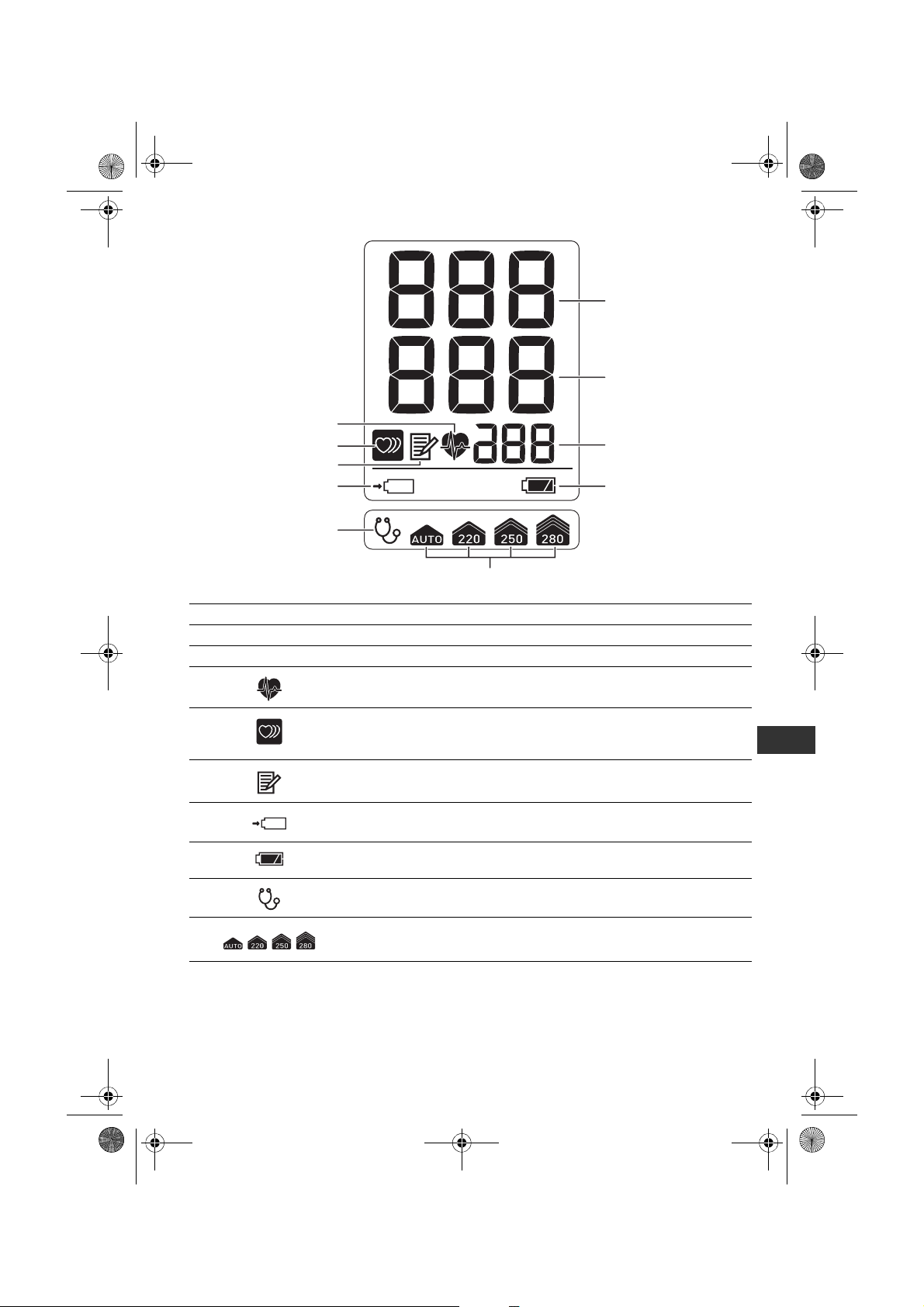

Features / Functions of Unit ........................................................................................12

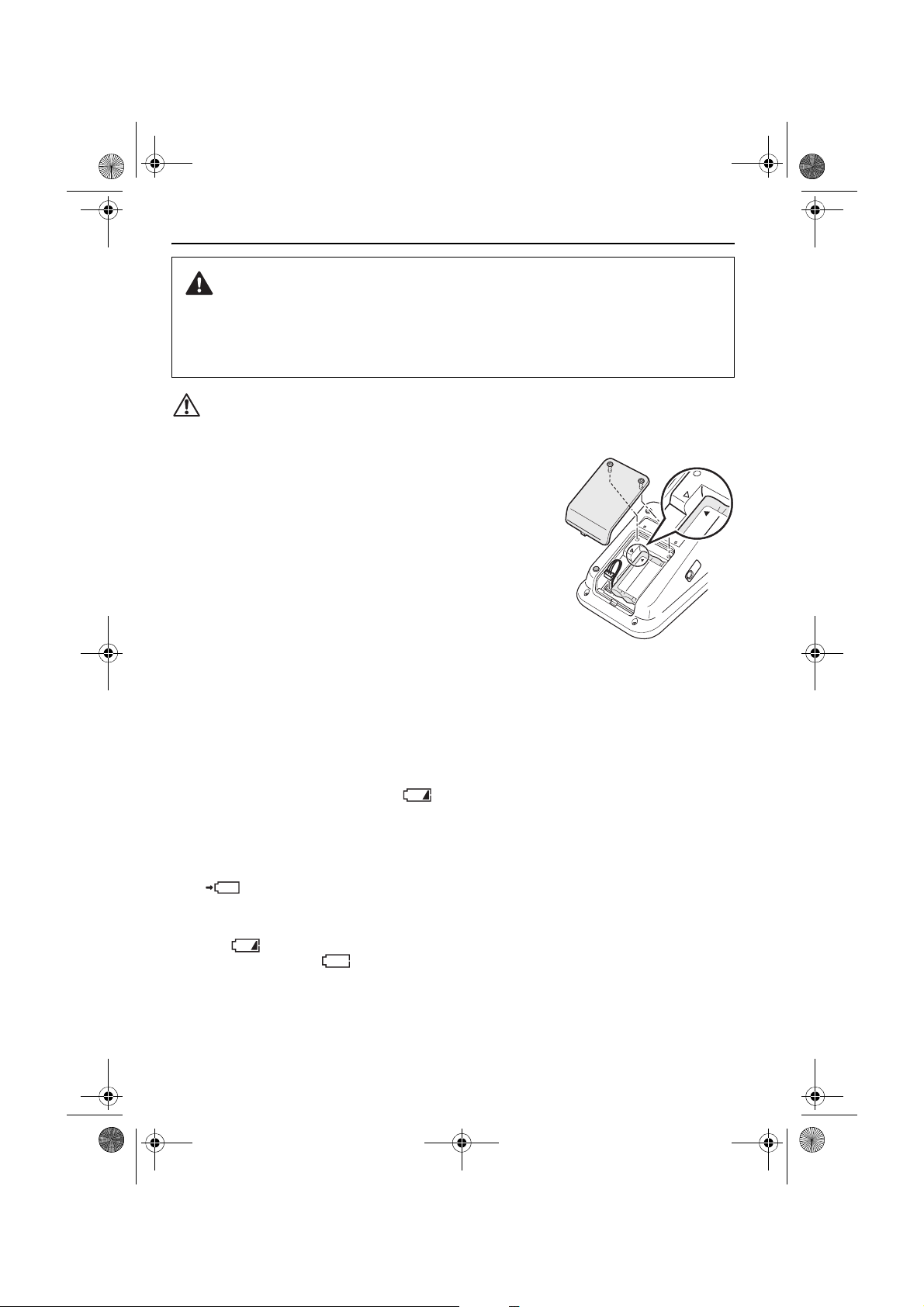

Installing the Battery Pack...........................................................................................14

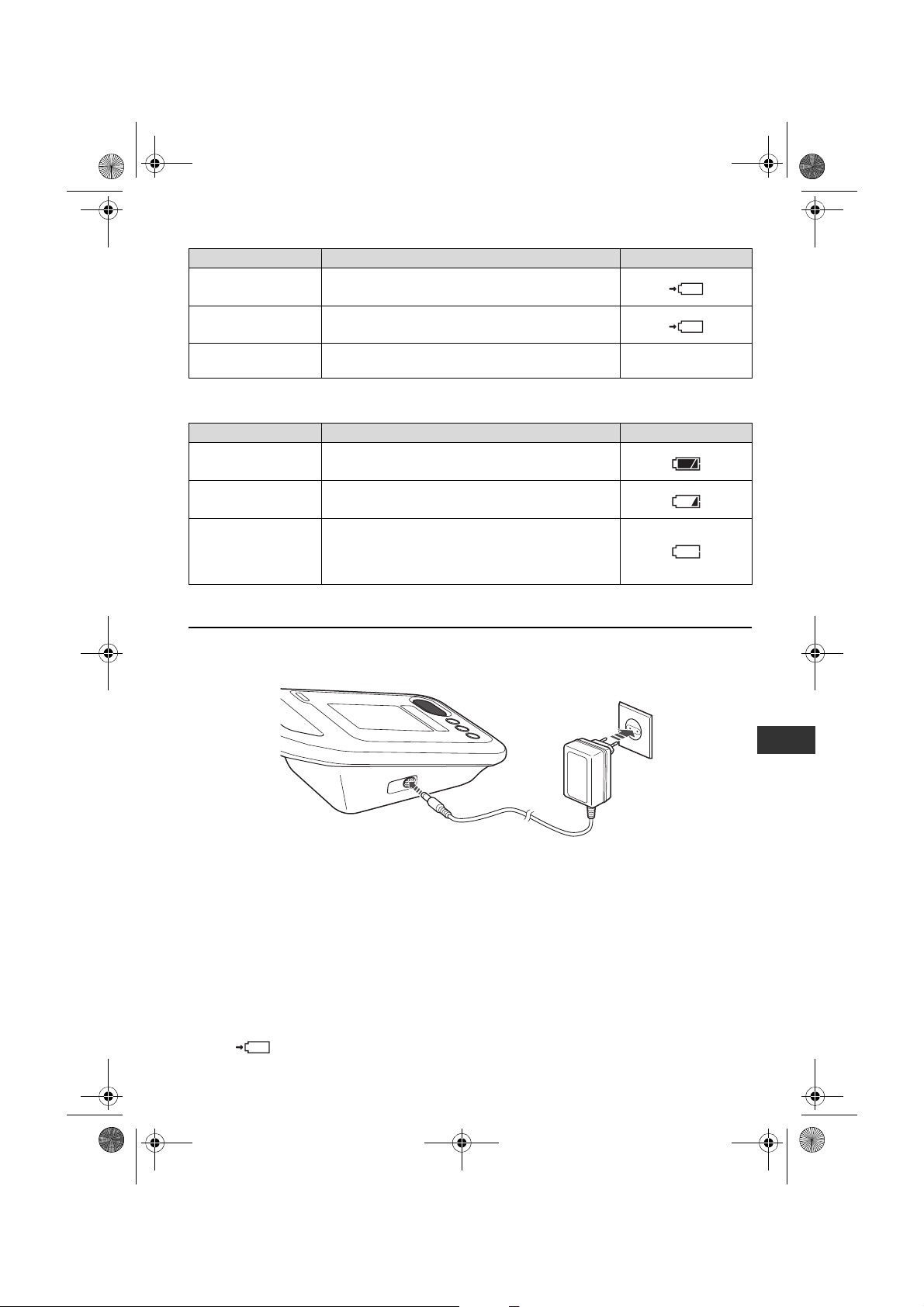

Connecting the AC Adapter.........................................................................................15
System Settings

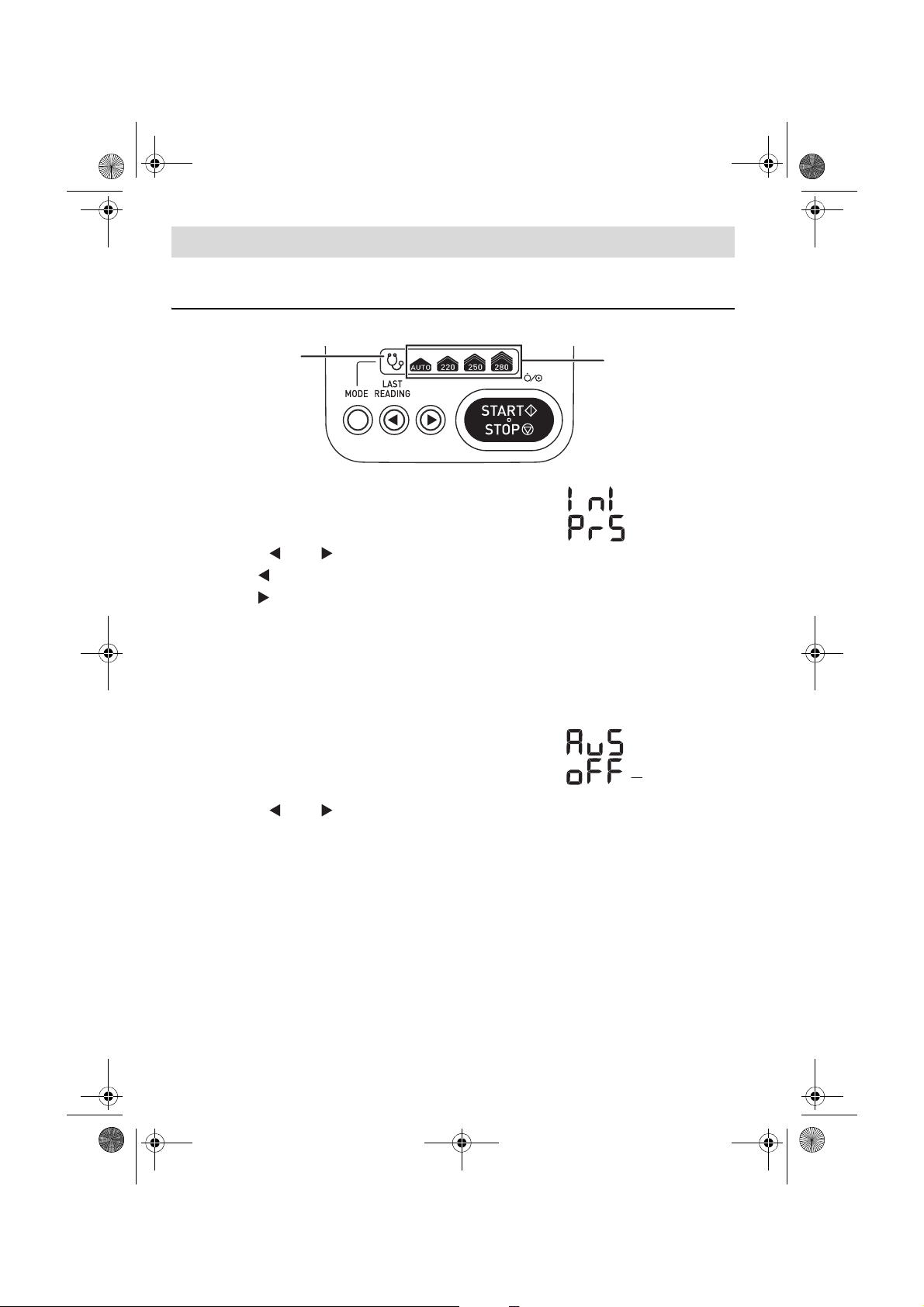

Menu Mode .................................................................................................................16

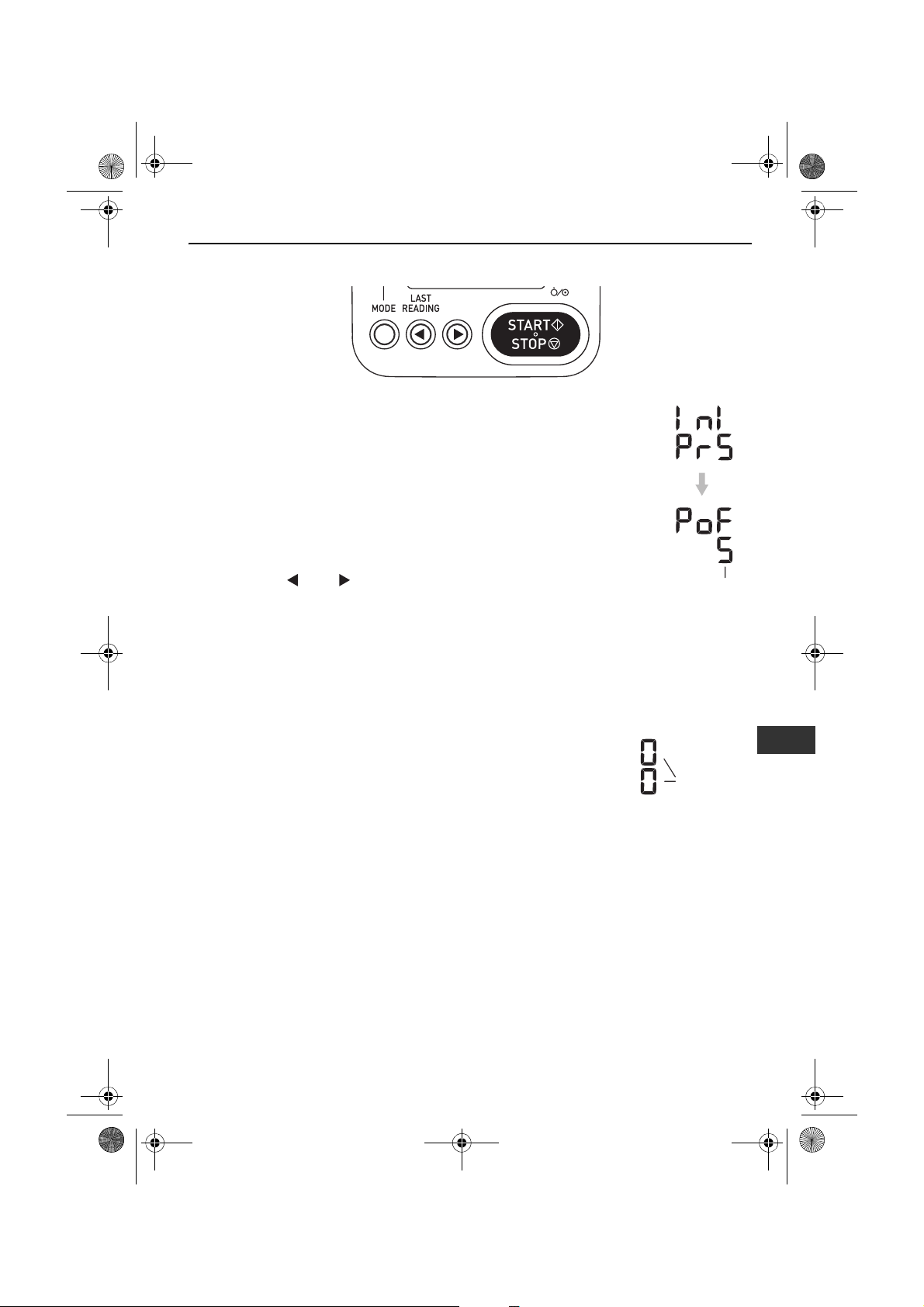

Utility Mode..................................................................................................................17
Non-Invasive Blood Pressure (NIBP) Measurement
Non-Invasive Pressure Measurement Principles.........................................................18
Cuff Selection and Connection....................................................................................19
Applying the Cuff to the Patient...................................................................................20
Taking the Measurement in “Manual Mode”................................................................21
Taking the Measurement in “Auscultation Mode”........................................................22
Stopping the Measurement .........................................................................................23
Turning the Power OFF...............................................................................................23
Displaying Last Reading..............................................................................................23
Maintenance
Maintenance Inspection and Safety Management ......................................................24
Cleaning of the Device ................................................................................................24
Cuff Care .....................................................................................................................24
Check before Use........................................................................................................25
Troubleshooting...........................................................................................................26
List of Error Codes ......................................................................................................28
Disposal.......................................................................................................................29
Specifications
Factory Default Settings ..............................................................................................30
Technical Specifications: HBP-1320 ...........................................................................30
Manufacturer’s Declaration..........................................................................................34
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 0 Thursday, April 1, 2021 8:24 AM

1
EN
Introduction
Intended Use
Medical Purpose
The device is a digital monitor intended for use in measuring blood pressure and pulse rate in adult and
pediatric patient population with arm circumference ranging from 12 cm to 50 cm (from 5 inches to
20 inches).
Intended User
This device should be used by a medical professional.
Patient Population
This device is intended for use on adults and children of age 3 years and older.
Environment
The instrument is designed for use in physicians’ offices, hospitals, clinics and other medical facilities.
Service life
5 years (only when appropriate inspection is performed)
Measurement Parameter
QNon-Invasive Blood Pressure
QPulse rate
Precautions for Use
Warnings and cautions described in the instruction manual should be observed at all times.
Exemptions
OMRON will not bear any responsibilities on the following matters.
1. When a problem or damage occurs caused by the maintenance and/or repair
conducted by a person other than OMRON or the dealer specified by OMRON
2. The problem or damage of OMRON product caused by the product of other
manufacturer not delivered by OMRON
3. The problem and damage caused by the maintenance and/or repair using the repair
parts not specified by OMRON
4. The problem and damage caused by the results not observing the Notes on Safety or
the operational method mentioned in this Instruction Manual
5. Under the circumstances not within the operating conditions of this unit including the
power source or the setting environment mentioned in this Instruction Manual
6. The problem and damage caused by the result(s) of remodeling or improper repair of
this product
7. The problem and damage caused by act of god such as fire, earthquake, flood, or lightning
1. The contents of this Instruction Manual may be changed without prior notice.
2. We have thoroughly reviewed the contents of this Instruction Manual.
However, if an inadequate description or error is found, please let us know.
3. It is prohibited to copy a part of or the entire Instruction Manual without getting OMRON’s
permission. Unless this Instruction Manual is used by an individual (company), it cannot
be used without getting OMRON’s permission from the standpoint of the Copyright Law.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 1 Thursday, April 1, 2021 8:24 AM

2
Notes on Safety
The warning signs and symbol examples indicated below are intended to ensure safe use of the
product and prevent damage and injury to you and others. The signs and symbols are explained below.
Safety Symbols used in this Instruction Manual
Warning Indicates the matters in which death or severe bodily damage may arise as a result
of incorrect handling.
Caution Indicates the matters in which bodily harm or material damage may arise as a result
of incorrect handling.
General Information
Note: Indicates general information to keep in mind when using the unit and other useful information.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 2 Thursday, April 1, 2021 8:24 AM

3
EN
Warnings and Cautions
Usage warnings and cautions
Storage/Setup
Warning
Caution
Install the unit in a location close to a power outlet where the AC adapter can be easily disconnected. If the
power cannot be quickly disconnected when an abnormal condition occurs, an accident or fire may result.
Do not use the cuff or AC adapter to lift the unit, it can also cause the unit to malfunction.
If the unit has broken down, contact your OMRON retail dealer or distributor.
Do not use in combination with a hyperbaric oxygen therapy device, or in an environment where
combustible gas may be generated.
Do not use in combination with magnetic resonance imaging (MRI) equipment. If MRI is to be
performed, remove cuff connected to the unit from the patient.
Do not use with a defibrillator.
Do not install the unit in the following locations:
- Locations subject to vibration such as ambulances and emergency helicopters.
- A location where there is gas or flame.
- A location where there is water or steam.
- A location where chemicals are stored.
Do not use at extremely high temperature, high humidity, or high altitude. Use only within the required
ambient conditions.
Do not subject the unit to intense shock.
Do not place heavy objects on the AC adapter cable, or allow the unit to sit on the cord.
Clinical testing has not been conducted on newborn infants and pregnant women. Do not use on
newborn infants and pregnant women.
Do not plug in or unplug the AC adapter with wet hands.
During measurement, make sure that no mobile phone or any other electrical devices that emit
electromagnetic fields is within 30 cm of this monitor. This may result in incorrect operation of the
monitor and/or cause an inaccurate reading.
Do not install the unit in the following locations:
- Locations with dust, salt, or sulfur.
- Locations directly exposed to sunlight for extended periods of time (in particular, do not leave in
direct sunlight or near a source of ultraviolet light for extended periods, as ultraviolet light will cause
deterioration of the LCD).
- Locations subject to vibration or shock.
- Near heaters.
Do not use in a location with noise-emitting equipment such as a room with MRI, CT, X-ray, or HF
surgical equipment or an operating room. Noise from the equipment may interfere with the operation
of the unit.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 3 Thursday, April 1, 2021 8:24 AM

4
Before use / during use
Warning
The unit complies with the EMC standard (EN60601-1-2). As such, it can be used simultaneously
with multiple medical instruments. However, if instruments that generate noise such as an electric
scalpel or a microwave therapy device are near the unit, check the operation of the unit during and
after use of these instruments.
If an error occurs or a measurement result is questionable, check the vital signs of the patient by
auscultation or palpation. Avoid relying solely on the measurement results of the unit when judging
the patient’s condition.
Only trained healthcare providers should use this device. Do not allow patients to operate this
device.
Properly connect the connectors and AC adapter cable.
Do not place objects or liquids on top of this unit.
Check the following before using the unit:
- Make sure the AC adapter cable is not damaged (wires are not exposed or broken), and the
connections are firm.
For the AC adapter connected to the unit, supplies, and optional devices, use only the standard
accessories or OMRON-specified products. This may damage and/or may be hazardous to the
device.
Do not use in a location with moisture, or a location where water may splash on the unit.
This unit is intended for use in physicians’ office, hospitals, clinics and other medical facilities.
Do not use the unit if it emits smoke, an abnormal odor, or abnormal noise.
Do not bring cellular telephones or transceivers into the room where the unit is installed or being
used.
Do not connect multiple monitors to the same patient.
Do not connect the unit to a power outlet that is controlled by a wall switch.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 4 Thursday, April 1, 2021 8:24 AM

5
EN
Caution
Before using the unit, verify that none of the following apply to the patient:
- Poor peripheral circulation, noticeably low blood pressure, or low body temperature (there will be
low blood flow to the measurement position)
- The patient uses an artificial heart and lung (there will be no pulse)
- The patient has a mastectomy
- The patient has an aneurysm
- The patient has frequent arrhythmia
- Body motions such as convulsions, arterial pulsations, or trembling (cardiac massage in progress,
minute continuous vibrations, rheumatism, etc.)
Before use, visually inspect the unit to make sure there are no deformations due to falling, and that
there is no dirt or moisture on the unit.
When the unit has not been used for an extended period of time, always verify that it operates
normally and safely before use.
Do not use in a location where the unit may easily fall. In the event that the unit falls, verify that it
operates normally and safely.
Do not wrap the cuff on an arm with an SpO2sensor or other monitoring equipment attached. The
pulse may disappear when the cuff pressurizes, causing a temporary loss of monitoring function.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 5 Thursday, April 1, 2021 8:24 AM

6
Cleaning
Warning
Caution
Maintenance and inspection
Warning
When cleaning the unit, turn off the power and disconnect the AC adapter from the unit.
After cleaning the unit, make sure it is completely dry before connecting to a power outlet.
Do not spray, pour, or spill liquids into or onto the unit, accessories, connectors, buttons, or openings
in the housing.
Do not use thinner, benzene, or other solvents to clean the unit.
Do not sterilize by autoclave or gas sterilization (EOG, formaldehyde gas, high-concentration ozone,
etc.).
If using an antiseptic solution for cleaning, follow the instructions of the manufacturer. This may
damage on the surface of the device.
Clean the unit regularly.
To use the unity safely and correctly, always inspect the unit when starting work.
Unauthorized modification is prohibited by law. Do not attempt to disassemble or modify the unit.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 6 Thursday, April 1, 2021 8:24 AM

7
EN
Warnings and cautions for safe measurement
Rechargeable battery
Warning
Caution
If battery fluid comes in contact with the eye, immediately flush with copious amounts of water. Do not
rub. Seek medical attention immediately.
Do not use the battery pack in any other device besides this unit. Do not throw into flame,
disassemble, or heat.
Always disconnect the AC adapter from the unit before removing or installing a battery.
If the unit will not be used for a month or longer, remove the battery from the unit and store. Charge
the battery once every 6 months. (Storage conditions for the battery are a temperature of -20 to 30°C
(-4 to 86°F) and a humidity of 65 ±20%.)
Before use, always charge the battery.
Do not attempt to disassemble or modify the battery.
Do not apply pressure to and deform the battery. Do not throw, pound, drop, bend, or hit the battery.
The battery has positive/negative polarity. If the battery does not connect well to the unit, do not
forcibly connect it.
Do not connect the positive and negative terminals of the battery with a wire or other metal object. Do
not carry or store a battery with metal necklaces, hairpins, or other metal objects.
Use only the specified type of battery.
Do not touch the positive and negative terminals of the battery pack with a wire or other metal object.
If battery fluid comes into contact with the skin or clothes, immediately rinse with water.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 7 Thursday, April 1, 2021 8:24 AM

8
Non-Invasive Blood Pressure (NIBP) measurement
Warning
Caution
If a cuff is used on some patients with an infection, treat the cuff as medical waste, or disinfect before
reuse. Otherwise, an infection may result.
If frequently performing NIBP measurement using a cuff over an extended period of time, periodically
check the patient’s circulation. In addition, wrap the cuff as indicated in the cautionary points in this
manual.
Do not connect the NIBP cuff or cuff joint to a luer lock adapter.
Do not bend cuff tube during inflation and deflation, particularly after a change of body position.
Do not wrap the cuff on the following parts:
- An upper arm on which intravenous drip or a blood transfusion is being performed.
- An upper arm on which an SpO2sensor, IBP catheter, or other instrument is attached.
- An upper arm with a shunt for hemodialysis
- An injured upper arm
If measuring blood pressure with the cuff wrapped on the arm on the side of the body where a
mastectomy was performed, check the patient’s condition.
NIBP measurement should be performed on the upper arm.
During NIBP measurement, stop excessive body movement by the patient and minimize trembling.
If a doctor has indicated that the patient has hemorrhagic diathesis or hypercoagulability, check the
condition of the arm after measurement.
Use the appropriate cuff size to ensure correct measurements. If too large a cuff is used, the
measured blood pressure value tends to be lower than the actual blood pressure. If too small a cuff is
used, the measured blood pressure value tends to be higher.
Before and during measurement, verify that none of the following apply to the patient:
- The part where the cuff is wrapped is at a different height than the heart.
(A difference of 10 cm (4 inches) in height may cause a variation in the blood pressure value of up
to 7 or 8 mmHg.)
- Body movement or conversing during measurement.
- Cuff wrapped over thick clothing.
- Pressure on the arm due to a rolled up sleeve.
In the case of a cuff for adults, the cuff should be wrapped to a tightness that allows two fingers to be
inserted in between the cuff and the arm.
The accuracy of a flashing measurement value that is out of the measurement range cannot be
guaranteed. Always check the patient’s condition before deciding what steps to take.
Do not use the cuff if it is damaged or has holes.
Only OMRON GS CUFF2 can be used with this device. The use of any other cuff may result in
incorrect measurement.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 8 Thursday, April 1, 2021 8:24 AM

9
EN
Note:
Setup
• Read and understand the manual for each optional accessory. This manual does not contain
cautionary information for optional accessories.
• Exercise caution with the cables and arrange so that the patient does not become entangled or
bound.
Before use / during use
• Check the following after turning on the power:
- No smoke, abnormal odor, or abnormal noise is emitted.
- Press each button and verify that it operates.
- For functions that cause icons to light or flash, verify that the icons light or flash (page 13).
- Measurement can be performed normally, and measurement error is within the tolerance value.
• If the screen is not displayed normally, do not use the unit.
• When recycling or disposing of parts (including batteries) of the unit, follow local government rules
and regulations.
Cleaning
• For cleaning, see page 24.
Rechargeable battery
• To prevent accidents, keep batteries out of reach of infants and small children.
• If you sense that something is wrong with a battery, immediately move it to a safe location and contact
the administrator responsible for the unit or your OMRON retail dealer or distributor.
• If the battery voltage is low, operation by battery may not be possible.
Non-Invasive Blood Pressure (NIBP) measurement
• If the patient has acute inflammation, a pyogenic ailment, or an external wound at the location where
the cuff is to be wrapped, follow the instructions of the doctor.
• Non-Invasive Blood Pressure measurement (NIBP) is performed by compressing the upper arm.
Some people may experience intense pain, or transient spotting caused by subcutaneous
hemorrhaging (bruising) may appear. The spotting will disappear with time; however, it may be
appropriate to inform patients for whom this may be a concern that spotting sometimes occurs, and if
necessary, refrain from measurement.
• Clinical evaluation of the unit was carried out in a resting position (feet on floor without crossing legs,
back supported by backrest, arm supported such that cuff is attached at same height as heart) in
accordance with ISO81060-2:2013. Measurement in a position other than the resting position may
result in differences in measurement results.
• As the patient's posture or physiological condition influences blood pressure, it easily fluctuates.
Recommend the followings to take a more accurate measurement:
- Make the patient relaxed.
- Do not talk to the patient.
- Let the patient rest for at least 5 minutes before the measurement.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 9 Thursday, April 1, 2021 8:24 AM

10
Using the Unit
Components of the Product
Before using the unit, make sure that no accessories are missing and that the unit and accessories are
not damaged. If an accessory is missing or there is damage, please contact your OMRON retail dealer
or distributor.
Main unit
Standard Medical Accessories
•GS CUFF2 L [HXA-GCFL-PBE]
(32 - 42 cm)
•GS CUFF2 M [HXA-GCFM-PBE]
(22 - 32 cm)
• AC adapter [AC ADAPTER-E1600]*
*[AC ADAPTER-UK1600]
Others
• Battery pack [HXA-BAT-2000]
• Instruction Manual (this paper)
Options
Optional Accessory
Battery pack
HXA-BAT-2000
(9065797-0)
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 10 Thursday, April 1, 2021 8:24 AM

11
EN
Optional Medical Accessories
Caution
Only OMRON GS CUFF2 can be used with this device. The use of any other cuff may result in incorrect
measurement.
Features of the Product
The OMRON HBP-1320 is an affordable professional blood pressure unit that is clinically proven
accurate and provides fast, reliable results and is easy to use.
Key features, benefits, look
• 10 cuffs available in two sets of 5 sizes - (SS: 12 to 18 cm, S: 17 to 22 cm, M: 22 to 32 cm, L: 32 to
42 cm, XL: 42 to 50 cm) with shorter (1 m) or longer (4.5 m) tube attached. (12 to 50 cm arm
circumference range)
• Designed to be used on a table
• Motion stop function (When body movement is detected, the device stops deflation for 5 seconds.)
• Irregular pulse Indicator - Helps identify changes in heart rate, rhythm, or pulse which may be caused
by heart disease or other serious health issues.
• Inflation Pressure Setting - 4 options: Auto, 220 mmHg, 250 mmHg, 280 mmHg
• Last reading display function
•Auto-Off
• Custom Rechargeable battery
• Large, easy-to-read backlight display
GS CUFF2 XL (1 m)
HXA-GCFXL-PBE
(9546010-5)
GS CUFF2 L (1 m)
HXA-GCFL-PBE
(9546009-1)
GS CUFF2 M (1 m)
HXA-GCFM-PBE
(9546008-3)
GS CUFF2 S (1 m)
HXA-GCFS-PBE
(9546007-5)
GS CUFF2 SS (1 m)
HXA-GCFSS-PBE
(9546021-0)
GS CUFF2 XL (4.5 m)
HXA-GCFXL-PCE
(9546015-6)
GS CUFF2 L (4.5 m)
HXA-GCFL-PCE
(9546014-8)
GS CUFF2 M (4.5 m)
HXA-GCFM-PCE
(9546013-0)
GS CUFF2 S (4.5 m)
HXA-GCFS-PCE
(9546012-1)
GS CUFF2 SS (4.5 m)
HXA-GCFSS-PCE
(9546011-3)
AC adapter*
AC ADAPTER-E1600
60220H1040SW-E
(9063658-2)
* UK 3-pin plug AC
Adapter
AC ADAPTER-UK1600
60220H1040SW-UK
(9994843-9)
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 11 Thursday, April 1, 2021 8:24 AM

12
Features / Functions of Unit
Front and back of unit
Meaning of the Symbols
Please refer to page 32 what the symbols on the units mean.
1
[START/STOP]
button
(Power ON/OFF)
Power ON / Measure blood pressure
Press when the power is off to turn on the power and start blood
pressure measurement. During inflation or measurement, press to stop.
Power OFF
Hold down at least 3 seconds to turn off the power.
2 [MODE] button
Press to enter “Menu Mode” and configure various settings.
If held down at least 3 seconds when a measurement result is displayed,
the measured data is cleared without being stored in memory.
3[][]button
Displays the system settings (page 16) and the last reading (page 23).
When using “Auscultation Mode”, inflates and deflates the cuff.
4 Alarm lamp Lights up or flashes when an alarm occurs (page 28).
5 NIBP connector Connects the cuff tube.
6 DC jack Connects the AC adapter.
7 Battery cover Open to install or replace the battery.
7
1
5
23
4
6
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 12 Thursday, April 1, 2021 8:24 AM

13
EN
LCD Display
* Only when the battery is installed.
1 SYS Displays systolic blood pressure.
2 DIA Displays diastolic blood pressure.
3 Pulse Displays the pulse rate.
4Pulse
synchronization icon
Flashes in synchronization with the pulse during
measurement.
5Irregular pulse wave
icon
Lights in the measurement result display and memory
display if the pulse wave interval was irregular or there
was body movement during measurement (page 23).
6 Memory icon Lights while the previous data are being displayed
(page 23).
7 Charge icon* Flashes during charging. Solid colored light displays
when charging is finished.
8Battery charge level
icon* Displays how much charge the battery has (page 14).
9 Auscultation icon Lights when “Auscultation Mode” is ON (page 16).
10 Inflation setting icon The set initial Inflation pressure value lights (page 16).
3
2
1
8
10
9
7
5
4
6
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 13 Thursday, April 1, 2021 8:24 AM

14
Installing the Battery Pack
Caution
Do not short the positive and negative terminals of the battery pack with a wire or other metal object. If
battery fluid comes into contact with the skin or clothes, immediately rinse with water.
1. Make sure the AC adapter has been disconnected.
2. Remove the two screws from the top of the rear
unit cover, and remove the battery cover.
3. Connect the battery pack to the connector on the
monitor, and insert the battery pack into the
compartment so that the triangle mark on the
battery pack is aligned with the triangle mark on
the monitor.
4. Replace the battery cover and secure with screws.
Take care not to pinch the wires when replacing the cover.
5. Connect the AC adapter to the unit and charge the battery pack.
When using the battery pack for the first time, be sure to fully charge (about 4 hours) before using.
Battery life
• About 300 measurements are possible with one charge.
• A general guideline for replacement of the battery pack is about one year, however, the usage time
per charge may grow shorter depending on usage conditions. If you find that the usage time after
each charge has grown shorter and the icon frequently appears, replace the battery pack.
Charging time
• Charging automatically starts after the AC adapter is connected.
When a new battery pack or a battery pack that has not been used for a long time is used, some time
may elapse before charging starts.
• The icon flashes during charging.
• Charging is completed in about 4 hours.
Low battery
When the icon starts flashing, promptly charge the battery pack.
When the icon changes to , the battery is too low for blood pressure measurement. Charge the
battery.
Auto Power Off
• When the unit is powered by the battery pack, the power automatically turns off after the set time
elapses if you forget to turn off the power.
• When the unit is used with the AC adapter connected, the “Auto Power Off” setting does not operate.
Warning
• If battery fluid comes in contact with the eye, immediately flush with copious amounts of water.
Do not rub. Seek medical attention immediately.
• Do not use the battery pack in any other device besides this unit. Do not throw into flame,
disassemble, or heat.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 14 Thursday, April 1, 2021 8:24 AM

15
EN
Battery charging
Battery level
Connecting the AC Adapter
AC power
Verify that the power outlet supplies the specified voltage and frequency (100 - 240 V AC, 50/60 Hz).
Connect the AC adapter to the DC jack on the unit and the power outlet.
To disconnect the power outlet, unplug the AC adapter from the power
outlet first and then remove the AC adapter plug from the unit.
Note:
When the battery pack is installed
If there is no problem with the following.
- AC adapter
- DC jack
- Power outlet
-Battery
And the icon does not flash, contact your OMRON retail dealer or distributor.
State LCD contents and operations Icon
Charging The icon flashes.
Fully charged
(Charging completed) The icon is lit.
Problem with the
battery Error message is displayed. -
Battery level LCD contents and operations Icon
Fully charged The icon is lit.
The unit can be used.
Battery level is 20%. The icon flashes (E40 error not displayed).
The unit can be used.
Battery level is 5%.
The icon flashes (E40 error displayed).
The unit cannot be used.
If the unit is being continuously used, the power will be
automatically turned off in 30 seconds.
-
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 15 Thursday, April 1, 2021 8:24 AM

16
System Settings
The system settings are divided into two modes, “Menu Mode” and “Utility Mode”.
Menu Mode
“Menu Mode” allows you to configure the “Initial Inflation Pressure Value” and “Auscultation Mode” settings.
1. Press the [MODE] button.
The “Initial Inflation Pressure Value” setting screen appears.
2. Press the [ ] or [ ] button to change the setting.
• Press the [ ] button to change the setting in the order “280”, “250”, “220”, “AUTO”, “280”...
• Press the [ ] button to change the setting in the order “220”, “250”, “280”, “AUTO”, “220”...
When the “Initial Inflation Pressure Value” is set, inflation takes place at a fixed speed to the set
value and thus is quicker.
“AUTO” estimates the systolic blood pressure during inflation and automatically inflates the cuff to a
suitable value.
When using “220”, “250”, or “280” mmHg, select the value that is 30 to 40 mmHg higher than the
estimated systolic blood pressure.
3. When you have completed the “Initial Inflation Pressure Value” setting,
press the [MODE] button.
The “Auscultation Mode” settings screen appears.
4. Press the [ ] or [ ] button to set to “ON” or “OFF”.
When set to “ON”, SYS and DIA can be recorded using auscultation measurement.
For information on auscultation measurement, see page 22.
5. When you have completed the “Auscultation Mode” setting, press the
[MODE] button.
“0” appears.
To start blood pressure measurement, press the [START/STOP] button.
Note:
• The body movement detection function is disabled while “Auscultation Mode” is in use.
• If the power is turned off, the settings revert to the factory settings.
“Initial Inflation Pressure Value” changes to “AUTO”, and “Auscultation Mode” changes to “OFF”.
Initial Inflation
Pressure Value
Auscultation Mode
“ON” or “OFF”
appears.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 16 Thursday, April 1, 2021 8:24 AM

17
EN
Utility Mode
“Utility Mode” allows you to configure the “Auto Power Off” and “Pressure Accuracy Confirmation” setting.
1. Confirm that the device is switched off.
If the power is on, hold down the [START/STOP] button for at least 3 seconds to
turn off the power.
2. Hold down the [MODE] button until the “Auto Power Off”
setting screen appears.
The “Initial Inflation Pressure Value” setting screen appears, and changes to the
“Auto Power Off” setting screen appears.
3. Press the [ ] or [ ] button to change the auto power off
setting.
The “5 min.” or “10 min.” setting is entered.
When the unit is powered by the battery pack and is not used for the set time (“5 min.” or “10 min.”),
the power automatically turns off to save battery power.
If a mid-priority alarm other than a low battery error (E40 error) has occurred, the power does not
turn off automatically.
4.When you have completed the “Auto Power Off” setting, press the [MODE]
button.
The “Pressure Accuracy Confirmation” screen appears. “0” appears.
5. Check the Pressure Accuracy.
Add pressure externally as explained on page 24.
Compare with the displayed value and verify that there is no problem.
6. When you have completed “Pressure Accuracy Confirmation”, press the
[START/STOP] button.
The power turns off.
“5” or “10”
appears.
“0” appears.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 17 Thursday, April 1, 2021 8:24 AM

18
Non-Invasive Blood Pressure (NIBP) Measurement
Non-Invasive Pressure Measurement Principles
Oscillometric method
The beat in the pulsation generated by the contraction of the heart is captured as the pressure inside
the cuff to measure the blood pressure. If the cuff wrapped around the upper arm is pressurized
sufficiently, the blood flow stops, but the beat of the pulsation is present and the pressure inside the cuff
receives this and oscillates. Next, as the pressure inside the cuff gradually decreases, the oscillation of
the pressure within the cuff gradually increases and reaches a peak. As the pressure within the cuff
decreases further, the oscillation decreases from its peak.
The pressure within the cuff and the relationship with the increase and decrease of the oscillation within
the cuff in this series of processes are stored into memory, calculations are carried out, and the blood
pressure value is determined.
The oscillometric method does not determine the blood pressure value instantly like a microphone type
automatic blood pressure gauge with the auscultation method, but rather determines it from the series
of change curves as explained above. Therefore, it is not easily affected by external noise, an electric
scalpel or other electro surgical instruments.
2829490-0B_IM-HBP-1320-E-03-04-2020.book Page 18 Thursday, April 1, 2021 8:24 AM
