INTRODUCTION
3
SAVE THESE INSTRUCTIONS
Thank you for purchasing the Omron®HEM-629 IntelliSense®
Automatic Wrist Blood Pressure Monitor.
Fill-in for future reference
DATE PURCHASED: ________________
SERIAL NUMBER: __________________
Staple your purchase receipt here.
The monitor is compact and easy-to-use at home, at work, and
during travel. Perfect for people who frequently monitor their
own blood pressure.
Omron digital blood pressure monitors use the oscillometric method
of blood pressure measurement. This means the monitor detects your
blood’s movement through your artery and converts the movements
into a digital reading. An oscillometric monitor does not need a
stethoscope so the monitor is simple to use.
Clinical research has proven a direct relationship between blood
pressure in the wrist and blood pressure in the arm. Changes in
wrist blood pressure reflect changes in arm blood pressure
because the arteries in the wrist and the arm are close to each
other. Frequently measuring the blood pressure in your wrist
will provide your physician with an accurate indication of
changes in your blood pressure.
The Omron®HEM-629 IntelliSense®Automatic Wrist Blood Pressure
Monitor is intended for home use.
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 3

IMPORTANT SAFETY NOTES
4
To assure the correct use of the product basic safety measures
should always be followed including the precautions listed below:
þConsult your physician before measuring blood pressure at
the wrist if you have any of the following conditions:
severe hypertension, severe diabetes, severe arteriosclerosis,
severe kidney disease, or vascular disease that may
compromise circulation.
þRead all information in the instruction book and any other
literature included in the box before using the unit.
þContact your physician for specific information about your blood
pressure. Follow the instructions of your healthcare provider.
þOperate the unit only as intended. Do not use for
any other purpose.
þThe unit is intended for use in measuring blood pressure and
pulse rate in adult patient population. Do not use on infants or
persons who cannot express their intentions.
þDo not use a cellular phone near the unit. It may result in
operational failure.
þChanges or modifications not approved by Omron Healthcare
will void the user warranty. Do not disassemble or attempt to
repair the unit or components.
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 4

BEFORE TAKING A MEASUREMENT
5
1. Avoid eating, drinking alcohol, smoking, exercising and bathing
for 30 minutes before taking a measurement. Rest for at least 15
minutes before taking the measurement.
2. Stress raises blood pressure. Avoid taking measurements during
stressful times.
3. The cuff can be applied to your left or right wrist.
4. Measurements should be taken in a quiet place.
5. Position the unit at heart level throughout the measurement.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your
physician. A single measurement does not provide an accurate
indication of your true blood pressure. You need to take and
record several readings over a period of time. Try to measure
your blood pressure at the same time each day for consistency.
8. Wait 2-3 minutes between measurements. The wait time allows
the arteries to return to the condition prior to taking the blood
pressure measurement. You may need to increase the wait time
depending on your individual physiological characteristics.
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 5

6

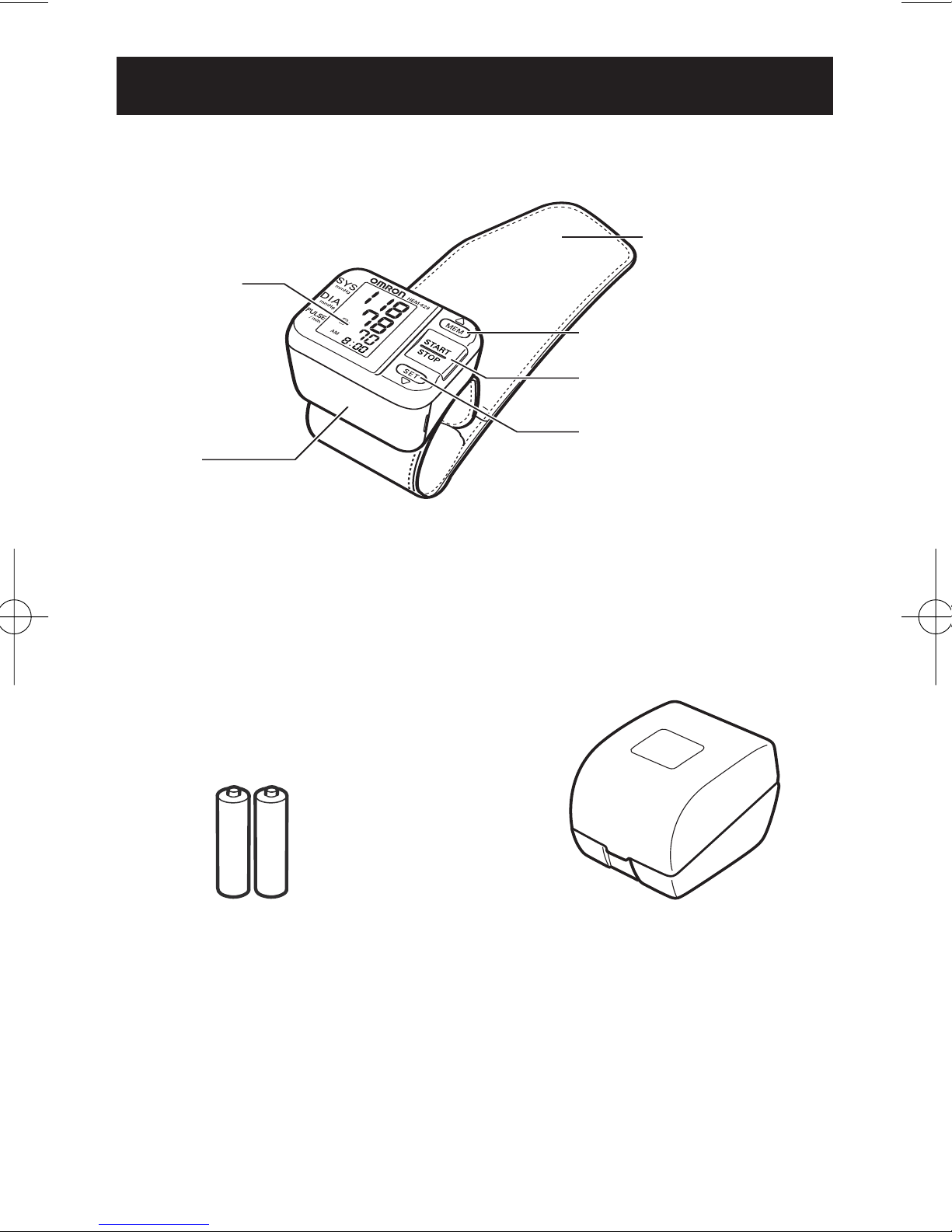

KNOW YOUR UNIT
Main Unit
Components
Two “AAA” Alkaline Batteries Storage Case
Display
MEM Button
START/STOP Button
SET Button
Wrist Cuff
Battery
Compartment
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 6

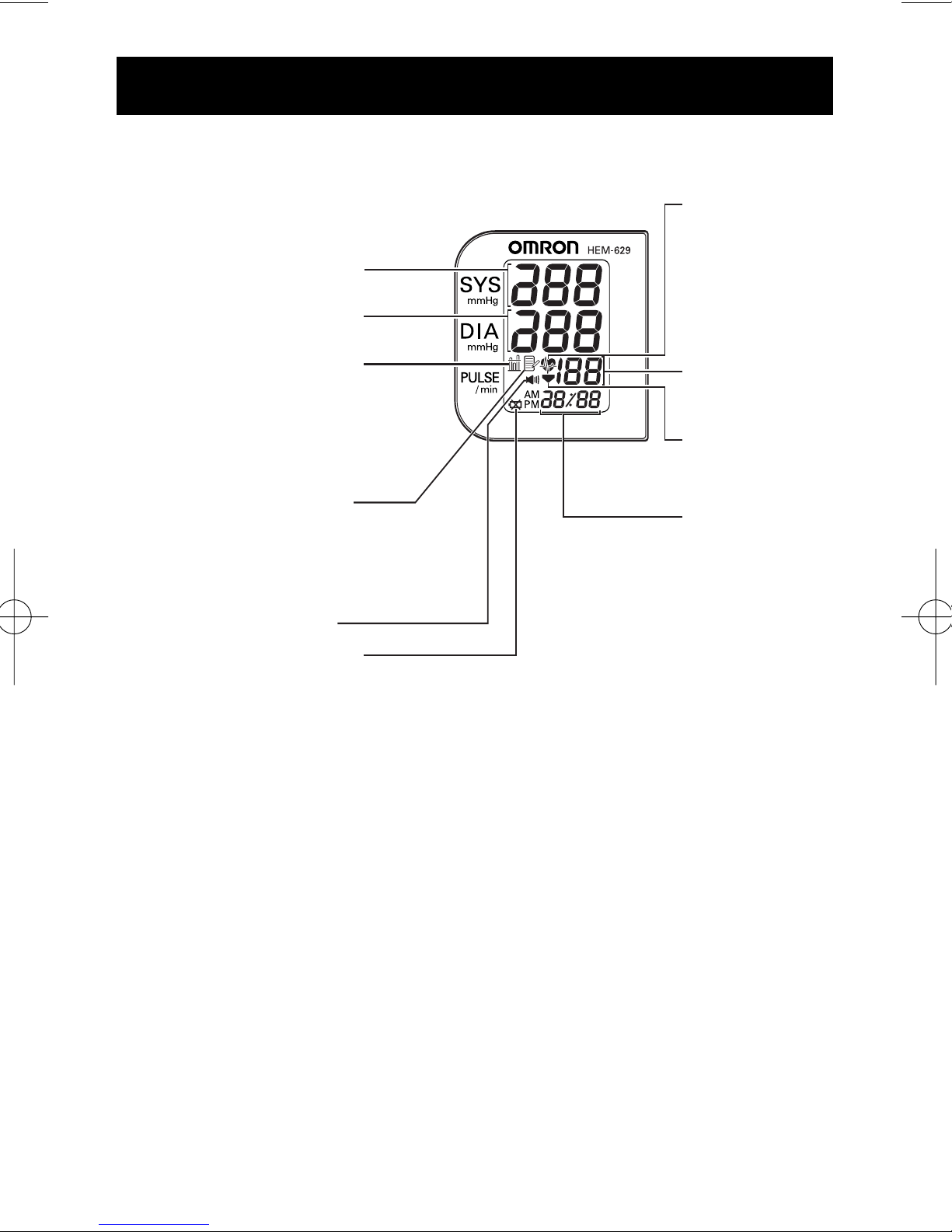

UNIT DISPLAY
7
Average Value Symbol
Heart Symbol
Pulse Display
Beep Symbol
Date/Time
Display
Diastolic Blood Pressure
Systolic Blood Pressure
Cuff Deflation
Symbol
Memory Value Symbol
Low Battery Symbol
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 7

BATTERY INSTALLATION
8
Low Battery Symbol
MEM
SET
START
STOP
MEM
SET
START
STOP
MEM
SET
START
STOP

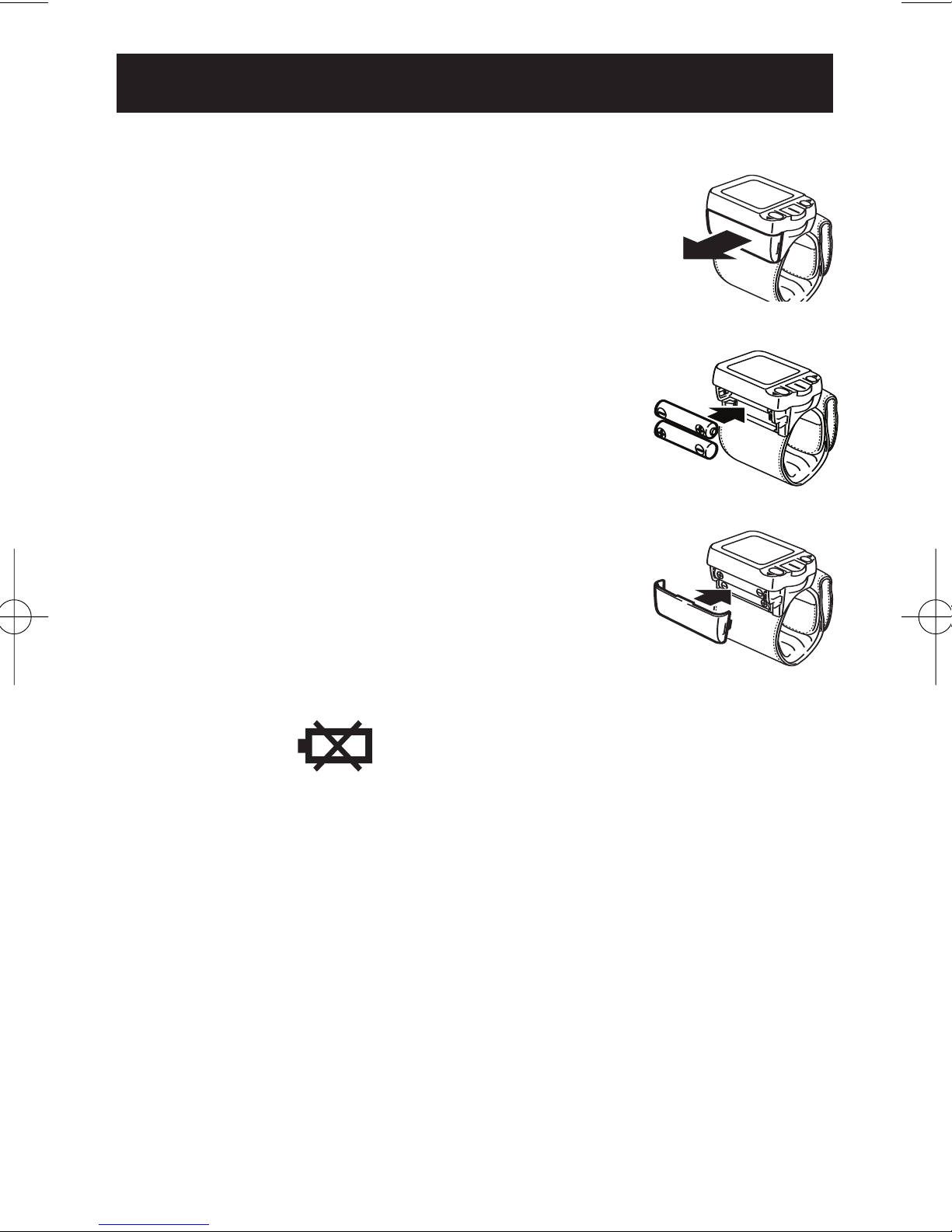

1. Press both sides of the battery cover and lift the cover off in the
direction of the arrow.
2. Install 2 “AAA” size batteries so the +
(positive) and - (negative) polarities match
the polarities of the battery compartment
as indicated.
3. Replace the Battery Cover.
Make sure the battery cover is securely
in place.
BATTERY REPLACEMENT
Initial Set-Up
When the Low Battery Symbol appears on the display screen
remove all the batteries. Replace with two new batteries at the same
time. When the Low Battery Symbol blinks a brief period of usage
remains. Long life alkaline batteries are recommended.
NOTES:
•Measurement values stored in the memory will not be deleted
during battery replacement.
•After replacing the batteries, reset the date and time. Refer to page
9, Setting the Date and Time.
•Dispose of batteries according to applicable local regulations.
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 8

9
SETTING THE BEEP SYMBOL
The Blood Pressure Monitor automatically stores up to 60
measurement values with the date and time. The monitor also
calculates an average reading based on the last three measurements
taken within 10 minutes of the last reading.
NOTE:
•If only two readings are stored in the memory for the
10-minute period, the average is based on the two
readings.
•If one reading is stored in the memory for the 10-minute
period, this reading is displayed as the average.

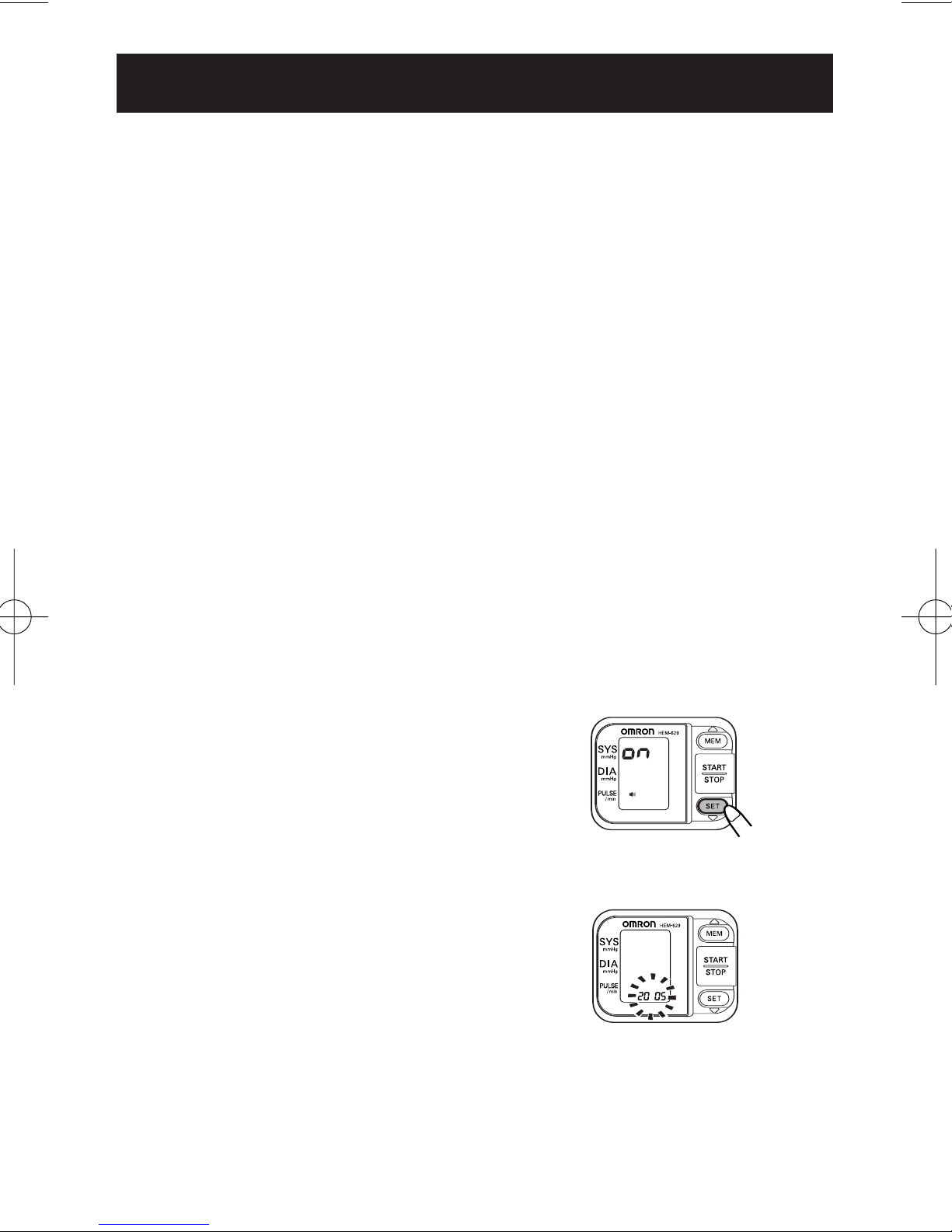

1. Press the SET button.
The Beep Symbol “on”/ “oFF” will appear.
Press the MEM button to adjust.
Press SET button to set mode.
The year flashes on the display.
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 9

Set the monitor to the current date and time before taking a
measurement for the first time. If the current date and time is not
set, a default date and time will display.
2. SETTING THE YEAR
The year can be set between 2005 and 2030. When the display
reaches 2030, it will return to 2005.
Press the MEM button to advance by
increments of one year.
Press the SET button to set the
current year.
The month flashes on the display.
NOTE:
•Press and hold the MEM button to increase the values faster.
3. SETTING THE MONTH
Press the MEM button to advance by increments of one month.
Press the SET button to set the current month.
The day flashes on the display.
10
SETTING THE DATE AND TIME
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 10

11
4. SETTING THE DAY
Press the MEM button to advance by increments of one day.
Press the SET button to set the current day.
The hour flashes on the display.
5. SETTING THE HOUR
The time is set using AM or PM.
Press the MEM button to advance by increments of one hour.
Press the SET button to set the current hour.
The minutes flash on the display.
6. SETTING THE MINUTE
Press the MEM button to advance by increments of one minute.
Press the SET button to set the current minute.
The Beep Symbol “on” or “oFF”
appears on the display.
7. Press the START/STOP button to turn the display off.
SETTING THE DATE AND TIME
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 11

APPLYING THE WRIST CUFF
12
Wrapping the wrist cuff is one of the most important points for
taking a correct measurement.
APPLYING THE CUFF ON THE LEFT WRIST
1. Roll up sleeve. Make sure your sleeve is not
rolled up too tightly on your arm. This may
constrict the flow of blood in your arm.
2. Wrap the cuff directly against your skin.
Do not apply over clothing. Place the cuff over
your left wrist with your left thumb facing upward.
3. Position the cuff leaving a clearance of approximately
1/2 to 1 inch between the cuff and the bottom of your palm.
4. Hold the bottom part of the cuff and wrap it
around the wrist so it fits comfortably and
securely around your wrist.
NOTE: Make sure the wrist cuff does not cover the protruding
part of the wrist bone on the outside of the wrist.
5. Fold the remaining part of the wrist cuff back
out of the way.
APPLYING THE CUFF ON THE RIGHT WRIST
When taking a measurement using the right
wrist position the cuff as shown in the illustration.
MEM
SET
ST
ART
STOP
MEM
SET
ST
ART
STOP
MEM
SET
START
STOP
MEM
SET
START
STOP
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 12

13

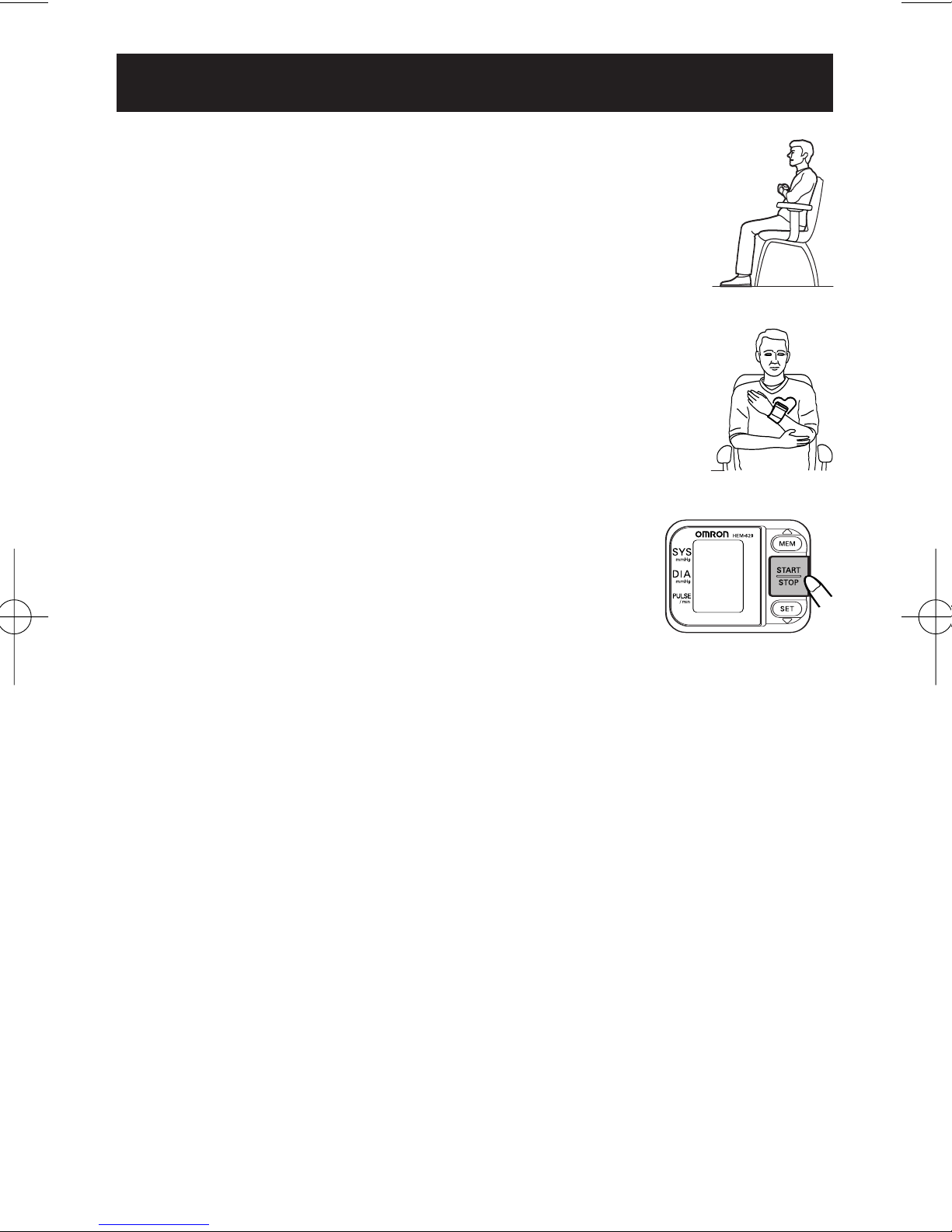

TAKING A MEASUREMENT
1. Sit comfortably in a chair with your feet
flat on the floor.
2. Hold your arm across your chest at heart level.
Hold your elbow firmly to avoid body movement.
Sit still and do not talk or move during
the measurement.
3. Press the START/STOP button.
All display symbols appear on the screen.
The cuff starts to inflate automatically.
Hold the monitor at heart level until the measurement is complete.
During measurement, the monitor (if set to “on”) will beep in
rhythm with your heart beat.
NOTE: To stop the inflation or measurement, push the
START/STOP button. The monitor will stop inflating,
start deflating, and will turn off.
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 13

TAKING A MEASUREMENT
14
4. After the monitor has detected your blood pressure and pulse
rate, a beep will sound and the cuff automatically deflates. Your
blood pressure and pulse rate are displayed.
NOTES:
•The time and date of the measurement are displayed
alternately.
• A final 3 beeps will sound when measurement is complete.
5. Press the START/STOP button to turn the
monitor off.
NOTE: The monitor will automatically turn off after two minutes.
Alternating Display
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 14

15
USING THE MEMORY FUNCTION
Every time you complete a measurement the monitor stores the blood
pressure and pulse rate in the memory. The Blood Pressure Monitor
automatically stores up to 60 measurement values. When 60 sets of
measurement values are stored in the memory, the oldest record is
deleted to save the most recent measurement values.
AVERAGING FUNCTION
The monitor also calculates an average reading based on the values
of the three most recent measurements that were taken within 10
minutes of the most recent reading.
NOTE:
• If only two readings are stored in the memory for the 10-minute
period, the average is based on the two readings.
• If one reading is stored in the memory for the 10-minute period,
this reading is displayed as the average.
If the date and time is not set, the measurement values and the
average value will not be stored in the memory correctly.
TO DISPLAY THE AVERAGE VALUE
Average Value Symbol
1. Press the MEM button.
The average value symbol will display on the screen with the
average reading.
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 15

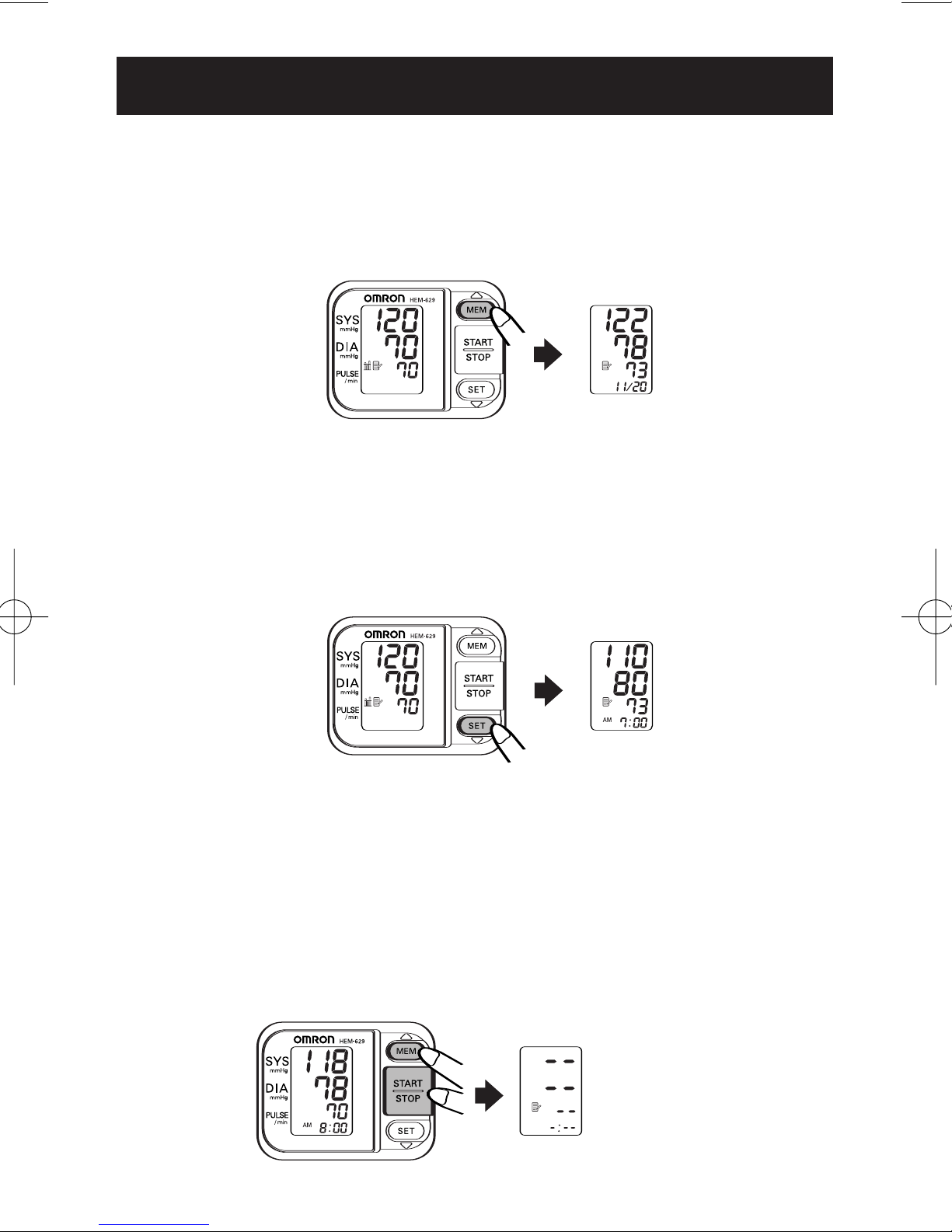

TO DISPLAY THE MEASUREMENT VALUES
1. Press the MEM button to display the measurement values
stored in the memory beginning with the most recent values
to the oldest values.
NOTES:
•The date and time are alternately displayed.
•Press the button repeatedly to display the next values.
•Press and hold the button to display the values faster.
Press the SET button to display the measurement values
beginning with the oldest values to the most recent values.
2. Press the START/STOP button to turn the power off.
TO DELETE ALL VALUES STORED IN THE MEMORY
You cannot partially delete records stored in the memory.
All records will be deleted.
1. Press and hold the MEM button and START/STOP button
simultaneously for more than 2 seconds
USING THE MEMORY FUNCTION
16
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 16

17
CARE AND MAINTENANCE
To keep your digital blood pressure monitor in the best condition and protect
the unit from damage follow the directions listed below:
Clean the monitor with a soft dry cloth. Do not use any abrasive
or volatile cleaners. Do not attempt to clean the cuff. Never immerse the
monitor or any components in water.
Store the monitor in a safe and dry location. Do not fold the cuff tightly. Do
not subject the monitor to extreme hot or cold temperatures, humidity and
direct sunlight.
Avoid subjecting the monitor to strong shocks, such as dropping the
unit on the floor.
Removethe batteries if the unit will not be used for three months or longer.
Always replace all the batteries with new ones at the same time.
Use the unit consistent with the instruction provided in this manual.
Use only authorized parts and accessories.
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 17

18

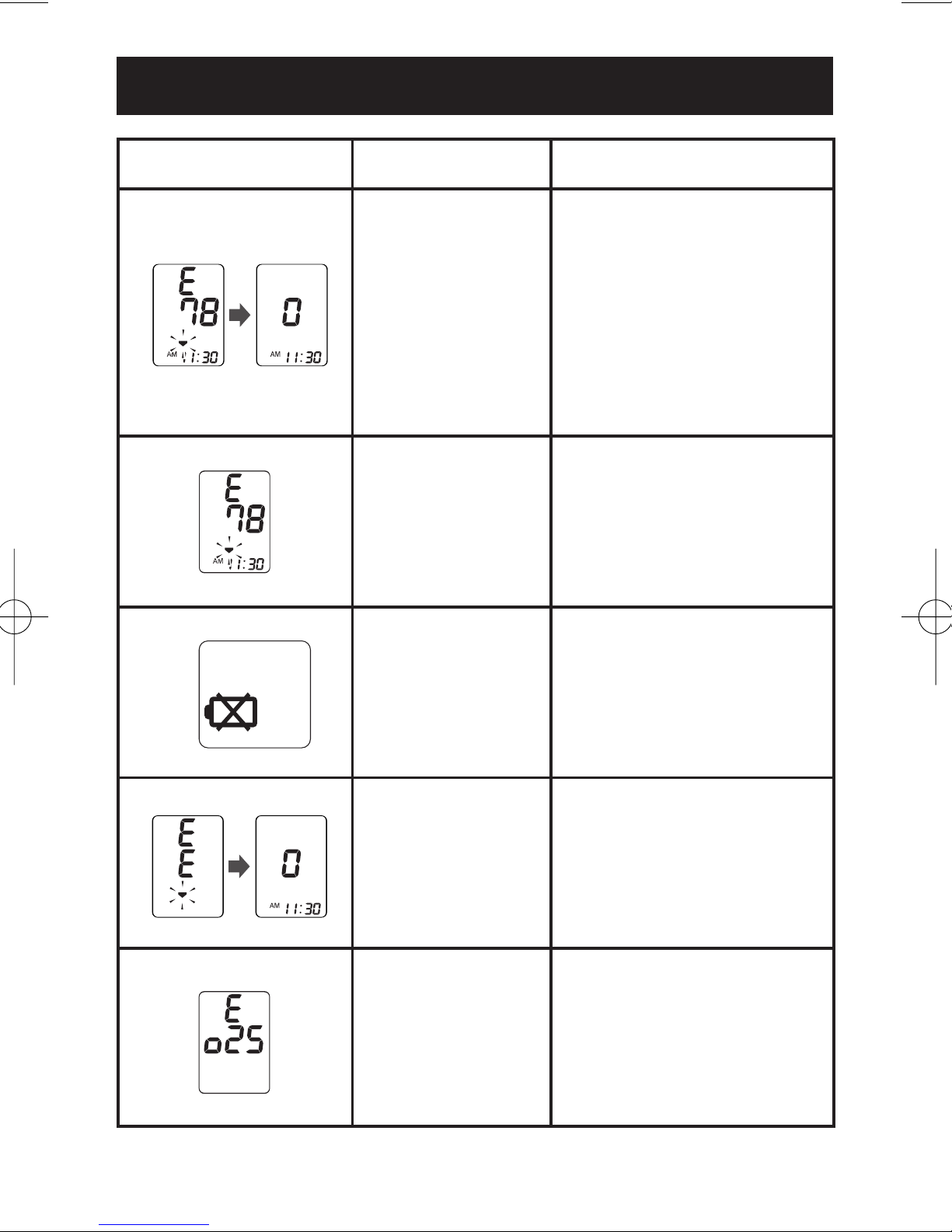

ERROR INDICATORS
SYMBOL CAUSE CORRECTION
Movement during
measurement.
Press the START/STOP
button to turn the unit off.
Remove the monitor from
your wrist. Refer to
“Taking a Measurement”
on page 13.
Wait 2-3 minutes.
Take another measurement.
The cuff is not
wrapped securely.
Remove the monitor from
your wrist. Read, “Applying
the Wrist Cuff”on Page 12.
Wait 2-3 minutes.
Take another measurement.
Batteries are worn.
Replace the two “AAA”
batteries. Refer to page 8
for battery installation.
Cuff
over-inflated.
Remove the monitor from
your wrist. Read, “Applying
the Wrist Cuff”on Page 12.
Wait 2-3 minutes.
Take another measurement.
Abnormal
unit function.
Repair Service Required.
Refer to Warranty
Information on page 21.
Blinks or lights
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 18

19
TROUBLESHOOTING TIPS
PROBLEM CAUSE
No power.
No display appears on the unit.
Replace worn batteries.
Check the battery installation for
proper placement of the battery
polarities.
Measurements values appear
too high or too low.
Blood pressure varies constantly.
Many factors including stress,
time of day, how you wrap the
cuff, may affect your blood
pressure. Review the sections
“Before Taking a Measurement”
and “Taking a Measurement”.
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 19

20
FCC STATEMENT
NOTE:
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A.
only) This product has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. The product generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If the product does cause harmful
interference to radio or television reception, which can be determined by
turning the product on and off, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the product and the receiver.
• Connect the product into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE
(for Canada only)
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the interference-causing
equipment standard entitled “Digital Apparatus”, ICES-003 of the
Canadian Department of Communications. Cet appareil numérique
respecte les limites de bruits radioeléctriques applicables aux appareils
numériques de Clase B prescrites dans la norme sur le materiel brouilleur:
“Appareils Numériques”, ICES-003 édictée par le minister des communications.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
HEM-629-IM-US-8094 9/27/05 4:09 PM Page 20
