Automatic Blood Pressure Monitor
Model HEM-7280T
Instruction Manual
Package includes:
HEM-7280T-AP_B_M03_151013.pdf
AutomaticBlood Pressure Monitor
ModelHEM-7280T
InstructionManual

1
Important Safety Information
Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
(General Usage)
DO NOT adjust medication based on measurement results from this blood pressure monitor. Take medication as
prescribed by your physician. Only a physician is qualified to diagnose and treat High Blood Pressure.
The monitor is not intended to be a diagnostic device.
Consult your physician before using the device for any of the following conditions: common arrhythmias such as
atrial or ventricular premature beats or atrial fibrillation, arterial sclerosis, poor perfusion, diabetes, pregnancy,
pre-eclampsia, renal diseases.
Note that PATIENT motion, trembling, shivering may affect the measurement reading.
Do not use the device on the injured arm or the arm under medical treatment.
Do not apply the arm cuff on the arm while on an intravenous drip or blood transfusion.
Consult your physician before using the device on the arm with an arterio-venous (A-V) shunt.
Do not use the device with other medical electrical (ME) equipment simultaneously.
Do not use the device in the area of HF surgical equipment, MRI, or CT scanner, or in an oxygen rich environment.
The air tube or the AC adapter cable may cause accidental strangulation in infants.
Contains small parts that may cause a choking hazard if swallowed.
(Data Transmission)
Do not use this product on aircraft or in hospitals and remove the battery and AC adapter from the device. Turn off
the Bluetooth®of the monitor in those areas where use of wireless equipment is prohibited. This product emits
radio frequencies (RF) in the 2.4 GHz band, use of this product in locations where RF is restricted is not
recommended.
(AC Adapter (optional) Usage)
Do not use the AC adapter if the device or the power cord is damaged. Turn off the power and unplug the power
cord immediately.
Plug the AC adapter into the appropriate voltage outlet. Do not use in a multi-outlet plug.
Never plug in or unplug the power cord from the electric outlet with wet hands.
14G1648
HEM-7280T-AP_B_M.fm Page 1 Tuesday, October 13, 2015 2:51 PM

Important Safety Information
2
Caution: Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury to the user or patient or damage to the equipment or other property.
(General Usage)
Always consult your physician. Self-diagnosis of measurement results and self-treatment are dangerous.
Consult your physician before using the device for any of the following conditions:
• If you have had a mastectomy.
• People with severe blood flow problems or blood disorders as cuff inflation can cause bruising.
Do not take measurements more than necessary. It may cause bruising due to blood flow interference.
Remove the arm cuff if it does not start deflating during the measurement.
Do not use this device on infants or persons who cannot express their intentions.
Do not use the device for any purpose other than measuring blood pressure.
Use only the approved arm cuff for this device. Use of other arm cuffs may result in incorrect measurement results.
Do not use a mobile phone or other devices that emit electromagnetic fields near the device except when in use
for wireless communications. This may result in incorrect operation of the device.
Do not disassemble the monitor or arm cuff. This may cause an inaccurate reading.
Do not use in a location with moisture, or a location where water may splash on the device. This may damage the
device.
Do not use the device in a moving vehicle.
Read “If your systolic pressure is more than 210 mmHg” (page 14) of this instruction manual, if your systolic
pressure is known to be more than 210 mmHg. Inflating to a higher pressure than necessary may result in bruising
where the cuff is applied.
(AC Adapter (optional) Usage)
Fully insert the power plug into the outlet.
When disconnecting the power plug from the outlet, do not pull the power cord. Be sure to pull from the power plug
safely.
When handling the power cord, take care not to do the following:
Do not damage. Do not break it.
Do not tamper with it. Do not forcibly bend or pull.
Do not twist. Do not bundle during use.
Do not pinch. Do not place under heavy objects.
HEM-7280T-AP_B_M.fm Page 2 Tuesday, October 13, 2015 2:51 PM

Important Safety Information
3
Wipe the dust off from the power plug.
Unplug monitor when not in use.
Disconnect the power plug before cleaning.
Use only an OMRON AC adapter designed for this device. Use of unsupported adapters may damage and/or may
be hazardous to the device.
(Battery Usage)
Do not insert the batteries with their polarities incorrectly aligned.
Use only 4 “AA” alkaline or manganese batteries with this device. Do not use other types of batteries. Do not use
new and used batteries together.
Remove the batteries if the device will not be used for three months or more.
General Precautions
• Do not forcibly crease the arm cuff or the air tube excessively.
• Do not press the air tube while taking a measurement.
• To unplug the air plug, pull on the air plug at the connection with the monitor, not the tube itself.
• Do not drop the monitor or subject device to strong shocks or vibrations.
• Do not inflate the arm cuff when it is not wrapped around your arm.
• Do not use the device outside the specified environment. It may cause an inaccurate reading.
• Read and follow the “Important information regarding Electro Magnetic Compatibility (EMC)” in the EMC information
provided with this device.
• Read and follow the “Correct Disposal of This Product” in “7. Technical Data” when disposing of the device and any
used accessories or optional parts.
HEM-7280T-AP_B_M.fm Page 3 Tuesday, October 13, 2015 2:51 PM

4
1. Know Your Device
Monitor
Display
Connection button
Up/Down buttons
START/STOP button
(Blue lamp lights when be pressed)
Blood pressure level indicator
(colour)
Air jack
Memory/Weekly average button
Battery compartment
AC adapter jack
(For optional AC adapter)
USER ID selection switch
Arm cuff
Arm cuff (Arm circumference 22-42cm)
Air plug
Air tube
Display
Memory symbol
USER ID symbol
Average value symbol
Systolic blood pressure
Diastolic blood pressure
Battery symbol (low/depleted)
Cuff wrap guide symbol
Heartbeat symbol
(Flashes during measurement)
Date/Time display
Morning average symbol
Evening average symbol
Morning hypertension symbol
Irregular heartbeat symbol
SYNC symbol
Connection symbol
OK symbol
Deflation symbol
Pulse display / Memory number
Open the rear cover page to read the following:
The letter identifiers on the rear cover page correspond to those in the body of this page.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
AA
AB
AC
AD
AE
HEM-7280T-AP_B_M.fm Page 4 Tuesday, October 13, 2015 2:51 PM

1. Know Your Device
5
1.1 Display Symbols
Irregular Heartbeat Symbol ( )
When the monitor detects an irregular rhythm two or more times during the
measurement, the irregular heartbeat symbol will appear on the display with
the measurement values.
An irregular heartbeat rhythm is defined as a rhythm that is 25 % less or
25 % more than the average rhythm detected while the monitor is measuring
the systolic and diastolic blood pressure.
If the irregular heartbeat symbol displays with your measurement results, we
recommend you consult your physician. Follow the directions of your
physician.
Average Value Symbol ( )
The average value symbol is displayed when you press and hold the Memory button for more than 3 seconds. The
most recent average value appears on the display screen.
Cuff Wrap Guide Symbol ( /)
If the cuff was wrapped too loosely, it may cause unreliable results. If the wrapping of cuff is too loose, the cuff wrap
guide symbol appears. Otherwise appears. This is the function which is used as an aid in determining if the
cuff is wrapped snugly enough.
N
orma
l
H
eart
b
eat
Pulse
Blood pressure
Irregular Heartbeat
Blood pressure
Short Long
Pulse
HEM-7280T-AP_B_M.fm Page 5 Tuesday, October 13, 2015 2:51 PM

1. Know Your Device
6
Blood Pressure Level Indicator (Colour)
If your Systolic Blood Pressure is 135 mmHg or above and/or the Diastolic Blood Pressure
is 85 mmHg or above, the blood pressure level indicator (colour) will light in “orange” when
the measurement result is displayed. If the measurements are within the standard range,
no light will appear.
2013 ESH/ESC Guidelines for the management of arterial hypertension
Definitions of hypertension by office and home blood pressure levels
1.2 Before Taking a Measurement
To help ensure an accurate reading, follow these directions:
1. Avoid bathing, drinking alcohol or caffeine, smoking, exercising and eating for 30 minutes before taking a
measurement. Rest for at least 5 minutes before taking the measurement.
2. Stress raises blood pressure. Avoid taking measurements during stressful times.
3. Measurements should be taken in a quiet place.
4. Remove tight-fitting clothing from your arm.
5. Sit on a chair with your legs uncrossed and your feet flat on the floor. Rest your arm on a table so that the arm cuff
is at the same level as your heart.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your physician. A single measurement does not
provide an accurate indication of your true blood pressure. You need to take and record several readings over a
period of time. Try to measure your blood pressure at the same time each day for consistency.
Office Home
Systolic Blood Pressure ≥140 mmHg ≥135 mmHg
Diastolic Blood Pressure ≥90 mmHg ≥85 mmHg
HEM-7280T-AP_B_M.fm Page 6 Tuesday, October 13, 2015 2:51 PM

7
2. Preparation
2.1 Battery Installation
1. Remove the battery cover.
2. Insert 4 “AA” batteries as
indicated in the battery
compartment.
3. Replace the battery cover.
Notes:
• Please keep the batteries in your device all the time when you use an optional AC adapter.
• When the depleted battery symbol ( ) appears on the display, turn the monitor off and remove all the
batteries. Replace with 4 new batteries at the same time. Long life alkaline batteries are recommended.
• The measurement values continue to be stored in memory even after the batteries are replaced.
• The supplied batteries may have a shorter life.
• Dispose of the device, components and optional accessories according to applicable local regulations.
Unlawful disposal may cause environmental pollution.
HEM-7280T-AP_B_M.fm Page 7 Tuesday, October 13, 2015 2:51 PM

2. Preparation
8
2.2 Pairing this Device with a Smartphone
To begin using the OMRON connect app for the first time, please visit
www.omronconnect.com/setup for the initial set-up instructions.
1. Download and install the free “OMRON connect” app on
your smartphone.
* If you already have the OMRON connect app, go to:
Menu > Device > Add Device
2. Open the app on your smartphone and follow set-up and
pairing instructions.
List of Compatible Smartphones at: www.omronconnect.com/devices
For details, visit: www.omronconnect.com
HEM-7280T-AP_B_M.fm Page 8 Tuesday, October 13, 2015 2:51 PM

2. Preparation
9
3. Press the connection button for more than 2
seconds.
The connection symbol ( ) and the “P” flashes on
the device’s display.
4. Open the app on your smartphone and follow the
device pairing instructions shown on your
smartphone, while the connection symbol is
flashing on the device’s display.
HEM-7280T-AP_B_M.fm Page 9 Tuesday, October 13, 2015 2:51 PM

2. Preparation
10
5. Confirm if the device is connected
successfully.
When the device is connected successfully to the smartphone,
“OK” symbol and the display shown on the right will flash.
The monitor will automatically turn off without any operations.
The date and time settings of your smartphone will automatically sync with the device
when paired.
When “Err” appears, refer to “Connection failure.” in section
4.2 for more detail.
Notes:
• You can pair up to 4 destination smartphones with the monitor.
• When paired with 5 or more smartphones, any information previously stored
in your device will be overwritten.
• Any readings currently saved in the blood pressure monitor’s memory will automatically be transferred to
the app after successful completion of the pairing process.
HEM-7280T-AP_B_M.fm Page 10 Tuesday, October 13, 2015 2:51 PM

2. Preparation
11

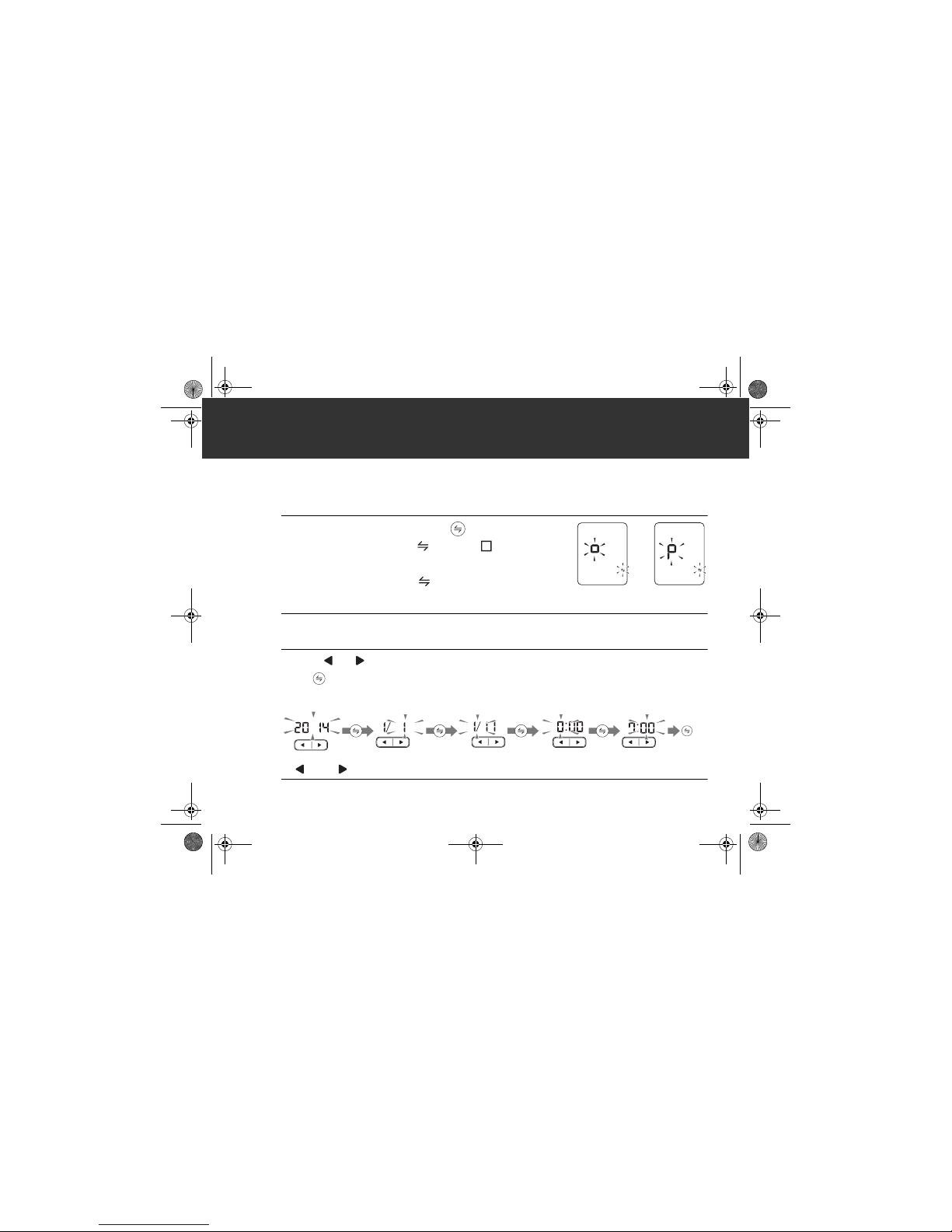

To Set the Date and Time Manually
The date and time will be automatically set when paired with your smartphone. To set
manually, follow the instructions below.
1. Press the connection button.
1The connection symbol ( ) and the “ ” flashes on
the device’s display. You can transfer the data, and
refer to “To Transfer the Data” (page 15).
2The connection symbol ( ) and the “P” flashes on
the device’s display. You can pair this device with
your smartphone, and refer to “Pairing this Device with a Smartphone” (page 8).
2. Then press the connection button again.
The year flashes on the Date/Time display.
3. Push or button to change the year.
Push button to confirm the year and then the month flashes. Repeat the same
steps to change the month, day, hour, and minute.
4. Press the START/STOP button to turn the monitor off.
12
Year Month Day Hour Minute
Change Confirm Change Confirm Change Confirm Change Confirm Change Confirm
: Back : Forward
HEM-7280T-AP_B_M.fm Page 11 Thursday, October 15, 2015 4:45 PM

12
3. Using the Device
3.1 Applying the Arm Cuff
Remove tight-fitting clothing or tight rolled up sleeve from your left upper arm.
Do not place the arm cuff over thick clothes.
1. Insert the air plug into the air jack securely.
2. Wrap the arm cuff firmly in place around your left upper
arm.
The bottom edge of the arm cuff should be 1 to 2 cm above the elbow.
Air tube is on the inside of your arm and aligned with your middle finger.
3. Secure closed with the fabric fastener.
Notes:
• When you take a measurement on the right arm, the air tube will be at the side of your elbow. Be careful
not to rest your arm on the air tube. ---
• The blood pressure can differ between the right arm and the left arm, and the measured blood pressure
values can be different. OMRON recommends to always use the same arm for measurement. If the
values between both arms differ substantially, please check with your physician which arm to use for your
measurements.
Open both the front and rear covers to read the following:
The letter identifiers on the cover pages correspond to those in the body of this page.
L F
a
M
b
HEM-7280T-AP_B_M.fm Page 12 Tuesday, October 13, 2015 2:51 PM

3. Using the Device
13
3.2 How to Sit Correctly
To take a measurement, you need to be relaxed and comfortably seated, under
comfortable room temperature. Avoid bathing, drinking alcohol or caffeine, smoking,
exercising or eating 30 minutes before taking a measurement.
• Sit on a chair with your legs uncrossed and your feet flat on the floor.
• Sit upright with your back straight. ---
• Sit with your back and arm being supported.
• The arm cuff should be placed on your arm at the same level as your heart. ---
c
d
HEM-7280T-AP_B_M.fm Page 13 Tuesday, October 13, 2015 2:51 PM

3. Using the Device
14
3.3 Taking a Measurement
Check if the date and time are correct on the display before taking the measurement.
If the date and time settings are necessary, refer to “To Set the Date and Time
Manually” (page 11).
Notes:
• To stop a measurement, press the START/STOP button once to deflate the arm cuff.
• Remain still and quiet while taking a measurement.
The monitor is designed to take measurements and store the measurement values in
the memory for 2 people using USER ID 1 and USER ID 2.
1. Select your USER ID (1 or 2).
Push the switch up or down to select USER ID.
2. Press the START/STOP button.
The arm cuff starts to inflate automatically.
START INFLATE DEFLATE
COMPLETE
Cuff Wrap Guide Symbol
If your systolic pressure is
more than 210 mmHg
After the arm cuff starts to inflate, press and
hold the START/STOP button until the
monitor inflates 30 to 40 mmHg higher than
your expected systolic pressure.
Notes:
• The monitor will not inflate above 299 mmHg.
Inflating to a higher pressure than
necessary may result in bruising where
the arm cuff is applied.
HEM-7280T-AP_B_M.fm Page 14 Tuesday, October 13, 2015 2:51 PM

3. Using the Device
15
3. Remove the arm cuff.
4. Press the START/STOP button to turn the monitor off.
The monitor automatically stores the measurement result in its memory.
It will automatically turn off after 2 minutes without any operations.
Note: Wait 2-3 minutes before taking another measurement. Waiting between measurements allows the
arteries to return to the condition prior to taking a measurement.
To Transfer the Data
After the measurement is complete, you can transfer the data (measurement results
of blood pressure and pulse rate).
Notes:
• The stored data can be transferred all at once.
• The date and time settings of your smartphone will sync with the device when transferred.
*Sync occurs if the time between smartphone and device differs more than 10 minutes.
1. Open the app on your smartphone.
2. Pull down to refresh the screen of the app and the data
transfer starts.
* If the data transfer is not starting, refer to “Connection failure. Data cannot be sent.”
in “4. Error Messages and Troubleshooting”.
HEM-7280T-AP_B_M.fm Page 15 Tuesday, October 13, 2015 2:51 PM

3. Using the Device
16
3. Confirm with your device if the
measurement data is transferred
successfully.
If the display on the right is shown, the data is transferred
successfully.
When “Err” appears, refer to “Data cannot be sent.” in section
4.2 for more detail.
HEM-7280T-AP_B_M.fm Page 16 Tuesday, October 13, 2015 2:51 PM

3. Using the Device
17
To Use the Guest Mode
The monitor stores measurement values for 2 users in the memory. The guest mode
can be used to take a single measurement for another user. No measurement values
are stored in the memory when the guest mode is selected.
1. Press and hold the START/STOP
button for more than 3 seconds.
The USER ID symbol and the Date/Time display will disappear.
2. Release the START/STOP button when the Date/Time
display turns off.
The arm cuff will start to inflate automatically.
DO NOT adjust medication based on measurement results from this blood pressure monitor. Take
medication as prescribed by your physician. Only a physician is qualified to diagnose and treat High
Blood Pressure.
This monitor is not intended to be a diagnostic device.
Always consult your physician. Self-diagnosis of measurement results and self-treatment are dangerous.
Read “If your systolic pressure is more than 210 mmHg” (page 14) of this instruction manual, if your
systolic pressure is known to be more than 210 mmHg. Inflating to a higher pressure than necessary
may result in bruising where the cuff is applied.
HEM-7280T-AP_B_M.fm Page 17 Tuesday, October 13, 2015 2:51 PM

3. Using the Device
18
3.4 Using the Memory Function
The monitor automatically stores the results up to 100 sets for each user (1 and 2).
It can also calculate an average value based on the last 3 measurement values taken
within 10 minutes.
Notes:
• If there are only 2 measurement values in the memory for that period, the average will be based on these
2 values.
• If there is 1 measurement value in the memory for that period, this is displayed as the average.
• If the memory is full, the monitor will delete the oldest value.
• When the SYNC symbol ( ) appears on the display, transfer the data before the measurement values
are deleted. Refer to “To Transfer the Data” (page 15).
• When viewing the measurement value taken without setting the date and time, “-/ - -:--” is displayed
instead of the date and time.

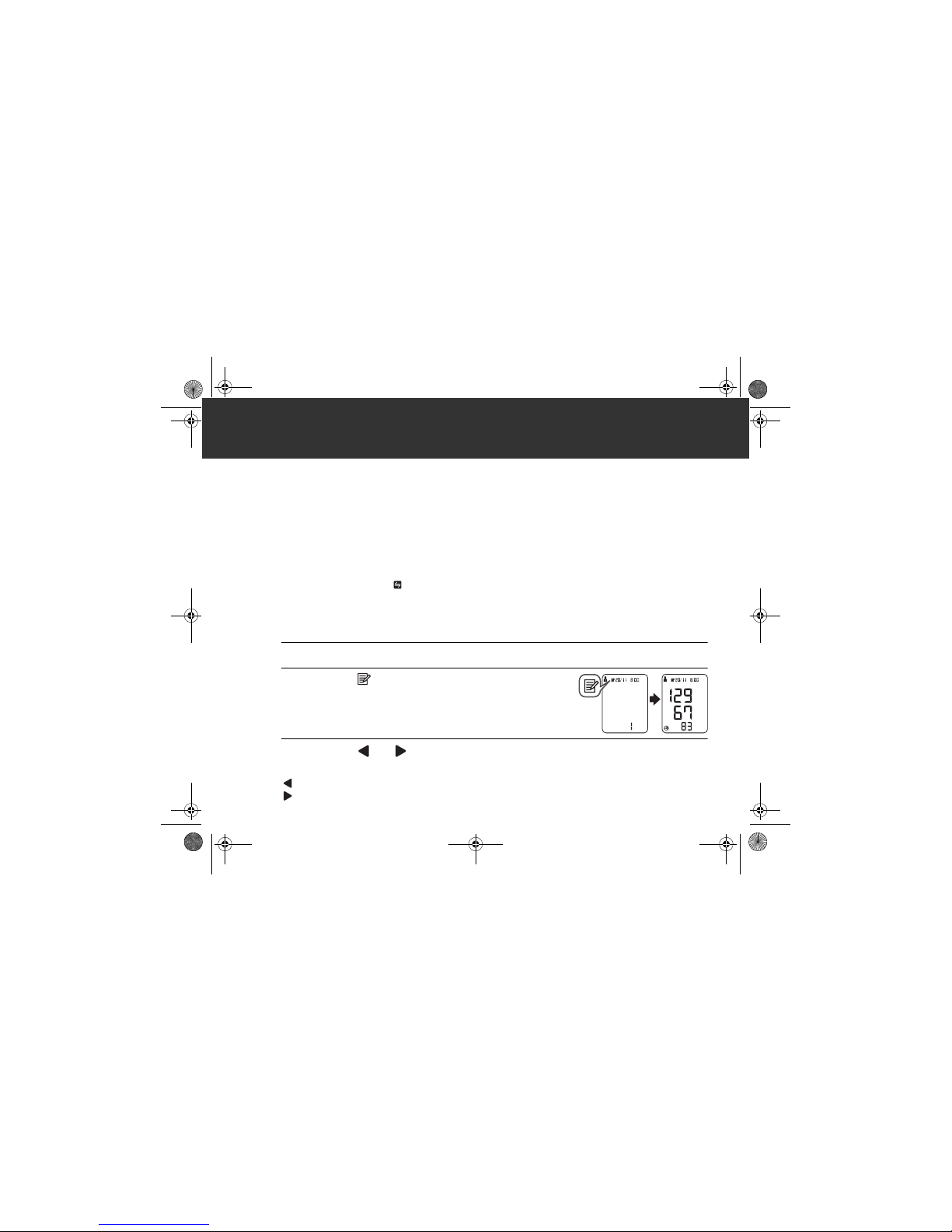

To View the Measurement Values Stored in Memory
1. Select your USER ID (1 or 2).
2. Press the button.
The Memory number appears for a second before the
pulse rate is displayed. The newest set is numbered “1”.
Note: The cuff wrap guide result appears on the display with the
measurement values.
3. Press the or button to view the values stored in the
memory.
: To view the older values
: To view the more recent values
HEM-7280T-AP_B_M.fm Page 18 Tuesday, October 13, 2015 2:51 PM

3. Using the Device
19
To View the Average Value
1. Select your USER ID (1 or 2).
2. Press and hold the button for more
than 3 seconds.
Notes:
• If the previous measurement was taken without setting the date and time,
the average value is not calculated.
• If there are no measurement values stored in the memory, the screen to the
right is displayed.
To View the Weekly Average Value
The monitor calculates and displays weekly averages for the measurements taken in
the morning and evening within 8 weeks for each user.
Note: The week begins Sunday at 2:00.
1. Select your USER ID (1 or 2).
HEM-7280T-AP_B_M.fm Page 19 Tuesday, October 13, 2015 2:51 PM
