Omron IntelliSense HEM-907XL User manual

HIDE
P-S
ET
100
AUTO
140 180
220
260
280
MODE
AVG.
MANU.
CHECK
SINGLE
ON/OFF
START
STOP
mmHg
SYS
mmHg
DIA
BPM
PULSE
AC
ART.
INDEX
MAX
XL
®
IntelliSense®Blood Pressure Monitor
ModelHEM-907XL
Table of Contents
Be Sure to Read This Section
Exemptions.........................................2
Notes on Safety..................................3
Know Your Unit
Features of the Product .....................7
Components of the Product ...............8
Features and Functions .....................9
Names of the Parts ........................9
Functions and setting
while the unit is in use..................11
Preparations before Measurement
How to Apply the Cuff ......................13
How to Use the Power Source.........15
How to Use the AC Adapter ...........16
Installation and Replacement
of Battery Pack .............................17
How to Measure Blood Pressure
List of Measurement Modes ............18
SINGLE Mode ..............................19
AVG Mode ....................................21
MANU Mode.................................23
How to Check Pressure Accuracy..25
How to Clean the Unit after Use........26
List of Error Codes...........................27
Troubleshooting................................28
Specifications
Caution.............................................29
Five Year Limited Warranty...............29
Specifications ...................................30
Thank you for purchasing the OMRON
IntelliSense®Blood Pressure Monitor.
Please thoroughly read this Instruction Manual
before using this monitor to ensure safe and
accurate use.
Please keep this manual near the monitor all
the time for future reference.
INSTRUCTION MANUAL
HEM-907-Z2_E_M03_090828.pdf
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 1

2
EXEMPTIONS
OMRON does not accept liability and warranty becomes void under the following
circumstances:
1. When persons, not authorized by OMRON, perform repairs or modifications of this
product.
2. When use and/or operation of this device is adversely effected by a device not
manufactured by OMRON.
3. When use and/or operation of this device is adversely effected by use of parts, not
authorized by OMRON, to repair or modify this product.
4. When Notes on Safety or Instructions for Use contained in this manual are not followed.
5. When use and/or operation of this device is effected by an act of God, such as fire,
earthquake, flood or other natural disasters.
1. The product and contents of this Instruction Manual may be changed without prior notice.
2. We have prepared the contents of this Instruction Manual thoroughly. However, if an
inadequate description or error is found, please let us know.
3. Reproducing or copying any or all of this Instruction Manual without OMRON’s written
consent is prohibited.
Be Sure to Read This Section
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 2

3
NOTES ON SAFETY
• The warning signs and the sample icons shown here are listed to insure safe and accurate use.
• The icons and meanings are as follows.
Warning sign Contents
Indicates matters in which death or severe bodily damage may arise as a result
of incorrect handling.
Indicates matters in which bodily harm or material damage* may arise as a
result of incorrect handling.
* Material damage refers to a wide range of damage involving your house, household goods, domestic animals, and pets.
Examples of signs
The icon indicates caution (including warning and danger).
Matters involving actual caution are indicated by text or pictures in or near .
The pictured icon refers to “caution for flammability”.
The icon indicates prohibitions (what you cannot do).
Matters involving actual prohibitions are indicated by text or pictures in or near .
The pictured icon refers to “prohibition to disassemble”.
The icon indicates something that is compulsory (always follow).
Matters involving actual compulsory actions are indicated by text or pictures in or near .
The pictured icon refers to “unplugging the power source plug”.
Do not wrap the cuff over an arm to which intravenous injection or transfusion
is being conducted, or when otherwise contraindicated.
Do not connect the air tube or the cuff to other equipment which is connected
to an intracorporeal organ. Air embolisms may result.
Self diagnosis of measured results or treatment is dangerous. Please follow
the instruction of the doctor or healthcare provider.
If cuff inflation does not stop, remove the cuff or pull out the air tube from the
main unit.
If battery fluid gets into your eye or comes in contact with skin, wash the effected
area with water repeatedly. Immediately consult a doctor for treatment.
Do not use this unit in the presence of flammable gas or anesthetics or in a
high pressure oxygen room or oxygen tent.
Do not use the battery pack for devices other than for this unit.
Do not disassemble the battery pack.
Do not touch the AC adapter with wet hands.
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 3

4
Unplug the AC adapter from the electric outlet if this unit is unused for an
extended period of time.
Unplug the AC adapter from the electric outlet when installing, removing, or
cleaning the unit.
Confirm readings with a stethoscope when an irregular pulse wave is
displayed or when the measured value is questionable or erratic.

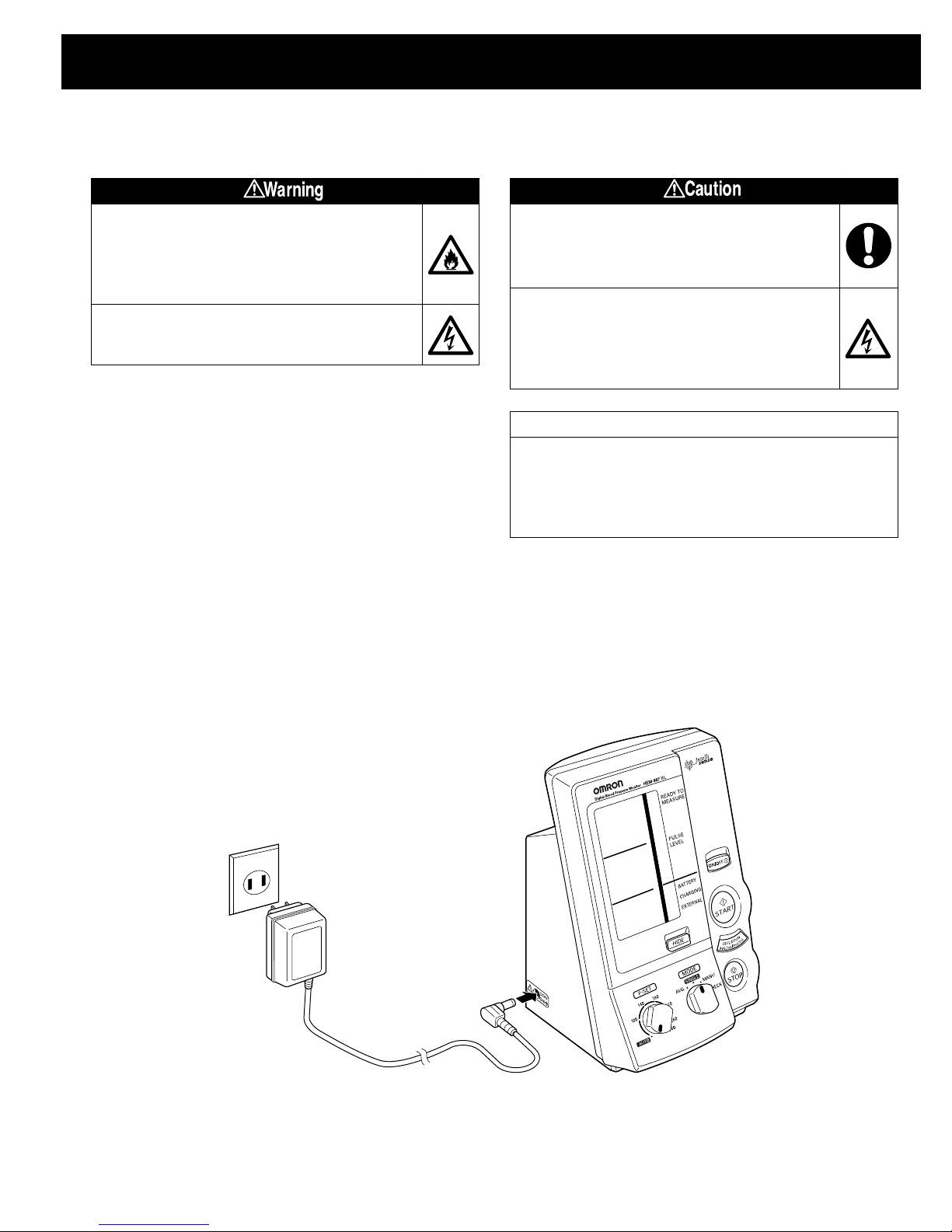

Use an AC adapter indicated for use with a power supply of 110 VAC.
Do not share an electric outlet with other unit or electric appliance.
After cleaning this unit, dry it well before plugging the AC adapter in the
electric outlet.
If this unit fails to perform as indicated, discontinue use, turn off the unit,
unplug the AC adapter from the electric outlet, and contact OMRON’s repair
department.
Do not disassemble or modify this unit.
Do not use any cuff other than the models exclusive for this unit.
Do not use this unit on infants.
Do not use this unit on patients using a pump oxygenator.
Do not use an AC adapter or battery pack not specified for this unit.
NOTES ON SAFETY
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 4

5
NOTES ON SAFETY
Do not use a cellular phone near this unit.
Do not use this unit in a vehicle.
Do not install the parts and/or instruments not specified for this unit.
Do not use a broken power cord or AC adapter.
Do not install or store this unit where it may come in contact with water or
liquid medication.
This is a Class II device with double insulation.
General advice
Do not place or put anything on this unit.
Do not drop this unit.
Turn off power to the unit and unplug the AC adapter from the electric outlet before moving
the unit.
Read the instruction manual of the other devices to be used at the same time with this unit, to
understand and be aware of the interaction between the devices.
When using the unit
• Do not inflate the cuff without being wrapped over the arm.
• Do not use a damaged cuff.
• Be sure that patients do not touch the Buttons of this unit.
After using the unit
• Do not disinfect this unit by autoclave or gas sterilization (EtO, gluteraldehyde, or high
concentration ozone).
Do not install or store this unit in the following places.
• Under the direct sunlight,
• Dusty or salty environment,
• Places having slope, vibration, and/or shock,
• Storage of chemicals or where combustable gas may be generated,
• Under high temperature and high humidity.
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 5

6
NOTES ON SAFETY
Maintenance and inspection
1. Check the unit operation on regular basis.
2. If this unit has not been used for more than three months, be sure to check that this unit
operates normally and safely before use.
Troubleshooting
If device error 9 (Er9) occurs, take the following procedure promptly:
(1) Remove the cuff from the patient’s arm.
(2) Turn off the power of the unit and unplug the AC adapter from the electric outlet.
(3) Display “Out of use” on this unit so that it cannot be used.
(4) Contact Omron Healthcare’s Customer Service at 1-877-216-1336.
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 6

7
FEATURES OF THE PRODUCT
OMRON IntelliSense®Blood Pressure unit, Model HEM-907XL is developed to measure blood
pressure and pulse rate accurately and simply in a doctor’s office, examination room,
or patient bedside.
• One-button operation
Simply wrap the cuff and push the START Button. Blood pressure and pulse rate are automatically
measured by the oscillometric method.
• Automatic pressure setting
When the P-SET (Pressure Setting) Knob is set to “AUTO”, the unit will automatically inflate the
cuff to the optimal pressure according to each patient’s blood pressure. Pre-setting inflation level
is not necessary.
• Noiseless operation
This unit operates so quietly that it can be used in the patient room at night.
• Average Mode (AVG Mode)
In the AVG Mode, this unit will automatically measure for two or three times. The average of
systolic and diastolic blood pressures and pulse rate are displayed. Each measurement can also
be shown individually. The number of measurements, waiting time before first measurement, and
the interval can be changed.
• Auscultation Mode (MANU Mode)
You can measure auscultatory blood pressure by using a stethoscope, with automatic cuff inflation
and deflation by this unit. Because the cuff pressures during deflation are displayed digitally and
synchronized with the heart beat, they can be read with accuracy. After taking systolic reading
you can accelerate cuff deflation to shorten measurement time.
• Large and easy to read display
Large and easy to read figures are displayed on the LCD display.
The IntelliSense®Monitor inflates the cuff to the ideal level with each use. No adjustments are
required by the user to select an inflation level. This is especially convenient for hypertensive users
and for people with certain arrhythmia or heart disorders, because their blood pressure is likely to
fluctuate. The advantage is Personalized Inflation for maximum comfort.
Know Your Unit
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 7

8
COMPONENTS OF THE PRODUCT
XL
®
®
Main unit
Accessories
Air tube 1.3m (51 3/16") *
Model: HEM-TUBE-130
AC adapter
Model: HEM-ADPT907
Instruction Manual
Items identified with an asterisk (*) are consumables and not covered by the guarantee.
IntelliSense®Blood Pressure
Monitor, Model HEM-907XL
(Included and also available separately)
Cuff / bladder set Large
(with built-in bladder) *
Model: HEM-907-CL19
Applicable arm circumference:
13 " to 17" ( 32 to 42 cm)
Cuff / bladder set Small
(with built-in bladder) *
Model: HEM-907-CS19
Applicable arm circumference:
7 " to 9 " ( 17 to 22 cm)
Cuff / bladder set Medium
(with built-in bladder) *
Model: HEM-907-CR19
Applicable arm circumference:
9
" to 13" (22 to 32 cm)
Battery pack (48H907N)
Model: HEM-907-PBAT
The air tube is available for the
large, medium or small cuff size.
It is NOT for use with the
extra-large cuff size.
Cuff / bladder set Extra Large
(with built-in bladder) *
Model: HEM-907-CX19
For use with the HEM-907XL
unit only.
Applicable arm circumference:
17 " to 20" ( 42 to 50 cm)
HIDE
P-SE
T
100
AUTO
140180
220
260
280
MODE
AVG.MANU.
CHECK
SINGLE
ON/OFF
START
STOP
mmHg
SYS
mmHg
DIA
BPM
PULSE
AC
ART.
INDEX
INDEX
MAX
MAX
XL
®
IntelliSense®Blood Pressure Monitor
ModelHEM-907XL
Table of Contents
Be Sure to Read This Section
Exemptions.........................................2
Notes on Safety..................................3
Know Your Unit
Features of the Product .....................7
Components of the Product...............8
Options ...........................................9
Features and Functions ...................10
Names of the Parts ......................10
Functions and setting
while the unit is in use..................12
Preparations before Measurement
How to Apply the Cuff......................14
How to Use the Power Source.........16
How to Use the AC Adapter...........17
Installation and Replacement
of Battery Pack.............................18
How to Measure Blood Pressure
List of Measurement Modes ............19
SINGLE Mode ..............................20
AVG Mode ....................................22
MANU Mode.................................24
How to Check Pressure Accuracy..26
How to Clean the Unit after Use........27
List of Error Codes...........................28
Troubleshooting................................29
Specifications
Caution.............................................30
Five YearLimited Warranty...............30
Specifications...................................31
Thank you for purchasing the OMRON
IntelliSense®Blood Pressure Monitor.
Please thoroughly read this Instruction Manual
before using this monitor to ensure safe and
accurate use.
Please keep this manual near the monitor all
the time for future reference.
INSTRUCTION MANUAL
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 8

9
FEATURES AND FUNCTIONS
Main unit
1. Display: Displays blood pressure and, pulse rate readings, and oscillation pulse level.
2. HIDE Button: Switches display and non-display of measured results.
3. DC jack: Connects the AC adapter.
4. P-SET (pressure setting) Knob: In the AUTO position, inflation level is automatically set.
Otherwise, inflation level can optionally be set manually between 100 and 280 mmHg.
5. MODE Selector: Selects the operation mode.
•One-time Measurement Mode (SINGLE Mode): Measurement with automatic inflation.
•Average Mode (AVG Mode): Automatically measures two (or three) times consecutively.
•Auscultation Mode (MANU Mode): Automatic inflation, automatic deflation, and pressure display for auscultation (does
not measure blood pressure).
•Check Mode (CHECK Mode): Checks the accuracy of pressure display. Displays only pressure.
6. ON/OFF (power) Button: Turns on or off the unit.
7. START Button: Starts the measurement.
8. DEFLATION (deflation control) /Measurement Result Display Switch Button:
•In the MANU Mode, deflates the cuff by approximately 5 to 10 mmHg with each push during deflation.
•In the AVG Mode, switches the display of average values and the measurement results with each push.
9. Air Connector: Connects the air tube.
10. STOP Button: Stops the measurement and deflates air rapidly.
HIDE
P-S
ET
100
AUTO
140 180
220
260
280
MODE
AVG.
MANU.
CHECK
SINGLE
ON/OFF
START
STOP
mmHg
SYS
mmHg
DIA
BPM
PULSE
AC
DC8V
XL
®
1. Display
2. HIDE (non-display) Button
3. DC jack
4. P-SET (pressure
setting) Knob
5. MODE Selector
6. ON/OFF (power)
Button
7. START Button
8. DEFLATION
(deflation control)
/Measurement
Result Display
Switch Button
9. Air Connector
10. STOP Button
Names of the Parts
(See Page 10 for detail)
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 9

10
FEATURES AND FUNCTIONS
Display
HIDE
BPM
mmHg
PULSE
SYS
mmHg
DIA
AC
Systolic blood pressure
Diastolic blood pressure
Pulse rate
Contents when the AVG
Mode is selected
AVG. : Mean value
1st : First reading
2nd : Second reading
3rd : Third reading
Ready to Measure /
Pulse synchronization
Pulse level /
Number of irregular pulses
Number of irregular pulse waves: The pulse
wave having a difference of more than 25%
from the average interval of pulse waves is
determined irregular. Number of irregular
pulse waves is displayed up to three times.
Battery level
Displays for the operable level.
Blinks for a low charged
level.
Displays for the inoperable
level.
Charging
Displays when the battery
pack is being charged.
External power source
Displays AC when the unit is connected
to the external power source via the AC
adapter.
Example of display
No. of irregular pulses
123
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 10

11
FEATURES AND FUNCTIONS
Functions setting
(1) Inflation level setting
AUTO (Automatic setting): Can be used when the SINGLE, AVG, or MANU Mode is selected.
The unit estimates the systolic blood pressure during inflation and inflates to a proper cuff pressure
(approximately 30-40 mmHg above the patient’s systolic pressure).
Manual level setting: Inflation level can be set manually between 100 and 280 mmHg. Set the
level to 30 to 40 mmHg higher than the expected systolic pressure.
•To set the P-SET to “AUTO”, turn the P-SET Knob counterclockwise as far as it goes until you can hear a click.
•In the “AUTO”setting, inflation level may not be set automatically when the systolic blood pressure is more than
220 mmHg. Use the unit in the manual setting.
•If the cuff has not been inflated to the necessary level, it may be re-inflated automatically.
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
P-SET
100
AUTO
140 18 0
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
ON/OFF
A
V
G
.
/
1
s
t
/
2
n
d
/
3
r
d
D
E
F
L
A
T
I
O
N
START
STOP
HIDE
P-SET
100
AUTO
140 18 0
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE

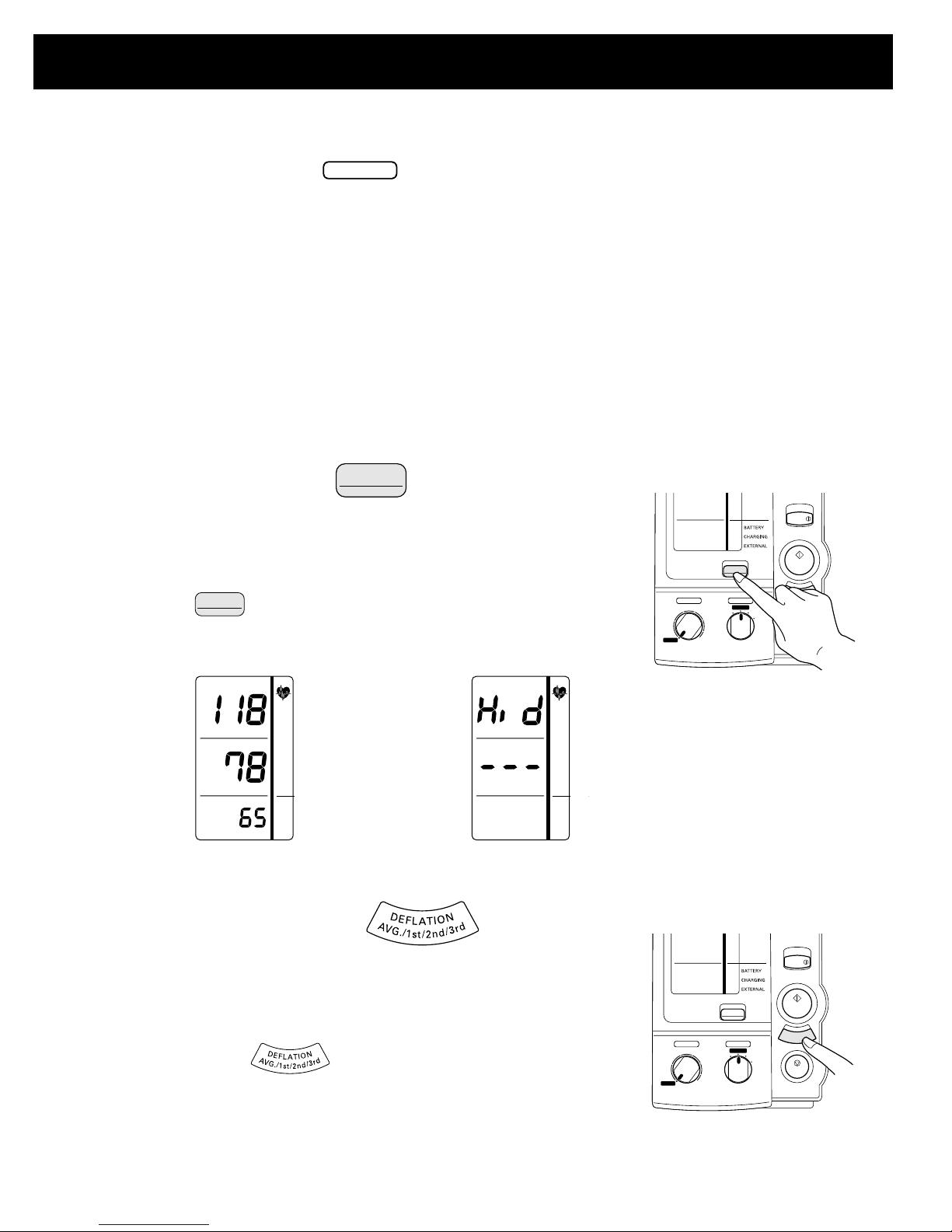

(2) Non-display function
Use to prohibit the display of measurement results. However,
the cuff pressure during measurement is displayed.
This function can be used in the SINGLE and AVG Modes.
By pushing the Button, display or non-display of status
is switched alternatingly.
HIDE
(3) Manual deflation control
Accelerate deflation by pushing the DEFLATION (deflation
control) / Measurement Result Display Switch Button during
deflation in the measurement by the MANU Mode.
With each push of the Button, cuff is deflated rapidly
in increments of 5 to 10 mmHg.
BPM
mmHg
PULSE
SYS
mmHg
DIA
AC
AC
Display Non-display
P-SET
HIDE
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 11

12
FEATURES AND FUNCTIONS
ON/OFF
START
STOP
HIDE
AC
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG. MANU.
CHECK
SINGLE
XL ®
ON/OFF
START
STOP
HIDE
AC
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG . MANU.
CHECK
SINGLE
XL ®
ON/OFF
START
STOP
HIDE
AC
P-SET
100
AUTO
140 180
220
260
280
MODE
AVG . MANU.
CHECK
SINGLE
XL ®
List of Functions for each Mode
Inflation level set-
ting
Non-display func-
tion
Manual deflation
control
Single (SINGLE)
Mode
Average
(AVG) Mode
Auscultation
(MANU) Mode
Check
(CHECK) Mode
Function
Measurement
Mode
(4) AVG Function setting
You can set the number of measurements, the waiting time until the 1st measurement, and the
measurement interval for the AVG Mode.
Items to set Set value
F1 Number of measurements 2 times or 3 times
F2 Waiting time until the start of 1st measurement 0 sec, 3 min, 5 min, or 10 min.
F3 Measurement interval 5 sec, 30 sec, 1 min, or 2 min.
Note: The bold letters represent the factory-set values.
Procedure to change the set values
1) When the power is OFF, push the ON/OFF (power) Button for
more than three seconds while holding the START Button;
F1 is displayed.
2) Push the START Button and select the function to set from
F1 to F3. Each time you push the START Button, the func-
tions change in the order of .
3) Push the DEFLATION (deflation control)/Measurement Result
Display Switch Button and change the set values.
4) When the setting is finished, push the ON/OFF (power)
Button to turn off the power. The setting is changed.
min
sec
Function #
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 12

13
HOW TO APPLY THE CUFF
General advice
•Do not inflate the cuff without being wrapped over
the arm.
•Do not use a damaged cuff.
1. Select the cuff according to the arm size
Arm circumference Name of the cuff
(7"- 9") 17-22 cm HEM-907-CS19 (Small)
(9"- 13") 22-32 cm HEM-907-CR19 (Medium)
(13"- 17") 32-42 cm HEM-907-CL19 (Large)
(17"- 20") 42-50 cm HEM-907-CX19 (Extra Large)
•Check the following before applying the cuff:
1) The bladder is correctly installed in the cuff.
2) The bladder is not twisted inside the cuff.
3) The bladder tube is protruding from the cuff as shown in
the Figure on the right.
2. Connect the air tube securely.
•Connect the air tube to the main unit by securing
the air plug to the base of the air connector.
•Securely connect the air tube and the cuff/bladder
set by rotating the luer connection as shown in
the Figure on the right.
Do not wrap the cuff over an arm to which
intravenous injection or transfusion is being
conducted, or when otherwise contraindicated.
Do not connect the air tube or the cuff to other
equipment which is connected to intracorporeal
organ. Air embolisms may result.
The cuff of OMRON IntelliSense®Blood Pressure Monitor HEM-907XL plays an important role of
collecting the information on blood vessels. Please wrap the cuff according to the procedure, below.
Cuff
Air tube
Air connector
Air plug
Cuff side Air tube side
Extract the air tube from .
Enlarged figure of
the circled part
The extra-large cuff comes with an air tube with
an integrated air plug. Connect the air plug of the
cuff to the air connector securely when
connecting to the main unit.
To use the cuff in extra-large size only
To use the cuff in small, medium or large size
Preparations before Measurement
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 13

14
N
HOW TO APPLY THE CUFF
4. Align the Artery Position Mark
with the brachial artery.
5. Wrap the cuff snugly using both hands
and securely fasten it with the Velcro™
tape. At this time, the lower edge of
the cuff must be placed 1/2" to 1"
above the inner side of elbow joint.
•If the INDEX is positioned outside the RANGE, select the cuff suitable for the
patient’s arm circumference and wrap it again.
•Wrap the cuff so that you can insert only one finger between the cuff and arm.
6. Keep the level of the cuff at the
same level as the heart during the
measurement.
3. Place the right or left hand of the patient
with the palm of hand facing upward.
1/2"-1"
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 14

15
HOW TO USE THE POWER SOURCE
NOTE: Use only the authorized AC Adapter that came with this monitor.
CAUTION
Use only authorized parts and accessories. Parts and accessories not approved for use with the
device may damage the unit.
- DANGER -
TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS.
For connection to a power supply not in the U.S.A., use an attachment plug adapter of the
proper configuration for the power outlet.
The power unit (AC Adapter) is intended to be correctly oriented in a vertical or floor mount
position.
SAVE THESE INSTRUCTIONS
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 15

16
HOW TO USE THE POWER SOURCE
General advice
•Read the instruction manual of the other devices
to be used at the same time with this unit to
understand and be aware of the interaction
between the devices.
Do not use this unit in the presence of
flammable gas, or anesthetics, or in a high
pressure oxygen room or oxygen tent.
Do not touch the AC adapter with wet hands.
Be sure to use the AC adapter from the
power supply of 110 VAC.
Do not install or store this unit where it may
come in contact with water or liquid medication.
This is a Class II device with double isolation.
Earth pin is not for protective purposes.
®
[1]
[2]
How to use the AC adapter
Connect the AC adapter to the DC jack of the main unit [1] and the electric outlet [2].
NOTE: When the AC adapter is connected and the unit is turned off, the AC adapter
charges the installed rechargeable battery.
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 16

17
HOW TO USE THE POWER SOURCE
1. Remove both screws on the upper portion of
the battery cover of this unit, and remove
the cover.
2. Disconnect the old battery pack from the
connector and replace with a new one.
3. Install the battery cover and fasten it with both
screws. Be careful not to pinch the lead wire.
4. Connect the main unit to the AC adapter to
charge the new battery. The battery is not
charged when you purchase the monitor. When you use the battery for the first
time, charge it for more than twelve hours before use.
Battery life
•You can use the unit for approximately three hundred measurements with one charge.
•Approximate life of battery is two years. However the battery life from each charging may be
shortened depending on the state of using. If the interval between charging becomes short and
the icon appears frequently, replace it.
Charging time
•At approximately five seconds after connecting the AC adapter, the unit will start battery charging
automatically.
•While the battery is being charged, the icon turns on.
•The battery can be completely charged in approximately twelve hours.
Battery low
•When the icon starts to blink, twenty to thirty measurements remain on the battery.
However if the Battery Low Mark starts to blink, charge it soon.
•If the icon is displayed, the battery is low and the unit cannot operate. Please charge
the battery.
Automatic Power Off
•When using the unit with the battery, the unit will turn off automatically after five minutes
of inactivity.
•While the AC adapter is connected, the Auto Power Off function does not work.
If battery fluid gets into your eye or comes in
contact with skin, wash the affected area with
water repeatedly. Immediately consult a doctor
for treatment.
Do not use the battery pack for devices other
than for this unit.
Do not disassemble the battery pack.
Installation and Replacement of Battery Pack
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 17

18
HOW TO MEASURE BLOOD PRESSURE
General advice
•Patients should not touch the unit.
If cuff inflation does not stop, remove the cuff
or pull out the air tube from the main unit.
List of Measurement Modes
To measure
only once SINGLE Mode Refer to Page
19.
To measure two
times (or three times)
automatically and
consecutively
AVG Mode Refer to Page
21.
To measure by
using a stetho-
scope
MANU Mode Refer to Page
23.
Confirm readings with the stethoscope when
an irregular pulse wave is displayed or when
the measured value is questionable or erratic.
Do not use a cellular phone near this unit.
Do not use this unit in a vehicle.
How to Measure Blood Pressure
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 18

19
1. Push the ON/OFF (power) Button to
turn on the power.
2. Set the MODE Selector to “SINGLE”.
3. Set the P-SET (inflation level) Knob
to “AUTO”or to the target pressure
value.
4. Measure the patient’s arm size, and
wrap appropriate cuff over the
patient’s arm. (Refer to Pages 13
and 14.)
HOW TO MEASURE
BLOOD PRESSURE (IN SINGLE MODE)
E
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 19

20

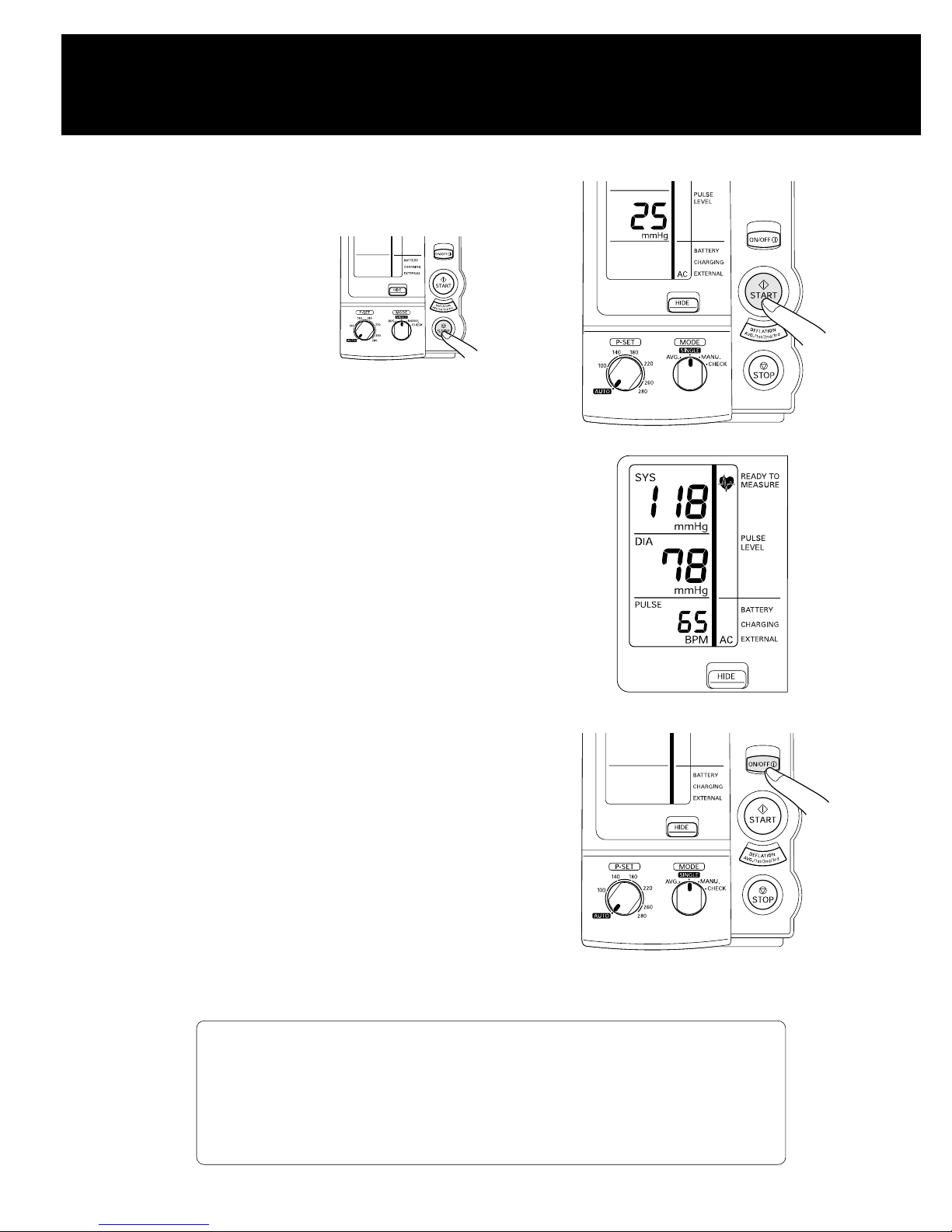

5. Push the START Button to start the
measurement.
•Do not push the
START Button without
wrapping the cuff.
•If you want to stop
measurement, push
the STOP Button. The
cuff will rapidly
deflate.
6. The measurement results are
displayed.
•While the battery pack is in use, the
monitor will turn off automatically after
five minutes of inactivity and the display
(measurement results) will disappear.
(Automatic Power Off)
7. Push the ON/OFF (power) Button to
turn off the power.
If the monitor determines that the pressure value is not correct,
an error display appears (Er1 to 9). In this case, refer to Page
27 and start the measurement again.
HOW TO MEASURE
BLOOD PRESSURE (IN SINGLE MODE)
HEM-907-Z2_E_M.qxd 09.8.28 11:45 AM Page 20
