Wrist Blood Pressure Monitor
Model R2
IM-HEM-6113-E(V)-02-10/2011
5330293-3B

2
Contents
Introduction ..................................................... 3
Important Safety Information ......................... 4
1. Overview ..................................................... 6
2. Preparation ................................................. 9
2.1 Installing/Replacing the Batteries ............ 9
3. Using the Unit ........................................... 11

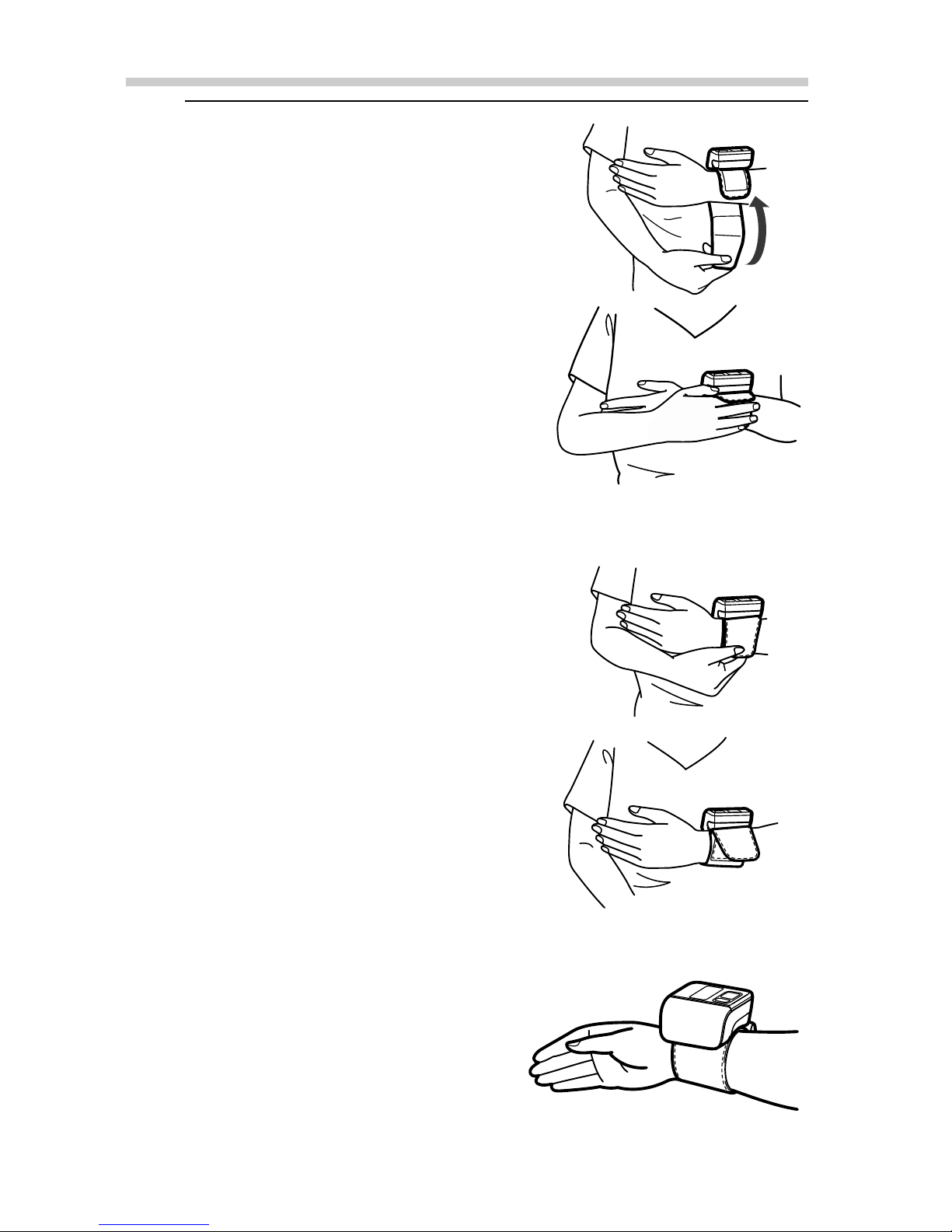

3.1 Applying the Wrist Cuff .......................... 11
3.2 Correct Posture ..................................... 13
3.3 Taking a Reading .................................. 14

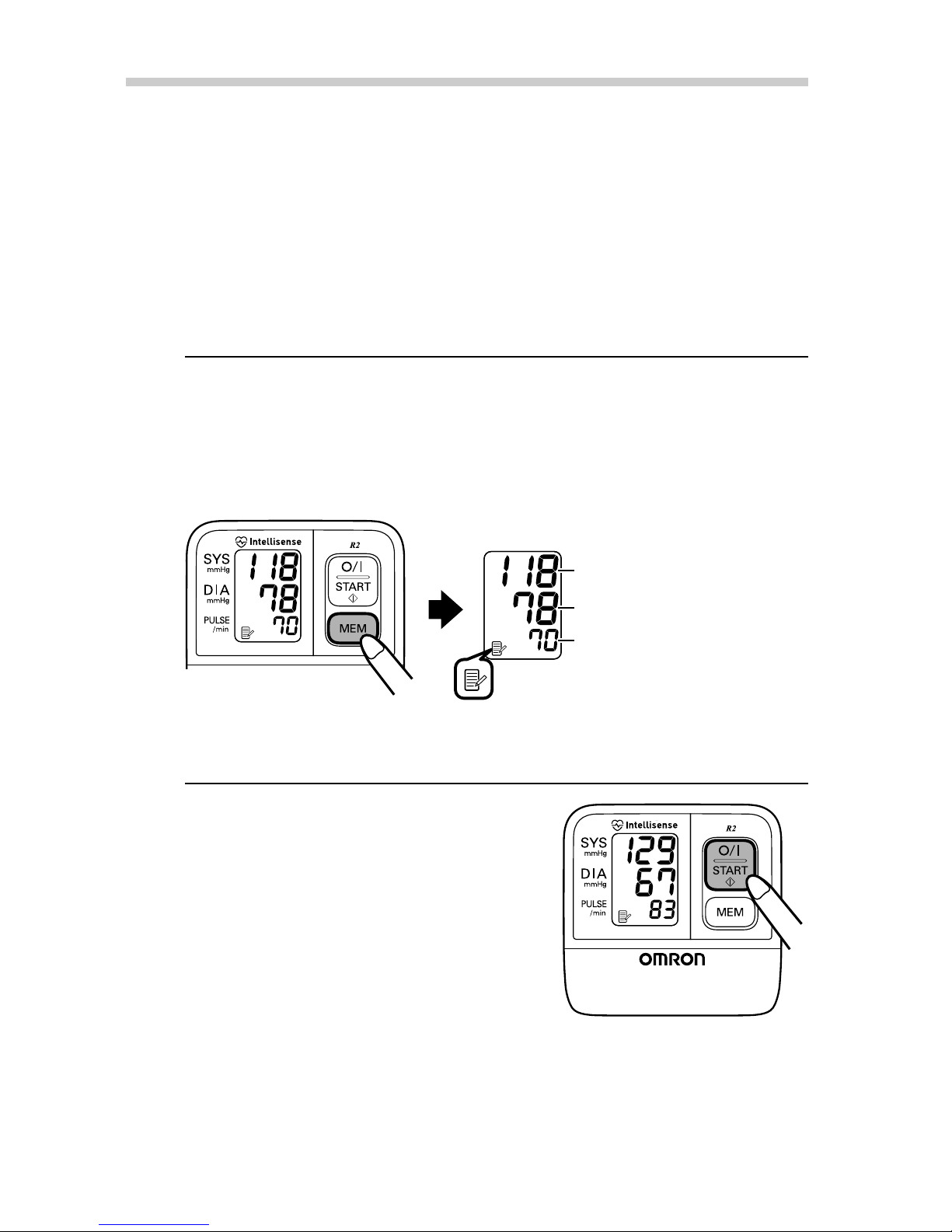

3.4 Using the Memory Function .................. 16
4. Quick Reference Guide ............................ 18
5. Handling Errors and Problems ............... 19
5.1 Error Messages ..................................... 19
5.2 Troubleshooting .................................... 20
6. Maintenance and Storage ........................ 22
7. Technical Data .......................................... 24
8. Some Useful Information about Blood
Pressure .................................................... 27

3
ENEN
Introduction
Thank you for purchasing the OMRON R2 Wrist Blood Pressure
Monitor.
This remarkable, compact and easy to use instrument is ideal for
people who frequently monitor their own blood pressure. The
small, pre-formed wrist cuff is very convenient and easy to apply.
With a push of a button the OMRON Wrist Blood Pressure
Monitor measures your blood pressure and pulse and displays
the reading on a clear digital panel. Perfect for quick, easy
readings at home, at work, and while travelling. It also stores up
to 30 sets of measurement results in memory.
The OMRON Wrist Blood Pressure Monitor uses the
oscillometric method of blood pressure measurement. This
means the unit detects the pulse wave vibrations in the artery of
your wrist and converts the oscillations into a digital reading.
For comfortable controlled inflation without the need of pressure
pre-setting or re-inflation the device uses its advanced
“IntelliSense” technology.
Clinical research has proven a direct relationship between blood
pressure in the wrist and blood pressure in the arm. Changes in
wrist blood pressure reflect changes in arm blood pressure
because the arteries in the wrist and the arm are connected.
Frequently measuring the blood pressure in your wrist will
provide you and your doctor with an accurate indication of
changes in your true blood pressure.
Intended Use
This product is designed to measure the blood pressure and
pulse rate of people within the range of the designated wrist cuff,
following the instructions in this instruction manual.
It is mainly designed for general household use. Please read the
Important Safety Information in this instruction manual before
using the unit.
Please read this instruction manual thoroughly before
using the unit. For specific information about your own
blood pressure, CONSULT YOUR DOCTOR.

4
Important Safety Information
Consult your doctor prior to using in pregnancy or if diagnosed
with arrhythmia or arteriosclerosis.
Please read this section carefully before using the unit.
Warning:
• Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement
results and self-treatment are dangerous.
• People with severe blood flow problems, or blood disorders,
should consult a doctor before using the unit, as cuff inflation
can cause internal bleeding.
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with
plenty of clean water. Consult a doctor immediately.
Caution:
• Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury to the user or
patient or damage to the equipment or other property.
(General Usage)
• Do not leave the unit unattended with infants or persons who
cannot express their consent.
• Do not use the unit for any purpose other than measuring
blood pressure.
• Do not disassemble the unit or wrist cuff.
• Do not inflate the wrist cuff over 299 mmHg.
• Do not use a mobile phone or other devices that emit
electromagnetic fields, near the unit. This may result in
incorrect operation of the unit.
• Do not operate unit in a moving vehicle (car, airplane).

5
Important Safety Information
EN
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately
rinse with plenty of clean water.
• Use only two “AAA” alkaline batteries with this unit. Do not use
other types of batteries.
• Do not insert the batteries with their polarities incorrectly
aligned.
• Replace old batteries with new ones immediately. Replace
both batteries at the same time.
• Remove the batteries if the unit will not be used for three
months or more.
• Do not use new and used batteries together.
General Precautions
• Do not apply strong shocks and vibrations to or drop the unit.
• Do not take measurements after bathing, drinking alcohol,
smoking, exercising or eating.
• Do not inflate the wrist cuff when it is not wrapped around your
wrist.
• Do not wash the wrist cuff or immerse it in water.
• Read and follow the “Important information regarding Electro
Magnetic Compatibility (EMC)” in the Technical Data Section.
• Read and follow the “Correct Disposal of This Product” in the
Technical Data Section when disposing of the device and any
used accessories or optional parts.

6
1. Overview
Main Unit
A. Display
B. Battery compartment
cover
C. Wrist cuff
D. O/I START button
E. MEM (Memory) button
A
B
C
D
E

7
1.Overview
EN
Display
F. Systolic blood pressure
G. Diastolic blood pressure
H. Memory symbol
(Displayed when viewing
values stored in memory)
I. Battery low symbol
J. Heartbeat symbol
1. Flashes during
measurement
2. If flashing after
measurement completed or
when viewing results
stored in the memory,
indicates blood pressure
out of recommended
range*
K. Pulse
L. Deflation symbol
*Note: If your systolic or diastolic
pressure is outside the
standard range (above
135/85 mmHg) the
Heartbeat symbol ( )
will blink. Please refer to
“3.3 Taking a Reading”.
F
J
L
K
G
I
H

8
1.Overview
Package contents
M. Two “AAA” alkaline (LR03)
batteries
N. Storage case
• Blood pressure pass
• Blood Pressure Monitor unit
• Instruction manual
• Guarantee card
M
N

9
ENEN
2. Preparation
2.1 Installing/Replacing the Batteries

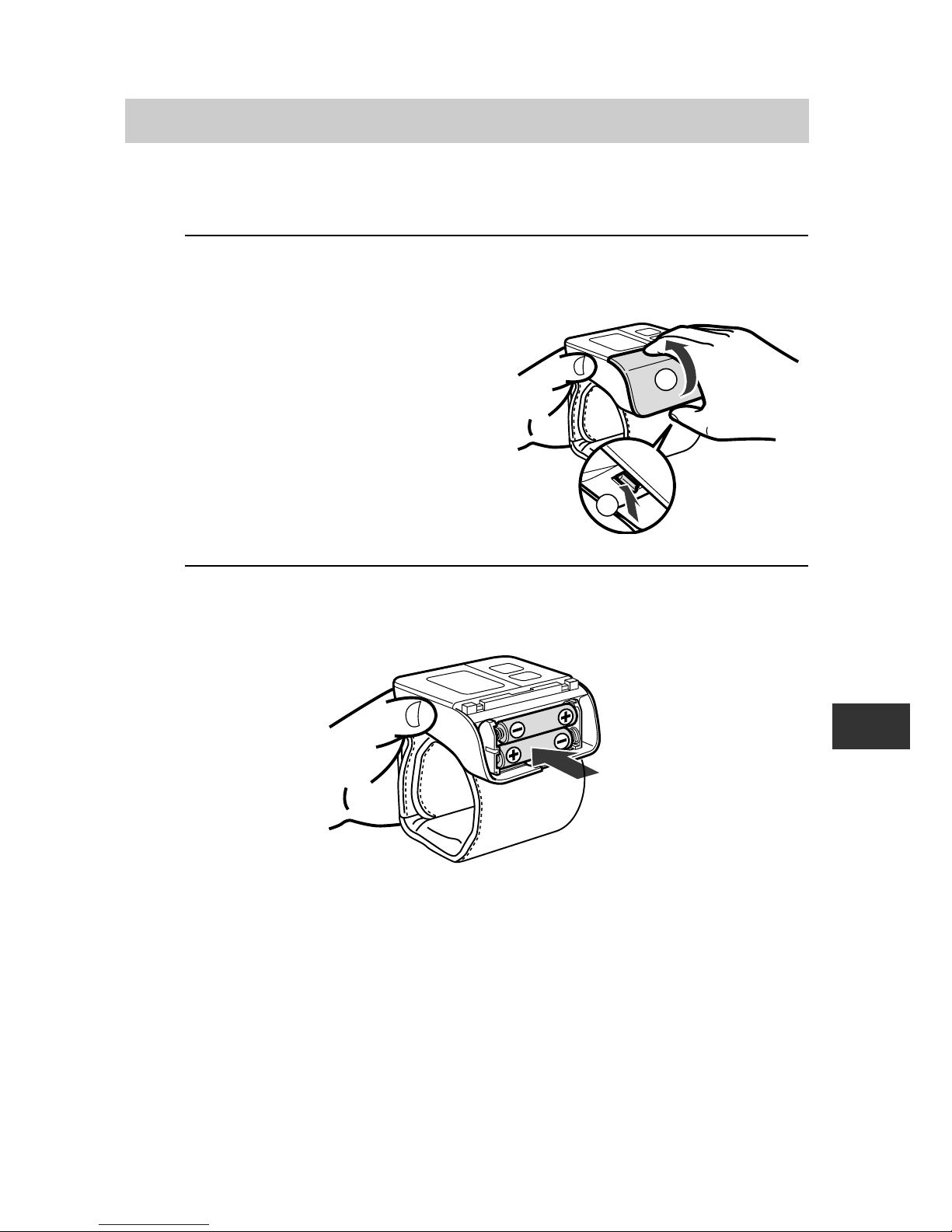

1. Remove the battery compartment cover by pulling it off in
the direction of the arrow.
1) Push the hook on the
bottom of the battery
cover.
2) Pull the cover off the
main unit.
2. Insert two identical 1.5V “AAA” alkaline (LR03) batteries in
the battery compartment.
Make sure their polarity (+/-) is aligned with the polarity
(+/-) as indicated in the battery compartment.
1
2

10
2.Preparation
3. Put the battery cover back in place.
Note: The measurement values continue to be stored in
memory even after the batteries are replaced.
Battery Life & Replacement

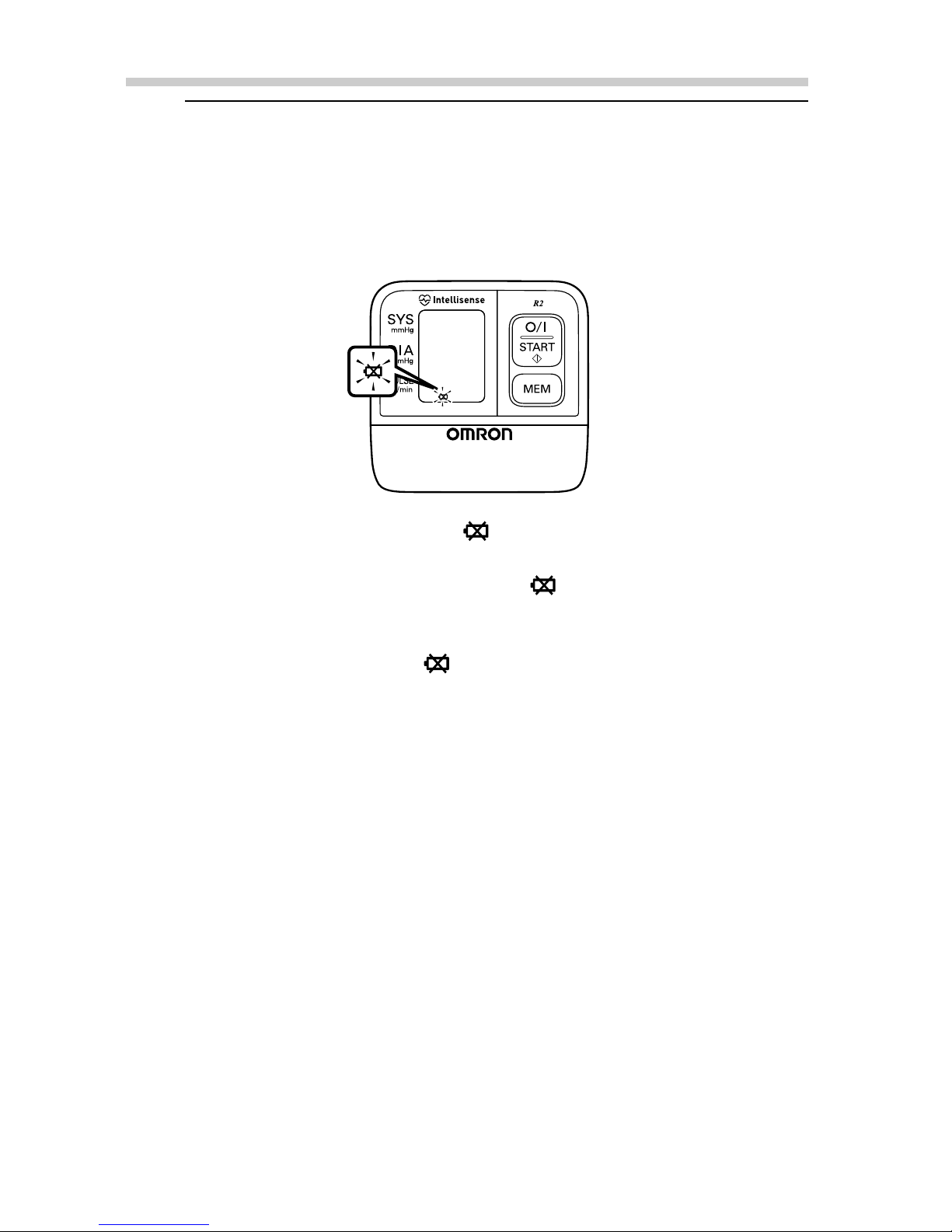

If the battery low symbol ( ) appears on the display,
replace both batteries at the same time.
- When the battery low symbol ( ) starts to blink, you will
still be able to use the unit for a short while. You should
replace the batteries with new ones as soon as possible.
- When the symbol ( ) remains lit, the batteries are
exhausted. You should replace the batteries with new
ones at once.
• Turn the unit off before replacing the batteries.
• Remove the batteries if the unit will not be used for three
months or more.
• Dispose of batteries according to applicable local
regulations.
• Two new identical 1.5V “AAA” alkaline batteries will last
for approximately 300 measurements, when used to take
two measurements a day.
• Since the supplied batteries are for monitoring use only,
they may have a shorter life and do not last for 300
measurements.
