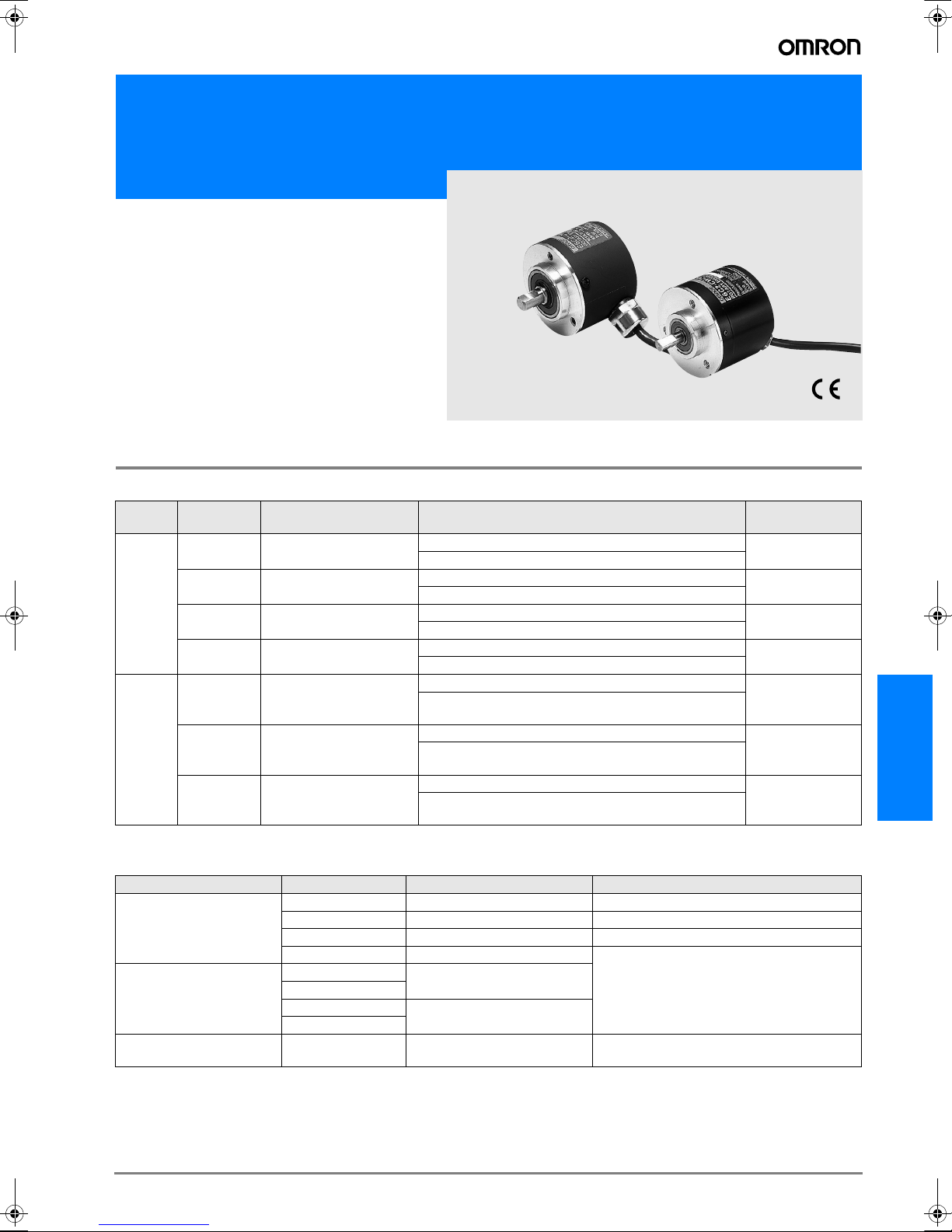

E-7E6C3-C/E6C2-C
E6C3-C/E6C2-C
Incremental Rotary Encoder OD 50 dia. (thin)
E6C2-C/E6C3-C
Tough & Easy
• Drip-proof, oil-proof construction meets IP64F stan-
dards
• Shaft withstanding heavy loads, 80 N radially, 50 N
thrust (axially)
• Protective Circuit Output Shorting
• Space-saving, A-slant cable protrusion for easy in-
stallation
• Shock resistance strengthened by metal disk.
E6C2-C: 600P/R max.
E6C3-C#H: 500P/R max.
Ordering Information
Sensors
Note: For order placement add the resolution (pulses per revolution) between the part number. For example, E6C2-CWZ6C 100P/R.
Accessories (Order Separately)
Powersupply
voltage Output form Resolution (pulse/rotation) Model
Stan-
dard
models
5 to 24 VDC NPN open collector output 10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600 E6C2-CWZ6C
720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000
12 to 24VDC PNP open collector output 100, 200, 360, 500, 600 E6C2-CWZ5B
1,000, 2,000
5 to 12 VDC NPN voltage output 10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600 E6C2-CWZ3E
720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000
5 VDC Line driver output 10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600 E6C2-CWZ1X
720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000
8 dia.
tough
model
12 to 24VDC Complimentary output
100, 200
E6C3-CWZ5GH
300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500,
1,800, 2,000, 2,048, 2,500, 3,600
5 to 12 VDC NPN voltage output
100, 200
E6C3-CWZ3EH
300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500,
1,800, 2,000, 2,048, 2,500, 3,600
5 to 12 VDC Line driver output
100, 200
E6C3-CWZ3XH
300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500,
1,800, 2,000, 2,048, 2,500, 3,600
Item Model Applicable Rotary Encoders Remarks
Coupling
E69-C06B E6C2-CWZ#---
E69-C68B E6C3-CWZ#/#H Diameter of ends: 6 to 8 dia.
E69-C06M E6C2-CWZ#Metal construction
E69-C08B E6C3-CWZ#H
---
Flanges
E69-FCA E6C2-CWZ#
E69-FCA02
E69-FCA03 E6C3-CWZ#H
E69-FCA04
Mounting Bracket E69-2 --- Provided with the E69-FCA02 and E69-FCA04
Flange.
F502-EN2-04.book Seite 7 Dienstag, 26. Juli 2005 5:48 17

E-8 Rotary Encoders
Dimensions (Unit: mm)
Sensors
Standard
E6C2-CWZ##
Solid 8 dia. Shaft Model
E6C3-CWZ##H
120˚120˚
38 dia.
Three, M3 holes Depth: 7
Origin of phase Z
Note:
2-m-long, oil-resistive PVC cable, 5-dia.
(conductor cross-section: 0.2mm2, insulator: 1.0 dia.)
five conductors and shield
(eight conductor for line driver use)
(see note)
(60)
(6.59)
40
15 5
10
1.6
1
50 dia.
25 dia. 0
-0.021
6 dia. 0
-0.021
8 dia. +0
−0.018
5 dia. oil-proof PVC, shielded 5-conductor cable (8-conductor for line driver)
(conductor cross-section: 0.2 mm2; insulation diameter: 1.1 mm)
Standard length: 1 m
6
8.8
6
12 dia.
50 dia.
1
1
5
D cut: Phase-Z postion (range: ±15°)
10
40 dia.±0.1
10
Three, M4 holes
Depth: 5 120°±0.1
120°±0.1
30 dia.+0
−0.021
(15)
38
20
(58)
In the interest of product improvement, specifications are subject to change without notice.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. F01E-EN-01
