Thank you for purchasing the OMRON Electronic Nerve
Stimulator HV-F127.
Please read this Instruction Manual thoroughly before using
this unit for the safe and correct use of it.
Please keep this Instruction Manual always at hand for your
future reference.
Instruction Manual
CONTENTS
Before Using the Unit
Notes on Safety...............................1
General information on
Omron HV-F127
Electronic Nerve Stimulator ..........3
Features of the Product...................3
Components of the Product ............4
Information on
Low-Frequency Therapy................4
Names and Functions
of the Parts....................................5
How to Use
How to Insert the Batteries..............7
How to Connect the Electrode Cord...7
How to Attach the Pad ....................8
Examples of Application..................9
How to Treat ..................................11
Treat with the Relieve Button .....13
Treat with the Region Button .....14
Treat with the Massage Button ..15
After Treatment –Storing the unit....16
Maintenance
When it is Difficult to Attach
the Pad........................................17
How to Clean and Store the Unit ........18
Troubleshooting .............................19
Specifications ................................20
SHLDR
SOLE LEG
WAIST
TAP KNEAD PUSH RUB
REGION
MASSAGE
POINT
SPECIAL
MODE
REPEAT
SOFT
OFF
INTENSITY
/POWER
R
W
WIDE
RELIEVE
ELECTRONIC
NERVE STIMULATOR
HV_F127_En.qxd 07.9.18 7:12 PM Page 1
All for Healthcare

1
●The icons and warning signs are indicated here for your safe and correct use of the product as well as to prevent
injuries and/or damage to properties.
●The icons and meanings are as follows:
The icon indicates prohibitions (must not do).
Matters involving certain prohibitions are indicated by text or pictures in or near .
The icon to the left means “Prohibitions to Disassemble”.
The ●icon indicates something that is compulsory (must be observed).
Matters involving certain compulsory actions are indicated by text or pictures in or near ●.
The icon to the left refers to “General compulsory action”.
Examples of Icons
Notes on Safety (Please read this section carefully before using the unit.)
Before Using the Unit
This unit must not be used in combination with the following medical devices:
(1) Internally transplanted electronic medical devices, e.g. pacemakers
(2) Electronic life support equipment, such as respirators
(3) Electronic medical devices attached to the body, such as electrocardiographs
Using this unit with other electronic medical devices may cause erroneous operation of
those devices.
DANGER
Persons with the following conditions must consult the doctor before using this unit.
1) acute disease
2) malignant tumor
3) infectious disease
4) pregnancy
5) cardiac dysfunction
6) high fever
7) abnormal blood pressure
8) skin sensory disorders or skin problems
9) receiving medical treatment, especially those feeling discomfort
May cause an accident or ill health.
Do not use this unit near the heart, above the neck, on the head, around the mouth or on
diseased skin.
May cause an accident or ill health.
Do not use this unit simultaneously with other therapeutic device or in combination with
ointments including spray-type ointments.
May cause discomfort or ill health.
Do not use this unit for purposes other than treatment indicated in this manual.
May lead to accident, trouble, or failure of the unit.
Do not insert the electrode cord plug into any place other than the electrode cord jack of the
main unit.
May cause an electric shock or accident.
Do not disassemble or remodel this unit.
May cause fire, trouble, or accident.
WARNING
HV_F127_En.qxd 07.9.18 7:12 PM Page 2

2
Notes on Safety
If the unit is not functioning properly or you feel discomfort, immediately stop using the unit.
If you feel any trouble with your body or skin, consult the doctor and follow his/her instructions.
If you want to move the Electrode Pad to another region or your body during treatment, be sure
to turn off the power.
If not, you may receive strong electrical shock.
Do not try to attach the Pads to any other person during the treatment.
You may receive strong electrical shock.
Do not start treatment while wearing an electronic device.
The settings and timings of the device may be affected.
Do not use this unit on infants or people not capable of expressing their intensions.
May cause an accident or ill health.
Do not use this unit in places with high humidity such as the bathrooms or while taking a bath
or shower.
You will receive a strong electrical shock.
Do not use this unit while sleeping.
The main unit may develop trouble, or the pad may move to an unexpected region and cause ill
health.
Do not use this unit while driving.
Receiving sudden strong stimulation may lead to traffic accident or trouble.
Do not leave the Electrode Pad attached to the skin after treatment.
Prolonged attachment may cause skin irritation or infection.
Be careful not to allow any metal object, such as belt buckle or necklace come into contact
with the Electrode Pad during treatment.
If not, you will receive a strong electrical shock.
Do not use cellular phones near the Low-Frequency Electrotherapy Electronic Pulse Massager.
The unit may operate erroneously.
Do not use this unit to treat one region for a long time (more than 30 minutes).
The muscles of the region under treatment may be exhausted and cause poor physical condition.
CAUTION
HV_F127_En.qxd 07.9.18 7:12 PM Page 3

General information on Omron HV-F127
Electronic Nerve Stimulator
3
* 9 Automatic Courses
The device allows you to select your favourite stimulation programme from 9 Automatic Courses for optimized
treatment according to your symptom and needs.
RELIEVE Button (for muscle pain)
This function relieves acute pain quickly with high frequency of 1200 Hz. It is suitable for treatment of pain in the
lower back and joints.
REGION Button (4 courses for shoulders, sole, calf, and lower back)
Treats the selected region with effective pre-programmed courses.
MASSAGE Button (4 courses of Tapping, Kneading, Pushing, and Rubbing)
Allows you to select the massage method according to your needs.
* 4 Special Modes
Allows you to adjust the unit to your favourite stimulations.
Use the Special Modes of SOFT, REPEAT, POINT, WIDE and Balance Adjustment (switching between red and
white buttons) in combination with the Automatic Course to receive treatment in your favourite stimulation mode.
* Washable and long-lasting Long-Life Pads
Features of the Product
The OMRON HV-F127 Electronic Nerve Stimulator is an electro-therapeutic device
working according to the TENS principle (Transcutaneous Electrical Nerve
Stimulation).
The HV-F127 Electronic Nerve Stimulator enables you to reduce and relieve your pain symptoms.
The treatment alleviates muscle and nerve pain through gentle stimulation. But always remember
that pain also has a very important warning function, telling us that something is wrong. If you
suffer from any serious illness, consult your doctor in order to confirm whether you can use the
Electronic Nerve Stimulator.
For active people, it provides a massaging experience which has a very beneficial effect on muscle
and shoulder or neck stiffness. It is very good for soothing overall bodily fatigue and improves the
blood circulation in the treated areas.
Our nerves, which radiate throughout the entire body as a complex network, perform various tasks
which are indispensable for maintaining proper functioning. They conduct impulses between the
central nervous system and an organ or a part of the body. They also transmit commands from and
to the brain, and they regulate the body’s functions, as well as muscle contraction and relaxation.
Using the TENS method, Transcutaneous (i.e. passing through the skin) Electrical Nerve Stimulation,
the important nerve functions can be activated effectively. The frequency impulses, which are
comparable to the natural bioelectricity, stimulate the body’s pain-relieving mechanisms. In this way,
the transmission of pain by the nerve fibres is inhibited and secretion of pain-relieving, morphine
like substances such as endorphins, are triggered. Furthermore, the blood flow through the treated body
zones is improved.
HV_F127_En.qxd 07.9.18 7:12 PM Page 4

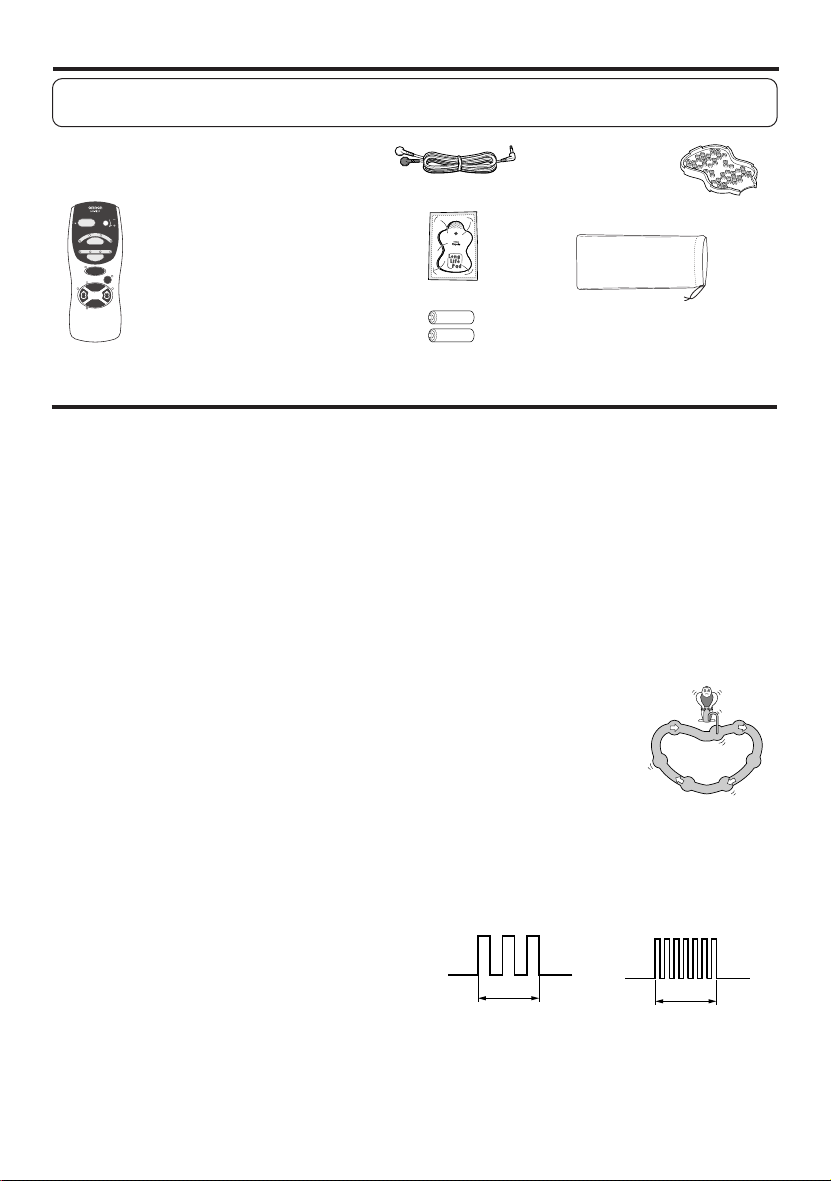

1. Main unit 2. Type K Electrode Cord
Note: This is a consumable.
3. Long-Life Pad
(to be referred to as "Pad"
hereinafter.)
One set contains two Pads.
❇These are consumables.
4. AAA alkaline batteries for
trial use
5. Electrode Holder
6. Soft fabric case
7. Instruction Manual
The following components are included in the box.
If any components are missing, please contact the nearest OMRON dealer.
Information on High & Low-Frequency Therapy
What is Low Frequency?
A treatment method effectively using the physiological action
Although we do not notice, our bodies generate very weak electricity from various parts of the body including the brain,
heart, muscles, and nerves. This electricity is called bioelectricity. The bioelectricity plays an essential role for the
normal functioning of our bodies. Our bodies sensitively react to electric stimulation applied from the outside and
cause various changes. The method to treat abnormality of bioelectricity, which is manifested as stiffness or pain, by
effectively using the above mentioned action is called electrotherapy of which low-frequency therapy is typical.
Mechanism of low-frequency electrotherapy
Pumping action of muscles
Muscles contract and relax with the flow of the low-frequency current. This helps to
activate the pumping action of the heart. When the muscle relaxes, a large amount of
blood flows in, and when the muscle contracts, the blood containing wastes is pumped out.
With repeated actions, the blood flows smoother and the blood circulation is improved.
Shutting out pain signal
When low-frequency current flows to the region experiencing pain, it acts on the transmission mechanism of pain.
Thus low-frequency current is said to reduce the transmission of pain to the brain.
Blood vessel
Muscle
Actions of the low-frequency current
What is frequency?
Frequency is the number of times electric stimulation is applied to the body per second and is represented by a unit
called Hertz (Hz).
Effects of low frequency stimulation
Low-frequency stimulation is effective in relieving
symptoms of chronic pain, stiffness and numbness. It is
said to have the effects to activate secretion of pain-
suppressing substance or to improve the blood circulation.
Standard treatment time
Long-time treatment and strong stimulation cause muscular fatigue and generate adverse effects.
In order to avoid the excessive treatment, Electronic Nerve Stimulator, model HV-F127 is made to turn off the power
automatically in 15 minutes.
one second
3 stimulation in a second = 3 Hz 100 stimulation in a second = 100 Hz
one second
4
RELIEVE
SHLDR
SOLE LEG
WAIST
TAP KNEAD PUSH RUB
REGION
MASSAGE
POINT
WIDE
RSPECIAL
MODE
REPEAT
SOFT
OFF
INTENSITY
/POWER
W
ELECTRONIC
NERVE STIMULATOR
What is High Frequency?
Effects of high frequency stimulation
High frequency stimulation is effective for acute (nerve) pain and is said to be especially useful in the immediate
blockage of pain transmission compared to low-frequency stimulation.
Components of the Product
HV_F127_En.qxd 07.9.18 7:12 PM Page 5

Main Unit
RELIEVE
SHLDR
SOLE LEG
WAIST
TAP KNEAD PUSH RUB
REGION
MASSAGE
R
SPECIAL
MODE
REPEAT
SOFT
OFF
INTENSITY
/POWER
W
OFF
POINT
WIDE
ELECTRONIC
NERVE STIMULATOR
Electrode
Cord Jack
Electrode Cord Plug
Intensity Adjustment
Dial/Power Button
Turns on and off the power
and adjusts the intensity of
stimulation.
Back of the Main Unit
5
Names and Functions of the Parts
Battery
Cover
Special Mode
You can use this mode when you want to
adjust the stimulation to your favourite
programme according to the stiffness and
pain. This mode can be used in combination
with any Automatic Courses.
SOFT
The unit relieves stiffness comfortably
with soft stimulation without giving the
feel of irritation.
REPEAT
The unit repeats your favourite stimulation.
Repeat Mode
Automatic Course
Select one programme from each course
in the treatment, region, and massage
method
Relieve Button
The program treats the region with high frequency of
1200 Hz, which helps to relieve acute pain promptly.
Region Button
The unit treats the selected region with the effective
program.
Massage Button
Select your favourite massage method according to
your symptom.
Electrode Cord
Connects the Main unit with the Pad
.......................................................
Soft Mode
.......................................................
HV_F127_En.qxd 07.9.18 7:12 PM Page 6

Tab of the Pad
Hold the Tab to peel off
the Pad.
Electrode Cord Plug
Attach the red or the white plug
to each Pad.
6
The unit treats the red and the white sides alternately.
The unit treats both the red and white sides simultaneously.
❇Select either the Wide or the Point Button.
POINT
The unit emphasize therapy on the red side.
The unit emphasize therapy on the white side.
Point & Wide Mode
Balance Adjustment
(Switching between
red and white
buttons)
When is
selected
POINT
Emphasis on intensity is
placed upon the red side
while treating both sides
alternately.
Emphasis on intensity is
placed upon the white
side while treating both
sides alternately.
Treats both red and white
sides with the same
intensity alternately.
Emphasis on intensity is
placed upon the red side
while treating both sides
simultaneously.
Emphasis on intensity is
placed upon the white
side while treating both
sides simultaneously.
Treats both red and white
sides with the same
intensity simultaneously.
Selecting Selecting Selecting None of Them
WIDE
When is
selected
WIDE
R
R
W
W
HV_F127_En.qxd 07.9.18 7:12 PM Page 7

1. Turn the Intensity Adjustment Dial/Power Switch to the “OFF”position.
2. Open battery cover on the back of the main unit.
3. Insert batteries according to the polarities shown in the
battery compartment.
4. Close the battery cover.
7
How to Insert Batteries
How to Use
General advice from OMRON on the handling of batteries
•The supplied batteries are for the trial use only and may wear out in less than three months.
•Replace the worn batteries with new ones immediately.
•If you are not going to use the unit for more than three months, remove the batteries.
•If you leave the unit without using it for a long time when the batteries are included inside, leakage from the
batteries may occur leading to trouble.
•Do not use new and worn batteries together or different types of batteries together.
•Insert the batteries with the polarities (+ and –) in correct alignment.
•When handling the batteries, be sure to read the notes on the batteries.
Standard for battery replacement
If you feel the massage stimulation is weak, the batteries may be worn. Replace the batteries with new ones.

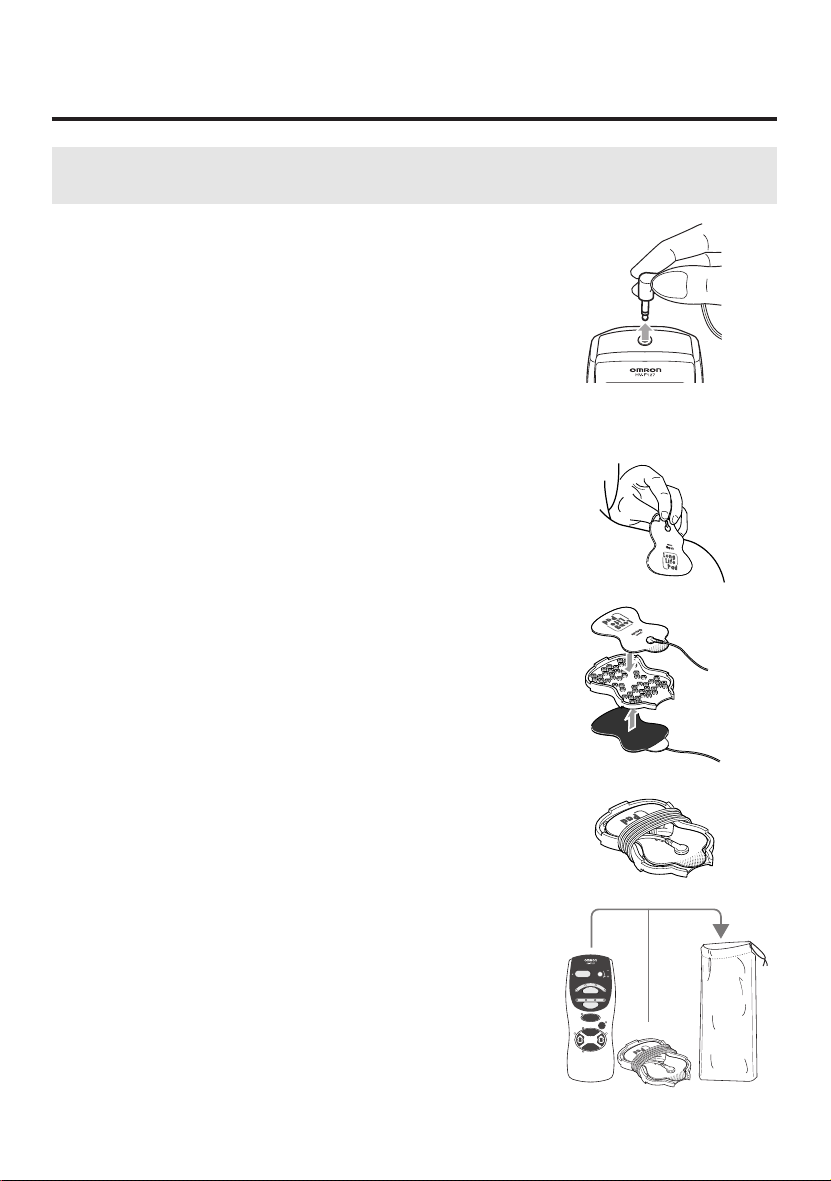

How to Connect the Electrode Cord
1. Turn the Intensity Adjustment Dial/Power Switch to
the “OFF”position.
2. Connect the Electrode Cord with the Main Unit.
Insert the Electrode Cord Plug into the Electrode Cord Jack.
3. Connect the Electrode Cord to the Big Pad.
When using the unit for the first time
Take out the Pads from the clear plastic bag.
❇Do not peel off the clear film attached to the Pad at this time.
1.5V LR03 OOOOOO
SIZU'AAA'
1.5V LR03 OOOOOO
SIZU'AAA'
HV_F127_En.qxd 07.9.18 7:12 PM Page 8

8
Place the Pad on a flat surface and securely connect the Electrode Cord Plug
with the Pad.
❇Although Electrode Cord Plugs are provided in red and white, either plug can
be connected with one of the Pads irrespective of color.
General advice from OMRON on the handling of Electrode Cord
•Avoid excessive bending and pulling of the Electrode Cord.
•Hold the Electrode Cord Plug when unplugging the Electrode Cord from the Main Unit.
•If the Electrode Cord is torn or in trouble, please contact the store where you purchased the unit or at the
nearest OMRON dealer.

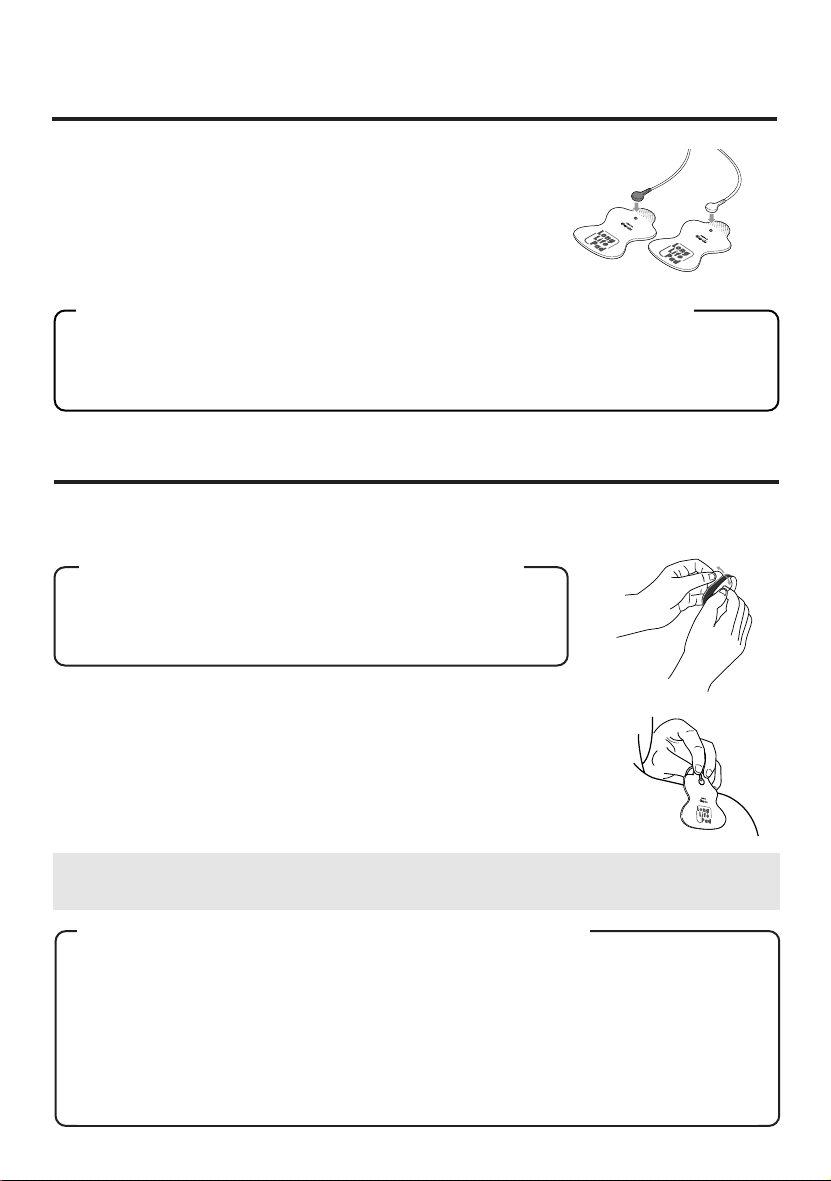

Attach each Pad to the region you want to treat without bending it.
How to Attach the Pad
When you use the unit for the first time:
A clear plastic film is attached to the Pad.
As the Pad has strong adhesiveness, peel off the clear plastic film from the
Pad and attach the Pad to the region you want to receive treatment.
❇Discard the peeled off clear film as it should not be used anymore.
❇It may be difficult for you to attach the Pad on your back such as shoulders or lower
back. It is a good idea to ask someone in your family to help you.
Attach the Pad close to the skin.
❇If the Pad comes off from the skin, the unit is turned off automatically in approximately 7 seconds.
General Advice from OMRON on the handling of Pad
•Do not place pads one on top of the other.
•Do not bend the Pad.
•Do not touch the adhesive surface with your fingers.
•When you perspire after taking a bath or immediately after exercising, wipe your sweat off the region you
want to treat before using the unit.
•If the Pad is erroneously adhered to a cloth or so and does not come off easily, do not force to peel it off.
Instead, moisten the back of the cloth to which the Pad is attached with a small amount of water, and then
the Pad will come off easily.
•When the adhesive property of Pad drops, take appropriate measures as necessary.
•If you are going to use a wet Pad or the Pad immediately after it is washed, let it dry sufficiently. Especially
let the adhesive surface air-dry.
HV_F127_En.qxd 07.9.18 7:12 PM Page 9

Shoulders
Stiff shoulder is presumably caused by blood congestion of trapezius muscle that moves shoulders, compression of
nerves by the accumulation of fatigue substances, or poor blood circulation of subcutaneous tissues such as muscles.
Attach the Pads symmetrically on the region of stiff shoulders with the backbone as the center.
9
Examples of Application
Trapezius muscle
For stiff shoulders, it is effective
to attach the Pads to the shaded
regions as shown in the diagram.
Sole
Chilly feeling is presumably caused by poor blood circulation in the limbs when the nerves are out of balance.
Swelling and fatigue of foot is presumably caused by the poor reflux of blood and body fluid. Attach one Pad to the
sole and another one to the calf.
It is effective to attach the Pads to
the shaded regions of sole as
shown in the diagram.
HV_F127_En.qxd 07.9.18 7:12 PM Page 10

10
Calf
Swelling and fatigue of Calf is presumably caused by congestion of blood and accumulation of fatigue substances in
that region. Attach the Pads to upper and lower calf.
It is effective to attach the Pads to the
shaded regions of calf as shown in the
diagram.
Waist (Lower Back)
Back pain is caused by various reasons. The type of back pain that can be treated by low-frequency therapy includes
stiffness of the lower back, muscle pain, and neuralgia (nerve pain).
Attach the Pads symmetrically to the regions you feel pain with the backbone as the center.
It is effective to attach the
Pads to the shaded regions
of lower back as shown in
the diagram.
HV_F127_En.qxd 07.9.18 7:12 PM Page 11

RELIEVE
SHLDR
SOLE LEG
WAIST
TAP KNEAD PUSH RUB
REGION
MASSAGE
POINT
WIDE
R
SPECIAL
MODE
REPEAT
SOFT
OFF
INTENSITY
/POWER
W
ELECTRONIC
NERVE STIMULATOR
11
How to Treat
This section explains the treatment procedure and the entire operation flow from turning on the power
to storing of the unit.
Three treatment methods are available. Select your favourite one to receive treatment.
– Treat with the Relieve Button
When you want to relieve severe acute pain promptly.
–Treat with the Region Button
When you want to treat the selected region of shoulder, sole, calf, and lower back (waist) with the
effective program.
–Treat with the Massage Button
When you want to treat the region according to your symptom and favourite operation by selecting the
massage method from Tapping, Kneading, Pushing, and Rubbing.
Have you connected the Electrode Cord? (Refer to Page 7.)
Have you attached the Pads to the regions you want to receive treatment? (Refer to Page 8.)
1. Turn on the power.
Rotate the Intensity Dial/Power Button downwards.
When you hear a click, the power is turned on and the treatment
starts.
❇When you use the unit for the first time, the Shoulder light will flash
and WIDE will be displayed. When you use the unit for the second
time and after, the Buttons you used in the previous treatment
will flash.
2. Select one treatment method.
–Treat with the Relieve Button (Refer to Page 13.)
–Treat with the Region Button (Refer to Page 14.)
–Treat with the Massage Button (Refer to Page 15.)
If the Pads come off:
If the Pads come off from the skin, the power will be turned off
automatically in approximately 7 seconds. Turn the Power to OFF,
then re-attach the Pads correctly and turn on the power again.
Click
HV_F127_En.qxd 07.9.18 7:12 PM Page 12

RELIEVE
SHLDR
SOLE LEG
WAIST
TAP KNEAD PUSH RUB
REGION
MASSAGE
R
SPECIAL
MODE
REPEAT
SOFT
INTENSITY
/POWER
W
OFF
POINT
WIDE
ELECTRONIC
NERVE STIMULATOR
12
3. Adjust the intensity of stimulation.
Select your favorite intensity level from 1 to 10 by rotating the
Intensity Dial/Power Button.
Standard for treatment
Duration: 10 to 15 minutes per region for each time
Number of treatment times: Once or twice in a day
Intensity: As much as you feel comfortable when using this unit
4. When the treatment ends, turn off the power.
Rotate the Intensity Dial/Power Button upwards. When you hear a
click, the power is turned off.
❇The power will be turned off automatically in approximately 15
minutes after the treatment starts. Even when the power is turned
off automatically, turn off the Intensity Dial/Power Button.
Otherwise, the batteries will wear out slightly faster.
5. Store the unit.
❇If you leave the Pads as they are, they will become dirty or the
adhesiveness will deteriorate. When the treatment ends, attach
the Pads to the Electrode Holder for storage.
(Refer to Page 16.)
Continued on the following page.
Click
RELIEVE
SHLDR
SOLE LEG
WAIST
TAP KNEAD PUSH RUB
REGION
MASSAGE
R
SPECIAL
MODE
REPEAT
SOFT
INTENSITY
/POWER
W
OFF
POINT
WIDE
ELECTRONIC
NERVE STIMULATOR
HV_F127_En.qxd 07.9.18 7:12 PM Page 13

RELIEVE
SHLDR
SOLE LEG
WAIST
TAP KNEAD PUSH RUB
REGION
MASSAGE
POINT
WIDE
R
SPECIAL
MODE
REPEAT
SOFT
1
W
ELECTRONIC
NERVE STIMULATOR
RELIEVE
INTENSITY
/POWER
If you do not like the feel of irritation:
Use the Soft Mode.
The unit relieves stiffness with soft stimula-
tions without giving the feel of irritation.
If you want to repeatedly use only your
favourite stimulation:
Use the Repeat Mode.
The unit repeats your favourite stimulation.
How to Treat Treat the region by selecting one course from Relieve, Region, and Massage.
13
Treat the region with the Button
When you want to relieve severe acute pain promptly
RELIEVE
1. Push the Relieve Button.
This is a program using high-frequency stimulation of 1200 Hz, which
is said to relieve acute pain quickly.
With the use of various stimulations of 1200 Hz frequency, you will not
get bored or become addicted to the treatment. This method is
suitable for quickly relieving acute pain.
❇When you use the unit for the first time, the Shoulder light will flash
and WIDE will be displayed. When you use the unit for the second
time and after, the Button you used in the previous treatment
will flash.
❇The Button you have selected will be flashing.
How to use the Special Mode
You can use this Mode when you want to
adjust the stimulation to your favourite one
according to the stiffness or the pain.
You can use this Mode in combination with all
Automatic Courses.
❇The Button you have selected will be
flashing.
❇To stop the function you selected, push the
Button again.
▼
▼
SOFT
REPEAT
HV_F127_En.qxd 07.9.18 7:13 PM Page 14

14
If you want to relieve stiff shoulders intensively and fully:
Select the Point Mode.
If you want to effectively massage a wide range of the region such as the
lower back:
Select the Wide Mode.
If you want to use different kinds of stimulation for the right and left sides
according to the stiffness:
Select red or white Button.
Point & Wide Mode, Balance Adjustment (Switching between Red and White Buttons)
The stimulation of each Pad varies.
(For detail use of this Mode, refer to Page 6.)
Continued on the following page.
▼▼▼
RELIEVE
SHLDR
SOLE LEG
WAIST
TAP KNEAD PUSH RUB
REGION
MASSAGE
POINT
WIDE
R
SPECIAL
MODE
REPEAT
SOFT
1
W
ELECTRONIC
NERVE STIMULATOR
SHLDR
SOLE LEG
WAIST
REGION
INTENSITY
/POWER
2. Select the region to which the Pads are attached.
For example, if you attach the Pads to your shoulders, select
Shoulder. The unit treats you with the program effective for Shoulder.
❇The Button you have selected will be flashing.
1. Push the Region Button.
Each time you push the Region Button, the display flashes in the
order of Shoulder, Sole, Leg, and Waist.
❇When you use the unit for the first time, the Shoulder light will flash
and WIDE will be displayed. When you use the unit for the second
time and after, the Button you used in the previous treatment
will flash.
Treat the region with the Button
When you want to treat the selected region of shoulder, sole, calf (leg), and lower back (waist) to which
the Pads are attached with the effective program
REGION
When Shoulder is selected
SPECIAL
MODE
POINT
WR
WIDE
HV_F127_En.qxd 07.9.18 7:13 PM Page 15

RELIEVE
SHLDR
SOLE LEG
WAIST
TAP KNEAD PUSH RUB
REGION
MASSAGE
POINT
WIDE
R
SPECIAL
MODE
REPEAT
SOFT
1
W
ELECTRONIC
NERVE STIMULATOR
TAP KNEAD PUSH RUB
MASSAGE
INTENSITY
/POWER
You can use this Mode when you want to adjust the stimulation to your favourite one according to the stiffness or the pain.
You can use this Mode in combination with all Automatic Courses.
❇The Button you have selected will be flashing.
❇To stop the function you selected, push the Button again.
If you do not like the feel of irritation:
Use the Soft Mode.
The unit relieves stiffness with soft stimulations
without giving the feel of irritation.
If you want to repeatedly use only your favourite stimulation:
Use the Repeat Mode.
The unit repeats your favourite stimulation.
If you want to relieve stiff shoulders intensively and fully:
Select the Point Mode.
If you want to effectively massage a wide range of the region such as the
lower back:
Select the Wide Mode.
If you want to use different kinds of stimulation for the right and left sides
according to the stiffness:
Select red or white Button.
Point & Wide Mode, Balance Adjustment (Switching between Red and White Buttons)
The stimulation of each Pad varies.
(For detail use of this Mode, refer to Page 6.)
How to Treat
Treat the region with the Button
When you want to treat the region according to your symptom and favourite operation by selecting the
massage method from Tapping, Kneading, Pushing, and Rubbing
MASSAGE

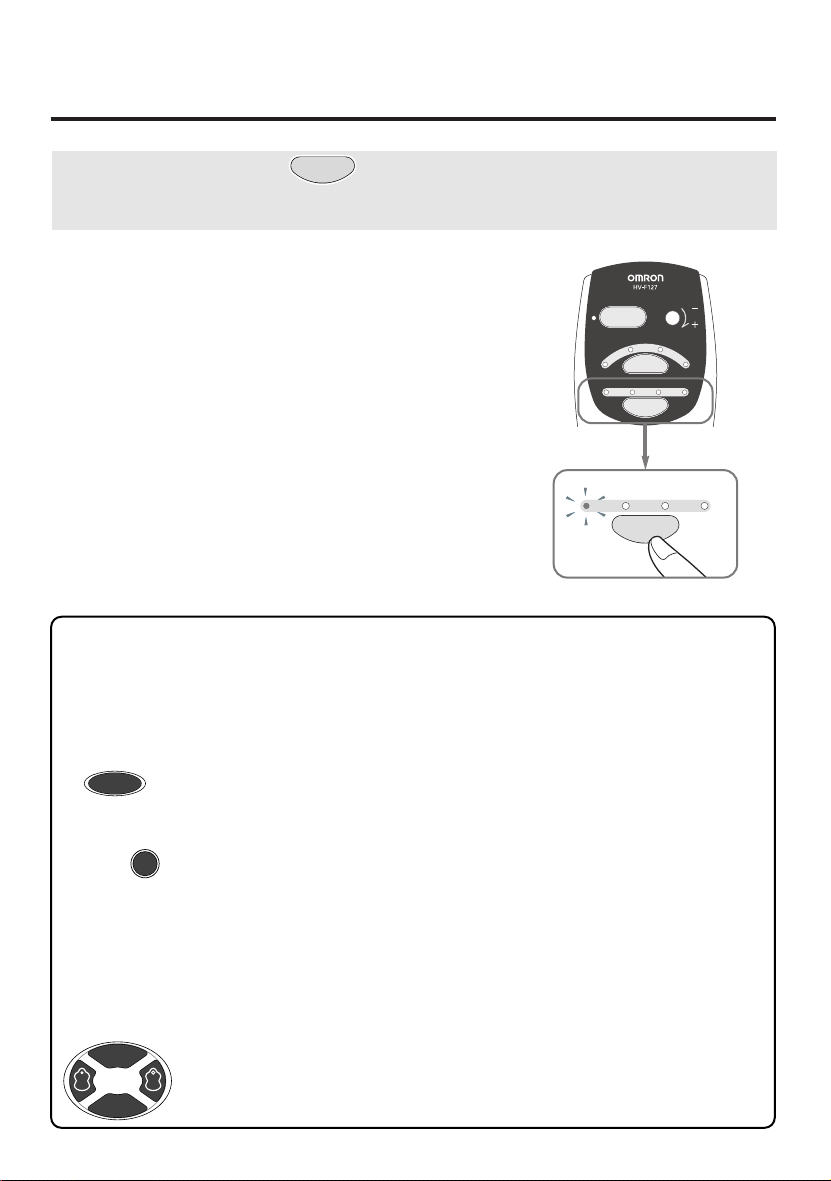

1. Push the Massage Button.
Each time you push the Massage Button, the massage method
flashes in the order of Tapping, Kneading, Pushing, and Rubbing.
❇When you use the unit for the first time, a Shoulder Button will flash
and WIDE will be displayed. When you use the unit for the second
time and onward, the Button you used in the previous treatment
will flash.
2. Select your favourite massage method according to
your symptom.
The massage type changes automatically as you select it.
❇The Button you have selected will be flashing.
Treat the region by selecting one course from Relieve, Region, and Massage.
When Tapping is selected
How to use the Special Mode
▼
SOFT
REPEAT
▼
▼
▼
15
▼
SPECIAL
MODE
POINT
WR
WIDE
HV_F127_En.qxd 07.9.18 7:13 PM Page 16

16
After Treatment –Storing the unit
If you leave the Pads without taking care of them, they will become dirty or the adhesive property will
drop. When the treatment ends, attach the Pads to the Electrode Holder and store them.
1. Turn off the Power and remove the Electrode Cord
Plug from the Main Unit.
4. Bundle the Electrode Cord and wrap it around the
Electrode Holder.
❇Wrap the Electrode Cord loosely.
5. Store the Main Unit and the Electrode Holder in the
Soft Fabric Case.
3. Lightly attach the Pad to the Electrode Holder
❇You may leave the Electrode Cord connected with the Pad as it is.
❇Do not press the Pad hard to the Electrode Holder. It may cause
the adhesive surface to be damaged.
❇Keep the Electrode Holder clean.
2. Peel off the Pad.
❇Hold the Tab to peel off the Pad without touching the adhesive
surface.
Example: When the Pad is attached
to shoulder
RELIEVE
SHLDR
SOLE LEG
WAIST
TAP KNEAD PUSH RUB
REGION
MASSAGE
POINT
WIDE
R
SPECIAL
MODE
REPEAT
SOFT
OFF
INTENSITY
/POWER
W
ELECTRONIC
NERVE STIMULATOR
HV_F127_En.qxd 07.9.18 7:13 PM Page 17

17
Maintenance

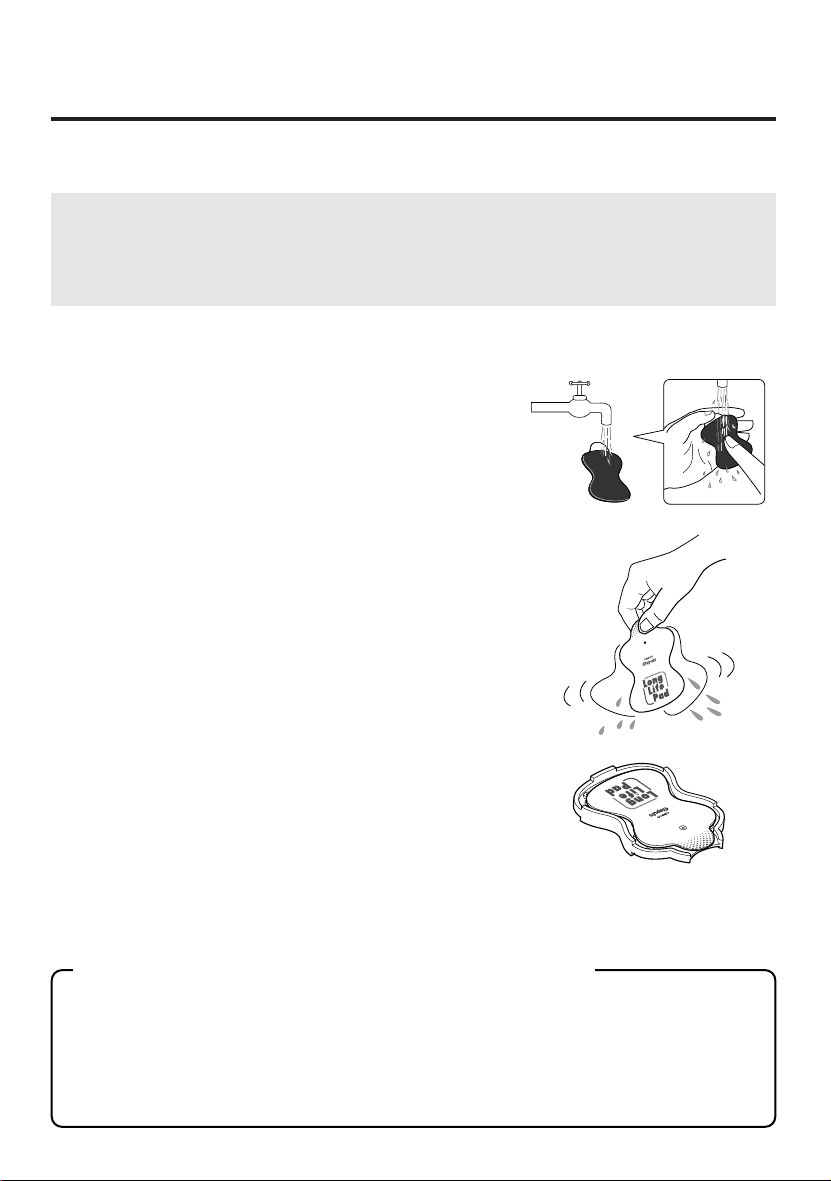

Wash the Pad when the adhesive surface of Pad becomes dirty and the Pad is difficult to attach.
–Wash the Pads after every thirty uses. Pads can be washed approximately ten times.
–Pads are consumables. Purchase the optional Pad when the adhesive surface is damaged. (Refer to
Page 20.)
❇The life of Pad may vary by the frequency of wash, skin condition, and storage state.
1. Turn off the power, then remove the Electrode Cord from the Pad.
2. Wash the Pad softly with your fingertips under slow
running water for several seconds.
3. Sufficiently dry the Pad and let the adhesive surface
airdry.
❇Do not wipe the adhesive surface with a tissue paper or a cloth. If
a tissue paper is adhered to the adhesive surface by accident, do
not try to peel it off. Instead, moisten the tissue paper with a small
amount of water, and then it will come off easily.
4. Lightly attach the Pad to the Electrode Holder for
storage. (Refer to Page 16.)
General advice from OMRON on the handling of Pads
•Do not use hot water, detergent, or chemicals such as thinner or benzine.
•Do not scratch the adhesive surface with your nail or a brush.
•Do not wash the Pad too long or too frequently.
•Do not store the Pad under high temperature, high humidity, and direct sunshine.
❇The adhesive surface may be damaged and the Pad may last shorter.
❇If the adhesive surface becomes sticky or the Pad peels off, leave the Pad in the refrigerator (do not freeze)
overnight. The adhesion may be restored.
When it is Difficult to Attach the Pad
HV_F127_En.qxd 07.9.18 7:13 PM Page 18

18
How to Clean and Store

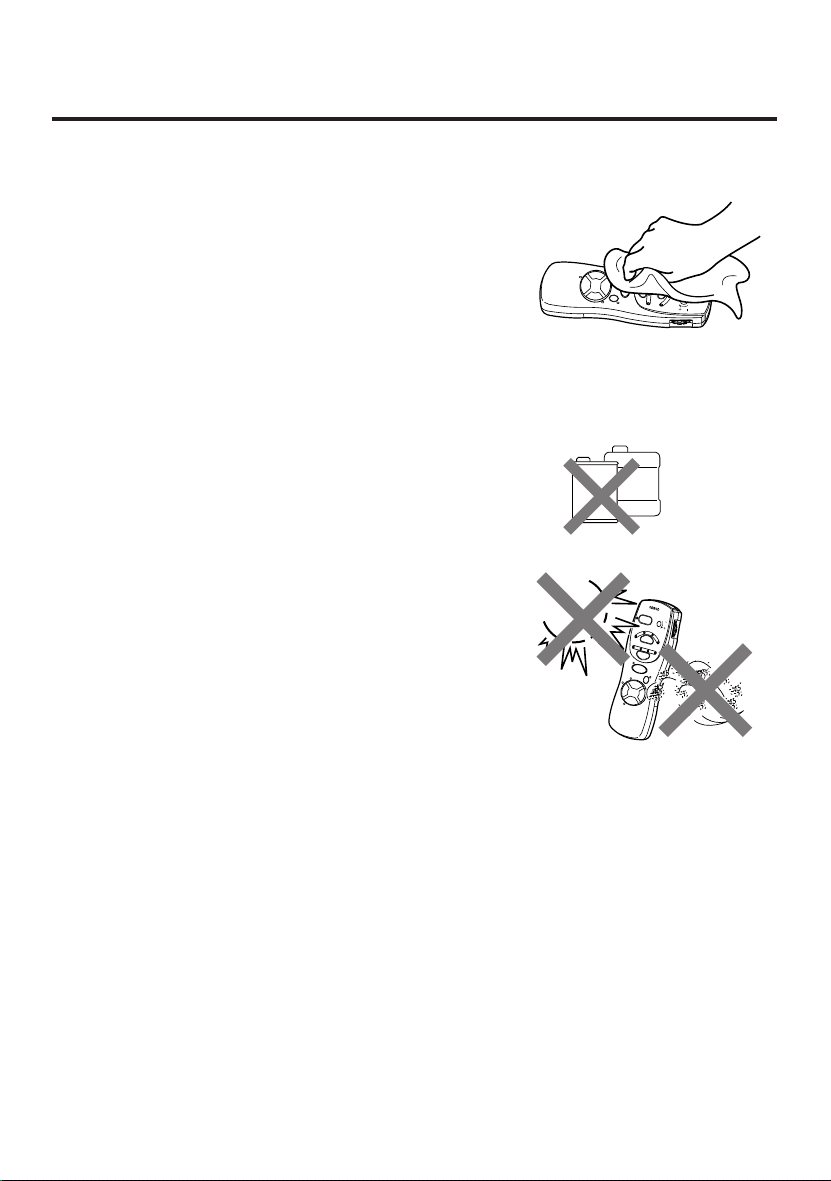

How to clean the Unit
•Keep the unit clean all the time.
•Be sure to turn off the Power and remove the Electrode Cord from the
Main Unit when cleaning the unit.
•Wipe off the stain on the Main Unit with a soft cloth.
•If the unit is heavily stained, wipe it with a cloth moistened with water or
detergent then squeeze it well. Wipe off the unit with a dry cloth.
❇Be careful so that no water should get into the Main Unit.
Notes on care and storage
•Do not use benzine, thinner, or gasoline to clean the unit.
•Do not store the unit under high temperature, high humidity, and direct
sunshine, or where there are lots of dusts and corrosive gas.
•Keep the unit out of reach of children.
•If you are not going to use the unit for a long time of more than three
months, store the unit after removing the batteries.
❇If you do not observe the above-mentioned notes or correct use of
the unit, OMRON cannot take responsibility on quality of the unit.
ELECTRONIC
NERVE STIMULATOR
Thinner Gasoline
ELECTRONIC
NERVE STIMULATOR
HV_F127_En.qxd 07.9.18 7:13 PM Page 19

19
Troubleshooting
Problem Cause Remedial Action
■The power
cannot be
turned on.
■The batteries are inserted in
wrong direction.
⇒Insert the batteries in correct direction. (Refer to page 7)
■The power
turns off
too soon.
■The power
turns off
while using
the unit.
■The Pads are not attached to
the skin.
■Pads are removed from the skin.
■The batteries are worn out.
■The power turns off automatically
in 15 minutes.
■The Electrode Cord is broken.
⇒If the Pads are not attached to the skin, the power
will turn off automatically. (Refer to page 7)
⇒If the Pads come off from the skin, the power
will turn off automatically. (Refer to page 7)
⇒Replace the batteries with new ones. (Refer to page 7)
⇒Turn off the Intensity Dial/Power Button.
Unless it is turned off, the batteries will wear out
slightly faster. (Refer to page 12)
⇒Replace the Electrode Cord. (Refer to page 20)
■The Pad
does not
attach to the
skin.
■The clear film on the adhesive
surface of the Pad is not peeled off.
■The adhesive surface of Pad is dirty.
■You used the Pad immediately
after washing it.
■The adhesive surface of Pad is
damaged.
⇒Peel off the clear film on the adhesive surface.
(Refer to page 7)
⇒Wash the adhesive surface softly with your fingertips
under slow running water for several seconds.
(Refer to page 17)
⇒Sufficiently dry it and leave the adhesive surface to
airdry. (Refer to page 17)
⇒Pad is a consumable.
Replace the Pad with a new one. (Refer to page 20)
■The
adhesive
surface of
Pad is sticky.
■You used the Pad while you were
perspiring.
■You washed the Pad too long
and too frequently.
■You stored the Pad under high
temperature, high humidity, and
direct sunshine.
⇒Leave the Pad in the refrigerator overnight.
(Refer to page 17)
■Cannot
feel the
stimulation.
■The Pad is not attached close to
the skin.
■The Pads are attached
overlapping each other.
■The Electrode Cord is not
connected correctly.
■The intensity is adjusted too weak.
■The batteries are worn out.
■The adhesive surface of Pad
is damaged.
⇒Attach the Pad close to the skin. (Refer to page 7)
⇒Attach the Pads by not overlapping them. (Refer to page 7)
⇒Connect the Electrode Cord correctly. (Refer to page 7)
⇒Turn the Intensity Dial/Power Button. (Refer to page 12)
⇒Replace the batteries with new ones. (Refer to page 7)
⇒Pad is a consumable.
Replace the Pad with a new one. (Refer to page 20)
■The skin
turns red.
■The skin
feels
irritating.
❇If the unit does not operate after taking the above-mentioned measures, contact the nearest OMRON dealer.
■The treatment time is too long.
■The Pad is not attached close to
the skin.
■The adhesive surface of Pad is
dirty or dried.
■The adhesive surface of Pad is
damaged.
⇒Limit the treatment time to 10 to 15 minutes.
(Refer to page 12)
⇒Attach the Pad close to the skin. (Refer to page 7)
⇒Wash the adhesive surface of Pad softly with your
fingertips for several seconds under slow
running water. (Refer to page 17)
⇒Pad is a consumable.
Replace the Pad with a new one.
HV_F127_En.qxd 07.9.18 7:13 PM Page 20
