Omron NE-C29-E User manual

Compressor Nebuliser
Model NE-C29-E
• Instruction Manual
• Mode d’emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
TM
3
5
EN
FR
DE
IT
ES
IM-NE-C29-E-02-11/06
NL
AR
RU
NC-C29.book Page 1 Monday, October 23, 2006 4:01 PM

2
Before using the unit
Contents
Before using the unit
Introduction .................................................................................................. 3
Important safety instructions ...................................................................... 4
1. Know your unit ....................................................................................... 7
2. Guide to using the Comp Air Pro ........................................................ 9
Operating instructions
3. Preparing the nebuliser for use .......................................................... 10
4. Taking medication ............................................................................... 14
Care and maintenance
5. Cleaning and daily disinfecting .......................................................... 17
5.1 Cleaning............................................................................................. 17
5.2 Disinfecting the nebulising parts ........................................................ 18
6. Maintenance and storage .................................................................... 19

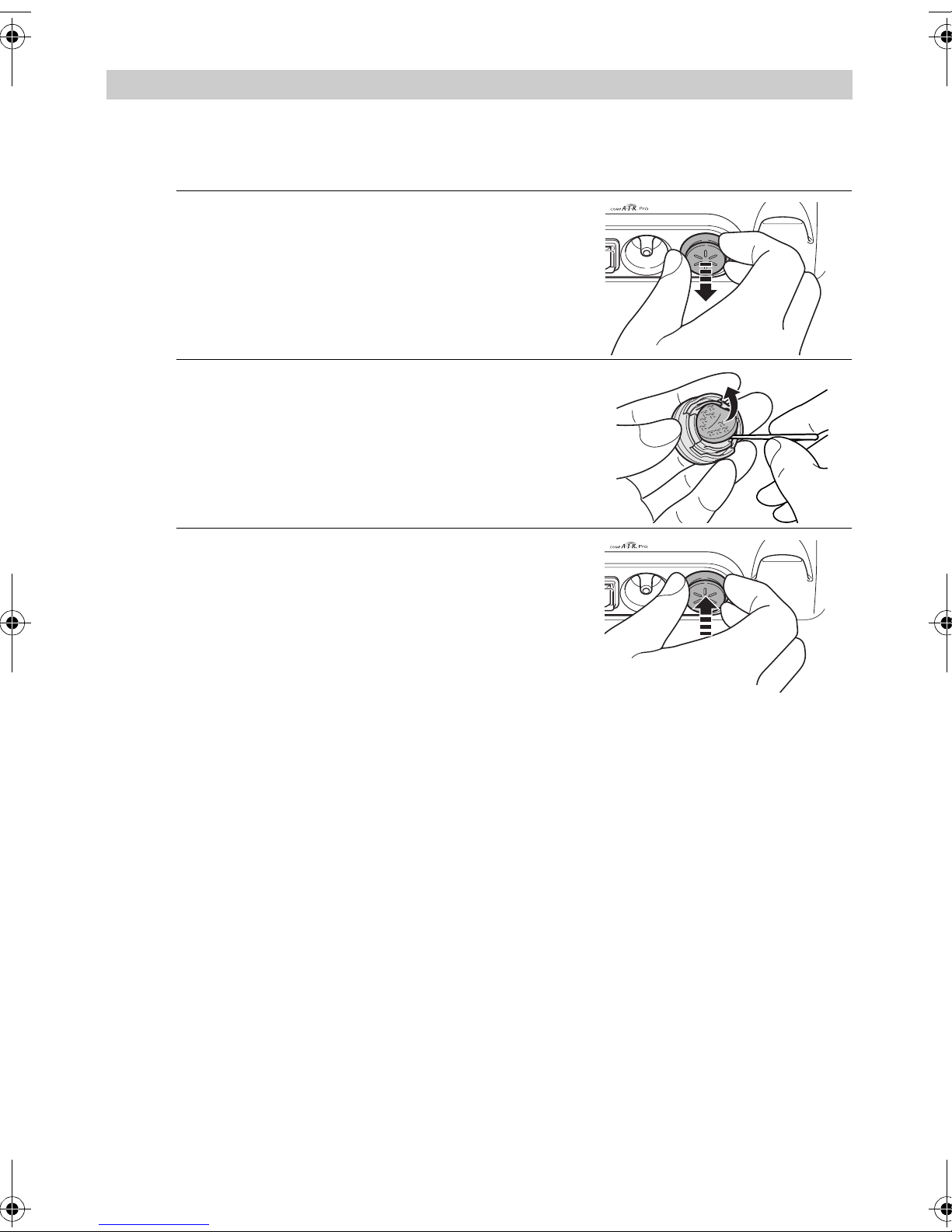

7. Changing the air filter .......................................................................... 20
8. Troubleshooting ................................................................................... 21
9. Technical data ..................................................................................... 22
10. Optional parts and accessories .......................................................... 26
NC-C29.book Page 2 Monday, October 23, 2006 4:01 PM

3
EN
Introduction
Thank you for purchasing the OMRON Comp Air Pro.
This product was developed in conjunction with respiratory therapists for the
successful treatment of asthma, chronic bronchitis, allergies and other respiratory
disorders. The compressor forces air to the nebuliser. When the air enters the
nebuliser, it converts the prescribed medication into an aerosol of microscopic
droplets that can easily be inhaled.
The Comp Air Pro is a medical device. Operate this device only as instructed by
your doctor and/or respiratory therapist.
NC-C29.book Page 3 Monday, October 23, 2006 4:01 PM

4
Important safety instructions
Read all the information in the instruction manual and any other literature included
in the box before using the device.
When using an electrical product, especially when children are present, basic
safety precautions should always be followed including the following:
Warning:
Indicates a potentially hazardous situation which, if not avoided, could result in
serious injury.
(Usage)
• For type, dose, and regime of medication follow the instructions of your doctor or
respiratory therapist.
• Do not use only water in the nebuliser, for nebulising purposes.
• Clean and disinfect the nebuliser kit, mouthpiece and optional nosepiece or
masks before using them for the first time after purchase, if the device has not
been used for a long period of time, or if more than one person uses the same
device.
• Be sure to wash the parts after use, and ensure that they are thoroughly
disinfected and dried, and stored in a clean location.
• Keep the device out of the reach of unsupervised infants and children. The
device may contain small pieces that can be swallowed.
• Store the device and accessories in a clean location.
• Do not store the air tube while there is moisture or medication remaining inside it.
• Always rinse the nebulising parts with clean hot tap water after disinfecting them.
Never leave the cleaning solution in the medication tank or mouthpiece.
• Do not use or store the device where it may be exposed to noxious fumes or
volatile substances.
• Do not use the device where it may be exposed to flammable gas.
• Do not block the ventilation slots. Never place the device where the ventilation
slots may be obstructed during operation. Do not cover the compressor with a
blanket or towel etc., during use.
• Make sure that the nebuliser kit is clean before use.
• Always dispose of any remaining medication after use, and use fresh medication
each time.
• Do not use in anaesthetic or ventilator breathing circuits.
(Risk of electrical shock)
• Never unplug the power cord with wet hands.
• The compressor and power cord are not waterproof. Do not spill water, or other
liquids, on these parts. If liquid does spill on these parts, immediately unplug the
power cord and wipe off the liquid with gauze or other absorbent material.
NC-C29.book Page 4 Monday, October 23, 2006 4:01 PM

5
Important safety instructions
EN
• Do not immerse the main unit in water or other liquid.
• Do not use or store the device in humid locations, such as a bathroom.
• Do not operate the unit with a damaged cord or plug.
• Keep the power cord away from heated surfaces.
Read and follow the “Important information regarding Electro Magnetic
Compatibility (EMC)” in the Technical Data Section.
Caution:
Indicates a potentially hazardous situation which if not avoided, may result in minor
or moderate injury, or physical damage.
(Usage)
• Provide close supervision when this device is used by, on, or near children or
invalids.
• Make sure that the parts are attached correctly.
• Make sure that the vaporiser head is correctly installed before use.
• Make sure that the air filter is correctly attached.
• Make sure that the air filter is clean. If the air filter has changed colour, or has
been used on average for more than 60 days, replace it with a new one.
• Do not spill liquid or medication on the compressor.
• Do not tilt the nebuliser kit so that it is at an angle of greater than 45°, or shake it
while in use.
• Do not use or store the device while the air tube is creased.
• Use only original nebulising parts, air tube, air filter and filter cover.
• Do not add more than 7 ml of medication to the medication tank.
• Do not carry or leave the nebuliser kit while the medication tank contains
medication.
• Do not leave the unit unattended with infants or persons who cannot express
their consent.
• Do not subject the device or the parts to any strong shocks such as dropping the
device on the floor.
• Do not distort the vaporiser head, or jab the nozzle of the medication tank with a
pin etc.
• Do not insert fingers or objects inside the compressor.
• Do not disassemble or attempt to repair the compressor or power cord.
• Do not block the air filter cover.
• When sterilising parts by boiling, make sure that the container does not boil dry.
• Never place, or attempt to dry the compressor, the power cord or nebuliser in a
microwave oven.
• Do not use the device while sleeping or if drowsy.
NC-C29.book Page 5 Monday, October 23, 2006 4:01 PM

6
Important safety instructions
• To avoid injury to the nose mucosa, do not squeeze the nosepiece into the back
of the nose.
• Do not block the slit between the cap and the inhalation air inlet.
• Do not use a microwave oven or hair dryer to dry the nebulising parts.
• Approved for human use only.
(Risk of electrical shock)
• Always unplug the device from the power outlet after use and before cleaning.
• Plug the device into the appropriate voltage outlet. Do not overload power outlets
or use extension cords.
• Do not wind the power cord around the main unit.
• Changes or modifications not approved by OMRON Healthcare will void the user
warranty.
General Safety Precautions:
• Inspect the device and parts before using them each time, and check that there
are no problems. In particular, be sure to check the following:
- That the vaporiser head, nozzle or air tube are not damaged.
- That the nozzle is not blocked.
- That the compressor operates normally.
• When using this device, there will be some noise and vibration caused by the
pump in the compressor. There will also be some noise caused by the emission
of compressed air from the nebuliser kit. This is normal and does not indicate a
malfunction.
• Operate the device only as intended. Do not use the device for any other
purpose.
• Do not use the device at temperatures greater than +40°C.
• Make sure that the air tube is securely attached to the compressor (main unit)
and nebulising parts, and does not come loose. Twist the air tube slightly when
inserting it into the connectors to avoid the tube disconnecting during use.
• The plug is provided so that the unit can be completely isolated from the power
source. To completely isolate the unit from the power source unplug the plug from
the power source.
Read and follow the “Correct Disposal of This Product” in the Technical Data
Section when disposing of the device and any used accessories or optional parts.
Save these instructions for future reference.
NC-C29.book Page 6 Monday, October 23, 2006 4:01 PM

7
EN
1. Know your unit
A. Compressor (Main Unit)
A1.Power Switch
A2.Air Connector
A3.Filter Cover (* Air filter inside.)
A4.Nebuliser Kit Holder
A5.Ventilation Slots
A6.Storage Compartment Cover
A7.Power Cord
A8.Power Plug
B. Air Tube (PVC, 207cm)
B1.Air Plug
B2.Air Plug
C. Nebulising Parts
D. Inhalation Attachments
D1.Mouthpiece
D2.Adult Mask (PVC)
D3.Child Mask (PVC)
D4.Nosepiece
E. Nebuliser Kit
E1.Cap
E2.Inhalation Air Inlet
E3.Inhalation Top
E4.Vaporiser Head
E5.Medication Tank
E6.Nozzle
E7.Air Tube Connector
3
5
3
5
B
A5
A4
A8
A7
E1
E3
E2
E6
E4
E5
E7
ACD
E
A1
A2
B1
B2
A3
A6
A5
D2 D3D1 D4
Rear View
NC-C29.book Page 7 Monday, October 23, 2006 4:01 PM

8
1. Know your unit
Accessories
Material of attachment
• Also applicable Section 10. Optional parts and accessories.

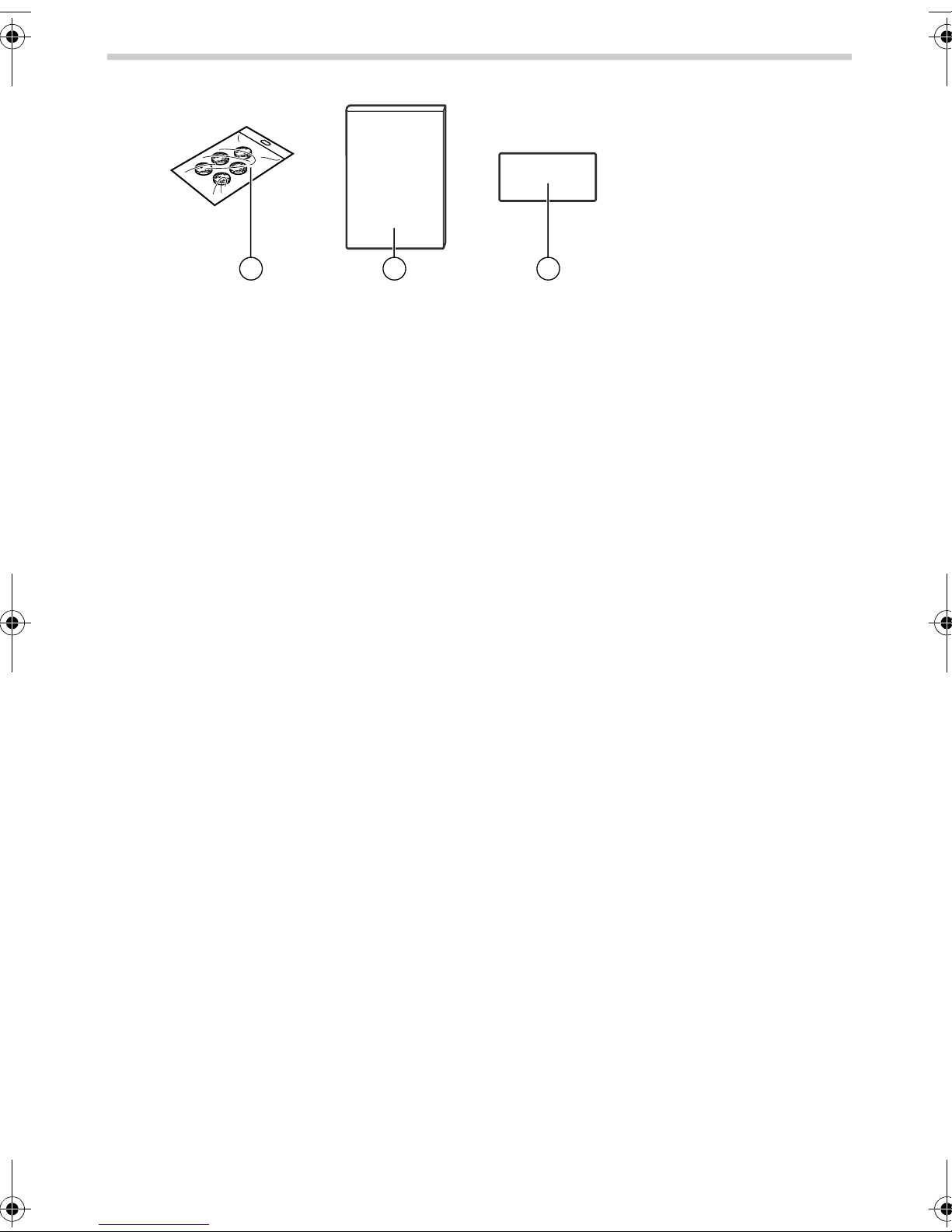

F. Spare Air Filters x 5
G. Instruction Manual
H. Warranty Card
Nebuliser Kit, Mouthpiece, Nosepiece, Adapter for
Child Mask (SEBS): Polypropylene
Adult Mask (PVC), Child Mask (PVC): PVC
Adult Mask (SEBS), Child Mask (SEBS): SEBS
Air Tube: PVC and Polypropylene
Air Filter: Polyester
Air Filter Cover: ABS
FG H
NC-C29.book Page 8 Monday, October 23, 2006 4:01 PM

9
EN
2. Guide to using the Comp Air Pro
Preparing the Nebuliser for Use (Section 3)
Note: Clean and disinfect the nebuliser kit and applicable inhalation
attachments before using the device for the first time, or if it has not
been used for more than one week.

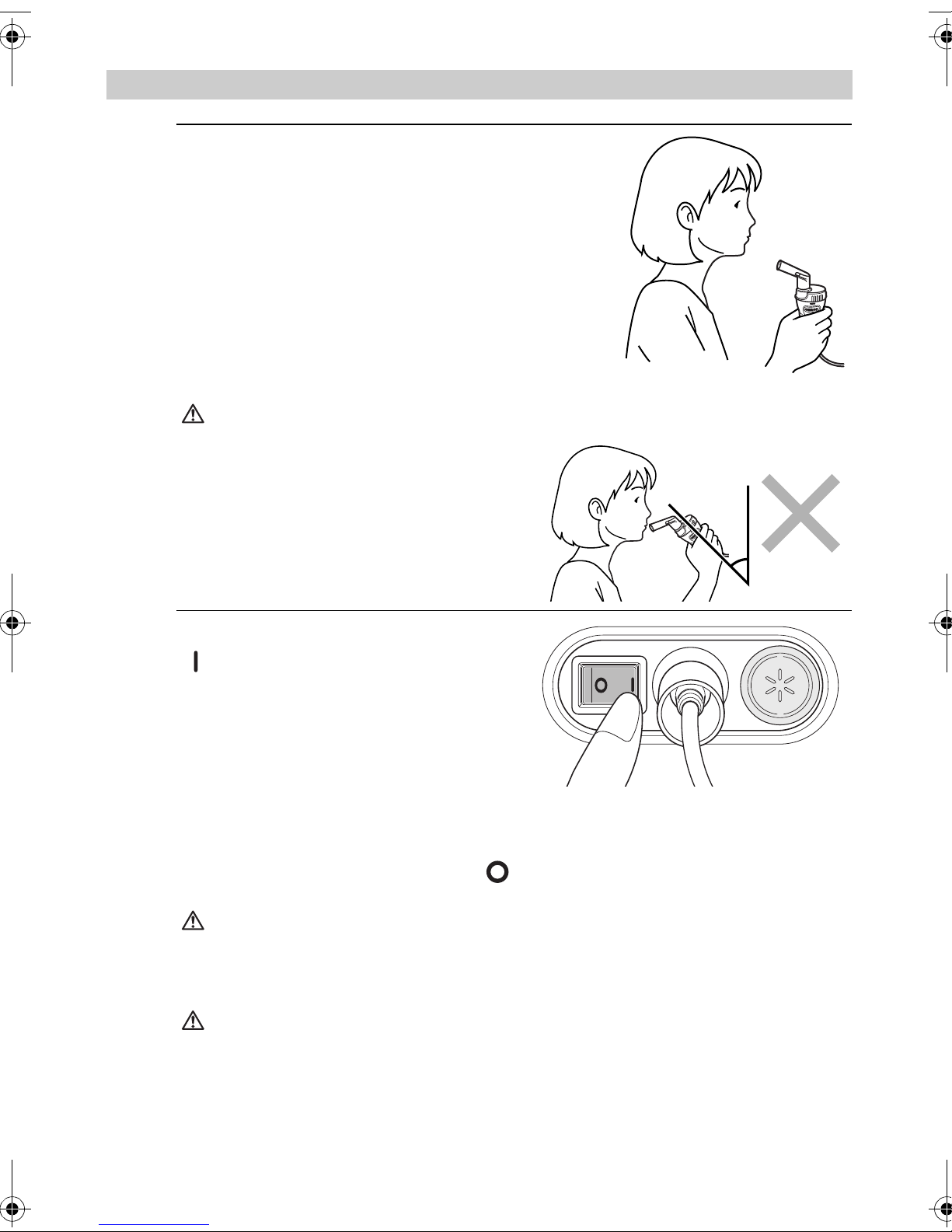

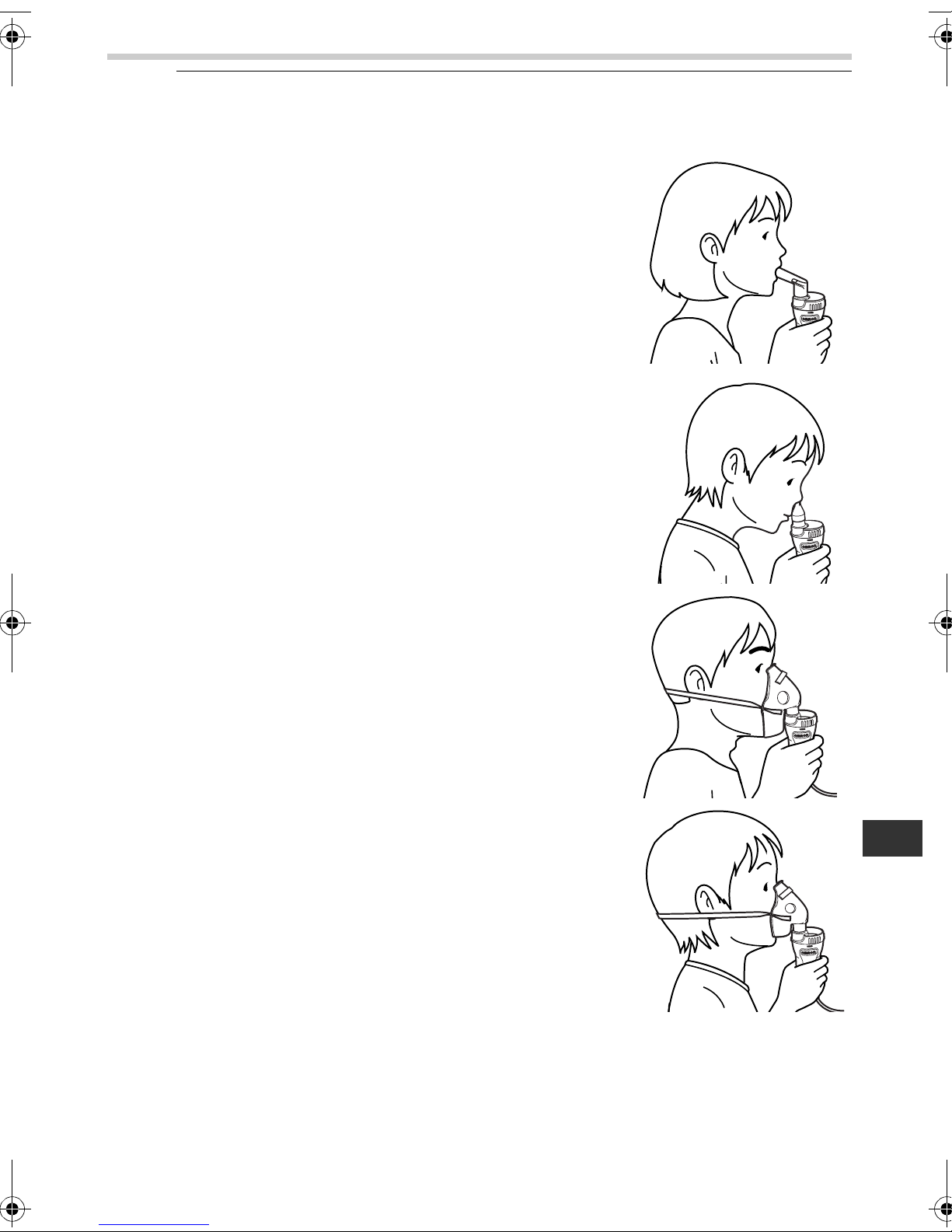

Taking Medication (Section 4)
Notes:
• Do not tilt the nebuliser kit so that it is at an
angle of greater than 45°.
• Do not crease or fold the air tube.
max
5
3
max
5
3
max
5
3
max
5
3

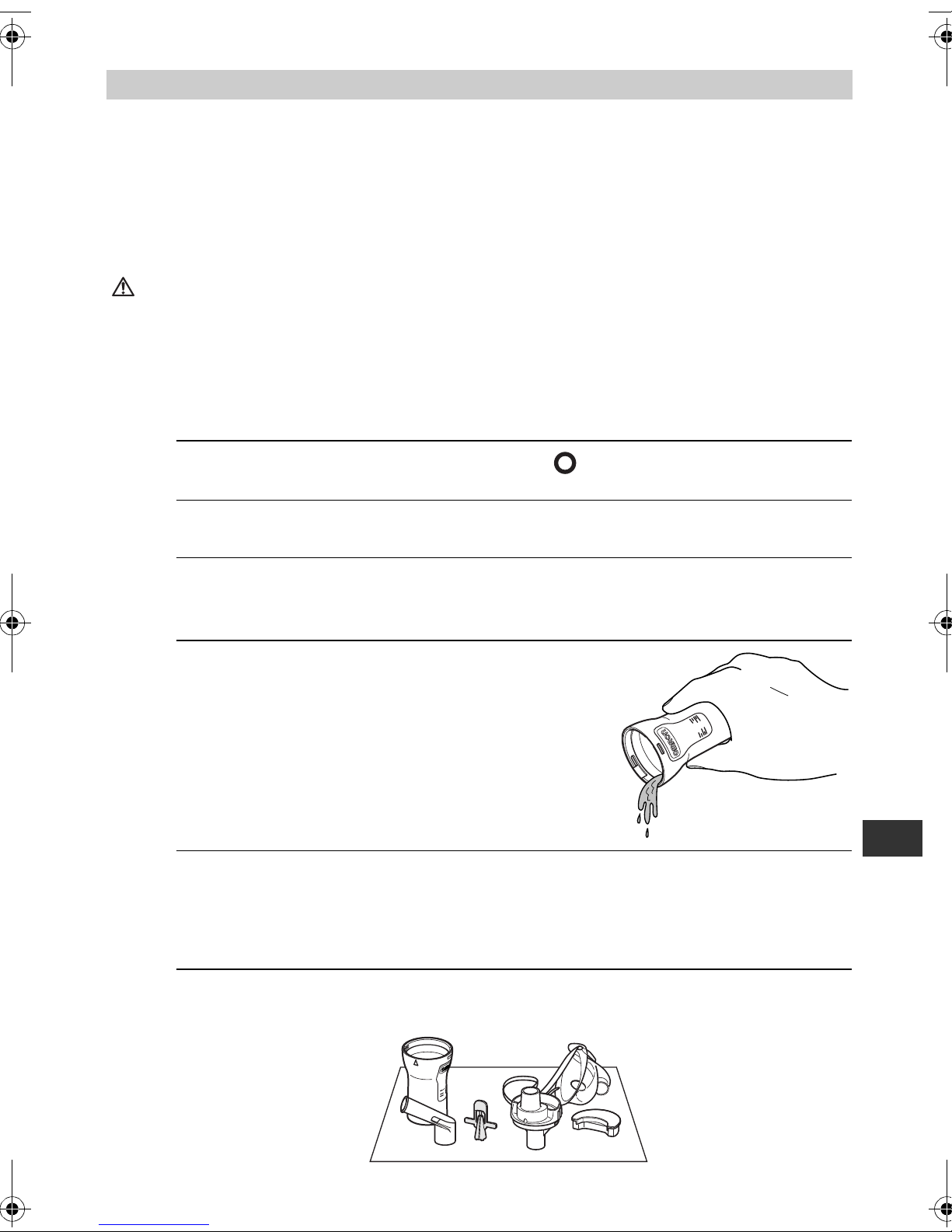

Cleaning Parts After Use (Section 5)
Note: Failure to clean the nebulising parts
after use may lead to infection.
How the nebuliser kit works
The compressed air from the
compressor is forced through the
nozzle, as it does so, it is mixed with
the medication in the vaporiser head
and forced upwards. The medication
is then turned into a fine aerosol and
directed upwards by the baffle,
where it is broken down into many
smaller aerosol particles.
Baffle
Aerosol
Vaporiser
Head
Medication
Compressed Air
Aerosol
Medication
Nozzle
NC-C29.book Page 9 Monday, October 23, 2006 4:01 PM

10
Operating instructions

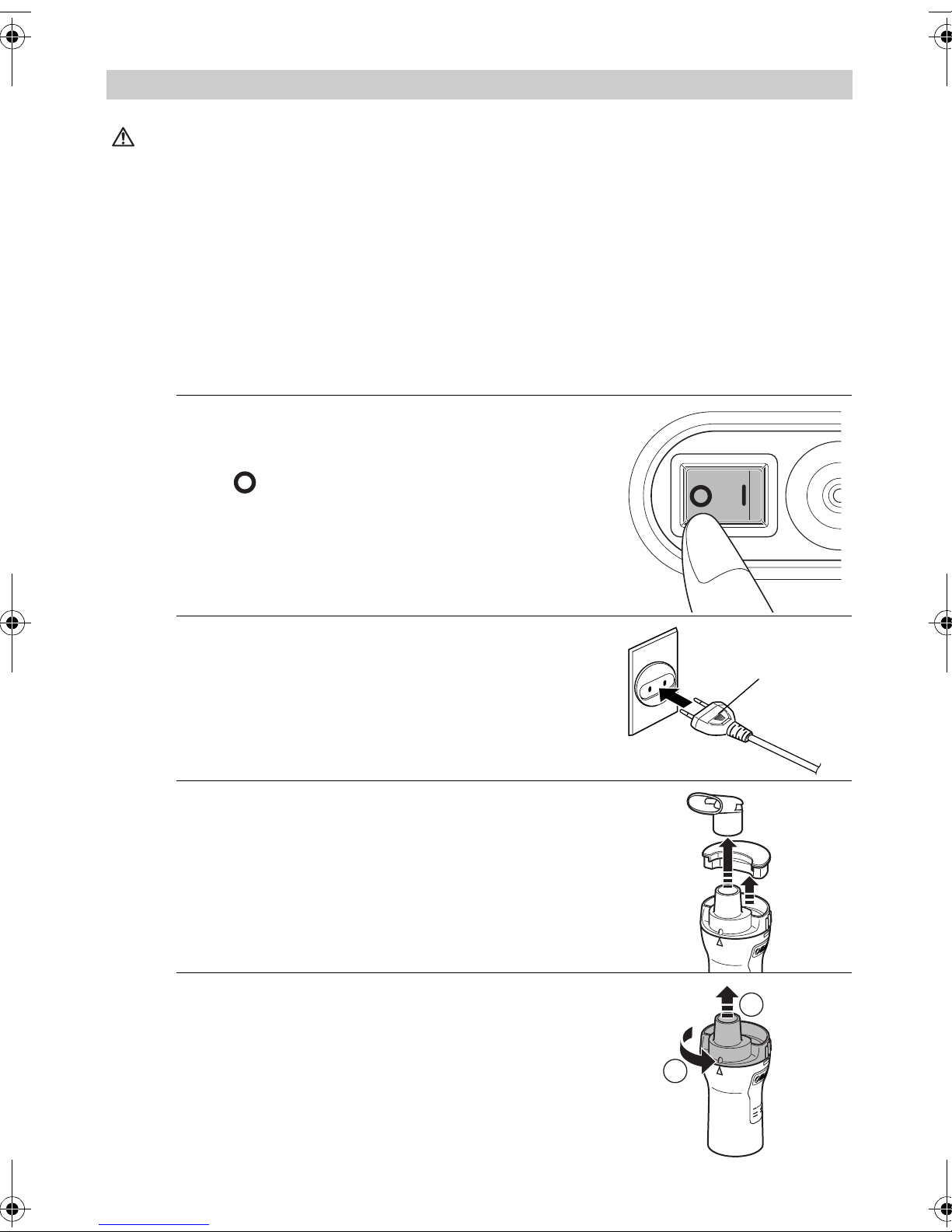

3. Preparing the nebuliser for use
Warning:
Clean and disinfect the nebuliser kit, mouthpiece and optional nosepiece or
masks before using them for the first time after purchase, if the device has
not been used for a long period of time, or if more than one person uses the
same device.
For directions on cleaning and disinfecting the parts of the device refer to Section 5
in this instruction manual.
Note: Make sure that the air filter is changed regularly. (See Section 7 “Changing
the air filter”.)
1. Make sure that the power switch is turned off.
Check that the power switch is
in the position.
2. Plug the power plug into a power outlet.
3. Remove the mouthpiece and cap from the
nebuliser kit.
4. Remove the inhalation top from the medication
tank.
1) Rotate the inhalation top anti-clockwise.
2) Lift the inhalation top out of the medication
tank.
Power Plug
1
2
3
5
NC-C29.book Page 10 Monday, October 23, 2006 4:01 PM

11
3. Preparing the nebuliser for use
EN
5. Remove the vaporiser head from the medication
tank.
6. Add the correct amount of prescribed
medication to the medication tank.
Caution:
The capacity of the medication tank is
2 to 7 ml.
Note: Scales on the nebuliser kit are for
reference only. The scale on the outside
of the tank is with vaporiser head in place. The scale on the inside is
with no vaporiser head. Please use the scale on your syringe or vial
for accurate measurement of medication.
7. Reattach the vaporiser head to the medication
tank.
8. Put the inhalation top back inside the
medication tank.
1) Align the protrusion on the inhalation top
with the indent on the medication tank, as
shown.
2) Rotate the inhalation top clockwise and align
with the medication tank until they click in
place.
max
5
3
1
max
5
32
NC-C29.book Page 11 Monday, October 23, 2006 4:01 PM

12
3. Preparing the nebuliser for use
9. Attach the desired inhalation attachment, as described below.
Attaching the mouthpiece
Make sure you also attach the cap, when using
the mouthpiece.
1) Attach the cap to the inhalation air inlet.
2) Attach the mouthpiece to the inhalation top.
Attaching the adult mask (PVC)
Attach the mask to the inhalation top.
Note: If the amount of aerosol is too great,
attach the cap.
Attaching the child mask (PVC)
Attach the mask to the inhalation top.
1) Attach the cap to the inhalation air inlet.
2) Attach the child mask to the inhalation top.
Attaching the nosepiece
Attach the cap when using the nosepiece.
1) Attach the cap to the inhalation air inlet.
2) Attach the nosepiece to the inhalation top.
1
2
1
2
1
2
NC-C29.book Page 12 Monday, October 23, 2006 4:01 PM

13
3. Preparing the nebuliser for use
EN
10. Attach the air tube.
1) Attach the air tube to the air connector on the compressor.
2) Attach the other end of the air tube to the air tube connector on the
medication tank.
Notes:
• Make sure that the air tube is securely connected. Otherwise, air may
leak from the air tube during use.
• Take care not to spill the medication when attaching the air tube. Keep
the nebuliser kit upright.
• Use the nebuliser kit holder as a temporary
holder for the nebuliser kit.
1
2
NC-C29.book Page 13 Monday, October 23, 2006 4:01 PM

14
4. Taking medication
1. Hold the nebuliser kit as indicated on the right.
Caution:
Do not tilt the nebuliser kit so that
it is at an angle of greater than
45°. Medication may flow into the
mouth.
2. Press the power switch to the on
( ) position.
The compressor starts and
nebulisation starts.
Note: Observe whether aerosol is
generated.
To stop nebulisation
Press the power switch to the off ( ) position.
Warning:
Do not block the ventilation slots on the compressor. This could
result in the compressor overheating or malfunctioning.
Caution:
Do not block the air filter cover.
Note: Do not leave the compressor on for a long period of time. This could
result in the compressor overheating or malfunctioning.
max
5
3
max
5
3
max
5
3
max
5
3
45°
NC-C29.book Page 14 Monday, October 23, 2006 4:01 PM

15
4. Taking medication
EN
3. Inhale medication according to your doctor’s and/or health care adviser’s
instructions.
Using the mouthpiece
Prepare your mouthpiece according to
Section 3.9.
Insert the mouthpiece into your mouth and
inhale the medication breathing normally.
Exhale as normal through the mouthpiece.
Using the nosepiece
Prepare your nosepiece according to
Section 3.9.
Inhale the medication through the nosepiece, as
shown and exhale through the mouth.
Using the adult mask (PVC)
Attach the mask so that it covers your nose and
mouth and inhale the medication.
Exhale through the mask.
Note: If the amount of aerosol is too great,
attach the cap.
Using the child mask (PVC)
Prepare your child mask according to
Section 3.9.
Attach the mask so that it covers your nose and
mouth and inhale the medication.
Exhale through the mask.
max
5
3
max
5
3
max
5
3
max
5
3
max
5
3
max
5
3
max
5
3
max
5
3
NC-C29.book Page 15 Monday, October 23, 2006 4:01 PM

16
4. Taking medication
4. When treatment is complete, turn the power off. Check that there is no
condensation or moisture in the air tube and unplug the device from the
power outlet.
Warning:
Condensation may occur in the air tube. Do not store the air tube while it
contains condensation or moisture. This could result in infection via
bacteria.
If there is moisture or liquid remaining in the air tube, be sure to follow the
procedure below to remove any moisture from within the air tube.
1) Make sure that the air tube is still connected to the air connector on the
compressor.
2) Unplug the air tube from the nebuliser kit.
3) Turn on the compressor and pump air through the air tube to expel the
moisture.
Power Plug
NC-C29.book Page 16 Monday, October 23, 2006 4:01 PM

17
EN
Care and maintenance
5. Cleaning and daily disinfecting
5.1 Cleaning
Following the cleaning instructions after each use will prevent any remaining
medication in the tank from drying, resulting in the device not nebulising effectively
and also for preventing infections.
Warning:
Thoroughly rinse the nebuliser and the mask, nosepiece or mouthpiece with
clean hot tap water after each use, and disinfect the parts of the nebuliser kit
and applicable inhalation attachments after the last treatment of the day.
Note: Do not start operation before the cleaned parts are completely dried.

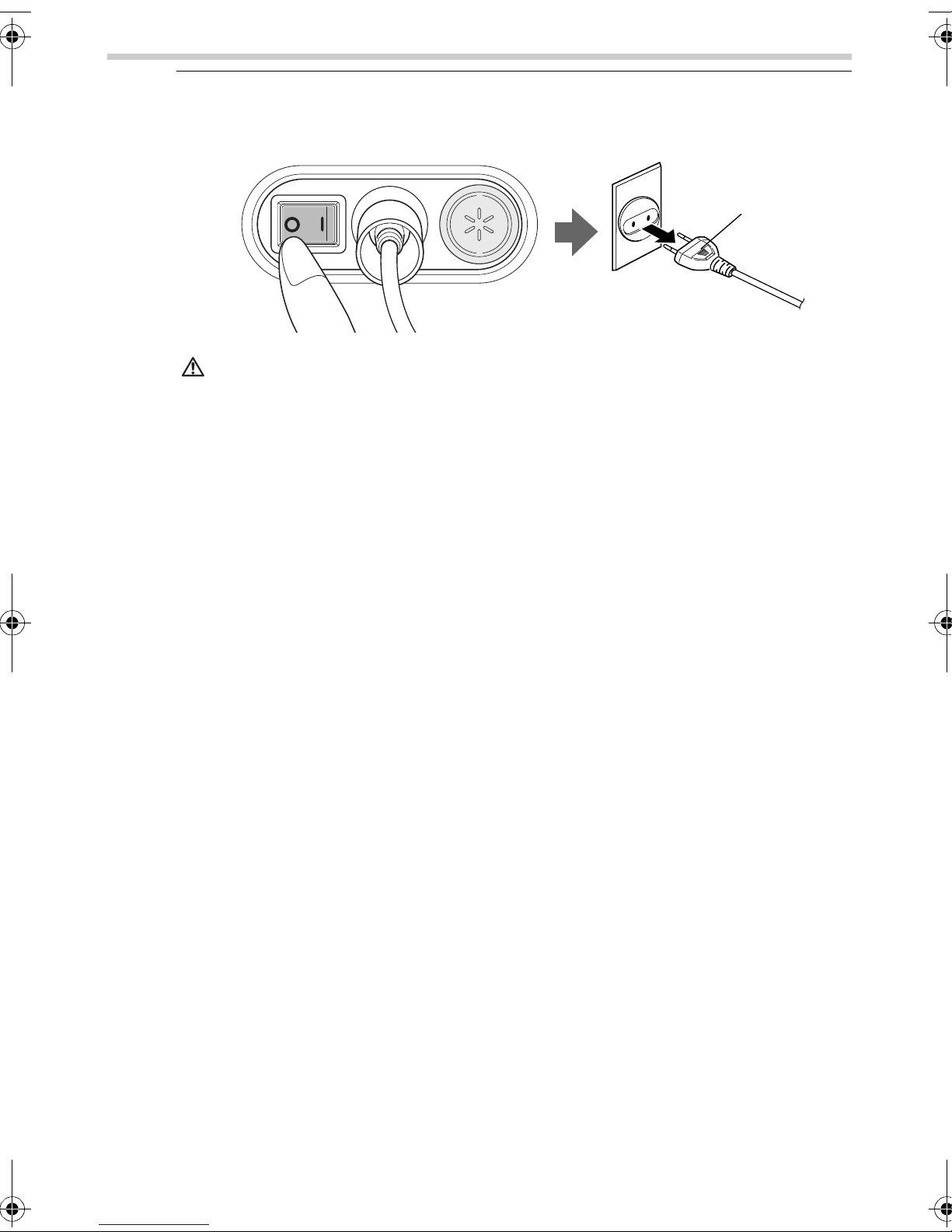

1. Make sure that the power switch is in the (off) position.
2. Unplug the power cord from the electrical outlet.
3. Remove the nebuliser kit from the air tube and disassemble the nebuliser
kit. (see Section 3)
4. Discard any remaining medication in the
medication tank.
5. Wash all the nebulising parts in warm water and mild detergent and rinse in
clean hot tap water, or wash in a dishwasher.
For instructions on how to disinfect the parts, see the following section.
6. After cleaning and disinfecting the parts, rinse them thoroughly with clean
water and allow the parts to air dry in a clean environment.
max
5
3
3
5
NC-C29.book Page 17 Monday, October 23, 2006 4:01 PM

18
5. Cleaning and daily disinfecting

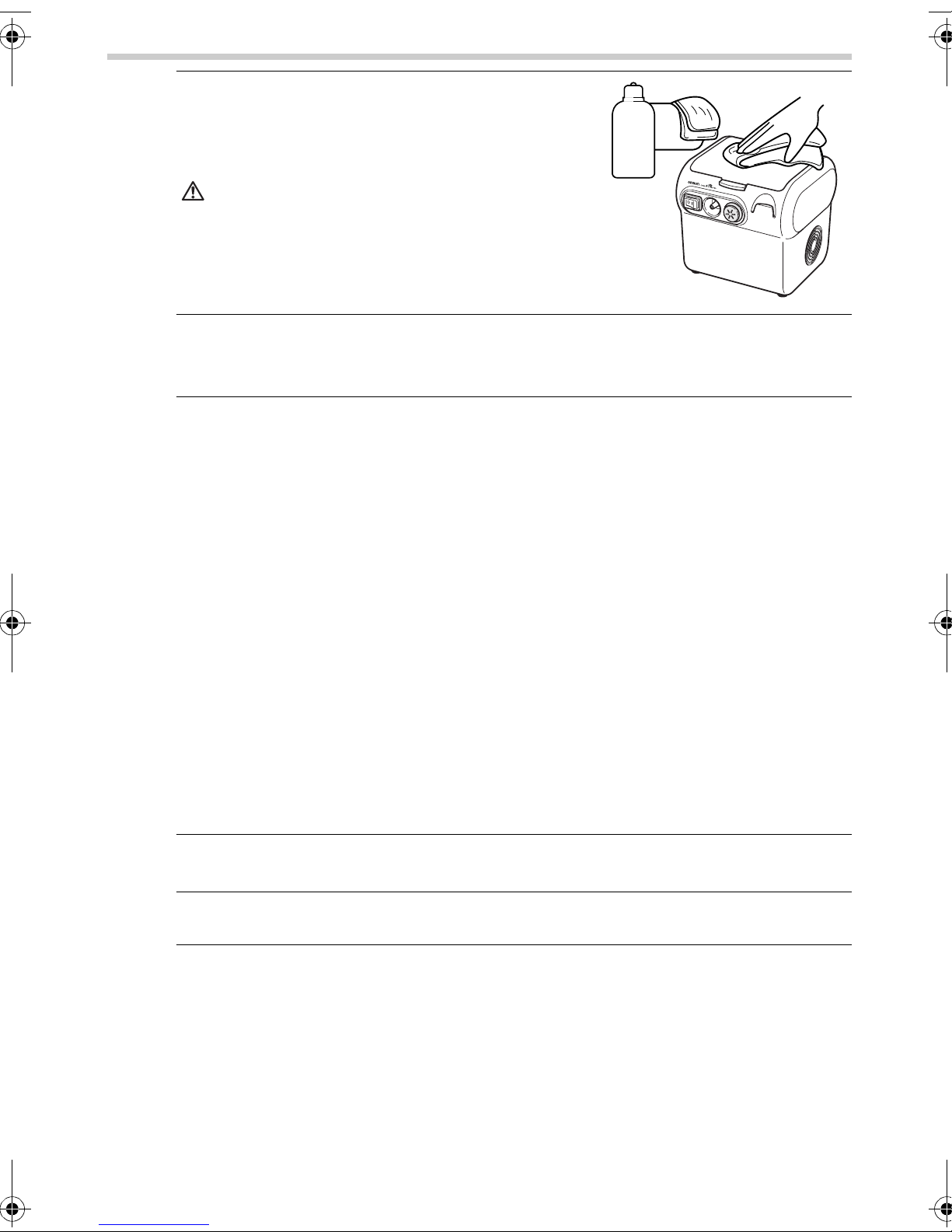

7. If the compressor is dirty, wipe it clean with a
soft cloth moistened with water or mild
detergent.
Caution:
The compressor is not waterproof.
8. If the outside of the air tube is dirty, wipe it clean with a soft cloth moistened
with water or mild detergent.
9. Store the parts in the storage compartment in the compressor.
Note: Make sure that the parts are clean and dry. Do not place parts in the
storage compartment if they are still wet.
Store the unit in a clean and dry location.
Note: Nebuliser kit should be replaced after using for 6 months.
5.2 Disinfecting the nebulising parts
Always clean before disinfection. (See Section 5.1)
Always disinfect the medication tank, mouthpiece and other nebulising parts after
the last treatment of the day. To disinfect the parts, use one of the methods
described below:
A. Use a commercially available disinfectant. Follow the instructions provided by
the disinfectant manufacturer.
1. Submerge the parts in the cleansing solution for the specified period.
2. Remove the parts and discard the solution.
3. Rinse the parts with clean hot tap water, shake off excess water and allow
to air dry in a clean environment.
B. Parts may be boiled between 15 to 20 minutes (except for PVC mask).
After boiling, carefully remove the parts, shake off excess water and allow to air dry
in a clean environment.
Mild Detergent
NC-C29.book Page 18 Monday, October 23, 2006 4:01 PM

19
EN
6. Maintenance and storage
To keep your device in the best condition and protect the device from damage
follow these directions:
Caution:
• Do not leave the unit unattended with infants or persons who cannot
express their consent.
• Do not subject the device or the parts to any strong shocks such as
dropping the device on the floor.
• Do not carry or leave the nebuliser while the medication tank contains
medication.
Notes:
• Do not store the device in extreme hot or cold temperatures, high humidity or
under direct sunlight.
• Do not crease or fold the air tube.
• Dispose of the device and any used accessories or optional parts according to
applicable local regulations.
• Never clean with benzene, thinner or a flammable
chemical.
Benzene
Gasoline
Thinner
NC-C29.book Page 19 Monday, October 23, 2006 4:01 PM

20
7. Changing the air filter
On average, the air filter should be changed every 60 days or so, or when the filter
has changed colour from white.
1. Pull the air filter cover off the compressor.
2. Change the air filter.
Remove the old air filter with a sharp object,
such as a toothpick, and insert the new air
filter.
3. Put the air filter cover back in place.
Notes:
• Use only OMRON air filters designed for this
unit. Do not operate without a filter.
• There is no front or back orientation for the
air filters.
• Check that air filters are clean and free of dust before inserting them.
• Do not attempt to wash or clean the filter. If the air filter becomes wet,
replace it. Damp air filters can cause blockages.
• To prevent the air filter cover from becoming blocked, wash the cover
regularly. Do not boil the air filter cover.
Remove the air filter cover, wash it, and make sure it is dry and
reattached correctly.
• Please contact your OMRON dealer for additional air filters, or if the parts
supplied with the device are damaged or missing.
NC-C29.book Page 20 Monday, October 23, 2006 4:01 PM
