INTRODUCTION
Thank you for purchasing the Omron®HJ-720IT Pedometer with
download capability.
Fill-in for future reference
DATE PURCHASED: ______________
Staple your purchase receipt here.
SAVE THESE INSTRUCTIONS
Apedometer is a great motivational tool to track your distance, the number
of steps you take and how many calories you burn. The convenient
memory function supports the management of daily walking. You can
easily set and reach your daily goals. This pedometer allows the user to
place the pedometer in a pocket, bag or clip it to a belt when walking for
added flexibility to count steps.
Your HJ-720IT comes with the following components:
Pedometer
Screwdriver
Strap
Clip
Holder
Battery (CR2032)
Instruction Manual
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 3

4
IMPORTANT SAFETY INFORMATION
4
To assure the correct use of the product basic safety measures should always be
followed including the precautions listed below:
þKeep the unit out of reach of young children. If a young child
swallows the battery, battery cover, or screw immediately consult
with a doctor.
þRead all information in the instruction book and any other literature
included in the box before using the unit.
þOperate the unit only as intended. Do not use for anyother purpose.
þProperly dispose of used battery. Do not throw the battery into fire.
The battery may explode.
þDo not swing the pedometer by holding the strap. This may
cause injury.
þDo not disassemble or modify the unit. Changes or modifications not
approved by Omron Healthcare will void the user warranty.
þConsult your physician or healthcare provider before beginning an
exercise program.
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 4

5
KNOW YOUR UNIT
Display
MODE/EVENT Button
Holder
USB Connector Cover
SYSTEM RESET Button
Battery Cover
Screw of Battery Cover
Strap
Clip
Back of the main unit
MEMO/▲Button
USB Connector
SET Button
5
KNOW YOUR UNITMAIN UNIT
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 5

6
KNOW YOUR UNIT
Holder
Use this holder when attaching the unit
to your belt or the top of your pants.
1) Attach the main unit
to the holder.
2) Fasten the holder clip
to your pants.
How to attach
the strap to
the main unit
How to connect the
strap and the clip
How to release
from a clip and
fasten with a clip
Hole
to attach
the strap
To fasten
To release
Holder Clip
Components
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 6

7
CALORIE/AMOUNT OF FAT BURNED DISPLAY
Bbb AEROBIC STEP FUNCTION
The unit displays the total number of aerobic steps in a day that
satisfies the following two conditions: (The minutes you walked as
the number of aerobic steps is also displayed.)
•Walk more than 60 steps per minute
•Walk for more than 10 minutes continuously
Example: If you walk for 20 minutes at the speed of 120
steps per minute, the number of steady aerobic is 2400.
Note: Taking a rest for less than 1 minute during
continuous walking after 10 minutes is
considered as continuous walking.
The calorie and amount of fat burned
display indicates a calorie consumed
by walking and length from the
weight, stride distance, number of
steps, and walking speed.
The calorie and amount of fat
burned display increment is
one minute.
If you want to know the target
calorie value, multiply the
displayed calorie by the coefficient
in the table shown right.
Example of correction:
For a woman in her 50's with the calorie display of 300,
the consumed calorie is calculated as follows.
300 x 0.95 = 285 kcal
Man Woman
20’s
1.10 1.07
30’s
1.05 1.01
40’s
1.02 .97
50’s
1.01 .95
60’s
1.00 .95
70’s
.98 .96
80’s
.95 .95
7
Correction coefficient
for calorie display
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 7

8
STRIDE LENGTH MEASUREMENT
Measure your stride length before beginning to set the pedometer.
How to measure your stride length
1. Walk 10 steps with your normal stride as illustrated below.
2. Measure the distance from START to END in inches.
3. Calculate your stride length by dividing the total
distance by 10.
Example:
Total distance = 320''
320'' ÷ 10 = 32'' inches (2' feet 8'' inches)
Conversion Chart
12'' inches = 1' foot
24'' inches = 2' feet
36'' inches = 3' feet
48'' inches = 4' feet
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 8

9
BATTERY INSTALLATION
1. Remove the screw on the battery cover
located on the back of the main unit.
Use the supplied screwdriver or use
acommercially available small screwdriver
to remove the screw on the battery cover.
2. Open the battery cover.
3. Insert the battery.
Place the positive (+) side of the battery
(CR2032) upward. Insert the battery in the
direction of the arrow as illustrated.
4. Close the battery cover.
Insert the projected portion of the
battery cover first.
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 9

10
BATTERY INSTALLATION
5. Tighten the screw on the battery cover.
NOTES:
•The time setting display will appear on the
screen for approximately 5 minutes after the
battery is inserted.
•After installing the battery, set time of day,
weight and stride length. (Refer to “Setting the
Time” on page 11)
BATTERY REPLACEMENT
When the battery is removed from the unit, the time of day and the data stored in
the memory for the current hour will be deleted. The weight, stride length setting
and the data stored in the memory up to the previous hour will not be deleted.
The current day is automatically stored in the memory when the time reaches
12:00AM. Do not replace the battery at 12:00AM. For example: If you remove
the battery at 11:59PM and replace the battery at 12:01AM the data for the
previous day will be stored as the current day.
When the Battery Indicator appears on the display screen remove the old battery.
NOTE:When the battery indicator starts to blink, the unit stops counting, and the
time is displayed as “--:--“.
Take the battery out with a thin stick that is not
easily breakable.
•DO NOTuse a pair of metal tweezers or a screwdriver.
•Replace with a new CR2032 battery.
• Dispose of battery according to applicable local regulations.
Low Battery Indicator
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 10

11
Setting range: 12:00 AM-11:59 PM
1. Install the battery.
(Refer to “Battery Installation” on page 9)
The hour flashes on the display.
If the MEMO/▲or SET Button is not pressed
for 5 minutes, complete setting and display
the number of steps and time.
2. Press the MEMO/▲Button to advance by
increments of one hour.
NOTE:
Press the MODE/EVENT button to return
the hour to 12AM.
3. Press the SET Button to set the hour.
The minutes flash on the display.
4. Press the MEMO/▲Button to advance by
increments of one minute.
Press and hold the button to advance
the time in 10 minute increments.
NOTE:
Press the MODE/EVENT Button to
return the minute to 00.
11
SETTING THE TIME
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 11

12

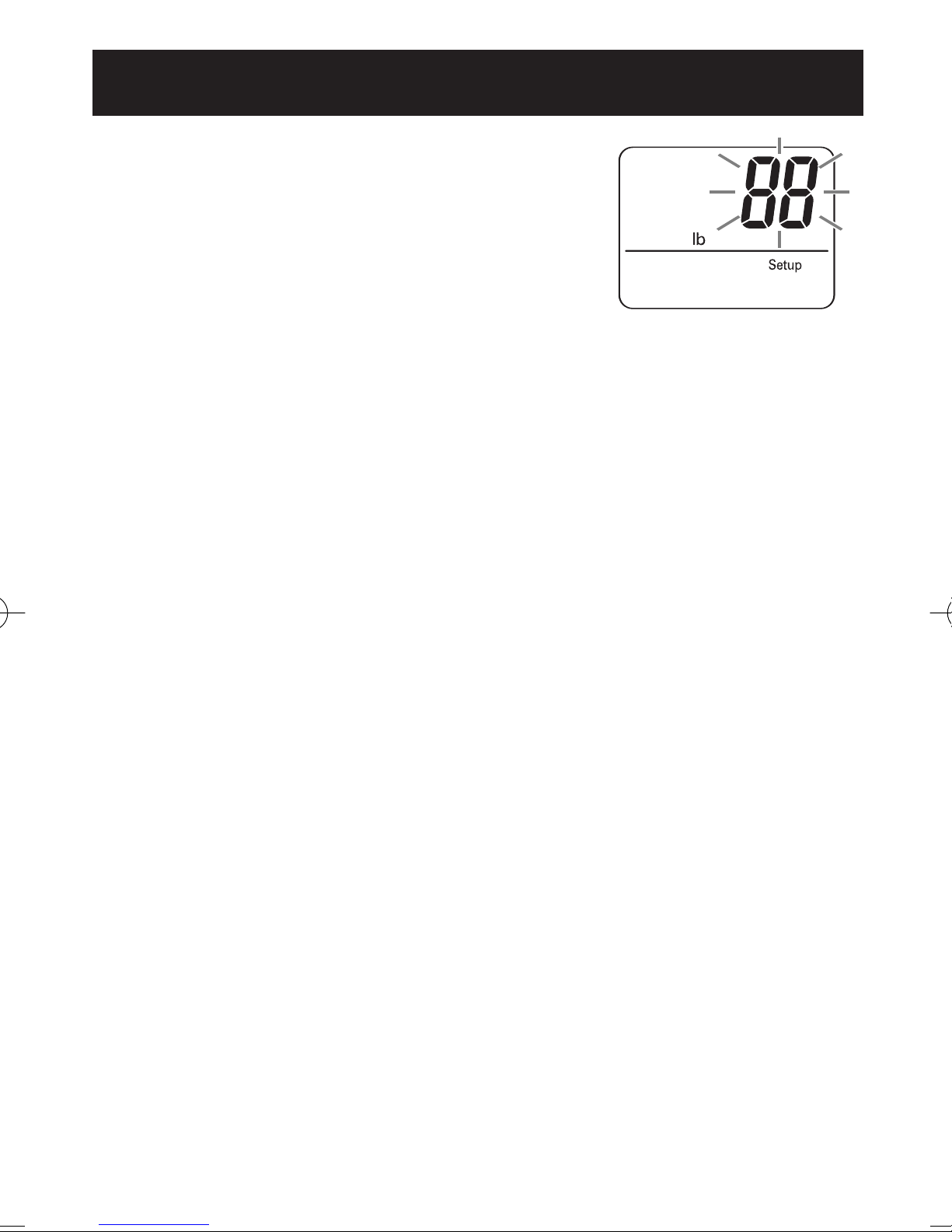

5. Press the SET button to set the minute.
The weight flashes on the display.
SETTING THE TIME
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 12

13
1. Press the MEMO/▲Button
to advance by increments of 1 lb.
Press and hold the button to advance weight
in 10 lb increments.
NOTE:
Press the MODE/EVENT button to return
the weight to 88.
2. Press the SET Button to set the weight.
The stride length flashes on the display.
13
SETTING THE WEIGHT
Setting range: 70 to 300 lb.
The weight flashes on the display.
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 13

14
1. Press the MEMO/▲Button
to advance by increments of 1'' inch.
Press and hold the button to advance the
stride in 4'' inches increments.
NOTE:
Press the MODE/EVENT Button to
return the stride length to 1'08''.
2. Press the SET Button to the stride
length.
The number of steps and time will display.
All the settings are completed.
To change the time, weight, or stride length after the setting is
completed:
1. Press and hold the SET Button for 2 seconds.
2. Change the setting.
NOTE:
If setting does not need to be changed, press the set button to advance
to the next setting.
SETTING THE STRIDE LENGTH
Setting range: 1'00'' to 4'00'' feet
The stride length flashes on the display.
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 14

15
ATTACHING THE PEDOMETER
Place the unit in the upper front pocket of your jacket, in a bag
you hold tightly, or attach the unit to your pants or belt.
Place the unit in your pocket.
•Do not place the unit in the back pocket
of your pants.
•Attach the clip on the edge of your pocket
to prevent the unit from dropping.
Place the unit in your bag.
•Place the unit in your pocket or the
partition of your bag.
Attach the unit to your belt or the top
of your pants.
•Use the supplied holder.
•Do not force the holder onto thick or wide
NOTE:
The display will not change until you have walked for
more than 4 or more seconds.
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 15

16
ATTACHING THE PEDOMETER
When the memory is being displayed or the unit is being set
When the unit is not vertical to the ground
•When the front of the main unit is placed in the
angle of less than 60° (shown to the right) or
horizontal to the ground.
NOTE:
The unit can count steps even if it is slanted
or placed upside-down, or if the main unit is
perpendicular to the ground.
When the main unit moves irregularly
• When the main unit is placed in the bag that moves irregularly
because it hits your foot, your belt or the top of your pants.
• When the unit hangs from your belt, the top of your pants or a bag.
When you walk at an inconsistent pace
• When you shuffle or wear sandals
• When you fail to walk consistently in a crowded place
When you use the unit in the place where lots of up
and down movements or vibrations take place
• Standing up and/or sitting down movement
• Playing sports other than walking
• Ascending or descending movement at stairs or in a steep slope
• Vertical or horizontal vibration in the moving vehicle such
as on the bicycle, in the automobile, trains or a bus
When you jog or walk extremely slowly
NOTE:
The unit will count steps during jogging if it is attached to your belt or the top
of your pants with a holder.
NOTE: The unit may not be able to count the steps correctly
in the following cases.
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 16

17
CHANGING THE DISPLAY
Press the MODE/EVENT Button
to change the display
Each time you press the MODE/EVENT Button,
the display will change.
Number of steps
Number of
aerobic steps
with minutes
Calories with
amount of fat
burned Distance
Press the MODE/EVENT Button
for 2 seconds while current day’s data is
displayed.
The times of event in current day is displayed
for 2 seconds.
NOTES:
•Follow the direction by instructor or
service provider to use this function.
•Event can be recorded a once per hour.
•The unit does not display previous event data.
USING THE EVENT FUNCTION
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 17

18
USING THE MEMORY FUNCTION
This unit can store up to the previous 41 days and display the most
recent 7 days of data.
The current day’s data is automatically stored in memory when the
time reaches 12:00AM. The display will return to 0.
NOTE:
The time must be correctly set in the unit.
How to view data stored in the memory
Press the MODE/EVENT Button until the data
you want to see is displayed:
Steps
Aerobic Steps with minutes
Calories with amount of fat burned
Distance
Press the MEMO/▲Button. The previous day
data is displayed.
Continue to press the MEMO/▲Button until all
seven days of data is displayed.
NOTE:
If no button is pressed for more than
1minute, the display will return to the
current day’sdata.
Press the MODE/EVENT Button to return to
the current day’s data.
18
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 18

19
USING THE MEMORY FUNCTION
Full Memory Indicator
NOTES:
•Full memory indicator starts display when there are 35 days
including current day of stored data which has not been
downloaded.
•Follow the direction by instructor or service provider to download
the data. (Refer to “Downloading Data to a PC” on page 21)
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 19

20
USING THE SYSTEM RESET FUNCTION
Use the SYSTEM RESET function in the following cases:
• When the display becomes unrecognizable
Press the SYSTEM RESET Button on the
back of the main unit with a thin stick that
is not easily breakable.
The time is reset.
NOTE:
The data stored in the memory is not deleted.
After all characters on the displays are turned on, the
initial time setting displays appears. (Refer to
“Setting the Time” on page 11)
HJ-720IT-IM.qxd 10/28/05 10:58 AM Page 20
