Omron S8VK-W Series User manual

1
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Switch Mode Power Supply (240/480/960-W Models)
S8VK-W
New Three-phase Input Power Supplies
harmonized with Value design
for Panel concept.
Saves space and contributes to
reducing the wiring time.
With a line-up that includes two model types,
200 to 240 V input and 380 to 480 V input.
Suitable for international use in a wide
range of regions.
Supports quick identification of error
locations with three status monitoring LEDs.
Enables stable operation of devices
with the power boost function.
•Can operate at an ambient temperature of -40 to +70°C *1
•Side-by-side Mounting enabled *1 *2
•Complies with SEMI F47-0706 standard *3
•Certification for 3,000 m altitude *3
•Coated PCBs for Better Resistance to Environment
•Equipped with signal output that indicates DC OK and the overload status
•Five years Warranty
*1. For details, refer to Derating Curves on page 9 and 20.
*2. Refer to the Front, Side-by-side mounting on page 24.
*3. For details, refer to Standard Compliance on page 4 and 15.
S8VK-W Series
S8VK-WA Three-phase 200V Input...................................................... from page 2
S8VK-WB Three-phase 400V input...................................................... from page 11
Common items
Common Accessories (order seperately)........................................... from page 22
Common Precautions........................................................................... from page 24
For the most recent information on models that
have been certified for safety standards, refer to
your OMRON website.
Refer to Safety Precautions on page 24.

2
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Switch Mode Power Supply (240/480/960-W Models)
S8VK-WA
New 200 V Three-phase Input
Power Supplies
A solution to three-phase
balance problems
• Can operate at an ambient temperature of -40 to +70°C *1
• Side-by-side Mounting enabled *1 *2
• Complies with SEMI F47-0706 standard *3
• Certification for 3,000 m altitude *3
• Coated PCBs for Better Resistance to Environment
• Equipped with signal output that indicates DC OK
and the overload status
*1. For details, refer to Derating Curves on page 9.
*2. Refer to the Front, Side-by-side mounting on page 24.
*3. For details, refer to Standard Compliance on page 4.
Lineup
Model Number Structure
Model Number Legend Not all combinations are possible. Refer to List of Models in Ordering Information, below.
(1) Rated input voltage
(2) Power rating
(3) Output voltage
Ordering Information
List of Models
Accessories (Order separately)
Refer to page 22 for S8VK-WA/S8VK-WB Common Accessories.
Output voltage Power rating
240 W 480 W 960 W
24 V Released Released Released
Refer to Safety Precautions on page 24.
S8VK-WA @@@ @@
Series name (2) (3)(1)
Code Rated input voltage
A 200 to 240 VAC
Code Power rating
240 240 W
480 480 W
960 960 W
Code Output voltage (VDC)
24 24 V
Power rating Rated input voltage Rated output
voltage (VDC)
Rated output
current
Maximum boost
current Model
240 W Three-phase / single-phase 200 to 240 VAC
(Allowable range:
Three-phase / single-phase 170 to 264 VAC,
240 to 350 VDC)
24 V 10 A 15 A S8VK-WA24024
480 W 24 V 20 A 30 A S8VK-WA48024
960 W 24 V 40 A 60 A S8VK-WA96024

S8VK-WA
3
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Ratings, Characteristics, and Functions
Note: For *1 to *12, refer to page 4.
Power rating 240 W 480 W 960 W
Item Output voltage (VDC) 24 V 24 V 24 V
Efficiency * 1
Three-phase 200 VAC input 93% typ. 94% typ. 95% typ.
Single-phase 200 VAC input 92% typ. 93% typ. 94% typ.
Three-phase 230 VAC input 93% typ. 94% typ. 95% typ.
Single-phase 230 VAC input 93% typ. 94% typ. 95% typ.
Input con-
ditions
Input voltage range * 2
Three-phase/single-phase 170 to 264 VAC, 265 to 300 VAC (1 second)
240 to 350 VDC
Frequency * 2 50/60 Hz (47 to 63 Hz)
Input current * 1
Three-phase 200 VAC input 0.80 A typ. 1.6 A typ. 3.1 A typ.
Single-phase 200 VAC input 1.4 A typ. 2.6 A typ. 5.2 A typ.
Three-phase 230 VAC input 0.70 A typ. 1.4 A typ. 2.7 A typ.
Single-phase 230 VAC input 1.2 A typ. 2.3 A typ. 4.5 A typ.
Power factor * 1 0.9 min.
Leakage current * 3
Three-phase 200 VAC input 1 mA max.
Three-phase 230 VAC input 1 mA max.
Inrush current * 4
(for a cold start at 25°C)
Three-phase 200 VAC input 13 A typ. 13 A typ. 14 A typ.
Three-phase 230 VAC input 15 A typ. 15 A typ. 16 A typ.
Output
character-
istics
Rated output current 10 A 20 A 40 A
Power Boost Function 15 A 30 A 60 A
Voltage adjustment range * 5 24 to 29.5 V (with V.ADJ) 24 to 28 V (with V.ADJ)
Ripple noise voltage * 6
Three-phase
200 to 240 VAC input
50 mVp-p max.
at 20 MHz of bandwidth
120 mVp-p max.
at 20 MHz of bandwidth
60 mVp-p max.
at 20 MHz of bandwidth
Input variation influence *70.5% max.
Load variation influence *81.5% max.
Temperature variation
influence 200 to 240 VAC input 0.05%/°C max.
Startup time * 9
Three-phase 200 VAC input 1,000 ms max.
Three-phase 230 VAC input 1,000 ms max.
Output hold time * 9
Three-phase 200 VAC input 35 ms typ. 30 ms typ. 25 ms typ.
Three-phase 230 VAC input 35 ms typ. 30 ms typ. 25 ms typ.
Additional
functions
Overload protection Yes, automatic reset, intermittent operation type
Refer to Overload Protection on page 5.
Overvoltage protection
Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and
turn on the input again),
Refer to Overvoltage Protection on page 5.
Series operation Yes (For up to two Power Supplies; external diodes required.)
Parallel operation Yes (For up to two Power Supplies), Refer to Parallel Operation on page 28.
INPUT OK Indicator Yes (LED: Green)
DC OK Indicator Yes (LED: Green)
Iout > 100% Indicator Yes (LED: Yellow)
DC OK Signal Output Yes (MOS FET relay output 30 VDC max., 50 mA max.)
Iout > 100% signal output Yes (MOS FET relay output 30 VDC max., 50 mA max.)
Insulation
Withstand voltage
3.0 kVAC for 1 min. (between all input terminals and all output terminals, signal output
terminals), cutoff current 20 mA
2.0 kVAC for 1 min. (between all input terminals and PE terminals), cutoff current 20 mA
1.0 kVAC for 1 min. (between all output terminals, signal output terminals and PE
terminals), cutoff current 25 mA
0.5 kVAC for 1 min. (between all output terminals and all signal output terminals), cutoff
current 10 mA
Insulation resistance 100 MΩmin. (between all output terminals, signal output terminals and
all input terminals /
PE terminals) at 500 VDC
Environ-
ment
Ambient operating temperature *10
-40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data
on page 9.) (with no condensation or icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 95% max. (Storage humidity: 95% max.)
Vibration resistance 10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions
Shock resistance 294 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability MTBF
* 11 290,000 hrs typ. 230,000 hrs typ. 170,000 hrs typ.
Expected life * 12 10 years min.
Construc-
tion
Weight 800 g max. 1,050 g max. 1,750 g max.
Cooling fan No
Degree of protection IP20 by EN/IEC 60529

S8VK-WA
4
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
*1. The value is when both rated output voltage and rated output current are satisfied.
*2. Do not use an inverter output for the product. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal
temperature of the product may result in ignition or burning. If the input is connected to a UPS, do not connect a UPS with a square-wave
output. Doing so will cause the internal temperature of the product to increase, possibly causing smoking or burning.
*3. The value is determined according to the Electrical Appliances and Material Safety Act.
*4. Values for a cold start at 25°C. Refer to Inrush Current, Startup Time, and Output Hold Time on page 5.
*5. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than the voltage adjustment range.
When adjusting the output voltage, confirm the actual output voltage from the product and be sure that the load is not damaged.
*6. The value is when both rated output voltage and rated output current are satisfied. A characteristic when the ambient operating temperature
is 25°C.
*7. This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable input voltage range at the
rated output voltage and rated output current.
*8. 200 to 240 VAC input, in the range of 0 A to the rated output current.
*9. This is the value when both rated output voltage and rated output current are satisfied and at room temperature (25°C). Refer to Inrush Current,
Startup Time, and Output Hold Time on page 5 for details.
*10. At -40 to -25°C, time will be required before the rated output voltage is output after the input voltage is input.
*11. MTBF is calculated according to JEITA RCR-9102.
*12. Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on page 32 for details.
*13. EN61000-3-2 does not applied to three-phase 200 to 240 VAC input models.
*14. Class B compliance was met with the following configuration.
Standard Compliance
• To comply with PELV output requirements for EN/IEC 60204-1, ground the negative side of the output (-V) to a protective earth (PE).
• EN/IEC 61558-2-16
The S8VK-WA was designed based on EN/IEC 61558-2-16.
Currently, IEC 61558-2-17 has been replaced by IEC 61558-2-16.
When certification was received for EN/IEC 60204-1 (Machinery Safety), it was necessary to go through a control transformer to the control
circuits. However, a control transformer is not always necessary for product that have been certified for the safety standard for OVCIII or for
product that use a transformer that complies with EN/IEC 61558-2-16.
• Safety Standards for a DC Input
The following safety standards apply to a DC input: UL 62368-1, cUR (CSA C22.2 No. 62368-1), EN/IEC 62368-1, EN/IEC62477-1, EN/IEC
61558-2-16. Safety standard compliance is achievable by connecting a UL-certified fuse as specified below to the (L1/+) side.
For a DC power input, connect (L1/+) side to (+), and (L3/-) side to (-).
To select a UL certified fuse, refer to Recommended circuit breakers and fuses on page 25.
Power rating 240 W 480 W 960 W
Item Output voltage (VDC) 24 V 24 V 24 V
Standards
Harmonic current emissions Conforms to EN 61000-3-2 (single-phase *13)
Complies with JIS C 61000-3-2 (three-phase, single-phase)
EMI
Conducted emissions
Conforms to EN 61204-3 Class B,
EN 55011 Class B (three-phase)
Conforms to EN 61204-3 Class A,
EN 55011 Class A (single-phase)
Conforms to
EN 61204-3
Class B, EN 55011 Class B
(three-phase)
Conforms to
EN 61204-3
Class B, EN 55011 Class B
(single-phase *14)
Conforms to
EN 61204-3
Class A, EN 55011 Class
A
(single-phase)
Radiated emissions
EMS Conforms to EN 61204-3 high severity levels
Safety standards
UL 508 (Listing)
CSA C22.2 No.107.1 (cUL)
UL 62368-1 (Recognition) OVC II (≤3000 m) Pol2
CSA C22.2 No.62368-1 (cUR) OVC II (≤3000 m) Pol2
EN/IEC 62477-1 OVC III (≤2000 m) OVC II (2000 m < and ≤3000 m) Pol2
EN/IEC 62368-1 OVC II (≤3000 m) Pol2
EAC (TR CU 004 / 2011, TR CU 020 / 2011)
RCM (EN61000-6-4)
Complies with PELV (EN/IEC 60204-1)
Complies with EN/IEC 61558-2-16
SEMI Complies with SEMI F47-0706 (three-phase / single-phase 200 to 240 VAC input)
Noise filter (S8V-NFS206)
L
N
L
N
L’ L1/+
L3
PE -V
+V
PE
N’
Clamp filter
(E04SR301334
manufactured by SEIWA)
Clamp filter
(E04SR401938
manufactured by SEIWA)
S8VK-WA96024
Load

S8VK-WA
5
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions

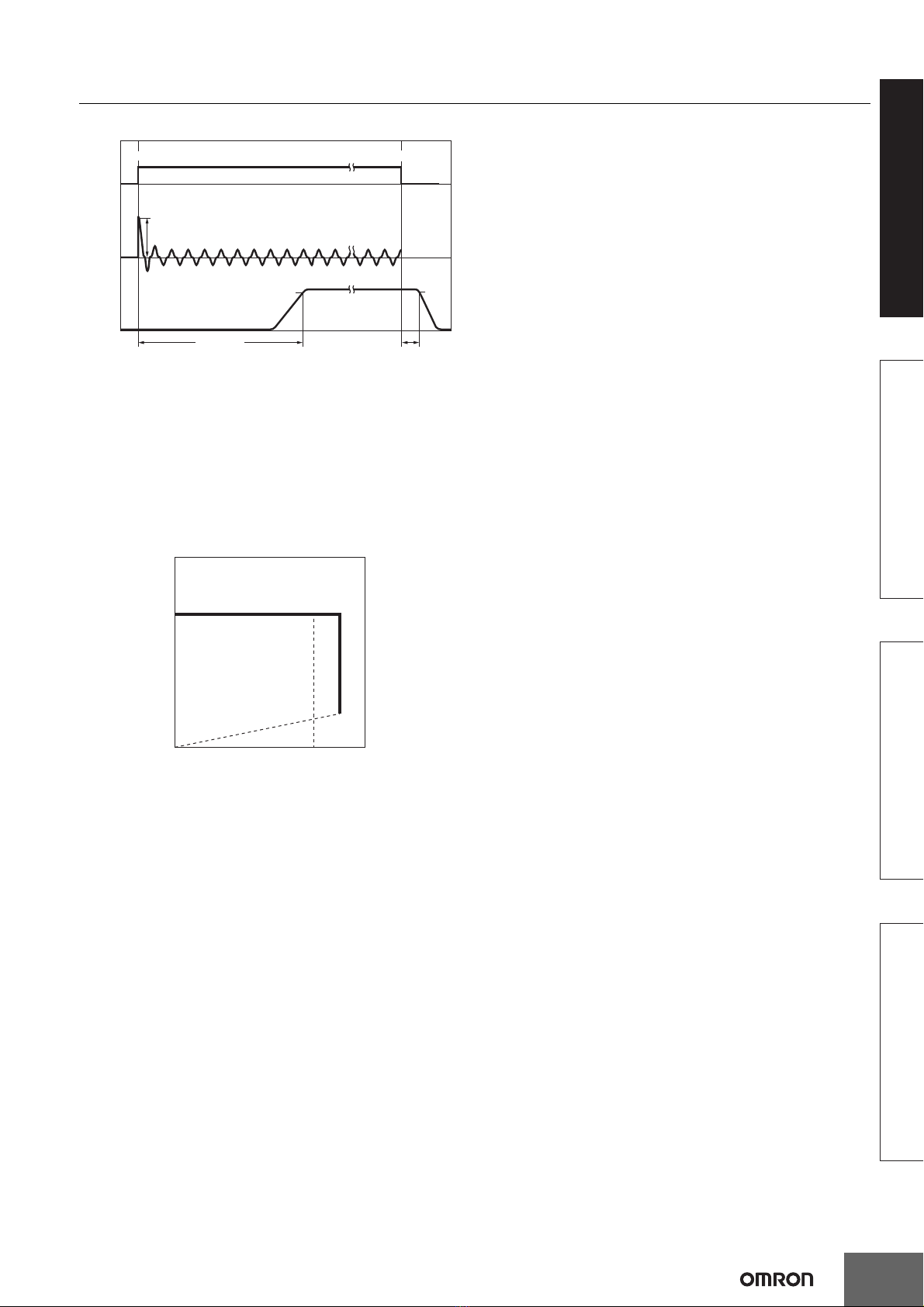

Inrush Current, Startup Time, and Output Hold Time
Note: Twice the normal inrush current will flow during parallel
operation or for backup operation. Therefore, check the fusing
characteristics of fuses and operating characteristics of
breakers making sure that the external fuses will not burn out
and the circuit breakers will not be activated by the inrush
current.
Overload Protection
The product is automatically protected from short-circuit current and
overcurrent damages when the load current is in the range of 151 to
175% of the rated current.
When the output current falls within the rated range, the overload
protection function is automatically cleared.
Note: 1. Internal parts may occasionally deteriorate or be damaged
if a short-circuited or overcurrent state continues during
operation. Be sure to check that the Iout > 100% indicator is
not lit or the Iout > 100% signal output is turned OFF before
using.
2. Internal parts may possibly deteriorate or be damaged if the
Power Supply is used for applications with inrush current or
overloading at the load end. Do not use the Power Supply
for such applications.
Overvoltage Protection
Overvoltage will be detected to prevent the load from being subjected
to excessive voltage when the feedback circuit in the Power Supply
fails, etc.
When an excessive voltage that is approximately 130% of the rated
output voltage or more is output, the output voltage is cut OFF,
preventing damage to the load due to overvoltage.
Reset the input power by turning it OFF for at least three minutes and
then turning it back ON again.
Note: Do not turn ON the power again until the cause of the
overvoltage has been removed.
INPUT OK Indicator
The INPUT OK indicator will light when the input voltage exceeds the
lower limit value of the permissible range.
Note: The voltage may be applied even if the indicator does not light.
Be sure to check the input voltage when performing wiring.
DC OK Indicator/Signal Output
The DC OK indicator will light when the output voltage is more than
90% of the rated output voltage, and the internal MOS FET relay is
conducted (turned ON).
Note: 1. The output voltage may be generated even if the indicator
does not light. Be sure to check the output voltage when
connecting to the load.
2. This function monitors the voltage at the power output
terminals.
To check the voltage accurately, measure the voltage at the
load end.
3. If the output voltage is set to less than 90% of the rated
output voltage, the indicator may go off and the signal
output may be turned OFF.
Iout > 100% Indicator/Signal Output
The Iout > 100% indicator lights up when the output current exceeds
the rated output current, and the internal MOS FET relay is conducted
(turned ON).
Note: 1. The Iout > 100% Indicator may light up, and the Iout > 100%
Signal Output may turn ON during peak current operation,
however, the Power Supply can be used as long as the
operating conditions specified in Peak current (P.27) are
satisfied.
2. Even when the operating conditions for parallel operation
are satisfied, the Iout>100% Indicator / Signal Output may
operate, so do not use the Iout>100% Indicator / Signal
Output.
3. During a short-circuit, the indicator will operate
intermittently due to the overload protection function. When
this happens, the indicator will blink in accordance with the
intermittent operation, and the Iout > 100% signal output will
repeated turn ON and OFF.
The shortest ON time of the Iout > 100% signal output
during intermittent operation is 5 ms.
Specifications of the Signal Output Terminals
(between DC OK Signal Output Terminal and
COM Terminal, and between Iout > 100% Signal
Output Terminal and COM Terminal)
Since the Signal Output is composed of the MOS FET relay, it does
not have any polarity.
30 VDC max., 50 mA max.
Residual voltage when the function is ON: 2 V max.
Leakage current when the function is OFF: 0.1 mA max.
Note: 1. Internal current control circuits are not provided internally
for output signals. Do not allow the output current to exceed
50 mA.
2. After completing wiring, confirm that the circuits operate
correctly.
Hold time
Output
voltage
Inrush current on input application
90% 96.5%
Input ON
AC input
voltage
AC input
current
Input OFF
Startup time
Output current (%)
Intermittent operation
0 100
Output voltage (V)

S8VK-WA
6
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Identification of error locations at the input, product, and load side by the Indicator or Signal Output,
and troubleshooting for the same (Maintenance point indicator)
Error locations at the input, product, and load side can be identified by the INPUT OK, DC OK, Iout > 100% Indicator / Signal Output.
Time chart (Operation of the Indicator/Signal Output according to the product status)
INPUT OK
Indicator
DC OK
Indicator/Signal
Output
Iout > 100%
Indicator/Signal
Output
Product operating status Troubleshooting methods
zz{ --- (Normal)
zzz
Operation is being performed in
excess of the rated output current of
the product.
Change to a product with less load or larger output capacity.
However, the Power Supply can be used as long as the operating
conditions specified in Peak current (P.27) are satisfied.
z{z
Overload protection is activated for
the product, and the output voltage
drops.
Make sure the output line and the load are not short-circuited.
If there is no short-circuiting, change to a product with less load or
larger output capacity.
z{
z{{
The product may have failed, or the
overvoltage protection may have
been activated for the product.
To check for overvoltage protection, turn the input power OFF, and
then turn it ON again after 3 minutes or more has elapsed. If no
output voltage is output, the product may have failed. Replace the
product.
{{{No input voltage is being supplied.
Make sure the circuit breaker connected to the input side has not
tripped, or the fuse connected to the input side has not blown.
Turn ON the circuit breaker or replace the fuse. Turn the input
power ON again, and if no output voltage is output, the product
may have failed. Replace the product.
z
z: Lit / ON {: Not lit / OFF :Flashing / ON · OFF
z
Output current
0%
100%
Input voltage
Output voltage
0 V
Rated voltage
Indicator: Not lit
Indicator: Lit
Indicator: Not lit
Indicator: Lit
>151%
OFF
ON
INPUT OK
Indicator: Lit
Indicator: Not lit
Iout>100%
Signal Output: ON
Signal Output: OFF
DC OK
Signal Output: ON
Signal Output: OFF
MOS FET relay
Min. ON time: 5 ms
・・・・・・
・・・・・・
Power
Boost
Function
Overload
protection
operating
Overload protection
operating (when output
is short-circuited)
Indicator: Flashing
Signal output: Repeated
conducting/non-conducting

S8VK-WA
7
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Connections
Block Diagrams
S8VK-WA24024 (240 W)
Overcurrent
circuit
Overcurrent
detection
circuit
Current
detection
circuit
Rectifier/
smoothing circuit
Noise
Filter
Signal
Output
Signal
Output
Photocoupler
Drive
control circuit
Voltage
detection
circuit
Overvoltage
detection
circuit
Rectifier
+V1
+V2
-V1
-V3
-V2
Inrush current
protection
circuit
Smoothing
circuit
Harmonic
current
suppression
circuit
DC OK
COM
DC OUTPUT
L1/+ (1)
INPUT
L1/+ (2)
L2 (1)
L2 (2)
L3/-(2)
L3/-(1) out
I >100%
S8VK-WA48024 (480 W)
S8VK-WA96024 (960 W)
Overcurrent
detection
circuit
Current
detection
circuit
Smoothing
circuit
Harmonic
current
suppression
circuit
Rectifier
Noise
Filter
Photocoupler
Inrush
current
protection
circuit
Drive
control circuit
Overcurrent
circuit
+V1
+V2
-V1
-V3
-V2
DC OUTPUT
Rectifier/
smoothing circuit
Signal
Output
Signal
Output
Voltage
detection
circuit
Overvoltage
detection
circuit
L1/+ (1)
INPUT
I >100%
DC OK
COM
L1/+ (2)
L2 (1)
L2 (2)
L3/- (2)
L3/- (1) out

S8VK-WA
8
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Construction and Nomenclature
Nomenclature
*1. For a single-phase power input, connect to (L1/+) and (L3/-).
For a DC power input, connect (L1/+) to (+), and (L3/-) to (-).
(Refer to the wiring diagrams illustrated in Recommended circuit breakers and fuses on page 25.)
*2. This is the protective earth terminal specified in the safety standards. Always ground this terminal.
240 W 480 W 960 W
S8VK-WA24024 S8VK-WA48024 S8VK-WA96024
No. Terminal
name Name Function
(1) L1/+ (1)
Input terminals Connect the input lines to these terminals. *1
(2) L1/+ (2)
(3) L2 (1)
(4) L2 (2)
(5) L3/- (1)
(6) L3/- (2)
(7) PE Protective Earth terminal ( ) Connect the ground line to this terminal. *2
(8) +V1
DC Output terminals Connect the load lines to these terminals.
(9) +V2
(10) -V1
(11) -V2
(12) -V3
(13) --- INPUT OK Indicator (INPUT OK: Green) Lights up when the input voltage exceeds the lower limit value of the
permissible range.
(14) --- Iout > 100% Indicator (Iout > 100%:
Yellow)
The Iout > 100% Indicator lights up when the output current exceeds the
rated output current.
(15) --- DC OK Indicator (DC OK: Green) Lights up when the output voltage is more than 90% of the rated output
voltage.
(16) --- Output voltage adjuster (V.ADJ) Use to adjust the output voltage.
(17) Iout > 100% Iout > 100% Signal Output Terminal The Iout > 100% Signal Output is output when the output current exceeds
the rated output current.
(18) DC OK DC OK Signal Output Terminal Outputs when the output voltage is more than 90% of the rated output
voltage.
(19) COM COM Terminal Common terminal for Signal Output (17) and (18).
(1)(2)(3)(4)(5)(6) (7)
(11)(8) (9)(10) (12)
(17)
(18)
(19)
(14)
(15)
(16)
(13)
(1)(2)(3)(4)(5)(6) (7)
(11)(8) (9)(10) (12)
(17)
(18)
(19)
(14)
(15)
(16)
(13)
(1)(2)(3)(4)(5)(6)(7)
(11)(8) (9) (10) (12)
(17)
(18)
(19)
(14)
(15)
(16)
(13)

S8VK-WA
9
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Engineering Data
Derating Curves
240 W <Horizontal separation: 15 mm or more> 480 W <Horizontal separation: 15 mm or more>
Note: 1. At less than 200 VAC three-phase/single-phase, derate
the load at 0.5%/V.
2. At less than 280 VDC, derate the load at 1.0%/V.
3. In the shaded area, time is required to reach the rated
output voltage after the input voltage is applied.
Note: 1. At less than 200 VAC three-phase/single-phase, derate
the load at 0.5%/V.
2. At less than 280 VDC, derate the load at 1.0%/V.
3. In the shaded area, time is required to reach the rated
output voltage after the input voltage is applied.
A. Standard mounting
B. Face-up mounting
A. Standard mounting
B. Face-up mounting
960 W <Horizontal separation: 15 mm or more> 240 W/480 W/960 W <Horizontal separation: less than 15 mm>
Note: 1. At less than 200 VAC three-phase/single-phase, derate
the load at 0.5%/V.
2. At less than 280 VDC, derate the load at 1.0%/V.
3. In the shaded area, time is required to reach the rated
output voltage after the input voltage is applied.
Note: 1. Apply the rated input voltage for both three-phase and
single-phase.
2. In the shaded area, time is required to reach the rated
output voltage after the input voltage is applied.
A. Standard mounting
B. Face-up mounting
C. Front, side-by-side mounting
This Power Supply can be used at an altitude of up to 3,000 m.
Between 2,000 and 3,000 m, derate the load according to the following derating curve.
240 W/480 W/960 W <Horizontal separation: 15 mm or more> 240 W/480 W/960 W <Horizontal separation: less than 15 mm>
Note: 1. At less than 200 VAC three-phase/single-phase, derate
the load at 0.5%/V.
2. At less than 280 VDC, derate the load at 1.0%/V.
Note: Apply the rated input voltage for both three-phase and single-
phase.
A. Standard mounting C. Front, side-by-side mounting
Ambient operating temperature (°C)
-25 -10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
A
B
75%
50%
-40
Load rate (%)
–25 –10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
A
B
75%
30%
–40
Ambient operating temperature (°C)
Load rate (%)
0
20
40
60
80
100
120
A
B
75%
30%
–25 –10 0 10 20 30 40 50 60 70 80–40
Ambient operating temperature (°C)
Load rate (%)
0
20
40
60
80
100
120
C
–25 –10 0 10 20 30 40 50 60 70 80–40
Ambient operating temperature (°C)
Load rate (%)
87
75
0
20
40
60
80
100
120
0500 1,000 1,500 2,000 2,500 3,000 3,500
55°C max.
60°C
65°C
70°C
100%
90%
77%
65%
Altitude (m)
Load rate (%)
0
20
40
60
80
100
120
0500 1,000 1,500 2,000 2,500 3,000 3,500
35°C max.
40°C
55°C
100%
85%
75%
Altitude (m)
Load rate (%)

S8VK-WA
10
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Dimensions (Unit: mm)
(1.1)
5.2
(8.0 max. when sliding)
5
17.3
117
111.4
5.4
15.8
54.4
53.8
5.4
6.5
0.55
19.8
(1.2)
(0.6)
121.4±1
55±1
(0.6)
124±1
(10)
S8VK-WA24024
5.2
(8.0 max. when sliding)
121.4±1
(0.6)
(0.6)
(1)
(1.1)
(10)
20.8
7.5
0.9
5
17.3
52.7
53.8
117
111.4
124±1
5.4
6.5
0.55
19.8
65±1
S8VK-WA48024
5
17.3
51.1
53.8
121.4±1
117
111.4
(0.6)
(0.6)
124±1
(1.1)
(1)
(10)
5.4
6.5
0.55
19.8
118±1
47.2
10
0.9
5.2
(8.0 max. when sliding)
S8VK-WA96024

11
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Switch Mode Power Supply (240/480/960-W Models)
S8VK-WB
Even more compact three-phase
380 to 480 V input power supplies.
Reduces wiring work with
the Push-In Plus terminals.
With a line-up that includes
24 VDC and 48 VDC models.
• Can operate at an ambient temperature of -40 to +70°C *1
• Side-by-side Mounting enabled *1 *2
• Complies with SEMI F47-0706 standard *3
• Certification for 3,000 m altitude *3
• Coated PCBs for Better Resistance to Environment
• Equipped with signal output that indicates DC OK
and the overload status
*1. For details, refer to Derating Curves on page 20.
*2. Refer to the Front, Side-by-side mounting on page 24.
*3. For details, refer to Standard Compliance on page 15.
246437
Refer to Safety Precautions on page 24.

S8VK-WB
12
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Lineup
Model Number Structure
Model Number Legend Not all combinations are possible. Refer to List of Models in Ordering Information, below.
(1) Rated input voltage
(2) Power rating
(3) Output voltage
Ordering Information
List of Models
Accessories (Order separately)
Refer to page 22 for S8VK-WA/S8VK-WB Common Accessories.
Output voltage Power rating
240 W 480 W 960 W
24 V Released Released Released
48 V Released Released Released
S8VK-WB @@@ @@
Series name (2) (3)(1)
Code Rated input voltage
B 380 to 480
Code Power rating
240 240 W
480 480 W
960 960 W
Code Output voltage (VDC)
24 24 V
48 48 V
Power rating Rated input voltage Rated output
voltage (VDC)
Rated output
current
Maximum boost
current Model
240 W
Three-phase / two-phase 380 to 480 VAC
(Allowable range:
Three-phase / two-phase 320 to 576 VAC,
450 to 810 VDC)
24 V 10 A 15 A S8VK-WB24024
48 V 5 A 7.5 A S8VK-WB24048
480 W
24 V 20 A 30 A S8VK-WB48024
48 V 10 A 15 A S8VK-WB48048
960 W
24 V 40 A 60 A S8VK-WB96024
48 V 20 A 30 A S8VK-WB96048

S8VK-WB
13
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Ratings, Characteristics, and Functions
Note: For *1 to *12, refer to page 15.
Power rating 240W 480W 960W
Item Output voltage 24V 24V 24V
Efficiency * 1
Three-phase 400 VAC input 93% typ. 94% typ. 95% typ.
Two-phase 400 VAC input 93% typ. 94% typ. 95% typ.
Input
conditions
Input voltage range * 2 Three-phase/two-phase 320 to 576 VAC, 450 to 810 VDC
Frequency * 2 50/60 Hz (47 to 63 Hz)
Input current * 1
Three-phase 400 VAC input 0.41 A typ. 0.79 A typ. 1.6 A typ.
Two-phase 400 VAC input 0.75 A typ. 1.5 A typ. 3.0 A typ.
Power factor * 1 Three-phase 400 VAC input 0.9 min.
Leakage current * 3 Three-phase 400 VAC input 3.5 mA max.
Inrush current * 4 Three-phase 400 VAC input 1.7 A typ. 3.0 A typ. 10.6 A typ.
Output
character-
istics
Rated output current 10 A 20 A 40 A
Power Boost Function 15 A 30 A 60 A
Voltage adjustment range * 5 24 to 29.5 V (with V.ADJ) 24 to 28 V (with V.ADJ)
Ripple noise voltage * 6
Three-phase
380 to 480 VAC input
100 mV p-p max.
at 20 MHz of bandwidth
80 mV p-p max.
at 20 MHz of bandwidth
50 mV p-p max.
at 20 MHz of bandwidth
Input variation influence *70.5% max.
Load variation influence *81.5% max.
Temperature variation
influence 200 to 240 VAC input 0.05%/°C max.
Startup time * 9 Three-phase 400 VAC input 1,000 ms max.
Output hold time * 9 Three-phase 400 VAC input 30 ms typ. 25 ms typ. 20 ms typ.
Additional
functions
Overload protection Yes, automatic reset, intermittent operation type Refer to Overload Protection on page 16.
Overvoltage protection Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and
turn on the input again), Refer to Overvoltage Protection on page 16.
Series operation Yes (For up to two Power Supplies; external diodes required.)
Parallel operation Yes (For up to two Power Supplies), Refer to Parallel Operation on page 28.
INPUT OK Indicator Yes (LED: Green)
DC OK Indicator Yes (LED: Green)
Iout > 100% Indicator Yes (LED: Yellow)
DC OK Signal Output Yes (MOS FET relay output 30 VDC max., 50 mA max.)
Iout > 100% signal output Yes (MOS FET relay output 30 VDC max., 50 mA max.)
Insulation
Withstand voltage
3.0 kVAC for 1 min. (between all input terminals and all output terminals, signal output
terminals), cutoff current 20 mA
2.5 kVAC for 1 min. (between all input terminals and PE terminals), cutoff current 30 mA
1.0 kVAC for 1 min. (between all output terminals, signal output terminals and PE
terminals), cutoff current 25 mA
0.5 kVAC for 1 min. (between all output terminals and all signal output terminals), cutoff
current 10 mA
Insulation resistance
100 M Ω min. (between all output terminals, signal output terminals and all input terminals /
PE terminals) at 500 VDC
Environ-
ment
Ambient operating temperature * 10
-40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data
on page 20.) (with no condensation or icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 95% max. (Storage humidity: 95% max.)
Vibration resistance 10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions
Shock resistance 294 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability
MTBF * 11 170,000 hrs typ. 160,000 hrs typ. 140,000 hrs typ.
Expected life * 12 10 years min.
Construc-
tion
Weight 890 g max. 1,200 g max. 1,800 g max.
Cooling fan No
Degree of protection IP20 by EN/IEC 60529

S8VK-WB
14
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Note: For *1 to *12, refer to page 15.
Power rating 240W 480W 960W
Item Output voltage 48V 48V 48V
Efficiency * 1
Three-phase 400 VAC input 93% typ. 94% typ. 96% typ.
Two-phase 400 VAC input 93% typ. 94% typ. 95% typ.
Input
conditions
Input voltage range * 2 Three-phase/two-phase 320 to 576 VAC, 450 to 810 VDC
Frequency * 2 50/60 Hz (47 to 63 Hz)
Input current * 1
Three-phase 400 VAC input 0.41 A typ. 0.78 A typ. 1.6 A typ.
Two-phase 400 VAC input 0.75 A typ. 1.5 A typ. 2.9 A typ.
Power factor * 1 Three-phase 400 VAC input 0.9 min.
Leakage current * 3 Three-phase 400 VAC input 3.5 mA max.
Inrush current * 4 Three-phase 400 VAC input 1.7 A typ. 3.0 A typ. 10.6 A typ.
Output
character-
istics
Rated output current 5 A 10 A 20 A
Power Boost Function 7.5 A 15 A 30 A
Voltage adjustment range * 5 48 to 56 V (with V.ADJ)
Ripple noise voltage * 6
Three-phase
380 to 480 VAC input
50 m V p-p max.
at 20 MHz of bandwidth
60 mV p-p max.
at 20 MHz of bandwidth
60 mV p-p max.
at 20 MHz of bandwidth
Input variation influence *70.5% max.
Load variation influence *81.5% max.
Temperature variation
influence 380 to 480 VAC input 0.05%/°C max.
Startup time * 9 Three-phase 400 VAC input 1,000 ms max.
Output hold time * 9 Three-phase 400 VAC input 30 ms typ. 25 ms typ. 20 ms typ.
Additional
functions
Overload protection Yes, automatic reset, intermittent operation type Refer to Overload Protection on page 16.
Overvoltage protection Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and
turn on the input again), Refer to Overvoltage Protection on page 16.
Series operation Yes (For up to two Power Supplies; external diodes required.)
Parallel operation Yes (For up to two Power Supplies), Refer to Parallel Operation on page 28.
INPUT OK Indicator Yes (LED: Green)
DC OK Indicator Yes (LED: Green)
Iout > 100% Indicator Yes (LED: Yellow)
DC OK Signal Output Yes (MOS FET relay output 30 VDC max., 50 mA max.)
Iout > 100% signal output Yes (MOS FET relay output 30 VDC max., 50 mA max.)
Insulation
Withstand voltage
3.0 kVAC for 1 min. (between all input terminals and all output terminals, signal output
terminals), cutoff current 20 mA
2.5 kVAC for 1 min. (between all input terminals and PE terminals), cutoff current 20 mA
1.0 kVAC for 1 min. (between all output terminals, signal output terminals and PE
terminals), cutoff current 30 mA
0.5 kVAC for 1 min. (between all output terminals and all signal output terminals), cutoff
current 10 mA
Insulation resistance 100 MΩmin. (between all output terminals, signal output terminals and all input terminals /
PE terminals) at 500 VDC
Environ-
ment
Ambient operating temperature * 10
-40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data
on page 20.) (with no condensation or icing)
Storage temperature -40 to 85°C (with no condensation or icing)
Ambient operating humidity 95% max. (Storage humidity: 95% max.)
Vibration resistance 10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions
Shock resistance 294 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability
MTBF * 11 170,000 hrs typ. 160,000 hrs typ. 140,000 hrs typ.
Expected life * 12 10 years min.
Construc-
tion
Weight 890 g max. 1,200 g max. 1,800 g max.
Cooling fan No
Degree of protection IP20 by EN/IEC 60529

S8VK-WB
15
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
*1. The value is when both rated output voltage and rated output current are satisfied.
*2. Do not use an inverter output for the product. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal
temperature of the product may result in ignition or burning. If the input is connected to a UPS, do not connect a UPS with a square-wave
output. Doing so will cause the internal temperature of the product to increase, possibly causing smoking or burning.
*3. The value is determined according to the Electrical Appliances and Material Safety Act.
*4. Values for a cold start at 25°C. Refer to Inrush Current, Startup Time, and Output Hold Time on page 16.
*5. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than the voltage adjustment range.
When adjusting the output voltage, confirm the actual output voltage from the product and be sure that the load is not damaged.
*6. The value is when both rated output voltage and rated output current are satisfied.
A characteristic when the ambient operating temperature is 25°C.
*7. This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable input voltage range at the
rated output voltage and rated output current.
*8. 380 to 480 VAC input, in the range of 0 A to the rated output current.
*9. This is the value when both rated output voltage and rated output current are satisfied and at room temperature (25°C).
Refer to Inrush Current, Startup Time, and Output Hold Time on page 16 for details.
*10. At -40 to -25°C, time will be required before the rated output voltage is output after the input voltage is input.
*11. MTBF is calculated according to JEITA RCR-9102.
*12. Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on page 32 for details.
*13. When using 2-phase input, conforms to EN 61000-3-2 under the following condition.
960W: At the rated output voltage, and 80% or less than the rated output current
*14. Refer to Standard Compliance below for details.
Standard Compliance
• To comply with PELV output requirements for EN/IEC 60204-1, ground the negative side of the output (-V) to a protective earth (PE).
• EN/IEC 61558-2-16
The S8VK-WA was designed based on EN/IEC 61558-2-16.
Currently, IEC 61558-2-17 has been replaced by IEC 61558-2-16.
When certification was received for EN/IEC 60204-1 (Machinery Safety), it was necessary to go through a control transformer to the control
circuits. However, a control transformer is not always necessary for product that have been certified for the safety standard for OVCIII or for
product that use a transformer that complies with EN/IEC 61558-2-16.
• For the S8VK-WB, the DC input is not compliant with Safety standards.
Power rating 240 W 480 W 960 W
Item Output voltage (VDC) 24 V/48 V 24 V/48 V 24 V/48 V
Standards
*
14
Harmonic current emissions Conforms to EN 61000-3-2 (three-phase/two-phase) * 13
EMI
Conducted emissions Conforms to EN 61204-3 Class B,
EN 55011 Class B (three-phase)
Conforms to EN 61204-3 Class A,
EN 55011 Class A (two-phase)
Radiated emissions
EMS Conforms to EN 61204-3 high severity levels
Safety standards
UL 508 Listing
UL 62368-1 (Recognition) OVC II (≤ 3000 m) Pol2
CSA C22.2 No.62368-1 OVC II (≤ 3000 m) Pol2
EN/IEC 62477-1 OVC III (≤ 2000 m)
OVC II (2000 m < and ≤3000 m) Pol2
EN/IEC 62368-1 OVC II (≤ 3000 m) Pol2
EAC (TR CU 004 / 2011, TR CU 020 / 2011)
RCM (EN61000-6-4)
Complies with PELV (EN/IEC 60204-1)
Complies with EN/IEC 61558-2-16
SEMI Complies with SEMI F47-0706 (three-phase 380 to 480 VAC input)

S8VK-WB
16
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Inrush Current, Startup Time, and Output Hold Time
Note: Twice the normal inrush current will flow during parallel
operation or for backup operation. Therefore, check the fusing
characteristics of fuses and operating characteristics of
breakers making sure that the external fuses will not burn out
and the circuit breakers will not be activated by the inrush
current.
Overload Protection
The product is automatically protected from short-circuit current and
overcurrent damages when the load current is in the range of 151 to
175% of the rated current.
When the output current falls within the rated range, the overload
protection function is automatically cleared.
Note: 1. Internal parts may occasionally deteriorate or be damaged
if a short-circuited or overcurrent state continues during
operation. Be sure to check that the Iout > 100% indicator
is not lit or the Iout > 100% signal output is turned OFF
before using.
2. Internal parts may possibly deteriorate or be damaged if the
Power Supply is used for applications with inrush current or
overloading at the load end. Do not use the Power Supply
for such applications.
Overvoltage Protection
Overvoltage will be detected to prevent the load from being subjected
to excessive voltage when the feedback circuit in the Power Supply
fails, etc.
When an excessive voltage that is approximately 130% of the rated
output voltage or more is output, the output voltage is cut OFF,
preventing damage to the load due to overvoltage.
Reset the input power by turning it OFF for at least three minutes and
then turning it back ON again.
Note: Do not turn ON the power again until the cause of the
overvoltage has been removed.
INPUT OK Indicator
The INPUT OK indicator will light when the input voltage exceeds the
lower limit value of the permissible range.
Note: The voltage may be applied even if the indicator does not light.
Be sure to check the input voltage when performing wiring.
DC OK Indicator/Signal Output
The DC OK indicator will light when the output voltage is more than
90% of the rated output voltage, and the internal MOS FET relay is
conducted (turned ON).
Note: 1. The output voltage may be generated even if the indicator
does not light. Be sure to check the output voltage when
connecting to the load.
2. This function monitors the voltage at the power output
terminals.
To check the voltage accurately, measure the voltage at the
load end.
3. If the output voltage is set to less than 90% of the rated
output voltage, the indicator may go off and the signal
output may be turned OFF.
Iout > 100% Indicator/Signal Output
The Iout > 100% indicator lights up when the output current exceeds
the rated output current, and the internal MOS FET relay is conducted
(turned ON).
Note: 1. The Iout > 100% Indicator may light up, and the Iout > 100%
Signal Output may turn ON during peak current operation,
however, the Power Supply can be used as long as the
operating conditions specified in Peak current (P.27) are
satisfied.
2. Even when the operating conditions for parallel operation
are satisfied, the Iout>100% Indicator / Signal Output may
operate, so do not use the Iout>100% Indicator / Signal
Output.
3. During a short-circuit, the indicator will operate intermittently
due to the overload protection function. When this happens,
the indicator will blink in accordance with the intermittent
operation, and the Iout > 100% signal output will repeated
turn ON and OFF.
The shortest ON time of the Iout > 100% signal output
during intermittent operation is 5 ms.
Specifications of the Signal Output Terminals
(between DC OK Signal Output Terminal and
COM Terminal, and between Iout > 100% Signal
Output Terminal and COM Terminal)
Since the Signal Output is composed of the MOS FET relay, it does
not have any polarity.
30 VDC max., 50 mA max.
Residual voltage when the function is ON: 2 V max.
Leakage current when the function is OFF: 0.1 mA max.
Note: 1. Internal current control circuits are not provided internally
for output signals. Do not allow the output current to exceed
50 mA.
2. After completing wiring, confirm that the circuits operate
correctly.
Hold time
Output
voltage
Inrush current on input application
90% 96.5%
Input ON
AC input
voltage
AC input
current
Input OFF
Startup time
Output current (%)
Intermittent operation
0 100
Output voltage (V)

S8VK-WB
17
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Identification of error locations at the input, product, and load side by the Indicator or Signal Output,
and troubleshooting for the same (Maintenance point indicator)
Error locations at the input, product, and load side can be identified by the INPUT OK, DC OK, Iout > 100% Indicator / Signal Output.
Time chart (Operation of the Indicator/Signal Output according to the product status)
INPUT OK
Indicator
DC OK
Indicator/Signal
Output
Iout > 100%
Indicator/Signal
Output
Product operating status Troubleshooting methods
zz{ --- (Normal)
zzz
Operation is being performed in
excess of the rated output current of
the product.
Change to a product with less load or larger output capacity.
However, the Power Supply can be used as long as the operating
conditions specified in Peak current (P.27) are satisfied.
z{z
Overload protection is activated for
the product, and the output voltage
drops.
Make sure the output line and the load are not short-circuited.
If there is no short-circuiting, change to a product with less load or
larger output capacity.
z{
z{{
The product may have failed, or the
overvoltage protection may have
been activated for the product.
To check for overvoltage protection, turn the input power OFF, and
then turn it ON again after 3 minutes or more has elapsed. If no
output voltage is output, the product may have failed. Replace the
product.
{{{No input voltage is being supplied.
Make sure the circuit breaker connected to the input side has not
tripped, or the fuse connected to the input side has not blown.
Turn ON the circuit breaker or replace the fuse. Turn the input
power ON again, and if no output voltage is output, the product
may have failed. Replace the product.
z
z: Lit / ON {: Not lit / OFF :Flashing / ON · OFF
z
Output current
0%
100%
Input voltage
Output voltage
0 V
Rated voltage
Indicator: Not lit
Indicator: Lit
Indicator: Not lit
Indicator: Lit
>151%
OFF
ON
INPUT OK
Indicator: Lit
Indicator: Not lit
Iout>100%
Signal Output: ON
Signal Output: OFF
DC OK
Signal Output: ON
Signal Output: OFF
MOS FET relay
Min. ON time: 5 ms
・・・・・・
・・・・・・
Power
Boost
Function
Overload
protection
operating
Overload protection
operating (when output
is short-circuited)
Indicator: Flashing
Signal output: Repeated
conducting/non-conducting

S8VK-WB
18
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Connections
Block Diagrams
S8VK-WB@@@@@
Noise
Filter
Rectifier Harmonic
current
suppression
circuit
Smoothing
circuit
Rectifier/
smoothing circuit
Signal
Output
Signal
Output
Current
detection
circuit
Overcurrent
detection
circuit
Voltage
detection
circuit
Overvoltage
detection
circuit
Photocoupler
Drive
control circuit
Overcurrent
circuit
+V1
+V2
-V1
-V3
-V2
DC OUTPUT
COM
DC OK
L1/+ (1)
L1/+ (2)
L2 (1)
L2 (2)
L3/- (1)
L3/- (2)
INPUT
I >100%
out

S8VK-WB
19
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Construction and Nomenclature
Nomenclature
*1. For a two-phase power input, connect to (L1/+) and (L3/-).
For a DC power input, connect (L1/+) to (+), and (L3/-) to (-).
(Refer to the wiring diagrams illustrated in Recommended circuit breakers and fuses on page 25.)
*2. This is the protective earth terminal specified in the safety standards. Always ground this terminal.
240 W 480 W 960 W
S8VK-WB240@@ S8VK-WB480@@ S8VK-WB960@@
No. Terminal
name Name Function
(1) L1/+ (1)
Input terminals Connect the input lines to these terminals. *1
(2) L1/+ (2)
(3) L2 (1)
(4) L2 (2)
(5) L3/- (1)
(6) L3/- (2)
(7) PE Protective Earth terminal ( ) Connect the ground line to this terminal. *2
(8) +V1
DC Output terminals Connect the load lines to these terminals.
(9) +V2
(10) -V1
(11) -V2
(12) -V3
(13) --- INPUT OK Indicator (INPUT OK: Green) Lights up when the input voltage exceeds the lower limit value of the
permissible range.
(14) --- Iout > 100% Indicator (Iout > 100%:
Yellow)
The Iout > 100% Indicator lights up when the output current exceeds the
rated output current.
(15) --- DC OK Indicator (DC OK: Green) Lights up when the output voltage is more than 90% of the rated output
voltage.
(16) --- Output voltage adjuster (V.ADJ) Use to adjust the output voltage.
(17) Iout > 100% Iout > 100% Signal Output Terminal The Iout > 100% Signal Output is output when the output current exceeds
the rated output current.
(18) DC OK DC OK Signal Output Terminal Outputs when the output voltage is more than 90% of the rated output
voltage.
(19) COM COM Terminal Common terminal for Signal Output (17) and (18).
(1)(2)(3)(4)(5)(6) (7)
(11)(8) (9)(10) (12)
(17)
(18)
(19)
(14)
(15)
(16)
(13)
(1)(2)(3)(4)(5)(6) (7)
(11)(8) (9)(10) (12)
(17)
(18)
(19)
(14)
(15)
(16)
(13)
(1)(2)(3)(4)(5)(6)(7)
(11)(8) (9) (10) (12)
(17)
(18)
(19)
(14)
(15)
(16)
(13)

S8VK-WB
20
S8VK-WA S8VK-WB Common AccessoriesCommon Precautions
Engineering Data
Derating Curves
240 W <Horizontal separation: 15 mm or more> 480 W <Horizontal separation: 15 mm or more>
Note: 1. At more than 528 VAC three-phase, derate the load at 0.5%/V.
2. At less than 380 VAC two-phase or at more than 528 VAC
two-phase, derate the load at 0.5%/V.
3. At more than 746 VDC, derate the load at 0.5%/V.
4. In the shaded area, time is required to reach the rated output
voltage after the input voltage is applied.
Note: 1. At more than 528 VAC three-phase, derate the load at 0.5%/V.
2. At less than 380 VAC two-phase or at more than 528 VAC
two-phase, derate the load at 0.5%/V.
3. At more than 746 VDC, derate the load at 0.5%/V.
4. In the shaded area, time is required to reach the rated output
voltage after the input voltage is applied.
A. Standard mounting, B. Face-up mounting A. Standard mounting, B. Face-up mounting
960 W <Horizontal separation: 15 mm or more> 240 W/480 W/960 W <Horizontal separation: less than 15 mm>
Note: 1. At more than 528 VAC three-phase, derate the load at 0.5%/V.
2. At less than 380 VAC two-phase or at more than 528 VAC
two-phase, derate the load at 0.5%/V.
3. At more than 746 VDC, derate the load at 0.5%/V.
4. In the shaded area, time is required to reach the rated output
voltage after the input voltage is applied.
Note: 1. Apply the rated input voltage for both three-phase and two-
phase.
2.
In the shaded area, time is required to reach the rated output
voltage after the input voltage is applied.
A. Standard mounting, B. Face-up mounting C. Front, side-by-side mounting
This Power Supply can be used at an altitude of up to 3,000 m.
Between 2,000 and 3,000 m, derate the load according to the following derating curve.
240 W/480 W/960 W <Horizontal separation: 15 mm or more> 240 W/480 W/960 W <Horizontal separation: less than 15 mm>
Note: 1. At more than 528 VAC three-phase, derate the load at 0.5%/V.
2. At less than 380 VAC two-phase or at more than 528 VAC
two-phase, derate the load at 0.5%/V.
3. At more than 746 VDC, derate the load at 0.5%/V.
Note: Apply the rated input voltage for both three-phase and two-
phase.
A. Standard mounting C. Front, side-by-side mounting
0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
A
B
75%
50%
–25 –10–40
Ambient operating temperature (°C)
Load rate (%)
120
100
80
60
40
20
0
A
B
75%
30%
–25 –10 0 10 20 30 40 50 60 70 80–40
Ambient operating temperature (°C)
Load rate (%)
0
20
40
60
80
100
120
A
B
75%
30%
–25 –10 0 10 20 30 40 50 60 70 80–40
Ambient operating temperature (°C)
Load rate (%)
–25 –10 0 10 20 30 40 50 60 70 80–40
Ambient operating temperature (°C)
Load rate (%)
0
20
40
60
80
100
120
C
87
75
0
20
40
60
80
100
120
0500 1,000 1,500 2,000 2,500 3,000 3,500
60°C
65°C
70°C
100%
90%
77%
65%
55°C max.
Altitude (m)
Load rate (%)
0
20
40
60
80
100
120
0500 1,000 1,500 2,000 2,500 3,000 3,500
35°C max.
40°C
55°C
100%
85%
75%
Altitude (m)
Load rate (%)
