Omron S8VK-S Series User manual

1
New Product
Switch Mode Power Supply
S8VK-S (30/60/120/240/480-W Models)
A Perfect Fit for Small Control Panels
Coated PCBs for Better Resistance
to Environment
Easy Wiring by Push-in Plus
Technology
• Operation possible at ambient temperatures from
-40 to 70°C.
• Side-by-side mounting possible (up to 55°C). *1
• DC input supported (90 to 350 VDC).
• Power Boost function at 120% (30/60 and 120 W);
Power Boost function at 150% (240 and 480 W).
• Low-voltage detection output (only for 240 and
480 W).
• Vibration resistance to 5G, and 300-VAC abnormal
input voltage supported for 1 second.
• ANSl/ISA 12.12.01.
• Certification for 3,000 m altitude (UL/EN/IEC
60950-1 and EN 50178).
• Complies with EN/IEC 61558-2-16.
• Lloyd’s, DNV GL (Except 30 W)
• Conforms to SEMI F47-0706.
• RoHS compliant
*1. For front, side-by-side mounting, see page 18.
Model Number Structure
Model Number Legend
Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below.
Ordering Information
Note: For details on normal stock models, contact your nearest OMRON representative.
!Refer to Safety Precautions for All Power Supplies and Safety
Precautions on page 17.
LR
12
S8VK- S@@@@@
1. Power Ratings
030: 30 W
060: 60 W
120: 120 W
240: 240 W
480: 480 W
2. Output voltage
24: 24 V
Power ratings Rated input voltage Rated output voltage Rated output current Maximum boost current Model number
30 W
100 to 240 VAC
(allowable range:
85 to 264 VAC or
90 to 350 VDC)
24 V 1.3 A 1.56 A S8VK-S03024
60 W 24 V 2.5 A 3 A S8VK-S06024
120 W 24 V 5 A 6 A S8VK-S12024
240 W 24 V 10 A 15 A S8VK-S24024
480 W 24 V 20 A 30 A S8VK-S48024

S8VK-S
2
Specifications
Ratings, Characteristics, and Functions
Note: For notes *1 to *12, refer to page 4.
Power rating 30 W 60 W 120 W
Item Output voltage 24 V 24 V 24 V
Efficiency 115 VAC input *187% typ. 87% typ. 90% typ.
230 VAC input *186% typ. 89% typ. 92% typ.
Input
Voltage range *2Single-phase, 85 to 264 VAC, 90 to 350 VDC *12, 265 to 300 VAC (1 second)
Frequency *250/60 Hz (47 to 450 Hz) 50/60 Hz (47 to 63 Hz)
Input current 115 VAC input *10.58A typ. 1.1 A typ. 1.2 A typ.
230 VAC input *10.36A typ. 0.66 A typ. 0.63 A typ.
Power factor --- 0.9 min.
Leakage current *3115 VAC input 0.5 mA max.
230 VAC input 1 mA max.
Inrush current *4 (for a
cold start at 25°C)
115 VAC input 16 A typ.
230 VAC input 32 A typ.
Output
Rated output current 1.3 A 2.5 A 5 A
Rated output electric power 31.2 W 60 W 120 W
Maximum boost current 1.56 A 3 A 6 A
Voltage adjustment range *521.6 to 28 V (with V.ADJ)
Ripple & Noise voltage
*6
100 to 240 VAC input
*1
190 mVp-p max.
at 20 MHz of bandwidth
190 mVp-p max.
at 20 MHz of bandwidth
110 mVp-p max.
at 20 MHz of bandwidth
Input variation influence *70.5% max.
Load variation influence *81.5% max.
Temperature variation
influence 115 to 230 VAC input 0.05%/°C max.
Start up time *4115 VAC input *11000 ms max. 1000 ms max. 1000 ms max.
230 VAC input *11000 ms max. 1000 ms max. 1000 ms max.
Hold time *6115 VAC input *130 ms typ. 20 ms typ. 45 ms typ.
230 VAC input *1140 ms typ. 95 ms typ. 45 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection *9Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on
the input again)
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation Yes (For up to two Power Supplies), Refer to Parallel Operation on page 21 for details.
Output indicator Yes (LED: Green)
Low-voltage detection output No
Insulation Withstand voltage
3.0 kVAC for 1 min. (between all input terminals and output terminals), current cutoff 10 mA
2.0 kVAC for 1 min. (between all input terminals and PE terminals), current cutoff 10 mA
1.0 kVAC for 1 min. (between all output terminals and PE terminals), current cutoff 20 mA
Insulation resistance 100 Mmin. (between all output terminals and all input terminals/PE terminals) at 500 VDC
Environment
Ambient operating temperature *1040 to 70°C (Derating is required according to the temperature. Refer to Engineering Data) (with
no condensation or icing)
Storage temperature 40 to 85°C (with no condensation or icing)
Ambient operating humidity 95% RH max. (Storage humidity: 95% RH max.)
Vibration resistance 10 to 55 Hz, maximum 5G, 0.42 mm half amplitude for 2 h each in X, Y, and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability MTBF Refer to page 12 Reference Value
Life expectancy *11 10 years min.
Construction
Weight 250 g max. 250 g max. 400 g max.
Cooling fan No
Degree of protection IP20 by EN/IEC 60529
Standards
Harmonic current emissions Conforms to EN 61000-3-2
EMI Conducted Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Approved Standards
UL Listing: UL 508,ANSI/ISA 12.12.01 (For 30 W and 60 W only Class2 Output: Per UL 1310)
cUL: CSA C22.2 No107.1,
CSA C22.2 No213 (For 30 W and 60 W only Class2 Output: Per CSA C22.2 No.223)
UL UR: UL 60950-1 (Recognition) OVCII 3000 m) Pol2
cUR: CSA C22.2 No. 60950-1 OVCII (3000 m) Pol2
EN: EN 50178 OVCIII (2000 m) OVCII (2000 mand3000) Pol2,
EN 60950-1 OVCII (3000 m) Pol2
ATEX: EN 60079-0, EN 60079-15 Cert. DEMKO 16 ATEX 1708X (Except 30 W)
Ex II 3G Ex nA IIC T3 Gc
IECEx: IEC 50079-0, IEC60079-15 Cert. IECEx UL 16.0082X (Except 30 W)
Ex nA IIC T3 Gc
Conformed Standards PELV (EN/IEC 60204-1) *12
EN/IEC 61558-2-16:2009+A1:2013 *12
Marine Standards *12 Lloyd’s register (Except 30 W)
DNV GL (Except 30 W)
SEMI Conforms to F47-0706 (200 to 240 VAC input)

S8VK-S
3
Note: For notes *1 to *12, refer to page 4.
Power rating 240 W 480 W
Item Output voltage 24 V 24 V
Efficiency 115 VAC input *191% typ. 91% typ.
230 VAC input *193% typ. 93% typ.
Input
Voltage range *2Single-phase, 85 to 264 VAC, 90 to 350 VDC *12, 265 to 300 VAC (1 second)
Frequency *250/60 Hz (47 to 63 Hz)
Input current 115 VAC input *12.4 A typ. 4.6 A typ.
230 VAC input *11.3 A typ. 2.3 A typ.
Power factor 0.9 min. 0.9 min.
Leakage current *3115 VAC input 0.5 mA max.
230 VAC input 1 mA max.
Inrush current *4 (for a
cold start at 25°C)
115 VAC input 16 A typ.
230 VAC input 32 A typ.
Output
Rated output current 10 A 20 A
Rated output electric power 240 W 480 W
Maximum boost current 15 A 30 A
Voltage adjustment range *521.6 to 28 V (with V.ADJ)
Ripple & Noise voltage
*6
100 to 240 VAC input
*1
100 mVp-p max.
at 20 MHz of bandwidth
130 mVp-p max.
at 20 MHz of bandwidth
Input variation influence *70.5% max.
Load variation influence *81.5% max.
Temperature variation
influence 115 to 230 VAC input 0.05%/°C max.
Start up time *4115 VAC input *11000 ms max. 1000 ms max.
230 VAC input *11000 ms max. 1000 ms max.
Hold time *6115 VAC input *135 ms typ. 30 ms typ.
230 VAC input *135 ms typ. 30 ms typ.
Additional
functions
Overload protection Yes, automatic reset
Overvoltage protection *9Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on
the input again)
Series operation Yes (For up to two Power Supplies, external diodes are required.)
Parallel operation Yes (For up to two Power Supplies), Refer to Parallel Operation on page 21 for details.
Output indicator Yes (LED: Green)
Low-voltage detection output Yes (Photoswitch output: 30 VDC max., 50 mA max.)
Insulation
Withstand voltage
3.0 kVAC for 1 min. (between all input terminals and output terminals), current cutoff 20 mA
2.0 kVAC for 1 min. (between all input terminals and PE terminals), current cutoff 20 mA
1.0 kVAC for 1 min. (between all output terminals and PE terminals), current cutoff 20 mA
500 VAC for 1 min (between all output terminals and all low-voltage detection output terminals),
current cutoff 10 mA
Insulation resistance 100 Mmin. (between all output terminals/all low-voltage detection output terminals and all input
terminals/PE terminals) at 500 VDC
Environment
Ambient operating temperature *1040 to 70°C (Derating is required according to the temperature. Refer to Engineering Data) (with
no condensation or icing)
Storage temperature 40 to 85°C (with no condensation or icing)
Ambient operating humidity 95% RH max. (Storage humidity: 95% RH max.)
Vibration resistance 10 to 55 Hz, maximum 5G, 0.42 mm half amplitude for 2 h each in X, Y, and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability MTBF Refer to page 12 Reference Value
Life expectancy *11 10 years min.
Construction
Weight 700 g max. 1150 g max.
Cooling fan No
Degree of protection IP20 by EN/IEC 60529
Standards
Harmonic current emissions Conforms to EN 61000-3-2
EMI Conducted Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B
Radiated Emissions Conforms to EN 61204-3 Class B, EN 55011 Class B
EMS Conforms to EN 61204-3 high severity levels
Approved Standards
UL Listing: UL 508,ANSI/ISA 12.12.01
cUL: CSA C22.2 No107.1,
CSA C22.2 No213
UL UR: UL 60950-1 (Recognition) OVCII 3000 m) Pol2
cUR: CSA C22.2 No.60950-1 OVCII (3000 m) Pol2
EN: EN 50178 OVCIII (2000 m) OVCII (2000 mand3000) Pol2,
EN 60950-1 OVCII (3000 m) Pol2
ATEX: EN 60079-0, EN 60079-15 Cert. DEMKO 16 ATEX 1737X
240W: Ex II3G Ex nA IIC T3 Gc, 480W: Ex II3G Ex nA nC IIC T3 Gc
IECEx: IEC 60079-0, IEC60079-15 Cert. IECEx UL 16.0105X
240W: Ex nA IIC T3 Gc, 480W: Ex nA nC IIC T3 Gc
Conformed Standards PELV (EN/IEC 60204-1) *12
EN/IEC 61558-2-16:2009+A1:2013 *12
Marine Standards *12 Lloyd’s register
DNV GL
SEMI Conforms to F47-0706 (200 to 240 VAC input)

S8VK-S
4
*1. The value is when both rated output voltage and rated output current are satisfied.
*2. Do not use an inverter output for the product. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal
temperature of the product may result in ignition or burning.
If the input is connected to a UPS, do not connect a UPS with a square-wave output.
Doing so will cause the internal temperature of the product to increase, possibly causing smoking or burning.
*3. The value for the leakage current is determined according to the Electrical Appliances and Material Safety Act.
*4. Refer to Inrush Current, Startup Time, Output Hold Time on page 12 for details.
*5. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than 28 V min of the voltage adjustment range. When
adjusting the output voltage, confirm the actual output voltage from the product and be sure that the load is not damaged.
*6. A characteristic when the ambient operating temperature of 25°C.
*7. This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable input voltage range at
the rated output voltage and rated output current.
*8. 100 to 240 VAC input, in the range of 0 A to the rated output current.
*9. Refer to Overvoltage Protection on page 12 for the time when input voltage shuts off and input turns on again.
*10.At -40 to -25°C, time will be required before the rated output voltage is output after the input voltage is input.
Also, the ripple noise value may exceed the value shown in the above table.
*11.Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on page 23 for details.
*12.Refer to Standard Compliance, below.
Standard Compliance
• EN/IEC 61558-2-16
The S8VK-S was designed based on EN/IEC 61558-2-16.
Currently, IEC 61558-2-17 has been replaced by IEC 61558-2-16.
When certification was received for EN/IEC 60204-1 (Machinery Safety), it was necessary to go through a control transformer to the control
circuits. However, a control transformer is not always necessary for product that have been certified for the safety standard for OVCIII or for
product that use a transformer that conforms to EN/IEC 61558-2-16.
• Safety Standards for a DC Input
The following safety standards are applicable for when a DC input is used: UL 60950-1, cUR (CSA C22.2 No. 60950-1), EN 50178, EN 60950-1, Lloyd's,
and DNV GL.
Safety standard compliance is achievable by connecting a UL-certified fuse as specified below.
Select an external fuse that satisfies the following conditions:
S8VK-S03024: 350 VDC min., 6 A
S8VK-S06024: 350 VDC min., 6 A
S8VK-S12024: 350 VDC min., 8 A
S8VK-S24024: 350 VDC min., 8 A
S8VK-S48024: 350 VDC min., 12 A
• Conformance to Marine Standards
Noise filter “FN2080-10-06” manufactured by SCHAFFNER Corporation. or equivalent should be connected to the Input terminals of S8VK-S
series (Except 60 W).
End Plate (PFP-M) to both sides of the Power Supply to hold the Power Supply in place.
Install clamp filters (“ZCAT2035-0930” manufactured by TDK) on the cables connected to the input and output terminals for 240- and 480-W
models.
• To comply with PELV output requirements for EN/IEC 60204-1, ground the negative side of the output (-V) to a protective earth (PE).
• ATEX/IECEx
The Power Supply must be built-in an IP54 enclousure.

S8VK-S
5
Connections
Block Diagrams
+V
+V
−V
−V
−V
DC OUTPUT
Fuse
250 VAC
6.3 A
HBC
Voltage
detection circuit
Photocoupler
Rectifier/
smoothing
circuit
Noise
filter
Drive
control
circuit
Overcurrent
circuit
Current
detection circuit
Overvoltage
detection circuit
Inrush
current
protection
circuit
Rectifier
Smoothing
circuit
Overcurrent
detection circuit
AC (L)
INPUT
AC (N)
S8VK-S03024 (30 W)
S8VK-S06024 (60 W)
+V
+V
−V
−V
−V
DC OUTPUT
Voltage
detection circuit
Photocoupler
Rectifier/smoothing circuit
Noise
filter
Drive control
circuit
Overvoltage
detection circuit
Inrush current
protection
circuit
Rectifier
Smoothing
circuit
Overcurrent
detection circuit
Harmonic current
suppression circuit
(Power factor improvement)
Fuse
250 VAC
8.0 A
HBC
AC (L)
INPUT
AC (N)
Overcurrent
circuit
Current
detection circuit
S8VK-S12024 (120 W)

S8VK-S
6
Inrush current
protection circuit
Overcurrent
detection circuit
+V
+V
−V
−V
−V
DC OUTPUT
Rectifier/
smoothing circuit
Smoothing
circuit
Harmonic current
suppression circuit
(Power factor improvement)
Rectifier
Noise
filter
Fuse
250 VAC
8.0 A
HBC
AC (L)
INPUT
AC (N)
Drive control
circuit
DC LOW OUT
Low-voltage
detection output
Overcurrent
circuit
Current
detection circuit
Voltage
detection circuit
Overvoltage
detection circuit
Photocoupler
S8VK-S24024 (240 W)
Overcurrent
detection circuit
+V
+V
−V
−V
−V
DC OUTPUT
Rectifier/
smoothing
circuit
Smoothing
circuit
Harmonic current
suppression circuit
(Power factor improvement)
Rectifier
Noise
filter
Fuse
250 VAC
12.0 A
HBC
AC (L)
INPUT
AC (N)
Drive control
circuit
DC LOW OUT
Low-voltage
detection output
Overcurrent
circuit
Current
detection circuit
Voltage detection
circuit
Overvoltage
detection circuit
Photocoupler
Inrush current
protection circuit
S8VK-S48024 (480 W)

S8VK-S
7
Construction and Nomenclature
Nomenclature
*1. The fuse is located on the (L) side. It is not user-replaceable. For a DC input, connect the positive voltage to the L terminal.
*2. This is the protective earth terminal specified in the safety standards. Always ground this terminal.
30-W and 60-W Models 120-W Models 240-W Models 480-W Models
S8VK-S03024
S8VK-S06024
S8VK-S12024 S8VK-S24024 S8VK-S48024
No. Terminal
name Name Function
1L1
Input terminals Connect the input lines to these terminals. *1
2L2
3N1
4N2
5 PE Protective Earth terminal (PE) Connect the ground line to this terminal. *2
6+V1
DC Output terminals Connect the load lines to these terminals.
7+V2
8-V1
9-V2
10 -V3
11 --- Output indicator (DC ON: Green) The green indicator indicates when a DC voltage is being output.
12 --- Output voltage adjuster (V.ADJ) Use to adjust the voltage.
13 DC LOW1 Low-voltage detection output terminals Low-voltage detection output signal wire is connected.
14 DC LOW2
6789 10
12345
11
12
6789 10
123 45
11
12
6789 10
12 3 4 5
11
13
14
12
6789 10
12345
11
13
14
12

S8VK-S
8
Engineering Data
Derating Curve
30, 60 W (S8VK-S03024, S8VK-S06024)
Horizontal separation: 15 mm or more
Note: 1. At less than 90 VAC, derate the load at 2.5%/V.
2. For a DC input, reduce the load given in the above derating
curve by multiplying by the following coefficients.
S8VK-S03024: 0.9
S8VK-S06024: 0.9
3. In the shaded area, time is required to reach the rated
output voltage after the input voltage is applied. Also, the
ripple noise value in this area may exceed the range given
on page 2.
A. Standard mounting, mounted with Front-mounting Bracket, or
mounted with Side-mounting Bracket
B. Face-up mounting
30, 60 W (S8VK-S03024, S8VK-S06024):
Front, Side-by-side mounting
Horizontal separation: Less than 15 mm
Note: 1. Apply the rated voltage
2. In the shaded area, time is required to reach the rated
output voltage after the input voltage is applied. Also, the
ripple noise value in this area may exceed the range given
on page 2.
C. Front, Side-by-side Mounting
120 W (S8VK-S12024)
Horizontal separation: 15 mm or more
Note: 1. At less than 90 VAC, derate the load at 2.5%/V.
2. For a DC input, reduce the load given in the above derating
curve by multiplying by the following coefficients.
S8VK-S12024: 0.9
3. In the shaded area, time is required to reach the rated
output voltage after the input voltage is applied. Also, the
ripple noise value in this area may exceed the range given
on page 2.
A. Standard mounting
B. Face-up mounting
120 W (S8VK-S12024) : Front, Side-by-side mounting
Horizontal separation: Less than 15 mm
Note: 1. Apply the rated voltage
2. In the shaded area, time is required to reach the rated
output voltage after the input voltage is applied. Also, the
ripple noise value in this area may exceed the range given
on page 2.
C. Front, Side-by-side Mounting
−40 −25 −10 0 10 20
A
B
30 40 50 60 70 80
120
100
80
60
40
20
0
75%
50%
Load ratio (%)
Operating temperature (°C)
−40 −25 −10 0 10 20
C
30 40 50 60 70 80
120
100
80
60
40
20
0
Load ratio (%)
Operating temperature (°C)
−40 −25 −10 0 10 20
A
30 40 50 60 70 80
120
100
80
60
40
20
0
B
65%
50%
Load ratio (%)
Operating temperature (°C)
−40 −25 −10 0 10 20
C
30 40 50 60 70 80
120
100
80
60
40
20
0
Load ratio (%)
Operating temperature (°C)

S8VK-S
9
240 W (S8VK-S24024) Horizontal separation: 15 mm or more
Note: 1. At less than 90 VAC, derate the load at 2.5%/V.
2. For a DC input, reduce the load given in the above derating
curve by multiplying by the following coefficients.
S8VK-S24024: 0.8
3. In the shaded area, time is required to reach the rated
output voltage after the input voltage is applied. Also, the
ripple noise value in this area may exceed the range given
on page 3.
A. Standard mounting, mounted with Front-mounting Bracket
B. Face-up mounting
240 W (S8VK-S24024): Front, Side-by-side mounting
Horizontal separation: Less than 15 mm
Note: 1. Apply the rated voltage
2. In the shaded area, time is required to reach the rated
output voltage after the input voltage is applied. Also, the
ripple noise value in this area may exceed the range given
on page 3.
C. Front, Side-by-side Mounting
480 W (S8VK-S48024) Horizontal separation: 15 mm or more
Note: 1. At less than 100 VAC, derate the load at 1%/V.
2. For a DC input, reduce the load given in the above derating
curve by multiplying by the following coefficients.
S8VK-S48024: 0.8
3. In the shaded area, time is required to reach the rated
output voltage after the input voltage is applied. Also, the
ripple noise value in this area may exceed the range given
on page 3.
A. Standard mounting, mounted with Front-mounting Bracket
B. Face-up mounting
480 W (S8VK-S48024) : Front, Side-by-side mounting
Horizontal separation: Less than 15 mm
Note: 1. Apply the rated voltage
2. In the shaded area, time is required to reach the rated
output voltage after the input voltage is applied. Also, the
ripple noise value in this area may exceed the range given
on page 3.
C. Front, Side-by-side Mounting
-25 -10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
A
B
75%
50%
-40
Load ratio (%)
Operating temperature (°C)
-25 -10 0 10 20 30 40 50 60 70 80
120
100
80
60
40
20
0
C
-40
Load ratio (%)
Operating temperature (°C)
-25 -10 0 1020304050607080
120
100
80
60
40
20
0
A
B
75%
30%
-40
Load ratio (%)
Operating temperature (°C)
-25 -10 0 1020304050607080
120
100
80
60
40
20
0
C
-40
Load ratio (%)
Operating temperature (°C)

S8VK-S
10
This Power Supply can be used at an altitude of 3,000 m.
Between 2,000 and 3,000 m, derate the load according to the following derating curve.
30, 60 W (S8VK-S03024, S8VK-S06024)
Horizontal separation: 15 mm or more
Note: 1. At less than 90 VAC, derate the load at 2.5%/V.
2. For a DC input, reduce the load given in the above derating
curve by multiplying by the following coefficients.
S8VK-S03024: 0.9
S8VK-S06024: 0.9
Standard mounting, mounted with Front-mounting Bracket, or
mounted with Side-mounting Bracket
120 W (S8VK-S12024)
Horizontal separation: 15 mm or more
Note: 1. At less than 90 VAC, derate the load at 2.5%/V.
2. For a DC input, reduce the load given in the above derating
curve by multiplying by the following coefficients.
S8VK-S12024: 0.9
Standard mounting
30, 60 W (S8VK-S03024, S8VK-S06024):
Front, Side-by-side mounting
Horizontal separation: Less than 15 mm
Note: 1. Apply the rated voltage
Front, Side-by-side mounting
120 W (S8VK-S12024): Front, Side-by-side mounting
Horizontal separation: Less than 15 mm
Note: 1. Apply the rated voltage
Front, Side-by-side mounting
Load ratio (%)
Altitude (m)
0 500 1,000 1,500 2,000 2,500 3,000 3,500
120
100
80
87
75
60
40
20
0
55°C max
60°C
65°C
70°C
100%
90%
77%
65%
500 1,000 1,500 2,000 2,500 3,000 3,500
Load ratio (%)
Altitude (m)
0
120
100
80
60
65
82
40
20
0
55°C max
60°C
65°C
70°C
100%
50%
80%
65%
0
120
100
80
60
40
20
0
35°C max
40°C
55 °C
500 1,000 1,500 2,000 2,500 3,000 3,500
100%
85%
75%
Load ratio (%)
Altitude (m)
Load ratio (%)
Altitude (m)
0
120
100
80
60
40
20
0
35°C max
40°C
55 °C
100%
85%
75%
500 1,000 1,500 2,000 2,500 3,000 3,500

S8VK-S
11
240 W (S8VK-S24024) Horizontal separation: 15 mm or more
Note: 1. At less than 90 VAC, derate the load at 2.5%/V.
2. For a DC input, reduce the load given in the above derating
curve by multiplying by the following coefficients.
S8VK-S24024: 0.8
Standard mounting, mounted with Front-mounting Bracket
480 W (S8VK-S48024) Horizontal separation: 15 mm or more
Note: 1. At less than 100 VAC, derate the load at 1%/V.
2. For a DC input, reduce the load given in the above derating
curve by multiplying by the following coefficients.
S8VK-S48024: 0.8
Standard mounting, mounted with Front-mounting Bracket
240 W (S8VK-S24024): Front, side-by-side mounting
Horizontal separation: Less than 15 mm
Note: 1. Apply the rated voltage
Front, Side-by-side mounting
480 W (S8VK-S48024) : Front, side-by-side mounting
Horizontal separation: Less than 15 mm
Note: 1. Apply the rated voltage
Front, Side-by-side mounting
0 500 1,000 1,500 2,000 2,500 3,000 3,500
120
100
80
87
75
60
40
20
0
55°C max
60°C
65°C
70°C
100%
90%
77%
65%
Load ratio (%)
Altitude (m)
0 500 1,000 1,500 2,000 2,500 3,000 3,500
120
100
80
87
75
60
40
20
0
55°C max
60°C
65°C
70°C
100%
90%
77%
65%
Load ratio (%)
Altitude (m)
120
100
80
60
40
20
0
0 500
1,000 1,500 2,000 2,500 3,000 3,500
100%
85%
75%
35°C max
40°C
55°C
Load ratio (%)
Altitude (m)
120
100
80
60
40
20
0
0 500
1,000 1,500 2,000 2,500 3,000 3,500
100%
85%
75%
35°C max
40°C
55°C
Load ratio (%)
Altitude (m)

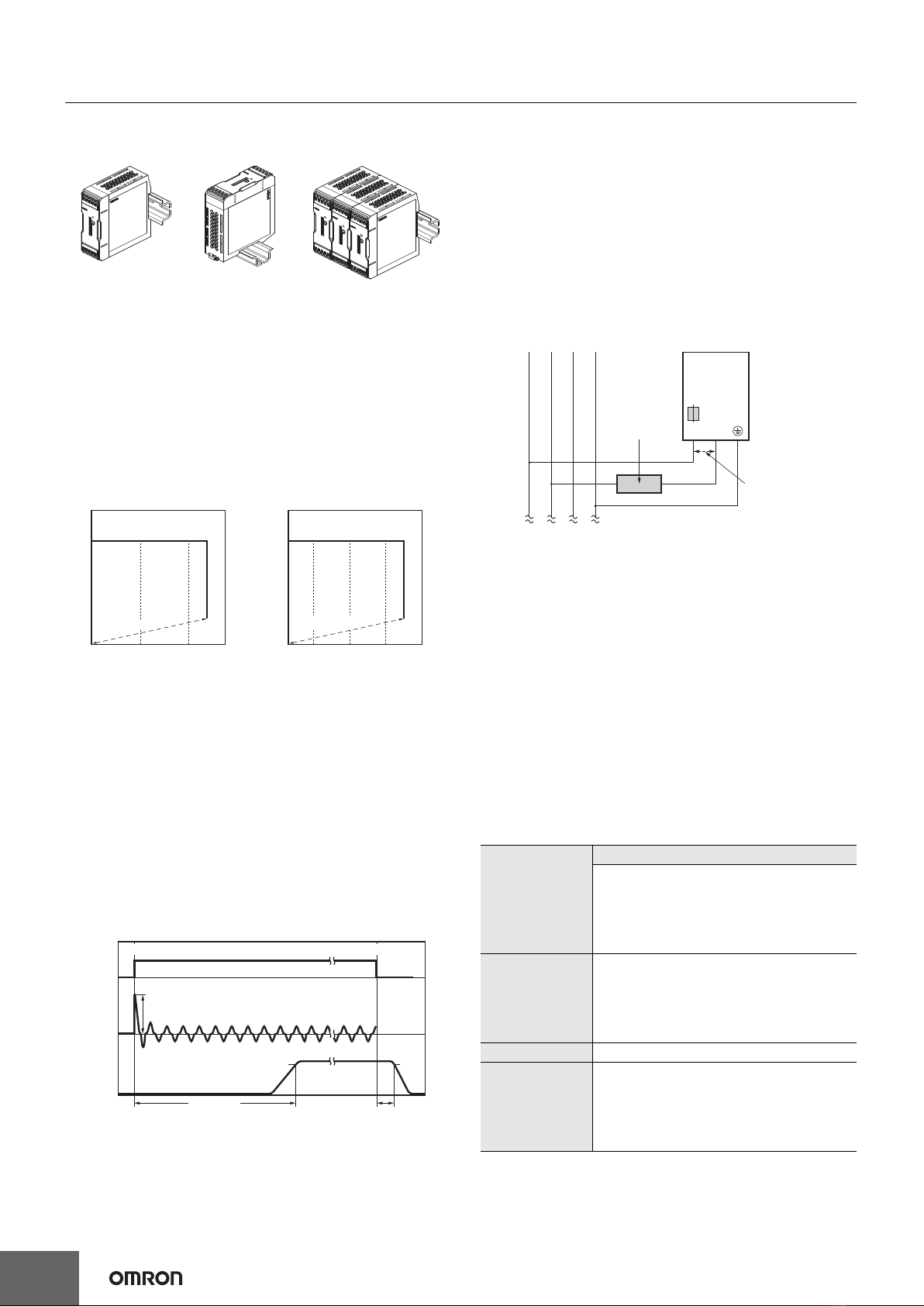

S8VK-S
12
Mounting
*For front, side-by-side mounting, see page 18.
Overload Protection
For models S8VK-S03024, S8VK-S06024 and S8VK-S12024, the
output voltage is automatically reduced, and the unit is protected from
short circuit current and overcurrent damage if the load current 121%
to 160% of the rated current. For models S8VK-S24024 and S8VK-
S48024, the output voltage is automatically reduced, and the unit is
protected from short circuit current and overcurrent damage if the
load current 151% to 165% of the rated current.
When the output voltage returns within the rated range, overload
protection is automatically cleared.
Note: 1. Internal parts may occasionally deteriorate or be damaged if a
short-circuited or overcurrent state continues during operation.
2. Internal parts may possibly deteriorate or be damaged if the
Power Supply is used for applications with frequent inrush
current or overloading at the load end. Do not use the Power
Supply for such applications.
Overvoltage Protection
Consider the possibility of an overvoltage and design the system so
that the load will not be subjected to an excessive voltage even if the
feedback circuit in the Power Supply fails. If an excessive voltage that
is approximately 130% of the rated voltage or more is output, the
output voltage is shut OFF. Reset the input power by turning it OFF
for at least three minutes and then turning it back ON again.
Note: Do not turn ON the power again until the cause of the
overvoltage has been removed.
Inrush Current, Startup Time, Output Hold Time
Note: Twice the normal inrush current will flow during parallel operation
or for backup operation. Also, if crossover wiring is used for N
number of Power Supplies, an inrush current of N times the inrush
current for a standalone Power Supply will flow.
Therefore, check the fusing characteristics of fuses and
operating characteristics of breakers making sure that the
external fuses will not burn out and the circuit breakers will not
be activated by the inrush current.
Two phases application for Single phase models
For All Single phase Models, S8VK-S
Basically OMRON single phase power supply can be used on two-
phases of a 3–phase-system when some of conditions satisfy like
below.
1. The supplying voltage is below the maximum rated input.
OMRON Power supply allows the input voltage equivalent or less
than 240 VAC+10%.
Please confirm the input voltage between two lines if the input
voltage satisfies this condition before connecting.
2. The external protector is needed on N input line to secure a safety.
N line has no protection of a fuse internally.
An appropriate fuse or circuit breaker should be connected on N
input line like the following.
Low-voltage detection output (Only for 240 and
480 W)
Output externally by photo-switch when an output voltage drop is
detected (OFF when an output drop occurs). The detection voltage is
set to about 80% (75% to 90%) of the rated output voltage.
Photo-switch
1. 30 VDC max., 50 mA max. Residual voltage 2 V or less when ON.
Leakage current 0.1 mA or less when OFF.
2. The low-voltage detection output function monitors the voltage of
the output terminal of the power supply.
To check the precise voltage state, measure the voltage of the
load end.
3. If the set voltage is less than 90% of the rated voltage, the low-
voltage detection function may activate.
4. The signal output circuit do not contain current-limiting circuit. Do
not allow the output current to exceed 50 mA.
5. After you complete the wiring, confirm that operation is correct.
Reference Value
(B) Face-up mounting
(A) Standard (Vertical)
mounting
(C) Front, Side-by-side
mounting *
050100
Output current (%)
Output voltage (V)
Intermittent operation
S8VK-S03024, S8VK-S06024,
S8VK-S12024
S8VK-S24024, S8VK-S48024
0 15010050
Output current (%)
Output voltage (V)
Intermittent operation
90%
96.5%
Startup time
Input
Voltage
Input
Current
Output
voltage
Inrush current on input application
Input OFF
Input ON
Hold time
Reliability
(MTBF)
Value
Single phase model
30 W: 640,000
60 W: 640,000
120 W: 480,000
240 W: 390,000
480 W: 330,000
Definition
MTBF stands for Mean Time Between
Failures, which is calculated according to the
probability of accidental device failures, and
indicates reliability of devices.
Therefore, it does not necessarily represent a
life of the product.
Life expectancy 10 yrs. Min.
Definition
The life expectancy indicates average
operating hours under the ambient
temperature of 40°C and a load rate of 50%.
Normally this is determined by the life
expectancy of the built-in aluminum electrolytic
capacitor.
An external
fuse or a
circuit breaker
max. 240 VAC+10%
Internal
Fuse
Power Supply
NL
L
1 L 2 L 3 PE

S8VK-S
13
Dimensions (Unit: mm)
(Sliding: 10 max.)
Rail Stopper
(1.2)
90
±1
86
3.5
5.4
78.55
4.7
90
±1
5.4
32
±1
S8VK-S03024 (30 W)
S8VK-S06024 (60 W)
(1.2)
3.5
86
90 ±1
5.4 4.7
55 ±1
90 ±1
5.4
78.55
(Sliding: 10 max.)
Rail Stopper
S8VK-S12024 (120 W)

S8VK-S
14
(4)(1.2)
(10.8)
5.2
(Sliding: 8.0 max.)
5.4
5
7.8
38
±1
108.8
19.8
20.4
124
±1
122.2 ±1
117.8
111.4
5.4
S8VK-S24024 (240 W)
(10.8)
(1.2)
(1) (4)
(0.6)
(0.6)
7.5
5.4
5
18.3
0.9
19.8
20.4
108.8
60±1
111.4
117.8
122.2±1
124±1
5.2
(Sliding: 8.0 max.)
S8VK-S48024 (480 W)

S8VK-S
15
DIN Rail (Order Separately) (Unit: mm)
Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N
Mounting Rail (Material: Aluminum)
PFP-100N2
End Plate
PFP-M
Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from
aluminum abrasion.
4.5
15 25 25
10 10
1,000 (500) *
25 25 15(5) *
35±0.3
7.3±0.15
27±0.15
1
*Values in parentheses are for the PFP-50N.
4.5
15 25 25
10 10
1,000
25 25 15 1 1.5
29.2242735±0.3
16
1.3
4.8
35.5 35.5
1.8
1.8
10
6.2
1
50
11.5
10
M4 spring washer
M4×8 pan-
head screw

S8VK-S
16
Mounting Brackets
Note: Be sure to use the accessory screws.
Mounting screw tightening torque (recommended): 4.43 to 5.31 lb-in (0.5 to 0.6 N·m)
Name Model
Front-mounting bracket (for 30 W and 60 W models) S82Y-VS10F
Side-mounting bracket (for 30 W and 60 W models) S82Y-VS10S
Front-mounting bracket (for 240 W and 480 W models) S82Y-VK10F
Type Model Dimensions Appearance
Front-mounting
bracket
(For 30 W and
60 W models)
S82Y-VS10F
Side-mounting
bracket
(For 30 W and
60 W models)
S82Y-VS10S
Front-mounting
bracket
(For 240 W and
480 W models)
S82Y-VK10F
41
35
±0.1
40
50
4.5 dia. ±0.1
35
25
10
7.3
t = 1.0
35
64
t = 2.0
80 60
±0.1
55
±0.1
13
4.5 dia.
±0.1
Left-side mounting Right-side mounting
25
±0.1
140
±0.1
150
38
4.5 dia.
±0.1
5.4
t = 2.0
240 W
Three locations
Mounting screw tightening
torque: 0.5 to 0.6 N·m
480 W
Four locations
Mounting screw tightening
torque: 0.5 to 0.6 N·m
Be sure to use the
accessory screws.

S8VK-S
17
Safety Precautions
Warning Indications
Meaning of Product Safety Symbols
!WARNING
Electrical shock may occur if the terminal comes off.
Insert the solid wire or ferrule straight into the
terminal block until the end touches the terminal
block.
!CAUTION
Minor electric shock, fire, or Product failure may
occasionally occur. Do not disassemble, modify, or
repair the Product or touch the interior of the
Product.
Minor burns may occasionally occur. Do not touch
the Product while power is being supplied or
immediately after power is turned OFF.
Minor injury due to electric shock may occasionally
occur. Do not touch the terminals while power is
being supplied. Always close the terminal cover after
wiring.
Minor electric shock, fire, or Product failure may
occasionally occur. Do not allow any pieces of metal
or conductors or any clippings or cuttings resulting
from installation work to enter the Product.
WARNING
Indicates a potentially hazardous
situation which, if not avoided, will
result in minor or moderate injury, or
may result in serious injury or death.
Additionally, there may be significant
property damage.
CAUTION
Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury or in
property damage.
Precautions for
Safe Use
Supplementary comments on what to
do or avoid doing, to use the product
safely.
Precautions for
Correct Use
Supplementary comments on what to
do or avoid doing, to prevent failure to
operate, malfunction or undesirable
effect on product performance.
Used to warn of the risk of electric shock under
specific conditions.
Used to warn of the risk of minor injury caused by
high temperatures.
Use to indicate prohibition when there is a risk of
minor injury from electrical shock or other source
if the product is disassembled.
Used for general mandatory action precautions
for which there is no specified symbol.

S8VK-S
18
Installation Environment
• Do not use the Power Supply in locations subject to shocks or
vibrations. In particular, install the Power Supply as far away as
possible from contactors or other devices that are a vibration
source. For usage onboard a ship, always attach an End Plate
(PFP-M) to both sides of the Power Supply to hold the Power
Supply in place.
• Install the Power Supply well away from any sources of strong,
high-frequency noise and surge.
Operating Life
• The life of a Power Supply is determined by the life of the
electrolytic capacitors used inside. Here, Arrhenius Law applies,
i.e., the life will be cut in half for each rise of 10C or the life will be
doubled for each drop of 10C. The life of the Power Supply can
thus be increased by reducing its internal temperature.
Ambient Operating and Storage Environments
• Store the Power Supply at a temperature of -40 to 85°C and a
humidity of 95% or less.
• Do not use the Power Supply in areas outside the derating curve
otherwise, internal parts may occasionally deteriorate or be
damaged.
• Use the Power Supply at a humidity of 95% max.
• Do not use the Power Supply in locations subject to direct sunlight.
• Do not use the Power Supply in locations where liquids, foreign
matter, or corrosive gases may enter the interior of Power Supply.
Mounting
• Take adequate measures to ensure proper heat dissipation to
increase the long-term reliability of the Power Supply. Be sure to
allow convection in the atmosphere around devices when
mounting. Do not use in locations where the ambient temperature
exceeds the range of the derating curve.
• When cutting out holes for mounting, make sure that cuttings do
not enter the interior of the Power Supplies.
• The internal parts may occasionally deteriorate and be broken due
to adverse heat radiation. Do not loosen the screws on the Power
Supply.
• The following combinations are possible for (C) Front, Side-by-side
mounting indicated under Mounting on page 12.
• Same models
• S8VK-S03024, S8VK-S06024 and S8VK-S12024
• S8VK-S24024 and S8VK-S48024
Use the Product within the derating curve for the front, side-by-side
mounting.
DIN Rail Mounting
To mount the Block on a DIN Rail, hook portion (A) of the Block onto
the rail and press the Block in direction (B).
To dismount the Block, pull down portion (C) with a flat-blade
screwdriver and pull out the Block.
Wiring
• Connect the ground completely. A protective earthing terminal
stipulated in safety standards is used. Electric shock or malfunction
may occur if the ground is not connected completely.
• Minor fire may possibly occur. Ensure that input and output
terminals are wired correctly.
• When you insert wires or insert a screwdriver into a release hole, do
not press down on the terminal block with a force of 40 N or greater.
• Do not wire anything to the release holes.
• Do not tilt or twist a flat-blade screwdriver while it is inserted into a
release hole on the terminal block. The terminal block may be
damaged.
• Insert a flat-blade screwdriver into the release holes at an angle.
The terminal block may be damaged if you insert the screwdriver
straight in.
• Do not allow the flat-blade screwdriver to fall out while it is inserted
into a release hole.
• Do not bend a wire past its natural bending radius or pull on it with
excessive force. Doing so may cause the wire disconnection.
• Do not insert more than one wire into each terminal insertion hole.
• Do not pre-solder the ends of the wires. Doing so will inhibit proper
connection.
• Be sure to remove the sheet covering the Product for machining
before power-ON so that it does not interfere with heat dissipation.
• Make sure to use stranded wires or wires with ferrules when there
is a possibility of vibration or impact.
• To prevent wiring materials from smoking or ignition, confirm wire
ratings and use the wiring materials given in the following table.
• Input crossover wiring can be used for the input side of this Power
Supply.
Precautions for Safe Use
*2
*2
*1
*3
*3
*1
*1*1*1
*1
*1. Convection of air
*2. Vertical separation: 25 mm or more
(S8VK-S03024, S06024, S12024)
Vertical separation: 23 mm or more
(S8VK-S24024, S48024)
*3. Horizontal separation: 15mm or more
Terminal name Model
Recommended
wire gauge
Solid/stranded
wire
(mm2)(AWG)
Input terminal
S8VK-S03024, S06024,
S12024
0.34 to 2.5 22 to 14
S8VK-S24024 0.5 to 2.5 20 to 14
S8VK-S48024 0.75 to 2.5 18 to 14
DC output
terminal
S8VK-S03024, S06024 0.5 to 2.5 20 to 14
S8VK-S12024 0.75 to 2.5 18 to 14
S8VK-S24024 2 to 2.5 14
S8VK-S48024 3.5 to 6 12 to 10
Low-voltage
detection output
S8VK-S24024, S48024 0.25 to 2.5 24 to 14
PE (protective
earth) terminal
S8VK-S03024, S06024,
S12024, S24024,
S48024
2 to 2.5 14
(B)
(A)
(C)
Rail stopper

S8VK-S
19
• With the S8VK-S03024, S8VK-S06024 and S12024 models, do
not use crossover wiring for more than Power Supplies, and do not
allow the steady-state current to the input terminals to exceed 5 A.
With the S8VK-S24024 and S48024 models, do not use crossover
wiring for more than Power Supplies, and do not allow the steady-
state current to the input terminals to exceed 10 A. The table gives
the recommended wires for one Power Supply.
• If you use crossover wiring for N number of Power Supplies, a
current that is N times the current for a standalone Power Supply
may flow to the input terminals. Take this into consideration when
you select wiring materials.
Stripping length
S8VK-S03024, S06024, S12024, S24024: Input and Output Terminals
S8VK-S48024: Input Terminals
S8VK-S48024: Output Terminals
S8VK-S24024, S48024: Low-voltage detection output Terminals
●Connecting wires to the Push-In Plus Terminal Block
Part Names of the Terminal Block
Connecting Wires with Ferrules and Solid Wires
Insert the solid wire or ferrule straight into the terminal block until the
end touches the terminal block.
If a wire is difficult to connect because it is too thin, use a flat-blade
screwdriver in the same way as when connecting stranded wire.
Connecting Stranded Wires
Use the following procedure to connect the wires to the terminal block.
1. Hold a flat-blade screwdriver at an angle and insert it into the
release hole. The angle should be between 10° and 15°.
If the flat-blade screwdriver is inserted correctly, you will feel the
spring in the release hole.
2. With the flat-blade screwdriver still inserted into the release hole,
insert the wire into the terminal hole until it strikes the terminal
block.
3. Remove the flat-blade screwdriver from the release hole.
Checking Connections
• After the insertion, pull gently on the wire to make sure that it will
not come off and the wire is securely fastened to the terminal block.
• If you use a ferrule with a conductor length of 10 mm, part of the
conductor may be visible after the ferrule is inserted into the
terminal block, but the product insulation distance will still be
satisfied.
●Removing wires from the Push-In Plus Terminal
Use the following procedure to remove wires from the terminal.
The same method is used to remove stranded wires, solid wires, and
ferrules.
1. Hold a flat-blade screwdriver at an angle and insert it into the
release hole.
2. With the flat-blade screwdriver still inserted into the release hole,
remove the wire from the terminal insertion hole.
3. Remove the flat-blade screwdriver from the release hole.
Recommended Wire Stripping length
(Ferrules not used)
0.25 to 1.5 mm2/AWG24 to 16 8 mm
2 to 2.5 mm2/AWG14 10 mm
Recommended Wire Stripping length
(Ferrules not used)
3.5 to 6 mm2/AWG12 to 10 15 mm
Recommended Wire Stripping length
(Ferrules not used)
0.25 to 2.5 mm2/AWG24 to 14 10 mm
Release hole
Terminal (Insertion) hole
Terminal (Insertion) hole
Ferrules
and solid wires
Release hole
Flat-blade screwdriver
10 to 15°
13
2
Flat-blade screwdriver
10 to 15°
13
2

S8VK-S
20
●Recommended Ferrules and Crimping Tools
Recommended ferrules
S8VK-S03024, S06024, S12024, S24024: Input and Output Terminals
S8VK-S48024: Input Terminals
S8VK-S24024, S48024: Low-voltage detection output Terminals
Note: 1. Make sure that the outer diameter of the wire is smaller than
the inner diameter of the insulating sleeve of the
recommended ferrule.
2. Make sure that the ferrule processing dimensions conform
to the following figure.
S8VK-S48024: Output Terminals
Note: 1. Make sure that the outer diameter of the wire is smaller than
the inner diameter of the insulating sleeve of the
recommended ferrule.
2. Make sure that the ferrule processing dimensions conform
to the following figure.
Recommended Flat-blade Screwdriver
Use a flat-blade screwdriver to connect and remove wires.
Use the following flat-blade screwdriver.
The following table shows manufacturers and models as of 2015/Dec.
Power Boost Function
The boost current is a temporary current that exceeds the rated
current.
However, it should meet the following four boost current conditions.
• Time that the boost current flows: t1 10 s
• The boost current: Ip Maximum boost current
• The average output current: Iave Rated output current
• The time ratio of the boost current flow: Duty 30%
• Do not allow a boost current to flow for more than 10 s.
Do not allow the duty to exceed 30%. These conditions may
damage the Power Supply.
• Do not allow the average current for one cycle of the boost current
to exceed the rated current. The Power Supply may be damaged.
• Derate the boost current and the average output current loads
according to the ambient operating temperature and mounting
direction.
Overcurrent Protection
• Internal parts may possibly deteriorate or be damaged if a
short-circuited or overcurrent state continues during operation.
• Internal parts may possibly deteriorate or be damaged if the Power
Supply is used for applications with frequent inrush current or
overloading at the load end. Do not use the Power Supply for such
applications.
Applicable wire Ferrule
Conductor
length
(mm)
Stripping
length
(mm)
(Ferrules used)
Recommended ferrules
(mm
2
)(AWG)
Manufactured by
Phoenix Contact
Manufactured
by Weidmuller
Manufactured by
Wago
0.25 24
8 10 AI 0,25-8 H0.25/12 FE-0.25-8N-YE
10 12 AI 0,25-10 --- ---
0.34 22
8 10 AI 0,34-8 H0.34/12 FE-0.34-8N-TQ
10 12 AI 0,34-10 --- ---
0.50 20
8 10 AI 0,5-8 H0.5/14 FE-0.5-8N-WH
10 12 AI 0,5-10 H0.5/16 FE-0.5-10N-WH
0.75 18
8 10 AI 0,75-8 H0.75/14 FE-0.75-8N-GY
10 12 AI 0,75-10 H0.75/16 FE-0.75-10N-GY
1/1.25 18/17
8 10 AI 1-8 H1.0/14 FE-1.0-8N-RD
10 12 AI 1-10 H1.0/16 FE-1.0-10N-RD
1.25/1.5 17/16
8 10 AI 1,5-8 H1.5/14 FE-1.5-8N-BK
10 12 AI 1,5-10 H1.5/16 FE-1.5-10N-BK
2.5 14 10 12 AI 2,5-10 H2.5/16DS FE-2.5-10N-BU
Recommended crimp tool
CRIMPFOX6
CRIMPFOX6-F
CRIMPFOX10S
PZ6 roto Variocrimp4
Applicable wire Ferrule
Conductor
length
(mm)
Stripping
length
(mm)
(Ferrules used)
Recommended ferrules
(mm
2
)(AWG)
Manufactured by
Phoenix Contact
Manufactured
by Weidmuller
Manufactured by
Wago
412 12 14 AI4-12 H4.0/
20D
FE-4.0-12N-GY
610 12 16 AI6-12 H6.0/20 FE-6.0-12N-Ye *
Recommended crimp tool
CRIMPFOX6
CRIMPFOX6T-F
CRIMPFOX10S
PZ6 roto
Variocrimp4
*Use the
Variocrim
p16.
8 to 10 mm
2.6 mm max. 2.8 mm max.
12 mm
4 mm max. 4 mm max.
Model Manufacturer
XW4Z-00B Omron
ESD0.40X2.5 Wera
SZF 0.4X2.5 Phoenix Contact
0.4X2.5X75 302 Wiha
AEF.2.5X75 Facom
210-719 Wago*1
*1. Insulated types of Flat-blade Screw driver, strongly recommended to
prevent from an electric shock.
SDI 0.4X2.5X75 Weidmuller*1
Side
0.4 mm
2.5 mm dia.
2.5 mm
Front
Duty= t1 + t2
t1 × 100 [%] ≤ 30%
[A]
Ip: Boost current
Rated current
lave: Average current
t2
t1
output current
