Open Sesame Door Systems 133 User manual

Open Sesame Door Systems, Inc.
Manufacturer of Disability Access products
1.800.673.6911
PLEASE KEEP THIS GUIDE
FOR FUTURE INSTALLATIONS
INSTALLATION GUIDE

INSTALLATION GUIDE
Thank you for your purchase of the Open
Sesame Automatic Door System. This product
is designed to be durable and provide
years of reliable service.
To ensure the Open Sesame Door System lives
up to all expectations, it is important to read
and comply with this installation guide.
If there are further questions about the
operation or performance of the door system,
contact us at [phone]. Our business hours
are 9am - 5pm pacic standard time.
WARNING!
It is important to read and follow the
instructions provided in this Installation Guide.
This will equip you with all the necessary
information and allow for correct
installation and proper use.

1
INSTALLATION GUIDE
TABLE OF CONTENTS
Recommended tools for installation ....................2
 ...........................3
Selecting Mounting Format/Left Hand Conversion .....4
Electric Strike/M233 Clutch Adjustment ................5
Door Mount Instructions (Option A) ..................6-7
Lintel Mount Instructions (Option B) ...................8
Parallel Mount Diagram (Option C) .....................9
Residential Installation Wiring Diagram ...............10
French Door-One Operator Diagram .................. 11
French Door -Two Operators-Two Strikes Diagram..... 12
Functionality Adjustments ............................ 13
 .............. 13

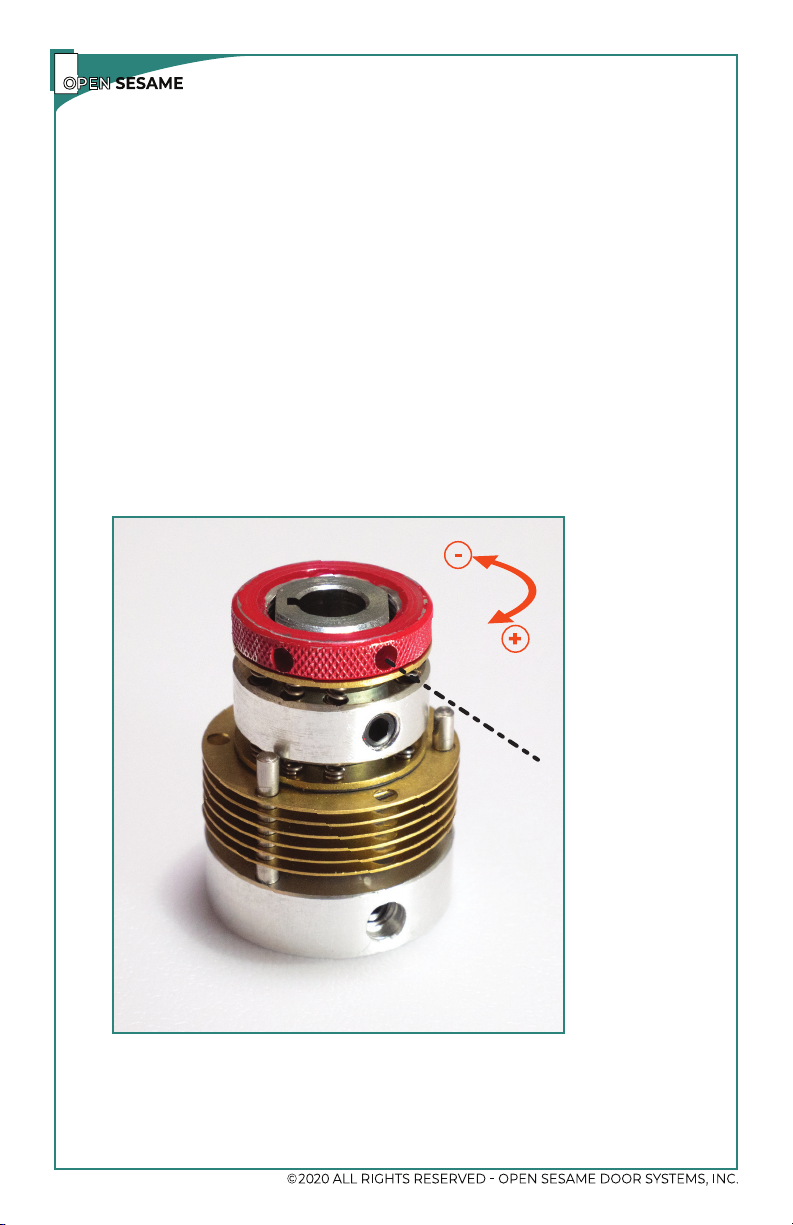

Model 233 Clutch Adjustment .........................14
Programming Instructions for Remote Controls
Erasing all transmitter codes .............................. 16
 ....................................17-18
Model 133 Diagram .................................... 19
Model 233 Diagram ...................................20

2
RECOMMENDED TOOLS
FOR INSTALLATION
1. Ladder or Step stool
2. Tape measure
 
4. Phillips #2 Screwdriver
5. 5/32” or 4mm Allen wrench
6. Wire Cutters
7. Wire Strippers
8. Oscillating Multi Tool
(recommended for Strike Installation)
9. Loctite (for arm screw if removed)
10. Drill/Driver with #2 & #3 Phillips Bits

3
INSTALLATION GUIDE
WHAT YOU WILL FIND IN THE BOX:
1. Door operator with wiring kit and wall transformer
2. Remote Control(s) – if required
3. Electric Strike(s) & Strike Tester – if required
- For Electric Strike Installation, refer to separate
instructions included with the strike
4. Screw pack
a) 2 Phillips self tapping screws 1 ¼”, for mounting
arm to metal
 
arm to wooden frame or door
c) 4 Phillips #8 – 1 ½” serrated screws for attaching
mounting plate to door or frame
d) Hold-down screws for laying out transformer and

e) Allen wrench 5/32” or 4mm for tightening the arm
f) Model 233 Clutch Adjustment Tool
5. Owners Manual
- Leave with Owner with your contact info

4

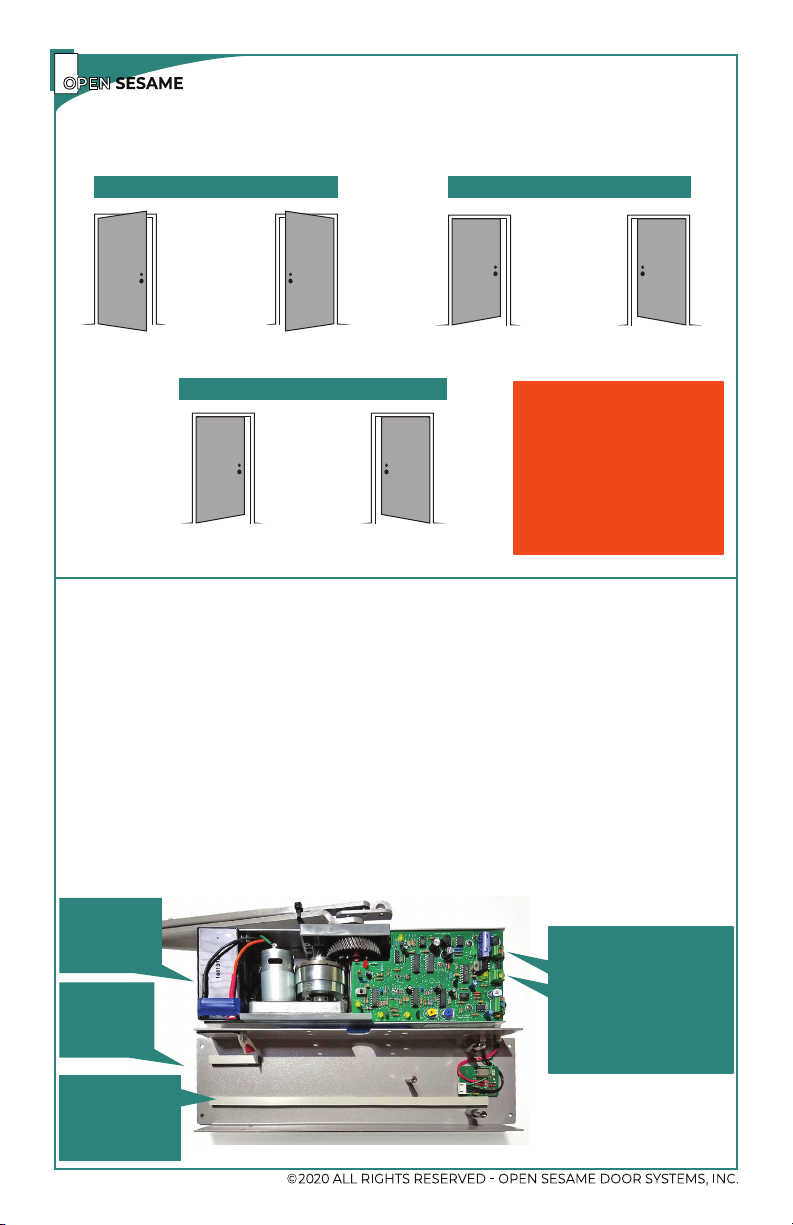

SELECTING THE
CORRECT MOUNTING FORMAT
*ALL DOORS DISPLAYED ARE VIEWED FROM THE INSIDE*
LEFT HAND DOOR CONVERSION
Remove color coded wires from color push-down terminals
and remove wire cord. Locate the gray transfer tube at lower
left corner behind the battery, pinch together colored wires
and feed through tube. Reconnect wires as before to color
coded terminals. Locate direction slide switch and slide
towards hinges.
*Unless specied at the time of ordering, the operator is provided in
the setup for Right Hinges. If you have hinges on the Left, you will
need to change the direction of the wires.
LEFT SIDE HINGES LEFT SIDE HINGES
LEFT SIDE HINGES
RIGHT SIDE HINGES RIGHT SIDE HINGES
RIGHT SIDE HINGES
OPTION A: DOOR MOUNT
DOOR
OPENS
INWARD
OPTION B: LINTEL MOUNT
DOOR
OPENS
OUTWARDS
OPTION C: PARALLEL MOUNT
OUTSWING
DOOR
+
WANT A WIDER
OPENING
SAFETY NOTE:
Secure door before
starting process to
ensure no one tries
to open the door
during installation.
Wires need to
be disconnected
from terminal
before rerouting
(Red/Black &
Green/Yellow)
Tube where
wires need to
be rerouted
through
Inside view
with all
components
Inside view
of empty
case

5
INSTALLATION GUIDE
ELECTRIC STRIKE
(ADAMS RITE ONLY)
If an electric strike is used, follow the instruc-
tions included in the packaging from the electric
strike manufacturer to assemble the strike and
install it in the door jamb.
STRIKE SETTING
Adam Rite 7440 Electric Strikes are provided in
the “fail secure” mode which is required.
Connect the green wire to one black strike wire
(either one), and the yellow wire to the other
black wire.

6
Before beginning, secure door so it does not move
during installation and set up your ladder/stool.
Once you have the measurements down,
position the operator and screw into position.
Remove molding for ush mounting against
the wall.
Operator will need to be on the top corner closest
to the hinges.
On the door measure 3” away from the hinges for
Model 133 and 4” for Model 233, then create a mark.
This is where the operator will need to be positioned.
On the door jamb, measure 13” and create a mark, this
is where the middle of your arm will need to be posi-
tioned. The bracket will need to be as ush as possible
with the wall. Do not mount this bracket at an angle.
DOOR MOUNT INSTALLATION
INSTRUCTIONS FOR INWARD OPENING DOOR
**Remove Cover from Operator before beginning installation**
NOTE: Images are based on Residential Installation (Model 133)
LEFT
HINGES
RIGHT
HINGES
3”
ARM13”
3”
Mount operator at 3” away from the hinges and
mount the arm at 13” from hinges
(unless it is used for commercial installation).
Mount operator at 4” away from the hinges and
mount the arm at 13” from hinges.
Refer to separate instructions
included with the strike
FOR MODEL 133
OPERATORS:
FOR MODEL 233
OPERATORS:
FOR ELECTRIC
STRIKE INSTALLATIONS:
REMOVE MOLDING

7
INSTALLATION GUIDE
With the door closed, adjust the arm to 90 degrees.
Strike Connection: Connect Green and Yellow wires
from phone jack to strike.
Power Connection: Red & Black cables need to run
from phone jack to transformer.Transformer is then
plugged in to 120VAC wall outlet.
Connect the operator to the phone jack.Turn unit on
and move on to page 9.
Line up the arm with marking you did on the door
jamb so that the middle of the shoe is position where
the mark is,then screw into place.Do NOTmount arm
shoe too high above operator because it will cause
binding of joints leading to screws falling off.
After setting up the correct adjustment tighten the
arm with the supplied 4mm allen wrench.
Plug in StrikeTester to RJ-11 phone jack to test electric
strike,you should hear a buzzing sound coming from
the strike (Do NOT connect any wires to this tester).
ARM13”
POWER=
RED
BLACK
PHONE
JACK
TRANS-
FORMER
STRIKE
STRIKE=
GREEN
YELLOW
STRIKE TESTER

8
LINTEL MOUNT INSTALLATION
INSTRUCTIONS FOR OUTWARD OPENING DOOR
**Remove Cover from Operator before beginning installation**
REMOVE MOLDING
FOR FLUSH MOUNTING
AGAINST THE WALL
SCREW BRACKET
INTO UNDERSIDE
OF LINTEL
POSITION ARM 13” FROM
THE EDGE OF THE DOOR
& SCREW IT
IN THE
DOOR
SCREW OUTER CASE
INTO WOOD HEADER
ADJUST THE ARM TO BE AT 90º
AND TIGHTEN IT WITH
SUPPLIED 4mm
ALLEN WRENCH
LINTEL
MOUNTED
OUTWARD
OPENING
DOORS
141”
3”
13”
13/8”
Note: Position Model 133 at 3” and Model 233 at 4” away from hinges and
mount arm at 13” from hinges. Mount arm shoe 1 3/8“ down from top of the
door. After mounting unit, see page 9 and review instructions on inside cover.

9
INSTALLATION GUIDE
SIDE VIEW
2.25”
4” - 6”
FROM ABOVE VIEW
CROSS SECTION VIEW
DOOR JAMB
MOUNTED ARM
DOOR MOUNTED
OPERATOR
DOOR JAMB
MOUNTED ARM
DOOR MOUNTED
OPERATOR
DOOR JAMB
MOUNTED ARM
DOOR MOUNTED
OPERATOR
OUTSWING PARALLEL MOUNT
CONFIGURATION
**Remove Cover from Operator before beginning installation**
TYPICAL RESIDENTIAL
PARALLEL MOUNT FOR
STORM OR SCREEN DOORS
TYPICAL COMMERCIAL
PARALLEL MOUNT FOR
OUTWARD OPENING DOORS
NOTE:
Direction slide switch on circuit
board must be slid in direction
away from hinges. 
of the switch, see diagrams for
Model 133/233 on pages 19 & 20)
NOTE:
Once operator is mounted as
shown with arm parallel to the
door jamb and the operator, RED
DOT and RED SENSOR should be
lined up causing RED LIGHT to
come on when the operator is on.
NOTE:
Will need to use a parallel mount “L” bracket
to mount arm shoe. Once operator is mount-
ed as shown with arm parallel to the door
jamb and the operator, RED DOT and RED
SENSOR should be lined up causing RED
LIGHT to come on when the operator is on.
“L” BRACKET
“L” BRACKET

10
NOTE:
AN EXISTING DOORBELL
TRANSFORMER MAY BE USED IF
THE OUTPUT IS 16 TO 28 VOLTS
POWER FROM
TRANSFORMER
(WALL TYPE SUPPLIED)
NO POLARITY
WIRE TO BE RUN ON
SURFACE, OR IN WALL
POWER CONNECTION:
RED & BLACK ON JACK
(16 - 28 VOLTS AC OR DC,
10 VA OR GREATER)
RJ-11 TELEPHONE JACK
SURFACE MOUNTED
OR RECESSED
WIRE TO
BE RUN ON
SURFACE,
OR IN WALL
ELECTRIC
STRIKE
RECESSED
IN JAMB
ELECTRIC STRIKE CONNECTION:
GREEN & YELLOW ON JACK
(YELLOW IS +, GREEN IS -)
RESIDENTIAL
INSTALLATION WIRING DIAGRAM
USING SUPPLIED WIRING KIT
(for applications without electric strikes,
remove green/yellow wires from telephone jack)

11
INSTALLATION GUIDE

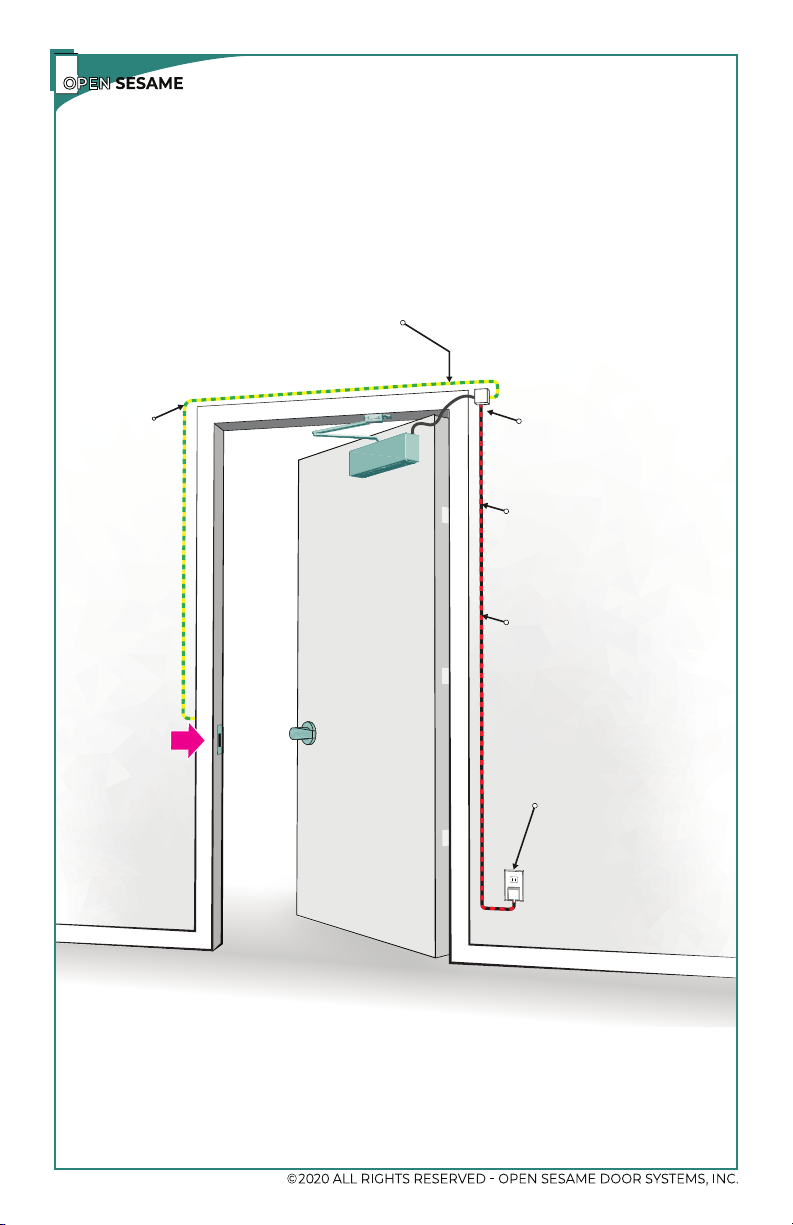

STRIKE WIRING
FRENCH DOOR WITH ONE OPERATOR,
ONE ELECTRIC STRIKE
(pre-wired kit)
RED &
BLACK
WIRE
PAIR
GREEN & YELLOW WIRE PAIR
GREEN & YELLOW
WIRE PAIR
MOVEABLE
DOOR
FIXED
DOOR
ELECTRIC
STRIKE
POWERED BY
OPERATOR
TELEPHONE CORD JUMPER WITH PLUGS
POWER
OUTLET

JACK #1

JACK #2

JACK #3
TRANSFORMER
24VAC
NO POLARITY

12

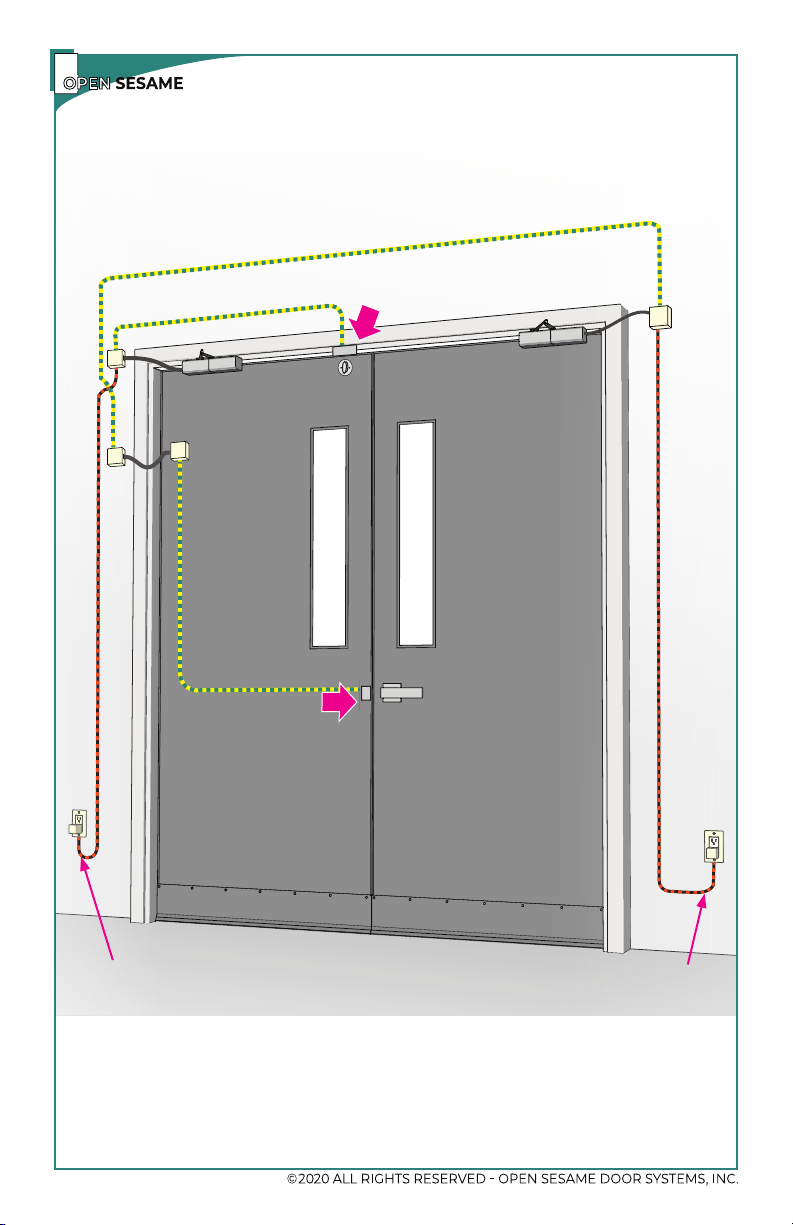

POWER WIRING - DOUBLE DOOR
WITH TWO OPERATORS,
TWO ELECTRIC STRIKES
RED & BLACK WIRE PAIR
GREEN & YELLOW WIRE PAIR
 DOOR OPERATOR
“A”
DOOR
OPERATOR
“B”
DOOR A
DOOR B
ELECTRIC STRIKE
POWERED BY
OPERATOR “A”
GREEN & YELLOW
ELECTRIC STRIKE

BY OPERATOR “B”
POWER
OUTLET
CONNECTED TO BLACK & RED 

JACK
#A1

JACK
#B1

#A3

JACK
#A2
24VAC
TRANSFORMER
24VAC
TRANSFORMER
NOTE: IF NECESSARY, ONE TRANSFORMER CAN
BE USED TO SUPPLY POWER TO BOTH UNITS

13
INSTALLATION GUIDE
ADJUSTMENTS
Your Open Sesame door operator has three potenti-
ometers (pots/knobs) adjustments and one position
jumper adjustment (auto-close). To change these set-
tings at any point during or after installation you must
rst remove the Operator cover. The location of these
adjustments are shown on the diagram on the inside
cover of the operator. To remove cover refer to page 2
of this manual.
Open door to access top screw. After screws are
loosened, slide cover forward to remove.
Close Delay adjustment (Yellow knob).
Turn clockwise to allow more time for people to go
through the door before automatically closing.
Opening Angle adjustment (Blue knob).
Turn clockwise for wider door opening.
Obstruction Sensitivity adjustment (White knob).
Turn clockwise for heavier door or sticky door sweep.
WHITE
KNOB
AUTO-
CLOSE
JUMPER
YELLOW
KNOB
BLUE
KNOB

14
CLUTCH ADJUSTMENT
(MODEL 233 ONLY)
Adjust force applied to door during manual door
opening, as well as powered opening. Can adjust
for stronger force, for increased wind resistance for
outward opening door, lighter for easier opening
if stronger force not needed. Simply adjust Red
Ring on clutch. Rotate clockwise (as seen from
above where the arm is attached) for increased
force, counter clockwise for decreased force. A
clutch tool (3mm) is provided to rotate the ring by
placing it in one of the 6 holes along the edge.

15
INSTALLATION GUIDE
REMOTE CONTROL
PROGRAMING INSTRUCTIONS
All current 433 MHz units with green (or green tipped) antenna wire
1. Press momentarily and release the red program button located on top of
the Open Sesame unit (1 second).
2. Within 15 seconds, press and hold the button on the transmitter you wish
to use for 3 seconds or for Touchpad, touch the pad momentarily with a
few ngers or your palm. Now your remote is programmed.
Keypad
1. Press and release the red program button located
on top of the Open Sesame unit (1 second).
2. Within 15 seconds, enter 1234 (factory default
code), 1234 is now programmed into the
system.
If you want to change the
4-digit keypad code:
1. Enter ##xxxx, where xxxx is your current
4-digit code (factory default is 1234).
2. Enter your new 4-digit code then,
3. Enter 1##
4. Wait a few seconds
5. Enter **
NOTE: To reset code to factory setting of “1234”, do the following:
1. Disconnect battery
2. While holding down any button, reconnect the battery
3. Continue holding button for 5 seconds.
Standard Remote Control Transmitter
This transmitter is a visor transmitter which
may be mounted below the wheelchair
armrest or a side panel. A sensitivity paddle is
included to make it easier to push.
RED
PROGRAM
BUTTON

16
CONTINUED
REMOTE CONTROL PROGRAMING INSTRUCTIONS
TO ERASE ALL TRANSMITTER CODES:
1. Press and then release the receiver programming button
ve times quickly (within 3 sec. time).
2. The light will ash 5 times, indicating that ALL remotes
have been erased from the receiver memory.
If you have problems programming, there is a green
indicator light that can be observed inside the unit with the
cover off, that can be used for troubleshooting. It is on the
radio receiver board on back of the case on right side.
For programmed transmitters the following applies:
The receiver light will ash 5 times, within 2 seconds when
a programmed transmitter button has been pressed and
released. The receiver light will continue to ash when a
transmitter button has been pressed and held down. The
receiver light will stop ashing when the transmitter button
has been released.
For non-programmed transmitters: The receiver light
will blink rapidly (10 times within 2 seconds) when a non-
programmed transmitter button is pressed. The receiver
light will continue to blink until the non-programmed
transmitter button is released.
If the radio receiver light does not ash at all when the
remote control button is pushed, the rst thing to suspect is
a dead battery in the remote control.
NOTE:
For assistance programming earlier models with gray
antenna wire, please contact Open Sesame.

17
INSTALLATION GUIDE
SOLUTION
Check outlet for Proper Voltage
Check connection to the transformer
Replace transformer
Move switch to ON position
Realign “H” Sensor and red dot on disk





“H” Sensor and red dot not aligned
Check & tighten all connections

operator off if recharging is needed or

-



Replace Radio Receiver Board
Adjust Opening Angle



Replace Top Board

direction, open the door and hit test



automatically.

CAUSE
No power from transformer
(no green light on the transformer)
Wires disconnected from
transformer
Bad Transformer
Operator is switched OFF
Misaligned “H” Sensor and red dot
on disk

enough to disk
Blown Fuse


Loose Connections
Battery Failure

Blown fuse
Bad Radio Receiver Board
(if Test button does not work)
Opening angle not adjusted
Battery Failure
Incorrect Close Delay setting
Bad Top Board
Bad Bottom Board
ISSUE
No Green (ON)
light on the

No red light

Door does
not open
Door does not
open wide
enough/to its
normal width
Door does
not delay
Operator only
works in one
direction
TROUBLESHOOTING

18
SOLUTION

dragging the door. Thick weather


Battery Failure-Turn off operator and


www.OpenSesameDoor.com

www.OpenSesameDoor.com
Re-align red dot
Move Slide Switch towards hinges.
With parallel mount, Slide Switch should


ring on the clutch. Note: You should not
need to tighten the clutch all the way.

shoe of arm in towards hinges and place




operator in)
Green Antenna = 433Mhz
Purple Antenna = 315Mhz
Gray Antenna = 390Mhz
(Antenna is the coiled wire located

top of the operator)
Refer to Owners Manual or see
programming instructions at
OpenSesameDoor.com

or go to OpenSesameDoor.com


Replace Receiver Board
CAUSE
Weather stripping,
dragging on door.
Battery Failure
Clutch is engaging and
keeps running so it wont
let you open the door
Bad Wiring
Bad Door Cord or Bad RJ-11
Misaligned red dot sensor
with sensor
Direction of Slide Switch
towards wrong side.
Not enough force
Battery Failure
Bad clutch
Incorrect remote
Transmitter not
programmed

Bad/loose connection

Receiver Board
Bad Receiver Board
ISSUE
Door moves slower
upon opening/closing
Strike does not release
door latch
Door goes
the opposite way
Door does not close
Clutch is slipping and
makes a grinding
whining noise
Transmitter
does not work
TROUBLESHOOTING CONTINUED
