Optelec comapct 5 HD User manual

Optelec Compact 5 HD
English Page 1
WEEENotice
The directive on Waste Electrical and Electronic Equipment (WEEE), which entered
into force as European law on 13th February 2003, resulted in a major change in the
treatment of electrical equipment at end-of-life.
The purpose of this Directive is, as a first priority, the prevention of WEEE, and in
addition, to promote the reuse, recycling and other forms of recovery of such wastes
so as to reduce disposal.
The WEEE logo (shown at the left) on the product or its box indicates that
this product must not be disposed of or dumped with your other household
waste. You are liable to dispose of all your electronic or electrical waste
equipment by relocating over to the specified collection point for recycling
of such hazardous waste. Isolated collection and proper recovery of your
electronic and electrical waste equipment at the time of disposal will allow us to help
conserving natural resources. Moreover, proper recycling of the electronic and
electrical waste equipment will ensure safety of human health and environment. For
more information about electronic and electrical waste equipment disposal, recovery,
and collection points, please contact your local city centre, household waste disposal
service, shop from where you purchased the equipment, or manufacturer of the
equipment.

Optelec Compact 5 HD
English Page 2
Compact 5 HD
User Manual
OPN: UDC-02101 Version 1.2
© 2011 Optelec, the Netherlands
All rights reserved
Optelec
P.O. Box 399
2990 AJ Barendrecht
The Netherlands
Phone: [phone]
E-mail: [e-mail]
Internet: www.optelec.com

Optelec Compact 5 HD
English Page 3
Contents
1. Introduction 5
About thismanual 6
What‟s in the box? 6
2. Getting started 7
Using the Compact 5 HD in the closed or open position 7
Cleaning the camera lens and mirror 13
Buttons 14
Switching the poweron and off 15
Adjusting the magnification 16
Selecting aviewing mode 17
Usingthesnapshot button 18
3. Chargingthe battery 20
Charging theCompact 5 HD 20
Standby and Auto Power Off 21
Battery warning 21
4. The Compact 5 HDMenu 22
Activating the menu 23
Navigating the menu 23
Exiting the menu 23
Menu: Information 24

Optelec Compact 5 HD
English Page 4
Menu: Brightness 25
Menu: Power 26
Menu: Sound 31
Menu: Light 32
Menu: Color 33
Menu: Reset 34
Appendix A: Safety 35
Appendix B: Technical information 36
Appendix C: Warranty Conditions 38

Optelec Compact 5 HD
English Page 5
1. Introduction
Congratulations on choosing the Compact 5 HD!
Optelec‟s unique auto focus electronic video magnifier enables youto view and
magnify printedtext and images in high resolution HDquality in full color orone
of the high contrast modes. The Compact 5 HD 5-inch display, combined with
its lowmagnificationof 1.5 times, gives you maximum overview, while providing
up to 18 times magnification forthose who need a higher zoom level.
With its multifunctional design, unique lighting concept, distance view and
integrated reading stand, the Compact 5 HDcan be used for reading, viewing
images, price tags, displaysand much more while at home or on the go.

Optelec Compact 5 HD
English Page 6
If you have questions or suggestions concerningthe use of this product, please
contact your distributor or the Optelec headquarters using the contact
information on the last page of this manual. Your feedback is greatly
appreciated. We hope you enjoy working with your Compact 5 HD!
About this manual
This manual will familiarize you with the features and basic operation of the
Compact 5 HD. Please read this manualcarefullybefore using your device.
What’s in the box?
The Compact 5 HD packaging containsthe following:
The Compact 5 HD video magnifier
A protective pouch
A powersupply
4 country specific power plugs (EU, US, UK and AU), of which one is
already mounted onto the powersupply
A screen cleaning cloth
A user manual
If any items are missing from your package, please contact your distributor.

Optelec Compact 5 HD
English Page 7
2. Getting started
The Compact 5 HD is placed correctly infront of you when the screen is facing
up and the Optelec logo is in the centre at the bottom ofthe screen.
Compact 5 HD closed Compact 5 HD open
Using the Compact 5 HD in the closedor open position
The Compact 5 HD can be used in two ways: in the closed and in the open
position.
In theclosed position, hold the unit in your hand and point the camera (located
at the back ofthe unit) to the object ortextyou wish to viewor read.

Optelec Compact 5 HD
English Page 8
The closed position is ideal for distance viewing and to quickly scan and view
objects ordocuments.
In the open position, the screen will be set in an ergonomic angle for reading
and the camera will point downwards. The open position enables you to read
longer texts, thanks to the integrated reading stand.
To open the unit, followthese steps:
1. To use the Compact 5 HD in the open position, place the wrist strap
around your right wrist and set the unit on a flat surface, such as a
desk.

Optelec Compact 5 HD
English Page 9
2. Place your middle fingers against the black opening support located
on the top corners ofthe lower part of the unit.

Optelec Compact 5 HD
English Page 10
3. Place your index fingers above your middle fingers against the top
corners ofthe upper part of the unit.

Optelec Compact 5 HD
English Page 11

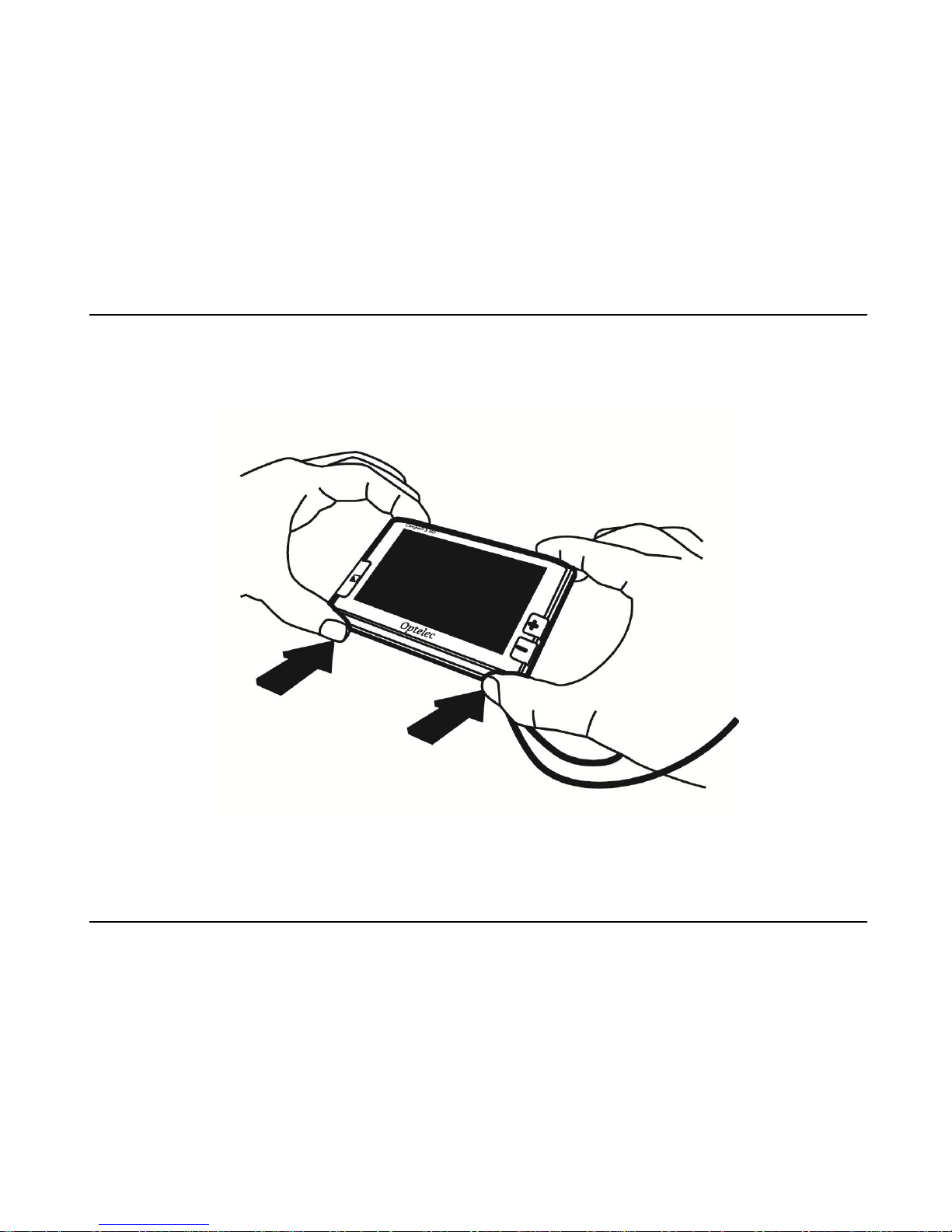

4. Place your thumbs against the black opening supports underneath
the display on the bottom corners ofthe upper part ofthe unit.

Optelec Compact 5 HD
English Page 12
5. Open the unit by lifting the upper part with your thumbs and index
fingers.

Optelec Compact 5 HD
English Page 13
Cleaning the camera lensand mirror
For an optimal quality image, it is recommended toensure that thecamera lens
and object light mirror are kept clean. A dirty lens will result in a fuzzy image
and may cause the auto focus camera to incorrectly focus. A clean object light
mirror is important for preventing dark or light spots and to ensure an equally
lighted image. To clean the camera lens and mirror, use the included cleaning
cloth or another soft lens cleaning cloth.
Note: Do not use water ora cleaning agent to clean the lensand mirror.

Optelec Compact 5 HD
English Page 14

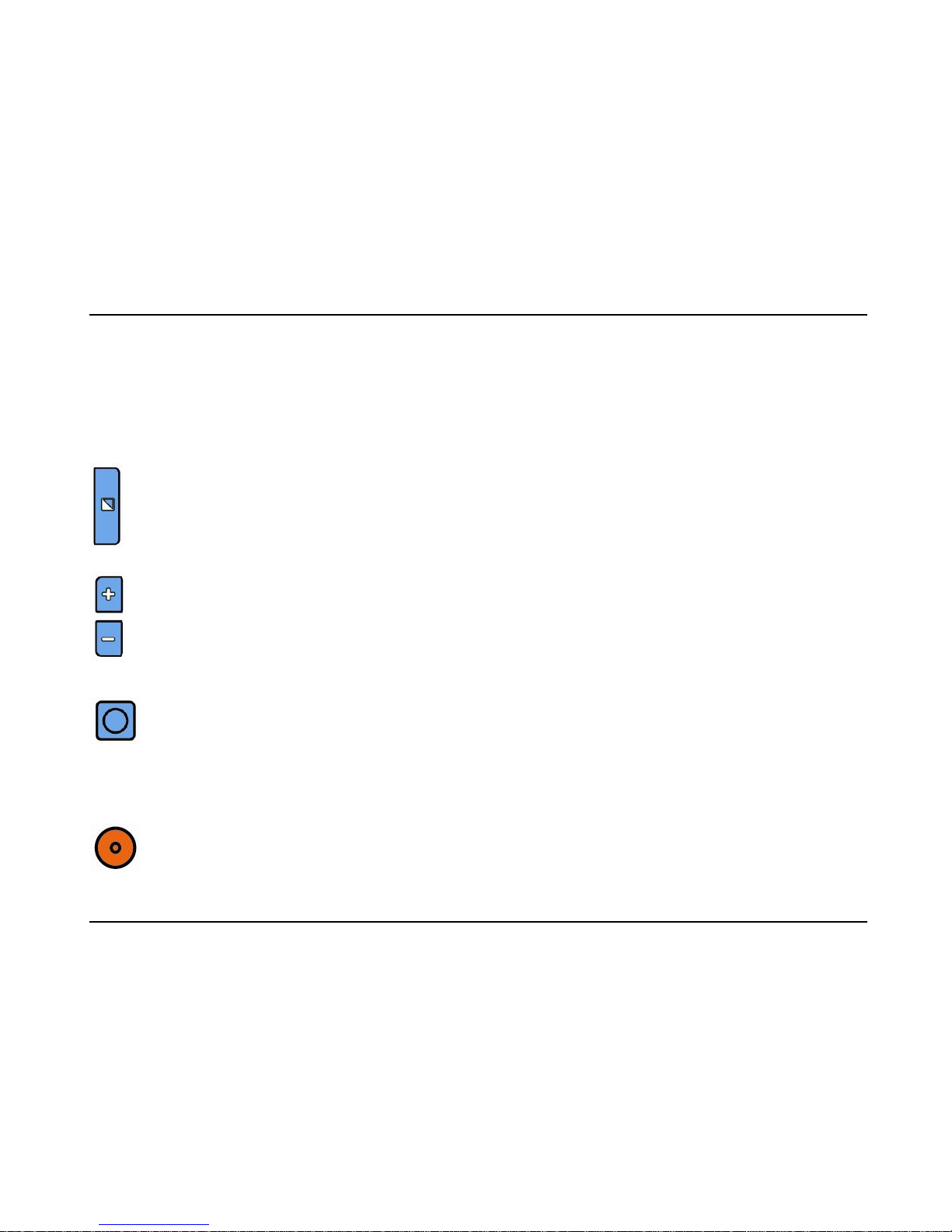

Buttons
The Compact 5 HD has the following buttons:
Mode
Pressing the Mode button to the left of the screen allows
you to select one of the viewing modes. Pressing this
button forthree seconds will turn offthe object lighting.
Magnification
Pressing the +or –button to the right of the screen for
one second allows you to increase or decrease the
magnification. Pressing the +or –buttons simultaneously
will allow you to enter or exit the Compact 5 HD menu.
Snapshot button
The snapshot button located on the top right of the unit
allows you to take a temporary picture of a distant text or
image, enabling you to bring the image closer to your
eyes.
On/Off Switch
Pressing the small round orange button, located on the
left side of the unit, for onesecond, will switch the unit on
and off.

Optelec Compact 5 HD
English Page 15
5V DC IN jack
The 5V DC IN jack is located next tothe power button on
the left side of the Compact 5 HD. The power supply
cable connects to this jack. Use only the indicated power
supply that comes with the Compact 5 HD to power and
charge the unit.
The camera of the Compact 5 HD is located at the
back of the unit. To the left and right of the camera
are two object lights that are used when the unit is in
the closed position.
Switching the power on and off
To switch the Compact 5 HD on for the first time, the unit needs to be charged.
When the unit is charged, press the orange on / off button, located on the left
side of the unit for one second. The unit will start upin the mode in which it was
switchedoff. To switchtheCompact 5 HDoff, press the orangebutton again for
one second.

Optelec Compact 5 HD
English Page 16
When switching the Compact 5 HD on, it will take approximately 3 seconds
before an image is displayed on the screen.
The unit can also be switched on by opening the unit as described earlier (this
is a default setting). Closing the unit will not automatically turn it off. To do this,
the on / off switch needs to be pressed for one second or the „turn off on
closing‟ function needs to be enabled in the menu. These default settings can
be enabled or disabled in the Compact 5 HD menu. Please refer to chapter 4
for more information on how to change these settings.
Adjusting the magnification
To change the magnification settings of the unit, simply press the +or –buttons
located on the right side of the screen. Press the +button to increase or the –
button to decrease the magnification. In the open position when placed on a
document, the magnification range starts at 1.5 times magnification and canbe
increased to 18 times magnification. The Compact 5 HD is equipped with an
auto-focus camera. This allows you to use the unit while holding it in your
hands in theclosed position. This will provide you with more overview, but will
decrease the minimumand maximummagnification.

Optelec Compact 5 HD
English Page 17
Note: in thesmallestmagnificationof 1.5times, text lines may be displayedin a
small curve. This will be most visible when reading small texts. This “fish eye”
effect is caused by the ultra wide angle ofthe lens.
“Fish-eye” effect in 1.5 times magnification
Selectingaviewing mode
PressingtheMode buttontotheleft side ofthe screen, allows youto select one
of the following viewing modes:
Photo mode: viewfull color textsand photos
Negative mode:reading in high contrast white on black
Positive mode:reading in high contrastblack on white
High contrast color combination1
High contrast color combination2

Optelec Compact 5 HD
English Page 18
PressingtheMode button for 3seconds will togglethe object lighting on or off.
Switching modeswill automatically turn theobjectlighting back on.
Using the snapshot button
The snapshot button allows you to take a temporary picture of a text or an
image.
- Hold or place the Compact 5 HD over the text or image you wish to
display.
- Press and hold thesnapshot button located on the top right side of the
unit.
oYou will heara beep when pressing the snapshotbutton.
oKeep the snapshot button pressed.
oThe Compact 5 HDwill zoom out, focus, take a snapshot andgive
two beeps.
oRelease the snapshot button.
oThe Compact 5 HD will zoom back to the original position and
zoom level.
- The image will be temporarily stored inside the Compact 5 HD memory.
Bringing the Compact 5 HDcloser to your eyes will enable you to view
theobject ortext closely.
