Orbital Systems OAS Standart R3 User manual

Fixture Installation
Orbital Shower Panel R3
5-06-0009
Publication date 2021-08-27

Copyright © 2021,Orbital Systems
All rights reserved. No part of this document may be reproduced or copied in any form or by any means without written
permission from Orbital Systems. The English language version of this document contains the original instructions. All other
language versions are translations of the original instructions.

Table of Contents
Prerequisites and Approvals ............................................................................................................ 5
Warranty ................................................................................................................................... 6
Service ............................................................................................................................. 6
Installation Overview ..................................................................................................................... 7
Installation Requirements ........................................................................................................ 7
Shower Installation Overview ................................................................................................... 8
Product Measurements .......................................................................................................... 8
Recycling Optimisation Site Suggestion ..................................................................................... 10
Fixture Installation ...................................................................................................................... 11
Component Overview .......................................................................................................... 11
Kit Measurements .............................................................................................................. 12
Crucial Kit Measurements ..................................................................................................... 13
Prepare Shower Area .......................................................................................................... 14
Install Drain ...................................................................................................................... 15
Install Wall Brackets ............................................................................................................ 17
Install Wallbox ................................................................................................................... 19
Prepare Orbital Systems Shower Head ...................................................................................... 22
Prepare 3rd Party Shower Head .............................................................................................. 22
Pipes and Connections ........................................................................................................ 22
Prepare for Tiling ............................................................................................................... 24
Apply Waterproofing Membrane .............................................................................................. 25
For installations outside of Sweden .................................................................................. 25
For installations in Sweden ............................................................................................ 26
Apply Waterproofing Membrane ...................................................................................... 26
Install Frame .................................................................................................................... 29
Tiling ............................................................................................................................. 29
Final Preparations .............................................................................................................. 31
Page 3 of 33

This page is intentionally left blank.
Page 4 of 33

Prerequisites and Approvals
Orbital Shower is designed and type approved according to
the Swedish requirements in Swedish National Board of
Housing and Building & Planning regulations (BBR). The
system is type approved according to RiSE (Research
Institutes of Sweden AB) with Type Approval Certificate
C900373 & C900374. Orbital Shower is CE-marked based
on test reports from third party labs.
If industry regulations and instructions in this manual are
followed, Orbital Systems guarantees a functional shower
system.
Page 5 of 33

Warranty
The Orbital Shower and its components are
manufactured from high-quality materials and
assembled under strict standards.
Orbital Systems warranty covers defects which appear within
a period of 2 years from delivery of the product or as long as
the extended warranty period bought or included in the
purchase.
Orbital Systems warranty does not cover:
•Defects arising out of materials or a design specified by the
Customer, or by any alterations carried out without our
consent.
•Defects that appear under conditions of operation not
provided for and under improper use of the product.
•Defects caused by faulty or non-occurring maintenance,
incorrect installation or a faulty repair.
For showers outside of the warranty period spare parts are
available for purchase directly from Orbital Systems.
Service
Orbital Systems and our team of expert staff are available to
assist you if you require product advice, experience any
problems, need to purchase spare parts or to set up a
service appointment.
Repairs should only be carried out by Orbital Systems.
Contact us
•[email protected]
•www.orbital-systems.com
•Europe: [phone]
Page 6 of 33

Installation Overview
Installation Requirements
Connectivity
Internet connection: Either password protected 2,4 GHz / 5 GHz Wi-Fi network or
Ethernet is required.
Ethernet is a factory added option. It is not possible to use Wi-Fi as
connection method after the shower has been prepared for Ethernet.
Electrical Supply
Residual circuit breaker: One breaker per Shower Core
Power supply: One Phase, 240VAC / 50 Hz / 16A
Mains supply wire: Min. 2.5 mm2 (rated for 16A circuit)
Plumbing / Water
Incoming water supply connections: Separate hot and cold, 2x female G 1/2" swivel nut
Incoming cold water temp. (min-max): 4-25°C
Incoming hot water temp. (min-max): 50-65°C
Incoming water pressure (min-max): 2-10 bar
The supply pressure is the fundamental requirement for the shower
flow:
•2 bar: 7.5 litres/min
•3 bar: 9.5 litres/min
•4 bar: 11 litres/min
Recommended water supply flow: 9 litres/minute per inlet hot and cold
Water hardness (min-max): Minimum: 3°dH-10°dH
Recommended: 6°dH-10°dH (or a total hardness of 110-180mg
CaCO3/litre)
Water iron content: <0,3mg/litre
Page 7 of 33

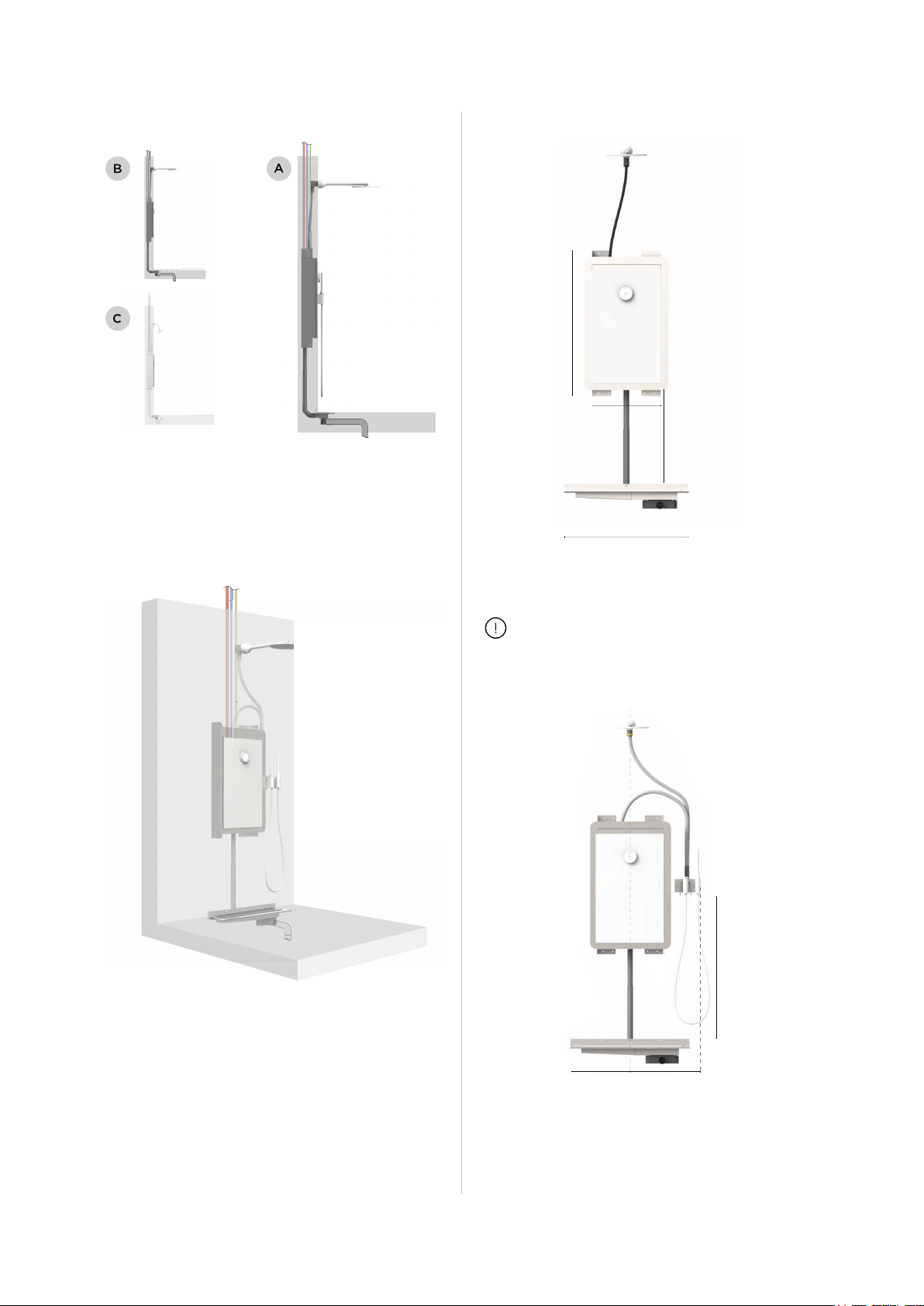

Shower Installation Overview
Available shower variants:
A: Orbital Systems Shower Head & Hand Shower
B: Orbital Systems Shower Head
C: 3rd Party Shower Head
Wallbox HxWxD: 932x538x145 mm
Drain Unit HxWxD: 192x812x184 mm
Drain Connection: Ø75 mm
Product Measurements
Ø 75 mm
932 mm
600 mm
812 mm
440 mm
Orbital Systems Shower Head & Hand Shower
CAUTION
Make sure the wall is wide enough (min. 450
mm from center of Control Dial) to fit the
Diverter and Hand Shower.
955 mm
406 mm 434.5 mm
Page 8 of 33

2190 mm
575 mm
150 mm 1265 mm
230 mm
184 mm
145 mm
mm
122 mm
Page 9 of 33

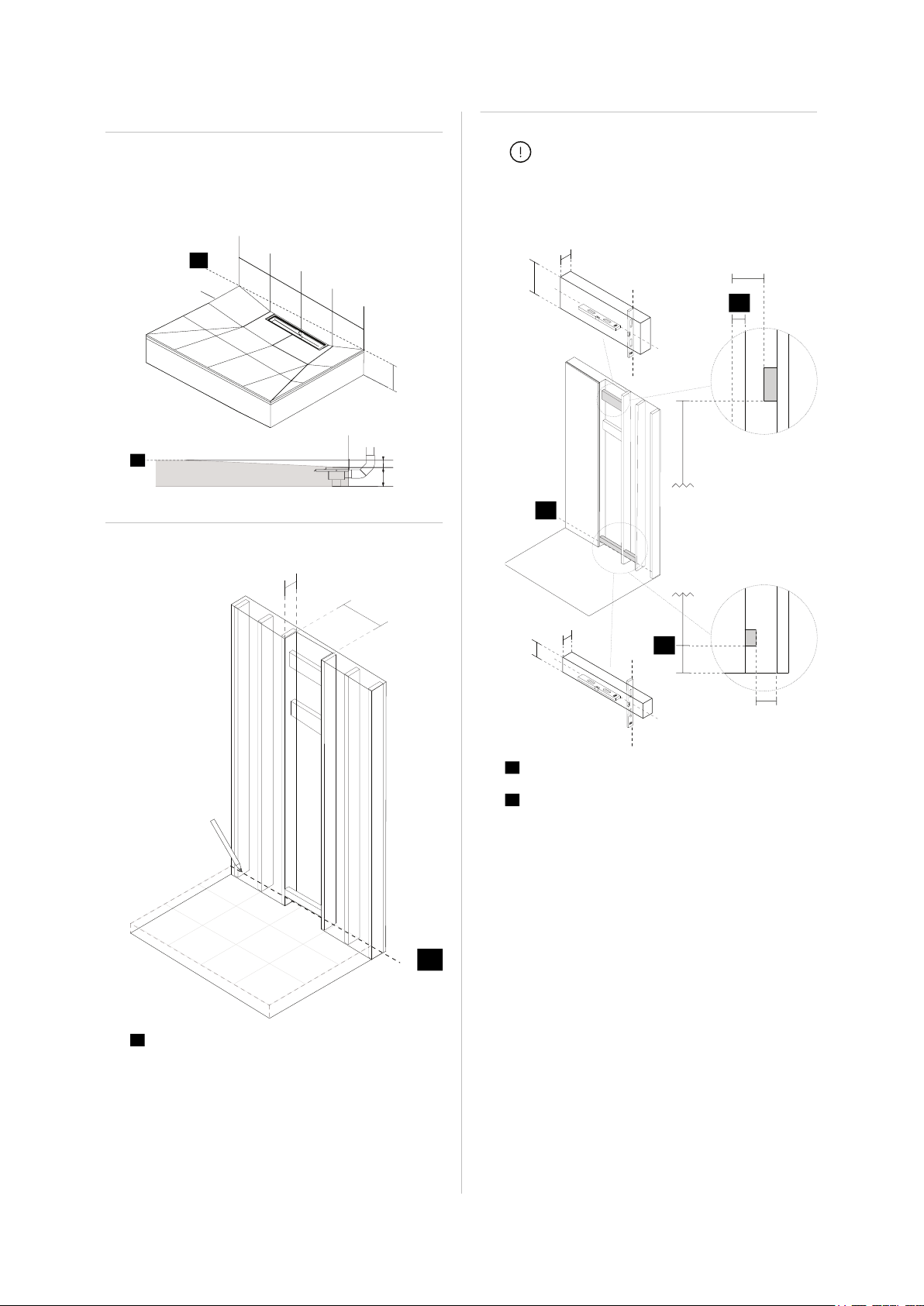

Recycling Optimisation Site Suggestion
Recommended installation
A fully enclosed shower area with floor heating is
recommended to optimize recirculation rates.
Page 10 of 33

Fixture Installation

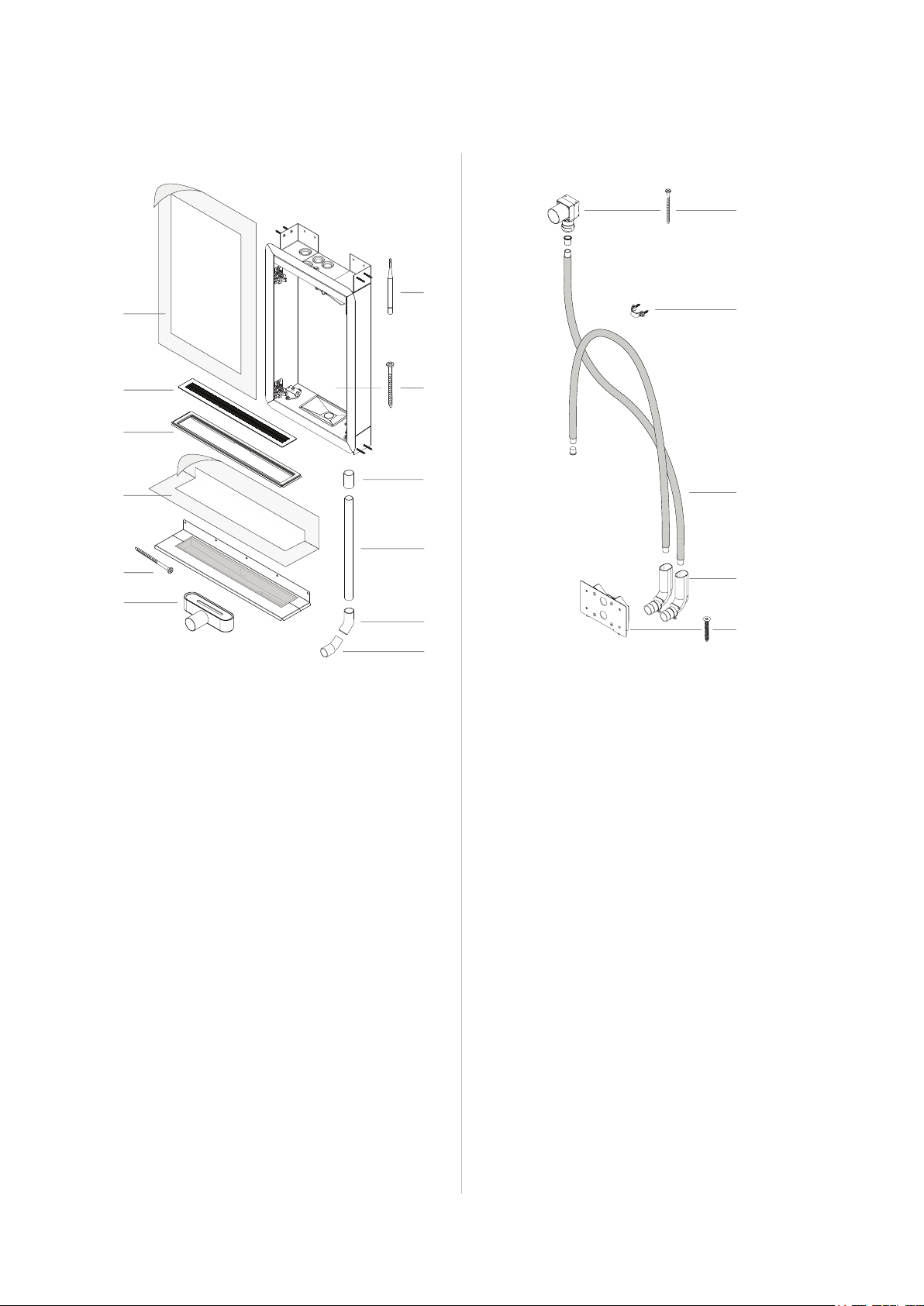

Component Overview
1
3
8
7
9
5
6
4
12
2
11
10
1. Wallbox (RSK 831 41 66) + screws, x8
2. Wallbox Waterproofing Cuff
3. Pipe 58 cm (RSK 231 60 90)
4. Fitting 40 mm (RSK 231 61 02)
5. Fitting 40 mm x 45° (RSK 231 61 08)
6. Fitting 40 mm x 45° (RSK 291 03 41)
7. Drain Unit (RSK 711 54 63) + screws, x7
8. Frame
9. Grating
10. Outlet Unit (RSK 711 99 33)
11. Drain Waterproofing Cuff
12. Antenna
Provided by Customer:
1. Waterproofing Conduit Membrane cc40 for Diverter
2. Waterproofing Conduit Membrane for Shower Head
3. Waterproofing Conduit Membrane for Control Dial
Orbital Systems Shower Head & Hand Shower
4
1
3
2
5
1. Wallbox Uni Push (RSK 188 25 12) + pan head stainless
steel screws, x8
2. Conduit Clamp (RSK 188 07 62), x2
3. PEX Hose with Conduit 150 cm (RSK 188 23 36), x2
4. Conduit Elbow (RSK 187 79 99), x2
5. Fixture + countersunk screw, x3
Page 11 of 33

Orbital Systems Shower Head
1
2
3
1. Wallbox Uni Push (RSK 188 25 12) + pan head stainless
steel screws, x8
2. Conduit Clamp (RSK 188 07 62)
3. PEX Hose with Conduit 100 cm (RSK 188 23 36)
Kit Measurements
NOTICE
Use the two 45 degree Pipe Elbows included in the kit for the Drain Unit. A 90 degree elbow will not be applicable.
440 mm
932 mm
Ø40 mm 184 mm
150 mm
192 mm
122 mm
201 mm
754 mm
726 mm
812 mm
690 mm
Ø75 mm
126 mm
cc 40 mm
853 mm
452 mm
538 mm
90 mm
150 mm
145 mm
Page 12 of 33

Crucial Kit Measurements
CAUTION
Crucial measurements!
600 mm
955 mm
X
Finished floor height where it is level.
Page 13 of 33

Prepare Shower Area
1. Mark the finished floor height where it is level (>170
mm). This mark will be used as measurement "X" in the
installation process to ensure that there is enough space
for the Drain Unit.
150 mm
20 mm
>170 mm
X
X
2.
90 mm
442 mm
X
X
Finished floor height where it is level.
3. CAUTION
It is crucial that all noggin pieces are in
level and set according to recommended
measurements to avoid misalignment in
the shower installation.
³80 mm
³45 mm
>85 mm
85 mm
2100 mm
145 mm
³45 mm
X
X
Y
X
Finished floor height where it is level.
Y
Wall thickness after completed installation.
Page 14 of 33

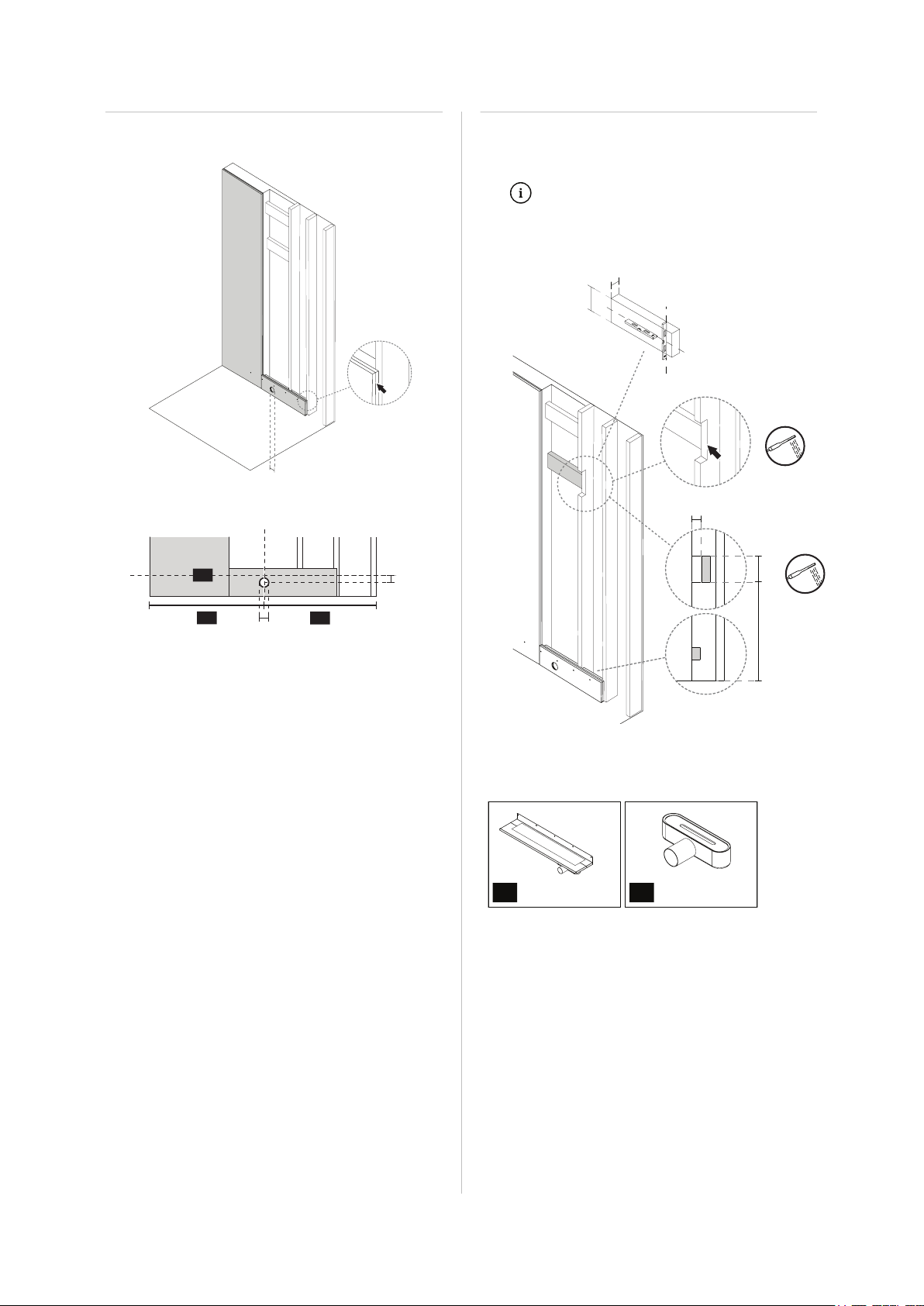

4. Apply wall covering according to local regulations.
Ø75 mm
X
ZZ
Ø75 mm
33,5 mm
5. Valid for Orbital Systems Shower Head & Hand
Shower
NOTICE
It is optional which side of the shower the
Diverter is placed. Mirror slot in stud and
wall covering if needed.
1620 mm 145 mm
50 mm
145 mm
≥45 mm
Install Drain
107 RSK 711 54 63 RSK 711 99 33
Page 15 of 33

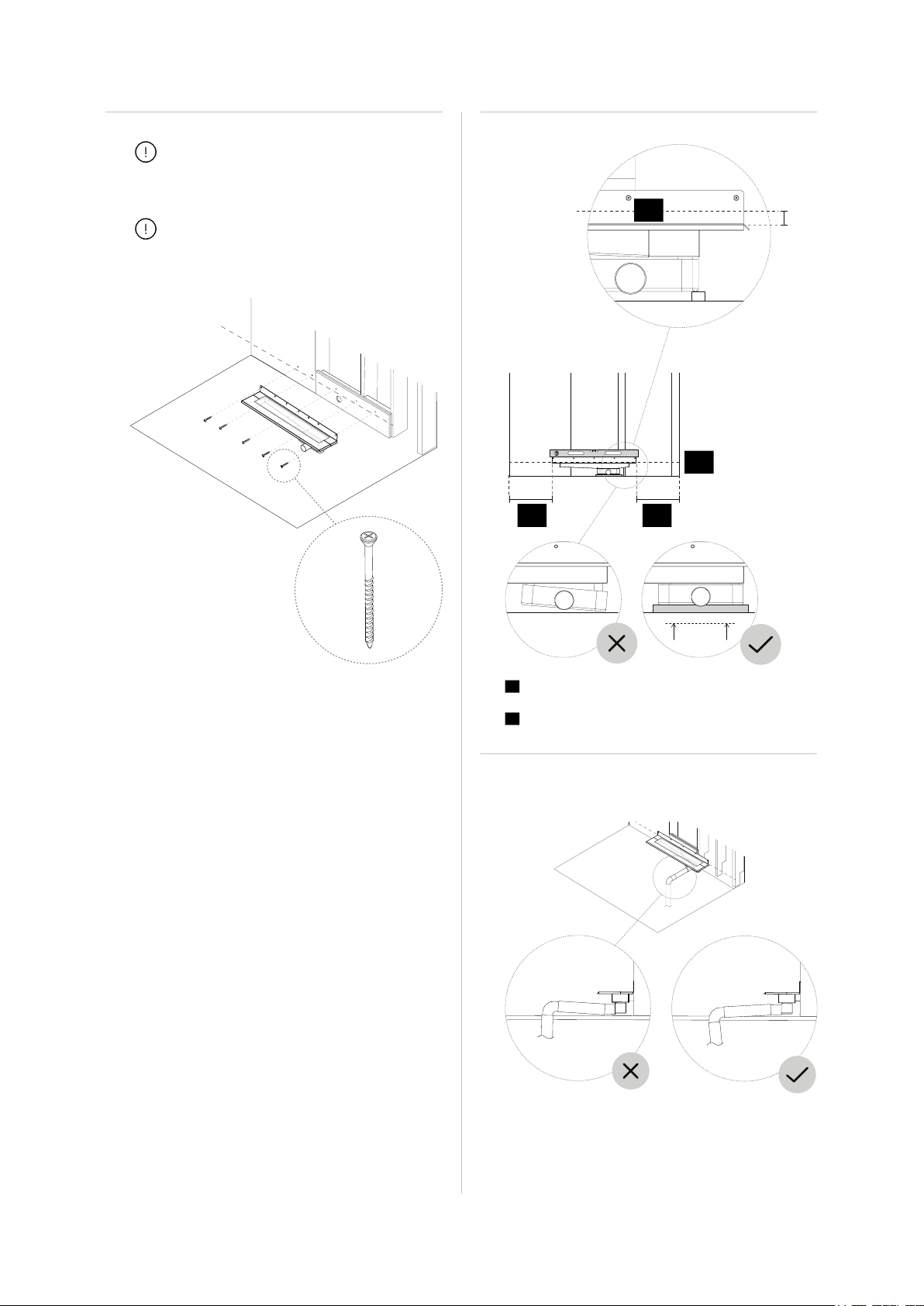

1. CAUTION
Plumbing and electrical installation
should be performed according to local
regulations.
CAUTION
Do not remove the Protective Cover until
the Frame is being installed in a later
step.
x7
Countersunk stainless steel screw
All supplied screws (x7) must be inserted.
2.
≥30mm
X
X
Z Z
X
Finished floor height where it is level.
Z
Drain Unit is centered in the shower area.
3. Connect Drain Unit to the sewerage system as defined
by local regulations.
Page 16 of 33

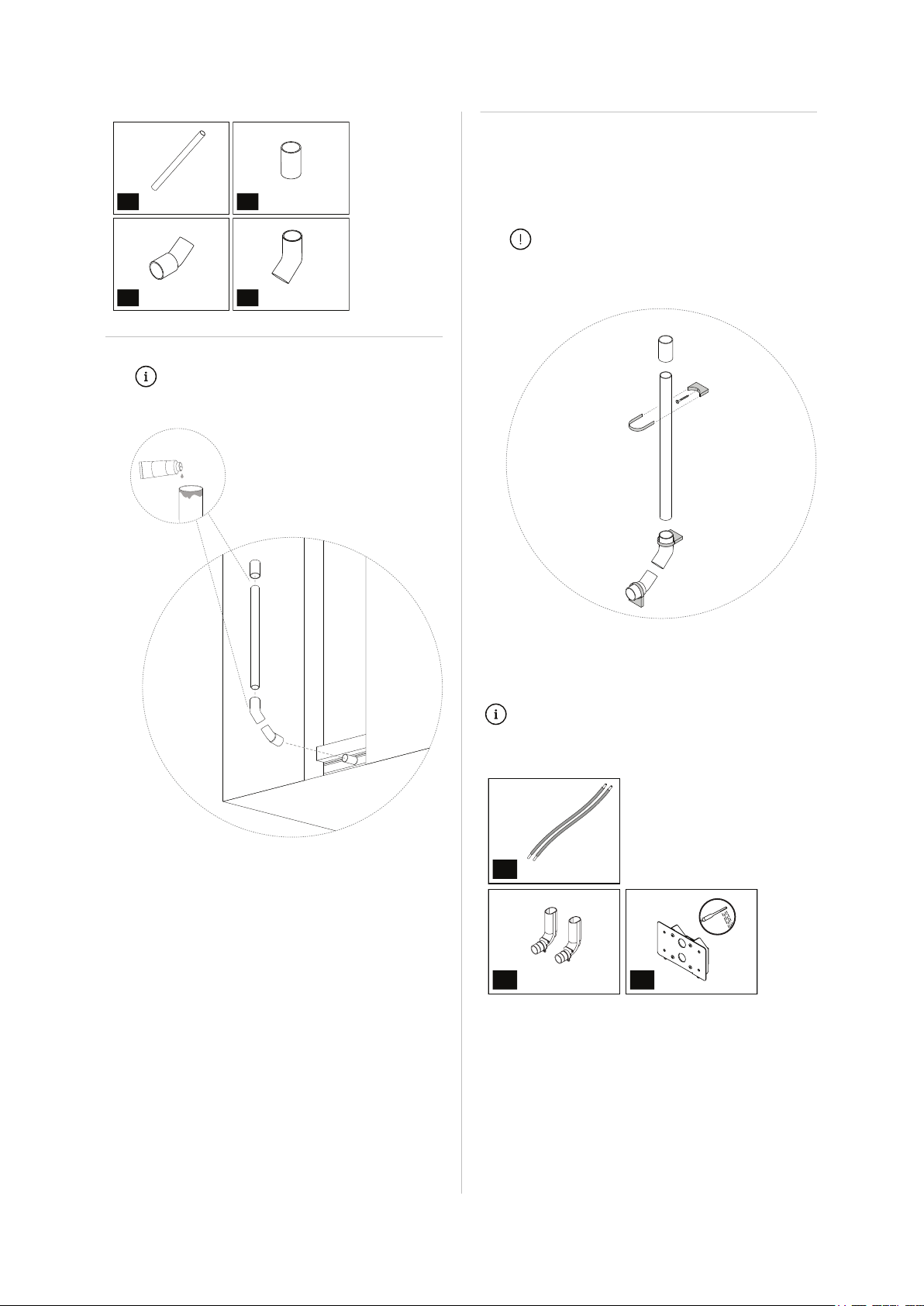

43 RSK 231 60 90 RSK 231 61 02
65 RSK 291 03 41 RSK 231 61 08
1. NOTICE
Apply lubricant according to local
regulations to all Pipes and Fittings.
2. Anchor the Pipes and Fittings according to local
regulations.
Provided by Customer:
•Anchors
CAUTION
Make sure to fasten and anchor the
Pipes and Fittings so they cannot move
or be separated.

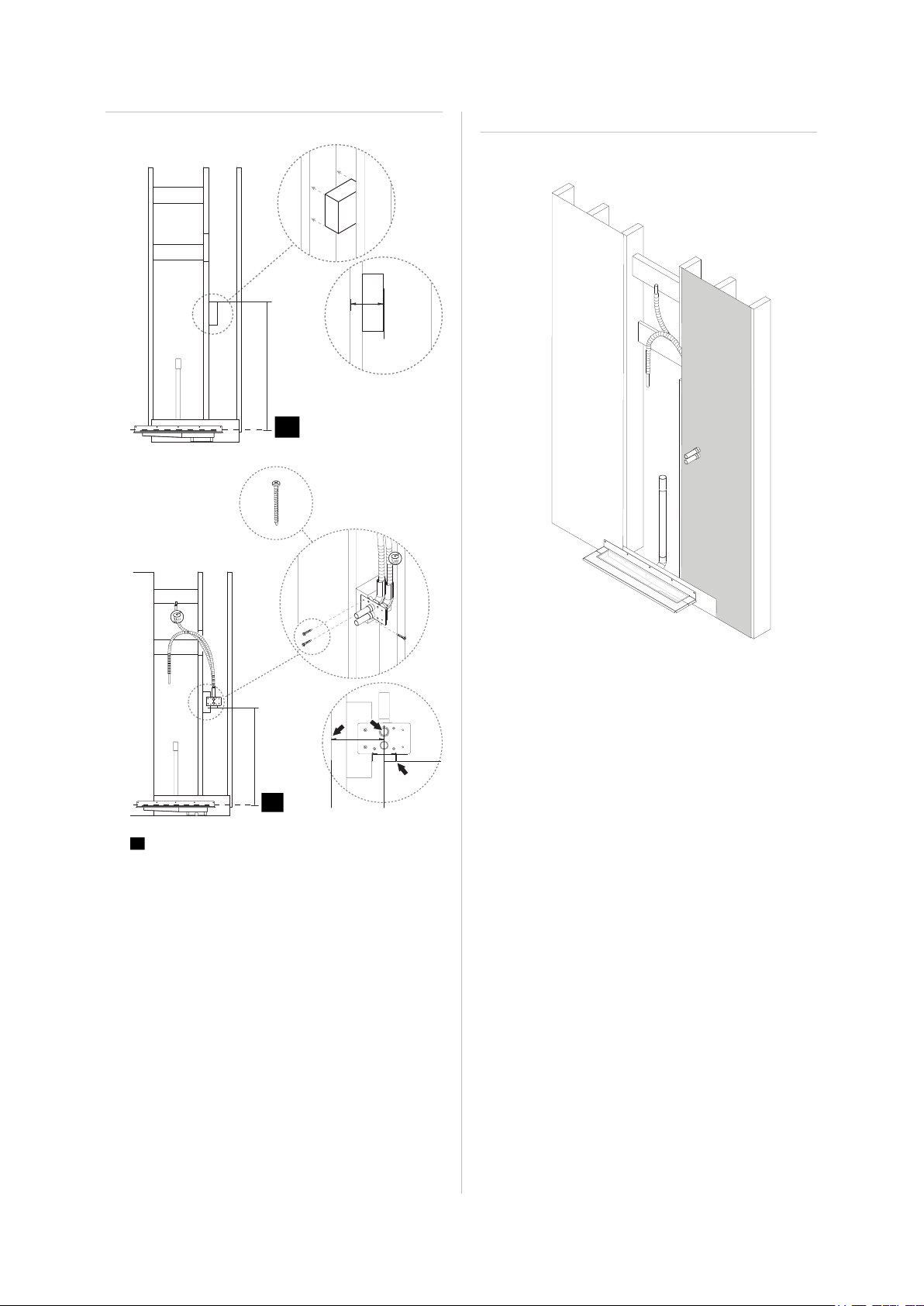

Install Wall Brackets
NOTICE
Following steps only valid for Orbital Systems
Shower Head and Hand Shower.
4
1RSK 188 23 36
RSK 187 79 99 5
Page 17 of 33

1.
>100mm
2.
3.
Page 18 of 33

4.
~1200 - 1300mm
X
90mm
1000mm
X
126mm
X
Finished floor height where it is level.
x3
Countersunk stainless steel screw

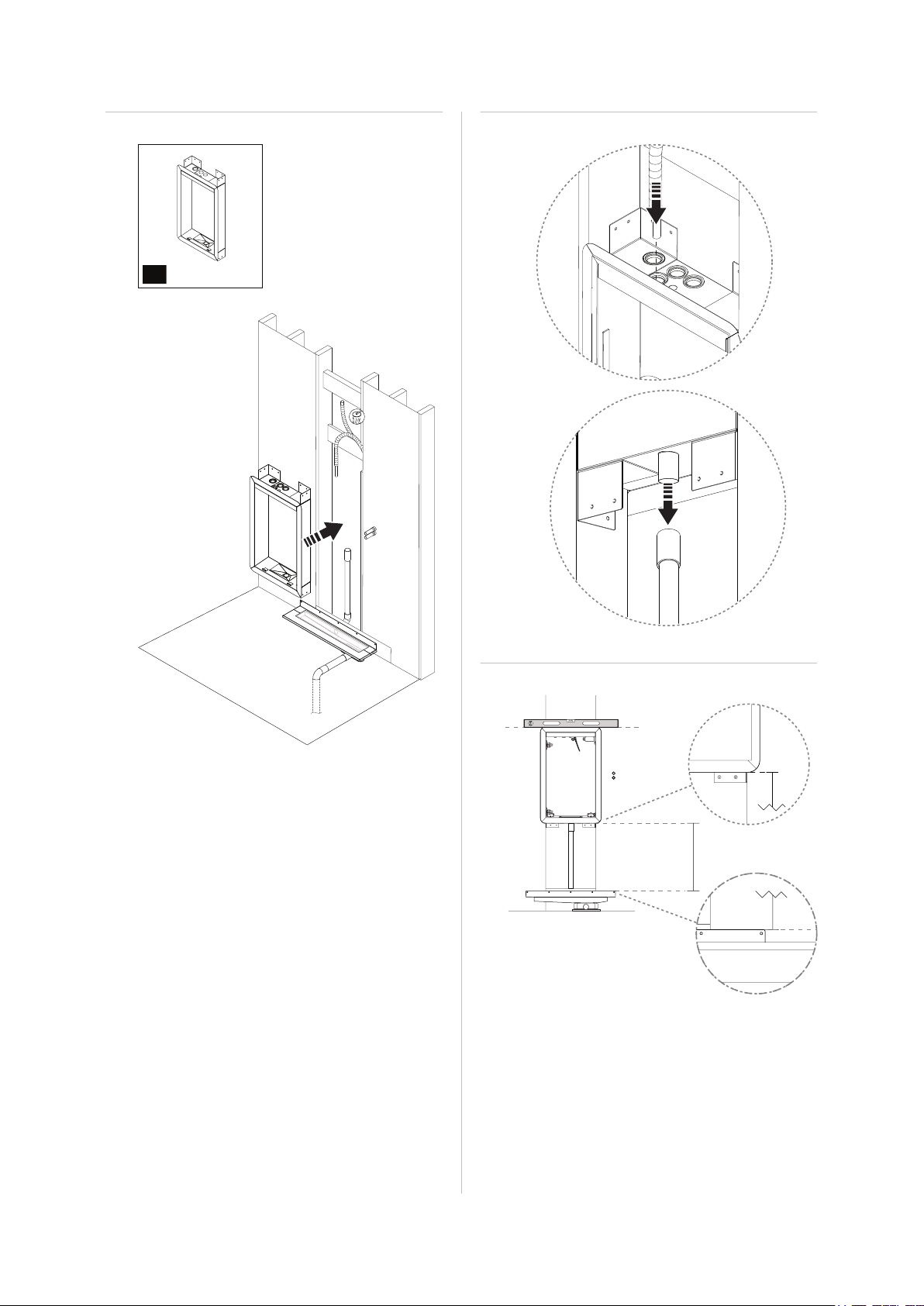

Install Wallbox
1. Apply wall covering according to local regulations.
Page 19 of 33

2.
1RSK 831 41 66
3.
4.
600mm
