Oregon Scientific BAR332ES User manual

User Manual
+ECO Solar Weather Clock
Model: BAR332ES / BAR332ESA / BAR332ESU

EN
1
+ECO Solar Weather Clock
Model: BAR332ES / BAR332ESA /
BAR332ESU
USER MANUAL
CONTENTS
Earth Friendly................................................................... 2
Overview........................................................................... 2
Front View ...................................................................... 2
Top View ........................................................................ 3
Bottom View ................................................................... 3
Solar Panel..................................................................... 4
Remote Sensor .............................................................. 4
Getting Started................................................................. 4
Solar Panel..................................................................... 4
Backup Power ................................................................ 6
Remote Sensor................................................................. 6
Clock and Calendar ......................................................... 7
Clock Reception ............................................................. 7
Manually Set Clock......................................................... 7
Alarm................................................................................. 8
Temperature ..................................................................... 8
Weather forecast.............................................................. 8
Backlight........................................................................... 9
Reset ................................................................................. 9
Specications................................................................... 9
Precautions ...................................................................... 9
About Oregon Scientific................................................ 10
EU-Declaration of Conformity....................................... 10
FCC Statement ............................................................... 10

EN
2
EARTH FRIENDLY
The +ECO line embodies our commitment to environmental
concerns. Aware of threats facing the world we live in,
Oregon Scientic™ has combined technological know-how,
practicality and style to create this line of environmentally
friendly products. These products provide practical solutions
while enabling you and us to fulll our environmental
responsibility.
Simply detach the solar panel and face it directly towards
the sun for a few hours to receive the amount of energy
necessary to power the device.
Together we can improve the world we live in.
OVERVIEW
FRONT VIEW
1
10
11
12
13
14
15
16
2
3
4
5
6
7
8
9
1. : Remote sensor reception indicator and outdoor
channel selected
2. Outdoor temperature
3. Indoor temperature
4. Weather forecast

EN
3
5. : Clock signal reception indicator
6. : Alarm time is displayed
7. : Daily alarm is On
8. AM / PM
9. Rechargeable battery status LED indicator
10. : Outdoor remote sensor battery low
11. : Main unit back-up batteries low / no battery
12. : AC adaptor connected
13. : Rechargeable battery is low / solar panel detached
14. : Rechargeable battery level indicator
15. : Time zone offset
16. Calendar / Clock with weekday / seconds

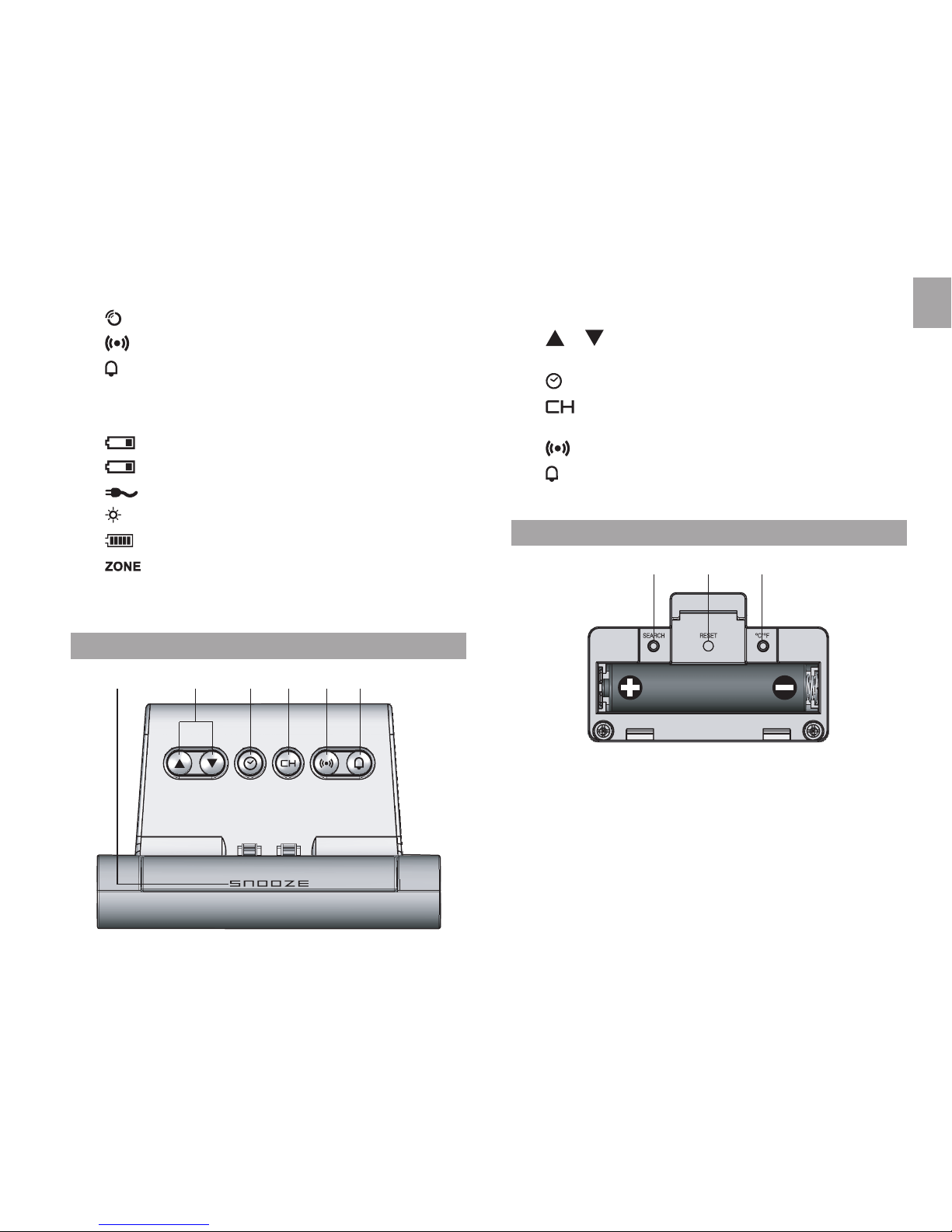

TOP VIEW
1 2 3 4 5 6
1. SNOOZE: Activate snooze alarm / backlight
2. / : Increase / decrease value of the setting;
activate / deactivate clock reception signal
3. : Change display; set clock
4. : Toggle between outdoor temperature channels
(1-3); initiate auto-toggle
5. : View alarm status; set alarm
6. : Activate / deactivate alarm function
BOTTOM VIEW
1 2 3
1. SEARCH: Initiate sensor search
2. RESET: Reset unit to default settings
3. °C / °F: Select temperature unit

EN
4
SOLAR PANEL
1 2 3
4
5
1. CHARGING: charging in process
2. FULL: batteries fully charged (when TEST is pressed)
3. Solar panel
4. TEST establish if battery is full
5. Battery compartment
REMOTE SENSOR
1
2
3
4
5
1. LED status indicator
2. Wall mount hole
3. Battery compartment
4. RESET: Reset unit to default settings
5. CHANNEL switch
GETTING STARTED
SOLAR PANEL
This product uses two AAA rechargeable batteries which
should be charged via the solar panel. For the batteries’
rst charge, it is strongly advised to charge it for at least
12 hours.

EN
5
To charge the battery:
1. Detach solar panel by exerting downward pressure and
pulling at a 45° angle (approx.) away from main unit.
2. Insert 2 AAA rechargeable batteries in battery
compartment located at the back of the solar panel.
IMPORTANT Place ONLY NiMH type rechargeable
batteries in the solar panel battery compartment. Do not
charge non-rechargeable batteries.
3. Expose the solar panel directly to sunlight for
approximately 5-6 hours to charge the battery. The
(red) CHARGING LED on solar panel will light up
indicating there is sunlight and unit is charging.
TIP Press and hold TEST located at the back of the solar
panel. (Green) FULL LED indicates batteries have been fully
charged.
4. Align holes with protruding plastic. Push solar panel
towards main unit and snap into place.
5-6 hours of battery charging will normally provide power to
operate unit for 2 months.
When the rechargeable battery is nearly at or when solar
panel has been detached, the (green) LED indicator on the
main unit and will ash.
TIPS
• For best results when charging the battery, place the
solar panel directly with view to sunlight.
• Direct solar panel as follows:
Solar panel facing: if you reside in the:
North Southern Hemisphere
South Northern Hemisphere
• Do not scratch the solar panel’s surface or wipe it with
strong detergent.
• Do not expose the solar panel to rain, snow or
moisture.
• The duration of the rechargeable battery’s charging or
operating time is determined by either the intensity of
sunlight or the position of the solar panel towards the
sun.
• Do not overcharge the batteries.

EN
6
BACKUP POWER
1 piece AAA battery
In the case when the rechargeable battery is at or nearly
at or when the solar panel has been detached, the AAA
battery can act as backup power supply for the main unit.
1. Remove the battery compartment located at the base
of the unit.
2. Insert the battery, matching the polarity.
3. Press RESET after each battery change.
Power adaptor (not included)
The adaptor powers the unit and can also be used for
charging the rechargeable battery. When connected to the
main unit, will be displayed.
NOTE The main unit and adaptor should not be exposed to
wet conditions. No objects lled with liquid, such as vases,
should be placed on the main unit and adaptor.
REMOTE SENSOR
This product can work with up to 3 sensors at any one time
to capture temperature readings in various locations.
To set up the remote sensor:
1. Slide open the battery compartment.
2. Slide channel switch to select a channel (1, 2, 3).
Ensure you use a different channel for each sensor.
3. Insert the battery, matching the polarities.
4. Press RESET after each battery change.
5. Close the battery compartment.
6. Press and hold SEARCH for 2 seconds to initiate a
sensor search.
NOTE Use alkaline batteries for longer usage and
consumer grade lithium batteries in temperatures below
freezing.
The remote sensor reception icon will show the following
status:
ICONS MEANING
Main unit is searching
for sensor(s)
A sensor channel has
been found
No sensor found
TIP Ideal placements for the sensor would be in any
location on the exterior of the home at a height of not more
than 1.5 m (5 ft) and which can shield it from direct sunlight
or wet conditions for an accurate reading.

EN
7
1.5 m (5 ft)
CLOCK AND CALENDAR
CLOCK RECEPTION
This product is designed to synchronize its clock
automatically with a clock signal.
BAR332ES: EU: DCF-77 signal: within 1500 km (932 miles)
of Frankfurt, Germany.
BAR332ESU: UK: MSF-60 signal: within 1500 km (932
miles) of Anthorn, England.
BAR332ESA: WWVB-60 signal: within 3200km (2000
miles) of Fort Collins Colorado.
To enable / disable clock signal reception:
Press and hold to enable or to disable clock signal
reception.
NOTE Reception takes 2-10 minutes. If the signal is weak,
it can take up to 24 hours to get a valid signal. If signal
reception is unsuccessful, place your unit next to a window,
press and hold to force another signal search.
Clock signal reception indicator:
STRONG SIGNAL WEAK / NO SIGNAL
MANUALLY SET CLOCK
To set the clock manually, disable the clock signal reception
rst.
1. Press and hold .
2. Press / to change the settings.
3. Press to conrm.

EN
8
The settings order is: time zone, 12/24 hr format, hour,
minute, year, calendar mode (month – day / day – month),
month, day and language.
BAR332ES / BAR332ESU: Time zone offset sets the clock
+/- 23 hours from the received clock signal time. If you have
deactivated the clock signal reception, do not set a value
for time zone.
NOTE If you enter +1 in the time offset setting, this will
give you your local time plus one hour. If you are in the US
(BAR332ESA) set the clock to:
PA for Pacic time MO for Mountain time
CE for Central time EA for Eastern time
NOTE The language options are English (E), German (D),
French (F), Italian (I), Spanish (S) and Russian (R).
To select clock display:
Press to toggle between clock with seconds, clock with
weekday and calendar.
ALARM
To set the alarm:
1. Press and hold to enter alarm setting.
2. Press / to set hour / minute.
3. Press to conrm.
indicates alarm is ON.
To activate / deactivate alarm:
Press .
To silence the alarm:
• Press SNOOZE to silence it for 8 minutes
OR
• Press any key to turn the alarm off and activate it again
after 24 hours.
To display alarm:
Press .
TEMPERATURE
To toggle temperature unit:
Press °C / °F.
To toggle between each outdoor sensor’s readings:
• Press repeatedly
OR
• Press and hold for 2 seconds to initiate auto toggle
of outdoor channels.
WEATHER FORECAST
This product forecasts the next 12 to 24 hours of weather
forecast within a 30-50 km (19-31 mile) radius.

EN
9
Sunny
Partially cloudy
Cloudy
Rainy
Snowy
BACKLIGHT
Press SNOOZE to activate backlight for 3 seconds.
RESET
Press RESET to return to the default settings.
SPECIFICATIONS
MAIN UNIT
TYPE DESCRIPTION
L x W x H 158 x 87 x 55mm (6.2 x 3.4 x 2.2 in)
Weight 280 g (9.88 oz) without battery
Signal frequency 433 MHz
Power
2 x UM-4 (AAA) rechargeable
batteries;
6V AC adaptor (not included)
1 x UM-4 (AAA) battery (for backup)
REMOTE SENSOR (THN132N)
L x W x H 96 x 50 x 22mm
(3.78 x 1.97 x 0.87 in)
Weight 62 g (2.22 ounces) without battery
Transmission range 30 m (98ft) unobstructed
Temperature range -20°C to 60°C (-4°F to 140°F)
Power 1 x UM-3 (AA) 1.5 V battery
PRECAUTIONS
• Do not subject the unit to excessive force, shock, dust,
temperature or humidity
• Do not cover the ventilation holes with any items such
as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid over
it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive
materials.
• Do not tamper with the unit’s internal components. This
invalidates the warranty.
• Only use fresh batteries. Do not mix new and old
batteries.

EN
10
• Images shown in this manual may differ from the actual
display.
• When disposing of this product, ensure it is collected
separately for special treatment.
• Placement of this product on certain types of wood
may result in damage to its nish for which Oregon
Scientic will not be responsible. Consult the furniture
manufacturer's care instructions for information.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal
waste. Collection of such waste separately for special
treatment is necessary.
• Please note that some units are equipped with a
battery safety strip. Remove the strip from the battery
compartment before rst use.
NOTE The technical specications for this product and the
contents of the user manual are subject to change without
notice.
NOTE Features and accessories will not be available in all
countries. For more information, please contact your local
retailer.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientic.com) to learn more
about Oregon Scientic products. If you’re in the US and
would like to contact our Customer Care department directly,
please visit:
www2.oregonscientic.com/service/support.asp
For international inquiries, please visit:
www2.oregonscientic.com/about/international.asp
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientic, declares that this +ECO
Solar Weather Clock (model: BAR332ES / BAR332ESU/
BAR332ESA) is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC. A copy of the signed and dated Declaration of
Conformity is available on request via our Oregon Scientic
Customer Service.
COUNTRIES RTTE APPROVED COMPLIED
All EU countries, Switzerland CH
and Norway N
FCC STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This
device must accept any interference received, including
interference that may cause undesired operation.

EN
11
WARNING Changes or modications not expressly
approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV
technician for help.
DECLARATION OF CONFORMITY
The following information is not to be used as contact
for support or sales. Please visit our website at www2.
oregonscientic.com/service for all enquiries.
We
Name: Oregon Scientic, Inc.
Address: 19861 SW 95th Ave.,Tualatin,
Oregon 97062 USA
Telephone No.: 1-800-853-8883
declare that the product
Product No.: BAR332ES / BAR332ESU /
BAR332ESA
Product Name: +ECO Solar Weather Clock
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1, 41 Man Yue St.,
Hung Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: 1) This device may
not cause harmful interference. 2) This device must accept
any interference received, including interference that may
cause undesired operation.

FR
1
Station Météo
Horloge Solaire ECO
Modèle: BAR332ES / BAR332ESA /
BAR332ESU
MANUEL DE L’UTILISATEUR
TABLE DES MATIÈRES
Ecologique........................................................................ 2
Vue d’ensemble................................................................ 2
Face avant...................................................................... 2
Vue supérieure ............................................................... 3
Vue du bas ..................................................................... 4
Panneau solaire.............................................................. 4
Sonde sans fil................................................................. 4
Au commencement.......................................................... 5
Panneau solaire.............................................................. 5
Alimentation de secours ................................................. 6
Sonde sans l................................................................... 6
Horloge et calendrier....................................................... 7
Réception de l’horloge.................................................... 7
Régler manuellement l’horloge....................................... 8
Alarme............................................................................... 9
Température ..................................................................... 9
Prévision météo ............................................................... 9
Rétro éclairage................................................................. 9
Réinitialisation du système........................................... 10
Caractéristiques............................................................. 10
Précautions .................................................................... 10
À propos d’Oregon Scientific ....................................... 11
Europe - Déclaration de conformité............................. 11

FR
2
ECOLOGIQUE
La gamme +ECO incarne notre engagement pour
l’environnement. Conscients des menaces pesant sur
le monde dans lequel nous vivons, Oregon Scientic™
a combiné savoir-faire technologique, fonctionnalité et
style, pour créer sa gamme de produits respectueux
de l’environnement. Ces produits vous fournissent des
solutions pratiques tout en nous permettant d’être à la
hauteur de notre responsabilité environnementale.
Vous n’avez qu’à détacher le panneau solaire et le
positionner face au soleil pendant quelques heures, pour
recevoir la quantité d’énergie nécessaire pour alimenter
l’appareil.
Ensemble, nous pouvons améliorer le monde dans lequel
nous vivons.
VUE D’ENSEMBLE
FACE AVANT
1
10
11
12
13
14
15
16
2
3
4
5
6
7
8
9
1. : Indicateur de réception de la sonde sans l et
canal extérieur sélectionné
2. Température extérieure
3. Température intérieure

FR
3
4. Prévision météorologique
5. : Indicateur de réception du signal de l’horloge
6. : Heure de l’alarme afchée
7. : L’alarme quotidienne est activée
8. Icône AM / PM
9. Indicateur LED du statut de la pile rechargeable
10. : La pile de la sonde sans l est faible
11. : Les piles de secours de l’appareil principal sont
faibles / aucune pile
12. : Adaptateur secteur CA branché
13. : La pile rechargeable est faible / le panneau solaire
est détaché
14. : Indicateur de niveau de la pile rechargeable
15. : Fuseau horaire
16. Calendrier / Horloge avec les jours de la semaine /
secondes
VUE SUPÉRIEURE
1 2 3 4 5 6
1. SNOOZE (Rappel d’alarme) : Active l’alarme par rappel
(snooze) / le rétro éclairage
2. / : Augmente / diminue les valeurs du réglage ;
active / désactive le signal de réception de l’horloge
3. : Permet de modier l’afchage de l’horloge et de
régler l’horloge
4. : Permet d’alterner entre les canaux de température
extérieure (1-3) ; initie l’alternance automatique
5. : Visualisation du statut de l’alarme ; réglage de
l’alarme
6. : Permet d’activer / désactiver la fonction alarme

FR
4
VUE DU BAS
1 2 3
1. RECHERCHE : Permet d’initier la recherche de la
sonde
2. RESET (REINITIALISER) : Réinitialise l’appareil aux
réglages par défaut
3. °C / °F : Permet de sélectionner l’unité de mesure de la
température
PANNEAU SOLAIRE
1 2 3
4
5
1. CHARGING : Chargement en cours
2. FULL : Les piles sont entièrement chargées (en
appuyant sur TEST)
3. Panneau solaire
4. La touche TEST permet d’établir si la pile est chargée
5. Compartiment des piles
SONDE SANS FIL
1
2
3
4
5
1. Indicateur LED
2. Trou de xation murale
3. Compartiment des piles
4. RESET (REINITIALISER) : Réinitialise l’appareil aux
réglages par défaut
5. Bouton CHANNEL (CANAL)

FR
5
AU COMMENCEMENT
PANNEAU SOLAIRE
Ce produit utilise une pile rechargeable que vous devez
charger à l’aide du panneau solaire. Lors de la première
utilisation, nous vous recommandons de charger la pile
pendant au moins 12 heures.
Pour charger la pile :
1. Détachez le panneau solaire en exerçant une pression
vers le bas et en le tirant à environ 45° de l’appareil
principal.
2. Insérez 2 piles rechargeables AAA dans le compartiment
des piles situé à l’arrière du panneau solaire.
IMPORTANT Insérez des piles rechargeables de type
NiMH dans le compartiment des piles du panneau solaire.
Ne pas charger des piles non rechargeables.
3. Exposez le panneau solaire directement face au
soleil pendant approximativement 5 à 6 heures pour
recharger les piles. La LED CHARGING (rouge) sur le
panneau solaire clignotera pour indiquer que l’énergie
solaire est sufsante pour recharger l’appareil.
ASTUCE Appuyez et maintenez TEST située à l’arrière du
panneau solaire. La LED FULL (vert) indique que les piles
sont entièrement chargées.
4. Alignez les trous avec le plastique qui dépasse.
Poussez le panneau solaire en direction de l’appareil
principal et remettez-le en place.
Charger la pile pendant 5 à 6 heures vous permettra
normalement d’exploiter l’appareil pendant 2 mois.
Si la pile rechargeable est presque vide ou si le panneau
solaire est détaché, le voyant LED (vert) situé sur l’appareil
principal et l’icône clignoteront.
CONSEILS
• Pour obtenir de meilleurs résultats lors du chargement
de la pile, positionnez le panneau solaire directement
vers le soleil.

FR
6
• Orienter le panneau solaire comme suit :
Panneau solaire orienté : si vous habitez :
Nord L’hémisphère sud
Sud L’hémisphère nord
•Ne pas rayer la surface du panneau solaire ou ne pas
la nettoyer avec un détergeant agressif.
• Ne pas exposer le panneau solaire à la pluie, la neige
ou l’humidité.
• La durée de chargement de la pile rechargeable ou sa
durée de fonctionnement est déterminée par l’intensité
du soleil ou la position du panneau solaire.
• Ne pas surcharger les piles rechargeables.
ALIMENTATION DE SECOURS
1 pile AAA
Dans l’éventualité où la pile rechargeable est vide ou
presque vide, ou si le panneau solaire est détaché, vous
pouvez utiliser la pile AAA en tant qu’alimentation de
secours pour l’appareil principal.
1. Retirez le compartiment des piles situé à la base de
l’appareil.
2. Insérez la pile, en respectant les polarités.
3. Appuyez sur RESET (REINITIALISER) après chaque
changement de pile.
Adaptateur secteur (non inclus)
Vous pouvez également utiliser un adaptateur secteur pour
recharger la pile. Une fois branché à l’appareil principal,
l’icône s’afchera.
REMARQUE N’exposez ni l’adaptateur ni l’appareil
principal à l’humidité. Ne placez aucun récipient rempli d’eau
comme les vases sur l’appareil principal ou l’adaptateur.
SONDE SANS FIL
Ce produit peut être accompagné à tout moment de 3
sondes relevant la température en divers endroits.
Installation de la sonde sans l :
1. Ouvrez le compartiment des piles.
2. Positionnez l’interrupteur de canal pour sélectionner
un canal (1, 2, 3). Assurez-vous d’utiliser un canal
différent pour chaque sonde.
3. Insérez les piles, en respectant les polarités.
4. Appuyez sur RESET (REINITIALISER) après chaque
changement de pile.
5. Fermez le compartiment des piles.
6. Appuyez et maintenez SEARCH pendant 2 secondes
pour initier une recherche de sonde.
REMARQUE Utilisez des piles alcalines pour un usage
prolongé et des piles au lithium en cas de températures
négatives.
