Oregon Scientific RA126 User manual

COMPASS WATCH
Model:RA126
User Manual
RGR126_COVER.indd 1 5/11/06 2:29:53 PM

EN
1
COMPASS WATCH
MODEL: RA126
USER MANUAL
CONTENTS
Introduction................................................................2
Compass Watch.............................................................2
Getting Started...............................................................3
Getting Started...............................................................3
Turn On Watch (First-time use only).............................3
Getting Started.................................................................3
Use in the Water............................................................4
Operation............................................................4
Backlight and Keypad Lock............................................4
Operating Modes.............................................................5
Clock Mode.....................................................................6
To Set the Time and Date...............................................6
Stopwatch............................................................6
To Set the Alarm.............................................................7
Compass..................................................................7
About the Compass..........................................................7
Compass and Calibration...............................................8
To Set the North Calibration..........................................8
Declination Angle..........................................................8
About Declination............................................................8
Bearing Tracking System..............................................9
About the Bearing Tracking System.............................9
To Set the Bearing Tracking System..............................9
Specifications.......................................................10
Precautions........................................................10
About Oregon Scientific.............................................11
EU-Declaration of Conformity....................................11
RA126 IM EN R5.indd 1 2007.7.27 12:21:31 PM

EN
2
INTRODUCTION
Thank you for selecting the Oregon Scientific™ Compass
Watch (RA126). The RA126 is a very useful product for
any outdoor activity as it can help you locate your position
and find your direction using the bearing tracking system.
Equipped with temperature function, it is the perfect
companion for any user who wishes to venture into the
great outdoors. The RA126 bundles a digital compass,
northern calibration, true north calibration, adjustable
declination angle, bearing tracking system stopwatch and
temperature.
IMPORTANT
• The measurement functions built into the RA126 are
not meant to substitute professional measurement
or industrial precision devices. Values produced
by this watch should be considered as reasonable
representations only.
• Oregon Scientific™ assumes no responsibility for any
loss, or any claims by third parties that may arise through
the use of this watch.
COMPASS WATCH
1
2
3
4
5
6
1. COMPASS / -: Activate compass; lower setting values
2. MODE: Toggle main modes; quit setting modes quickly
3. ST / SP / +: Start / stop stopwatch; increase setting
values
4. / : Turn on EL backlight; Activate keypad lock
5. SET / RESET / VIEW: Enter setting modes; toggle sub-
modes; Reset stopwatch
6. Turning Bezel with cardinal points: North, South, East
and West.
RA126 IM EN R5.indd 2 2007.7.27 12:21:33 PM

EN
3
GETTING STARTED
1
2
3
5
４
6
7
8
9
10
11
12
13
14
15
16
17
1. : Stopwatch is shown or running
2. : Alarm is set; will flash when activated
3. : Smart indicator to lower values
4. “ “: Directional arrows indicates your position
5. : Master digits: i.e. Time
6. : Minor digits: i.e. Stopwatch
7. : Smart indicator to return / quick confirm
8. Cardinal direction
9. : Indicates which way to turn the watch when
calibrating the compass
10. : Sub-mode page indicator
11. : Indicates bearing tracking system in switched
ON
12. : Press ST / SP / + to increase values
13. : Keypad lock activated
14. : Low battery
15. Smart indicator
16. : Keypad tone is turned OFF
17. :Temperature icon
GETTING STARTED
TURN ON WATCH (FIRST-TIME USE ONLY)
Press and hold any key for 2 seconds to activate the LCD
display.
GETTING STARTED
The watch uses a 1 x CR2032 lithium battery, which has
already been installed. See below for battery warnings.
LOW BATTERY
ICON DESCRIPTION
The watch battery is low.
RA126 IM EN R5.indd 3 2007.7.27 12:21:39 PM

EN
4
Appears when the battery
is too low to operate the
sensor. “- -” is shown instead
of temperature and compass
values.

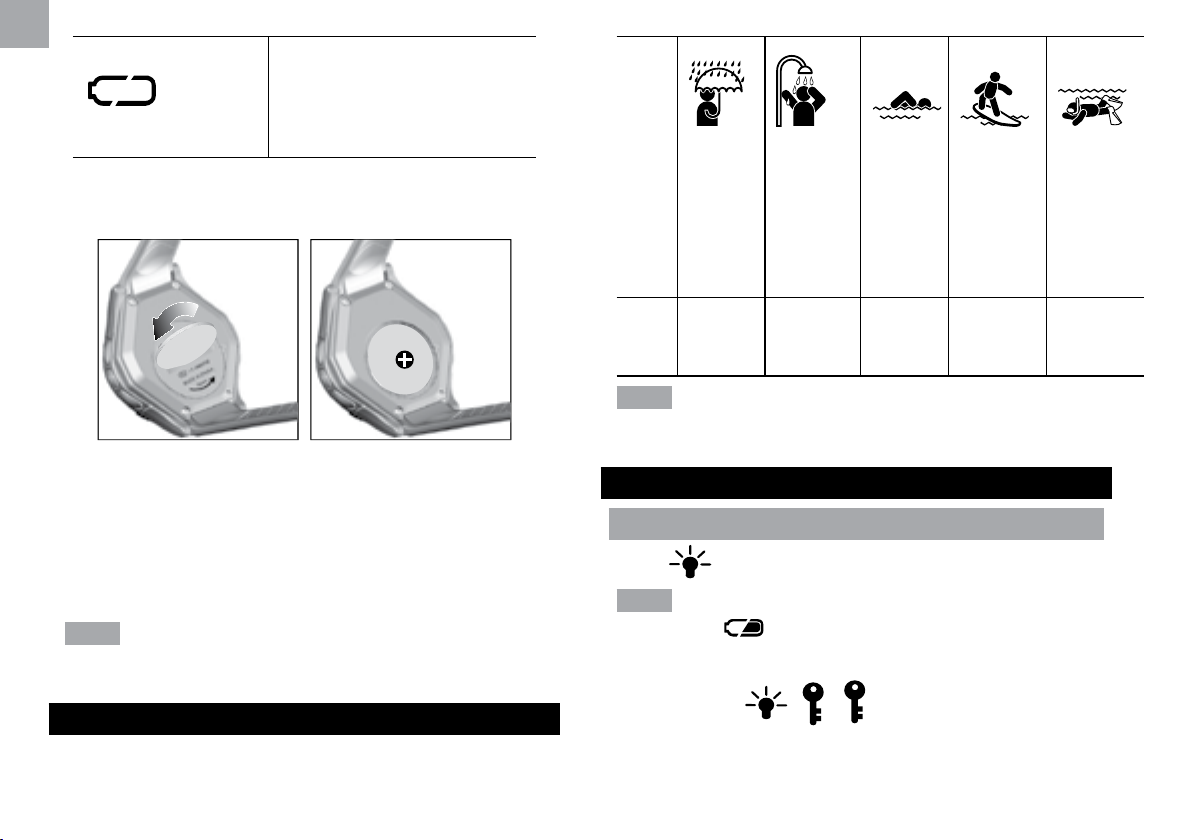

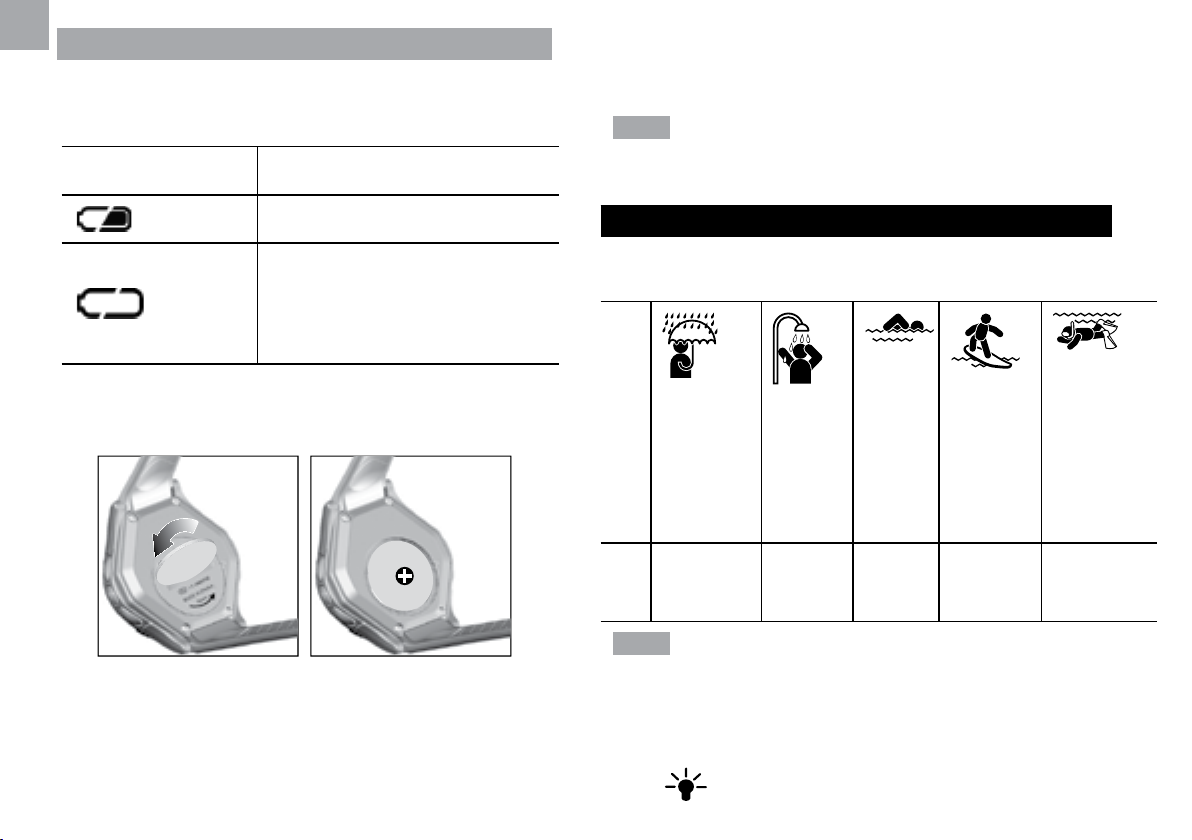

To replace battery:
1. Using a coin, remove battery compartment lid by twisting
counter-clockwise until it clicks out of place.
2. Remove the old batteries and insert the new matching
the polarities.
3. Replace the lid by twisting it clockwise until firmly in
place.
NOTE When battery is replaced it is important to re-
calibrate the magnetic sensor.
USE IN THE WATER
The RA126 is water-resistant up to 50 meters (164 feet).
RAIN
SPLASHES
ETC
SHOWERING
(WARM/
COOL
WATER
ONLY)
LIGHT
SWIMMING
/ SHALLOW
WATER
SHALLOW
DIVING/
SURFING/
WATER
SPORTS
SNORKELING
/ DEEP
WATER
DIVING
50M /
164
FEET OK OK OK OK NO
NOTE Set the unit before exposing it to excessive water.
Pressing the keys while in the water or during heavy
rainstorms may cause water to enter the unit.
OPERATION
BACKLIGHT AND KEYPAD LOCK
Press to turn backlight ON for 5 seconds.
NOTE The backlight function will not operate while the low
battery icon is displayed and it will return to normal
once batteries have been replaced.
To toggle keypad lock ON / OFF:
Press and hold / . indicates keypad is locked.
RA126 IM EN R5.indd 4 2007.7.27 12:21:45 PM

EN
5
OPERATING MODES
Time
Set Compass
Temperature

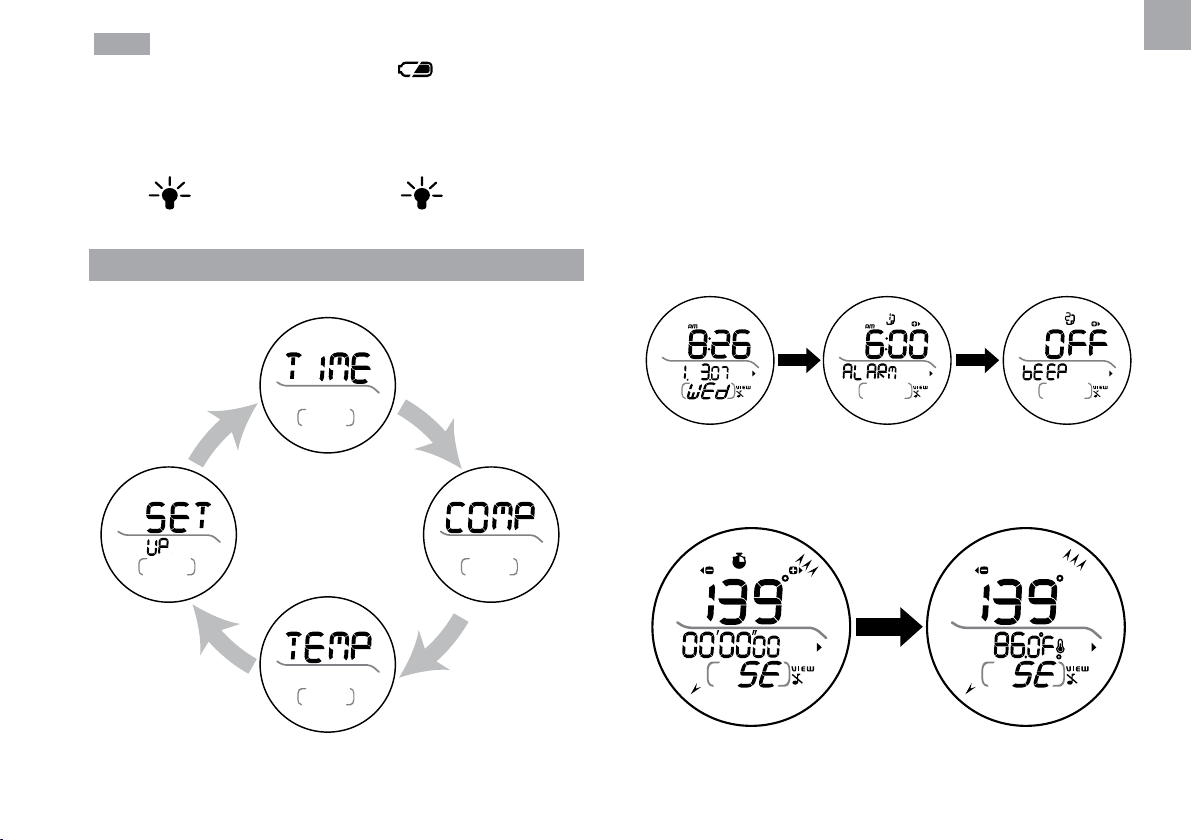

Press MODE to switch between:
• Clock mode
• Compass mode
• Temperature mode
• Set up mode
To scroll through sub-modes:
Press SET to scroll through the mode options in each
mode. They are as follows:
Clock mode:
Time Alarm Beep ON / OFF
Compass mode:
Compass with watch Compass with temperature
Temperature mode:
RA126 IM EN R5.indd 5 2007.7.27 12:21:47 PM

EN
6
set up mode:
Bearing Tracking
Calibration
True north
Declination
CLOCK MODE
TO SET THE TIME AND DATE
1. Press MODE to navigate to Clock mode.
2. Press SET to navigate to time and date.
3. Press and hold SET to enter settings.
4. Press ST / SP / + to scroll upwards and COMPASS /
-to scroll downwards through the setting options. The
setting sequence is as follows: 12 / 24-hour time; hour;
minute; year; day-month / month-day; month; day;
temperature unit.
5. Press SET to confirm.
NOTE If no key is pressed for ten seconds, the display will
return to Clock mode.
STOPWATCH
SET
MODE
1. Press MODE to navigate to Compass mode.
2. Press SET to navigate to Compass with stopwatch.
3. Press ST / SP / + to start and stop the stopwatch.
4. Press and hold SET to reset.
NOTE Unless you stop the stopwatch, “ ” will blink in
all modes to remind you that the stopwatch is still timing.
To view Compass with temperature:
• Press MODE to navigate to Compass mode.
• Press SET to navigate to Compass with temperature.
NOTE The compass display is active for 30 seconds at a
time. After this, the compass will go into power saving mode
and “- - -” will appear on the display.
To re-activate the compass, press COMPASS.
RA126 IM EN R5.indd 6 2007.7.27 12:21:49 PM

EN
7
TO SET THE ALARM
ST/SP/+
SET
MODE

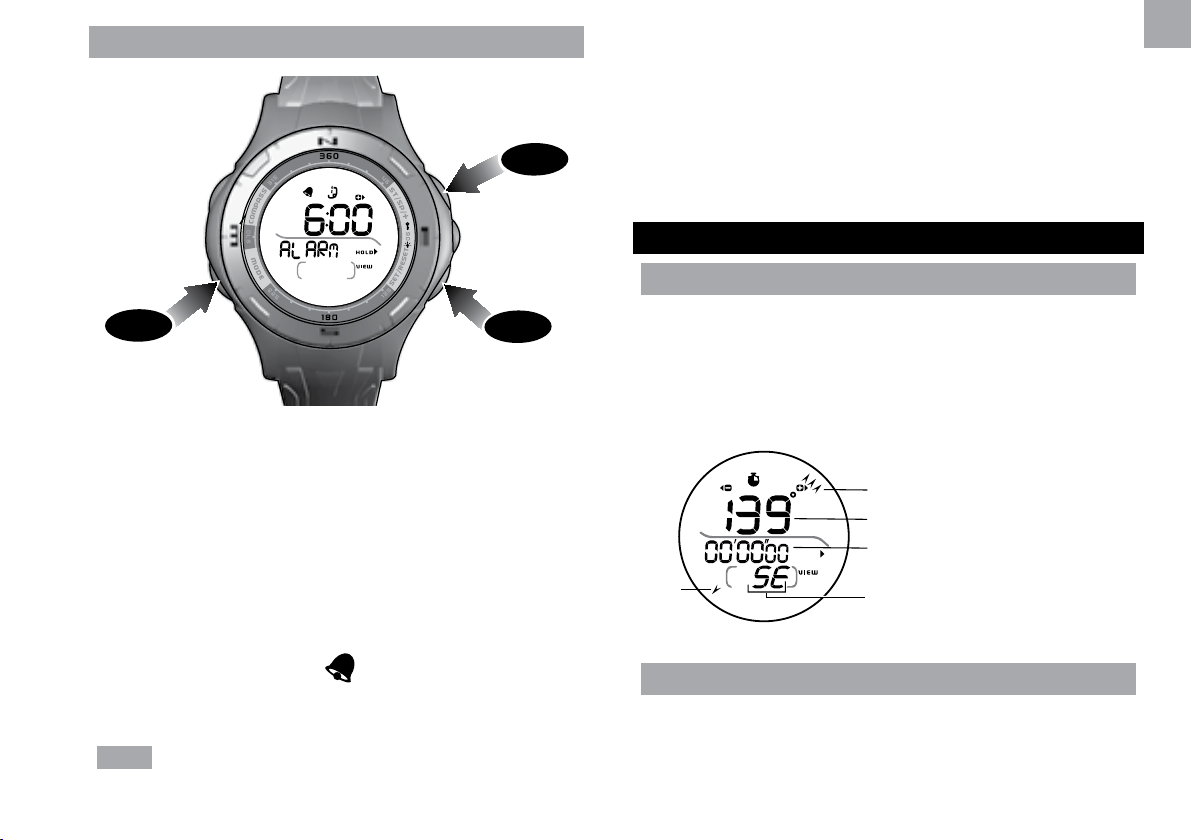

1. Press MODE to navigate to Clock mode.
2. Press SET to navigate to Alarm.
3. Press and hold SET to enter settings.
4. Press ST / SP / + to scroll upwards and COMPASS /
-to scroll downwards through the setting options. The
setting sequence is as follows: hour; minute.
5. Press SET to confirm.
To activate or deactivate the alarm:
• Press MODE to navigate to Clock mode.
• Press SET to navigate to Alarm and press ST / SP / + to
turn the alarm on or off. will indicate that the alarm
has been activated.
• Press SET to confirm.
NOTE When the alarm clock is activated, it will sound at
the set time every day. Press any button to stop the alarm
for that day. The alarm clock is still active and will set off
again the following day.
To silence the keys:
• Press MODE to navigate to Clock mode.
• Press SET to navigate to Beep ON / OFF.
• Press ST / SP / + to silence or to turn on key sounds.
COMPASS
ABOUT THE COMPASS

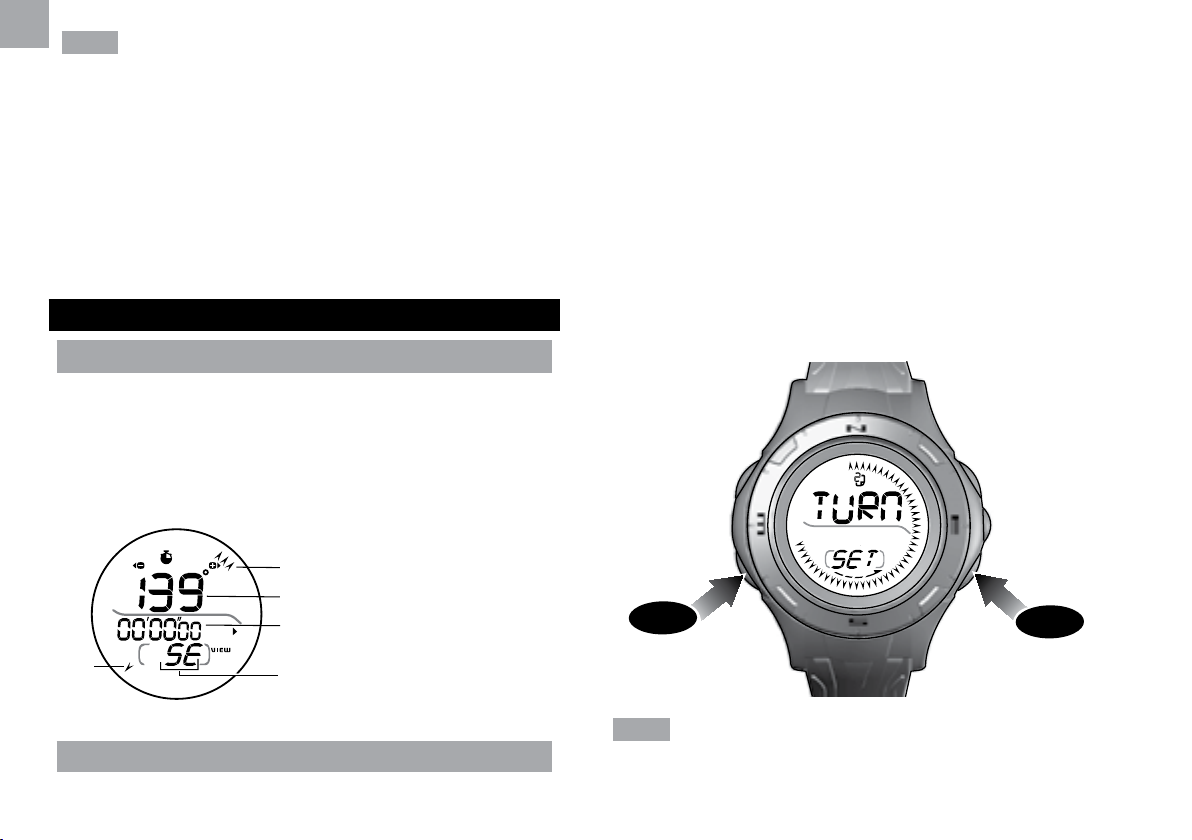

The compass shows the bearing of your position in degrees
due North. The outer circumference of the display consists
of 60 segments that graphically show your bearing. Three
lit segments represent South whereas one lit segment
represents North, as shown below.
1
２
３
４
５
1. South
2. Bearing
3. Stopwatch
4. Cardinal point
5. North
COMPASS AND CALIBRATION
Before the compass is first used, we recommend that you
calibrate the compass sensor.
To calibrate the compass sensor:
• Press MODE to navigate to the Set up mode.
RA126 IM EN R5.indd 7 2007.7.27 12:21:51 PM

EN
8
• Press SET to navigate to Calibration mode option.

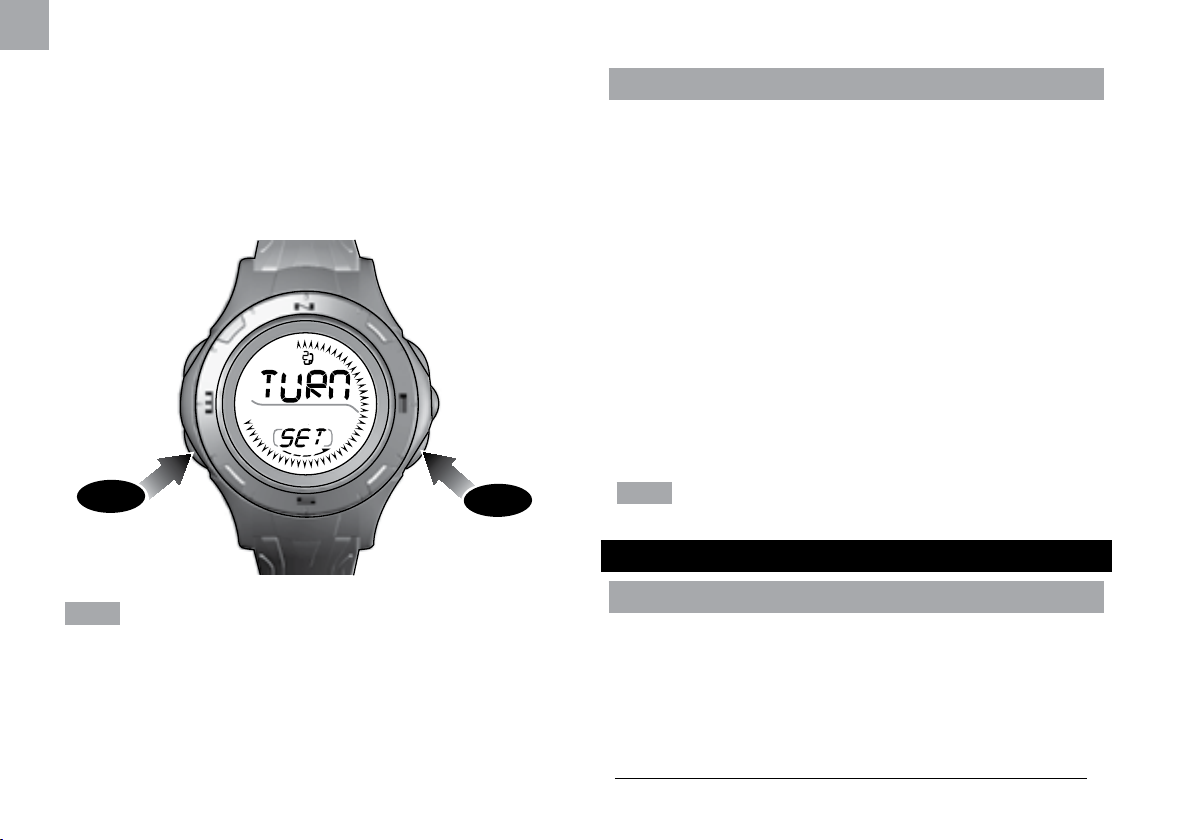

• Press and hold SET to begin calibration of the compass.
Rotate the watch counter clockwise at the same speed
as the moving segments around the circumference of
the display. The rotation will be finished once you have
performed 1 ¼ turns and the display will appear as shown
below when nearing the end of its calibration.
SET
MODE
NOTE The compass should be calibrated:
• Before you use it for the first time.
• When the battery is replaced.
• Before you leave for an extended outdoor activity.
• Whenever it is exposed to strong magnetic sources,
extreme cold, or you suspect that other environmental
conditions have affected the compass readings.
• If you notice that the compass is not showing the
direction correctly.
TO SET THE TRUE NORTH CALIBRATION
When you do not know the declination angle, the true north
calibration function can be used to compensate for the
difference between magnetic and true north. All you need
to know is the direction of true north (this can be found from
landmarks in your immediate vicinity). Setting the true north
calibration makes the compass reading more accurate.

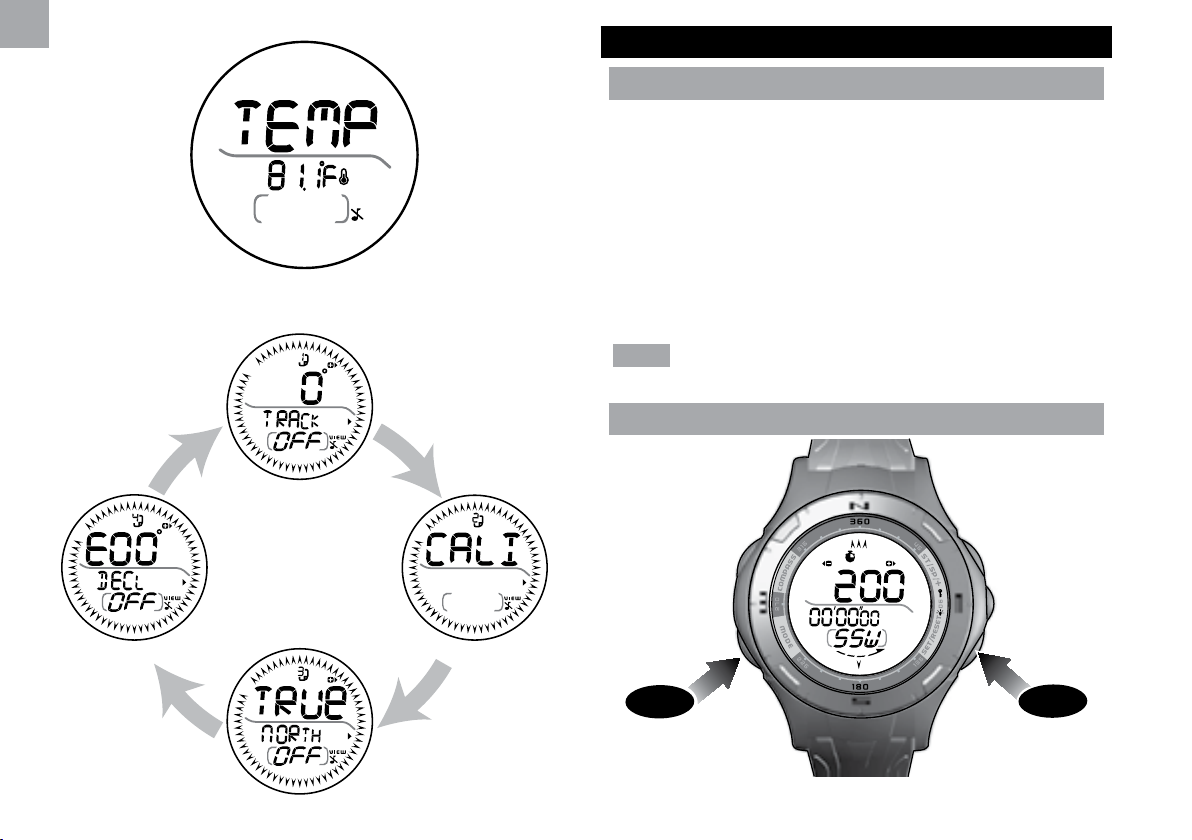

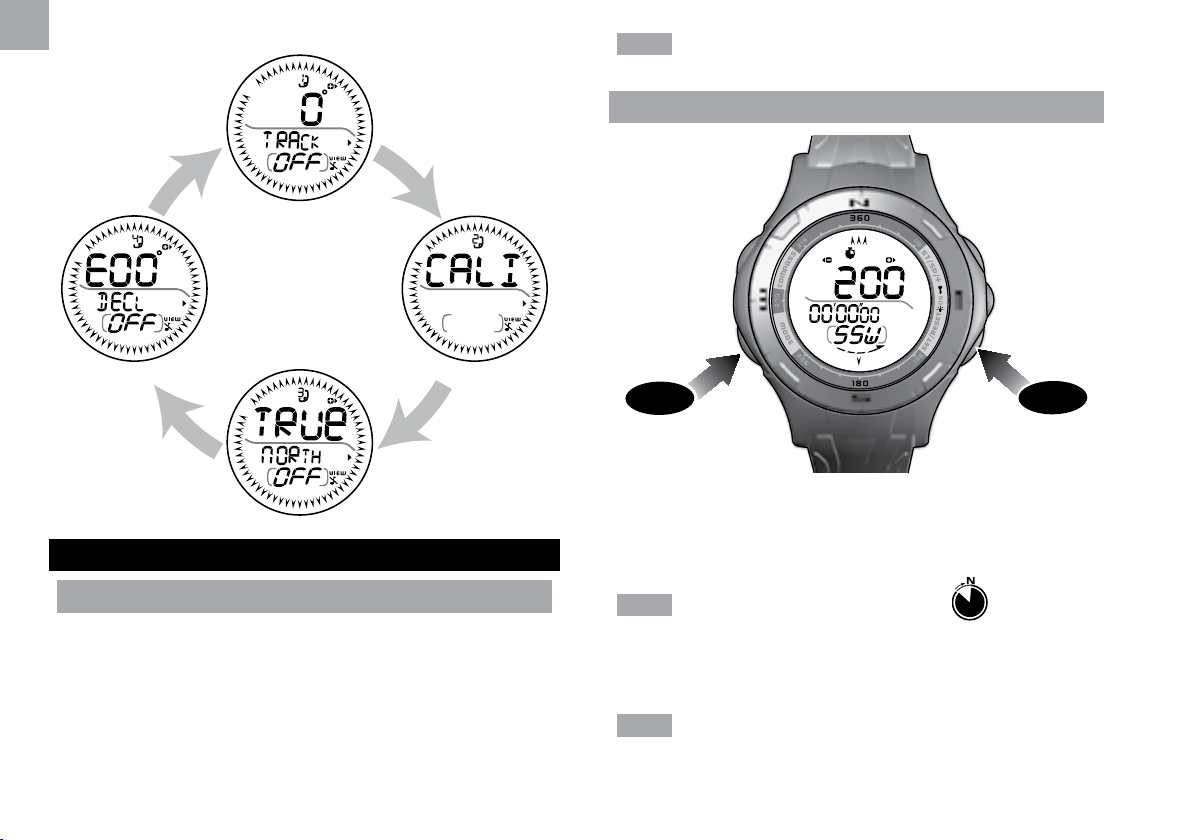

1. Press MODE to navigate to Set up mode.
2. Press SET to navigate to True north mode option.
3. Turn the compass to the direction of true north and
press ST / SP / +.
To toggle True north calibration ON / OFF:
• Press MODE to navigate to Set up mode.
• Press SET to navigate to True north mode option.
• Press ST / SP / + to toggle true north mode to ON /
OFF
NOTE If the declination angle is turned ON, the True north
function will automatically turn itself OFF and vice-versa.
DECLINATION ANGLE
ABOUT DECLINATION
Declination is the angle between where a compass needle
points (magnetic North Pole) and the true North Pole. The
declination angle can vary from 0-30 degrees East (E)
or West (W) and can be found on most maps or on the
Internet.
For declinations in the United States:
http://www.ngdc.noaa.gov/seg/geomag/jsp/Declination.jsp
1. Enter your zip code in the area provided
RA126 IM EN R5.indd 8 2007.7.27 12:21:52 PM

EN
9
2. Click “Get Location”
3. Scroll down and click “Compute”
For declinations in Canada:
http://www.geolab.nrcan.gc.ca/geomag/apps/mdcal_e.php
When you set the declination angle on the compass you
compensate for the difference between true and magnetic
north. This increases it’s accuracy.
To set the declination angle:
1. Press MODE to navigate to Set up mode.
2. Press SET to navigate to Declination mode option.
3. Press and hold SET to enter settings mode.
4. Press ST / SP / + or COMPASS / - to toggle settings.
The setting options are as follows: WEST / EAST
declination angle.
5. Press SET to confirm.
BEARING TRACKING SYSTEM
ABOUT THE BEARING TRACKING SYSTEM
The bearing tracking system enables you to lock onto
a bearing, which you will be able to relocate using the
compass. By locking the bearing you can see when you
deviate from your course and how much you need to
correct it to get back on track.
TO SET THE BEARING TRACKING SYSTEM
1. Press MODE to navigate to Set up mode.
2. Press and hold SET to enter setting mode.
• The top figure shows your last bearing locked.
• The bottom figure shows your current bearing.
ST/SP/+
SET
MODE
3. Point the compass in the desired direction and press
SET.
4. Press SET to fine tune the bearing. Press ST / SP / + to
increase and COMPASS / - to decrease the bearing.
5. Press SET to confirm.
6. In the Compass mode, the locked bearing will appear
instead of the cardinal reading.
Once the bearing tracking system has been set, the
compass segments on the display will show how far you
deviate from your locked course. See the examples below:
A. The locked bearing is 94 and the current bearing is
94.
B. Your locked bearing is 94 and your current bearing is
120.
RA126 IM EN R5.indd 9 2007.7.27 12:21:54 PM

EN
10
A.
B.
1
2
3
1
2
3
1. The locked bearing
is 94 and the current
bearing is 94.
2. Current compass
bearing.
3. Locked compass
bearing.
1. Your locked bearing
is 94 and your
current bearing is
120.
2. Current bearing.
3. Locked bearing.
The compass segments now show the angle between your
locked bearing and your current bearing. Therefore, you
need to change the direction you are on to get back onto
your locked bearing course.
To toggle the bearing tracking system to ON / OFF:
• Press MODE to navigate to Set up mode.
• Press SET to navigate to Bearing Tracking System.
• Press ST / SP / + to toggle ON / OFF.
NOTE The compass sensor should be calibrated before initially
using the bearing tracking system.
SPECIFICATIONS
Real time clock 12/24 hour with hour / minute
/ second
Stopwatch 00:00:00 to 59:59:59 (hrs:
min: sec)
Thermometer
measuring range
-5°C to 50°C
(23°F to 122°F)
Resolution 0.1°C / 0.2°F
Power Watch 1 x CR2032 3V battery
Operating temp -5°C to 50°C
(23°F to 122°F)
Storage temp -20°C to 60°C
(-4°F to 140°F)
Water resistant Up to 50 meters (164 feet)
without pressing keys
PRECAUTIONS
To ensure you use your product correctly and safely, read
these warnings and the entire user manual before using
the product:
• Use a soft, slightly moistened cloth. Do not use abrasive
or corrosive cleaning agents, as these may cause
damage. Use luke warm water and mild soap to clean
the watch and chest belt thoroughly after each training
session. Never use the products in hot water or store
them when wet.
• Do not bend or stretch the transmitter part of the chest
belt.
• Do not subject the product to excessive force, shock,
dust, temperature changes, or humidity. Never expose
the product to direct sunlight for extended periods. Such
RA126 IM EN R5.indd 10 2007.7.27 12:21:55 PM

EN
11
treatment may result in malfunction.
• Do not tamper with the internal components. Doing so will
terminate the product warranty and may cause damage.
The main unit contains no user-serviceable parts.
• Do not scratch hard objects against the LCD display as
this may cause damage.
• Take precautions when handling all battery types.
• Remove the batteries whenever you are planning to
store the product for a long period of time.
• When replacing batteries, use new batteries as specified
in this user manual.
• The product is a precision instrument. Never attempt
to take this device apart. Contact the retailer or our
customer service department if the product requires
servicing.
• Do not touch the exposed electronic circuitry, as there is
a danger of electric shock.
• Check all major functions if the device has not been
used for a long time. Maintain regular internal testing and
cleaning of your device. Have your watch serviced by an
approved service center annually.
• When disposing of this product, do so in accordance with
your local waste disposal regulations.
• Due to printing limitations, the displays shown in this
manual may differ from the actual display.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
NOTE The technical specifications for this product and the
contents of the user manual are subject to change without
notice.
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn more
about Oregon Scientific products.
If you’re in the US and would like to contact our Customer
Care department directly, please visit:
www2.oregonscientific.com/service/support.asp
OR
Call 1-800-853-8883.
For international inquiries, please visit: www2.
oregonscientific.com/about/international.asp.
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that this Compass
Watch (Model: RA126) is in compliance with EMC directive
89/336/CE. A copy of the signed and dated Declaration of
Conformity is available on request via our Oregon Scientific
Customer Service.
RA126 IM EN R5.indd 11 2007.7.27 12:21:56 PM

ES
1
RELOJ BRÚJULA
MODELO: RA126
MANUAL DE USUARIO
ÍNDICE
Introducción......................................................................2
Reloj Brújula......................................................................2
Para Empezar....................................................................3
Para Empezar....................................................................3
Poner En Marcha El Reloj (Sólo La Primera Vez Que Se
Usa)....................................................................................3
Para Empezar.....................................................................4
Uso En El Agua................................................................4
Modos de Operación.........................................................5
Modo Reloj.........................................................................6
Para Ajustar Fecha Y Hora................................................6
Cronómetro.......................................................................6
Para Configurar La Alarma................................................7
Brújula...............................................................................8
Acerca De La Brújula.........................................................8
Brújula y Calibración.........................................................8
Cómo Fijar El Norte Geográfico.........................................9
Ángulo de Declinación....................................................9
Acerca de La Declinación.................................................9
Sistema de Seguimiento con Autocorrección.......10
Acerca Del Sistema De Seguimiento Con
Autocorrección................................................................10
Para Configurar El Sistema De Seguimiento Con
Autocorrección....................................................10
Ficha Técnica...................................................................11
Precauciones.............................................................11
Sobre Oregon Scientific.................................................12
EU - Declaración de Conformidad.................................12
RA126 IM ES R3.indd 1 2007.7.27 12:14:14 PM

ES
2
INTRODUCCIÓN
Gracias por elegir el reloj brújula (RA126) de Oregon
ScientificTM. El RA126 es un producto muy útil para cualquier
actividad al aire libre, ya que le puede permitir localizar
su posición y encontrar cualquier dirección mediante el
sistema de guía con autocorrección. Este reloj, equipado
con función de temperatura, es el compañero perfecto
para cualquier usuario que quiera salir al ancho mundo. El
RA126 combina una brújula digital, calibración del norte,
calibración del norte geográfico, ángulo de declinación
ajustable, sistema de seguimiento con autocorrección,
cronómetro y temperatura.
IMPORTANTE
Las funciones de medición del RA126 no están pensadas
para sustituir mediciones profesionales ni dispositivos de
precisión industrial. Los valores procedentes de este reloj
deben considerarse únicamente indicaciones razonables.
• Oregon Scientific™ no asume ninguna responsabilidad
por pérdidas ni reclamaciones de terceros derivadas del
uso de este reloj.
RELOJ BRÚJULA
1
2
3
4
5
6
1. COMPASS / -: Activar la brújula; reducir ajustes
2. MODE: Alternar entre modos principales ; sale
rápidamente del modo de ajuste
3. ST / SP / +: Inicio / parada del cronómetro; incrementar
el valor de los ajustes
4. / : Encender retroiluminación; bloquear teclado
5. SET / RESET / VIEW: Acceder al modo de ajuste,
alternar entre submodos; reiniciar cronómetro
6. Girar bisel con los puntos cardinales: Norte, Sur, Este y
Oeste.
RA126 IM ES R3.indd 2 2007.7.27 12:14:18 PM

ES
3
PARA EMPEZAR
1
2
3
5
４
6
7
8
9
10
11
12
13
14
15
16
17
1. : Se muestra el cronómetro, o el cronómetro está en
funcionamiento
2. : La alarma está configurada, parpadea cuando está
activa
3. : Indicador: Reducir valores
4. “ “: Las flechas de dirección indican su posición
5. : Dígitos mayores: por ej., la hora
6. : Dígitos menores: por ej., cronómetro
7. : Indicador: Intro / confirmación rápida
8. Dirección cardinal
9. : Indica en qué dirección girar el reloj al
calibrar la brújula
10. : Indicador de página de submodo
11. : Indica que el sistema de seguimiento con
autocorrección está ENCENDIDO
12. : Indicador: Incrementar valores
13. : Bloqueo de botones activado
14. : Pila casi agotada
15. Indicador
16. : Tono keypad desactivado
17. : Icono de temperatura
PARA EMPEZAR
PONER EN MARCHA EL RELOJ
(SÓLO LA PRIMERA VEZ QUE SE USA)
Pulse cualquier botón durante 2 segundos para activar la
pantalla LCD.
RA126 IM ES R3.indd 3 2007.7.27 12:14:25 PM

ES
4
PARA EMPEZAR
El reloj utiliza una pila de litio CR2032 ya instalada. Consulte
la tabla que aparece bajo estas líneas para ver el significado
de los iconos de la pila.
ICONO DE PILA
GASTADA DESCRIPCIÓN
La pila del reloj está casi
gastada.
Aparece cuando la pila está
demasiado gastada para
operar el sensor. Se muestra
“- -” en lugar de los valores de
temperatura y brújula.
Para cambiar la pila:
1. Con una moneda, haga girar la tapa del compartimiento
de la pila en la dirección opuesta a las agujas del reloj
hasta oír un clic
2. Retire la pila e introduzca la nueva respetando la
polaridad.
3. Vuelva a colocar la tapa del compartimiento haciéndola
girar en la dirección de las agujas del reloj hasta que
quede en su sitio.
NOTA Una vez colocada la pila nueva, es importante volver
a calibrar el sensor magnético.
USO EN EL AGUA
El RA126 es resistente al agua a hasta 50 metros (164
pies).
SALPICADURAS
DE LLUVIA ETC
DUCHA
(CALIENTE/
FRÍA)
NADAR EN
AGUAS
POCO
PROFUDAS
BUCEO EN
AGUAS POCO
PROFUNDAS
/ DEPORTES
ACUÁTICOS /
SURFING
HACER
SNORKEL /
SUBMARINISMO
EN AGUAS
PROFUNDAS
5 0 M
/
164
PIES
OK OK OK OK NO
NOTA Configure la unidad antes de exponerla a agua
excesiva. Si pulsa los botones debajo del agua o durante
tormentas fuertes, el agua podría entrar en la unidad.
Funcionamiento
RetroiluminaCión / bloqueo del teclado
Pulse para iluminar la pantalla durante 5 segundos.
RA126 IM ES R3.indd 4 2007.7.27 12:14:30 PM

ES
5
NOTA La iluminación de pantalla no funciona cuando se
muestra el icono de pila casi gastada , pero volverá a la
normalidad en cuanto se cambie la pila.
Para activar / desactivar el bloqueo de botones:
Pulse y manténgalo pulsado. aparecerá si el
bloqueo de keypad está activo.
MODOS DE OPERACIÓN
Hora
Ajustes BRÚJULA
Brújula
Temperatura
Pulse MODE para alternar entre:
• Modo reloj
• Modo brújula
• Modo de temperatura
• Modo de configuración
Para desplazarse entre los submodos:
Pulse SET para desplazarse por las distintas opciones de
cada modo. Estas son las opciones:
Modo reloj:
Hora Alarma Pitido ON / OFF
Modo brújula:
Brújula con cronómetro Cronómetro con temperatura
RA126 IM ES R3.indd 5 2007.7.27 12:14:32 PM

ES
6
Modo de temperatura:
Temperatura
Modo de configuración:
Seguimiento con
Autocorrección
Calibración
Norte Geográfico
Declinación
MODO RELOJ
PARA AJUSTAR FECHA Y HORA
1. Pulse MODE para acceder al Modo Reloj.
2. Pulse SET para ajustar fecha y hora.
3. Pulse SET y manténgalo pulsado para entrar en
configuración.
4. Pulse ST / SP / + para subir y COMPASS / - para bajar
por las opciones de ajuste. La secuencia de ajuste es:
formato de 12 ó 24 horas, hora, minuto, año, día-mes /
mes-día, mes; día, unidad de temperatura.
5. Pulse SET para confirmar.
NOTA Si no se pulsa ninguna tecla, la pantalla volverá al
modo Reloj.
CRONÓMETRO
SET
MODE
RA126 IM ES R3.indd 6 2007.7.27 12:14:34 PM

ES
7
1. Pulse MODE para acceder al Modo Brújula.
2. Pulse SET para acceder al Cronómetro.
3. Pulse ST/SP /+ para iniciar e interrumpir el
cronómetro.
4. Pulse SET y manténgalo pulsado para reiniciar.
NOTA Si no para el cronómetro, “ ” parpadeará en todos
los modos para recordarle que el cronómetro está activado.
Para ver la brújula con temperatura:
• Pulse MODE para acceder al Modo Brújula.
• Pulse SET para acceder al Cronómetro con
temperatura.
NOTA La pantalla de la brújula está activa 30 segundos
cada vez. A continuación la brújula entrará en modo de
ahorro de energía y “- - -” aparecerá en la pantalla.
Para reactivar la brújula, pulse COMPASS.
PARA CONFIGURAR LA ALARMA
ST/SP/+
SET
MODE
1. Pulse MODE para acceder al Modo Reloj.
2. Pulse SET para acceder al modo de Alarma.
3. Pulse SET y manténgalo pulsado para entrar en
configuración.
4. Pulse ST / SP / + para subir y COMPASS /-para bajar
por las opciones de ajuste. La secuencia de ajuste es:
hora; minuto.
5. Pulse SET para confirmar.
Para activar o desactivar la alarma:
• Pulse MODE para acceder al Modo Reloj.
• Pulse SET para acceder a la alarma y pulse ST / SP / +
para activar o desactivar la alarma. indicará que se
ha activado la alarma.
• Pulse SET para confirmar.
RA126 IM ES R3.indd 7 2007.7.27 12:14:38 PM

ES
8
NOTA Si la alarma está activa, sonará a la misma hora
todos los días. Pulse cualquier botón para detener la alarma
por ese día. La alarma sigue activa y volverá a sonar a la
misma hora el día siguiente.
Para silenciar los botones:
• Pulse MODE para acceder al Modo Reloj.
• Pulse SET para acceder al ajuste Activar / desactivar
pitido.
• Pulse ST / SP / + o para silenciar o activar el pitido de los
botones.
BRÚJULA
ACERCA DE LA BRÚJULA
La brújula muestra la marcación de su posición en grados
respecto del norte. La circunferencia exterior de la pantalla
consiste en 60 segmentos que muestran gráficamente su
marcación. Tres segmentos luminosos representan el sur,
mientras que uno representa el norte, tal y como se muestra
a continuación.
1
２
３
４
５
1. Sur
2. Marcación
3. Cronómetro
4. PUNTO
CARDINAL
5. Norte
BRÚJULA Y CALIBRACIÓN
Antes de utilizar la brújula por primera vez, le recomendamos
que calibre el sensor de la brújula.
Para calibrar el sensor de la brújula:
• Pulse MODE para acceder al modo de configuración.
• Pulse SET para acceder al modo de calibración.
• Pulse SET y manténgalo pulsado para iniciar la calibración
de la brújula.
Haga girar el contador del reloj en la dirección de las agujas
del reloj a la misma velocidad que los segmentos móviles
que hay alrededor de la circunferencia de la pantalla. La
rotación finalizará en cuanto haya realizado una vuelta y
cuarto, y poco antes del final de la calibración la pantalla
aparecerá como se muestra a continuación.
SET
MODE
NOTA La brújula debería calibrarse:
• Antes de usarla por primera vez.
• Al cambiar la pila.
RA126 IM ES R3.indd 8 2007.7.27 12:14:39 PM
