Oriental motor DRS Series User manual

HL-14005-
Compact Linear Actuators
DRS Series Actuators
OPERATING MANUAL
Thank you for purchasing an Oriental Motor product.
This operating manual describes product handling procedures and safety precautions.
• Please read it thoroughly to ensure safe operation.
• Always keep the manual where it is readily available.
Table of contents
1Introduction.................................. 2
2Safety precautions ....................... 6
3Precautions for use...................... 8
4Installation...................................11
4.1 Location for installation..............11
4.2 Installing the actuator............... 12
4.3 Installing the actuator using a
mounting plate PADRL-
(sold separately)....................... 14
4.4 Installing a load......................... 16
5Connection..................................21
5.1 Connecting the driver............... 21
5.2 Connecting the electromagnetic
brake ........................................ 21
6Operation....................................23
6.1 How to use the adjustment knob
(adjustment knob type only)..... 23
6.2 Screw shaft projection.............. 23
7Maintenance/Inspection..............24
8Options (sold separately)............25

1 Introduction
−2−
1 Introduction
 Composition and contents of this operating manual
This manual describes the actuators used with the DRS series.
Read the following operating manuals regarding the DRS series and follow the
instructions.
• DRS Series Actuators OPERATING MANUAL (this manual)
Explains the installation of the actuator and a load.
• DRS Series DC Power Supply Input Driver OPERATING MANUAL
Explains the checking the product, combinations of actuators and drivers,
installation, connection, I/O, setting and troubleshooting of the driver.
 Before use
Only qualified personnel should work with the product. Use the product correctly
after thoroughly reading the section 2 “Safety precautions” on p.6.
The product described in this manual has been designed and manufactured for use in
general industrial machinery, and must not be used for any other purpose. Oriental
Motor Co., Ltd. is not responsible for any damage caused through failure to observe
this warning.
 Overview of the product
The compact linear actuator DRS series is a unit product consisting of a newly
designed linear-drive actuator combining a stepping motor ( ) with built-in
rotor position sensor and a ball screw, and a high-performance microstep driver.
The DRS series models incorporating are not subject to missteps, even
when the load changes suddenly. The speed and amount of traveling are constantly
monitored during operation, so that when an overload is about to cause the motor to
misstep, any delay in response is corrected and operation continues at maximum
thrust force.
 Standards and CE Marking
This product is recognized by UL and certified by CSA, and bears the CE Marking
(EMC Directive) in compliance with the EN Standards.
Applicable Standards Certification
Body Standards File No. CE Marking
Actuator
Driver UL 60950-1 CSA C22.2 No.60950-1 UL E208200
EMC
Directive
∗ Approval conditions for UL 60950-1: Class III equipment, SELV circuit, Pollution degree 2
∗ For unit models, Oriental Motor declares conformance with the EMC Directive individually.

1 Introduction
−3−
• For Low Voltage Directive
This product is not subject to the EC’s Low Voltage Directive because its input
power supply voltage is 24 VDC.
• For EMC Directive
This product has received EMC measures.
For details, refer to DRS Series DC Power Supply Input Driver OPERATING
MANUAL
Driver
Actuator
DRS series
DC power
supply input∗
+LS sensor
- LS sensor
Controller
(programmable
controller and
others)
Positioning
controller
ex: EMP series
(sold seperately)
Pulse output and
control input/output
Driver cable
(sold separately)
Control input/output
Control
input/output Extension cable
(sold separately)
∗ As for the power supply to the driver, use a DC power supply with reinforced insulation on
both the primary and secondary sides.
.
Hazardous substances
The products do not contain the substances exceeding the restriction values of
RoHS Directive (2011/65/EU).
System configuration
Controllers with pulse output functions are needed to operate the DRS series.

1 Introduction
−4−
 Names and functions of parts
This section covers the names and functions of the actuator’s respective parts.
The actuator adopts an integral structure where the ball screw and motor ( )
are stored together in a single case.
See the reference page indicated for details on each part.
Standard type
Illustration shows the DRS42 standard type.
Motor cable
Adjustment knob
(adjustment knob type only)
Use this knob to adjust the position
manually when the power is off.
Screw shaft
This is the moving
part of the actuator.
Mounting holes
(4 locations)
Set collar
This prevents the screw
shaft from retracting
completely into the case.
Load mounting hole
The DRS28 use an
external screw.
Case
∗ The standard type is also available with an electromagnetic brake (DRS42 only).
P.12
P.16
P.16
P.16
P.23

1 Introduction
−5−

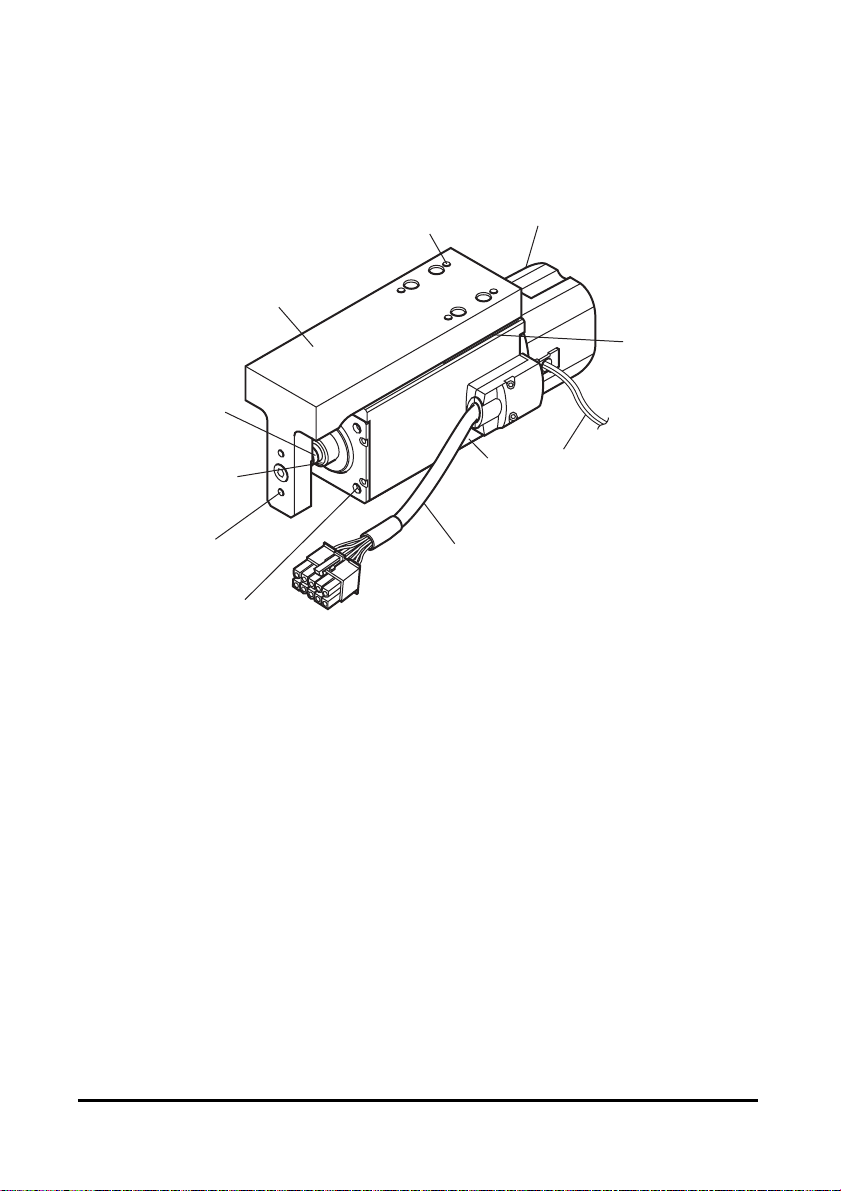

Guide type
Illustration shows the DRS42 guide type.
Set collar
This prevents the screw
shaft from retracting
completely into the case.
Motor cable
Electromagnetic brake
leads
(electromagnetic brake
type only)
Linear guide
Used for transferring
a load and as an
anti-spin guide for
the ball screw.
Joint
A moving part
of the actuator.
Load mounting holes
(4 locations)
Electromagnetic brake
(electromagnetic brake type only)
Non-excitation operation
electromagnetic brake (24 VDC input)
Mounting holes
(4 locations)
Load mounting holes
(2 locations)
Case
Screw shaft
This is the moving
part of the actuator.
∗ The guide type is also available with an adjustment knob.
Varistor (electromagnetic brake type only)
Be sure to connect the varistor when wiring the electromagnetic brake.
P.19
P.18
P.18
P.18
P.12
P.21
P.18

2 Safety precautions
−6−
2 Safety precautions
The precautions described below are intended to prevent danger or injury to the user
and other personnel through safe, correct use of the product. Use the product only
after carefully reading and fully understanding these instructions.
Warning
Handling the product without observing the instructions that
accompany a “Warning” symbol may result in serious injury or
death.
Caution
Handling the product without observing the instructions that
accompany a “Caution” symbol may result in injury or property
damage.
Note
Note
The items under this heading contain important handling
instructions that the user should observe to ensure safe use of
the product.
Warning
General
• Do not use the product in explosive or corrosive environments, in the presence of
flammable gases, locations subjected to splashing water, or near combustibles.
Doing so may result in fire or injury.
• Assign qualified personnel the task of installing, wiring, operating/controlling,
inspecting and troubleshooting the product. Failure to do so may result in fire,
injury or damage to equipment.
• For a vertical application, use the electromagnetic brake type and provide an
additional safety-brake mechanism to hold the load in position. The actuator loses
holding torque when the power is shut off, allowing the moving parts to fall and
possibly cause injury or damage to equipment.
• Do not use the actuator’s built-in electromagnetic brake mechanism for stopping
or for safety purposes. Using it for purposes other than holding the moving parts
and actuator in position may cause injury or damage to equipment.
Installation
• Install the actuator in an enclosure in order to prevent injury.
• Do not forcibly bend, pull or pinch the motor cable. Doing so may result in fire.
Repair, disassembly and modification
• Do not disassemble or modify the actuator. This may cause injury. Refer all such
internal inspections and repairs to the branch or sales office from which you
purchased the product.

2 Safety precautions
−7−
Caution
General
• Do not use the actuator beyond its specifications, or injury or damage to
equipment may result.
• Do not touch the actuator during operation or immediately after stopping. The
surface is hot and may cause a burn.
Transportation
• Do not hold the actuator’s screw shaft or motor cable. This may cause injury.
Installation
• Keep the area around the actuator free of combustible materials in order to
prevent fire or a burn.
• To prevent the risk of damage to equipment, leave nothing around the actuator
that would obstruct ventilation.
• Provide a cover over the moving parts of the actuator to prevent injury.
Operation
• To prevent bodily injury, do not touch the screw shaft of the actuator during
operation.
• The actuator’s surface temperature may exceed 70 °C (158 °F), even
under normal operating conditions. If an actuator is accessible during
operation, post a warning label shown in the figure in a conspicuous
position to prevent the risk of burns.
Warning
label
Disposal
• To dispose of the actuator, disassemble it into parts and components as much as
possible and dispose of individual parts/components as industrial waste.

3 Precautions for use
−8−
3 Precautions for use
This section covers limitations and requirements the user should consider when
using the DRS series actuator.
• Maximum thrust force
Always operate the actuator under a load not exceeding the maximum thrust force.
Operating the actuator under a load beyond the maximum thrust force or allowing
the screw shaft to remain locked may cause damage to the motor’s bearing (ball
bearing).
When using the actuator in a lift application, operate it under a load not exceeding
the maximum vertical transportable mass and without the application of an external
force.
• Do not let the screw shaft hit the stroke end or load.
Do not let the screw shaft hit the stroke end or equipment during operation, since
such an impact may damage the actuator. Always provide a stroke-end detection

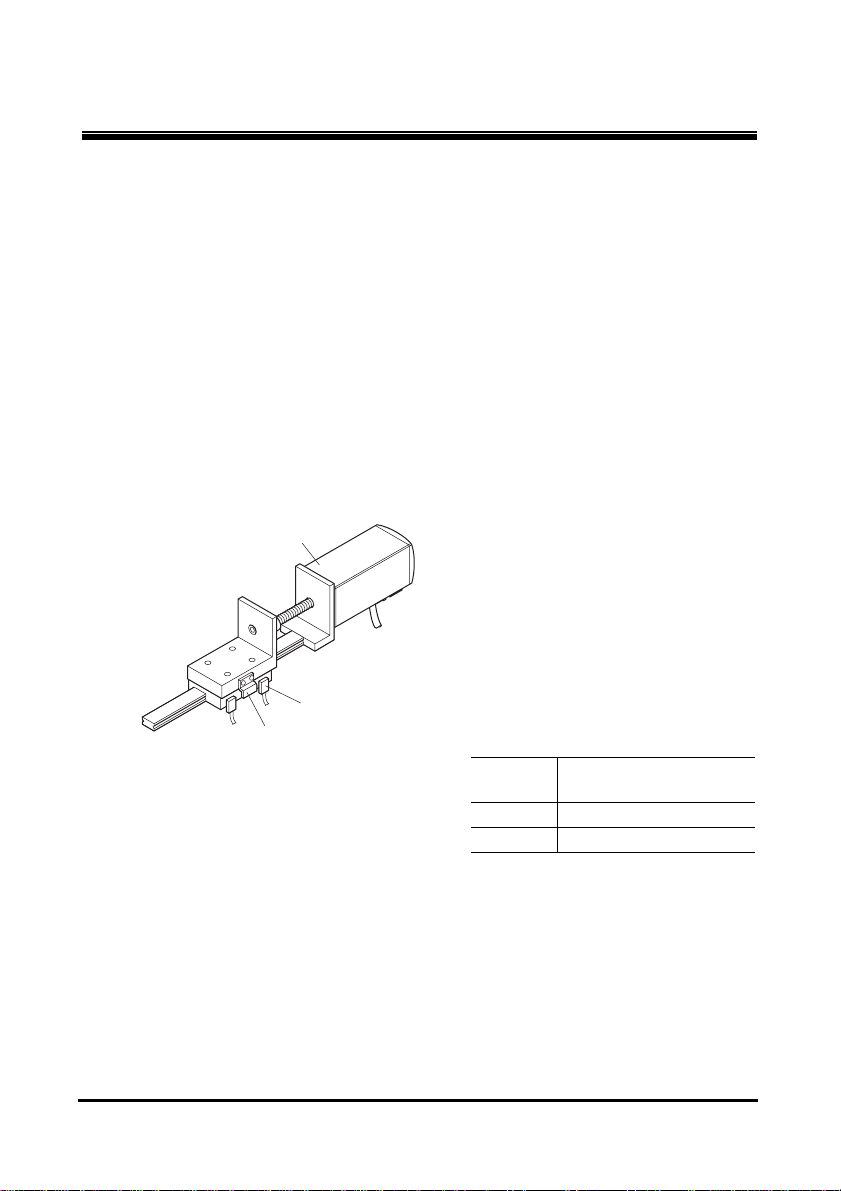

sensor or limit sensor in order to prevent the screw shaft from hitting the stroke end
or load.
Actuator
Sensor
Sensor flag
Model Recommended starting
speed [mm/s (in/s)]
DRS28 0.2 (0.01)
Should the screw shaft hit the stroke end or
load, remove the load and retract the shaft
at the recommended starting speed.
DRS42 0.4 (0.02)
• Do not move the set collar from its original position.
The set collar prevents the screw shaft from retracting completely into the case.
If the set collar is moved, the screw shaft may be damaged, resulting in actuator
malfunction or damage.
• Actuator surface temperature
Use the actuator in conditions where its surface temperature will not exceed 90 °C
(194 °F). If the surface temperature of the actuator case exceeds 90 °C (194 °F) due
to operating conditions (ambient temperature, operating speed, operating duty, etc.),
a damaged motor coil or shorter service life of the bearing (ball bearing) may result.

3 Precautions for use
−9−
• Grease on screw shaft
Grease on the screw shaft may darken slightly within a short time after the start of
operation. This is not a problem if there is no abnormal noise (i.e., from deflection or
interference). Wipe off the dirty grease with a rag, and apply new grease.
If the grease on the screw shaft has darkened after the initial operation (one to three
weeks), the installation accuracy may have dropped. Check the installation accuracy
of the screw shaft by referring to p.20. Remove the darkened grease, and apply new
grease by referring to p.24.
• Conduct the insulation resistance measurement or withstand voltage
test separately on the actuator and the driver.
Conducting the insulation resistance measurement or withstand voltage test with the
actuator and driver connected may result in injury or damage to the product.

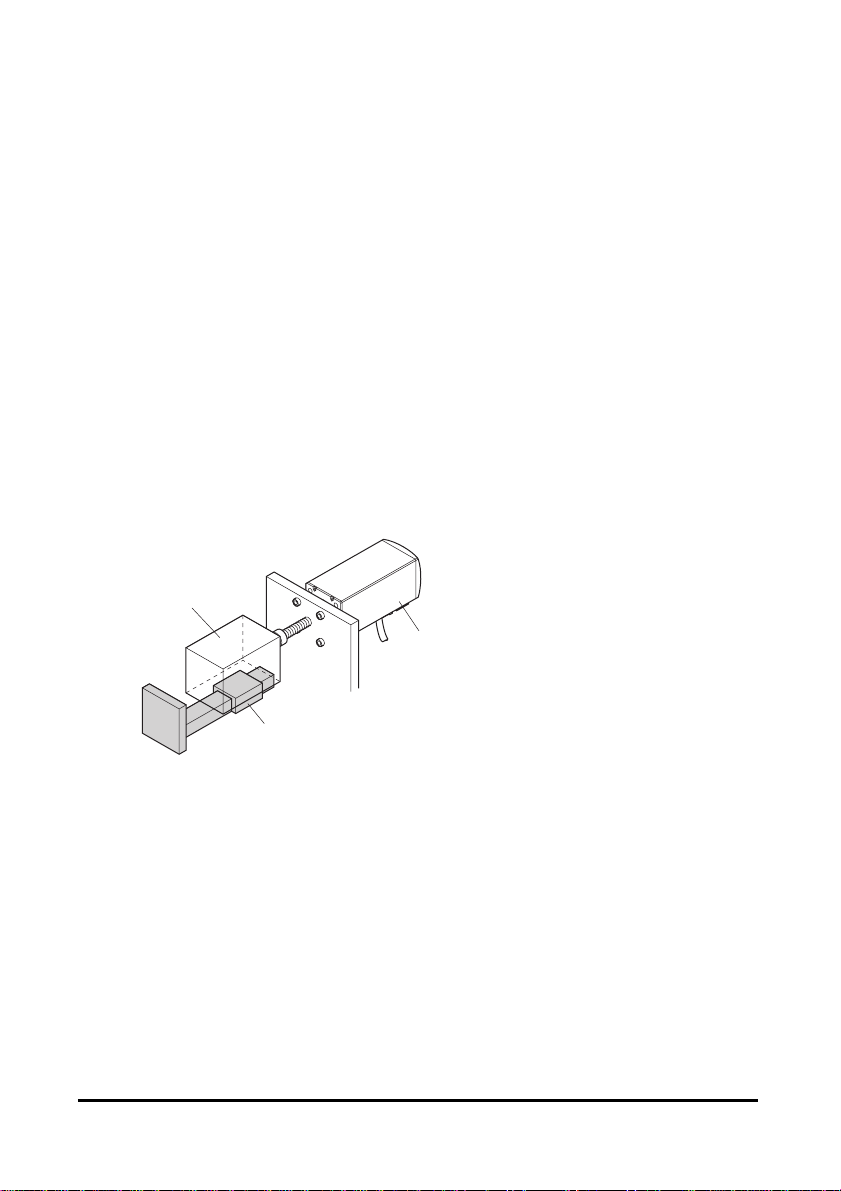

• Standard type actuator
Provide an anti-spin mechanism for the screw shaft.
When operating the standard type, always provide an anti-spin mechanism
externally to the product. If no anti-spin mechanism is provided, the screw shaft will
slip and operation will be disabled. In addition, make sure the load installed to the
screw shaft is supported with a linear guide, etc.
Guide
Actuato
r
Load
Installation accuracy
When using the standard type, always install it within the specified installation
accuracy. Low accuracy of installation may result in a malfunctioning actuator or
shorter service life of the actuator.
Refer to “Installation accuracy” on p.20.
When a carrier guide for load is provided.
Do not use the guide type. When a carrier guide for load is provided, always use the
standard type.
• Guide type
If the joint of the guide type receives a load moment, make sure the load moment
does not exceed the maximum load moment. Doing so may result in a malfunction
or shorter service life of the actuator.

3 Precautions for use
−10−
• Electromagnetic brake
Use the electromagnetic brake type for an application involving
up/down travel.
For a lifter or other device in which the load moves up and down, use the
electromagnetic brake type and provide an additional safety-brake mechanism to
hold the load in position. To hold the load in position, apply the electromagnetic
brake only after the actuator has stopped. Repeated braking for such a purpose will
wear the brake hub excessively, causing its holding ability to drop.
Connecting an electromagnetic brake
The electromagnetic brake operates via the ON/OFF status of the DC power supply.
When connecting the electromagnetic brake leads, observe the correct polarity.
Be sure to connect the supplied varistor (nonpolarized) to protect the switch contacts
and prevent noise. Refer to p.21 for details.
• Adjustment knob type
Use the adjustment knob to adjust the position manually when the power is off.
Do not touch the adjustment knob when the actuator is operating. To do so may
cause an actuator malfunction or cause damage to the actuator.

4 Installation
−11−
4 Installation
This section covers the location and method of installing the actuator, along with
load installation.
4.1 Location for installation
The actuator is designed and manufactured for installation in equipment.
Install them in a well-ventilated location that provides easy access for inspection.
The location must also satisfy the following conditions:
• Inside an enclosure that is installed indoors (provide vent holes)
• Operating ambient temperature: 0 to +40 °C (+32 to +104 °F) (non-freezing)
• Operating ambient humidity: 85% or less (non-condensing)
• Area that is free of explosive atmosphere or toxic gas (such as sulfuric gas) or
liquid
• Area not exposed to direct sun
• Area free of excessive amount of dust, iron particles or the like
• Area not subject to splashing water (rains, water droplets), oil (oil droplets) or
other liquids
• Area free of excessive salt
• Area not subject to continuous vibration or excessive shocks
• Area free of excessive electromagnetic noise (from welders, power machinery,
etc.)
• Area free of radioactive materials, magnetic fields or vacuum

4 Installation
−12−
4.2 Installing the actuator

Installation direction
The actuator can be installed in any direction.
 Installation method

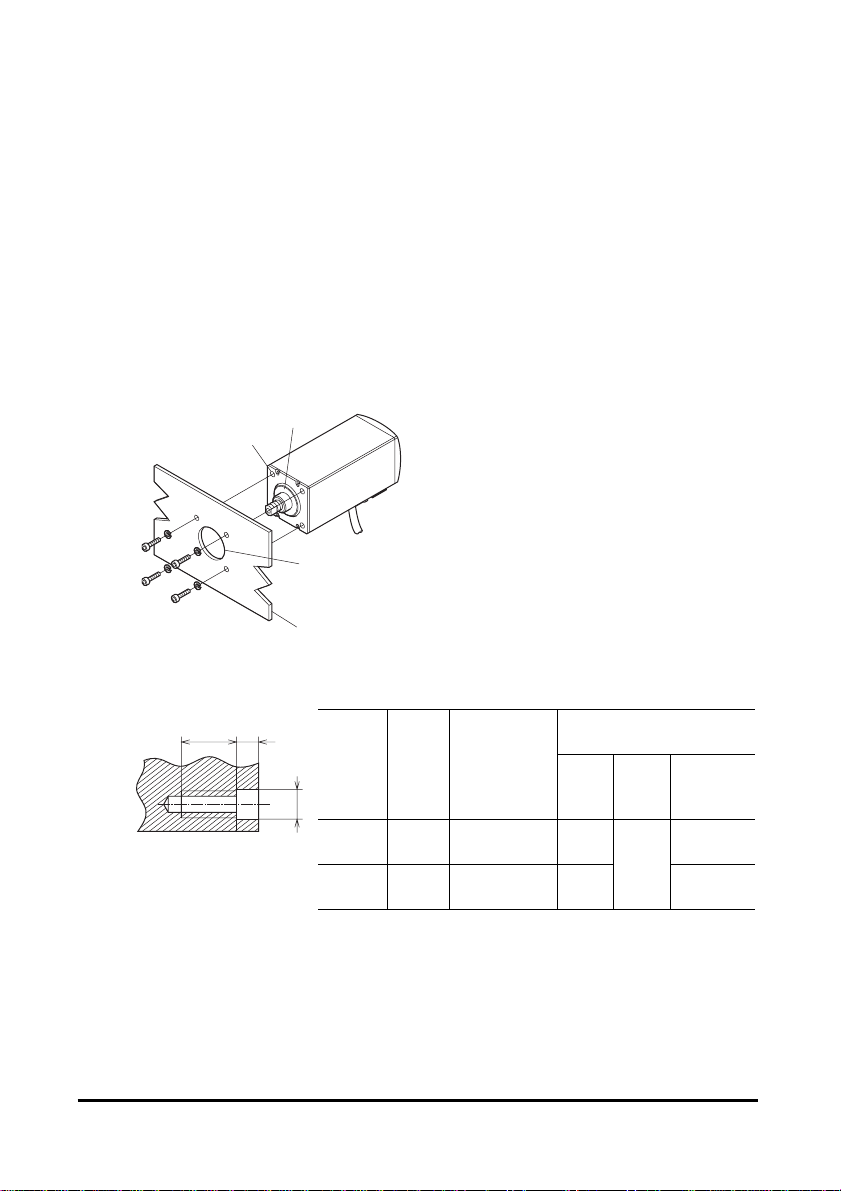

A mounting plate (model: PADRL-) is available as an option. For details, refer
to p.14.
Install the actuator onto an appropriate flat metal plate [thickness of 5 mm (0.2 in.)
or more] having excellent vibration resistance and heat conductivity.
Insert the pilot located on the actuator’s installation surface into the pilot holder.
When installing the actuator, secure it with four scerws (not supplied) through the
four mounting holes provided. Leave no gap between the actuator and metal plate.
Metal plate 5 mm (0.2 in.) or more
Mounting hole Pilot
Pilot holder
The above figure shows an installation example of the standard type.
Details of mounting hole Dimension of mounting
hole [mm (in.)]
Model Screw
size
Tightening
torque
[N·m (oz-in)] M L0 L
(Effective
depth)
DRS28 M2.5 0.6 (85) 3
(0.12) 6 (0.24)
ØM
L0L
DRS42 M4 1.8 (250) 4.5
(0.18)
2
(0.08) 8 (0.31)

4 Installation
−13−

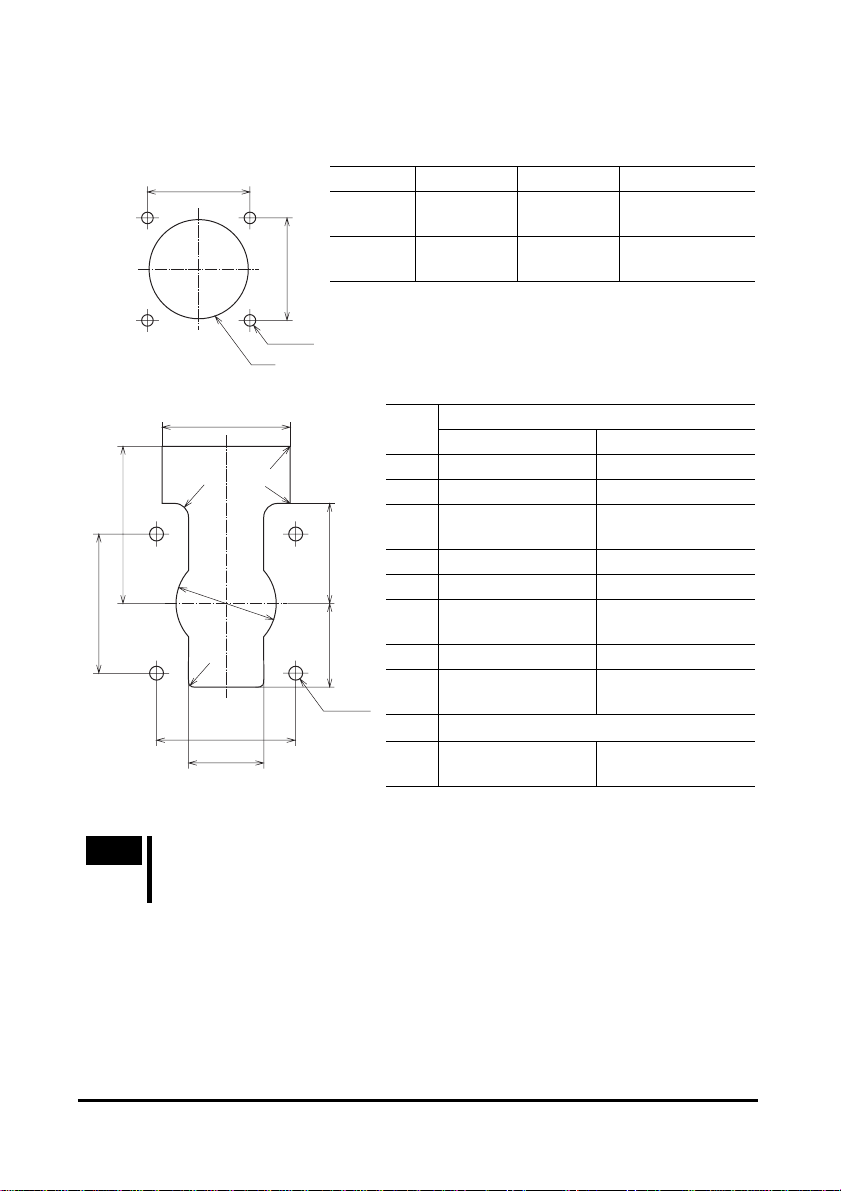

 Plate cutout for mounting [Unit: mm (in.)]
Standard type Model L A B
DRS28 23 (0.906) 3 (0.12) 22 to 23
(0.87 to 0.91)
DRS42 31 (1.22) 4.5 (0.18) 25 to 27
(0.98 to 1.06)
L±0.1 (L±0.004)
4 × ØA
ØB
L±0.1 (L±0.004)
Guide type Model
DRS28 DRS42
L23 (0.906) 31 (1.22)
A3 (0.12) 4.5 (0.18)
B22 to 23
(0.87 to 0.91) 25 to 27 (0.98 to 1.06)
C 31 (1.22) or more 45 (1.77) or more
D14 (0.55) or more 21 (0.83) or more
E15.5 (0.61) 25 to 26
(0.98 to 1.02)
F33 (1.3)or more 45.5 (1.79)or more
G R5 to 7
(0.2 to 0.28) R4 to 6 (0.16 to 0.24)
HR2 (0.08) or less*
I15 to 17
(0.59 to 0.67) 18 to 22 (0.71 to 0.87)
H
L±0.1
(L±0.004)
L±0.1 (L±0.004)
G
H
H
F
ED
4 × ØA
C
I
ØB
∗ C, F and I indicate the minimum dimensions, while E indicates the maximum dimension.
Note Do not remove the guide from the screw shaft. The installation accuracy of the
screw shaft will decrease, resulting in a malfunctioning actuator or shorter
service life of the actuator.

4 Installation
−14−
4.3 Installing the actuator using a mounting plate
PADRL- (sold separately)

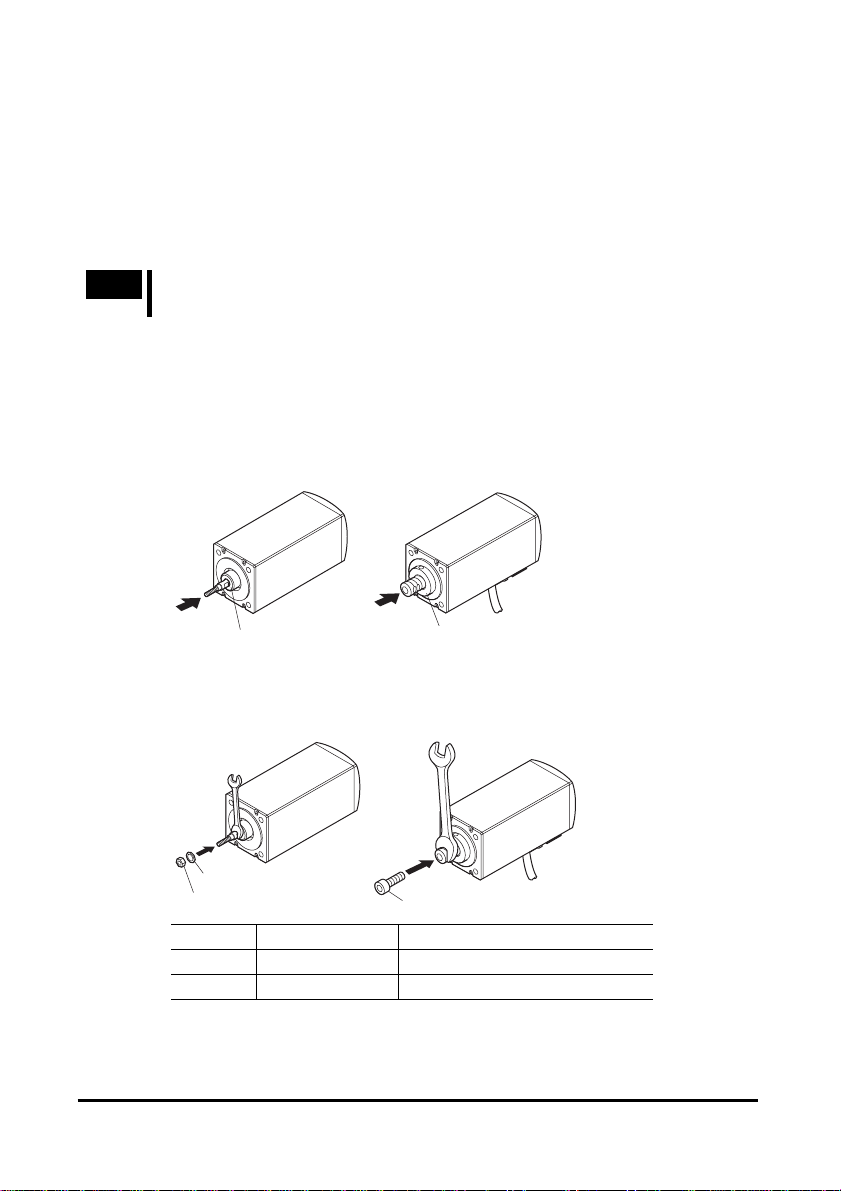

1. Install the mounting plate to the actuator by tightening the supplied
screws (four pcs.) into the mounting holes.
Standard type
Illustration shows the DRS42 standard type.
Mounting plate
Screw
Mounting hole
Guide type
Illustration shows the DRS42 guide type.
Mounting plate
Mounting hole
Screw
Model Screw size Tightening torque [N·m (oz-in)]
DRS28 M2.5 0.6 (85)
DRS42 M4 1.8 (250)

4 Installation
−15−

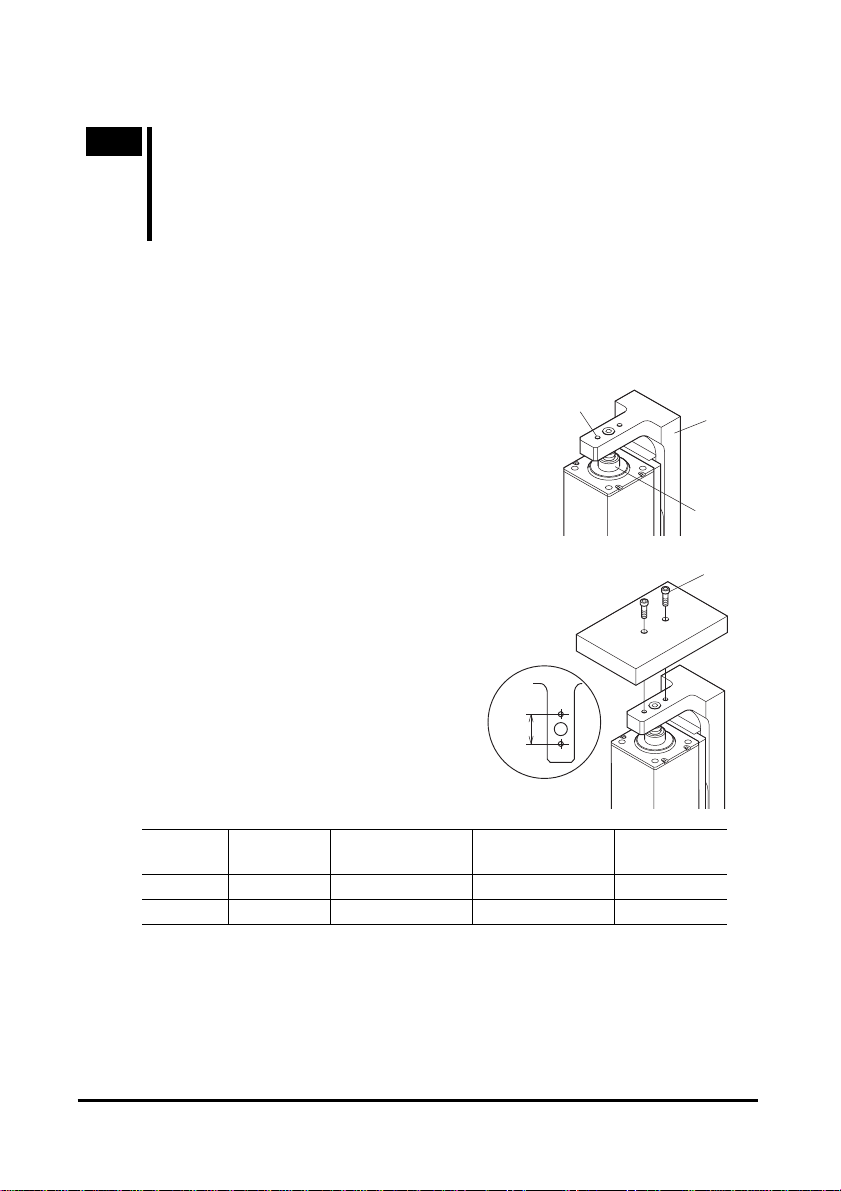

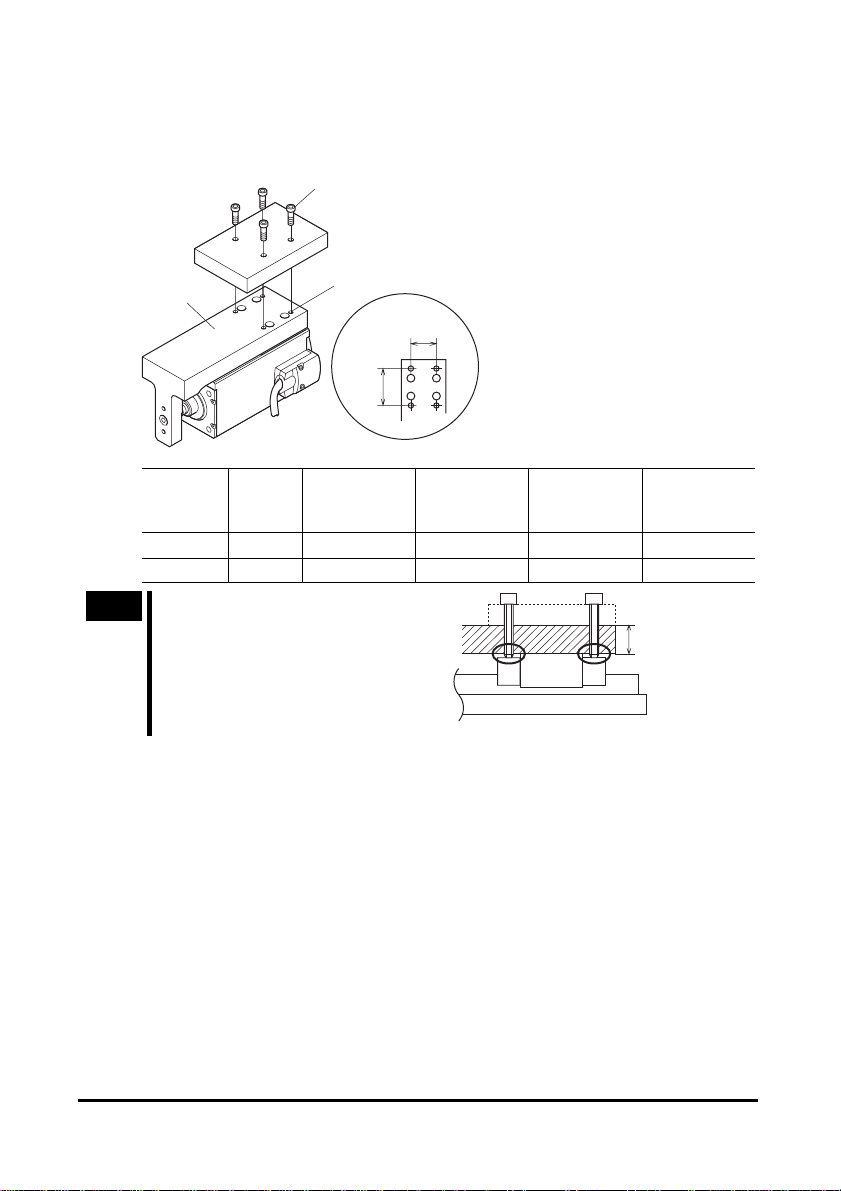

2. Mount the mounting plate to the equipment using two screws (not
supplied).
Three methods are available.
Type A
Model Screw
size
Effective
depth
[mm (in.)]
Tightening
torque
[N·m (oz-in)]
DRS28 M3 8 (0.315) 1.0 (142)
DRS42 M5 10 (0.394) 5.0 (710)
Type B
Model Screw
size
Effective
depth
[mm (in.)]
Tightening
torque
[N·m (oz-in)]
DRS28 M4 5.5 (0.217) 1.8 (250)
DRS42 M6 7.5 (0.295) 5.0 (710)
Type C
Model Screw
size
Tightening
torque
[N·m (oz-in)]
DRS28 M3 1.0 (142)
DRS42 M5 5.0 (710)

4 Installation
−16−
4.4 Installing a load

Standard type
When using the standard type, always install it within the specified installation
accuracy. If no anti-spin mechanism is provided, the screw shaft will slip and
operation will be disabled. In addition, make sure the load installed to the screw
shaft is supported with a linear guide, etc.
Note When transporting the equipment in which the actuator is installed, be sure to
remove the load from the screw shaft.
• Installation method
Install the load into the load mounting holes using a screw (or nut, in the case of the
DRS28).
The screw, nut, and washer are not supplied with the product.
1. Retract the screw shaft until it stops at the set collar.
DRS28
Set collar
DRS42
Set collar
2. Holding the flat section of the screw shaft with a wrench, affix the load
with a screw (or nut, in the case of the DRS28).
DRS28
Nut
Washer
DRS42
Screw
Model Screw/Nut size Tightening torque [N·m (oz-in)]∗
DRS28 M3 nut 0.6 (85)
DRS42 M4 screw 1.8 (250)
∗ Use of a thread locking adhesive is recommended.

4 Installation
−17−
Note When installing a load on the DRS28 standard type, chamfer the load
mounting hole by 0.1 mm (0.004 in.) × 45°. If the stopper surface for the screw
shaft is chamfered excessively, the screw shaft may tilt and result in a
malfunctioning actuator or shorter service life of the actuator.
DRS28 screw
shaft
Ø3.2 (0.126)
7 (0.276) MAX.
0.1 (0.004) × 45°
M3 nut
Washer Load
[Unit: mm (in.)]

4 Installation
−18−
 Guide type
Note • If the joint of the guide type receives a load moment, make sure the load
moment does not exceed the maximum load moment. Doing so may result
in a malfunction or shorter service life of the actuator.
• When transporting the equipment in which the actuator is installed, be sure
to remove the load from the screw shaft.
• Installation method
When using load mounting holes on the screw shaft side
Install the load using load mounting holes at the joint and appropriate screws (not
supplied).
1. Retract the screw shaft until it stops
at the set collar.
Set colle
r
Joint
Load mounting
hole
2. Affix the load with a screw.
Screw
L
±0.3
(
L
±0.012)
Model Screw size Tightening torque
[N·m (oz-in)] Effective depth [mm (in.)] L [mm (in.)]
DRS28 M3 0.6 (85) 7.5 (0.295) 16 (0.63)
DRS42 M4 1.0 (142) 9.5 (0.374) 20 (0.787)

4 Installation
−19−
When using load mounting holes on the linear guide side
Install the load using load mounting holes at the joint and appropriate screws (not
supplied).
Screw
Load mounting hole
Joint
L±0.3
(L±0.012)
W±0.3
(W±0.012)
Model Screw
size
Tightening
torque
[N·m (oz-in)]
Effective
depth
[mm (in.)] L [mm (in.)] W [mm (in.)]
DRS28 M3 0.6 (85) 6 (0.236) 23 (0.906) 19 (0.748)
DRS42 M4 1.0 (142) 5.5 (0.217) 28 (1.102) 28 (1.102)
Note When using the load mounting holes
on the linear guide side, use screws
that do not exceed the effective depth
of threads in the linear guide.
Use of long screws exceeding the
effective depth may damage the
linear guide.
Effective depth
Load
Linear
guide

4 Installation
−20−

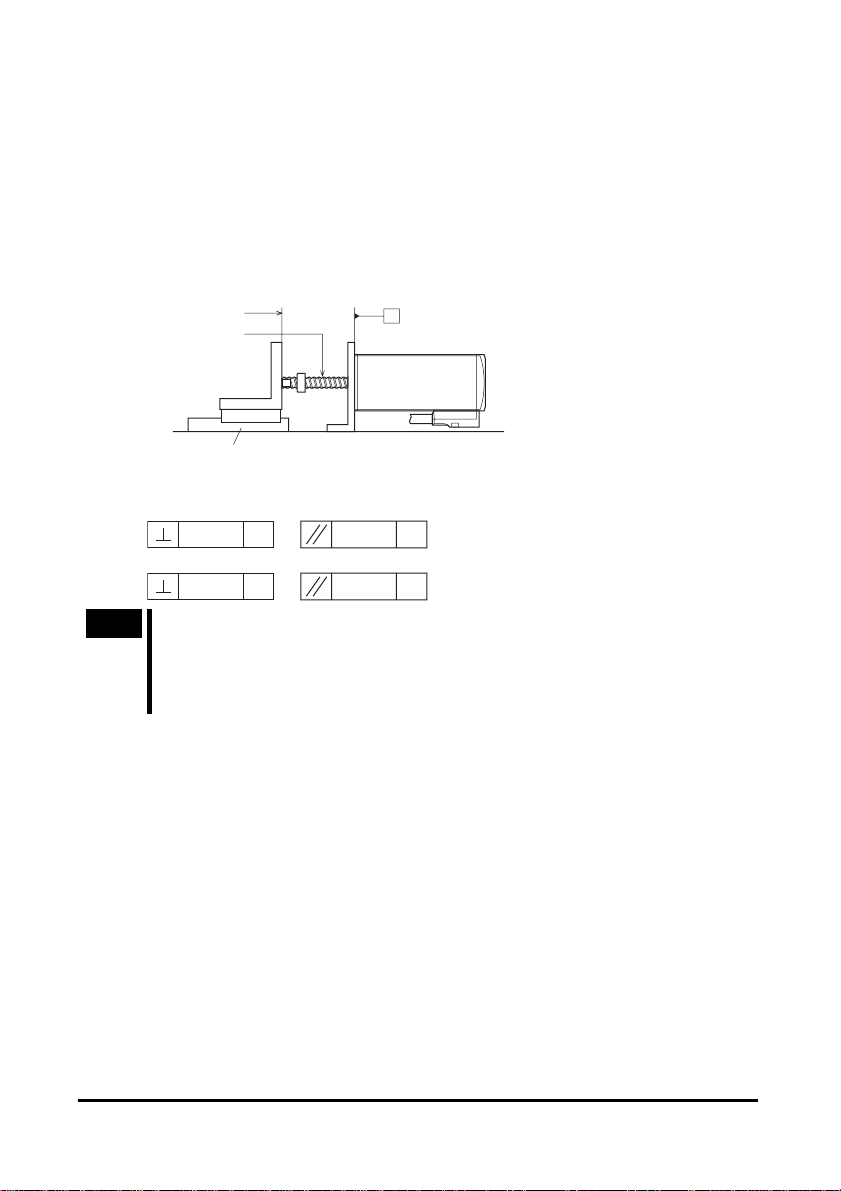

 Installation accuracy
When installing a load to the screw shaft of the standard type, ensure the installation
accuracy specified below.
Similar accuracy is needed when using a mounting plate. (Models with a guide
shape have been assembled at the following installation accuracy upon the
shipment.)
Make sure the following mounting accuracy is provided using a dial test indicator or
clearance gauge. Low accuracy of installation may result in a malfunctioning
actuator or shorter service life of the actuator.
Perpendicularity
Parallelism
Linear guide
A
Perpendicularity
DRS28
Ø0.03 A
DRS42
Ø0.05 A
Parallelism
DRS28
0.03 A
DRS42
0.05 A
Note If abnormal noise is heard from the actuator or the grease on the screw shaft
has darkened after the initial operation (one to three weeks), check the
installation accuracy of the screw shaft. If the accuracy of installation is low,
grease may turn darker. Remove the darkened grease, and apply new grease
by referring to p.24.
