Origin Acoustics Seasons Outdoor Collection OSR85 User manual

Installation Manual
OSR85 OSR65 OSR8SUB
Rock Speakers
Seasons Outdoor Collection™
OSR85, OSR65, OSR8SUB

Seasons Outdoor Collection™
Introduction --------------------------------------------- 1
Models & Specifications ------------------------------ 2
Items Included ------------------------------------------ 2
System Design ------------------------------------------ 3
Tools & Items -------------------------------------------- 4
Speaker Wire -------------------------------------------- 4
Wire Recommendation ------------------------------- 4
Installation ----------------------------------------------- 5
Speaker Placement
Connecting the Wires
Testing & Adjustments -------------------------------- 7
Maintenance and Care ------------------------------- 7
Troubleshooting ---------------------------------------- 8
Technical Assistance ----------------------------------- 9
Warranty -------------------------------------------------- 10
Return Process ------------------------------------------ 11
Table of Contents

Seasons Outdoor Collection™
INTRODUCTION
Thank you for purchasing the Rock Speaker. The Rock Speaker is perfect
for lawns, gardens, patios, decks or any other place where exposure to the
elements makes conventional loudspeaker usage unsuitable.
At Origin Acoustics, we take pride in providing you with a high quality
product. All of Origin Acoustics’ speakers are designed to have excellent
sound quality, longevity, and a simple installation process.
This instruction booklet covers the necessary information for a smooth
installation, including: the tools you will need, step-by-step instructions
for installation, troubleshooting tips for any errors that may occur, and all
warranty information.
If for any reason you experience problems or if you have installation
questions please call us at [phone]. Hours of operation are 8:00am
to 5:00pm (PacificTime), Monday through Friday.
1

Seasons Outdoor Collection™
MODEL OSR85
PART OSR8500
Woofer 8” Injection Polypropylene with Rubber Surround
Tweeter 1” (25mm) Titanium
Frequency Response 40Hz – 20kHz
Power RMS 100 Watts
Dimensions 15 x 21 x 16” (38 x 52 x 39 cm)
Weight 11 lbs (5 kg)
Impedance 8 ohm, 70v – 30W/15W/7.5W/3.7W transformer taps
Environment Temperature -22 to 158 F (-30 C to 70 C)
Specifications
MODEL OSR65
PART OSR6500
Woofer 6” Injection Polypropylene with Rubber Surround
Tweeter 1” (25mm) Titanium
Frequency Response 50Hz – 20kHz
Power RMS 50 Watts
Power Peak 100 Watts
Dimensions 12 x 17 x 14” (29 x 43 x 35 cm)
Weight 11 lbs (5 kg)
Impedance 8 ohm, 70v – 30W/15W/7.5W/3.7W transformer taps
Environment Temperature -22 to 158 F (-30 to 70 C)
MODEL OSR8SUB
PART OSR800SUB
Woofer 8” Polypropylene with Rubber Surround
Frequency Response 35Hz – 150Hz
Power RMS 60 Watts
Power Peak 120 Watts
Dimensions 15 x 21 x 16” (38 x 52 x 39 cm)
Weight 22 lbs (10 kg)
Impedance 8 ohm, 70v – 120W/60W/30W/15W transformer taps
Environment Temperature -22 to 158 F (-30 to 70 C)
Items Included
Installation ManualSpeaker
*All product specifications are subject to change. Please refer to the dealer portal for the latest information.
2
Wire Nuts (1 Pair)

Seasons Outdoor Collection™
System Design
70V / 8 Ω System
70-volt systems are advantageous when the design calls for multiple speakers from the
same amplifier and/or long-distance wire runs. The 70V/8 ohm Rock Collection speakers
feature multiple taps o the transformer adjusted by a rotary switch on the bottom side
of the speaker. The higher the wattage selected the more output will be generated by the
speaker.
The switch can be rotated to adjust to the following settings:
Model Position 1 2 3 4 5
OSR65 70v 3.7W 7.5W 15W 30W 8 Ω
OSR85 70V 7.5W 15W 30W 60W 8 Ω
OSR8SUB 70V 15W 30W 60W 120W 8 Ω
A simple calculation is used to determine how many speakers can be driven on a single
amplifier channel. First, for safety purposes, it is recommended to make the calculations
based on 80% of the amplifiers rated power. For example, a 500-watt amplifier would safely
deliver 400 watts of usable power (500 x 0.8 = 400). Now it is simply a matter of dividing 400
by the tap setting of the speakers. For example, if the speakers are set at a 15W tap, the
amplifier would be capable of driving 26 speakers per channel. At a 30W tap that would be
13 speakers.
As you can see, if you need coverage over a wide area and it requires numerous speakers, a
70Vsystem presents a tremendous advantage. However, it should be noted that the higher
the wattage tap the higher the fidelity and the greater SPL that can be delivered from each
speaker. Therefore, it is best to determine the total number of speakers needed and set
the taps as high as possible within the amplifier’s power output rating. As mentioned, the
rotary switch is to be used to adjust the tap setting.
Note: There is an 8 Ω setting that bypasses the transformer entirely. Use caution to avoid
this setting when connected to a 70V amplifier as this can damage the speaker.
3

Seasons Outdoor Collection™
Tools & Items
• Trench Spade/Shovel
• Measuring Tape
• Speaker Wire/Direct Burial wire
• Wire Stripper
• Waterproof Wire Nuts (Included)
About Speaker Wire
You will need a wire that has at least two conductors; one that can be identified as the
positive and the other as the negative. All two conductor wires have some means of
identifying which conductor is which, but at times this identification may be subtle. It’s
crucial that you keep track of which wire you use for positive (+) and negative (-). Typically,
if the wires are colored red and black, the red wire is used for positive and the black wire
is used for negative, but sometimes other colors or patterns are used. You can choose
whichever color of wire you want to be positive and negative as long as you remain
consistent throughout the install.
On both your amplifier and your speaker, the connectors will be identified as red for
positive and black for negative. It is very important to look carefully at the speaker wires
and be certain that the same wire that is attached to the positive connector in the amplifier
is attached to the positive connector in the speaker. If the negative and positive wires are
switched, speaker performance will be drastically impacted.
Wire Recommendation
It is recommended to use Direct Burial Grade wire. Standard speaker wire can be used,
however it must be buried in PVC conduit. Wire used for low voltage applications is not
suited for this application. Splices should be made inside a watertight direct burial box
or the conduit
The gauge of wire used can have an impact on the performance of your speakers. Use
a multi-stranded wiring designed for amplifier to speaker connections. Which gauge to
select depends on the length of wire to be used on any particular speaker. The longer
your run is, the larger your wire size must be.
Wire Length Wire Gauge
0 -100’ (0 - 30m) 16
50 - 150’ (15 - 45m) 14
Over 100’ (30m) 12
4

Seasons Outdoor Collection™
Installation
1) Speaker Placement
Determine the location of your ROCK speakers. Designate the general area where the
speakers would be most ideal. The speakers should face the general listening area and be
placed at or close to the same distance from that point for good stereo sound.
Place the speakers in the location where they will camouflage with your surroundings. The
aesthetic rock shape and finish would blend particularly well in your landscape if it is placed
near a water fountain, rock wall or swimming pool. Avoid placing the speakers in very low spots
that would make the speakers vulnerable to high pressure sprinklers or water accumulation
as it may damage the speakers. Avoid placing the Rock speaker in mulch, behind plants or
other obstacles that may block the sound or alter the audio quality.
2) Connecting the Wires
1. Plan how you’ll route the wire to the desired speaker location.
2. Estimate the length of additional wire you will need for each speaker.
3. Dig a 4” – 5” deep trench to run the speaker wires in.

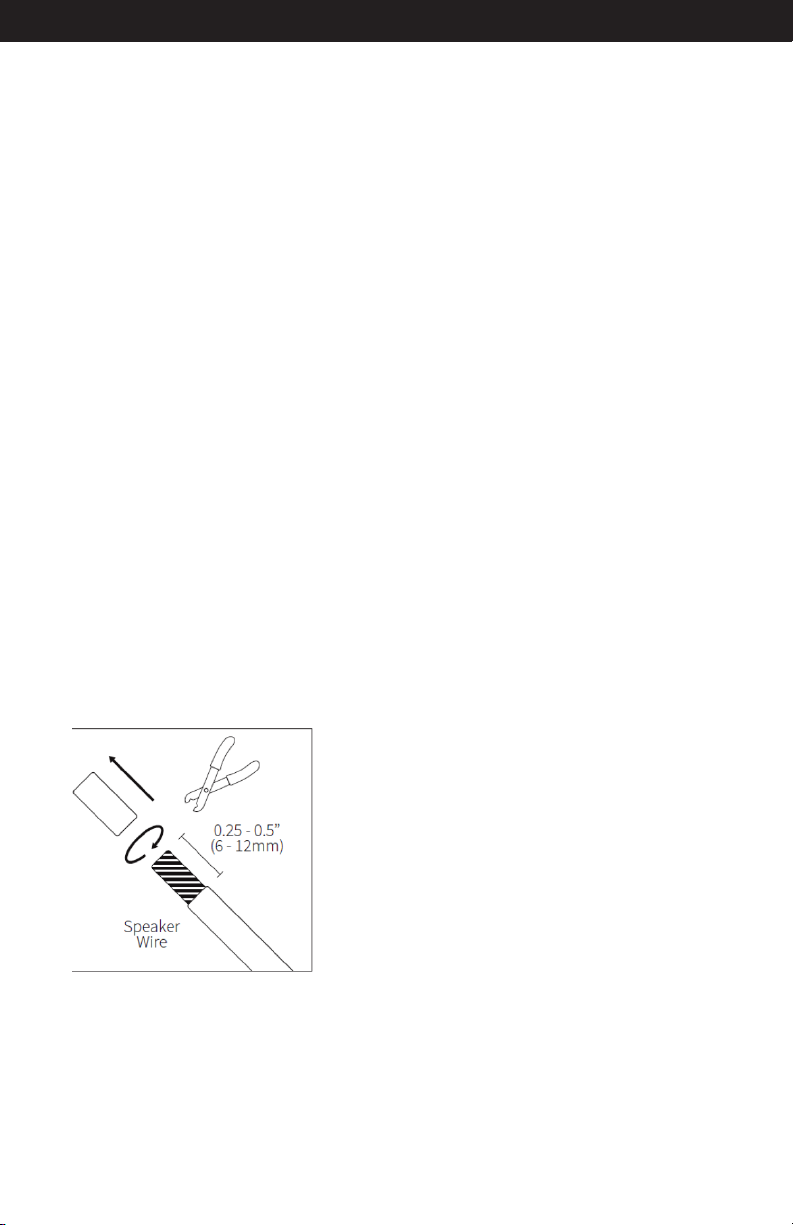

4. Strip ¼ to ½ inches (6 to 12 mm) of the insulation o both ends of the wire. To avoid stray
strands, twist them at the end.
5

Seasons Outdoor Collection™
5. Run the wire through the trench from your amplifier to the speaker locations.
Do not connect the wires to the amplifier at this time.
6. Connect the speaker wires you ran from your amplifier to the wires that came attached
to the speakers. It is recommended using waterproof wire nuts / silicone burial connectors
to secure and seal the wires (see diagram below).
7. Aer you have made the above connections, connect the wires to your amplifier,
and plug the AC power cord in to the amplifier.
Important:
Ensure to connect the Speaker positive (+) to Amplifier positive (+) and Speaker Negative
(–) to Amplifier Negative (–). If the negative and positive wires are switched, speaker
performance will be drastically impacted.
We recommend testing the system at this time to ensure the speakers are correctly installed
and working properly.
6

Seasons Outdoor Collection™
Testing & Adjustments
Turn your amplifier on and test the system with music of your choice.
Sound Distribution
• Connecting all Rock speakers in Stereo connection gives an even sound distribution
of both Le and Right channel at any location.
• When connecting two Rock speakers each in Mono (Le to one and Right to the other),
the best listening area is at equal distance to both speakers.
Adjustments
• Refer to the manual for the receiver or amplifier to make sound adjustments such as bass,
treble and balance to obtain the preferred sound.
If the speakers are operating properly, refill the wire trench, and enjoy your new speakers.
Maintenance and Care
• The Rock Speaker is designed to withstand the elements and be placed outdoors.
If cleaning is desired, simply use a damp cloth to wipe down the outer surface of
the speaker. Using chemical cleaners is not recommended.
• Keep the Rock speakers clean to avoid insects nesting in the grille.
• Avoid spraying high pressure water from a hose or sprinkler since this could
damage speaker components.
• Cover the rock speaker when applying lawn fertilizer or chemicals including bug spray
and deck sealants.
• Do not play the speakers when the temperature is below freezing.
If the speakers are not going to be used during winter months, it is recommended
they be stored indoors, or covered with thick plastic bag/tarpaulin to help protect
the speaker.
Important: No user-serviceable parts inside. Refer all servicing to qualified service
personnel.
7

Seasons Outdoor Collection™
If you have a problem, try isolating it first. For example, if you’re playing a DVD
and there is no sound, try replacing the DVD with an MP3 player to see if you get
sound. If it does work, then the problem is with the television, DVD player, or the
cables connecting them. If it doesn’t work, the problem will be with the amplifier,
speakers, or those cables.
Troubleshooting
Problem Possible Cause
No Sound The volume may be turned down or muted. Check the volume
settings on both the amplifier and the television/computer/CD
player/etc.
No Sound Make sure the proper source is selected on the amplifier or re-
ceiver.
No Sound Check the cord connecting the amplifier with the source. The
cord may be damaged or plugged into the wrong input or out-
put.
No Sound Check the wires connecting the amplifier with the speakers.
Make sure they’re connected properly and not damaged in any
way.
Poor Sound
Quality
If you hear something like static, or the sound is cutting in and
out, check the audio cables. If the problem increases when a
cable is being moved, then the cable is most likely faulty or not
connected properly.
Poor Sound
Quality
Today’s audio systems may have several places to adjust the
volume, for example your MP3 player may have a volume con-
trol, and your amplifier may also have one. Check to be certain
that the volume isn’t turned up past 80% on any device.
Poor Sound
Quality
Try changing sources to be certain that the selection you’ve
chosen is a good quality recording.
8

Seasons Outdoor Collection™
If you have any questions or concerns about installing or using this product, you
can reach us through one of the following methods:
Phone: [phone]
Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri
Email: [e-mail]
If you are having technical trouble, please include the model number and briefly
explain what steps you took to resolve the problem in your email, or be prepared
to answer these questions over the phone. If you are considering returning the
product, it’s required that you contact Origin Acoustics prior to any return at-
tempts. This way we can determine if the issue can be resolved without returning
the product, or if needed we can provide instructions and support for the return
process.
Technical Assistance
9

Seasons Outdoor Collection™
Origin Acoustics warrants to the original retail purchaser only that this Origin
Acoustics product will be free from defects in materials and workmanship,
provided the speaker was purchased from an Origin Acoustics authorized dealer.
If the product is determined to be defective, it will be repaired or replaced at
Origin Acoustics’ discretion. If the product must be replaced yet it is no longer
manufactured, it will be replaced with a model of equal to or greater value that is
the most similar to the original. If this is the case, installing the replacement model
may require mounting modifications; Origin Acoustics will not be responsible for
any such related costs.
Limited Lifetime Warranty
This warranty may not be valid if the product was purchased through an
unauthorized dealer. This warranty only applies to the individual that made the
original purchase, and it cannot be applied to other purchases. The purchaser
must be prepared to provide proof of purchase (receipt). This warranty will not
be valid if the identifying number or serial number has been removed, defaced,
or altered.
Requirements & Warranty Coverage
10
*All warranties and warranty conditions are subject to change. Please refer to
www.originacoustics.com for the latest information.

Seasons Outdoor Collection™
• Accidental damage
• Damage caused by abuse or misuse
• Damage caused by attempted repairs/modifications by anyone other than
Origin Acoustics or an authorized dealer
• Damage caused by improper installation
• Normal wear, maintenance, and environmental issues
• Damage caused by voltage inputs in excess of the rated maximum of the unit
• Damage inflicted during the return shipment
Not Covered by Warranty
Before making any return attempts, it is required that you first contact Origin
Acoustics. Return product to Origin Acoustics or your dealer, either in person or by
mail. It’s preferable if the product is returned in the original packaging. If this isn’t
possible, the customer is responsible for insuring the shipment for the full value
of the product.
This warranty is in lieu of all other expressed or implied warranties. Some states
do not allow limitations on implied warranties, so this may not apply depending
on the customer’s location. (For more information, see Magnuson-Moss Warranty
Act.)
Return Process
11

6975 S Decatur BLVD, Las Vegas, NV 89118 • www.originacoustics.com • 844-674-4461
©2018 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole
property of Origin Acoustics.
