Ortur Laser Master 1 User manual

1
User Manual of Laser Master 1
Laser Engraver
Dongguan Ortur Intelligent Technologies Co., Ltd.
(EN)Address: No. 56 Maxin Road, Changping Town, Dongguan 523565, Guangdong Province, China
(FR)Adresse: No. 56 Route Maxin, Changping Town, Dongguan 523565, Province de Guangdong, Chine
(DE)Adresse: 56 Maxin Road, Stadt Changping, Dongguan 523565, Provinz Guangdong, China
(IT)Indirizzo: No. 56 Maxin Road, Città Changping, Dongguan 523565, Provincia del Guangdong, Cina
(ES)Dirección: 56 Maxin Road, Ciudad Changping, Dongguan 523565, Provincia de Guangdong, China

2
Brief Introduction
This laser engraver 1 is a desktop laser engraver, not for industrial
use.
Active Position Protection, there is a G-sensor on the motherboard,
If the machine detects unauthorized movement, the laser beam
will stop.
Laser Beam Safety Guard, if your computer system halted or USB
cable disconnected, led to that the laser engraver stop moving, the
laser beam will stop, to prevent fire.
Exposure Duration Detection and Limitation, if laser engraver
under control, but user forget to operate and keep the laser beam
working, extra safety will cut off in case motor stopped moving, to
prevent fire.
This laser engraver supports PWM mode.
The Laser Master 7W is especially good at picture engraving.
The Laser Master 15W is most cost effective, available for both of
engraving and cutting.
The Laser Master 20W is higher power and supports a faster
engraving and cutting.

3
Attention
Do NOT operate laser without eye protection (Laser goggles)
Please set up laser engraver in the fireproofing area, with good ventilation.
Please keep minors (especially kids younger than 14 yours old) away from
this laser engraver. Minors of any age should not use this laser without
direct Adult supervision and proper eye protection
Please avoid strongly impact on the machine.
Please do not touch the laser beam with your hands or any other objects
you do not wish to engrave/burn/cut. Serious physical harm is possible if
used improperly.
Please do not touch the heat sink, when the laser engraver just stop working,
it may scald your hands。
Please take care the laser engraver when it is working.

4
Assembly Procedure
1Please use M3*8 screws and M3 spacers to fix the
Laser Module on Y axis assembly
2Please use M5*16 screws and M5 Nuts to fix X axis
and extended supporting plate (with 4 holes, shows in
picture below)

5
3Please use M5*16 screws and M5 nuts fix the other
side of X axis and extended supporting plate (with 2 threaded
holes only, shows in the picture below)
4Please plug the Laser Module Cable into the
pinboard.

6
5Please align the Screws at the Screw Holes and put
the X Axis Assembly onto the Y Axis Assembly.
6Please use the rench fix 4*M5 Nuts and 4*M5 Spacers
one by one.

7
7Please use the Plastic Cable Tie to ensure the Laser
Module Cable.
8Please plug the X Motor Cable into the X Motor.

8
9Stickup the non-slip pad to the bottom of four
corners, then assembly finished. Please put this laser
engraver in a fireproofing area to give the first test.

9
Installation Program - LaserGRBL
1. Please download the Host Control Software ”LaserGrbl” and the
Drivers at:
https://www.dropbox.com/s/xby8bad4jxdjgy0/Ortur.zip?dl=0
Or: https://tinyurl.com/rr2hsnq
2. Please install the appropriate driver for your Windows system.
VCP_xxx_Setup_x32.exe is for 32Bits computer system
VCP_xxx_Setup_x64.exe is for 64Bits computer system
3. Please install the host control software, the Carving Software
“LaserGRBL” in your Windows computer.

10
4. Please plug the cable of power adapter into the Power Adapter
Interface, press the Power Switch button, and connect the laser
engraver and computer via USB cable.
PS. Press the Power button, 0.5 second to power on, and press 2
seconds to power off.
Press Reset Button for emergency stop.
5. Go to “Device Manager”, If there is the STMicroelectronics Virtual
COM Port, It means the laser engraver is connected with the computer
successfully.
Power Button
USB Data Interface
Power Adapter Interface
Reset Button

11
6. Please run the host control software“LaserGRBL”, and right click
in the blank area of this lower section to get menu, then click ”Import
custom buttons”, and select the profile file ”CustomButtons.gz”for
advanced settings.
TIPS: When the profile file ”CustomButtons.gz”imported, you could
use LaserGRBL directly for this Laser Engraver.

12

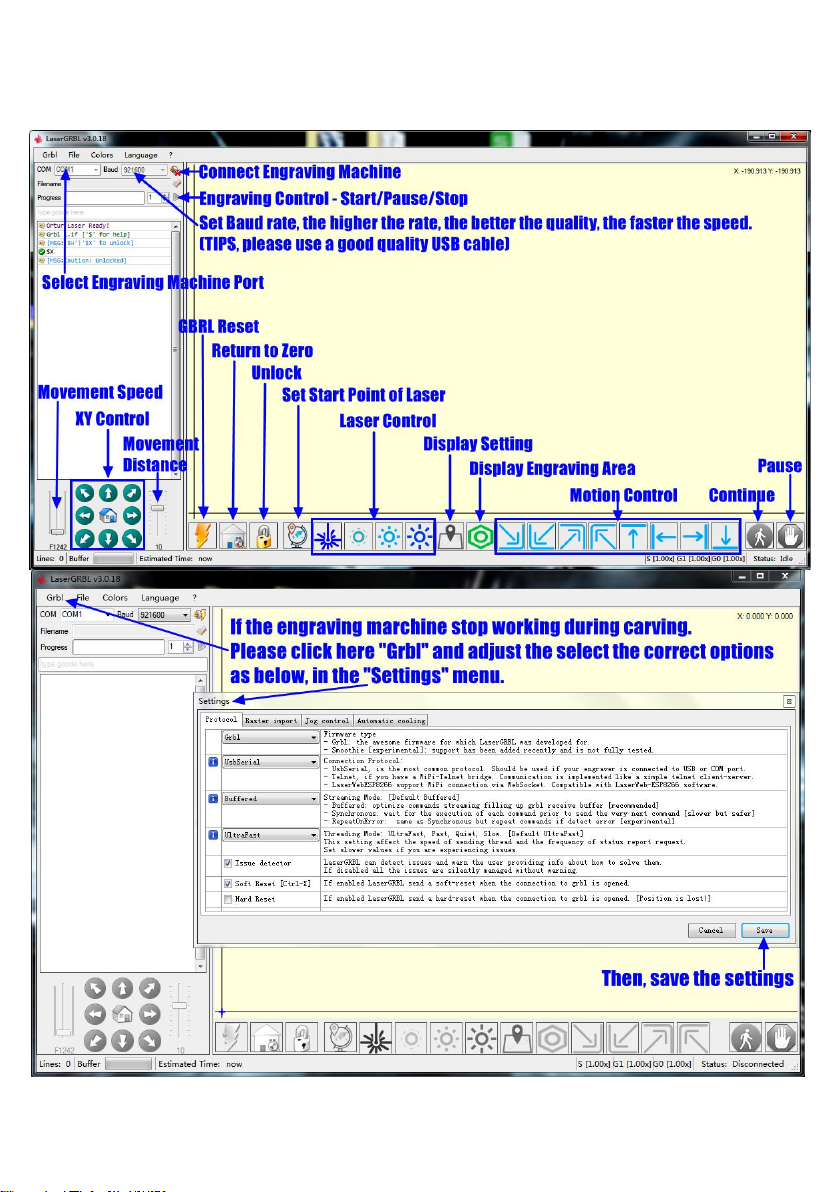

7. Advanced Settings Introduction：

13

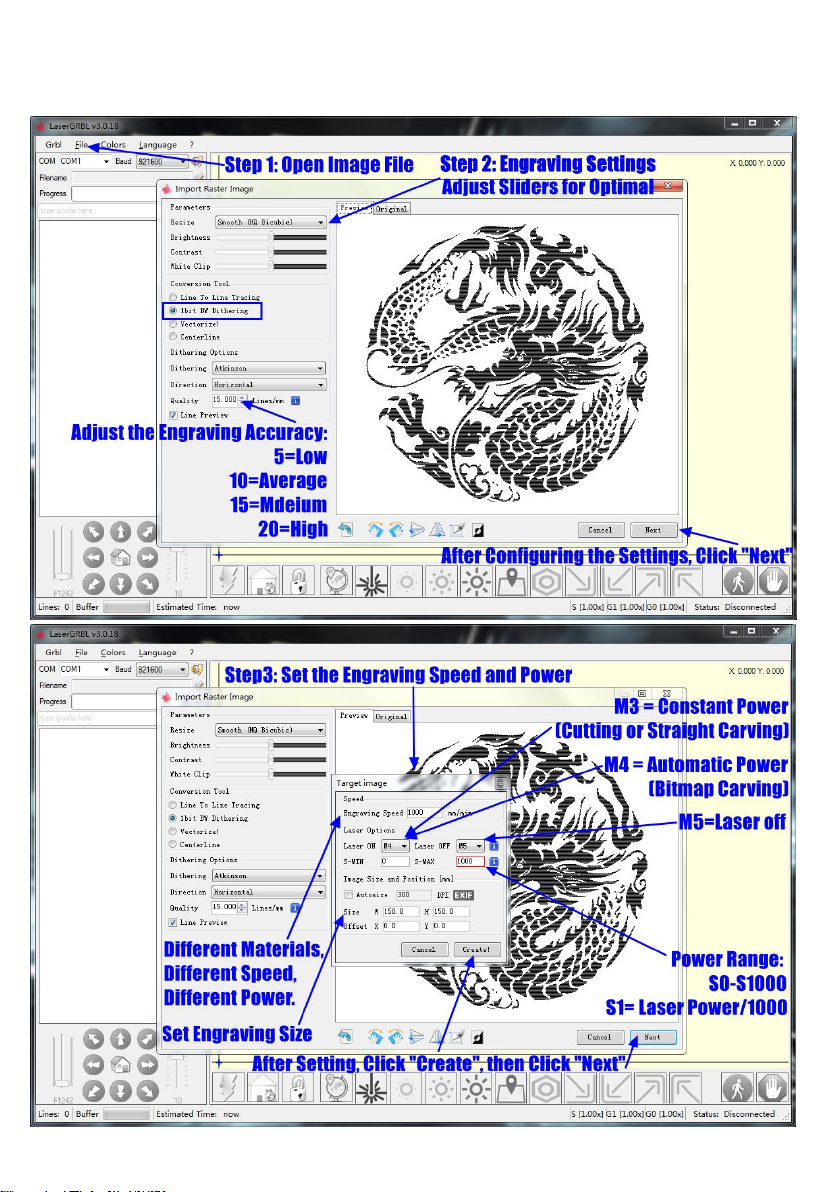

8. Setting Procedure

14
9. Please adjust the laser focus. For your information:
1st Please wear the
safety goggles, then put the object under the laser lens.
2nd The best distance, from the upside of object to the bottom of hea
t sink (not lens), is 55mm. You could adjust the laser unit height at th
e acrylic holder plate.
3rd Click
the laser unit would give a faint light beam (This faint light beam is sa
fe, neither offending to the eye, nor burn the skin. But if the light bea
m is very dazzling, and could burn the objective, please stop any mor
e operation, and contact with your vendor).
4th If need, you could adjust the lens focus ring to adjust the laser fo
cus to be the smallest light spot.

15
10. Please start the engraving. For your information:1st Please click
this icon, to home X、Y axis.
2nd Please click these icons, to move the laser u
nit to be the correct position you want.
3rd Please click this icon, to set up the current position as the
starting point of the engraving.
4th Please click this icon to start engraving.

16
Installation Program - LaserBurn
1. Please download the appropriate trial version of Laserburn from:
https://lightburnsoftware.com/pages/trial-version-try-before-you-buy
PS. If you think the trial version is good, you could pay for it.
2. Install the software in your computer and run it.
3. Launch the application from your computer (Windows, MAC, Linu
x).
4. If it’s the first time you lauch LightBurn you will be prompted for t
he New Device Wizard.
5. Select GRBL and press Next Button.

17
6. Select Serial/USB and press Next.
7. Fill your Device Name, as well as X and Y axis and press Enter
a. Ortur Laser Master
b. X = 150c.
c. Y = 160
8. Select Front Left as your Origin X,Y and activate Auto

18
“Home ”, then press Next.
9.Click Finish.
10. Select Ortur Laser Master and press Make Default.
Your Ortur Laser Master is ready to be used in LaserBurn software.
