Osaki OS 4000CS User manual

OS 4000CS
Instruction Manual

Thank you for purchasing the OS 4000CS Massage Chair.
Before using your massage chair, please read the contents of this
instruction manual and refer to it when needed.
Contents
Safety Precautions ………………………..…….............................
Chair Components ………………………..…….............................
Chair Installation ……………………………………......................
Preparation before Use……………………………………..…….....
Controller Diagram……………………………………...…..............
Programs and Operation………………………………...……….....
Troubleshooting ...........................................................................
Care and Storage ………………………….....…...........................
Grounding Instructions…………………….....…............................
Chair Specification ………………………………...........................
1-2
3-4
5-7
8-9
10
11-17
18
19
20
21

When using the massage chair, basic precautions should always be followed to
reduce the risk of electric shock, burns, fire or injury to persons. Please read the
following precautions before using the massage chair.
● Make sure the power plug is securely inserted into a proper electrical outlet to
reduce the risk of short-circuit and fire.
● It is highly recommended that a surge protector is used to prevent from
damage.
● DO NOT use the massage chair in areas where the humidity is high such as a
sauna steam room, Pools, bathrooms, AC or heating vents, etc.
● DO NOT use the massage chair outdoors and avoid areas with direct sunlight.
● If the chair is not being used, turn the power switch to the OFF position and
unplug the massage chair from the electrical outlet to prevent any damages to the
chair when there are power outages/surges that may cause serious damage.
● Never plug/unplug the power cord plug socket with wet hands.
● Close and continuous supervision is necessary when the massage chair is used
by, on or near children or disabled persons.
● No more than one person should use the massage chair at the same time.
● The massage chair is intended for use as described in the Instruction Manual.
Dot not use any attachments other than those recommended by the
manufacturer.
● DO NOT attempt to stand or sit on the backrest, armrest or footrest in order to
prevent accident, injury or damage to the chair.
● Avoid falling asleep while using the massage chair.
● Always keep the massage chair clean, and never insert any objects into or
around the gaps of the massage chair.
● DO NOT move the massage chair by pulling on the power supply cord.
● Make sure there are no children, pets or other obstacles behind or underneath
the massage chair.
● If you find any rips or tears in the fabric of the massage chair contact the service
department and stop using the chair immediately.
● This massage chair is designed for household use and should not be used in
non-residential settings.
Safety Precautions
1

● Please consult your doctor if you are in doubt as to whether or not you should
use this massage chair.
● Please consult a doctor before using the massage chair if you are pregnant,
undergoing any medical treatment, using a medical electronic device such as a
pacemaker, or are experiencing any of the following: Malignant tumor, heart
disease, back pain, abnormal or curved back bone, osteoporosis or acute illness.
● If you experience pain while using the massage chair, stop using the chair
immediately and consult your doctor.
● Never use a massage function on swollen or inflamed parts of the body.
● DO NOT use the massage chair for more than 30 minutes at a time.
● DO NOT use the massage chair where aerosol(spray) products are being used
or where oxygen is being administered.
● This massage chair is a non-professional product designed to provide a
comfortable massage and should not be substituted for appropriate medical
treatment.
● Never operate the appliance with the air hoses that inflate while they are
blocked. Keep the air openings free of lint, hair, and any other obstructions.
● Check the skin in contact with the heated area of the appliance frequently to
reduce the risk of injury. If the heating pad malfunctions and extreme heat is
produced it may cause serious burns.
● Burns may result form improper use. If this is the case immediately shut off the
chair and unplug from the outlet.
● Remove all sharp objects from the body and pockets such as keys and Pens.
● Keep children away from extended foot support (or other similar parts.)
● DO NOT WET-DO NOT USE PINS.
● NEVER REMOVE COVER.
Caution
The user's weight is usually limited to 100kg.
When using the massage chair, the mechanism will stop for safety while there is
too much pressure on it.When that happens, please switch off the power and
restart after 10 seconds.
Safety Precautions
!
2

8
9
1
2
1 2
3
4
5
6
7
3
456
7
10
11
12
12
89
10 11
Chair Components
Pillow Pad
USB
Footrest
Armrest
Backrest Pad
Seat Pad
Backrest
Side Panel
Controller
Calvesrest
Shoulder
Legrest
3

Massage Position
8 Air bags
2 Air bags
1 Vibration
8 Air bags
2 Heat
8 Air bags
VibrationAir bag Heat
Chair Components
4

Base Legrest
1. Take out the main unit and accessories from two boxes.
Main unit Accessories
2. Connect the wires and air pipes from the footrest and seat part respectively.
1
1
2
2
Bolt A x2
Bolt B x1
Split Pin x3
Chair Installation
5

3. Align the connecting holes from the footrest and seat part.
Insert bolt A and secure with split pin as demonstrated.
Bolt A x2
Split Pin
Chair Installation
6

4. Lift the legrest to a horizontal position and align the connecting hole.
Insert bolt B and secure with split pin as demonstrated.
5. Attach the seat cover and footrest cover with the zipper.
Chair Installation
7

at least 7.1”
2.Moving the chair
Lift up the footrest then recline the chair to approximate 45°to easily move the
chair around the house with a slight pull or push
Caution
1. Before moving the chair, please adjust the legrest back into the original
position.
2. Do not move the massage chair when there is someone seated on it.
3. Placing a mat underneath the massage chair is advisable, as the moving
process might leave scratches on the floor surface.

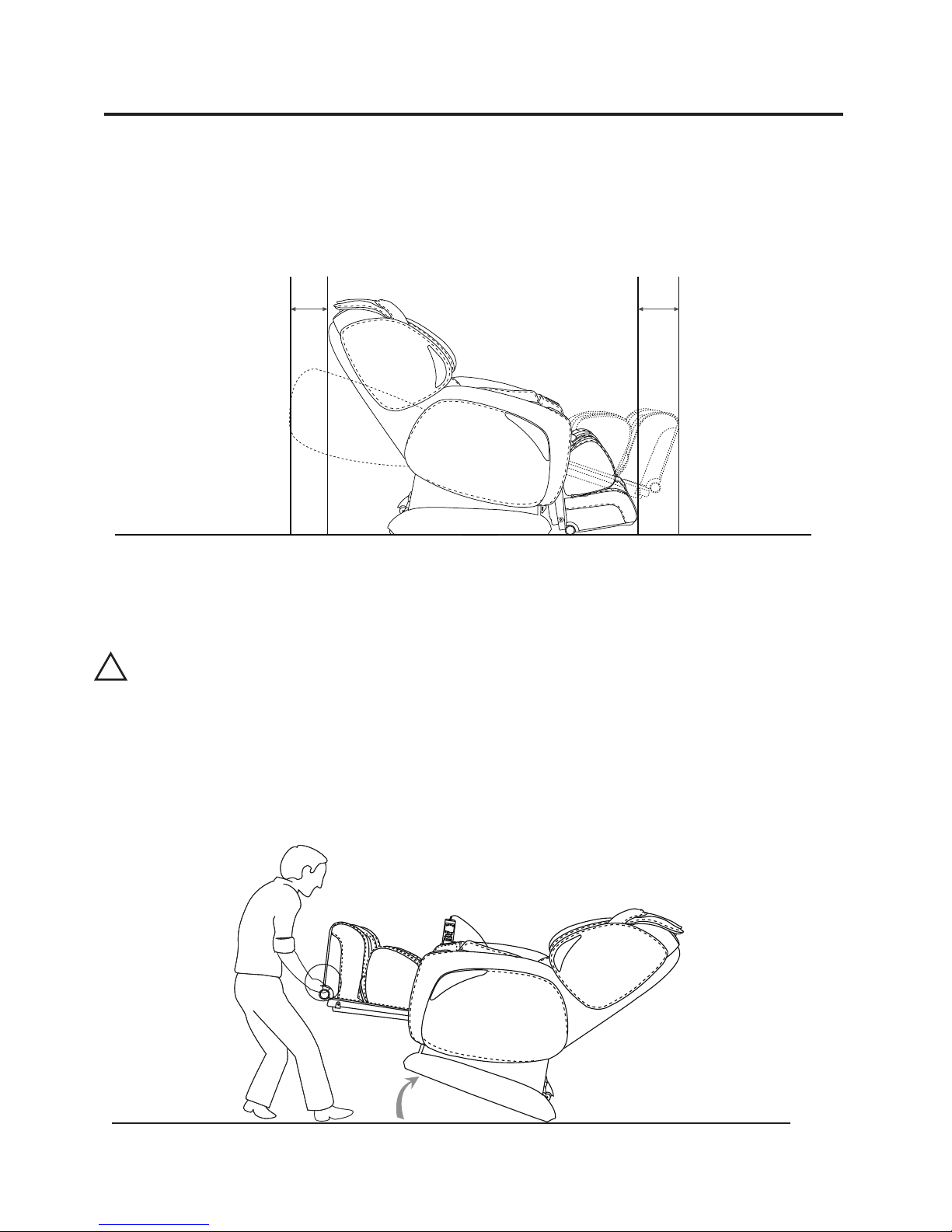

1. Placing the chair
Ensure sufficient spaces around massage chair, please leave 4.7” of spaces
behind the backrest and 7.1” of spaces at the front of massage chair.
at least 4.7”
Preparation before Use
!
8

3. Placing the cushion pad
4. Switching the power on
Note: The back pad is installed with an additional pad to soften
the massage.If you desire a stronger massage simply remove
the extra pad and proceed to zippering the pad to the top of the
backrest.
Connect the wire plug .
Connect to the power supply.
Turn the switch to “I” position.
1
3
1
2
2
3
Preparation before Use
9

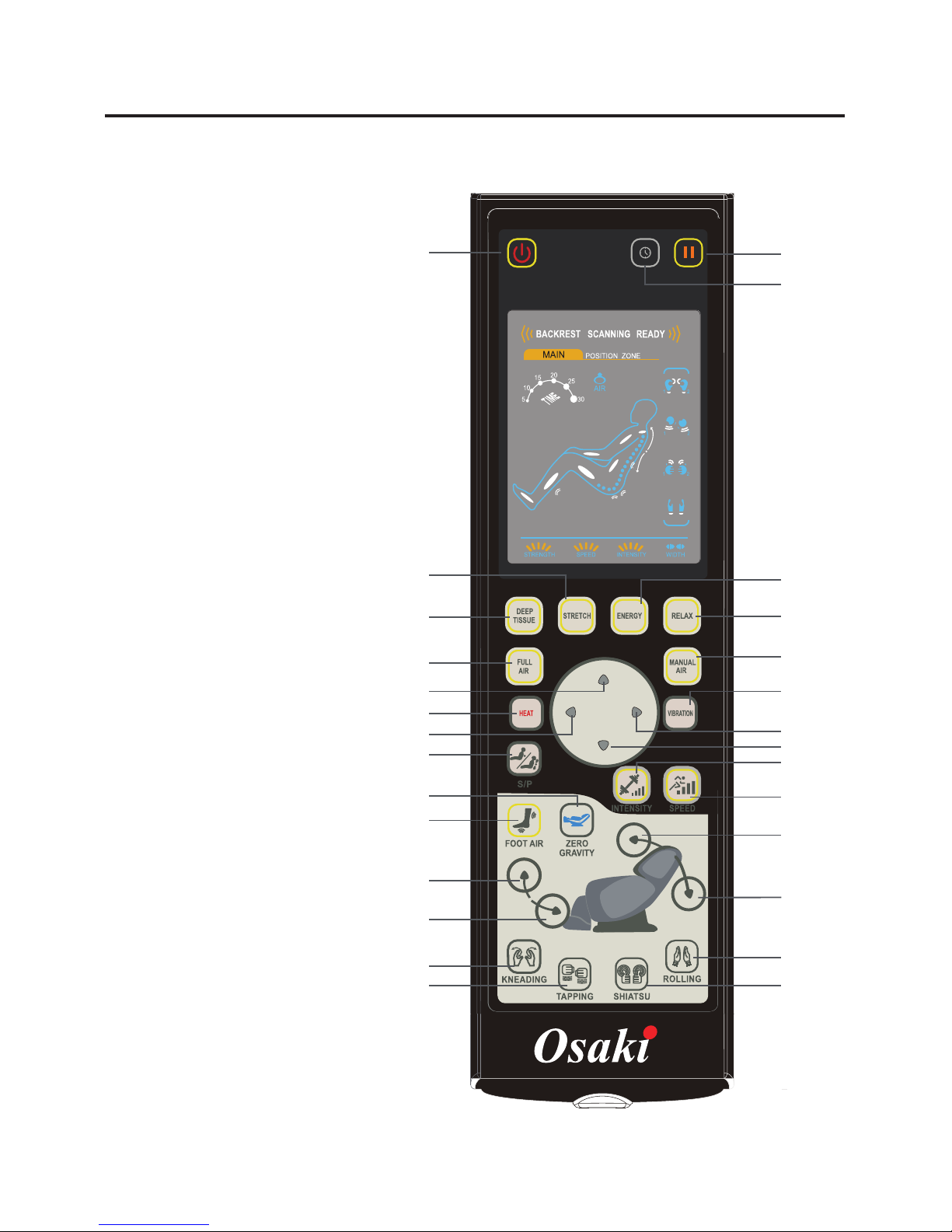

Controller
1. Power
2. Timer
3. Pause
4-8. Auto Programs
9. Manual Air
10-11. Width
12-13. Position
14. Vibration
15. Heat
16. Spot/Partial
17. Intensity
18. Speed
19. Zero Gravity
20. Foot Air
21. Footrest Lift
22. Footrest Drop
23. Recline
24. Incline
25. Kneading
26. Tapping
27. Shiatsu
28. Rolling
HEAT
VIBRATION
Programs and Operation
1
5
4
8
10
12
16
19
22
15
20
21
25
26
3
2
13
18
23
6
7
9
14
11
17
24
28
27
10

Keep each massage session to no longer than 15 minutes.
Keep massage session to a maximum of 30 minutes per day.
In an emergency or any malfunction, press the [ ] button to pause the massage
immediately. Press the [ ] button to bring the rollers to the storage position again
and turn off the main power switch.
Automatic massage programs
Note
The OS-4000CS features 5 automatic massage program to help you enjoy the
benefits of a relaxing and invigorating massage.
Press the [ ] button to switch on. The chair will
recline into ready position.
(Ready position: Leg rest will raise slightly and backrest
will recline slightly.)
1
Press the [ ] button to adjust the duration
for 20, 25,30, 05, 10, or 15 minutes.
5
Select any of the 5 automatic massage programs
DEEP TISSUE, STRETCH, ENERGY, RELAX and
FULL AIR (refer to page 14-15 for details) and
press the button.
2
Press the [HEAT] button to switch on or off the
heat. Press the [VIBRATION] button to switch
on or off the seat vibration.
Heat and Vibration function is available
for selection during the automatic massage
program.
4
The massage program begins when initialisation
is completed. During the process, you must
remain seated with your head resting on the
headrest. Also, you can adjust your desired
shoulder position further by pressing the [▲] or
[ ] button within 6 seconds after initialisation
function has ended.
3
▲
HEAT
VIBRATION
Programs and Operation
11

Manual massage programs
Press the [ ] button to switch on. The chair will
recline into ready position.
(Ready position: Leg rest will raise slightly and backrest
will recline slightly.)
1
Select any of the 4 manual massage programs
KNEADING, TAPPING, SHIATSU or ROLLING
(refer to page 17 for details)and press the button.
3
Press the [ ] button once to localize the
massage to a particular point. Press again to
shift massage to a particular area of body.
4
Press the [ ] button to recline to zero gravity
position or [ ] [ ] button to your desired
position.
2
Press the [HEAT] button to switch on or off the
heat. Press the [VIBRATION] button to switch
on or off the seat vibration. Heat and Vibration
function is available for selection during the
manual massage program.
6
HEAT
VIBRATION
Press the [Manual Air] to combine the air
massage.
5
Press the [ ] button to chage the massage
speed. Press the [ ] button to change the air
massage intensity. Press the [ ] button to adjust
width.
7
Programs and Operation
12

Stopping a massage session
Pausing a massage session
Action Speed Intensity Width S/P Timer
Action Button Heat Vibration Foot Air Manual Air
Manual massage mode
Combination of manual massage
Kneading
Button
Tapping
Shiatsu
Rolling
Kneading
Press the [ ] button to stop the massage functions. The rollers will move back
to the storage position and all airbags will deflate, ending the massage.
To pause a massage, press the [ ] button on the controller. This will temporarily
freeze all operations. Press the [ ] button again to resume your massage.
Tapping
Shiatsu
Rolling
Manual
Air
MANUAL
AIR
Programs and Operation
13

Programs Description
1.Power
• Starts and stops all functions of the massage chair.
• Press once. Remote control will light up and chair will be in idle mode.
• You can press any massage function buttons to begin your massage session,
at a default time of 15 minutes.
• Press again, all functions will stop and massage rollers will return to original
position.
2.Timer
• Controls the duration of the massage session.
• The default time for all massage functions is 15 minutes.
• Press each time to change the duration for 20, 25, 30, 05,10 or 15 minutes.
3.Pause
• All massage functions will stop temporarily.
• Press once and the Pause icon will light up.
• Massage functions and timer will be stopped temporarily.
• Press again to resume the massage session.
Auto Programs
• This function is a full body massage with 5 different massage styles.
• Position of the chair can be manually adjusted.
• Massage session is 15 minutes by default.
4.Deep Tissue
• Engages the full body deep tissue massage. This program focuses on neck,
shoulder, waist and hip.
5.Stretch
• Engages the full body stretching auto program. This program stretches the
back muscles, hands, hamstrings and the full body.
6.Energy
• Engages the full body wake up auto program.
• This program will deliver a light, stimulating tapping massage throughout the
whole body.
Programs and Operation
14

7.Relax
• Engages the full body relax auto program.
• This program will start with slow kneading and heavy tapping massage,
progressing to in-depth massage targeting the neck and lower back.
8.Full Air
• Engages the the full body air pressure auto program.
• This program applies full body air pressure massage to shoulder, arm, palm,
lower back, buttocks, thighs, calves and feet.
• Full Air intensity can be adjusted by pressing “Intensity” button respectively
after activating full air function.
9.Manual Air
• Press this button to activate and select air massage zone between armrest,
shoulder & waist, calves and feet.
• Air intensity can be adjusted by pressing "Intensity" button respectively after
activating manual air function.
• Full Air intensity can be adjusted by pressing “Intensity” button respectively
after activating full air function.
10/11.◄/►Width
• Controls the width of the rollers.
• Select a massage function and press to adjust between Narrow, Normal and
Wide.
• It can be used to activate the Tapping, Shiatsu and Rolling massage.
12/13. ▲/▼Position
• Adjust back massage position.
• Press ▲ or ▼ to choose position of massage rollers when a “beep” sound
alerts in 10 seconds.
• Release the button once the desired position is achieved.
Note:This can also be used during sector massages.
14. Vibration
• Press this button once to activate the seat vibration function. Press the button
again to stop the seat vibration function.
• The vibration mode can be switched on or off while any of the programs are
running.
Programs and Operation
15

15. Heat
• Heat function is set to OFF by default.
• Press this button once to activate the waist heating function. Press the button
again to stop the waist heating function.
• It is applicable during any Automatic Program, Localised Area Program or
Manual Program.
16. Spot/Partial (S/P)
• Press once to localize the massage to a particular point.
• Press again to shift massage to a particular area of body.
• This will keep the original massage node working on a range of 8cm.
• To resume full back massage, press button again.
17. Intensity
• Press this button to adjust the air pressure intensity level.
• After activating the auto or manual air massage programs, press to select
between 5 levels of intensity.
18. Speed
• Press this button to adjust speed for Tapping, Shiatsu and strength for
Kneading.
• After activating the Tapping, Shiatsu or Kneading function, every time the
button is pressed, the speed (or strength) can be adjusted in the cycle.
19. Zero Gravity
• Adjust the angle of the massage chair to zero gravity position.
• Press to achieve position required.
• Press again to resume to original position.
20. Foot Air
• Press once, to activate the foot air massage.
• Press again, to stop the foot air massage.
21/22. Footrest lift / drop
• Allows you to lift or drop the footrest.
• Press once and the footrest will start to lift/drop.
• Press again to stop the footrest at your preferred angle.
Programs and Operation
16

23/24. Recline / Incline
• Control the recline / incline angle of the chair.
• Press once and the backrest will move to a horizontal reclining position or an
upright sitting position. Press again to stop at your preferred angle.
25. Kneading
• Press this button once to activate the kneading function for a full back
massage. Press again to stop the kneading function.
• Kneading function strength can be adjusted by pressing “Speed” button after
activating kneading function.
• Kneading function can be combined with tapping or shiatsu.
26. Tapping
• Press this button once to activate the tapping function for a continuous full
back massage. Press again to stop the tapping function.
• Tapping width and speed can be adjusted by pressing “Width” and “Speed”
button respectively after activating tapping function.
• Tapping function can be combined with kneading function.
27. Shiatsu
• Press this button once to activate the shiatsu function for a continuous full back
massage. Press again to stop the shiatsu function.
• Shiatsu width and speed can be adjusted by pressing “Width” and “Speed”
button respectively after activating shiatsu function.
• Shiatsu function can be combined with kneading function.
28. Rolling
• Press this button once to activate the rolling function for a full back massage.
Press again to stop the rolling function.
• Rolling width can be adjusted by pressing “Width” button after activating rolling
function.
How to End
• Press the Power button to stop the massage operation.
• Massage rollers will reset automatically.
• The Power button will light up until the massage rollers resume their original
position.
• After the Power button light turns off, switch the power button under the chair to
“O” position and disconnect the power cord plug.
Programs and Operation
17

This page summarizes the most common problems you could encounter with the
product. If you are unable to solve the problem with the information below,
contact service center immediately.
If the problem encountered is not listed, please try the following suggestions:
1. Turn off the product and unplug it.
2. Wait for 60 minutes.
3. Plug the product back to the recommended outlet and restart.
4. If the problem persists, contact the authorized service center.
The product
does not work
The product
stopped
working
The product
stopped
working
The product
does not work
The product is
abnormally
warm
Noise can be
heard from the
The product is not plugged
in properly.
Ensure the voltage on the
product corresponds to the
local mains voltage and
then plug in again.Make
sure the outlet is properly
working.
If you want another session,
press the Power button
again.
Unplug the product and let it
cool down for 60 minutes
before you use it again.
Reduce the excessive load
and start again.
Unplug the product an let it
cool down before using it
again.
This is normal and does not
mean that the product is
faulty.
The product has just
finished its auto timer
session and has
automatically switched to
standby mode.
You may have used the
product continuously for 45
minutes where the over heat
protection has been
activated.
An excessive load has been
applied on the product.
The product is likely to be
overused.
Noise is made by the
mechanical parts of the
Problem Possible Cause Suggestion
Troubleshooting
18
