Oster FRSTIC-GCO User manual

1.5-QUART ICE CREAM, FROZEN
YOGURT &SORBET MAKER,
MAQUINA DE HACER HELADO,
MELADO DE YOGURT YSORBETES
DE 1.5 CUARTOS DE GALON
User Guide/ Gui'a del Usuario:
FRSTIC-GCO
Safety
Seguridad
How to use
Comousar
Cleaning
CuidadoyLimpieza
Warranty
Garantia
www.oster.com

IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed including the following:
READ ALL INSTRUCTIONS BEFORE USE
1. Read all instructions before using.
2. To protect against fire, electric shock and personal injury, do not
immerse appliance, its cord or plug, in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near
children.
4. Unplug from outlet when not in use, before putting on or taking off
parts, and before cleaning.
5. Avoid contact with moving parts. Keep hands, hair, clothing, as well
as spatulas and other utensils away during operation to reduce the
risk of injury to persons and/or damage to the appliance.
6. Do not operate any appliance with adamaged cord or plug, or after
appliance malfunctions or is dropped or damaged in any manner.
Return appliance (see warranty) for examination, repair or electrical
or mechanical adjustment.
7. The use of attachments not recommended by the appliance
manufacturer may result in fire, electric shock or personal injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot
surfaces, including the stove.
10. To disconnect, unplug from wall outlet.
11.Do not operate unit dry. Always have ice cream mixture in the canister
when you plug in the unit.
12. Keep hands and utensils out of Freezer Bowl while in use to reduce
the risk of injury to persons and damage to the appliance. DO NOT
USE SHARP OBJECTS OR UTENSILS INSIDETHE FREEZER BOWL! Sharp
objects will scratch and damage the inside of the Freezer Bowl. A
rubber spatula or wooden spoon may be used, when the appliance is
in the OFF position.
13. Be sure that the voltage indicated on the name plate matches with
your home's voltage.
14. During operation keep your hands and the cord away from hot parts
of the appliance during operation.
15. Do not place or use the appliance on hot surfaces, such as stoves,
hotplates, or near open gas flames.
16. Do not expose the Freezer Bowl to temperatures above 105°F/41°C.
Do not clean Freezer Bowl in dishwasher.
17. Do not place any part of the Unit in the dishwasher.
18. Do not use extension cord.
19. Close supervision is necessary when appliance is in use.
This appliance is for household use only. No user-serviceable parts inside. Power
Unit never needs lubrication. Do not attempt to service this product.
POLARIZED PLUG INFORMATION
This appliance has apolarized plug (one blade is wider
than the other). To reduce the risk of electric shock,
this plug is intended to fit into apolarized outlet only
one way. If the plug does not fit fully into the outlet,
reversethe plug. If itstill doesnotfit, contact aqualified electrician. Do not
attempt to modify the plug in any way. Ifthe plug fits loosely into the AC outlet
or ifthe AC outlet feels warm do not use that outlet.
SAVE THESE INSTRUCTIONS
www.oster.com 3

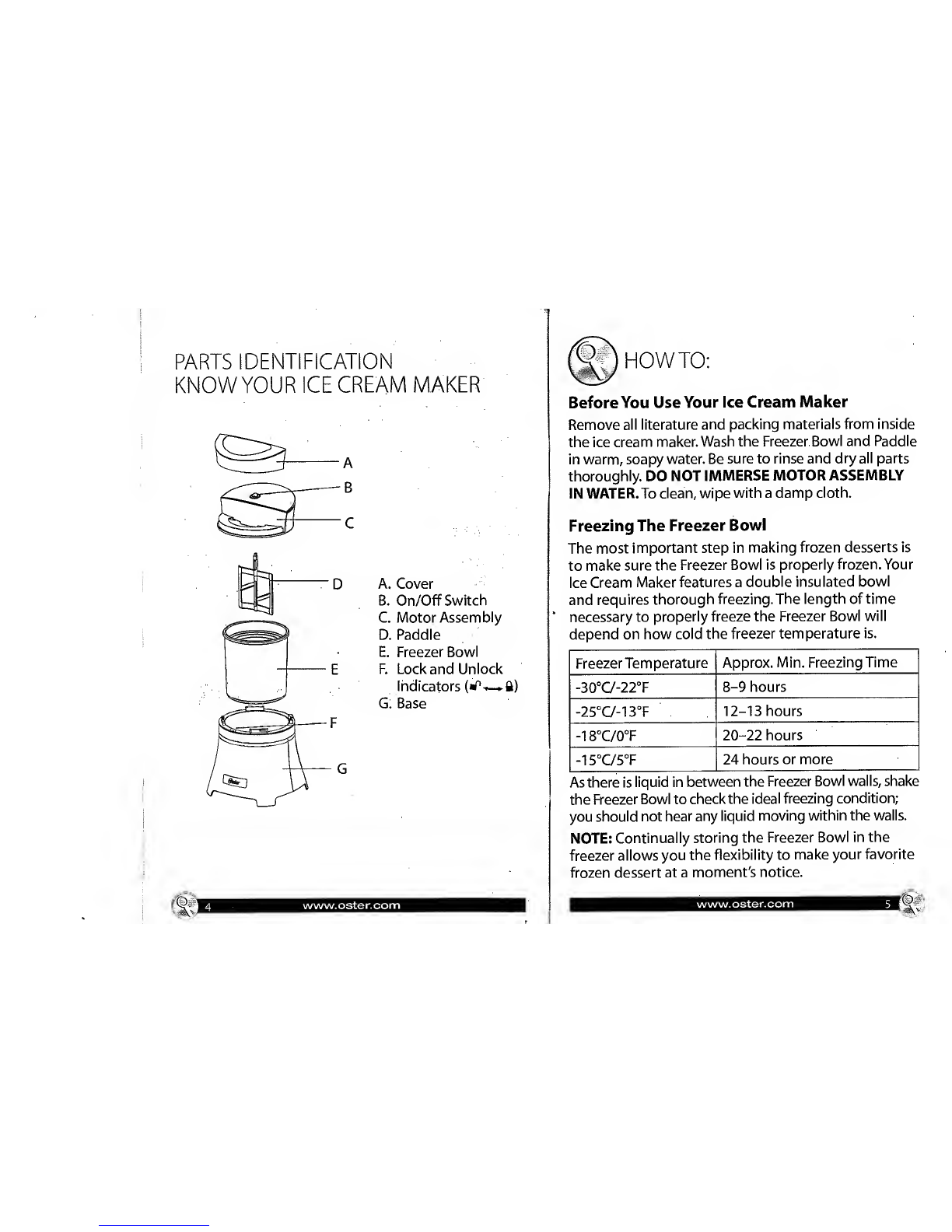

PARTS IDENTIFICATION
KNOW YOUR ICE CREAM MAKER
A. Cover
B. On/Off Switch
C. Motor Assembly
D. Paddle •.'
E. Freezer Bowl
F. Lock and Unlock
Indicators (rf^ ft)
G. Base
Viwww.oster.com
HOWTO:
Before You Use Your Ice Cream Maker
Remove all literature and packing materials from inside
the ice cream maker. Wash the Freezer Bowl and Paddle
in warm, soapy water. Be sure to rinse and dry all parts
thoroughly. DO NOT IMMERSE MOTOR ASSEMBLY
IN WATER. To clean, wipe with adamp cloth.
Freezing The Freezer Bowl
The most important step in making frozen desserts is
to make sure the Freezer Bowl is properly frozen. Your
Ice Cream Maker features adouble insulated bowl
and requires thorough freezing.The length of time
'necessary to properly freeze the Freezer Bowl will
depend on how cold the freezer temperature is.
Freezer Temperature Approx. Min. Freezing Time
-30°C/-22°F 8-9 hours
-25°C/-13°F 12-13 hours
-18°C/0°F 20-22 hours
-15°C/5°F 24 hours or more
As there is liquid in between the Freezer Bowl walls, shake
the Freezer Bowl to check the ideal freezing condition;
you should not hear any liquid moving within the walls.
NOTE: Continually storing the Freezer Bowl in the
freezer allows you the flexibility to make your favorite
frozen dessert at a moment's notice.
www.oster.com 5

HowTo Use Your Ice Cream Maker
This ice cream maker can make up to 1.5 quart of
ice cream. Due to an increase in volume during
preparation, the maximum amount must not exceed
0.8quarts of liquid. If using your own recipes, adapt
the volume of mixture to this amount.
1.Make sure unit switch is in OFF (O) position.
2. Remove FREEZER BOWL from freezer, and place it
in the BASE. (See figure 1)
3. Insert PADDLE into theMOTOR ASSEMBLY, (see figure 2).
Figure 1
Place the MOTOR ASSEMBYand PADDLE in the BASE. .
Make sure to align arrows and («P B) rotate counter
clockwise to set in place. You will hear a"click" when it is
locked in place correctly. (See figure 3) Then place COVER
Insert the plug into outlet, then immediately turn
ON the unit. (See figure 4)
Figure 3A Figure 3B Figure 4
6. Pour the prepared ice cream mixture through the
COVER/MIXING FEEDER located on the top. (See
Figure 5)
NOTE: It is extremely important that the FREEZER
BOWL be used immediately after it is removed
from the freezer, as it begins to thaw once
removed. First, make sure that the ice cream
mixture is ready, then remove the FREEZER BOWL
from freezer.
7. Leave the machine ON for approximately 15-30
minutes, or until the mixture reaches the desired
consistency. Do not turn the appliance off during use,
as the mixture may freeze and prevent the movement
ofthe Paddle. After 40 minutes turn unit OFF.
NOTE:To avoid overheating of the Motor, the direction
of the rotation will change if the mixture becomes too
thick. If the direction of rotation continues to change, the
mixture is completely prepared, turn off unit immediately.
8. When done, remove PADDLE from ice cream. Only use
rubber, plastic, or wooden utensils to serve from the
FREEZER BOWL. Metal spoons may damage it.
To add ingredients after the freezing process has
begun, gently add them through the Mixing Feeder.
www.oster.com 7

To further harden the ice cream, you may put the
FREEZER BOWL with the ice cream contents into the
freezer for a short period of time (no more than 30
minutes). Long term freezing, however, should be
done in an airtight container.
AUTO SAFETY SHUT OFF:
This Ice Cream Maker is supplied with an auto safety
shutoff. Should the motor become overheated it will
turn off. In order to restart the Ice Cream Maker the
following steps must be followed:
1. Unplug the Ice Cream Maker.
2. Wait at least 20 minutes for the motor to cool
down.
3. Plug in and operate normally.
Care &Cleaning
HowTo Clean Your Ice Cream Maker
Make sure the unit is turned off and unplugged. The
Freezer Bowl should be cleaned in warm water and
mild detergent, then dried thoroughly. Never clean
with scouring powders or hard implements.
Never replace Freezer Bowl in Freezer if it is still wet.
Do not use sharp utensils, scouring pads or abrasive
detergents when cleaning Freezer Bowl.
The Motor Assembly can be cleaned by using adamp
cloth. Never immerse Motor Cover in water.
Do not place freezing bowl in dishwasher!
8www.oster.com
Helpful Hints
•Some recipes require the mixture to be pre-
cooked. Make the recipe at least one day ahead.
This will allow the mixture to cool completely and
adds volume.
•Uncooked recipes will yield best results when
an electric mixer is used to cream the eggs and
sugar. This helps increase volume in the ice cream
mixture. Eggs must be cooked properly. See our
eggbased recipes for instructions.
•Most ice cream recipes are a combination of
cream, milk, eggs and sugar. You can use any
type of cream you like, but the type of cream you
use will affect the flavor and texture. The higher
percentage of fat, the richer the ice cream and
the softer the texture. For example, heavy cream
has at least 36% fat, followed by: whipping cream
(30%), coffee or light cream (18%) and half &half
(1 0%). Any combination can be used, but make
sure the liquid measurement remains the same. For
example, lighter ice creams can be made by using
more milk than cream, or by eliminating cream
altogether. Skim milk may be used, but there will
be anoticeable difference in texture and taste.
•The ice cream mixture will stay fresh in the
refrigerator for several days. Be sure to mix well
before adding to the Freezer Bowl.
www.oster.com

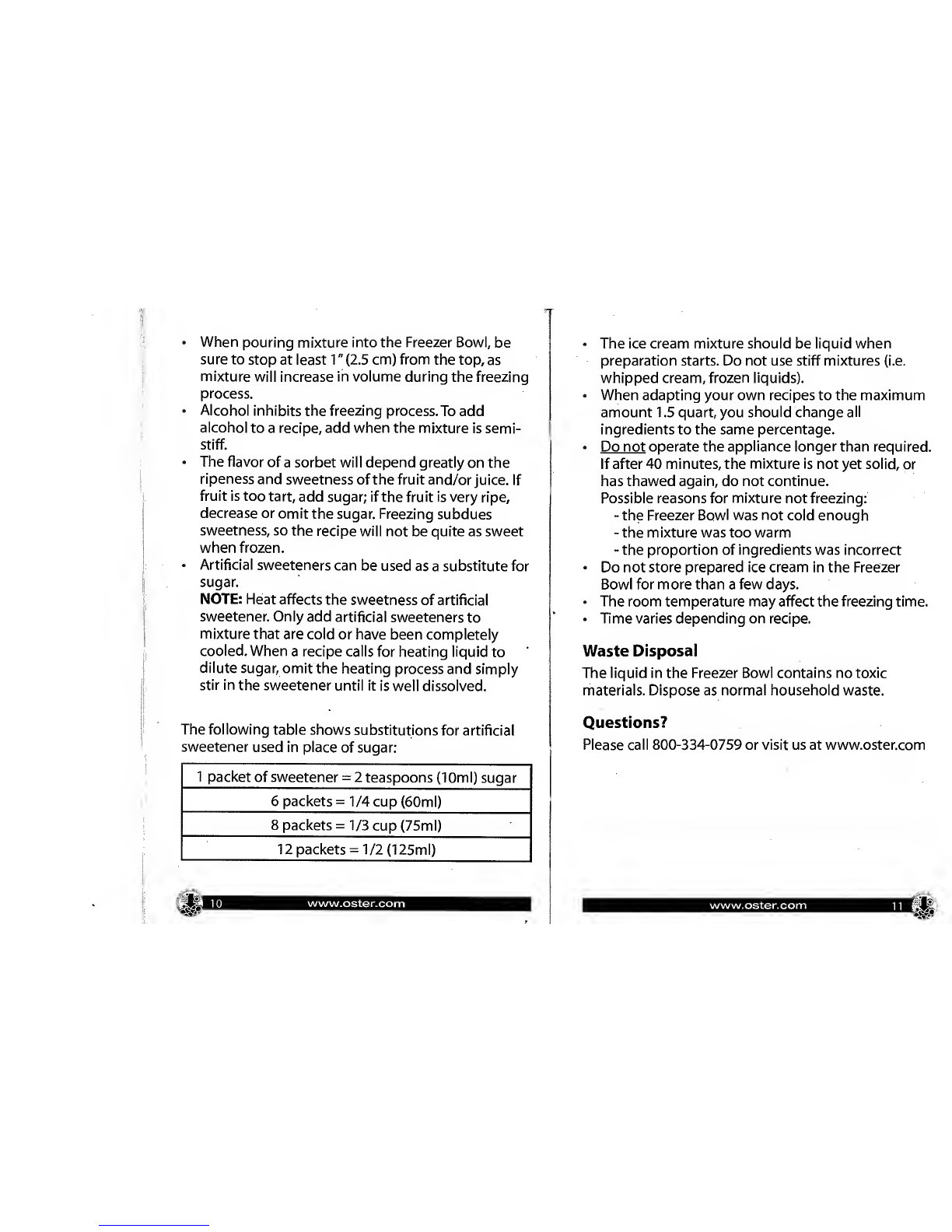

•When pouring mixture into the Freezer Bowl, be
sure to stop at least 1"(2.5 cm) from the top, as
mixture will increase in volume during the freezing
process.
•Alcohol inhibits the freezing process. To add
alcohol to a recipe, add when the mixture is semi-
stiff.
•The flavor of asorbet will depend greatly on the
ripeness and sweetness of the fruit and/or juice. If
fruit is too tart, add sugar; if the fruit is very ripe,
decrease or omit the sugar. Freezing subdues
sweetness, so the recipe will not be quite as sweet
when frozen.
•Artificial sweeteners can be used as a substitute for
sugar.
NOTE: Heat affects the sweetness of artificial
sweetener. Only add artificial sweeteners to
mixture that are cold or have been completely
cooled. When arecipe calls for heating liquid to
dilute sugar, omit the heating process and simply
stir in the sweetener until it is well dissolved.
The following table shows substitutions for artificial
sweetener used in place of sugar:
1packet of sweetener =2teaspoons (10ml) sugar
6packets =1/4 cup (60ml)
8packets =1/3 cup (75ml)
'
12 packets =1/2 (125ml)
10 www.oster.com
•The ice cream mixture should be liquid when
preparation starts. Do not use stiff mixtures (i.e.
whipped cream, frozen liquids).
•When adapting your own recipes to the maximum
amount 1.5 quart, you should change all
ingredients to the same percentage.
•Do not operate the appliance longer than required.
If after 40 minutes, the mixture is not yet solid, or
has thawed again, do not continue.
Possible reasons for mixture not freezing:
-the Freezer Bowl was not cold enough
-the mixture was too warm
-the proportion of ingredients was incorrect
•Do not store prepared ice cream in the Freezer
Bowl for more than afew days.
•The room temperature may affect the freezing time.
•Time varies depending on recipe.
Waste Disposal
The liquid in the Freezer Bowl contains no toxic
materials. Dispose as normal household waste.
Questions?
Please call 800-334-0759 or visit us at www.oster.com
www.oster.com 11

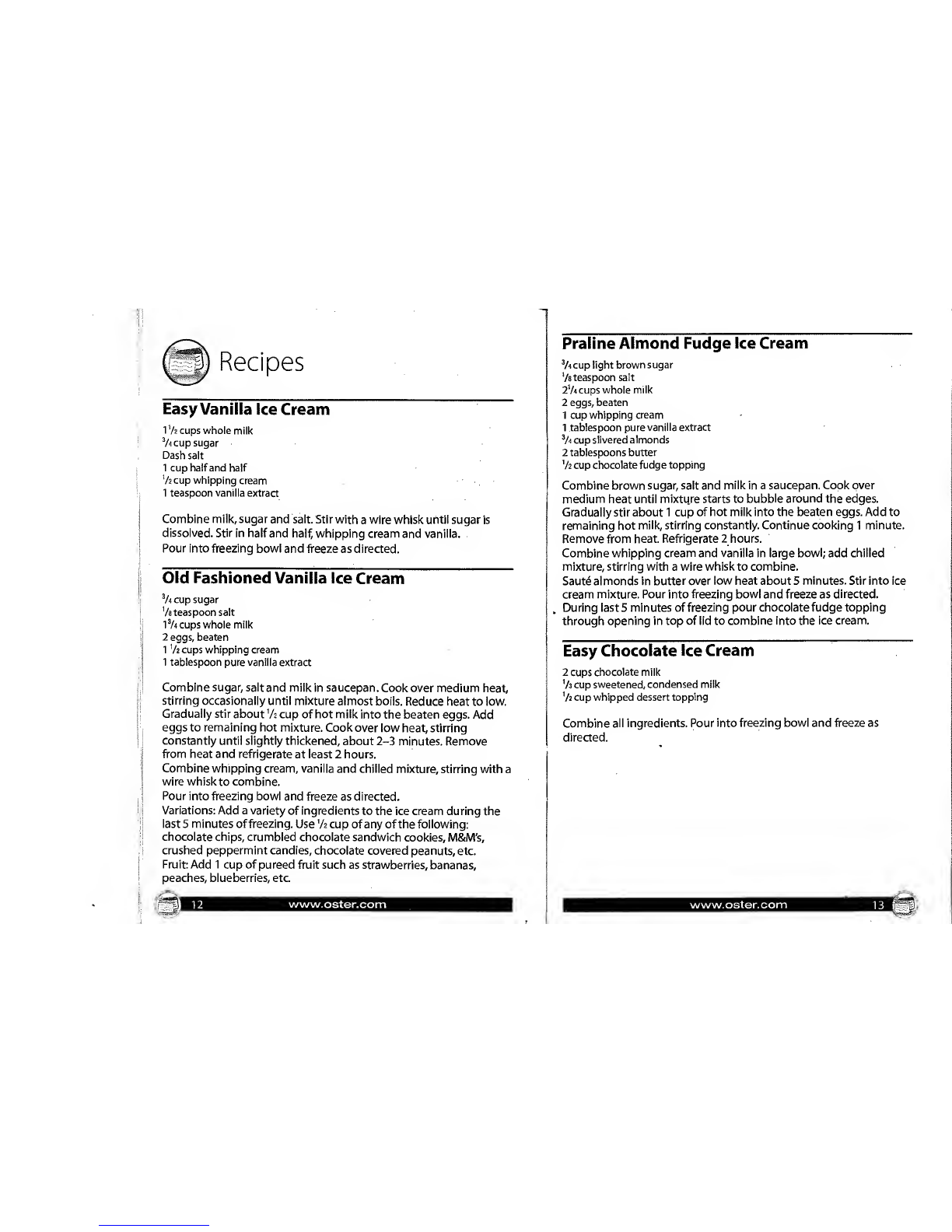

Recipes
Easy Vanilla Ice Cream
1'A cups whole milk
3Acup sugar
Dash salt
1cup half and half
Va cup whipping cream
1teaspoon vanilla extract
Combine milk, sugar and salt. Stir with awire whisk until sugar is
dissolved. Stir in half and half, whipping cream and vanilla.
Pour into freezing bowl and freeze as directed.
Old Fashioned Vanilla Ice Cream
3/< cup sugar
Va teaspoon salt
13Acups whole milk
2eggs, beaten
1Vz cups whipping cream
1tablespoon pure vanilla extract
Combine sugar, salt and milk in saucepan. Cook over medium heat,
stirring occasionally until mixture almost boils. Reduce heat to low.
Gradually stir about Vz cup of hot milk into the beaten eggs. Add
eggs to remaining hot mixture. Cook over low heat, stirring
constantly until slightly thickened, about 2-3 minutes. Remove
from heat and refrigerate at least 2hours.
Combine whipping cream, vanilla and chilled mixture, stirring with a
wire whisk to combine.
Pour into freezing bowl and freeze as directed.
Variations: Add avariety of ingredients to the ice cream during the
last 5minutes of freezing. Use 'A cup of any of the following:
chocolate chips, crumbled chocolate sandwich cookies, M&M's,
crushed peppermint candies, chocolate covered peanuts, etc.
Fruit: Add 1cup of pureed fruit such as strawberries, bananas,
peaches, blueberries, etc.
12 www.oster.com
Praline Almond Fudge Ice Cream
3Acup light brown sugar
7» teaspoon salt
2'A cups whole milk
2eggs, beaten
1cup whipping cream
1tablespoon pure vanilla extract
3Acup slivered almonds
2tablespoons butter
V2 cup chocolate fudge topping
Combine brown sugar, salt and milk in asaucepan. Cook over
medium heat until mixture starts to bubble around the edges.
Gradually stir about 1cup of hot milk into the beaten eggs. Add to
remaining hot milk, stirring constantly. Continue cooking 1minute.
Remove from heat. Refrigerate 2hours.
Combine whipping cream and vanilla in large bowl; add chilled
mixture, stirring with awire whisk to combine.
Saute almonds in butter over low heat about 5minutes. Stir into ice
cream mixture. Pour into freezing bowl and freeze as directed.
During last 5minutes of freezing pour chocolate fudge topping
through opening in top of lid to combine into the ice cream.
Easy Chocolate Ice Cream
2cups chocolate milk
'A cup sweetened, condensed milk
'h cup whipped dessert topping
Combine all ingredients. Pour into freezing bowl and freeze as
directed.
www.oster.com 13

Chocolate Ice Cream
21/4 cups whole milk
1cup sugar
Dash salt
3ounces semisweet chocolate squares, finely chopped
2eggs, beaten
3/i cup half and half
'A cup whipping cream
1teaspoon vanilla extract
Combine milk, sugar, salt and chocolate in asaucepan. Cook over
medium heat, stirring constantly, until chocolate is melted and mixture
almost boils. Gradually stir about 1cup ofthe hot mixture into the
beaten eggs. Add the eggs to remaining hot mixture. Cook and stir over
low heat until slightly thickened (2 minutes). Stir in half and half,
whipping cream and vanilla. Cover and refrigerate for 2hours.
Pour into freezing bowl and freeze as directed.
Cinnamon Walnut Ice Cream
1'A cups whole milk
1cup half and half
Vs cup whipping cream
3Acup sugar
1cup chopped walnuts
17< teaspoons vanilla extract
'/3 teaspoon cinnamon
Dash salt
Thoroughly combine all ingredients. Pour into freezing bowl and
freeze as directed.
14 www.oster.com
Double Almond Chocolate Ice Cream
11/z cups whole milk
3Acup sugar
Dash salt
2ounces semisweet chocolate square, finely chopped
2eggs, beaten
1'A cups whipping cream
1teaspoon vanilla extract
2teaspoons almond extract
1cup chopped almonds
Combine milk, sugar, salt and chocolate in saucepan. Cook over
medium heat, stirring constantly, until chocolate is melted and
mixture almost boils. Gradually stir 1cup of the hot mixture into the
beaten egg. Pour eggs into the remaining hot mixture and continue
cooking over low heat until slightly thickened (2-3 minutes).
Remove from heat.
Stir in whipping cream, vanilla, almond extract and chopped
almonds. Cover and refrigerate 2hours.
Pour into freezing bowl and freeze as directed.
www.oster.com 15

Mango-Pineapple Sorbet
5cups (24 02.) frozen mangoes, thawed (3 cups after thawing)
3tablespoons lime juice
'h cup sugar
1cup unsweetened pineapple juice
Puree mangoes with lime juice and sugar in blender or food
processor. Place in. alarge bowl. Add pineapple juice; mix with a
whisk until blended. Cover; refrigerate 30 minutes.
Start ice cream maker and pour mango mixture through hole in lid.
Churn 20-40 minutes or until desired consistency.
Strawberry Sorbet
4cups fresh orfrozen (thawed) strawberries, pureed
V; cup sugar
1cup water
1tablespoon lemon juice
Combine sugar and water in asmall saucepan. Heat to boiling.
Reduce heat and simmer until sugar dissolves. Remove from heat
and cool completely (1-2 hours). Combine with pureed strawberries
and lemon juice.
Pour into freezing bowl and freeze as directed.
16 www.oster.com
Blueberry Frozen Yogurt
2cups (1 0oz.) frozen blueberries, thawed (1 'A cups after thawing)
3Acup sugar
I'Acups plain yogurt
Vicup half and half
Puree blueberries with sugar in blender or food processor. Place in
large bowl; stir in yogurt and half and half. Cover; refrigerate 30
minutes.
Start ice cream maker and pour blueberry mixture through hole in
lid into the freezing bowl. Churn 20-40 minutes or until desired
consistency is reached.
Lime-Coconut Greek Frozen Yogurt
22/s cups plain Greek yogurt
2Acup sugar
'A cup lime juice
1'A tablespoons grated lime peel
SAcup half and half
V2 cup flaked coconut, toasted and cooled*
Combine yogurt, sugar, lime juice and lime peel in large bowl. Mix
with awhisk until blended and sugar is dissolved. Stir in half and
half. Cover; refrigerate 30 minutes.
Start ice cream maker and pour yogurt mixture through hole in lid
into the freezing bowl. Churn 20-40 minutes or until desired
consistency, adding coconut when mixture is thick and is beginning
to freeze, about 15minutes.
*To toast coconut: Preheat oven to 350°F. Spread coconut evenly
onto abaking sheet and bake 7-10 minutes or until golden brown,
stirring occasionally.
www.oster.com 17

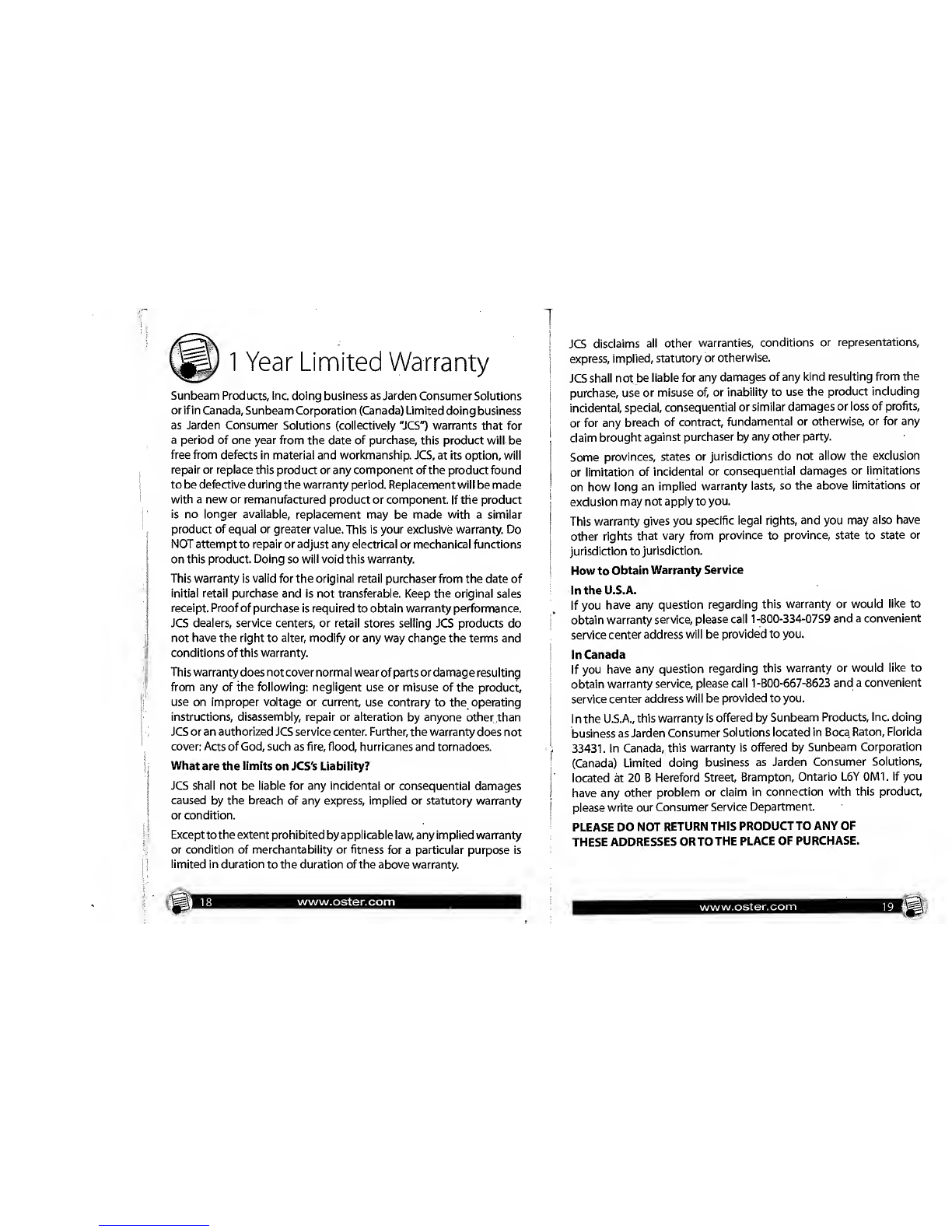

1Year Limited Warranty
Sunbeam Products, Inc. doing business as Jarden Consumer Solutions
or if in Canada, Sunbeam Corporation (Canada) Limited doing business
as Jarden Consumer Solutions (collectively "JCS") warrants that for
aperiod of one year from the date of purchase, this product will be
free from defects in material and workmanship. JCS, at its option, will
repair or replace this product orany component of the product found
to be defective during the warranty period. Replacement will be made
with anew or remanufactured product or component. If the product
is no longer available, replacement may be made with asimilar
product of equal or greater value. This is your exclusive warranty. Do
NOT attempt to repair or adjust any electrical or mechanical functions
on this product. Doing so will void this warranty.
This warranty is valid for the original retail purchaser from the date of
initial retail purchase and is not transferable. Keep the original sales
receipt. Proof of purchase is required to obtain warranty performance.
JCS dealers, service centers, or retail stores selling JCS products do
not have the right to alter, modify or any way change the terms and
conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting
from any of the following: negligent use or misuse of the product,
use on improper voltage or current, use contrary to the operating
instructions, disassembly, repair or alteration by anyone other than
JCS or an authorized JCS service center. Further, the warranty does not
cover: Acts of God, such as fire, flood, hurricanes and tornadoes.
What are the limits on JCS's Liability?
JCS shall not be liable for any incidental or consequential damages
caused by the breach of any express, implied or statutory warranty
or condition.
Exceptto the extent prohibited by applicable law,any implied warranty
or condition of merchantability or fitness for aparticular purpose is
limited in duration to the duration of the above warranty.
18 www.oster.com
JCS disclaims all other warranties, conditions or representations,
express, implied, statutory or otherwise.
JCS shall not be liable for any damages of any kind resulting from the
purchase, use or misuse of, or inability to use the product including
incidental, special, consequential or similar damages or loss of profits,
or for any breach of contract, fundamental or otherwise, or for any
claim brought against purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion
or limitation of incidental or consequential damages or limitations
on how long an implied warranty lasts, so the above limitations or
exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have
other rights that vary from province to province, state to state or
jurisdiction to jurisdiction.
Howto Obtain Warranty Service
lntheU.S.A.
If you have any question regarding this warranty or would like to
obtain warranty service, please call 1-800-334-0759 and aconvenient
service center address will be provided to you.
In Canada
If you have any question regarding this warranty or would like to
obtain warranty service, please call 1-800-667-8623 and aconvenient
service center address will be provided to you.
In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing
business as Jarden Consumer Solutions located in Boca Raton, Florida
33431. In Canada, this warranty is offered by Sunbeam Corporation
(Canada) Limited doing business as Jarden Consumer Solutions,
located at 20 BHereford Street, Brampton, Ontario L6Y OMT. If you
have any other problem or claim in connection with this product,
please write our Consumer Service Department.
PLEASE DO NOT RETURN THIS PRODUCTTO ANY OF
THESE ADDRESSES ORTO THE PLACE OF PURCHASE.
www.oster.com 19
