oticon Amigo T5 User manual

INSTRUCTIONS FOR USE T5

IMPORTANT NOTICE
Please familiarise yourself with the entire contents of this booklet before
using your Amigo T5. The booklet contains various statements, safety
instructions and important information about the use and handling of these units.
If you have further questions about the use of the Amigo T5, please contact
your Hearing Care Professional.
Contents
Introduction 4
Typical package content 5
Overview of the Amigo T5 transmitter 6
Warnings 7
Optional Accessories: 11
Preparing your Amigo system 12
Charging the batteries 13
Changing channels 15
LED and Display indicator 16
Using the Amigo T5 together with Amigo Receivers 17
About channels 18
Connecting the Amigo T5 to external audio sources (TV, stereo etc.) 19
Microphone options 20
Cleaning the Amigo T5 21
Appendix A: Troubleshooting 22
Appendix B: Manufacturer’s warranty 25

4 5
Introduction
Congratulations on your Amigo T5. It offers all the benefits you would expect from a
product family designed to meet your everyday needs.
The Amigo T5 can be used together with all Amigo receivers.

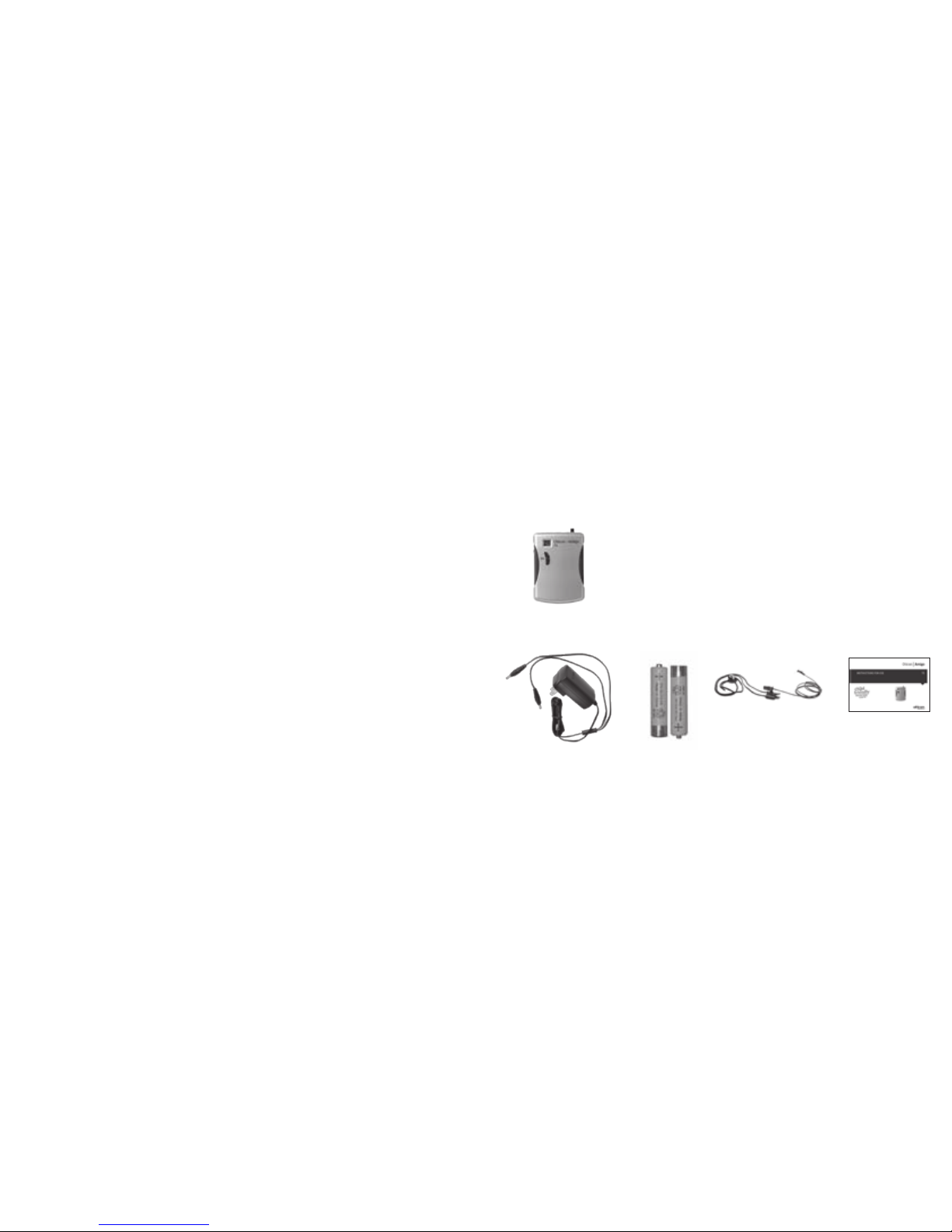

Typical package content
Items included in the standard Amigo T5 transmitter
package are:
• 2-tail charger (can charge two units at the same time)
• 2 AAA rechargeable batteries
• Omni-directional lapel microphone
• User guide
2-tail charger AAA NiMH batteries Omni Lapel Microphone User guide

6 7
Overview of the Amigo T5 transmitter
Channel
display
Channel
down
Channel
up
Mute button
Charging plug
AUX input
Microphone
LED
Warnings
Amigo parts can be dangerous if swallowed:
• The Amigo system is not a toy and therefore should be kept out of the reach of children
and anyone else who might swallow parts or otherwise cause injury to themselves.
Special attention should be paid to the smaller components in order to prevent children
from swallowing them and choking.
• Never change the battery and never connect the receiver to the hearing aid in front of
infants, small children or persons with learning difficulties.
If a part is swallowed, see a doctor immediately.

8 9
Battery use:
• Always use NiMH rechargeable batteries or alkaline batteries.
• Always use batteries recommended by your Hearing Care Professional.
• Never attempt to recharge non-rechargeable batteries.
• Never dispose of batteries by burning them. There is a risk they will explode and cause
serious injury.
Do not damage batteries:
• Batteries should not be dropped, crushed, punctured, modified or otherwise mutilated.
Such abuse may result in leakage or heat generation. Damaged or
deformed batteries must be replaced with new and unused ones of the same type.
Risk of harm caused by unintentional noise that may mue important signals
System dysfunctions:
• The Amigo system will cease to function if the batteries have run out. The system may
also produce a high whistling noise (feedback) if the battery is low, or if it is subjected
to loud sound while the microphone is off but the receiver is still on. Users should be
aware that these sounds should not be confused with warning sounds – e.g. car horns
in traffic.
Use in aircrafts:
• Amigo should not be used on aircrafts without the permission of the flight crew.
Please note that Amigo can cause interference with other medical devices. Such
interference can also be caused by radio signals, power line disturbances, airport
metal detectors, electromagnetic fields from other medical devices and electrostatic dis-
charges.

10 11
Optional Accessories:
A number of optional accessories are available for Amigo T5 as shown below:
T5:
• Directional lapel microphone
• Boom microphone
• Antenna
• 6-unit charger
Safety requirements regarding Direct Audio Input (DAI)
• Safety when using Amigo with DAI (Direct Audio Input) is determined by the external
signal source. When the DAI is connected to AC-operated equipment, this equipment
must comply with IEC-60065, IEC-60601 or equivalent safety standards.
For FCC Part 15 / RSS Gen&210:
“This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:(1) This device may not cause harm-
ful interference, and (2) This device must accept any interference received, including
interference that may cause undesired operation”
For FCC Part 95.1017:
‘‘This device may not interfere with TV reception or Federal Government radar.”
For RSS 210:
“If TV channel 13 is used in the area, the installer shall reduce or adjust the RF radiated
power so that near-by TV channel 13 receivers do not receive radio interference from the
system installed”.

12 13
Preparing your Amigo system
Inserting the batteries
To insert the two AAA batteries, remove the battery lid on the back of the transmitter
and/or receiver and position the batteries according to the markings (+/ -).
Having done this, replace the battery lid. The Amigo T5 can then be charged.
Note: The positive and negative ends of the battery may appear similar, so do
double-check that the battery are positioned correctly.
Charging the batteries

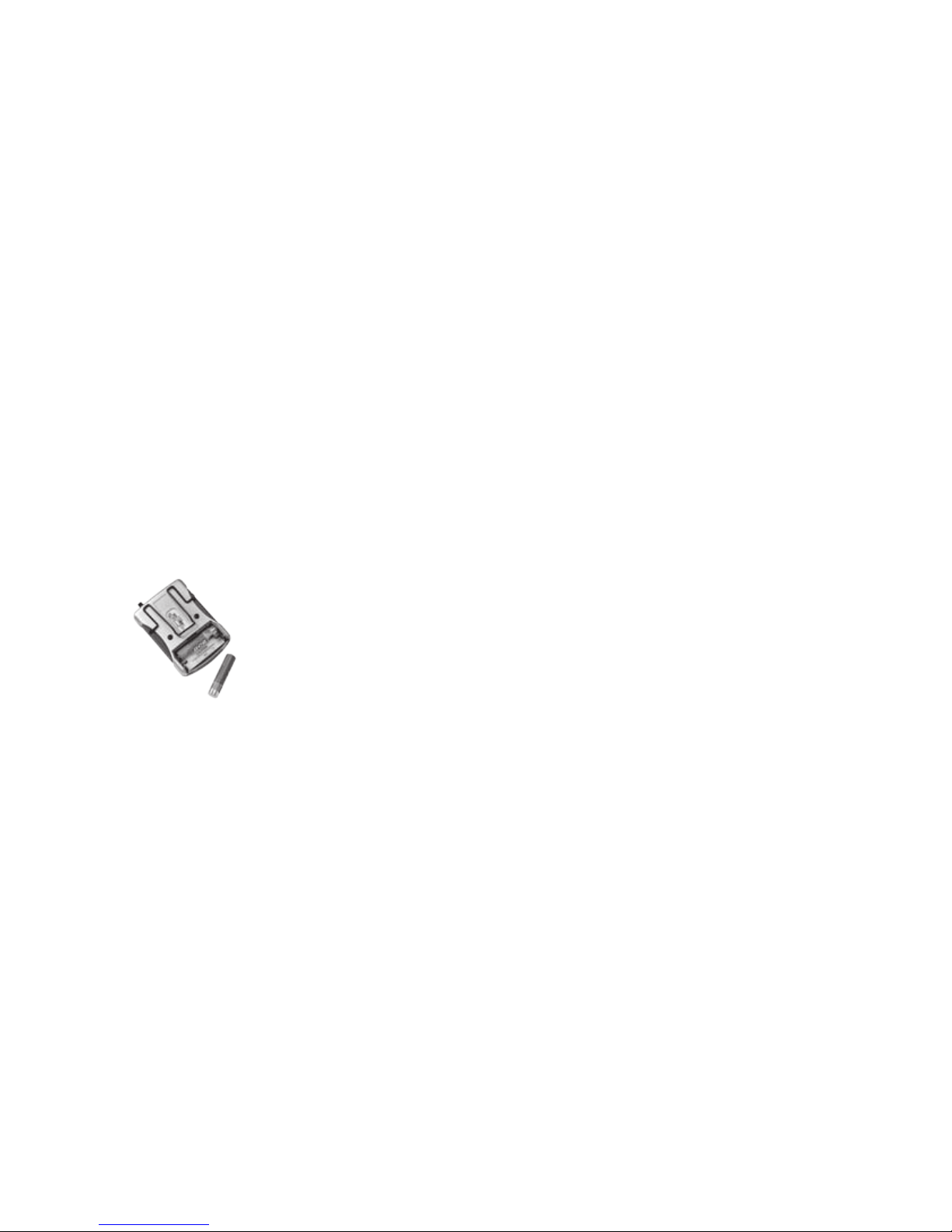

The Amigo T5 comes with two AAA rechargeable NiMH silver-sleeved batteries,
which must be charged for 14 hours before being used for the first time. You can
replace the batteries with any of the following:
• Special “silver-sleeved” rechargeable batteries
Only available through your Hearing Care Professional, these are the only batteries
that can be recharged inside the Amigo T5.
• Standard, rechargeable NiMH batteries
Although these cannot be recharged inside the Amigo T5, they can be removed for
charging in an external charger purchased from an electronics store.
• Standard, non-rechargeable alkaline batteries
Can be used in an emergency, i.e. if you don’t have time to charge your rechargeable
batteries. But do remember that alkaline batteries must never be recharged.
Note: Always dispose of old batteries in approved battery disposal bins since it may be
illegal to dispose of them in ordinary bins. For more information please consult your
Hearing Care Professional.

14 15

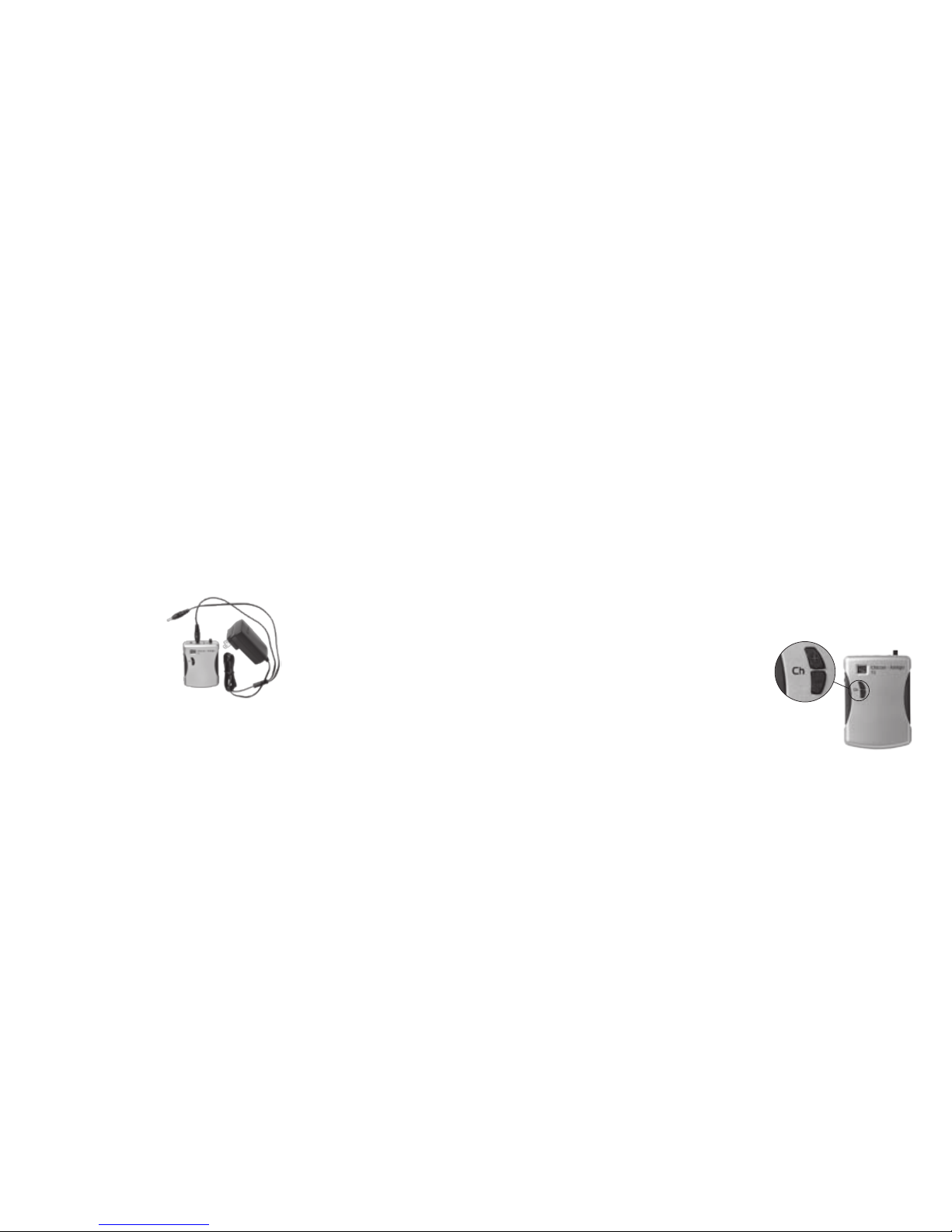

To charge the batteries, plug the charger into the charger plug on the top of the unit as
shown in the picture below.
Please note that the Amigo T5 must be switched OFF when charging.
The Amigo T5 offers failsafe charging, which prevents alkaline batteries from being
charged.
Note: Rechargeable batteries should be replaced once every year, to maintain full bat-
tery life.
Changing channels
Amigo T5 transmitter
To change the channel on your Amigo T5 transmitter, you must unlock the channel select
buttons by holding down one of the channel selection buttons on the front of the unit for
2 seconds (the display will blink once). The channel selection buttons will then be
unlocked allowing you to change the channel by pressing either the up
or down button.
If the channel selection buttons are not activated for a
period of approximately 2 seconds, the channel selec-
tion buttons will be re-locked (the display blinks once)
to avoid unintentional channel change. To unlock the
channel selection buttons again, hold down one of the
channel selection buttons on the front of the unit for 2
seconds (the display will blink once).

16 17
LED and Display indicator
The Light-Emitting Diode (LED) and the display on the Amigo T5 not only indicates that
the power is on, but also shows:
LED Meaning
Steady Green Charging
Steady Red On & Transmitting/Receiving
Blinking Green Low battery
T5 Blinking Red Muted
Off Off or error
Using the Amigo T5 together with Amigo Receivers
The Amigo T5 functions with all Amigo receivers as long as the channel of the transmit-
ter and the receiver are matched.
Please refer to Amigo Receiver Instructions For Use (IFU) for further instructions on how
to set up the Amigo receivers.

18 19
About channels
Your Amigo system is a radio device, and like any other radio, it communicates on specific
channels. Your transmitter and receiver must be on the same channel to work together.
Within close proximity, never operate two transmitters on the same channel – since this
will cause interference.
If you are travelling internationally, be aware that your channel may not be approved for
use in all countries. If you wish to use your T5 in a different country, you must contact
your Hearing Care Professional for help in changing the country set-up.
Some electronic devices (microwave ovens, mobile phones, other radio devices, comput-
ers, and flourescent lights, for example) can interfere with your Amigo signal.
Connecting the Amigo T5 to external audio sources
(TV, stereo etc.)

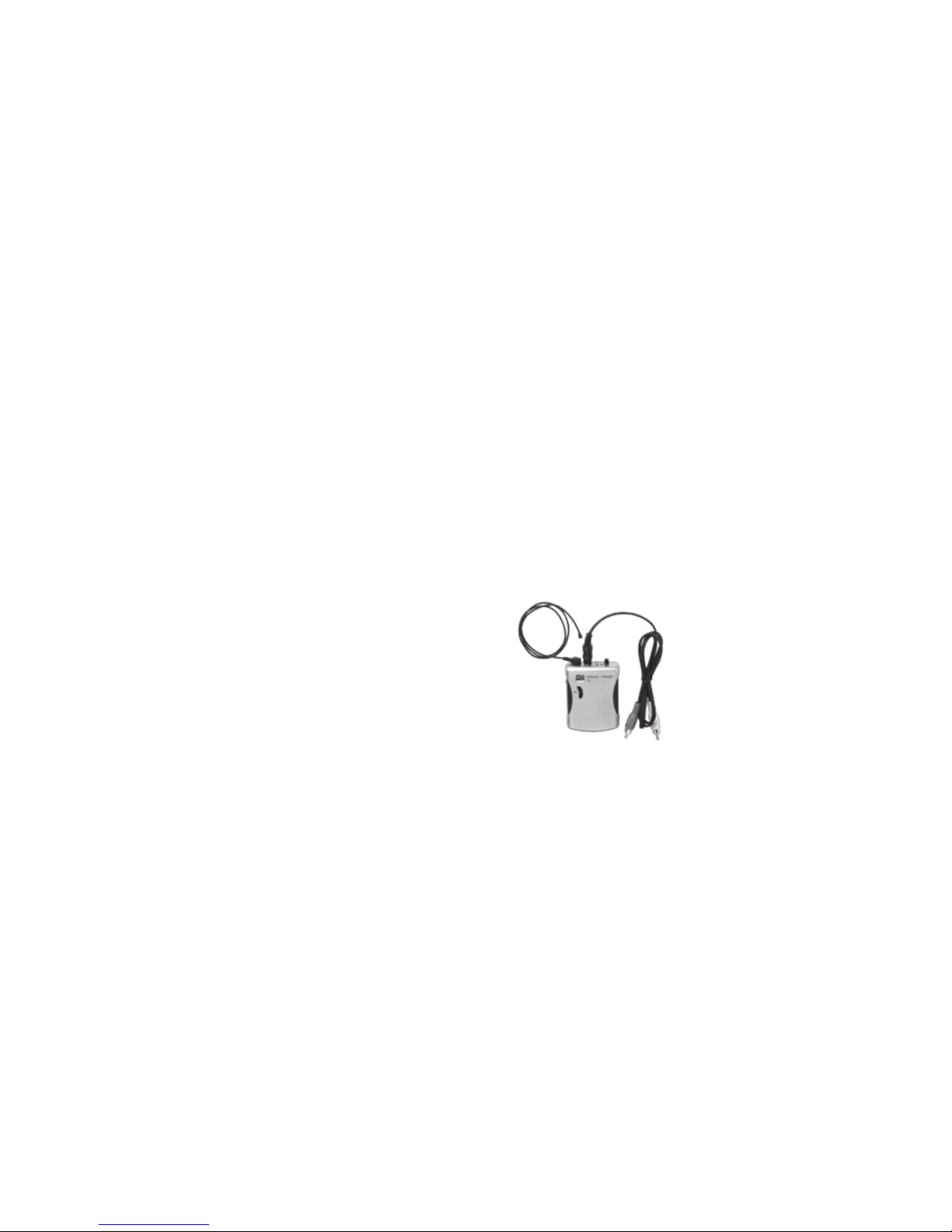

External audio sources can be connected to the Amigo T5 via the 3.5 mm jack AUX plug at
the top panel of the unit such as:
• Computer/Television
• CD/DVD/MP3 player
Furthermore, the Amigo T5 microphone can be
muted without muting the auxiliary input signal by
pressing down the mute button on the top panel of
the Amigo T5.
Note: Since the microphone also acts as the
antenna, you must use an external antenna if you
do not want the microphone to be connected during
an AUX transmission.

20 21
Microphone options
The Amigo T5 comes with a standard, omni, lapel-microphone that can be attached to
the lavaliere cord (see below). This allows you to either clip the microphone to your
clothes or wear it around the neck.
Optional Microphones
• Lapel-clip directional microphone
• Boom microphone
Note: Since the microphone also acts as the antenna, you must keep it attached during
operation and make sure that it does not get curled around the transmitter as this
reduces performance range.
Cleaning the Amigo T5
The Amigo T5 can be cleaned with a damp cloth. Do remember that they contain
electronic components that may be damaged if exposed to water.
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the
Amigo T5.

22 23
Appendix A: Troubleshooting
Problem Solution
The battery will not charge Check that it is positioned correctly. Make sure
that it is the “silver-sleeved” rechargeable NiHM
type of battery, as this is the only type the T5
will charge (for safety reasons).
Problem Solution
No sound / no signal reception Check that the hearing instrument battery is
working, and that it is on.
Check that the receiver is on and
correctly connected.
Check that the transmitter battery is working, and
that the unit is turned on.
Make sure the T5 is on the same
channel.
Check that the transmitter is not muted.

24 25
Problem Solution
No sound / no signal reception Using neckloop:
Make sure that the hearing instrument is in the
telecoil program.
Make sure that the neckloop plug is securely
inserted in the output plug of the receiver.
Using headphones and DAI cable:
Make sure that the headphones or DAI cable
are securely inserted in the output plug of the
receiver.
For assistance with troubleshooting or answers to other questions please consult your
Hearing Care Professional.
Alternatively, visit www.oticon.com/amigo where you can find a troubleshooting
guide for Amigo.
Appendix B: Manufacturer’s warranty
The manufacturer, Oticon, issues a two-year limited warranty to the original consumer of
this product.
This warranty comes into effect upon the date of original purchase of this equipment,
and will remain in effect for two calendar years from that date.
Please notice that extended warranties may apply in your country. Please contact your
local Hearing Care Professional for more information.
What is covered by this warranty?
Any electronic component which, because of workmanship, manufacturing or design
defects, fails to function properly under normal use during the life of this warranty will
be replaced or repaired at no charge for parts or labour when returned to the point of
purchase. Transportation is paid by the customer. If it is determined that repair is not fea-
sible, the entire unit may be replaced with an equivalent unit upon mutual agreement of
the Hearing Care Professional and customer.

26 27
What is not covered by this warranty?
This two-year limited warranty does not cover:
• Malfunctions resulting from abuse, neglect or accident.
• Peripheral accessories as itemised within the product brochure, when such items are
older than 90 days from the original purchase.
• Batteries.
• Instruments connected, installed, used or adjusted in a manner contrary to the
instructions provided.
• Consequential damages and damages resulting from abuse or loss of this instrument.
The exclusive remedy under this warranty is strictly limited to repair or replacement as
herein provided.
• Products damaged in transit, unless investigated by the shipper and returned to the
warrantor with the investigation report.
The manufacturer reserves the right to make changes in the design or construction of
any of its instruments at any time without incurring any obligation to make any changes
whatsoever on units previously purchased. This warranty is in lieu of all other expressed
warranties by the manufacturer. No representative or person is authorised to represent
or assume for the manufacturer any liability in connection with the sale or use of this
product other than as set forth above.
If your Amigo system requires service under the terms of this warranty, carefully package
the instrument to prevent damage in transit and return it to the point of
purchase. Include a detailed description of the problem, together with your full name,
billing and shipping address and telephone number.

28 29
The above warranty does not affect any legal rights that you might have under applicable
national legislation governing the sale of consumer goods. Your point of purchase may
have issued a warranty that goes beyond the clauses of this limited warranty. Please con-
sult your point of purchase for further information.
Oticon hereby declares that this Amigo is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC. A declaration of conformity is avail-
able from:
Oticon A/S
Kongebakken 9
DK-2765 Smørum
Denmark
www.oticon.com
Name:
Dispenser:
Date of purchase:
Warranty Period:
Amigo Transmitter serial number:
Amigo Receiver serial number:
Microphone:

30 31
Oticon A/S
Kongebakken 9
DK-2765 Smørum
Denmark
T5 ID: BRG-340T216
T5 IC: 1351C-8340T
R5 IC: 1351B-R5
N1175
0543
Waste from electronic
equipment must be
handled according to
local regulations.
124742 UK / 10.12 124742 UK / 10.12

0000124742000001
People First is our promise
to empower people
to communicate freely
interact naturally and
participate actively
It takes a truly dedicated approach to help children with hearing problems achieve
their full potential. That’s why we deliver the solutions and services that professionals
and caregivers need to provide children the opportunities they deserve. This is what
child-friendly hearing care is all about.
People First
