Service Manual
G-Shot P534
Version K01A

Service Manual G-Shot P534
Contents ………………………………...…………..2
1.Function Test ………………………………………3
2.Troubleshooting ……………………………………5
3.Disassemble Procedure ……………………………9
4.Firmware Update Procedure ………………….….12
5.Parts List ……………………………………...……13
6.Tools …..…………………………………….………18
Version: K01A 2

Service Manual G-Shot P534
1. Function Test
TOOL/EQUIPMENT
SD card*2, TV,AC adapter, lens-wiping paper
USB cable, flower, accessory, computer
OPERATION DESCRIPTION
ITEM OPERATION DESCRIPTION
1
Insert SD card and AA*2 batteries to power on. Confirm if the FW
version is correct. Enter capture mode and confirm if the battery status is
consistent with the actual status, and the memory displa
y
ed on LCD is SD
card icon.
2 Take one photo in auto mode and press playback button to confirm the
photo. There should not be any abnormity during capturing /saving/
playback process.
3
View towards far and near in capture mode respectively. Check if the
image on LCD is clear or the display is offset; check if the noise and bad
dots on LCD towards dark place accord with the spec. Check if LCD is
color abnormal or the brightness is normal;
4
1. Press W/T ( / ) to extend to Tele and go to digital zoom and
retract to W, confirm if lens flexing is normal. Take a piece of photo
towards flowers in Wide.
2. Press right button (self-timer mode) of four-way button,
TET-LCD should displays self-timer icon and time. Choose 2s to
take a photo towards flowers in forced flash mode .
5
Shift to P mode, left-upper of LCD displays Pmode. Press the menu.
button then select White balance and press OK button
to enter white balance menu. Press up/down to white
balance item. LCD color under different white balance mode should be
regular.
6
Shift to Portrait mode, the left-upper display icon. Press display
button (OK button), confirm if TFT-LCD can be turned on.
Shift to Landscape mode and take a photo towards far (more than
3m) in no flash mode .
Shift to Sport mode and the left-upper of LCD should displa
y
sport
icon.
7 Shift to Night mode and take a picture towards dark place in
red-eye mode . Camera must flash and the sequence of advance flash
and main flash should be obvious.
Version: K01A 3

Service Manual G-Shot P534
8
Take 30 pictures in forced flash mode and confirm if there are
abnormities, such as missing flash, hang on, power off automatically etc.
Switch to video mode and the left-upper on LCD should display .
Press shutter button to record more than 5s, using sound box to catch
sound.
9
Connect to TV and press playback button to enter playback mode to view
the pictures. There should not be NG pictures and the pictures should not
have color aberration. Select Movie document and press set button to
enter playback. The voice should not be abnormal or too low. Press wide
button and LCD displays nine-thumbnail image. Press four-wa
y
button to
select the picture. Press protect button to protect the photo. All the above
operations should be normal.
10
Switch to setup mode and select LCD brightness and press OK button to
enter the LCD brightness adjust menu. Press left and right button to
adjust the LCD brightness and confirm if the LCD brightness changes
regularly. Select format menu to format the internal memory of camera
and reset s
y
stem. After this, power off and confirm if the lens can retract.
*S1 : Press down halfway
S2 : Press down fully
Version: K01A 4

Service Manual G-Shot P534
2. Troubleshooting
Item NG point NGAnalyzing solution
Power on failure
(without current
reaction)
1>. Check if the MCU board and shutter
board flex board contact well
2>. Check if fuse F1 is broken
3>. Check if crystal Y3 is short-circuit,
cold solder or insufficient solder etc.
4>. Check if Powctrl related circuit is cold
solder, insufficient solder, short-circuit or
components broken etc.
5>. Check if pins of U11 are cold solder,
insufficient solder, poor solder or
short-circuit
Power on failure (with
current reaction) 1>. Check if MCU board and shutter board connecting flex board are offset or
contact bad
2>. Update FW with USB and confirm if
can power on camera
3>. Check if U10 is cold solder,
insufficient solder or poor solder
4>. Copy U10 again and confirm if can
power on camera
5>. Check if S3.3V is normal
6>. Check if inductor and audion on
power board are cold solder or
short-circuit
Power system
Without sound/sound
abnormal 1>. Check if the anode and cathode of buzzer are cold solder or broken
2>. Check if buzzer is OK
3>. Check if R15, Q5, R8, R113 are cold
solder, insufficient solder or broken
AC Adapter and
battery shift NG 1>. Check if power connector is cold solder, insufficient solder, short-circuit or
broken
2>. Check if D15 is broken by trigger or
short-circuit
Display and
image system TV display black and white image 1>. Check if TV connector and related components are cold solder, short-circuit
or connector NG
2>. Check if resistance, capacitor around
crystal Y2, Y3 are cold solder or
insufficient solder
3>. Change Y2, Y3 and confirm if the
image is normal
4>. Check U3 is cold solder, insufficient
solder or broken
Version: K01A 5

Service Manual G-Shot P534
TFT-LCD too dark 1>. Check if LCD body is OK
2>. Check if power supply, resistance and
U7 of LCD backlight circuit are OK
TFT-LCD image
unstable Check if golden finger of CCD FPC and connector contact well
TFT-LCD white image 1>. Check if LCD interface is inserted to
the bottom or the interface is cold
solder, root of LCD FPC is broken
2>. Check if each group of power +5VD,
+8.5VL, 3.3VD, -8.0VL of LCD are
normal
TFT-LCD display
menu without image 1>. Check if switch of shutter is normal. 2>. Check if CCD flex board assy well
3>. Check if output of CCD related
components is OK
4>. Check if each group of voltage of
CCD is OK
TFT-LCD color
aberration/ color
difference
1>. Check if CCD flex board is OK or
assy OK
2>. Check if soldering of CCD is
short-circuit, insufficient solder or cold
solder
3>. Check if capacitor C503, Q501 on
CCD flex board are OK
4>. Check if U1 is cold solder, insufficient
solder or broken
TFT-LCD no image
but TV displays
normally
1>. Check if TV connector is OK
2>. Check if VIDEO_DET is OK
TV no image but LCD
displays normally 1>. Check if AV connector and related components are OK
2>. Check if VIDEO_DET is OK
Triggering
system Capture failure 1>. Check if connectors TP45-TP50 if J401 are cold solder, insufficient solder,
short-circuit or wrong solder
2>. If (1) is normal, check if U401 and
related components and voltage are
normal
3>. If (1), (2) are normal, check if Q402
and T401 are normal
4>. If (1), (2), (3), check if D401,
R401~R406 and big capacitor are
normal
5>. If above are normal, check if
controlled pins of MCU board are
normal
Version: K01A 6

Service Manual G-Shot P534
Trigger failure/ miss
flashing/ flash only
once
1>. Check if tube is offset or assy
reversely, wires of tube are cold solder
or insufficient solder
2>. If (1) is normal, check if copper foil of
reflector contact well
3>. If (1), (2) are normal, check if big
capacitor is insufficient solder and
voltage is normal. If voltage is too low,
check if R401~R406 are normal
4>. If (1), (2), (3) are normal, check if
Q403 is trigger, cold solder or
insufficient solder, C505 is cold solder
or broken
5>. If (1), (2), (3), (4) are normal, check if
+5V voltage is normal
6>. If above items are normal, check
controlled pins on MCU board are
normal
Lens flexing issue 1>. Check if connecting board of lens is
NG, cold solder or insufficient solder
2>. If (1) is normal, check if R84, R87,
R89, R90 on MCU board are cold
solder or insufficient solder
3>. If (1), (2) are normal, check if CN1
and CN2 contact well
4>. If above items are normal, check if U8
and related circuit are cold solder or
insufficient solder
Aperture shift NG 1>. Check if lens connecting board
contact NG, cold solder or insufficient
solder
2>. If (1) is normal, check if R80, R81,
R82, R83, R85, R86 are cold solder or
insufficient solder
3>. If (1), (2) are normal, check if CN1
and CN2 contact well
4>. If above items are normal, check if U8
and related circuit are cold solder or
insufficient solder
Lens focus failure Check if lens and around components are
normal
Lens resolution issue 1>. Check if CCD is assy well
2>. Check if lens is broken. Change lens
Lens system
Lens noise 1>. Check if lens is broken. Change lens
2>. Check if lens around components are
cold solder or insufficient solder
Version: K01A 7

Service Manual G-Shot P534
USB connecting
failure or can not
search the disk
1>. Check if USB connector is OK
2>. Check if USB_DTC related circuit is
OK
3>. Confirm if ASIC and related circuit
are OK
Others
TV play/ no sound/
noise/ voice too low/
too high
1>. Check if AV connector and R315,
C181 are OK
2>. Check if wires of microphone are
solder well
3>. Check if microphone is OK
If change any PCB of DSC, the calibration is necessary.
Version: K01A 8

Service Manual G-Shot P534
3. Disassemble Procedures
Step Figure Discription Remark Tools

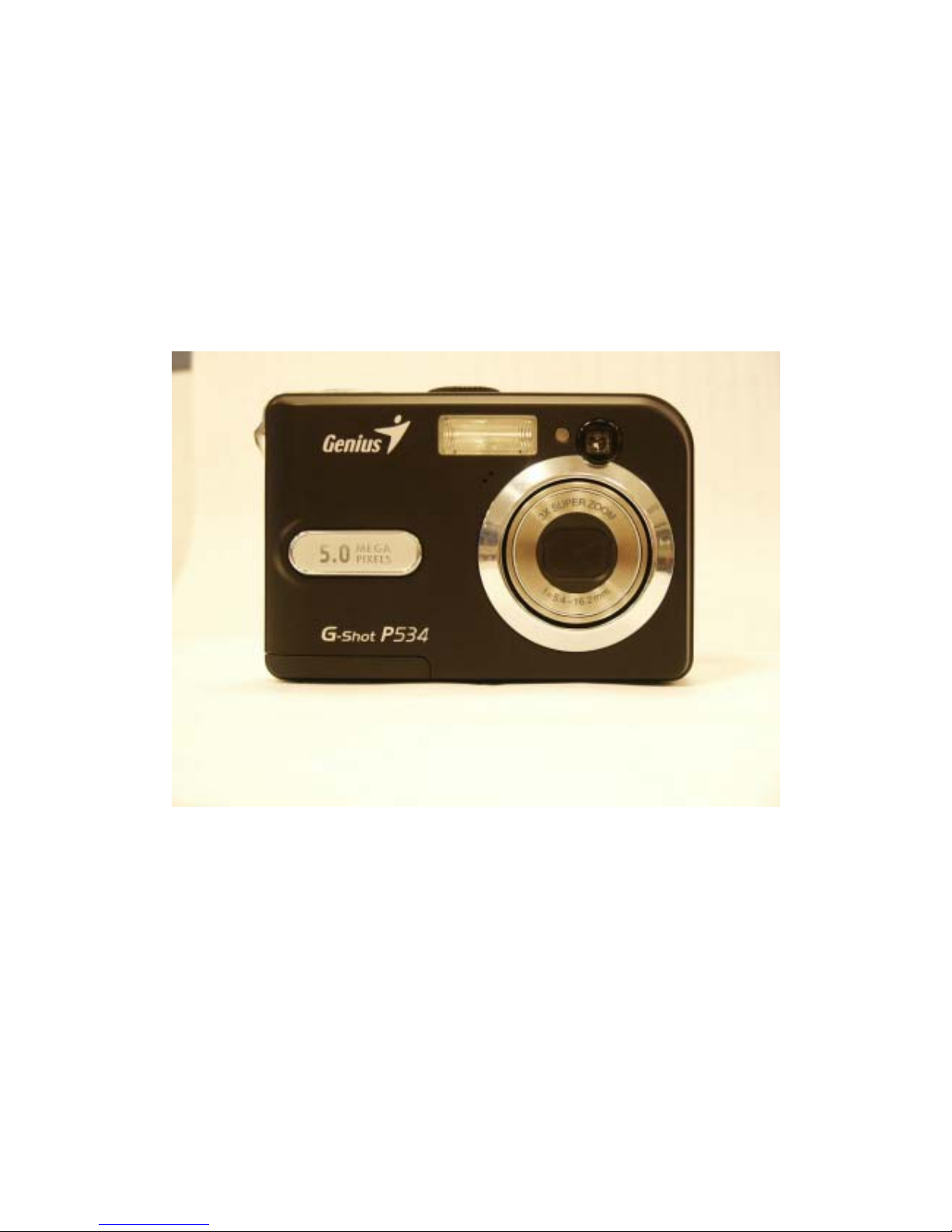

1Finished Product Examine if there's
any scratch on the
surface.
2Remove the Rear Cover
at the camera housing.
Do not scratch the
camera surface
while removing
Rear Cover .
Screw driver
3Remove the screws
from the camera as
shown. Screw driver
4Remove the Top Cover
at the camera housing.
Do not scratch the
camera surface
while removing
Top Cover.
5Remove the SW PCB
from MCU PCB ASY. Screw driver
6The soldering points are
as image shown.
7The soldering points are
as image shown.
8Desolder these soldered
joints by soldering iron. Soldering iron
Disassemble procedures
Version: K01A 9

Service Manual G-Shot P534

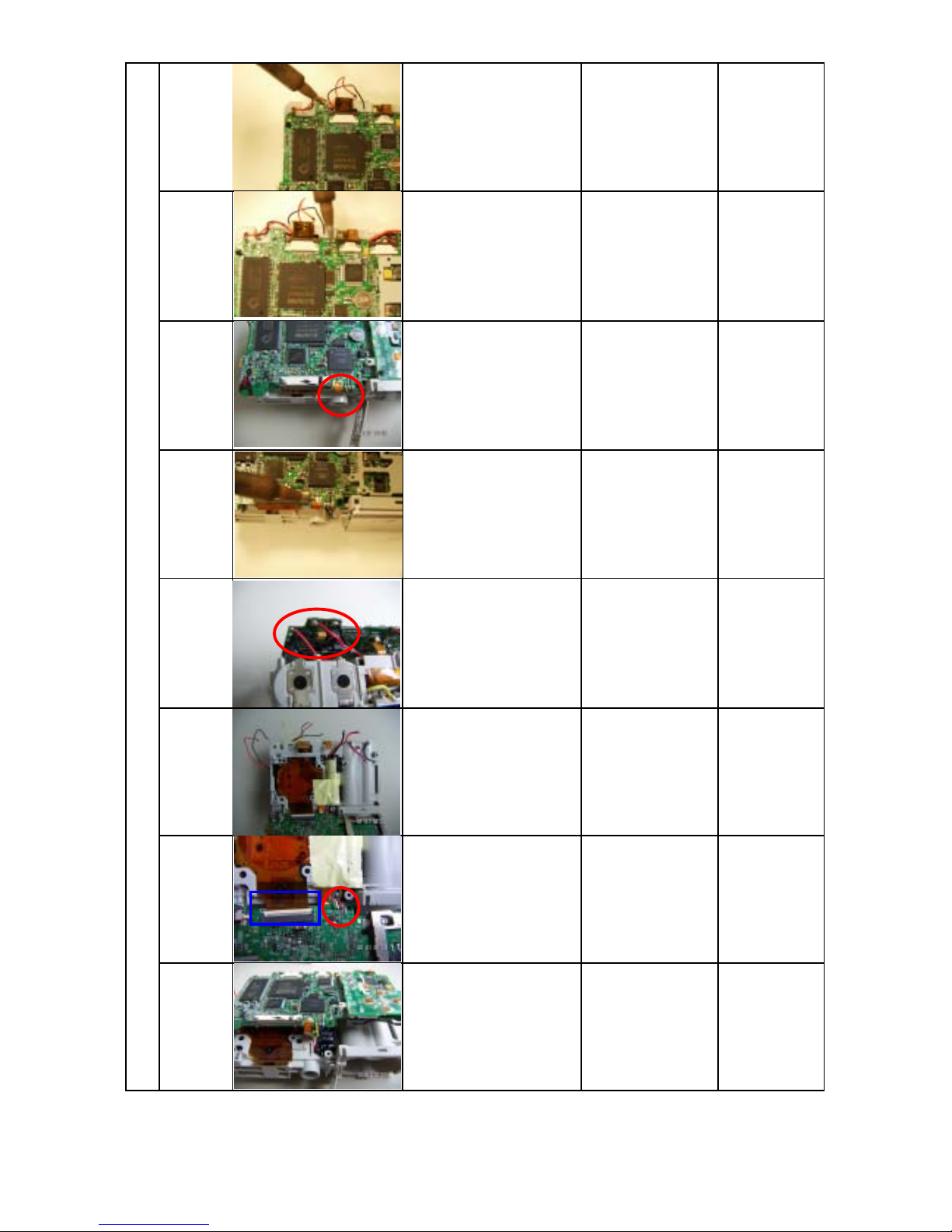

9Desolder the soldered
joints by soldering iron
as shown. Soldering iron
10 Desolder the soldered
joints by soldering iron
as shown.
Be careful not to
burn the wire. Soldering iron
11 The soldering points are
as image shown. Soldering iron
12 Desolder the soldered
joints by soldering iron
as shown. Soldering iron
13 The power wire and
soldered joints as
shown. Soldering iron
14 Disassemble the MCU
PCB ASY. Screw driver
15 The soldering points
and FPC connector are
as image shown.
16 Disconnect the FPC
connector from MCU
PCB. Tweezer
Version: K01A 10

Service Manual G-Shot P534
17 The Strobe PCB ASY
located at the camera
housing.
18 Disconnect the
connector form strobe
PCB ASY as shown. Tweezer
19 Remove the strobe PCB
and flash tube from
Main Frame. Screw driver

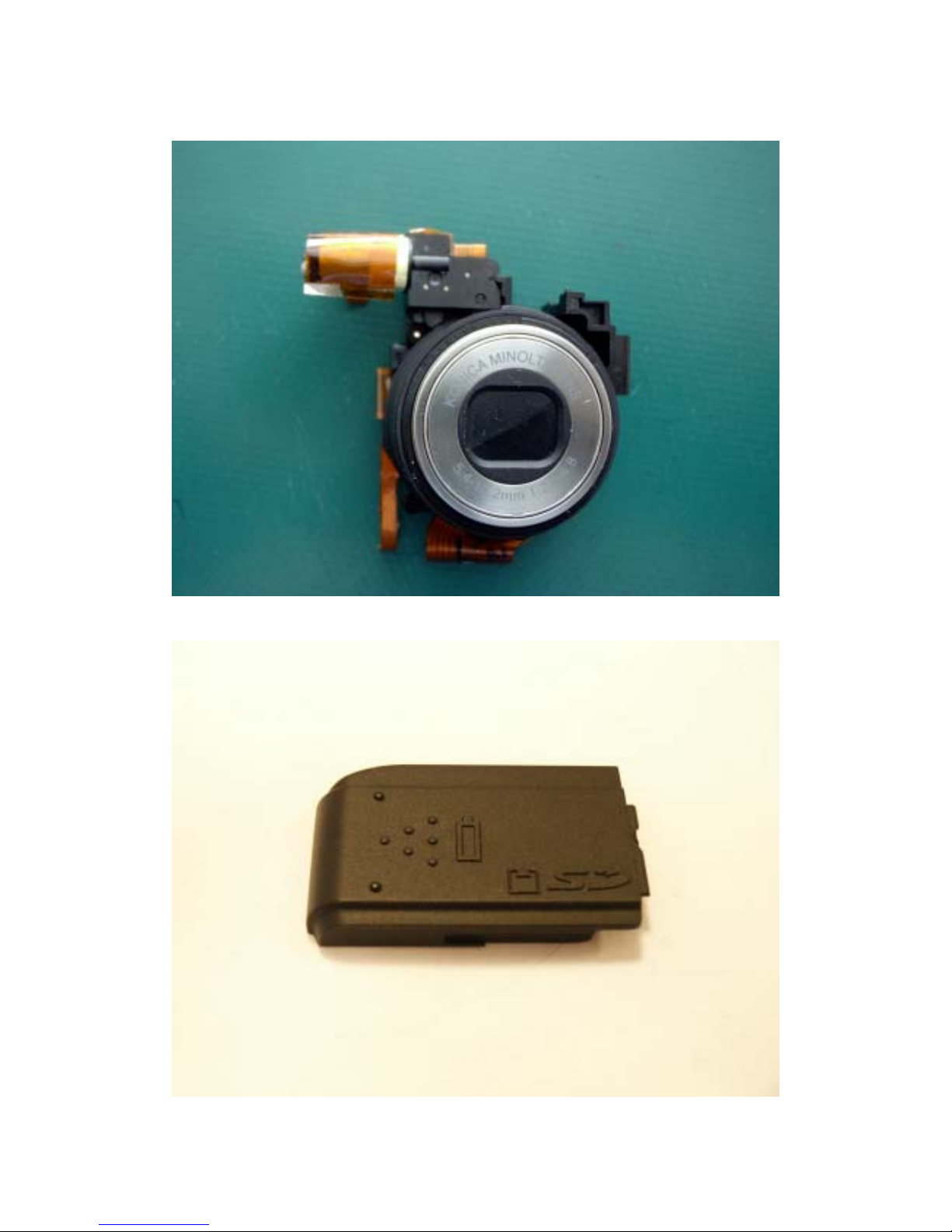

20 Remove the lens unit as
shown. Screw driver
Version: K01A 11

Service Manual G-Shot P534
Version: K01A 12
4. Firmware Update Procedure
To update this camera firmware, you will need to have
1. The new firmware file.
2. One SD card.
3. One card reader.
Please follow the steps below to perform the update process:
1. Prepare a formatted and empty SD card.
2. Insert a SD card to the card reader. Copy the firmware file (file name
should be "dc5345r.elf") into the SD card. Make sure the new firmware file
is copied to the SD card.
3. Insert the SD card into the camera.
4. Plug in the AC adapter into the camera.
5. Press "Shutter" & "Playback" button at the same time and press “Power”
button, then loosen “Power” button, LCD will display the image and loose the
“Shutter”, “Playback “ button. At this time camera enters update process
automatically and LED blinks.
6. When LED stops blinking, LCD will display the “OK” ,it means update ok.
7. Reformat the SD card if you want to use it again.
Note: Don’t remove the power source during firmware update procedures.
.

Service Manual G-Shot P534
5. Part List (G-Shot P534)
Item Parts Name Pcs / set Premier P/N Remark
1 Front CoverASY 1 9Q344-2001
2 Rear CoverASY 1 9Q344-3001
3 Lens Module ASY 1 9Q346-6000
4 Battery Cover 1 9Q334-460A-99
5 MCU PCB ASY 1 9Q347-0100
6 Strobe PCB ASY 1 9Q347-4100
7 Switch-2 PCB ASY 1 9Q347-3101
8 LCD 1 02092-0016-01
Version: K01A 13

Service Manual G-Shot P534
1. Front CoverASY
2. Rear CoverASY
Version: K01A 14

Service Manual G-Shot P534
3. Lens Module ASY
4. Battery Cover
Version: K01A 15

Service Manual G-Shot P534
5. MCU PCB ASY
6. Strobe PCBASY
Version: K01A 16

Service Manual G-Shot P534

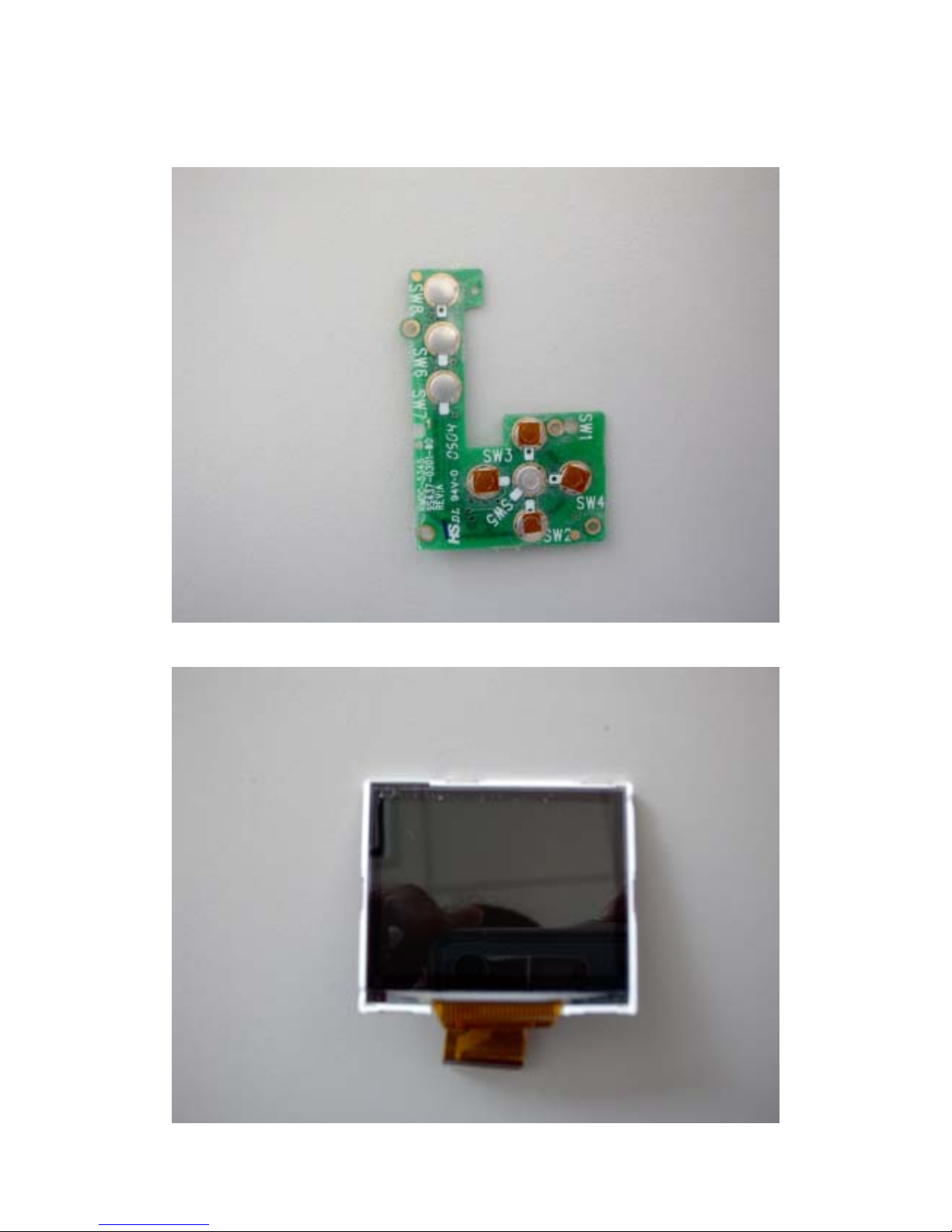

7. Switch-2 PCBASY
8. LCD
Version: K01A 17

Service Manual G-Shot P534
6. Tool
Item Description Mark
1 Screw Driver (2.0m/m)
2 Tweezers
3 Soldering iron
1. Screw Driver
Version: K01A 18

Service Manual G-Shot P534

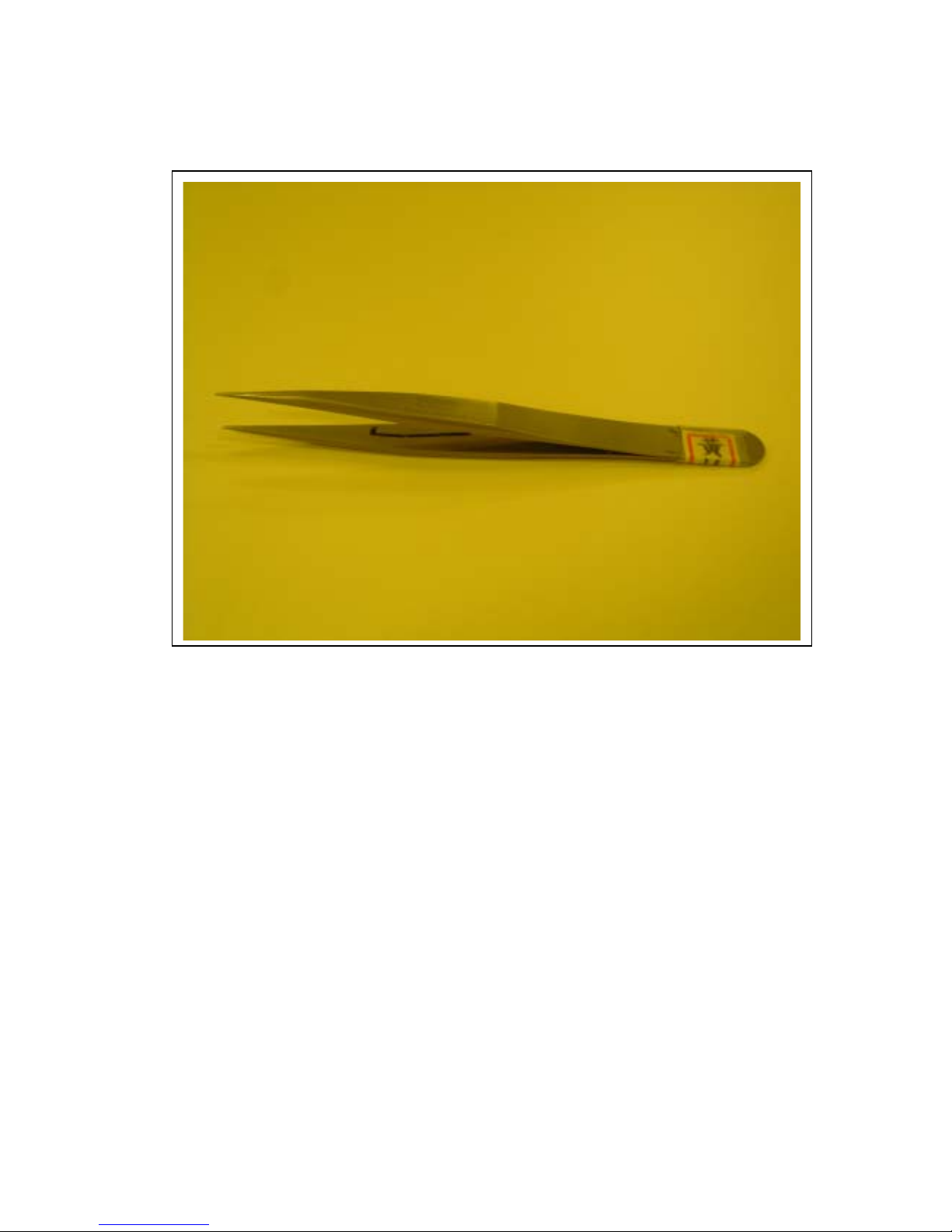

2. Tweezers
Version: K01A 19

Service Manual G-Shot P534
Version: K01A 20

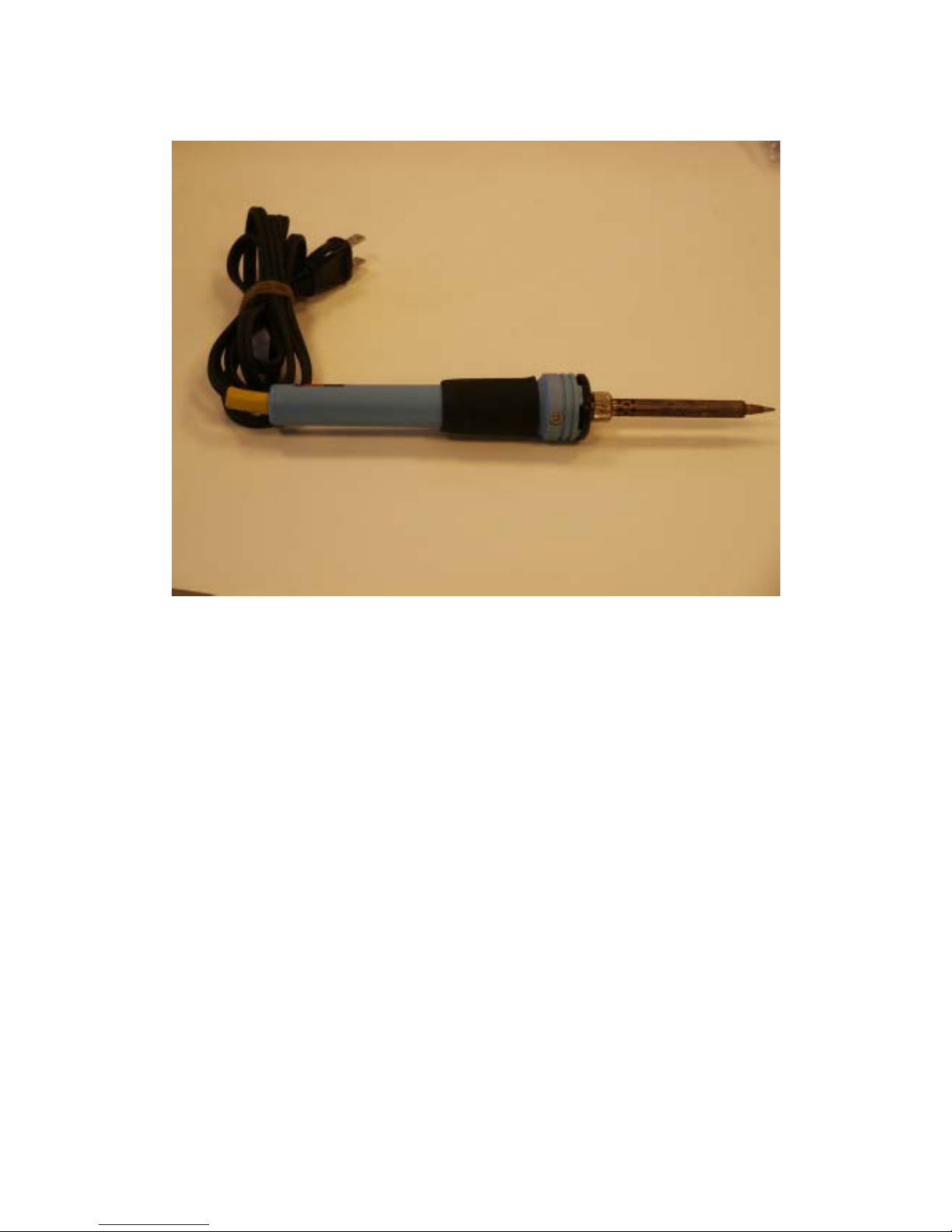

3. Soldering iron
