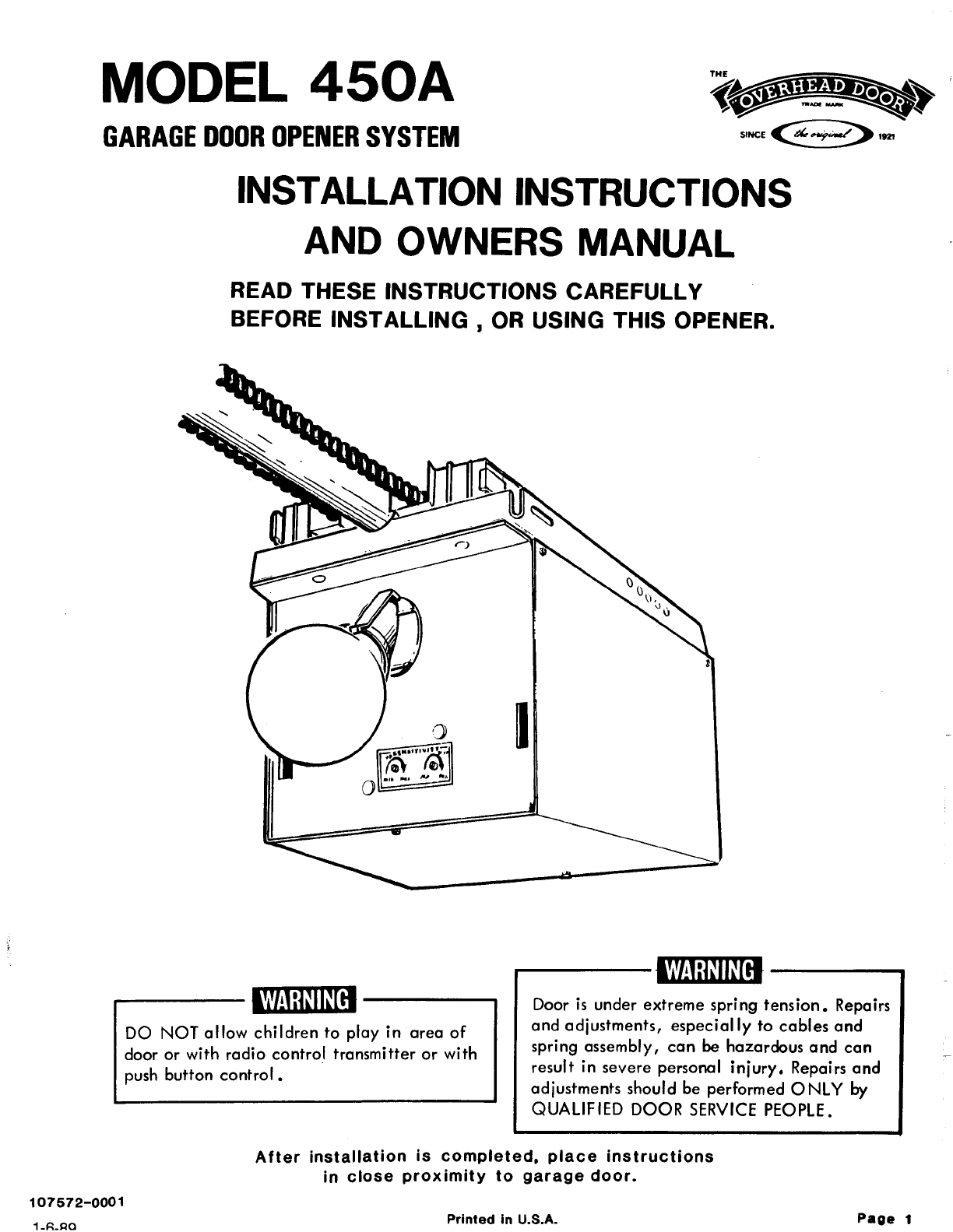

Overhead door 450A Quick start guide

MODEL 450A
GARAGE DOOR OPENER SYSTEM
~~~···-.~~
~(·~
~~ ~ ~~
SINCE~1921
INSTALLATION INSTRUCTIONS
AND OWNERS MANUAL
READ THESE INSTRUCTIONS CAREFULLY
BEFORE INSTALLING ,
OR USING THIS OPENER.
------ fll~i1:11:01------
DO NOT allow children to play in area of
door or with radio control transmitter or with
push
button control.
-----1\'M;Hll:Ctf -----
Door is under extreme spring tension. Repairs
and adjustments, especially to cables and
spring assembly, can be hazardous and can
result in severe personal injury. Repairs and
adjustments should be performed ONLY by
QUALIFIED DOOR SERVICE PEOPLE.
After installation is completed. place instructions
in close proximity to garage door.
107572-0001
1.i:u:~a
Printed in U.S.A.
Page 1

TABLE OF CONTENTS
HOW TO USE THIS BOOK _______ 2
TOOLS NEEDED 2
GENERAL NOTES 3
ASSEMBLY DRAWING ________ 4
INSTALLATION INSTRUCTIONS 4-11
WIRING 12-14
OPERATION AND ADJUSTMENT 16-16
TROUBLE SHOOTING GUIDE 17

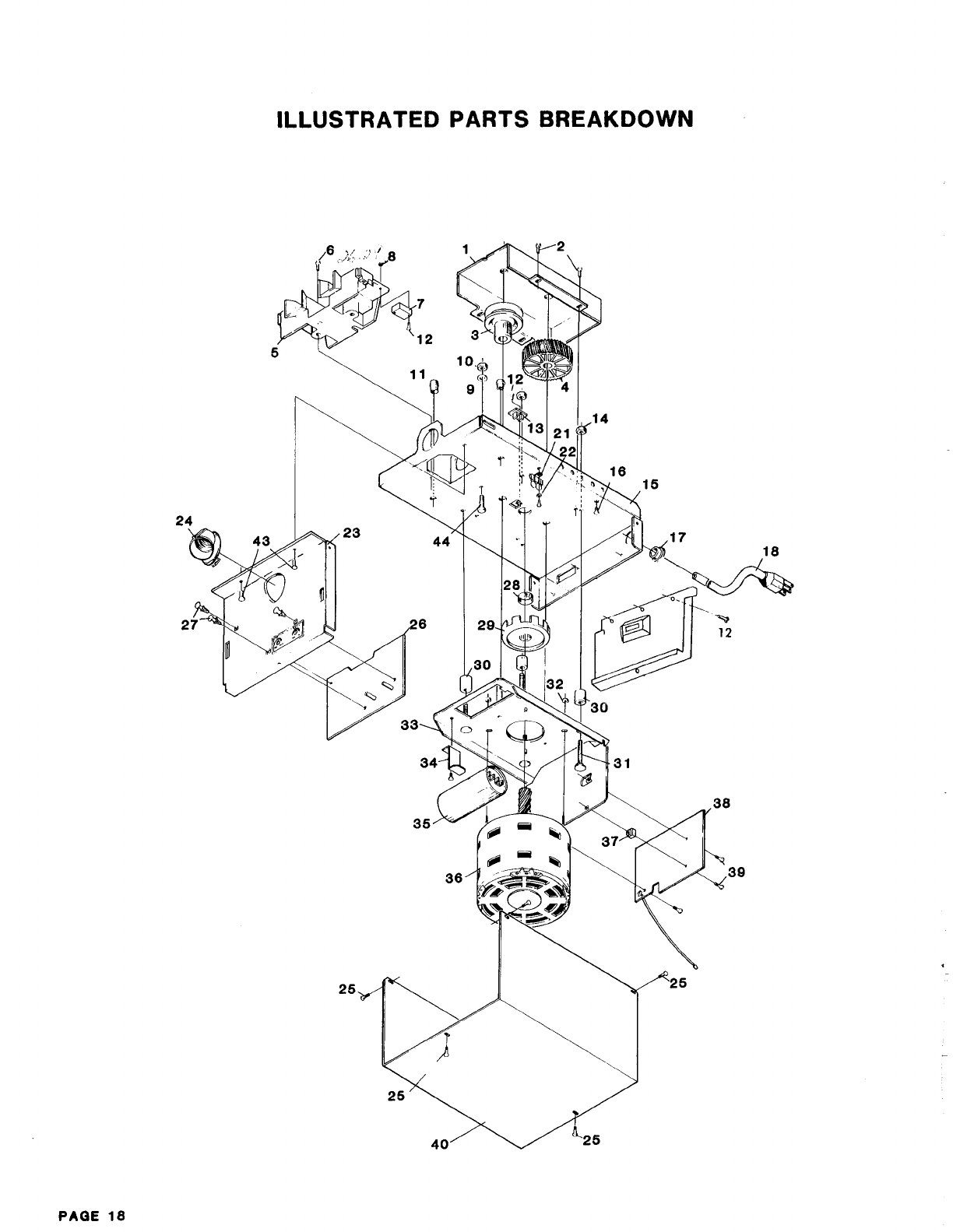

ILLUSTRATED PARTS BREAKDOWN ___ 18
PARTS LIST 19
PARTS AND SERVICE -------- 19

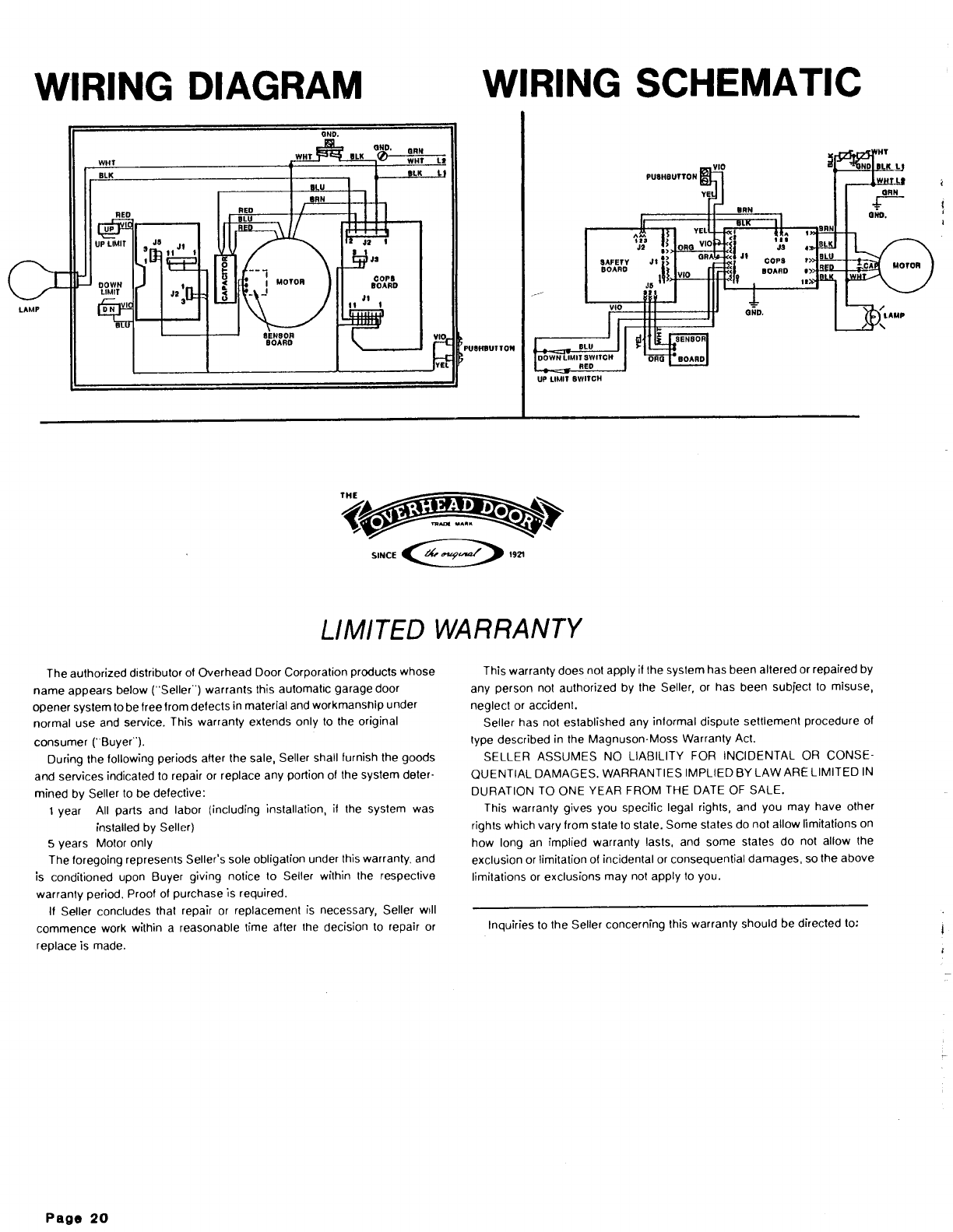

WIRING DIAGRAM 20
WIRING SCHEMATIC 20
WARRANTY------------ 20
READ THROUGH MANUAL
BEFORE BEGINNING ASSEMBLY.
TOOLS NEEDED
HOW TO USE l'HIS BOOK
1. Use tools indicated by silhouettes
at top of instruction.
2. Perfonn the instruction according
to
the words and iI lustration.
3. Put a check in box after completion
of instruction.
Proceed to next
step.
Secure header bracket to header.
Q)JIDTI11111}11)
1/4 x 1-3/4
LAG SCREW
HEADER
HEADER
BRACKET
I
CENTER LINE ---<?
OF DOOR
CEILING
7/16 WRENCH
You will need the tools shown below to assemble and install this opener•
ELECTRIC DRILL
5/32 BIT
1 /4 BIT
1/8 BIT(METAL DOORS)
~ : 0
CARPENTER
A
LEVEL
STEP LADDER
6'-o"
r .. __ _...[\HACK SAW
~s ••• .,. ADJUSTABLE
... END WRENCH
Page 2
NEEDLE NOSE
PLIERS
0
END WRENCH
7/16 & 9/16
SLOTTED
SCREWDRIVER
WIRE
CUTTERS
........... NUTDRIVER
1/4
PHILLIPS
SCREWDRIVER
•
•
•
•
•
TAPE MEASURE
STRAIGHT EDGE
PENCIL
POCKET KNIFE
OR
WIRE STRIPPERS
BELL WIRE

GENERAL INSTALLATION NOTES
Preparing Door for Opener
The following procedures must be performed before opener can be installed. Failure to com-
plete the following procedures can cause opener failure and/or hazardous conditions which
could cause personal injury.
1. Check working condition of door. Door should operate freely without sticking or bind-
ing, and should not have to be held up or down. Lubricate door rollers and hinges with
SAE 30 wt • oiI•
2. If any part of the door is worn or broken, call a qualified door service person to repair
it before the opener is installed.
WARNING
Door is under extreme spring tension. Repairs and adjustments, especially to
cables and spring assembly, can be hazardous and can result in severe personal
injury. Repairs and adjustments should be performed only by qualified door
service people.
3. If door is equipped with a locking device, make it inoperative by permanently securing
the locking bar in an unlocked position.
CAUTION
CAUTION
Remove any lift or pull rope to avoid
entrapment by rope when the door is
opened.
It is recommended that the top section
of door be strutted on doors 16 feet
wide or larger.
CAUTION
This opener cannot be installed on garage
doors where the headroom is less than 1-3/4".
Headroom is the distance between the ceiling
and the high arc of the door's travel.
WARNING
This opener is not designed for use
with
one piece doors.
CAUTION
Opener must be properly grounded
to prevent personal injury and
damage to opener components.
HEADE A
t
-314" MIN.
HEADROOM
CEILING
... -HIGH ARC Of
... DOOR TRAVEL
CAUTION
DO NOT USE lighted-type pushbutton.
See troubleshooting chart, page 17.
WARNING
DO NOT CONNECT ELECTRICAL
POWER TO UNIT UNTI.. INSTRUC-
TED TO DO SO.
IMPORTANT
For proper and safe use of the installed opener, carefully read the
the
Owners Information beginning on Page 15.
Page 3

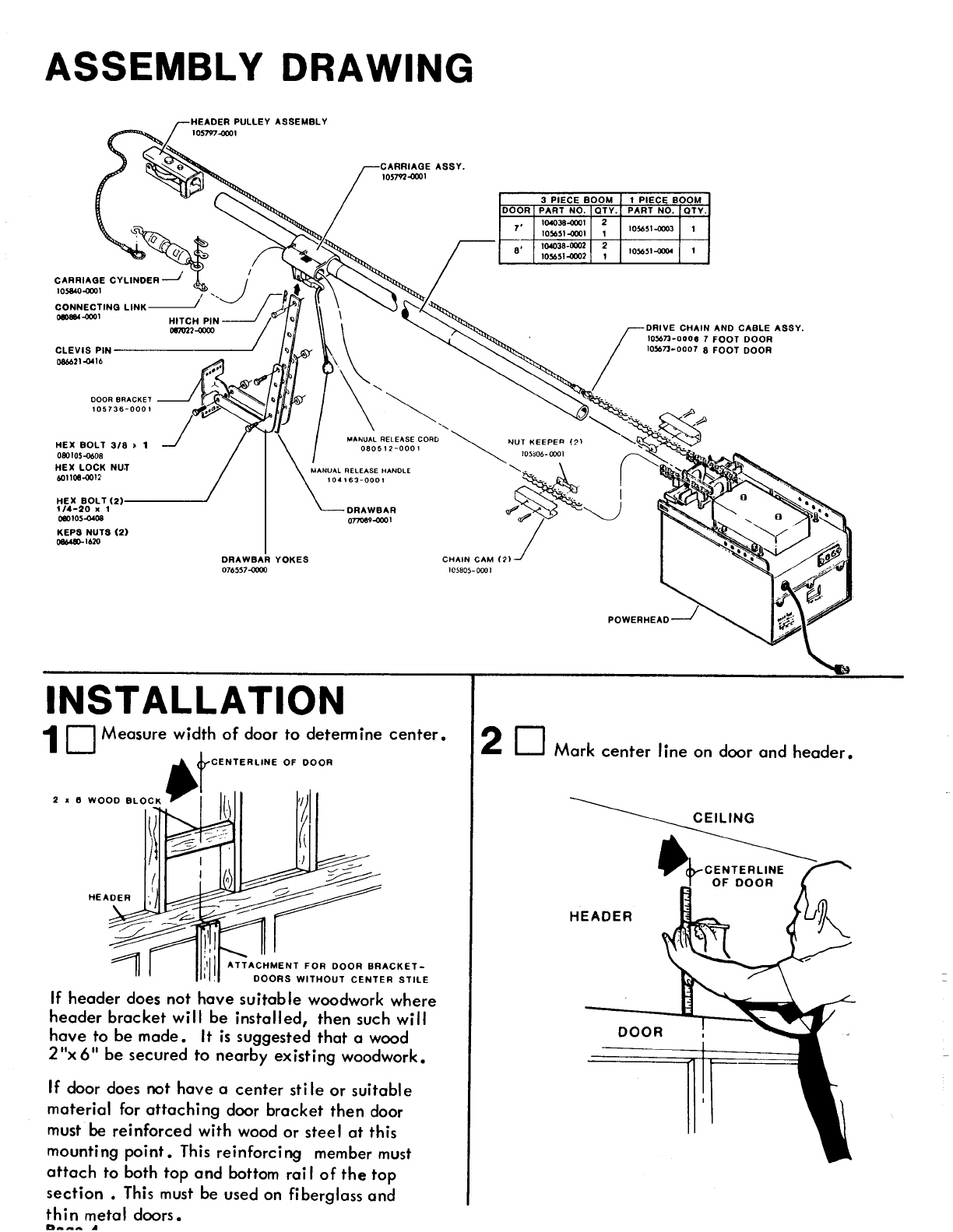

ASSEMBLY ORAWING
CARRIAGE CYLINDER__/
OIOllM--0001
CLEVIS PIN--------~
0866214116
DOOR BRACKET
105736-0001
HEX BOLT 318 > 1
080105--0608
HEX LOCK NUJ
601108--0012
HEX BOLT (2)-----J
114-20. 1
0801054108
KEPS NUTS (2)
086480-1620
DRAWBAR YOKES
076557.0000
INSTALLATION
DRAWBAR
077089--0001
1DMeasure width of door to determine center •
.. tCENTERLINE OF DOOR
2 • 11 WOOD BLOCK ,, ll\ 'ii
~
ATTACHMENT FOR DOOR BRACKET-
DOORS WITHOUT CENTER STILE
If header does not have suitable woodwork where
header bracket will be installed, then such will
have to be made. It is suggested that a wood
2"x
6" be secured to nearby existing woodwork.
If door does not hove a center stile or suitable
material for attaching door bracket then door
must
be reinforced with wood or steel at this
mounting point. This reinforcing member must
attach to both top and bottom roi I of the top
section • This must be used on fiberglass and
thin metal doors.
n--- ..
105805-000 I
3 PIECE BOOM 1 PIECE BOOM
DOOR PART NO. QTY. PART NO.
QTY.
7• 10<038--0001 2 1-0003
105651--0001 10565
10<038-0002 2 105651-000<
105651--0002
/
DRIVE CHAIN AND
CABLE ASSY.
105673-oooe 7 FOOT DOOR
105673-0007 8 FOOT DOOR
2 D Mark center line on door and header.
HEADER
DOOR

INSTALLATION
30
,.., : 0
Raise door until top section reaches its highest
arc
of travel. Mark header on center line at
point where level touches header.
DOOR
OPENING
CARPENTERS LEVEL
HIGH ARC OF
DOOR TRAVEL
DOOR TRACK
DOOR SECTIONS
IT IS RECOMMENDED THAT OPENER
BE MOUNTED A MINIMUM OF 7 FEET
ABOVE FLOOR.

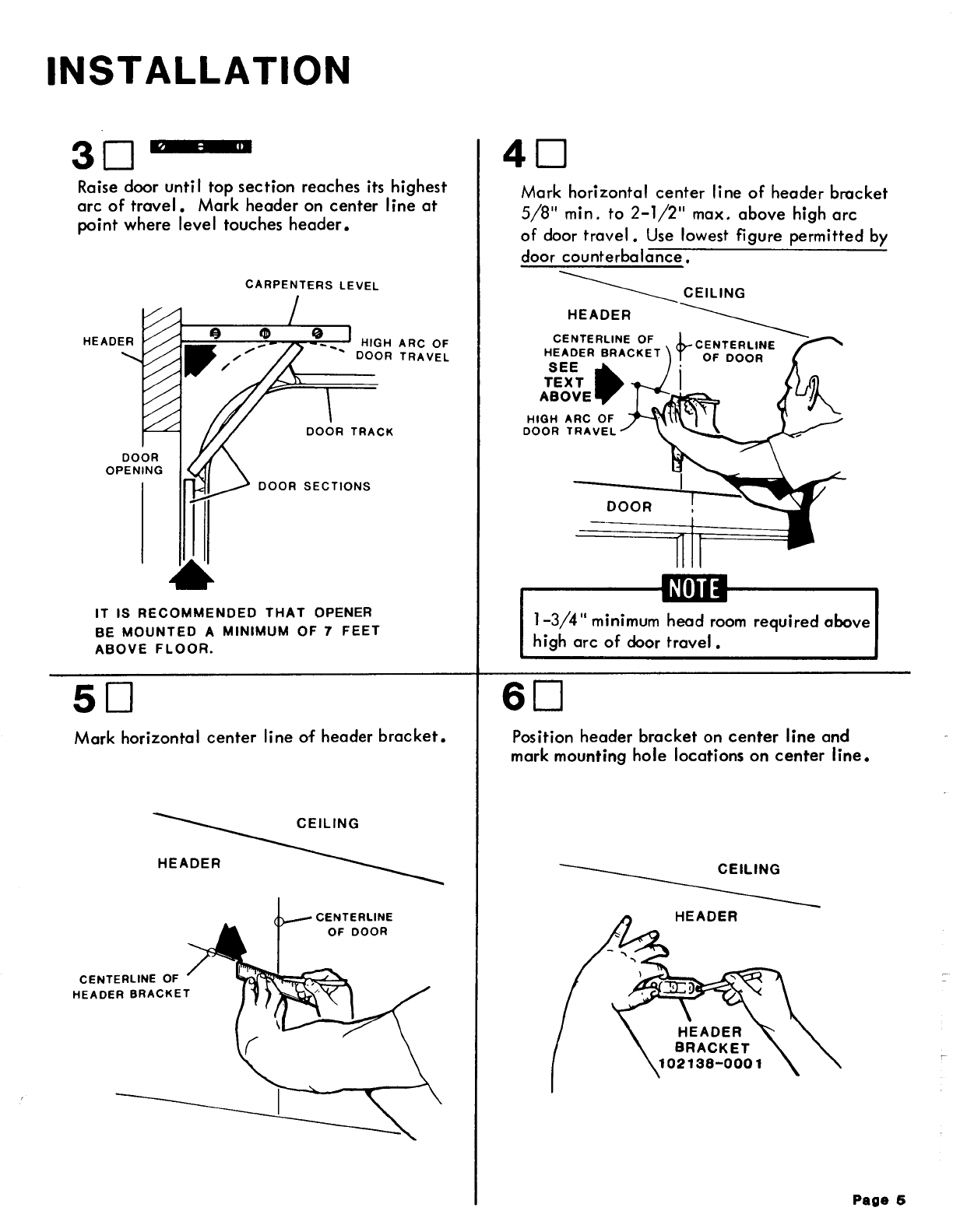

50
Mark horizontal center line of header bracket.
HEADER
CENTERLINE OF
HEADER BRACKET
CEILING
CENTERLINE
OF DOOR
40
Mark horizontal center line of header bracket
5/8" min. to 2-1/2" max. above high arc
of door travel. Use lowest figure permitted by
door
counterbalance.
------------ CEILING
HEADER ~
CENTERLINE OF L CENTERLINE
HEADER BRACKET 'f OF DOOR
SEE.
TEXT
ABOVE
HIGH ARC OF
DOOR TRAVEL
DOOR
1-3/4" minimum head room required above
high arc
of door travel.
60
Position header bracket on center line and
mark mounting hole locations on
center line.
CEILING
HEADER
Page 5

INSTALLATION
70 ,...-
Dri 11 5/32
11
diameter holes at marked locations.
CEILING
HEADER
CENTER LINE OF
HEADER
BRACKE.! \\\
,,r
CENTER LINE I
OF DOOR
'
DOOR 11: I
9DA
EXTENSION SPRING DOOR
Rest header end of boom on top edge of top door
section and powerhead on top of step ladder.
OR
Page 6
aD , o 7/16
Secure header bracket to header.
@Jl1IDIDIDJ1)
1/4 x 1-3/4
LAG SCREW
HEADER
1/4 x 1-3/4 --~_J
LAG SCREWS
HEADER
BRACKET
I
CENTER LINE --J
OF DOOR
CEILING
TORSION SPRING DOOR
Rest header end of boom on torsion spring
and powerhead on top
of step ladder.

INSTALLATION
100~~-mn

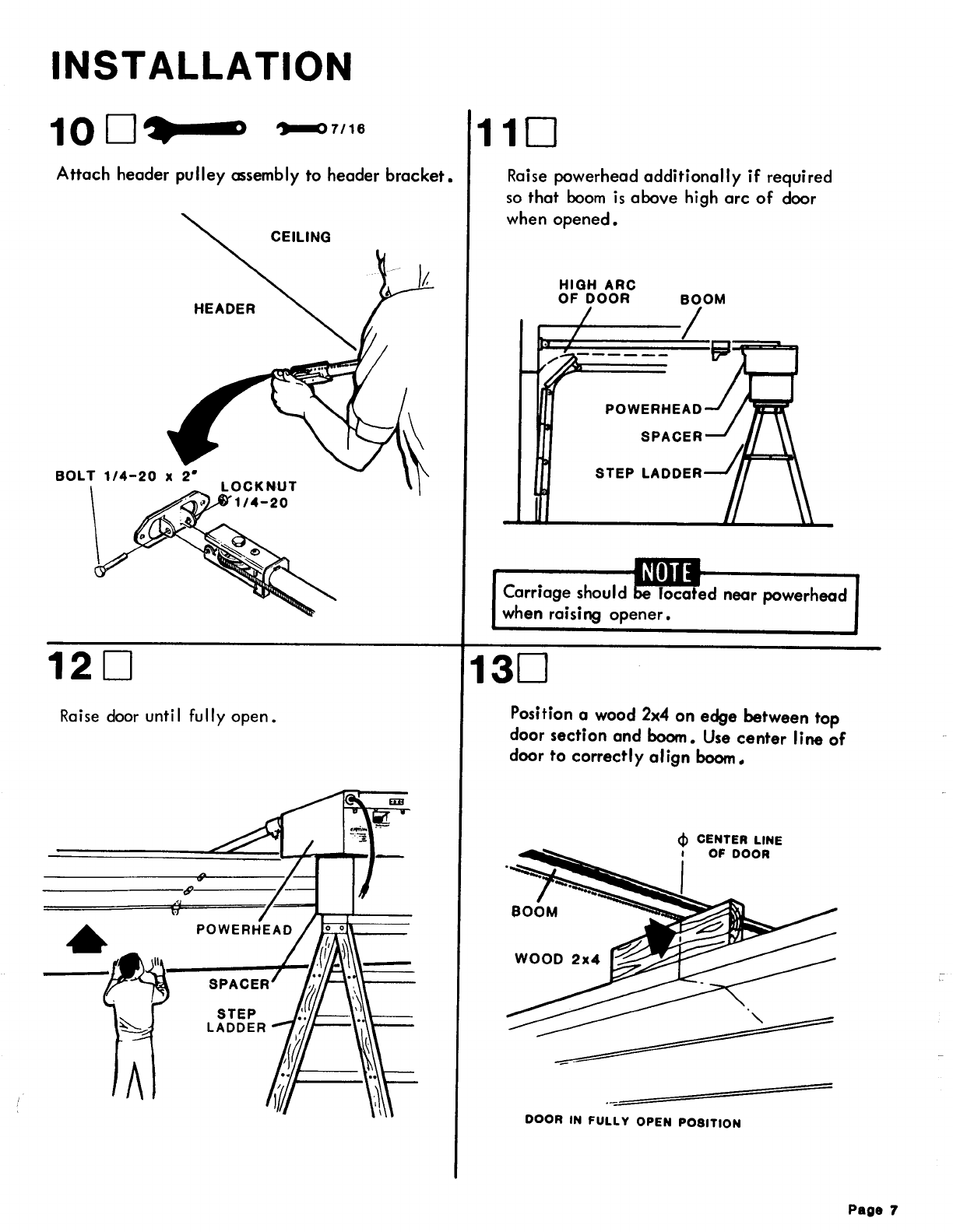

Attach header pulley assembly to header bracket.
CEILING
BOLT 1 /4-20 x 2•
\
120
Raise door until fully open.
STEP
LADDER
110
Raise powerhead additionally if required
so that boom is above high arc of door
when
opened.
HIGH ARC
OF DOOR
POWERHEAD
Carriage should located near powerhead
when raising
opener.
130
Position a wood 2x4 on edge between top
door section and
boom. Use center line of
door to correctly align boom.
<!> CENTER LINE
OF
DOOR
DOOR IN FULLY OPEN POSITION
Page 7

INSTALLATION
140 c L\ r
l . Shown are examples of various installation configurations. Determine the configuration which
best suits your
requirements.
2. If necessary, span ceiling ·1oists with wood 2 x 4's sufficient enough to support opener.
3. Hold ceiling mounting ang e in mounting position. Using holes in angle as a guide, dri 11
5/32" diameter pilot holes in ceiling joists or 2 x 4 framing.
4. Using 1/4
11
x 1-3/4
11
lag screws, secure ceiling mounting angle to ceiling joists or 2 x 4 framing.
5. Notch opener end of vertical angles (Detail A).
6. Using 1/4
11
-20 x 1/2
11
hex head bolts and lock nuts, secure angle brackets to opener.
7. Using 1/4"- 20 x 1/2
11
hex head bolts and lock nuts, secure vertical mounting angles to ceiling
angle. Vertical angles may be bent at notch if necessary (Detail B).
IT IS RECOMMENDED THAT OPENER BE MOUNTED
A MINIMUM OF 7 FEET ABOVE FLOOR .
LENGTHWISE CEILING JOISTS
CEILING JOIST
OFF-CENTER
CEILING JOIST
FINISHED CEILING
30"
SWAY BRACE
FRONT VIEW
LENGTHWISE CEILING JOISTS
ON CENTER
------- 24''- ------
30"
LENGTH AS
REQUIRED
FINISHED CEILING
SWAY BRACE
FRONT VIEW
Page 8
NOTCH ANGLE
WITH HACKSAW
CUT LINE
DETAIL A
OPENER
DETAIL B

INSTALLATION
CROSSWISE CEILING JOISTS
2x4
CEILING JOIST
<.~-
CJ.
0
USE FRONT SLOT
FOR BRACING ONLY
LENGTH AS
REQUIRED
FINISHED CEILING
CROSSWISE CEILING JOISTS
HIGH CEILING
~---
20"
C5 .
• r:::-:i a
USE HOLES FOR
MAIN SUPPORT
rCEILING JOIST
FINISHED CEILING
SWAY BRACE

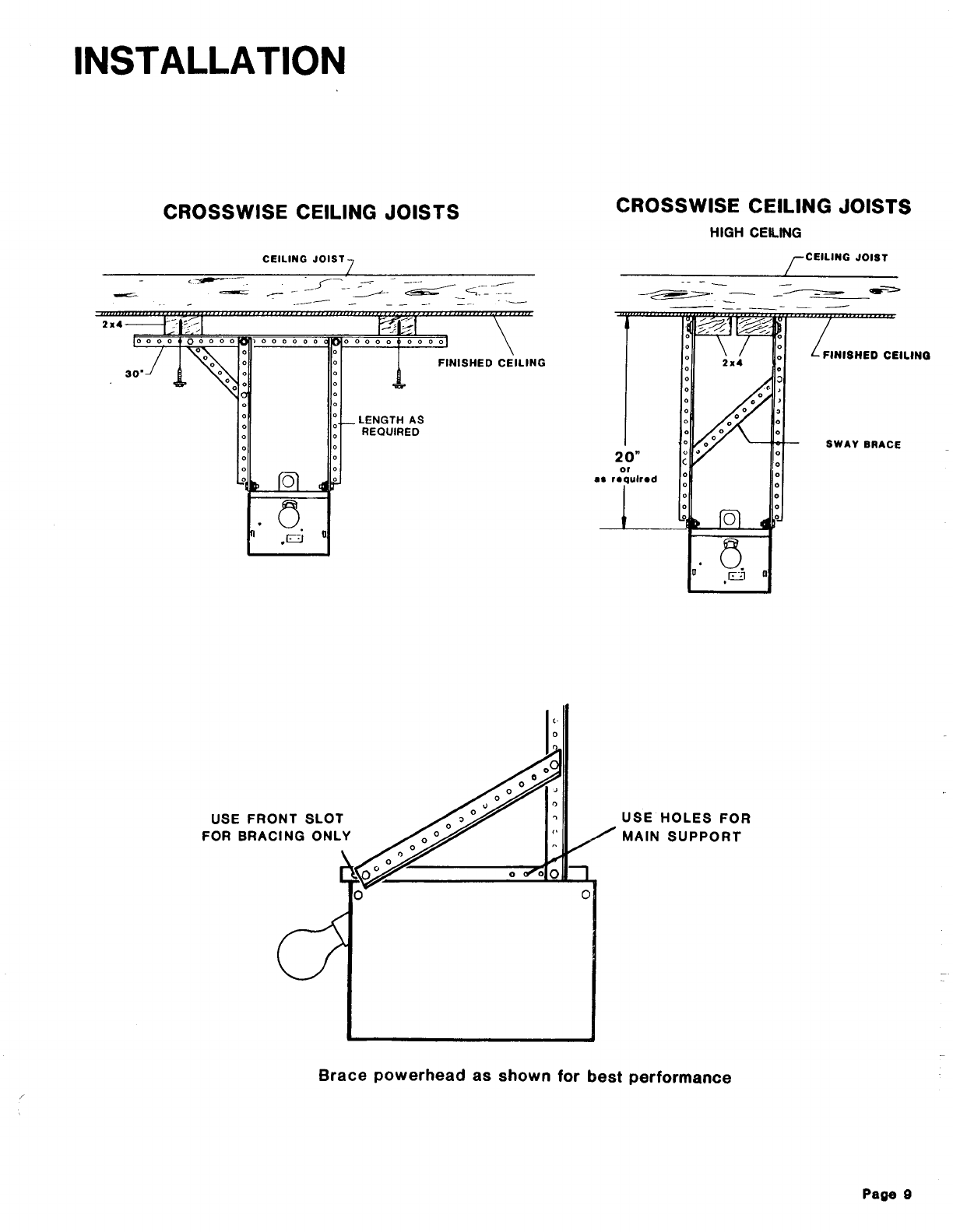

Brace powerhead as shown for best performance
Page 9

INSTALLATION
150
Plug opener cord into outlet and run carriage
toward door using radio transmitter for control •
Connect drawbar to carriage using clevis pin
and hitch pin. Route pull cord through manual
release lever on carriage and locate manual
release handle approximately 6 feet above
floor.
MANUAL
RELEASE LEVER
~
MANUAL RELEASE
HANDLE
DRAWBAR
077089-0001
Position door bracket against door to check
drawbar angle. Drawbar should be at slight
angle from door (as shown). If necessary re-
adjust down limit switch {see page 14) to obtain
correct draw bar position. Door bracket
pivot hole should be in line with top fixture
rol I
er. If necessary remove yoke bolts and
readjust. Secure yoke bolts to drawbar.
If door strut interferes with mounting of
door bracket, move bracket below strut.
DO NOT CUT OR MODIFY STRUT IN
ANY WAY. Refer to page 11 for attach-
ment of drawbar.
Page 10
Attach yokes to door bracket. Tighten
locknut but do not compress yokes to bracket.
Yokes MUST move freely. Temporarily bolt
yokes to drawbar to permit check on carriage
location.
DOOR
BRACKET
105736-0001
3/8 I
LOCKNUT
, ..
\
DOOR BRACKET
TOP RAIL
TOP DOOR
SECTION
CENTER
STILE
3/8-16 x 3/4
BOLT
~
1/4 NUTS (2)
APPROX.
0"-3/8''
MANUAL
RELEASE
LEVER

INSTALLATION
1aor
The illustrations below depict installation of door bracket, P/N 105376-0001, on 3 types
of doors. lnstal I bracket in the appropriate manner according to door type.
WOOD DOORS
STEEL DOORS
FIBERGLASS DOORS
CARRIAGE
TOP RAIL
holes thru door.
CENTER LINE
OF DOOR
I
CENTER STILE
OR
REINFORCING
BRACKET
0 ,.,)
1/4-20 x 2-1/4"
CARRIAGE
BOLTS
1. With door bracket
and yokes
attached to
drawbar, swing assembly
into place against door.
2. Mark mounting hole
locations. Refer to wood,
steel, or fiberglass door
details
above.
3. Drill appropriate size
mounting holes.
4, Attach door bracket
to door using appropriate
hardware.
190
CHECKLIST
Header bracket secure.
~
"'8-32 a 3/4"
SELF EXTRUDING
SCREW
STEP 1
DOOR
BRACKET
CENTER
STILE
STEP 3
TOP RAIL
D
D Door
bracket-yoke pivot bolt secure,
but not too
tight.
D
D
Header pulley assembly pivot bolt secure
but not too tight.
Hanging bracket bolts tight.
in SI ile,
CENTER LINE
OF DOOR
I
CENTER STILE PLACE BRACKET
OR AGAINST RIVET
REINFORCING
BRACKET ~· }........... CUT OFF TABS TO
~ FIT BRACKET INSIDE
+8-32 x 3/4" ..,._. "-)/EXTRUDED CHANNEL
SELF- EX TRUOING . ~
SCREW . '
STEP 2
ORAWBAR
YOKES
D
D
D
D
STEP 4
ODOR
BRACKET
CENTER
STILE
Drawbar to yoke bolts tight.
Drive chain-cable is tight (tensioned
correctly).
Carriage engagement cylinder is
engaged with carriage.
Make fine adjustments on "UP" limit
switch (See page
14).
Paa• 11

WIRING
200
Separate end of push button wire. Carefully
cut insulation around
wire. Do NOT cut
wire • Remove
insulation.
Wire strippers are recommended for re-
moving wire insulation.
Use only wire supplied with the opener
or wire of same type and gauge.
220
Route push button wire from powerhead along
ceiling to garage entrance door. Staple wire
as necessary to prevent entanglement or
contact with moving objects.
CAUTION
Be careful not to pierce wire insulaton
with staples.
Shape wire leads like a hook, and
connect leads to push button tenninals.
Page 12
210
Shape wire leads like a hook, and
connect leads to opener terminals •
230--_,.,
Install push button on wall near garage
entrance door approximately six (6) feet
from floor.
PUSHBUTTON OPERATION
.. ........ "'""" .. 11-.10..-•·····••1C•"1"
OIO II\ "h••r •••-d" ., """'r c .... ,,• ., .. 11-.>
P•110 P~lllhllll> I 1-..
IC>M< •• -•• w. _,,,, ... 9(:1->.
11 ... ~ ........... , ... "''' ................. .
-,...,. ,..,.... •ultr ~"-· •-"• UJw•IU. ,,..
"•1111•ou1tuc111"•·0•••••••"'"c""•'•"''
llU'""'' •••• '''"' '"''· ••• "''"wc•-
•11>u1111r p111>., ••1<UOOA. NOfl·. h 1110cll
l"•lll'llOrl•o•lh11f11r.t•UP0..01-11
PUSH BUTTON
OPERATION DECAL
106913-0001
I
APPROX. 6' -0"
FLOOR
CAUTION
Button MUST be installed
out of reach of children.
Peel backing off
11
PUSHBUTTON OPERATION
11
decal and attach to wall near pushbutton.

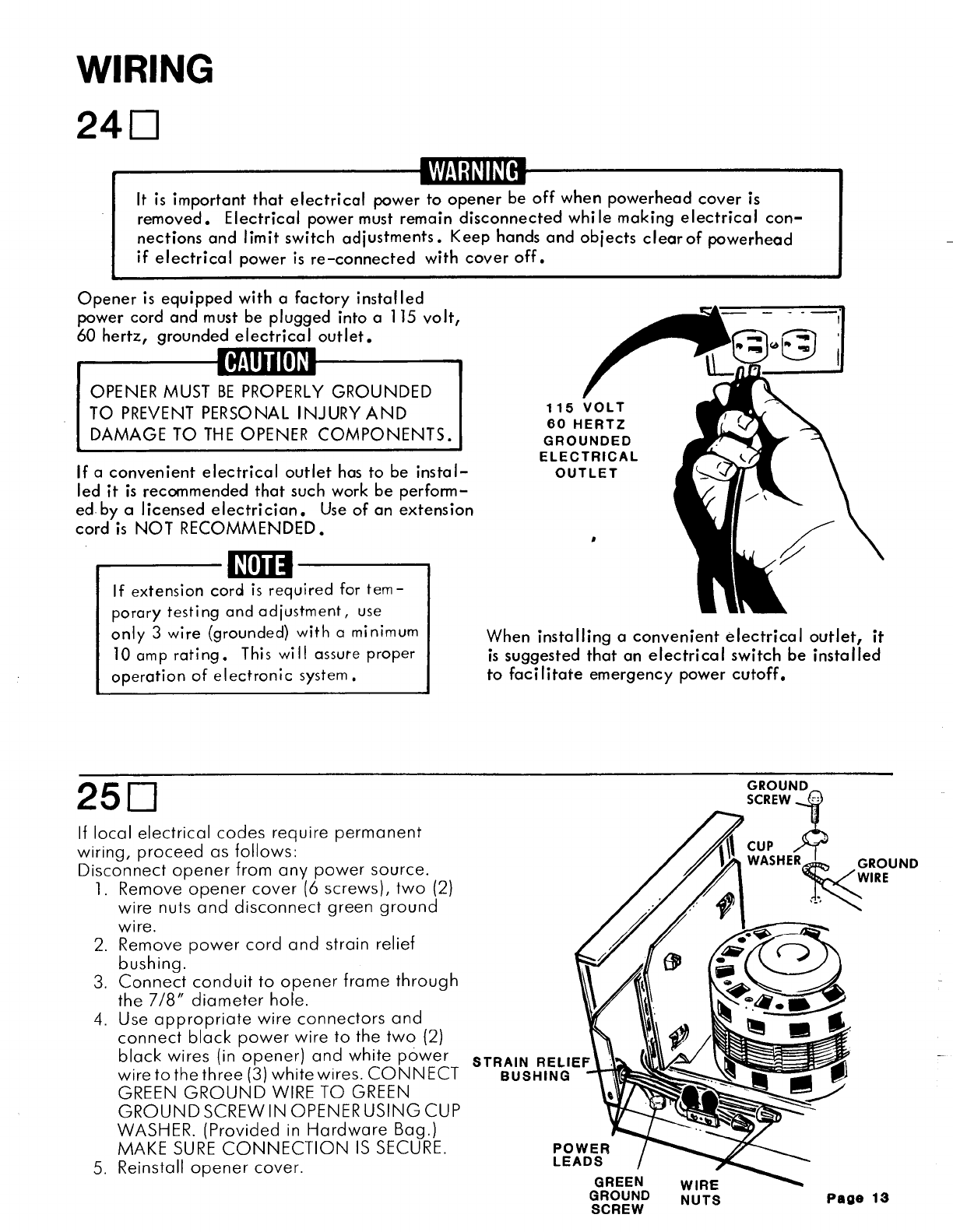

WIRING
240
WARNING
It is important that electrical power to opener be off when powerhead cover is
removed. Electrical power must remain disconnected while making electrical con-
nections and limit switch adjustments. Keep hands and objects clear of powerhead
if electrical power is re-connected with cover off.
Opener is equipped with a factory installed
power cord and must be plugged into a 115 volt,
60 hertz, grounded electrical outlet.
CAUTION
OPENER MUST BE PROPERLY GROUNDED
TO PREVENT PERSONAL INJURY
AND
DAMAGE TO THE OPENER COMPONENTS.
If a convenient electrical outlet has to be instal-
led it is recommended that such work be perform-
ed by a licensed electrician. Use of an extension
cord is NOT RECOMMENDED.
----UuJl:t-----
lf extension cord is required for tern -
porary testing and adjustment, use
only 3 wire (grounded) with a minimum
10 amp
rating. This wi 11 assure proper
operation of electronic system.
250
If local electrical codes require permanent
wiring, proceed as follows:
Disconnect opener from any power source.
l. Remove opener cover (6 screws), two (2)
wire nuts and disconnect green ground
wire.
2. Remove power cord and strain relief
bushing.
3. Connect conduit to opener frame through
the 7/8" diameter hole.
4. Use appropriate wire connectors and
connect black power wire to the two (2)
black wires (in opener) and white power
wire to the three (3) white wires. CONNECT
GREEN GROUND WIRE TO GREEN
GROUND SCREW IN OPENER USING CUP
WASHER. (Provided
in Hardware Bag.)
MAKE SURE CONNECTION IS SECURE.
5. Reinstall opener cover.
115VOLT
60 HERTZ
GROUNDED
ELECTRICAL
OUTLET
When installing a convenient electrical outlet, it
is suggested that an electrical switch be installed
to foci litate emergency power cutoff.
POWER
LEADS
GREEN
GROUND
SCREW
GROUND
SCREWi
CUP R
WASHER~GROUND
WIRE
,_.
Page 13

OPERATION AND ADJUSTMENT
260 270
Remove protective backing from EMERGENCY
RELEASE OPERATION decal and instalI on
door, near door bracket.
DOOR BRACKET
EMERGENCY RELEASE
OPERATION DECAL
(SEE FIGURE 4 ON PAGE 17)
CHAIN CAM ADJUSTMENT
Install light bulb (60 watt maximum).
Door
travel is limited by the placement of the chain limit cams. Moving a chain cam
one chain link, varies carriage movement by 1/2 inch (and thus affects door travel
proportionately). Use the transmitter to control the opener when making final adjustments.
HEADER
PULLEY
ASSEMBLY
J@ a.:
DOWN LIMIT CAM
d..~::b!. ........................................................................... ~w I
.. . ...... ..... ... . .... . .. - ·- - =:tiiJ.> ......... ~ ... ~ ....... ~
-:-.i 14" i.- """
TOP VIEW
UP LIMIT CAM
DOWN TRAVEL ADJUSTMENT
Using transmitter, run carriage to down position.
Check position of carriage and, if necessary,
readjust so that the drawbar wi II be almost
vertical when the door is closed. To readjust,
use transmitter to move carriage approximately
2 feet in the open direction, stop , then adjust
chain cam. Using transmitter,again run the
door to closed. Check to see that the door is
sealing proper!y to floor. Repeat procedure
if further adjustment is needed.
Page 14
UP TRAVEL ADJUSTMENT
Using transmitter, run carriage to the up position.
Check door position and readjust chain cam as
necessary to stop door just after clearing the top
of the door opening. Do not allow the door to
open beyond this point.

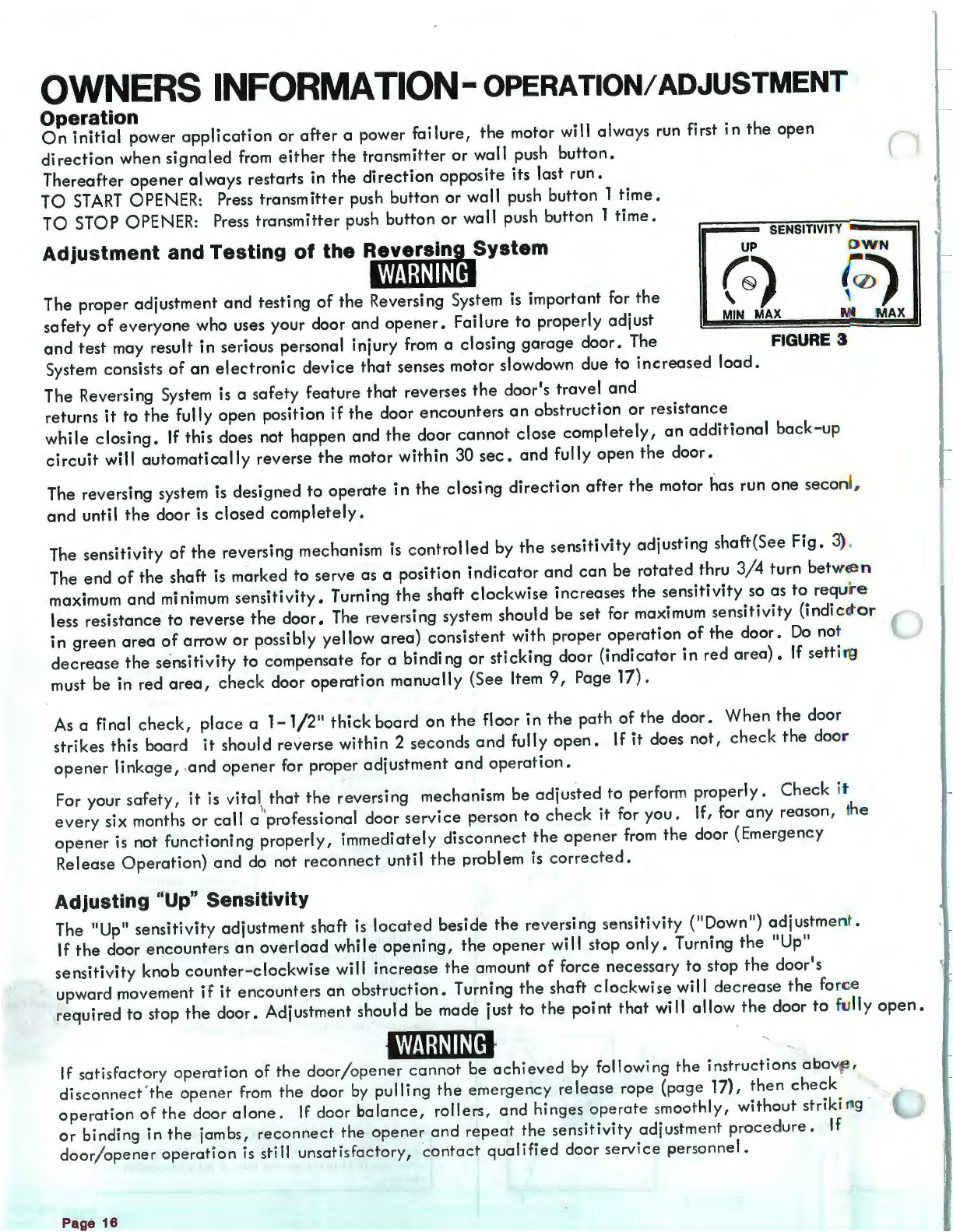

OWNERS INFORMATION -OPERATION/ADJUSTMENT

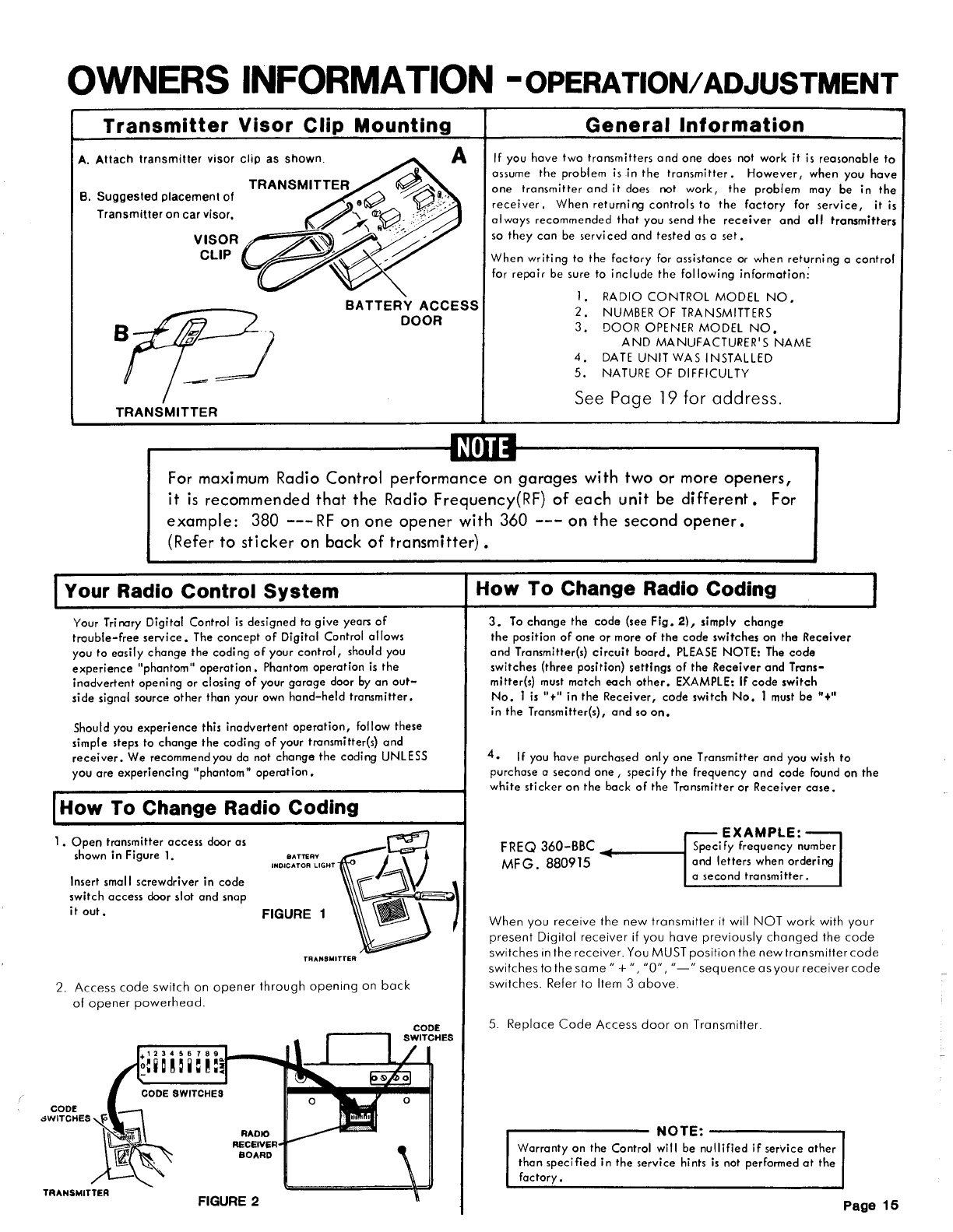

Transmitter Visor Clip Mounting
TRANSMITTER
General Information
If you have two transmitters and one does not work it is reasonable to
assume the problem is in the transmitter. However, when you have
one transmitter and it does not work, the problem may be in the
receiver. When returning controls to the factory for service, it is
always recommended that you send the receiver ond all transmitters
so they can be serviced and tested as a set.
When writing to the factory for assistance or when returning a control
for repair be sure to include the following information;
1. RADIO CONTROL MODEL NO.
2. NUMBER OF TRANSMITTERS
3. DOOR OPENER MODEL NO,
AND MANUFACTURER'S NAME
4. DATE UNIT WAS INSTALLED
5. NATURE OF DIFFICULTY
See Page 19 for address.
For maximum Radio Control performance on garages with two or more openers,
it is recommended that the Radio Frequency(RF) of each unit be different. For
example: 380 --- RF on one opener with 360 --- on the second opener.
(Refer to sticker on back of transmitter).
Your Radio Control System
Your Tri nary Digital Control is designed to give years of
trouble-free service. The concept of Digital Control allows
you to easily
change the coding of your control, should you
experience "phantom" operation. Phantom operation is the
inadvertent opening or closing of your garage door by on out-
side signal source other than your own hand-held transmitter.
Should you experience this inadvertent operation, follow these
simple steps to
change the coding of your tronsmitter(s) and
receiver. We recommend you do not change the coding UNLESS
you ore
experiencing "phantom" operation,
How To Change Radio Coding
1• Open transmitter access door as
shown in Figure 1. BATTERY
INDICATOR LIGHT
Insert smo II screwdriver in code
switch access door slot
and snap
it out. FIGURE 1
TRANSMITTER
2. Access code switch on opener through opening on back
of opener powerhead.
TRANSMITTER
RADIO
RECEIVER
BOARD
FIGURE 2
How To Change Radio Coding
3. To change the code (see Fig. 2), simply change
the position of one or more of the code switches on the Receiver
and Transmitter(s) circuit board, PLEASE NOTE: The code
switches (three position) settings of the Receiver and T rons-
mitter(s) must match each other. EXAMPLE: If code switch
No. I is "+" in the Receiver, code switch No. 1 must be "+"
in the Transmitter(s), and so on.
4. If you hove purchased only one Transmitter and you wish to
purchase a second
one, specify the frequency and code found on the
white sticker an the back of the Transmitter or Receiver case.
EXAMPLE:
FREQ 360-BBC .. -----1 Specify frequency number
MFG. 880915 and letters when ordering
a second
transmitter.
When you receive the new transmitter it will NOT work with your
present Digital receiver if you have previously changed the code
switches in the receiver. You MUST position the new transmitter code
switches to the same"+", "O", "-"sequence as your receiver code
switches. Refer to Item 3 above.
5. Replace Code Access door on Transmitter.
NOTE:---------------.
Warranty on the Control will be nullified if service other
than specified in the service hints is not performed at the
factory.
Page 15

OWNERS INFORMATION- OPERATION/ADJUSTMENT
Operation
On initial power application or after a power failure, the motor will always run first in the open
direction when signaled from either the transmitter or wall push button.
Thereafter opener always restarts in the direction opposite its last run.
TO START OPENER: Press transmitter push button or wall push button 1 time.
TO STOP OPENER: Press transmitter push button or wall push button 1 time.
SENSITIVITY
UP
l> W N
(1
Adjustment and Testing of the ReversinH System
l\fM;Hll: el
The proper adjustment and testing of the Reversing System is important for the
safety of everyone who uses your door and opener. Failure to properly adjust
and test may result in serious personal injury from a closing garage door. The
(e)
(©)
MIN MAX
l'M
1
MAX
FIGURE 3
System consists of an electronic device that senses motor slowdown due to increased load.
The Reversing System is a safety feature that reverses the door's travel and
returns it to the fully open position if the door encounters an obstruction or resistance
while closing. If this does not happen and the door cannot close completely, an additional back-up
circuit will automatically reverse the motor within 30 sec. and fully open the door.
The reversing system is designed to operate in the closing direction after the motor has run one secon i,
and until the door is closed completely.
The sensitivity of the reversing mechanism is controlled by the sensitivity adjusting shaft(See Fig. 3) .
The
end of the shaft is marked to serve as a position indicator and can be rotated thru 3/4 turn betw Ee n
maximum
and minimum sensitivity. Turning the shaft clockwise increases the sensitivity so as to requ ir e
less
resistance to reverse the door. The reversing system should be set for maximum sensitivity (indic ~ t or
in green area of arrow or possibly yellow area) consistent with proper operation of the door. Do not
decrease the sensitivity to compensate for a binding or sticking door (indicator in red area). If setti rg
must be in red
area, check door operation manually (See Item 9, Page 17).
As a final check, place a 1- 1/2" thick board on the floor in the path of the door. When the door
strikes this board it should reverse within 2 seconds and fully open. If it does not, check the door
opener linkage, . and opener for proper adjustment and operation .
For your
safety, it is vital that the reversing mechanism be adjusted to perform properly. Check it
every six months or call a 1i professional door service person to check it for you. If, for any reason, the
opener is not functioning properly, immediately disconnect the opener from the door (Emergency
Release
Operation) and do not reconnect until the problem is corrected.
Adjusting "Up" Sensitivity
The "Up" sensitivity adjustment shaft is located beside the reversing sensitivity ("Down") adjustme nt.
If the door encounters an overload while opening, the opener will stop only. Turning the "Up"
sensitivity knob counter - clockwise wil I increase the amount of force necessary to stop the door's
upward movement if it encounters an obstruction. Turning the shaft clockwise will decrease the force
required to stop the door. Adjustment should be made just to the point that wirl allow the door to fu lly open.
l\2~n:11:u1
If satisfactory operation of the door/opener cannot be achieved by following the instructions obo Vif3 ,
disconnect ' the opener from the door by pulling the emergency release rope (page 17), then check
operation of the door alone. If door balance, rollers, and hinges operate smoothly, without striki rll g
or binding in the jambs, reconnect the opener and repeat the sensitivity adjustment procedure. If
door/opener operation is still unsatisfactory, contact qualified door service personnel .
Page 16

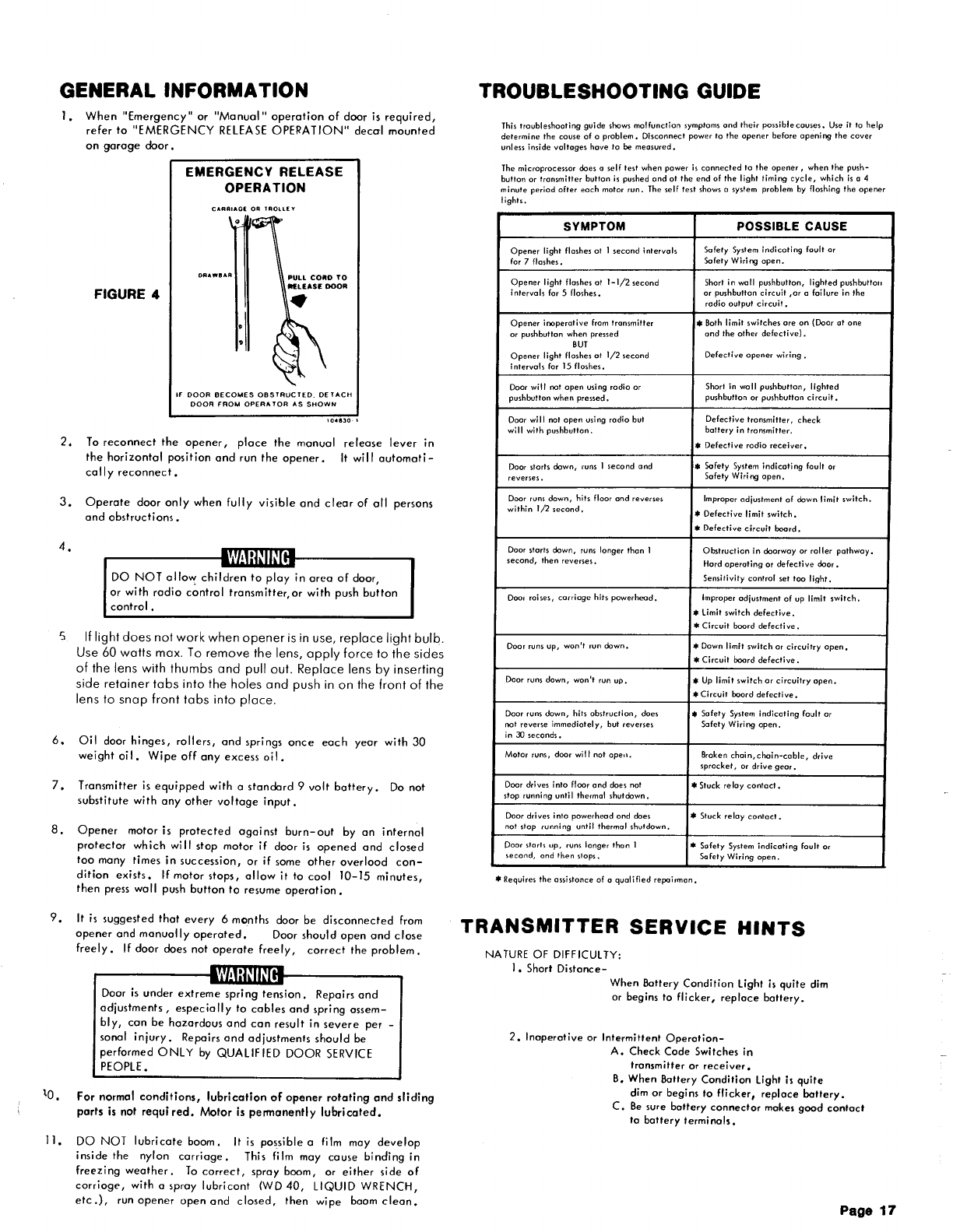

GENERAL INFORMATION
I. When "Emergency" or "Manual" operation of door is required,
refer to "EMERGENCY RELEASE OPE RAT ION" decal mounted
on goroge door.
2.
FIGURE 4
EMERGENCY RELEASE
OPERATION
CARRIAGE OA 1A0ll[Y
IF DOOR BECOMES OBSTRUCTED. DETACH
DOOR FROM OPERATOR AS SHOWN
IQ•UIJO- I
To reconnect the opener, place the manual
the horizontal position and run the opener.
ca 11 y reconnect.
release lever in
It wi 11 out om at i-
3. Operate door only when fully visible and clear of all persons
and obstructions.
4.
DO NOT allow children to play in area of door,
or with radio control transmitter,or with push button
control.
'i If light does not work when opener is in use, replace light bulb.
Use 60 watts max. To remove the lens, apply force to the sides
of the lens with thumbs and pull out. Replace lens by inserting
side retainer tabs into the holes and push in on the front of the
lens
to snap front tabs into place.
6. Oil door hinges, rollers, and springs once each year with 30
weight oil. Wipe off any excess oil.
7, Tronsmitter is equipped with a standard 9 volt battery. Do not
substitute with any ether voltage input.
8. Opener motor is protected against burn-out by an internal
protector which wi II stop motor if door is opened and closed
loo many times in succession, or if some other overload con-
dition exists. If motor stops, allow it to cool 10-15 minutes,
then press wall push button to resume operation.
9. It is suggested that every 6 months door be disconnected from
opener and manually operated. Door should open and close
freely. If door does not operate freely, correct the problem.
Door is under extreme spring tension. Repairs and
adjustments, especially to cables and spring assem-
bly, con be hazardous and con result in severe per -
sonol
injury. Repairs and adjustments should be
performed
ONLY by QUALIFIED DOOR SERVICE
PEOPLE.
to, For normal conditions, lubrication of opener rotating and sliding
parts is not required. Motor is permanently lubricated.
II. DO NOT lubricate boom. It is possible a film may develop
inside the nylon carriage. This film may cause binding in
freezing weather. To correct, spray boom, or either side of
carriage, with a spray lubricant (WD 40, LIQUID WRENCH,
etc.), run opener open and closed, then wipe boom clean.
TROUBLESHOOTING GUIDE
This troubleshooting guide shows malfunction symptoms and their possible causes. Use it to help
determine the cause of a problem. Disconnect power to the opener before opening the cover
unless inside voltages hove to be measured.
The microprocessor does o self test when power is connected to the opener, when the push-
button or transmitter button is pushed and at the end of the light timing cycle, which is o 4
minute period ofter each motor run. The self fest shows o system problem by flashing the opener
lights.
SYMPTOM
Opener light flashes at 1 second intervals
for 7 flashes.
Opener light flashes at 1-1/2 second
intervals for 5 flashes.
Opener inoperative from transmitter
or pushbutton when pressed
BUT
Opener light flashes of 1/2 second
intervals for 15 flashes.
Door will not open using radio or
pushbutton when pressed.
Door will not open using radio but
will
with pushbutton.
Door starts down, runs I second and
Door runs down, hits floor ond reverses
within 1/2 second,
Door starts down, runs longer than 1
second, then reverses.
Doo1 raises, carriage hits powerheod.
Door runs up, won't run down.
Door runs down, won't run up.
Door runs down, hits obstruction, does
not reverse immediately, but reverses
in
30 seconds,
Motor runs, door will not ope11.
Door drives
into floor and does not
stop running unti I thermal shutdown.
Door drives into powerhead ond does
not stop
running until thermal shutdown.
Door starts up, runs longer than 1
second, and then stops.
POSSIBLE CAUSE
Safety System indicating fault or
Safety Wiring open.
Short in wall pushbutton, lighted pushbutton
or pushbutton circuit ,or o failure in the
radio output circuit.
•Both limit switches ore on (Door at one
and the other defective).
Defective opener wiring.
Short in wall pushbutton, lighted
pushbutton or pushbutton circuit.
Defective transmitter, check
battery in transmitter.
*Defective radio receiver.
• Safety System indicating fault or
Safety Wiring open.
Improper adjustment or down limit switch.
• Defective limit switch.
• Defective circuit board,
Obstruction in doorway or roller pathway.
Hord operating or defective door,
Sensitivity control set too light.
Improper adjustment of up limit switch.
* limit switch defective.
*Circuit board defective.
•Down limit switch or circuitry open,
*Circuit board defective.
$Up limit switch or circuitry open,
*Circuit board defective.
• Safety System indicating Fault or
Safety Wiring open.
Broken chain, chain-cable, drive
sprocket, or drive gear.
*Stuck relay contact.
*Stuck relay contact.
* Safety System indicating fault or
Safety Wiring open.
*Requires the assistance of a qualified repairman.
TRANSMITTER SERVICE HINTS
NATURE OF DIFFICULTY:
I. Short Distance-
When Battery Condition light is quite dim
or begins to flicker,
replace battery.
2. Inoperative or Intermittent Operation-
A. Check Code Switches in
transmitter or receiver,
B. When Battery Condition light is quite
dim or begins to flicker, replace battery.
C. Be sure battery connector makes good contact
to battery terminals.
Page 17

ILLUSTRATED PARTS BREAKDOWN
24
35
39
25 25
40
11_25
PAGE 18

()
PARTS LIST
1. 107519-0001
2. 086575-0604
3. 102103-0001
4. 104086-0001
5. 106484-0001
6. 080288-0812
7. 106505-0001
8. 086480-0840
9. 080302-1618
10. 086480-1620
11 . 086168-0001
12. 086575-0506
13. 107638-0001
14. 086480-1324
15. 107516-0001
16. 107442-0002
17. 076877-0016
18. 107443-0001
19 . 107612-0001
20. 104703-0001
21. 106453-0001
22. 080324-0003
23. 107514-0001
24 . 107593-0001
25. 086575-0504
26. 107524-0003 · ,./
27 . 107543-0001
28 . 107594-0001
29 . 107384-0001
30. 107462-0001
31 . 086420-0310
32. 086480-1232
33. 107616-0001
34. 107610-0001
35. o+7+50-00"Cf5
36. 105867-0001
37. 107526-0001
38. 107557-0001
39. 607083-0001
40. 107517-0001
41. 107607 ~ 0001
42. 107605-0001
43. 604062-0002
44. 080019-0002
NS-
Not Shown
PARTS AND SERVICE
For ports and service, contact the
nearest Distributor.
When ordering ports, specify:
MODEL
NUMBER
PART NUMBER
PART DESCRIPTION
Repairs to transmitter and
receiver
should be performed by a qualified
repairman. See R adio Control
Instructions .
Cover, Gear/Idler
Screw, THDF #8-32 x 1/4"
Idler, Chain
Gear, Main Drive Assembly
Limit Switch Assembly
Screw. R.H.M.
S. #4-40 x 518"
Switch, Limit
Nut, Keps #4-40
Washer, Flat 1/4" x 9/16"
Nut, Keps 1/4-20
Bushing, Snap-Nylon
Screw, THDF #6-32 x 3/8"
Sensor Board, Optic
Nut, Keps #10-24
Frame, Main
Screw, Green Ground
Busing, Strain Relief
Cord Assembly, Power
Cover, Cops Board
Terminal Strip
Protector Assembly, Surge
Washer, Lock
Ext. #8
Endplate, Lamp
Lampholder
Screw, #6-32 x 1/4
Safety Board
./
Support, Circuit Board
Ring, Compression
Rotor, Optic
Spacer, Motor Plate
Bolt, Carriage #10-24 x
1-1 /4"
Nut, Keps #8-32
Plate Assembly, Motor Mounting
Retainer, Capacitor
Capacitor, 40-48 MFD 330V
/0 7/71 -Srj. / &/1£7~ / Ske.ve.
Motor, V4 HP Spline Shaft 6 Pole
Plasti-Grommet
Board, Cops W/SW W/R.
C. 115V
Screw, THDF
#6 - 32 x 3/8"
Cover, Powerhea'd
Harness Assembly, Control
NS
Harness Assembly, Power NS
Rivet
Bolt, Track 1/4-20 x 3/4"
NOTE TO OWNER
IF SERVICE IS REQUIRED ON THE CONTROL
MAIL THE COMPLETE UNIT
(RECEIVER AND TRANSMITTERS)
to
OVERHEAD DOOR CORP.
Advance Operator Div.
801 St.
Joe, Shelbyville, IN. 46176
Page 19

WIRING DIAGRAM
ORN
WHT LI
LK L
WIRING SCHEMA TIC
BLU
SAFETY
BOARD
DOWN LIMIT SWITCH
RED
UP LIMIT SWITCH
~~~
~:~~
SINCE~1921
LIMITED WARRANTY
The authorized distributor of Overhead Door Corporation products whose
name appears below ("Seller") warrants this automatic garage door
openersystem
to be free from defectsin material and workmanship under
normal use
and service. This warranty extends only to the original
consumer ("Buyer'").
During the following periods alter the sale, Seller shall furnish the goods
and services indicated to repair or replace any portion
of the system deter-
mined by Seller
to be defective:
1 year
All parts and labor (including installation, if the system was
installed
by Seller)
5 years Motor only
The foregoing represents Seller's sole obligation under this warranty. and
is conditioned upon Buyer giving notice to Seller within the respective
warranty period. Proof of purchase is required.
If Seller concludes that repair or replacement is necessary, Seller will
commence work within a reasonable time after the decision
to repair or
replace is made.
Page 20
This warranty does not apply if the system has been altered or repaired by
any person not authorized by the Seller, or has been subject
to misuse,
neglect or accident.
Seller has not established any informal dispute settlement procedure
of
type described in the Magnuson-Moss Warranty Act.
SELLER ASSUMES NO LIABILITY FOR INCIDENTAL
OR CONSE-
QUENTIAL DAMAGES. WARRANTIES IMPLIED BY LAW ARE LIMITED
IN
DURATION TO ONE YEAR FROM THE DATE OF SALE.
This warranty gives you specific legal rights, and you may have other
rights which vary from state
to state. Some states do not allow limitations on
how long
an implied warranty lasts, and some states do not allow the
exclusion
or limitation of incidental or consequential damages, so the above
limitations
or exclusions may not apply to you.
Inquiries
to the Seller concerning this warranty should be directed to:
