Ozito PXCHT-6502U User manual

PXCHT-6502U
EH-Art.-No.: 34.109.61 I.-No.: 11019
7
GB Original operating instructions
Cordless hedge trimmer
Anl_PXCHT_6502U_SPK7.indb 1Anl_PXCHT_6502U_SPK7.indb 1 13.08.2019 12:13:2113.08.2019 12:13:21

- 2 -
1
3
1
4
3
4a
2
5
2 1
7
2
34
8
1
9
6
5 4
Anl_PXCHT_6502U_SPK7.indb 2Anl_PXCHT_6502U_SPK7.indb 2 13.08.2019 12:13:5313.08.2019 12:13:53

- 3 -
4b 4c
5 6
7 8
A
B
C
A
61.
AA
2.
4a
5
Anl_PXCHT_6502U_SPK7.indb 3Anl_PXCHT_6502U_SPK7.indb 3 13.08.2019 12:13:5613.08.2019 12:13:56

- 4 -
9
12
13
10
3a
11
14
Anl_PXCHT_6502U_SPK7.indb 4Anl_PXCHT_6502U_SPK7.indb 4 13.08.2019 12:14:0113.08.2019 12:14:01

- 5 -
15
A
Anl_PXCHT_6502U_SPK7.indb 5Anl_PXCHT_6502U_SPK7.indb 5 13.08.2019 12:14:0413.08.2019 12:14:04

GB
- 6 -
Danger!
When using the equipment, a few safety pre-
cautions must be observed to avoid injuries and
damage. Please read the complete operating
instructions and safety regulations with due care.
Keep this manual in a safe place, so that the in-
formation is available at all times. If you give the
equipment to any other person, hand over these
operating instructions and safety regulations as
well.We cannot accept any liability for damage
or accidents which arise due to a failure to follow
these instructions and the safety instructions.
1. Safety regulations
General safety instructions for electric tools
Danger!
Read all safety regulations and instructions.
Any errors made in following the safety regula-
tions and instructions may result in an electric
shock, fire and/or serious injury.
Keep all safety regulations and instructions
in a safe place for future use.
The term “electric tool” used in the safety inst-
ructions refers to electric tools operated from the
mains power supply (with a power cable) and to
battery operated electric tools (without a power
cable).
1. Workplace safety
a) Keep your work area clean and well illu-
minated. Untidy or unlit work areas can result
in accidents.
b) Do not operate the electric tool in an en-
vironment where there is a risk of explo-
sions and where there are inflammable
liquids, gases or dust. Electric tools produ-
ce sparks which could set the dust or vapours
alight.
c) Keep the electric tool out of the reach of
children and other persons. If there is a
distraction, you may lose control of the appli-
ance.
2. Electrical safety
a) The connector plug from this electric tool
must fit into the socket. The plug should
never be altered in any way. Never use ad-
apter plugs together with earthed electric
tools. Unaltered plugs and correct sockets
reduce the risk of an electric shock.
b) Avoid bodily contact with earthed sur-
faces such as pipes, heating, ovens and
fridges. The risk of electric shock is increa-
sed if your body is earthed.
c) Keep the tool out of the rain and away
from moisture. The ingress of water into an
electric tool increases the risk of an electric
shock.
d) Do not use the cable to carry the electric
tool, to hang it up or to pull it out of the
socket. Keep the cable away from heat,
oil, sharp edges and moving parts of the
appliance. Damaged or entangled cables
increase the risk of an electric shock.
e) If you are working outdoors with an elec-
tric tool, only use extension cables which
are designed specifically for this purpose.
Using specially designed outdoor extension
cables, the risk of electric shock is reduced.
f) If operation of the electric tool in a damp
environment can not be avoided, use a
earth-leakage circuit-breaker. The earth-
leakage circuit-breaker reduces the risk of an
electric shock.
3. Safety of persons
a) Be careful, watch what you are doing and
use an electric tool sensibly. Do not use
the tool if you are tired or under the influ-
ence of drugs, alcohol or medication. A
moment of inattention when using the electric
tool can result in serious injuries.
b) Wear personal protection equipment
and always wear safety goggles. Wearing
personal protection (such as dust masks,
non-slip safety shoes, safety helmet or ear
protection, depending upon the type and use
of the electric tool) reduces the risk of injury.
c) Make sure that the appliance cannot start
up accidentally. Ensure that the electric
tool is switched offbefore you connect
it to the power supply and/or insert the
battery, or pick up or carry the tool. If your
finger is on the switch whilst carrying the elec-
tric tool or if you connect the appliance to the
mains when it is switched on, this can lead to
accidents.
d) Remove keys and wrenches before swit-
ching on the electric tool. A tool or key
which comes into contact with rotating parts
of the appliance can lead to injuries.
e) Avoid abnormal working postures. Make
sure you stand squarely and keep your
balance at all times. In this way, you can
control the electric tool better in unexpected
Anl_PXCHT_6502U_SPK7.indb 6Anl_PXCHT_6502U_SPK7.indb 6 13.08.2019 12:14:0513.08.2019 12:14:05

GB
- 7 -
circumstances.
f) Wear suitable work clothes. Do not wear
loose clothing or jewellery. Keep hair, clo-
thes and gloves away from moving parts.
Loose clothing, jewellery or long hair can get
trapped in moving parts.
g) If vacuuming devices and draining de-
vices can be fitted, make sure that these
are correctly attached and correctly used.
The use of a dust extraction system can redu-
ce the danger posed by dust.
4. Usage and treatment of the electric tool
a) Do not overload the appliance. Use the
correct tool for your work. You will be able
to work better and more safely within the gi-
ven performance boundaries.
b) Do not use an electric tool with a defec-
tive switch. An electric tool that cannot be
switched on or offis dangerous and must be
repaired.
c) Pull the plug out of the socket and/or
remove the battery before making any
adjustments to the appliance, changing
accessories or putting the appliance
down. This safety measure prevents starting
the electric tool unintentionally.
d) Keep unused electric tools out of the
reach of children. Do not allow people
who are not familiar with the appliance or
who have not read these instructions to
use the appliance. Electric tools are dange-
rous if they are used by inexperienced people.
e) Clean your electric tool carefully. Check
whether moving parts are functioning
properly and not jamming, whether parts
are broken or damaged enough that the
functioning of this electric tool is affec-
ted. Have damaged parts repaired before
using the appliance. Many accidents are
caused by badly maintained electric tools.
f) Keep your cutting tools sharp and clean.
Carefully maintained cutting tools with sharp
cutting edges will jam less and are easier to
control.
g) Make sure to use electric tools, accesso-
ries, attachments, etc. in accordance with
these instructions. Take the conditions in
your work area and the job in hand into
account. Using electric tools for any purpose
other than the one for which they are intended
can lead to dangerous situations.
5. Using and handling the cordless tool
a) Only charge the batteries in chargers that
are recommended by the manufacturer.
A charger that is designed for a certain type
of battery may pose a fire risk if it is used with
other types of battery.
b) Use only the correct batteries in the elec-
tric tools. The use of other batteries may
result in injuries and a fire risk.
c) Keep unused batteries away from paper
clips, coins, keys, nails, screws and other
metallic objects that could cause a short
circuit between the contacts. A short cir-
cuit between the battery contacts may cause
burns or a fire.
d) In case of incorrect use, fluid may escape
from the battery. Avoid contact with it. If
you touch it by accident, rinse the affec-
ted area with water. If you get the fluid
in your eyes, also seek medical advice.
Leaking battery fluid can cause skin irritation
or burns.
6. Service
a) Have your electric tool repaired only by
trained personnel using only genuine
spare parts.This will ensure that your elec-
tric tool remains safe to use.
Safety information for hedge trimmers:
• Make sure you keep all parts of your body
away from the blades. Never attempt to
remove cuttings with the blade running or
to hold material you want to cut. Always
switch off the equipment before attempt-
ing to remove any jammed cuttings. A sin-
gle moment of carelessness when using the
hedge trimmer can result in serious injuries.
• Carry the hedge trimmer by its handle
and make sure the blades have stopped.
Always fit the protective cover when
transporting the hedge trimmer or put-
ting it into storage. Careful handling of the
equipment reduces the likelihood of injury by
the blades.
• Hold the power tool only by the insulated
handles because the blade may strike
concealed power cables. Contact between
the blade and a live cable can make the me-
tal parts of the equipment live and cause an
electric shock.
Additional safety instructions
We pay a great deal of attention to the design of
every battery pack to ensure that we supply you
with batteries which feature maximum power den-
sity, durability and safety.The battery cells have
Anl_PXCHT_6502U_SPK7.indb 7Anl_PXCHT_6502U_SPK7.indb 7 13.08.2019 12:14:0513.08.2019 12:14:05

GB
- 8 -
a wide range of safety devices. Each individual
cell is initially formatted and its electrical charac-
teristic curves are recorded.This data are then
used exclusively to be able to assemble the best
possible battery packs. Despite all the safety
precautions, caution must always be exer-
cised when handling batteries. The following
points must be obeyed at all times to ensure
safe use.
Safe use can only be guaranteed if undama-
ged cells are used. Incorrect handling can
cause cell damage.
Important: Analyses confirm that incorrect use
and poor care are the main causes of the damage
caused by high performance batteries.
Information about the battery
1. The battery pack supplied with your cordless
tool is not charged.The battery pack has to
be charged before you use the tool for the first
time.
2. For optimum battery performance avoid low
discharge cycles. Charge the battery pack
frequently.
3. Store the battery pack in a cool place, ideally
at 15°C and charged to at least 40%.
4. Lithium-ion batteries are subject to a natural
ageing process.The battery pack must be
replaced at the latest when its capacity falls to
just 80% of its capacity when new. Weakened
cells in an aged battery pack are no longer
capable of meeting the high power require-
ments and therefore pose a safety risk.
5. Do not throw battery packs into an open fire.
There is a risk of explosion!
6. Do not ignite the battery pack or expose it to
fire.
7. Do not exhaustively discharge batteries.
Exhaustive discharge will damage the battery
cells.The most common cause of exhaustive
discharge is lengthy storage or non-use of
partly discharged batteries. Stop working as
soon as the performance of the battery falls
noticeably or the electronic protection system
triggers. Place the battery pack in storage
only after it has been fully charged.
8. Protect batteries and the tool from over-
loads. Overloads will quickly result in over-
heating and cell damage inside the battery
housing without this overheating actually
being apparent externally.
9. Avoid damage and shocks. Replace batte-
ries which have been dropped from a height
of more than one meter or which have been
exposed to violent shocks without delay, even
if the housing of the battery pack appears to
be undamaged.The battery cells inside the
battery may have suffered serious damage.
In this respect, please also read the waste
disposal information.
10. If the battery pack suffers overloading and
overheating, the integrated protective cut-off
will switch offthe equipment for safety rea-
sons. Important. Do not press the ON/OFF
switch any more if the protective cut-offhas
actuated.This may damage the battery pack.
11. Use only original battery packs.The use of
other batteries may result in injuries, explosi-
on and a fire risk.
Information on chargers and the charging
process
1. Please check the data marked on the rating
plate of the battery charger. Be sure to con-
nect the battery charger to a power supply
with the voltage marked on the rating plate.
Never connect it to a different mains voltage.
2. Protect the battery charger and its cable from
damage and sharp edges. Have damaged
cables repaired without delay by a qualified
electrician.
3. Keep the battery charger, batteries and the
cordless tool out of children’s reach.
4. Do not use damaged battery chargers.
5. Do not use the supplied battery charger to
charge other cordless tools.
6. In heavy use the battery pack will become
warm. Allow the battery pack to cool to room
temperature before commencing with the
charging.
7. Do not over-charge batteries. Do not ex-
ceed the maximum charging times.These
charging times only apply to discharged
batteries. Frequent insertion of a charged
or partly charged battery pack will result in
over-charging and cell damage. Do not leave
batteries in the charger for days on end.
8. Never use or charge batteries if you sus-
pect that the last time they were charged
was more than 12 months previously. The-
re is a high probability that the battery pack
has already suffered dangerous damage
(exhaustive discharge).
9. Charging batteries at a temperature below
10°C will cause chemical damage to the cell
and may cause a fire.
10. Do not use batteries which have heated du-
ring the charging process, as the battery cells
may have suff
ered dangerous damage.
Anl_PXCHT_6502U_SPK7.indb 8Anl_PXCHT_6502U_SPK7.indb 8 13.08.2019 12:14:0513.08.2019 12:14:05

GB
- 9 -
11. Do not use batteries which have suffered
curvature or deformation during the charging
process or which show other non-typical sym-
ptoms (gassing, hissing, cracking,…)
12. Never fully discharge the battery pack (re-
commended depth of discharge max. 80%)
A complete discharge of the battery pack will
lead to premature ageing of the battery cells.
13. Never charge the batteries unsupervised.
Protection from environmental influences
1. Wear suitable work clothes.Wear safety gog-
gles.
2. Protect your cordless tool and the battery
charger from moisture and rain. Moisture
and rain can cause dangerous cell damage.
3. Do not use the cordless tool or the battery
charger near vapors and inflammable liquids.
4. Use the battery charger and cordless tools
only in dry conditions and an ambient tempe-
rature of 10-40°C.
5. Do not keep the battery charger in places
where the temperature is liable to reach over
40°C. In particular, do not leave the battery
charger in a car that is parked in the sunshine.
6. Protect batteries from overheating. Over-
loads, over-charging and exposure to direct
sunlight will result in overheating and cell
damage. Never charge or work with batteries
which have been overheated – replace them
immediately if possible.
7. Storage of batteries, battery chargers
and cordless tools. Store the charger and
your cordless tool only in dry places with an
ambient temperature of 10-40°C. Store your
lithium-ion battery pack in a cool, dry place at
a temperature of 10-20°C. Protect them from
humidity and direct sunlight. Only place fully
charged batteries in storage (charged at least
40%).
8. Prevent the lithium-ion battery pack from free-
zing. Battery packs which were stored below
0°C for more than 60 minutes must be dispo-
sed of.
9. When handling batteries beware of electro-
static charge: Electrostatic discharges cause
damage of the electronic protection system
and the battery cells. Avoid electrostatic char-
ging and never touch the battery poles.
Rechargeable batteries and cordless electric
machines and tools contain materials that are po-
tentially harmful to the environment. Never place
any cordless electric machines or tools in your
household refuse. When cordless electric machi-
nes or tools become defective or worn, remove
the rechargeable batteries and return them to
iSC GmbH (address: Eschenstrasse 6, D-94405,
Germany). If the rechargeable batteries cannot be
removed, return the complete cordless machine
or tool.
You can then be sure that the equipment will be
correctly disposed of by the manufacturer.
When shipping or disposing of batteries and
cordless tools, always ensure that they are
packed individually in plastic bags to prevent
short circuits and fires.
Additional safety instructions
1. Always remove batteries before you perform
any work on the hedge trimmer, e.g.
- cleaning the blades
- troubleshooting
- cleaning and maintenance
or before leaving the tool unattended.
2. The hedge trimmer can cause serious inju-
ries! Read the directions for use carefully in
order to acquaint yourself with
- the correct way to handle,
- set up,
- service,
- start and put down the machine.
Familiarize yourself with all the machine’s
control elements and its proper use.
3. Always handle the hedge trimmer with both
hands.
4. When working with the hedge trimmer, wear
sturdy shoes and make sure of your footing.
5. Never work with the hedge trimmer in the rain
or on wet hedges and never leave the hedge
trimmer outdoors.The hedge trimmer must
not be used if it is wet.
6. We recommend that you wear safety goggles
Anl_PXCHT_6502U_SPK7.indb 9Anl_PXCHT_6502U_SPK7.indb 9 13.08.2019 12:14:0513.08.2019 12:14:05

GB
- 10 -
and ear-muffs when working with the hedge
trimmer.
7. Wear suitable working clothes such as rubber
gloves and non-slip shoes. Do not wear loose
garments. Keep long hair in a hairnet.
8. Avoid abnormal postures and make sure of
your footing, particularly when working on
ladders and steps.
9. Be sure to hold the hedge trimmer well away
from your body when it is switched on.
10. Make sure there are no other persons or
animals within your working area (radius of
swing).
11. Carry the hedge trimmer only by its guide
handle.
12. Examine the cutting system regularly for signs
of damage and, if necessary, arrange for the
hedge trimmer to be professionally repaired
by the ISC Customer Service Center or a
specialist workshop.
13. If the blades become jammed, e.g. due to
thick branches or the like, switch offand re-
move the battery immediately. Only then are
you to remove the cause of the obstruction.
14. Keep the hedge trimmer in a dry, safe place
out of children’s reach.
15. During transportation and storage of the
hedge trimmer, keep the blades covered at all
times with the special guard.
16. Take care not to overload the hedge trimmer
and do not use it on jobs for which it is not in-
tended, i.e. you are allowed to use the hedge
trimmer only to cut hedges, shrubs and per-
ennials.
17. The hedge trimmer requires regular inspec-
tion and maintenance. Always replace dama-
ged blades in pairs. If the hedge trimmer suf-
fers any damage from impact (falling on hard
ground etc.), have it checked immediately by
a specialist.
18. Look after your hedge trimmer carefully. Keep
it clean and sharp to ensure efficient and safe
cutting. Follow the maintenance and cleaning
instructions.
19. The German Farmers Union, for example,
prohibits the use of electric hedge trimmers
by persons aged 17 or less. Persons aged 16
and above may only use electric hedge trim-
mers if supervised by an adult.
20. Do not use the hedge trimmer with a dama-
ged or excessively worn cutting system.
21. Check your surroundings and take note of
any potential dangers which you may not be
able hear due to the machine’s noise.
22. It is advisable not to use the hedge trimmer
when other persons, and particularly children,
are nearby.
23. Children are not allowed to use the hedge
trimmer.
24. Noise at the workplace may exceed 85 dB(A).
In this case, the operator must wear ear-muffs
or similar.The noise level of this electric tool
is measured in accordance with EN 60745-1.
25. The vibrations in the handle are < 2,5 m/s2
and measured in accordance with
EN 60745-1.
Important! It is not allowed to use the hedge
trimmer without hand guard.
It is recommended to search the hedge for
hidden objects (e.g. wire fencing).
Do not lose these safety instructions
Explanation of the warning signs on the
equipment (see Fig. 3)
1: Warning
2: Protect against moisture.
3: Read the instruction manual before starting.
4: Wear eye protection and ear plugs.

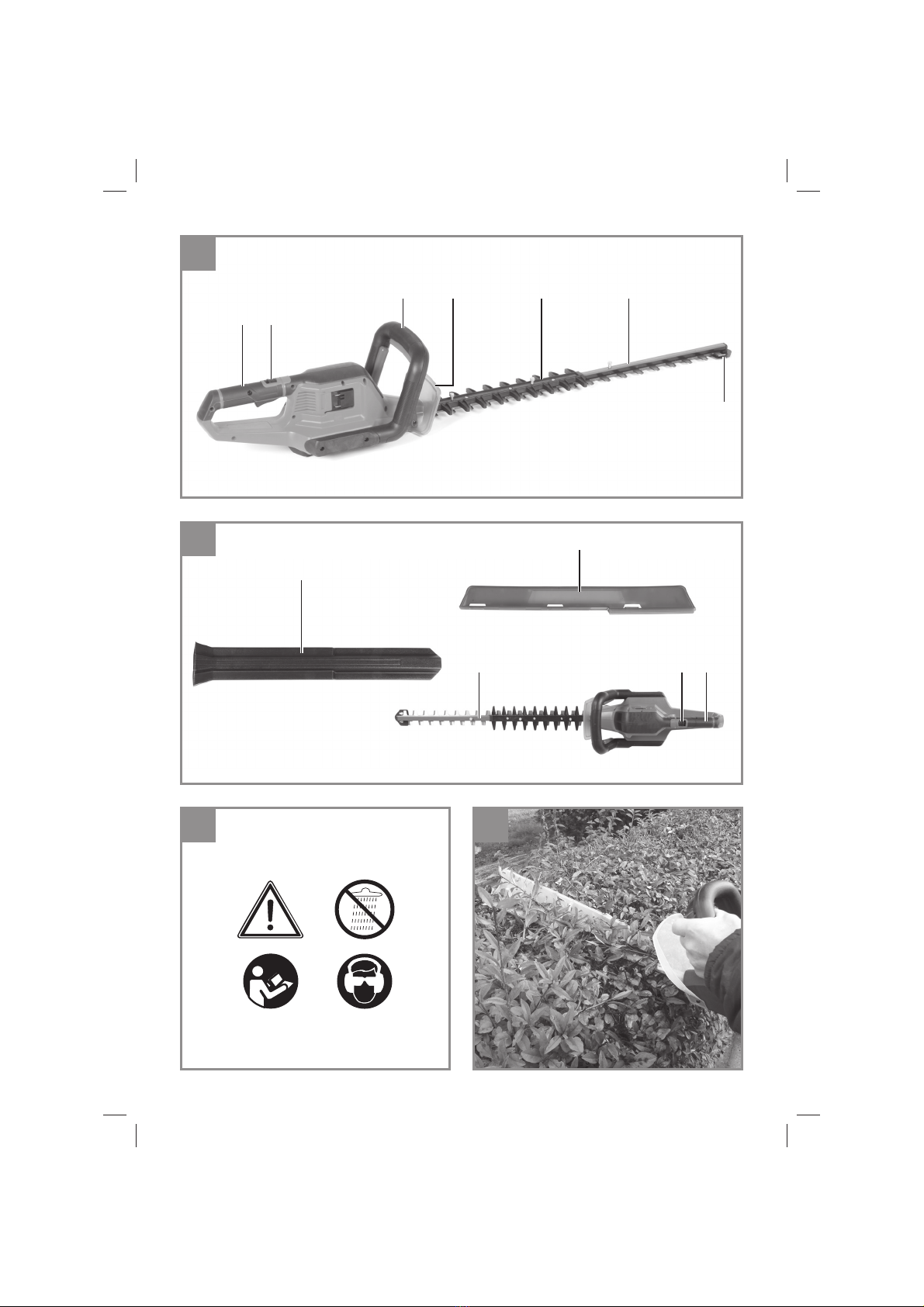

2. Layout and items supplied
2.1 Layout (Fig. 1/2)
1. Cutter rail
2. Hand guard
3. Steady grip with button switches
4. Handle with On/Offswitch
5. Lock for handle
6. Cuttings collector
7. Cutter guard
8. Impact guard
9. Cutting blade safety cover
2.2 Items supplied
Please check that the article is complete as
specified in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
• Open the packaging and take out the equip-
ment with care.
• Remove the packaging material and any
packaging and/or transportation braces (if
Anl_PXCHT_6502U_SPK7.indb 10Anl_PXCHT_6502U_SPK7.indb 10 13.08.2019 12:14:0513.08.2019 12:14:05

GB
- 11 -
available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for
transport damage.
• If possible, please keep the packaging until
the end of the guarantee period.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suffocating!
• Hedge trimmer
• Cutter guard
• Cuttings collector
• Original operating instructions
3. Proper use
This hedge trimmer is suitable for cutting hedges,
bushes and shrubs.
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse.The user / operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
4. Technical data
Cutter rail length ..................................... 720 mm
Cutting length ......................................... 650 mm
Tooth spacing ........................................... 30 mm
Cuts/min. ..................................................... 2700
Sound pressure level LpA ...................... 73 dB (A)
Sound power level LWA .......................... 93 dB (A)
Sound pressure level at the operator‘s ear ..........
............................................................... 80 dB(A)
Uncertainty KpA / KWA .............................. 3 dB (A)
Sound power level guaranteed LWA ........ 96 dB(A)
Vibrations ah............................................3.4 m/s2
Uncertainty K ..........................................1.5 m/s2
Caution
The equipment is supplied without batteries and
without a charger. It must only be used with the li-
thium-ion batteries in the Power-X-Change series.
The lithium-ion batteries of the Power-X-Change
series must only be charged only with the Power-
X charger.
The noise generated by the unit can exceed 85
dB (A).The operator will require noise protection
measures if this is the case.The noise emitted by
the hedge trimmer was measured in accordance
with EN 60745-1.The vibration emission level at
the handle was determined in compliance with
EN 60745-1.
The specified vibration value was established in
accordance with a standardized testing method. It
may change according to how the electric equip-
ment is used and may exceed the specified value
in exceptional circumstances.
The specified vibration value can be used to
compare the equipment with other electric power
tools.
The specified vibration value can be used for initi-
al assessment of a harmful effect.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect wor-
king order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever ne-
cessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in
accordance with instructions, certain resi-
dual risks cannot be rules out. The following
hazards may arise in connection with the
equipment’s construction and layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear protec-
tion is used.
Anl_PXCHT_6502U_SPK7.indb 11Anl_PXCHT_6502U_SPK7.indb 11 13.08.2019 12:14:0513.08.2019 12:14:05

GB
- 12 -
5. Before starting the equipment
The equipment is supplied without batteries
and without a charger.
Assembly
The hedge trimmer is supplied fully assembled.
All that still needs doing is to slide the cuttings
collector onto the cutter rail if required.
Fitting the cuttings collector (Fig. 4a-4c)
For horizontal cutting we recommend that you
install the cuttings collector.This enables you
to remove the cuttings easily.The surface of the
hedge thus remains clear (Fig. 4a/4b). Position
the cuttings collector (6) on the cutter rail (Figure
4c).Then push the cuttings collector towards the
handle to clamps it securely under the retaining
pin (Fig. 4c/Item A).
Rotatable handle
The hedge trimmer is fitted with a rotatable rear
handle. It can be rotated 90° to the left and right.
To do this, pull the slide (Fig. 5 / item 5) in the di-
rection of the arrow and rotate the handle.
To return the handle to its original position, pull
the slide (Fig. 5 / item 5) back in the direction of
the arrow.The handle should be rotated through
90° when performing vertical cuts.
Note: The lock cannot be pulled back if the On/
Offswitch (Fig. 5/Item 4a) is pressed.
WARNING! Never attempt to move the handle to
a position in between.
Installing the battery (Fig. 6)
Press the push/lock button of the battery pack
as shown in Fig. 6 and slide the battery pack into
the mount provided. Make sure that the push/lock
button engages properly. To remove the battery
pack, follow the steps in reverse order.
Charging the battery (Fig. 7)
1. Take the battery pack out of the equipment.
Press the push/lock button to do this.
2. Check that your mains voltage matches the
voltage specified on the rating plate of the
battery charger. Insert the power plug of the
charger into the socket outlet. The green LED
will then begin to flash.
3. Insert the battery pack into the charger.
4. In the section entitled „Charger indicator“
there is a table with an explanation of the LED
display on the charger.
The battery pack can heat up slightly during char-
ging.This is normal.
If the battery pack fails to charge, please check:
• whether there is a voltage at the mains power
socket;
• whether there is good contact at the charging
contacts.
If the battery pack still fails to charge, please send
• the charging unit
• and the battery pack
to our customer service center.
Battery capacity indicator (Fig. 8)
Press the battery capacity indicator switch (item
A).The battery capacity indicator (item B) shows
the charge status of the battery using 3 LEDs.
All 3 LEDs lit:
The battery is fully charged.
2 or 1 LED(s) lit:
The battery has an adequate remaining charge.
1 LED flashing:
The battery is empty, recharge the battery.
All LEDs flashing:
The battery pack has been deep-discharged and
is defective. Do not re-use or charge a defective
battery pack.
Recharge the battery pack promptly to ensure
that it provides long service. Always recharge the
battery pack when you notice that the power of
the cordless hedge trimmer starts to drop. Never
allow the battery pack to become fully dischar-
ged.This will cause it to develop a defect.
6. Operation
Switching ON/OFF.
The hedge trimmer is equipped with a two-
handed safety switch. It works only when one of
the switches on the steady grip (Fig. 9/Item 3a) is
pressed with one hand and the switch (Fig. 5/Item
4a) on the handle is pressed with the other hand.
If either switch is released, the cutters will stop
moving. Please watch out for the cutters as they
slow down to a standstill.
Anl_PXCHT_6502U_SPK7.indb 12Anl_PXCHT_6502U_SPK7.indb 12 13.08.2019 12:14:0513.08.2019 12:14:05

GB
- 13 -
Notes for use
• A hedge trimmer can be used to cut shrubs
and bushes as well as hedges.
• To obtain the best cutting results, hold the
hedge trimmer so that the cutter teeth are
at an angle of approx. 15° in relation to the
hedge (see Fig. 10).
• The twin-bladed cutters rotate in opposite
directions, thus enabling cutting in both direc-
tions (see Fig. 11).
• To ensure that you cut the hedge to a level
height, we recommend tying a guide line of
string or similar along the hedge. Cut off all
branches that protrude beyond the guide line
(see Fig. 12).
Warning! Be particularly attentive when cutting
along the guide line. Do not cut through the guide
line.This could get entangled in the blades and
lead to injuries or damage to property.
• Cut the sides of the hedge with curve-shaped
movements from the bottom up (see Figure
13).
What to do if the blade gets blocked
1. Stop the equipment.
2. Remove the battery.
3. Remove the jammed material from the blade
(wear work gloves to prevent injury when you
do so).
After using
1. Switch offthe equipment.
2. Remove the battery.
3. Allow the equipment to cool down and then
store it out of children’s reach.
7. Cleaning, maintenance and
ordering of spare parts
Danger!
Before putting the hedge trimmer away and
cleaning it, switch it offand remove the battery
pack.
7.1 Cleaning
• Keep all safety devices, air vents and the
motor housing free of dirt and dust as far as
possible.Wipe the equipment with a clean
cloth or blow it with compressed air at low
pressure.
• We recommend that you clean the device
immediately each time you have finished
using it.
• Clean the equipment regularly with a moist
cloth and some soft soap. Do not use
cleaning agents or solvents; these could at-
tack the plastic parts of the equipment. Ensu-
re that no water can seep into the device.The
ingress of water into an electric tool increases
the risk of an electric shock.
• Use a brush to remove deposits from the
safety guard.

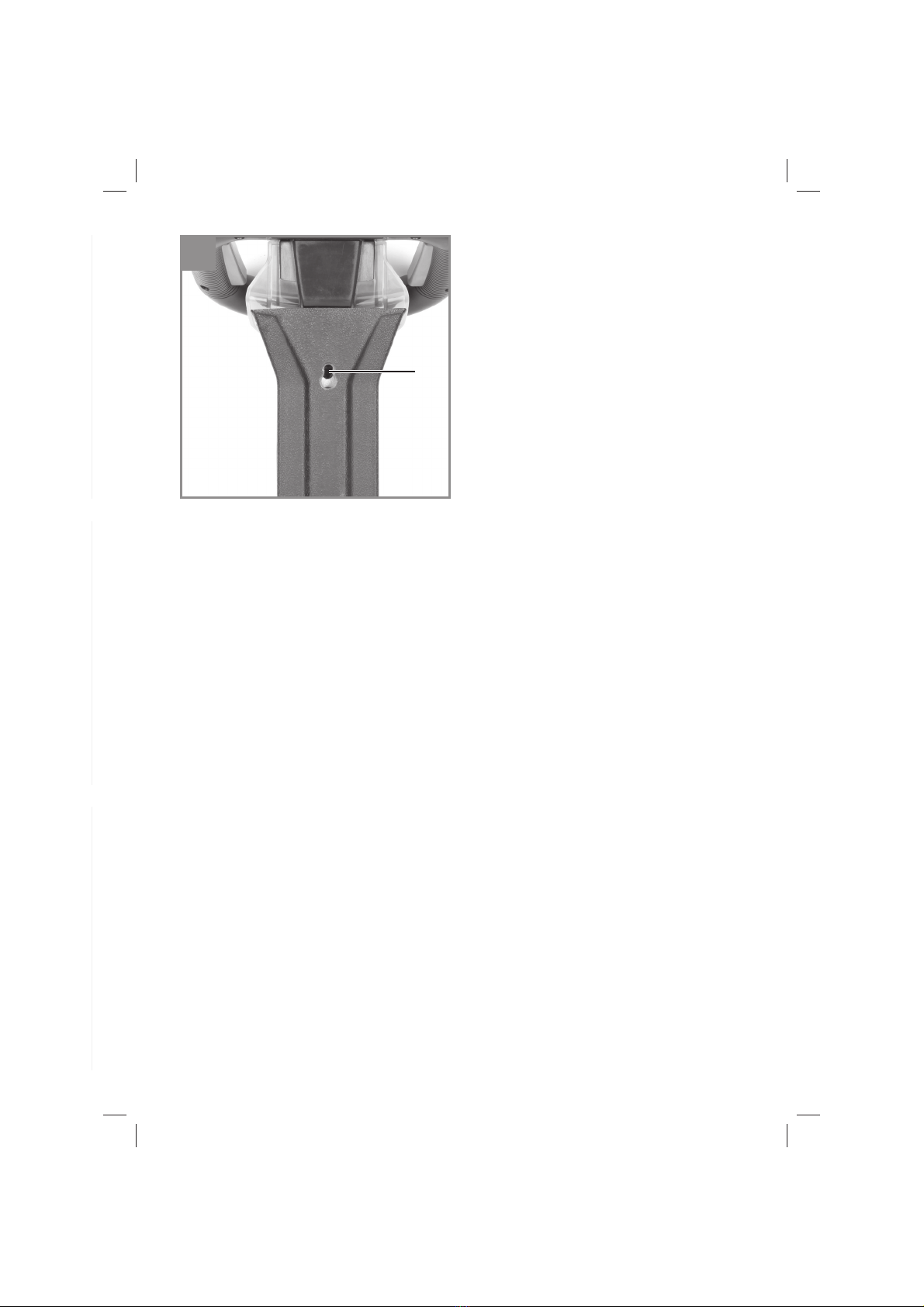

7.2 Maintenance
• The cutters should be cleaned and lubricated
at regular intervals in order to ensure best
performance at all times. Remove deposits
with a brush and apply a thin film of oil (Figure
14).
• There are no other parts inside the equipment
which require maintenance.
• Double blades are not allowed to be used
if they are damaged or worn and must be
replaced by original spare parts from the ma-
nufacturer.
• Arrange for an expert or our service workshop
to carry out all safety-related maintenance
work and the replacement of defective parts
or the sharpening or replacement of the dou-
ble blade, so that you can be sure that the
hedge trimmer is safe to use.
7.3 Storage
• When not in use the hedge trimmer can be
hung on a nail, screw or the like for storage,
with the cutter rail guard fitted (Fig. 15/Item.
A).
7.4 Ordering replacement parts:
Please quote the following data when ordering
replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
For our latest prices and information please go to
www.isc-gmbh.info
Anl_PXCHT_6502U_SPK7.indb 13Anl_PXCHT_6502U_SPK7.indb 13 13.08.2019 12:14:0613.08.2019 12:14:06

GB
- 14 -
8. Disposal and recycling
The equipment is supplied in packaging to pre-
vent it from being damaged in transit. The raw
materials in this packaging can be reused or
recycled.The equipment and its accessories are
made of various types of material, such as metal
and plastic. Never place defective equipment in
your household refuse.The equipment should
be taken to a suitable collection center for proper
disposal. If you do not know the whereabouts of
such a collection point, you should ask in your
local council offices.
9. Faults
Check that the battery is charged and the char-
ging unit is working. If the equipment will not work
despite the voltage supply being present, please
send it to the customer service address below.
Anl_PXCHT_6502U_SPK7.indb 14Anl_PXCHT_6502U_SPK7.indb 14 13.08.2019 12:14:0613.08.2019 12:14:06

GB
- 15 -
10. Charger indicator
Indicator status Explanations and actions
Red LED Green LED
OffFlashing Ready for use
The charger is connected to the mains and is ready for use; there is no
battery pack in the charger
On OffCharging
The charger is charging the battery pack in quick charge mode.The char-
ging times are shown directly on the charger.
Important! The actual charging times may vary slightly from the stated
charging times depending on the existing battery charge.
OffOn The battery is charged and ready for use.
The unit then changes over to gentle charging mode until the battery is
fully charged.
To do this, leave the rechargeable battery on the charger for approx. 15
minutes longer.
Action:
Take the battery pack out of the charger. Disconnect the charger from the
mains supply.
Flashing OffAdapted charging
The charger is in gentle charging mode.
For safety reasons the charging is performed less quickly and takes more
time.The reasons can be:
- The rechargeable battery has not been used for a very long time.
- The battery temperature is outside the ideal range.
Action:
Wait for the charging to be completed; you can still continue to charge the
battery pack.
Flashing Flashing Fault
Charging is no longer possible.The battery pack is defective.
Action:
Never charge a defective battery pack.
Take the battery pack out of the charger.
On On Temperature fault
The battery pack is too hot (e.g. due to direct sunshine) or too cold
(below 0° C).
Action:
Remove the battery pack and keep it at room temperature (approx. 20° C)
for one day .
Anl_PXCHT_6502U_SPK7.indb 15Anl_PXCHT_6502U_SPK7.indb 15 13.08.2019 12:14:0613.08.2019 12:14:06

GB
- 16 -
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and
its implementation in national laws, old electric power tools have to be separated from other waste and
disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment
must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment.
The old equipment can be returned to a suitable collection point that will dispose of the equipment in
accordance with the national recycling and waste disposal regulations. This does not apply to any ac-
cessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers
accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
Anl_PXCHT_6502U_SPK7.indb 16Anl_PXCHT_6502U_SPK7.indb 16 13.08.2019 12:14:0613.08.2019 12:14:06

GB
- 17 -
Service information
We have competent service partners in all countries named on the guarantee certificate whose contact
details can also be found on the guarantee certificate. These partners will help you with all service re-
quests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the
following parts are therefore also required for use as consumables.
Category Example
Wear parts* Blade guide, Battery
Consumables* Blade
Missing parts
* Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Ple-
ase ensure that you provide a precise description of the problem and answer the following questions in
all cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Anl_PXCHT_6502U_SPK7.indb 17Anl_PXCHT_6502U_SPK7.indb 17 13.08.2019 12:14:0613.08.2019 12:14:06

GB
- 18 -
Warranty certificate
Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the
unlikely event that your device develops a fault, please contact our service department at the address
shown on this guarantee card.You can also contact us by telephone using the service number shown.
Please note the following terms under which guarantee claims can be made:
1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product
neither for their commercial activities nor for any other self-employed activities.These warranty
terms regulate additional warranty services, which the manufacturer mentioned below promises to
buyers of its new products in addition to their statutory rights of guarantee.Your statutory guarantee
claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which
you have bought from the manufacturer mentioned below and are limited to either the rectification of
said defects on the product or the replacement of the product, whichever we prefer.
Please note that our devices are not designed for use in commercial, trade or professional applica-
tions. A guarantee contract will not be created if the device has been used by commercial, trade or
industrial business or has been exposed to similar stresses during the guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect
installation, a failure to follow the operating instructions (for example connecting it to an incorrect
mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex-
posing the device to abnormal environmental conditions or by lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the device or the
use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand,
stones or dust, transport damage), the use of force or damage caused by external forces (for ex-
ample by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal
use of the device.
4. The guarantee is valid for a period of 5 years starting from the purchase date of the device. Guaran-
tee claims should be submitted before the end of the guarantee period within two weeks of the de-
fect being noticed. No guarantee claims will be accepted after the end of the guarantee period.The
original guarantee period remains applicable to the device even if repairs are carried out or parts are
replaced. In such cases, the work performed or parts fitted will not result in an extension of the gua-
rantee period, and no new guarantee will become active for the work performed or parts fitted.This
also applies if an on-site service is used.
5. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info.
Please keep your bill of purchase or other proof of purchase for the new device. Devices that are
returned without proof of purchase or without a rating plate shall not be covered by the guarantee,
because appropriate identification will not be possible. If the defect is covered by our guarantee,
then the item in question will either be repaired immediately and returned to you or we will send you
a new replacement.
Of course, we are also happy offer a chargeable repair service for any defects which are not covered by
the scope of this guarantee or for units which are no longer covered.To take advantage of this service,
please send the device to our service address.
Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as
set out in the service information in these operating instructions.
Anl_PXCHT_6502U_SPK7.indb 18Anl_PXCHT_6502U_SPK7.indb 18 13.08.2019 12:14:0613.08.2019 12:14:06

Wei/Product-ManagementAndreas Weichselgartner/General-Manager
- 19 -
Derklärt folgende Konformität gemäß EU-Richtlinie und
Normen für Artikel
GB explains the following conformity according to EU directi-
ves and norms for the following product
Fdéclare la conformité suivante selon la directive CE et les
normes concernant l’article
Idichiara la seguente conformità secondo la direttiva UE e
le norme per l’articolo
NL verklaart de volgende overeenstemming conform EU
richtlijn en normen voor het product
Edeclara la siguiente conformidad a tenor de la directiva y
normas de la UE para el artículo
Pdeclara a seguinte conformidade, de acordo com as
diretiva CE e normas para o artigo
DK attesterer følgende overensstemmelse i medfør af
EU-direktiv samt standarder for artikel
Sförklarar följande överensstämmelse enl. EU-direktiv och
standarder för artikeln
FIN vakuuttaa, että tuote täyttää EU-direktiivin ja standardien
vaatimukset
EE tõendab toote vastavust EL direktiivile ja standarditele
CZ vydává následující prohlášení o shoděpodle směrnice EU
a norem pro výrobek
SLO potrjuje sledečo skladnost s smernico EU in standardi za
izdelek
SK vydáva nasledujúce prehlásenie o zhode podľa smernice
EÚ a noriem pre výrobok
Ha cikkekhez az EU-irányvonal és Normák szerint a
következőkonformitást jelenti ki
PL deklaruje zgodność wymienionego poniżej artykułu z
następującymi normami na podstawie dyrektywy WE.
BG декларира съответното съответствие съгласно
Директива на ЕС инорми за артикул
LV paskaidro šādu atbilstību ES direktīvai un standartiem
LT apibūdina šįatitikimąEU reikalavimams ir prekės normoms
RO declarăurmătoarea conformitate conform directivei UE şi
normelor pentru articolul
GR δηλώνει την ακόλουθη συμμόρφωση σύμφωνα με την
Οδηγία ΕΚ και τα πρότυπα για το προϊόν
HR potvrđuje sljedeću usklađenost prema smjernicama EU i
normama za artikl
BIH potvrđuje sljedeću usklađenost prema smjernicama EU i
normama za artikl
RS potvrđuje sledeću usklađenost prema smernicama EZ i
normama za artikal
RUS следующим удостоверяется, что следующие продукты
соответствуют директивам инормам ЕС
UKR проголошує про зазначену нижче відповідність виробу
директивам та стандартам ЄС на виріб
MK ја изјавува следната сообрзност согласно
ЕУ-директивата инормите за артикли
TR Ürünü ile ilgili AB direktifleri ve normlarıgereğince aşağıda
açıklanan uygunluğu belirtir
Nerklærer følgende samsvar i henhold til EU-direktivet og
standarder for artikkel
IS Lýsir uppfyllingu EU-reglna og annarra staðla vöru
Konformitätserklärung
Cordless Hedge Trimmer PXCHT-6502U (Ozito)
2014/29/EU
2005/32/EC_2009/125/EC
2014/35/EU
2006/28/EC
X2014/30/EU
2014/32/EU
2014/53/EU
2014/68/EU
(EU)2016/426
Notified Body:
(EU)2016/425
X2011/65/EU_(EU)2015/863
X2006/42/EC
Annex IV
Notified Body:
Reg. No.:
X2000/14/EC_2005/88/EC
XAnnex V
Annex VI
Noise: measured LWA = 93 dB (A); guaranteed LWA = 96 dB (A)
P = kW; L/Ø = 65 cm
Notified Body:
2012/46/EU_(EU)2016/1628
Emission No.:
Standard references: EN 60745-1; EN 60745-2-15; EN 62233;
EN 55014-1; EN 55014-2
Landau/Isar, den 23.07.2019
First CE: 19 Archive-File/Record: NAPR021920
Art.-No.: 34.109.61 I.-No.: 11019 Documents registrar: ScheiflAlexander
Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Anl_PXCHT_6502U_SPK7.indb 19Anl_PXCHT_6502U_SPK7.indb 19 13.08.2019 12:14:0613.08.2019 12:14:06

- 20 -
Anl_PXCHT_6502U_SPK7.indb 20Anl_PXCHT_6502U_SPK7.indb 20 13.08.2019 12:14:0613.08.2019 12:14:06
