Ozito OGT-0185 User manual

ChargingCharged ChargingCharged
CORDLESS
GRASS
TRIMMER KIT
18V Lithium Ion
INSTRUCTION MANUAL
SPECIFICATIONS
Voltage: 18V
Max. Width of Cut: 240mm
Battery: 1.5Ah Li-ion
Charge Time: 4-5 Hours
No Load Speed: 8,500/min
Weight: 1.9kg
OGT- 0185
STANDARD EQUIPMENT
ozito.com.au
Safety Guard
Battery Charger
1.5Ah Battery Pack
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
0119
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty. Lithium Ion batteries are covered
by a 12 month warranty. Warranty excludes consumable parts, for
example: blades.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use
Grass Trimmer
Replacement Blade

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
ChargingCharged ChargingCharged
1. Tree/ower guard
2. Motor housing
3. Telescopic shaft
4. Shaft adjustment collar
5. Adjustable handle
6. On/off trigger
7. Lock-off switch
8. Sure grip handle
9. Blade
10.Spindle plate
11. Safety guard
12. Battery seating
13.Battery release button
14. Battery charge indicators
15. Charger indicator button
16. Charging cradle
17. Charger LED indicators
18. Charger adaptor
19. Replacement blade
CORDLESS GRASS TRIMMER
ACCESSORIES
KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
15
76
WARNING! NEVER USE THE GRASS TRIMMER
UNLESS THE SAFETY GUARD IS PROPERLY
FITTED.
CAUTION! ENSURE THE TOOL IS OFF & THE BATTERY
REMOVED BEFORE PERFORMING ANY OF THE
FOLLOWING OPERATIONS.
8
9
4321 5
10 11
12
13 14 16 17 18
WARNING!: STONES, PIECES OF METAL AND
OTHER OBJECTS CAN BE THROWN OUT AT HIGH
SPEED BY THE BLADES.
Fitting the Safety Guard
Turn the grass trimmer
upside down. Align the
recess in the safety guard
with the tabs of the cutter
head. Slide in until it clicks
into place.
1. Place the big hole in the
blade onto the blade mount
on the bottom of the
spindle plate.
3. To remove the blade push
the blade towards the
centre of the spindle and
then slide off.
2. Pull the blade
outwards so that the
small hole is tted
into the mount.
Attaching and Replacing Blade
19

2. BATTERY CHARGING
Allow at least 3 hours of charge time before initial use of the
battery. Charge the battery pack only with the charger provided.
The battery should be charged in a cool dry place. It will take
2 to 3 charging/discharging cycles before the battery achieves
maximum run time capacity.
Charging the Li-Ion Battery
1. Connect the charging adaptor into the mains power outlet.
3. With the battery sitting on a
at surface, align the raised
ribs on the battery with the
recess in the charger cradle
and slide onto the battery
ensuring a rm connection.
Note: The battery will not develop a memory, it does not have to
be fully discharged before recharging.
2. The charger LED will ash
green showing power
is being supplied to the
charger.
ChargingCharged
ChargingCharged
ChargingCharged ChargingCharged
ChargingCharged
4. The charger LED will illuminate red signifying that the battery
is charging. Battery is fully charged after 4-5 hours, green
LED will turn on.
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
WE RECOMMEND THE USE OF A RESIDUAL CURRENT
DEVICE (RATED 30mA OR LESS).
ChargingCharged
ChargingCharged
ChargingCharged ChargingCharged
ChargingCharged
5. When removing the charger
from the battery, rst press
the battery release tab, then
slide the cradle from its
position.
ChargingCharged
ChargingCharged
ChargingCharged ChargingCharged
ChargingCharged
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Illuminated) Battery is charging (low charge)
GREEN (Illuminated) Battery is fully charged.
GREEN & RED (Flashing) Battery is faulty.
GREEN & RED (Illuminated)
Battery is too hot. Remove battery from
charger a let cool. Insert battery again
when at room temperature.
Battery Charge Indicator
1 GREEN LED indicates that the
battery has only a low charge and
requires charging.
2 GREEN LEDs indicate that the
battery has mid state of charge.
3 GREEN LEDs indicate that the
battery is fully charged.
The included battery is
equipped with a battery charge
indicator to show the state of
the battery charge.
Press the charge indicator
button and check to see which
LED light is on.
Note: The battery needs to be removed from the tool to check
the state of charge.
Battery Protection System
The tool is equipped with the battery protection system, which
helps to ensure a long service life.
The output power automatically cuts off during operation when
the tool and battery are placed under the following situations:
• When tool is overloaded:
If this occurs, turn off the tool and let it cool down for 10 mins,
remove the cause of overload, then resume operation.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The battery protection system does not in any way
damage the tool.
Note: The indicated capacity may be lower than the actual level
during use or immediately after using the tool.

OPERATION

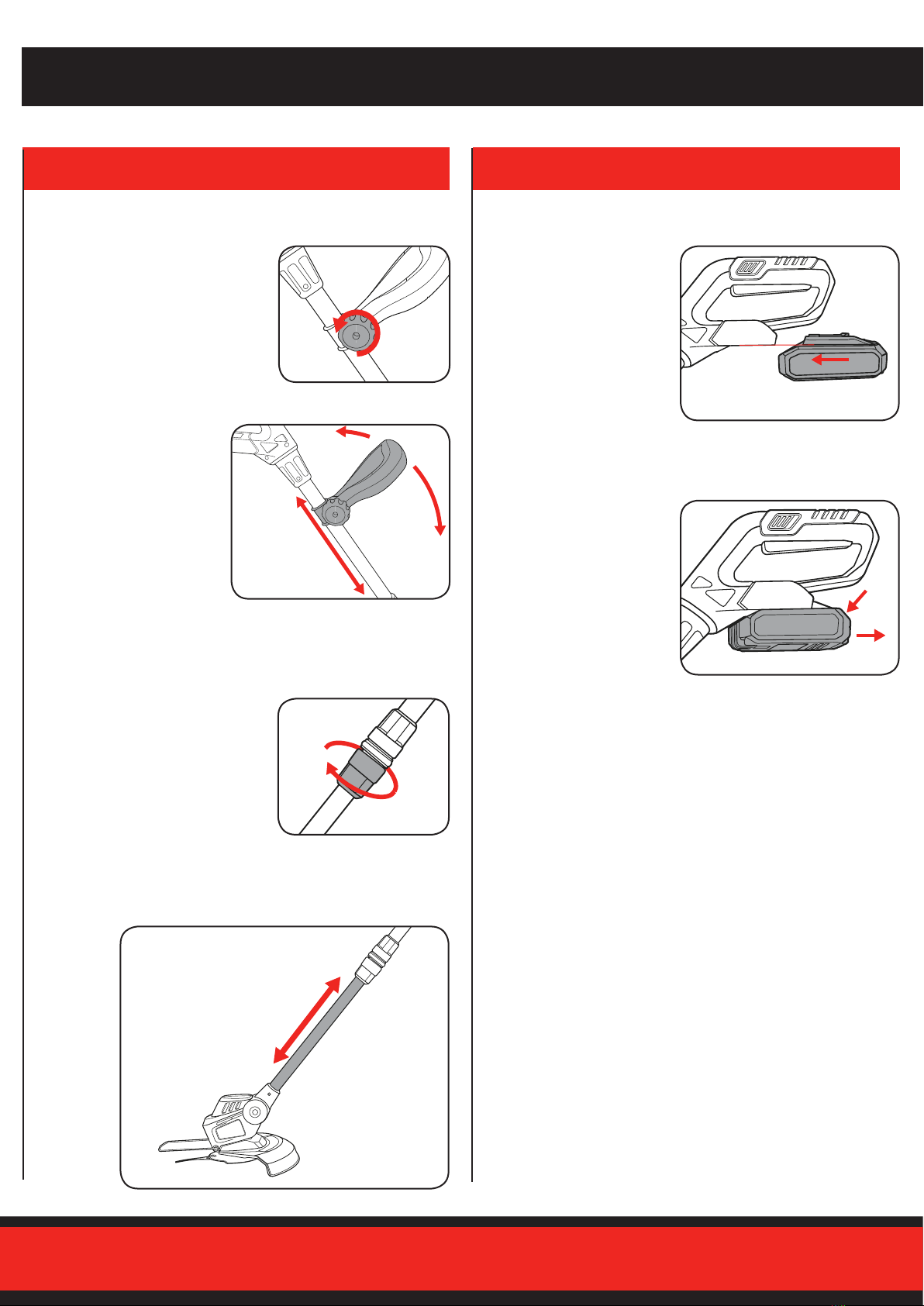

3. ADJUSTMENTS
Adjustable Handle
1. Loosen the locking knob.
Adjusting the Height
The Telescopic Shaft can be adjusted to suit different user
heights.
1. Loosen the shaft adjustment
collar.
2. Extend to the desired height and retighten the adjustment
collar to secure in place.
2. Rotate the handle into
the desired position and
then tighten the locking
knob.
4. INSERTING & REMOVING THE BATTERY
Inserting the Battery into the Grass Trimmer
1. Align the ribs of the
battery and the recess
behind the handle.
2. Slide the battery in so
that it clicks into place.
a
b
Removing the Battery from the Grass Trimmer
1. Press and hold the
battery release button
(a) to release the battery.
2. Slide the battery (b) out.
a
b

Trimming
• Before inserting the battery,
extend the tree/ower guide to
prevent the cutting head from
getting too close to an object
such as a tree trunk or wall.
• Start the grass trimmer before
approaching the grass to be cut.
Note: The best results will be
achieve by cutting dry grass.
• Stand with the cutting head
tipped down at an 30° angle in
front, guiding the grass trimmer
in a semi-circular motion around
you.
• When cutting long grass, cut
in stages from the top of the
grass to the bottom of the
grass.
•Use only the tip of the
cutting blade to do the
trimming especially
near walls and fences.
Trimming with the side
of the cutting blade may
overload the motor, wear
out the blades faster, and
break the blades more
often.
Note: If the motor starts to slow down, reduce the cutting load.
• If then grass trimmer is not cutting correctly, the blade will
need to be replaced, refer to the assembly section of this
manual.
• After nishing the cutting operation, keep the head close to
ground level, release the trigger switch and allow the motor to
come to a complete standstill. Place the grass trimmer on the
ground, and remove the battery.
OGT - 0185
6. USING THE GRASS TRIMMER
WARNING!: INSPECT THE AREA TO BE TRIMMED
AND REMOVE ANY WIRE, CORD OR STRING-LIKE
OBJECTS WHICH COULD BECOME ENTANGLED IN
THE ROTATING SPINDLE PLATE.
CAUTION!: BYSTANDERS MUST KEEP A MINIMUM SAFE
DISTANCE OF 10M AWAY FROM THE GRASS TRIMMER
WHILE IT IS OPERATING.
WARNING!: THE CUTTING ELEMENTS CONTINUE
TO ROTATE FOR A FEW SECONDS AFTER THE
MOTOR IS SWITCHED OFF.
30°
30°
30°
5. CONTROLS
Switching On and Off
For your safety this Grass Trimmer is designed with a safety
lock off mechanism. This prevents accidental starting. If you
only squeeze the on/off trigger the Grass Trimmer will not start.
1. Slide and hold the
lock-off switch with
your thumb.
2. Squeeze the on/off
trigger to start the grass
trimmer.
Note: Once started the
lock-off switch can be
release
3. To stop the grass
trimmer, release the on/
off trigger.
30°
CAUTION!: BEFORE YOU START THE UNIT, MAKE SURE
THAT THE GRASS TRIMMER IS NOT MAKING CONTACT
WITH ANY OBJECTS.

MAINTENANCE
• Keep ventilation slots of the trimmer clean at all times. Periodically
clean out the grass from the spindle plate and the rim of the safety
guard to ensure efcient operation at all times.
• After each use, blow air through the tool housing to ensure it is free
from all dust, dirt, etc. Build up of dust, dirt particles may cause the
tool to overheat and shorten the life of the tool.
• If the housing of the grass trimmer requires cleaning, do not use
solvents but a moist soft cloth or soft brush only.
• Never let any liquid get inside the tool, never immerse any part of the
tool into liquid.
• No lubrication is necessary as the tool has sealed bearings.
• When not in use, the grass trimmer should be stored in a dry, frost
free location not within the reach of children.
WARNING! ALWAYS ENSURE THE TOOL HAS
COMPLETELY STOPPED AND THE BATTERY IS REMOVED
PRIOR TO ANY MAINTENANCE.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the grass trimmer by an unauthorised person or by mishandling
of the grass trimmer. This tool is designed for DIY use - use in commercial or
industrial environments will void the warranty.
Problem Cause Remedy
Trimmer is not
starting
Possible clogging Clean the cutter head of any
grass.
Battery is low in charge Charge battery
Battery not inserted
properly
Insert battery pack correctly
Trimmer is not
operating at
full capacity
Possible clogging Clean the cutter head of any
grass.
Cutting tall grass at
ground level.
Make several passes from
top down.
Motor stops
while operating
Battery has no power Charge battery
Grass wraps
around the
shaft and
spindle plate
Cutting tall grass at
ground level.
Make several passes from
top down.
1. Unscrew the countersunk
head screw in the centre
of the spindle plate, rotate
anti-clockwise to remove.
Once removed put aside
for re-assembly.
2. Lift off the spindle plate.
3. Mount and fasten the new
spindle plate.
Replacing the Spindle Plate
TROUBLESHOOTING

DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed
of with household waste but in an environmentally friendly way.
Please recycle where facilities exist. Check with your local
council authority for recycling advice.
Recycling packaging reduces the need for landll and raw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
Spare Part Part No.
Blades (20 pack) PXCLTA-020
Blades (50 pack) PXCLTA-050
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING IN-
STRUCTIONS FOR YOUR
BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the
charger, battery pack and the product using the battery pack.
2. This charger is not intended for any uses other than charging rechargeable batter-
ies. Any other use may result in risk of re, electric shock or electrocution.
3. Do not place any object on top of the charger or place the charger on a soft surface
that may result in excessive internal heat. Place the charger in a position away
from any heat source.
4. To reduce risk of damage to the electric plug and cord, pull by the plug rather than
the cord when disconnecting the charger.
5. Make sure the cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of an im-
proper extension cord could result in the risk of re, electric shock or electrocution.
7. Do not operate the charger if it has received a sharp blow, been dropped or other-
wise damaged in any way. Have it checked by an electrician or power tool repairer.
8. Do not disassemble charger. Take it to an electrician or power tool repairer when
service or repair is required. Incorrect reassembly may result in a risk of electric
shock, electrocution or re.
9. To reduce risk of electric shock, unplug the charger from the outlet before attempt-
ing any cleaning. Removing the battery pack will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in locations where the temperature may
reach or exceed 40ºC (such as inside sheds or metal buildings in summer).
12. The charger is designed to operate on standard household electrical power (240
volts). Do not attempt to use it on any other voltage!
13. The battery pack is not fully charged out of the carton. First read the safety instruc-
tions and then follow the charging notes and procedures.
14. The longest life and best performance can be obtained if the battery pack is
charged when the air temperature is between 18 - 24ºC. Do not charge the battery
pack in an air temperature below 10ºC or above 40ºC. This is important and will
prevent damage to the battery pack.
15. Do not incinerate the battery pack even if it is seriously damaged or is completely
worn out. The battery can explode in a re.
16. Never attempt to open the battery pack for any reason. If the plastic housing of the bat-
tery pack breaks or cracks, immediately discontinue use and do not recharge.
17. During charging, the battery must be placed in a well ventilated area.
BATTERY AND CHARGER SAFETY WARNINGS
Wear safety glasses
Read instruction
manual
Do not expose to rain.
Keep bystanders away. Do not operate whilst people especially
children or pets are in the area.
Regulator compliance mark
Wear hering protection
91
Sound power level

GRASS TRIMMER SAFETY WARNINGS
Hold power tool by insulated gripping surfaces, when performing an operation
where the cutting accessory may contact hidden wiring. Cutting accessory
contacting a “live” wire may make exposed metal parts of the power tool “live“ and
could give the operator an electric shock.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Never allow children or people unfamiliar with these instructions to use the line
trimmer.
• Avoid using the line trimmer, while people, especially children or pets, are nearby.
• Use the line trimmer only in daylight or good articial light.
• Never operate the line trimmer with damaged guards or without guards in place.
• Switch on the line trimmer only when the hands and feet are away from the
cutting head.
• Never t metal cutting blades.
• Use only the manufacturer’s recommended replacement parts and accessories.
• Always remove the battery from the line trimmer when leaving the line trimmer
unattended.
• Always remove the battery from the line trimmer before carrying out maintenance
or cleaning work.
• Inspect and maintain the line trimmer regularly. Have the line trimmer repaired
only by an authorized repairer.
• Take care against injury from the blade(s) tted for trimming the cutting line
length. After extending new cutting line, always return the line trimmer to its
normal operating position before switching on.
• When not in use, store the line trimmer out of the reach of children.
• Face the cutting head away from yourself, other people and animals while the
power is connected to the line trimmer (especially during operation).
• Remove the battery when changing spools or clearing grass from under the
guard.
• Remove the battery from the line trimmer before making any adjustments.
• Use both handles.
• Keep ventilation openings clear of debris. Keep handles dry, clean and free of oil
and grease.
• Never reach underneath the line trimmer (the cutting line area) until it has
completely stopped and the battery has been removed.
WARNING! When servicing, use only identical replacement parts. Use of
any other parts may create a hazard or cause product damage. To ensure
safety and reliability, all repairs should be performed by a qualied service
technician.
WARNING! This appliance is not intended for use by young or inrm persons
unless supervised by a responsible person to ensure that they can use the
appliance safely. Children should be supervised to ensure that they do not
play with the appliance.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power
tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceofammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
notuseapowertoolwhileyouaretiredorundertheinuenceofdrugs,alcoholormedication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Rechargeonlywiththechargerspeciedbythemanufacturer.A charger that is suitable for one
type of battery pack may create a risk of re when used with another batery pack.
b. Usepowertoolsonlywithspecicallydesignatedbatterypacks.Use of any other battery packs
may create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal
to another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentallyoccurs,ushwithwater.Ifliquidcontactseyes,additionallyseekmedicalhelp.
Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Haveyourpowertoolservicedbyaqualiedrepairpersonusingonlyidenticalreplacement
parts. This will ensure that the safety of the power tool is maintained.
WARNING! When using mains-powered tools, basic safety precautions, including the
following,shouldalwaysbefollowedtoreduceriskofre,electricshock,personalinjury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to
the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tools charger is double insulated therefore no earth wire is required.
The power supply for this products charger should be protected by a residual current device
(rated at 30mA or less). A residual current device reduces the risk of electric shock.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
