Ozito PXCHTS-018U User manual

CORDLESS HEDGE
TRIMMER
ORIGINAL INSTRUCTIONS
SPECIFICATIONS
Voltage: 18V
Cuts/min: 2,200
Max. Cutting Capacity: 11mm
Blade Cutting Length: 460mm
Weight: 2.0kg
PXCHTS-018U
WHAT’S IN THE BOX
Hedge Trimmer
Blade Cover
WARRANTY
ozito-diy.co.uk
0716
Battery & Charger sold
separately
OZITO UK Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough, Wirral, CH62 3QG
All of our products undergo strict quality checks to ensure that they reach you in perfect
condition. In the unlikely event that your device develops a fault, please contact our service
department at the address shown on this guarantee card. You can also contact us by
telephone using the customer service number shown. Please note the following terms under
which guarantee claims can be made:
1. These warranty terms regulate additional warranty services, which the manufacturer
mentioned below promises to buyers of its new products in addition to their statutory
guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or manufacturing faults on
a product which you have bought from the manufacturer mentioned below are limited to
either the rectication of said defects on the product or the replacement of the product,
whichever we prefer.
Please note that our devices are not designed for use in commercial, trade or professional
applications. A guarantee contract will not be created if the device has been used by
commercial, trade or industrial business or has been exposed to similar stresses during the
guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to
incorrect installation, a failure to follow the operating instructions (for example connecting
it to an incorrect mains voltage or current type) or a failure to follow the maintenance and
safety instructions or by exposing the device to abnormal environmental conditions or by
lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the
device or the use or unapproved tools or accessories), ingress of foreign bodies into the
device (such as sand, stones or dust, transport damage), the use of force or damage caused
by external forces (for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by
normal use of the device.
4. Your Product is guaranteed for a period of 60 months from the original date of purchase
and is intended for DIY (Do It Yourself) use only. Lithium Ion batteries and chargers are
covered by a 12 month warranty. Warranty excludes consumable parts. Guarantee claims
should be submitted before the end of the guarantee period within two weeks of the defect
being noticed. No guarantee claims will be accepted after the end of the guarantee period.
The original guarantee period remains applicable to the device even if repairs are carried
out or parts are replaced. In such cases, the work performed or parts tted will not result
in an extension of the guarantee period, and no new guarantee will become active for the
work performed or parts tted. This also applies if an on-site service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO
THE PLACE OF PURCHASE WITH YOUR REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing parts, consumables and
missing parts as set out in the service information in these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk

ONLINE MANUAL
Scan this QR Code with your mobile
device to take you to the online manual.
BATTERY & CHARGER (sold separately)
This tool is compatible with all battery and chargers from
the Ozito Power X Change Range.
KNOW YOUR PRODUCT
1. ASSEMBLY
SETUP & PREPARATION
The blade cover protects the blade
when not in use. Simply slide it
off the blade before use. Once
nished operating, place the cover
back over the blade.
Ensure the safety guard
is tted securely onto the
hedge trimmer before use.
Tighten the screws on either
side if necessary.
Blade Cover
Safety Guard
WARNING! ENSURE THE TOOL IS SWITCHED
OFF AND BATTERY DISCONNECTED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
WARNING! NEVER USE THE HEDGE TRIMMING
UNLESS THE SAFETY GUARD IS FITTED.
WARNING! NEVER START THE HEDGE TRIMMER
WHILE THE BLADE COVER IS FITTED.
ACCESSORIES
1 2 3 4 5 6
7
8
1 Impact Guard
2 Blade
3 Safety Guard
4 Front Handle
5 Safety Switch
6 On/Off Trigger
7 Rear Handle
CORDLESS HEDGE TRIMMER
8 Blade Cover
WARNING! WHEN HANDLING THE BLADE ASSEMBLY,
WEAR NON-SLIP, HEAVY-DUTY PROTECTIVE GLOVES.
DO NOT PLACE YOUR HAND OR FINGERS BETWEEN
BLADES OR IN ANY POSITION WHERE THEY COULD
GET PINCHED OR CUT. NEVER TOUCH BLADES
OR SERVICE THE UNIT WITH THE BATTERY PACK
INSTALLED.

2. BATTERY & CHARGING (sold separately)
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Flashing) Battery is charging (low charge)
RED (Illuminated) Battery is charging (mid charge)
GREEN (Illuminated) Battery is 85%-100% charged and ready for use
BOTH(Illuminated) Battery pack is too hot or too cold (charging will begin
automatically when battery reaches correct charging
temperature).
BOTH (Flashing) Defective battery. Never charge a defective battery
pack!
Remove battery pack from charger.
CAUTION: THE CHARGER FOR THIS PRODUCT
SHOULD BE PROTECTED BY A RESIDUAL CURRENT
DEVICE (RATED AT 30MA OR LESS).
The purchased battery will be shipped in a low charge condition, and requires charging
prior to use. Allow several cycles of charging and discharging (through use of the tool)
for the battery to reach its optimum performance / runtime.
1. Connect the charger into a mains power outlet.
4. The charger LED will illuminate
red signifying that the battery is
charging.
3. With the charger sitting on a at
surface, align the raised ribs on
the battery with the recess in the
charger and slide onto the charger
ensuring a rm connection.
2. The charger LED will ash green
showing power is being supplied
to the charger.
5. The charger LED will illuminate
green once the battery is charged.
Charging your lithium ion battery - Fast Charger
Battery Charge Indicator
The purchased battery is equipped with a
battery charge indicator to show the state of
the battery charge.
Press the charge indicator button and look to
see which LED lights.
Battery requires
immediate charging
Low state of charge, requires charging soon.
Mid state of charge
Full state of charge.
Note: The battery needs to be removed from the tool to check the state of charge.
1. Connect the charger into a mains power outlet.
4. The charger LED will illuminate red signifying that the battery is charging.
3. With the battery sitting on a at
surface, align the raised ribs on the
battery with the recess in the charger
and slide onto the battery ensuring a
rm connection.
2. The charger LED will ash green
showing power is being supplied
to the charger.
5. When removing the charger from the
battery, rst press the battery release
tab, then slide the charger from its
position.
Charging your lithium ion battery - Eco Charger
Charger LED Indicator
LED Indicator Situation
GREEN (Flashing) Stand By (no battery pack is inserted)
RED (Illuminated) Battery is charging (low charge)
GREEN (Illuminated) Battery is charged and ready for use
RED (Flashing) Battery or Charger fault
RED & GREEN (Flashing) Battery pack is too hot or too cold (remove battery from
charger and store at room temperature 20ºC. Insert
battery again when at correct charging temperature). If
this happens again, the battery is defective and needs
to be replaced.

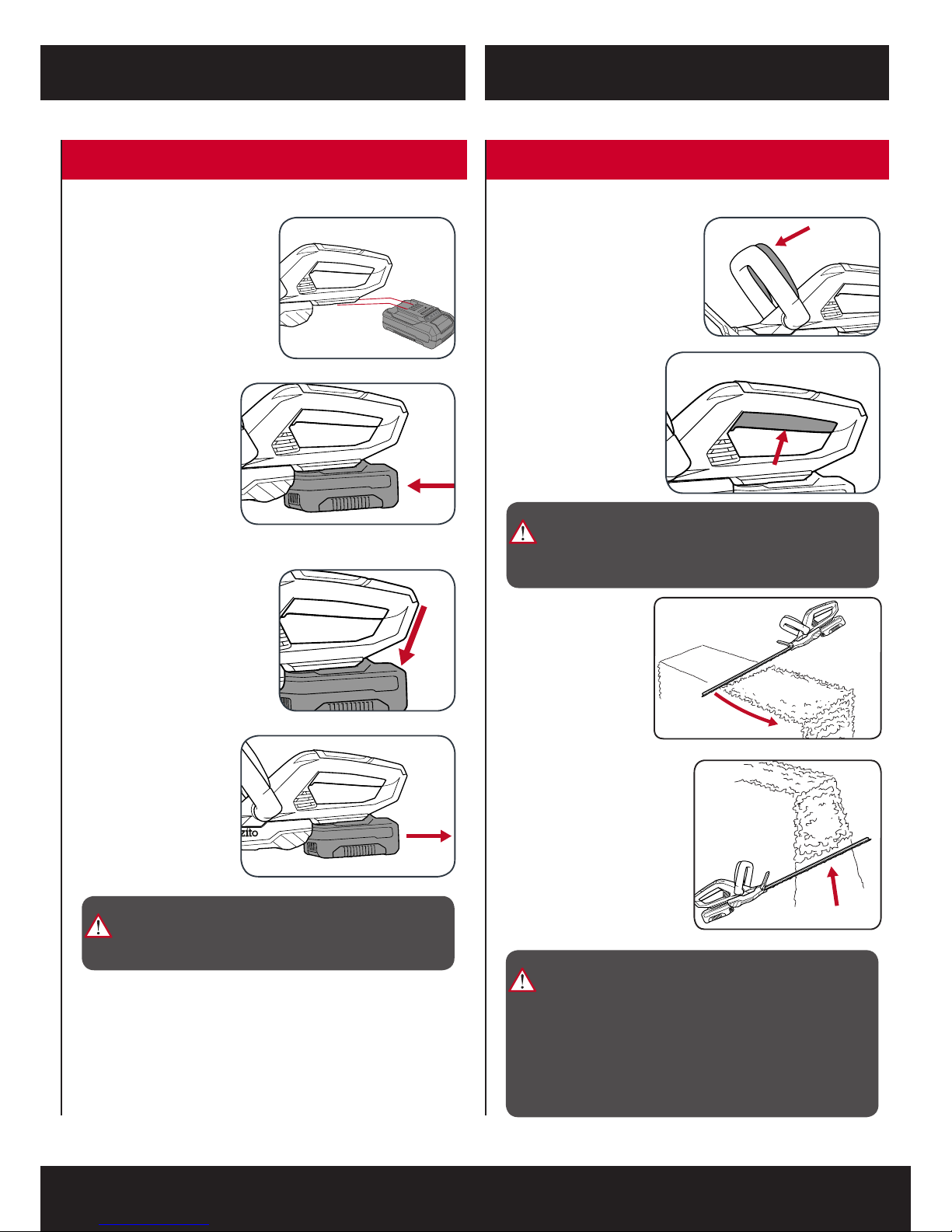

3. INSERTING & REMOVING THE BATTERY 4. CONTROLS & OPERATION
OPERATION
1. Align the ribs of the battery with
the recess in below the handle.
1. Press and hold the safety switch.
1. Press and hold the battery
release tab to release the
battery.
2. Slide the battery in so
that it clicks into place.
2. To start the hedge
trimmer, squeeze the on/
off trigger.
3. To stop operating,
release the on/off
trigger.
2. Slide the battery out.
Inserting a Battery into the Hedge Trimmer
Removing a Battery from the Hedge Trimmer
Switching On and Off
PXCHTS-018U
Top cutting
Use a wide sweeping motion.
A slight downward tilt of the
cutting blades in the direction
of motion gives the best
cutting results.
Side cutting
When trimming the sides of the hedge,
begin at the bottom and cut upwards.
Trim the side of a hedge so that it will
be slightly narrower at the top. This
shape will expose more of the hedge,
resulting in a more uniform growth.
WARNING! DO NOT USE ANY ATTACHMENTS
OR ACCESSORIES NOT RECOMMENDED BY THE
MANUFACTURER OF THIS PRODUCT, AS IT CAN
RESULT IN SERIOUS PERSONAL INJURY.
WARNING! CLEAR THE AREA TO BE CUT BEFORE
EACH USE. REMOVE ALL OBJECTS, SUCH AS CORDS,
LIGHTS, WIRE, OR STRING WHICH CAN BECOME
ENTANGLED IN THE CUTTING BLADE AND CREATE A
RISK OF SERIOUS PERSONAL INJURY.
WARNING! IF THE BLADE JAMS ON ANY ELECTRICAL
CORD OR LINE, DO NOT TOUCH THE BLADE! IT
CAN BECOME ELECTRICALLY LIVE AND VERY
DANGEROUS. CONTINUE TO HOLD THE HEDGE
TRIMMER BY THE INSULATED REAR HANDLE
OR LAY IT DOWN AND AWAY FROM YOU IN A
SAFE MANNER. DISCONNECT THE ELECTRICAL
SERVICE TO THE DAMAGED LINE OR CORD BEFORE
ATTEMPTING TO FREE THE BLADE. FAILURE TO HEED
THIS WARNING MAY RESULT IN SERIOUS PERSONAL
INJURY OR POSSIBLE DEATH.

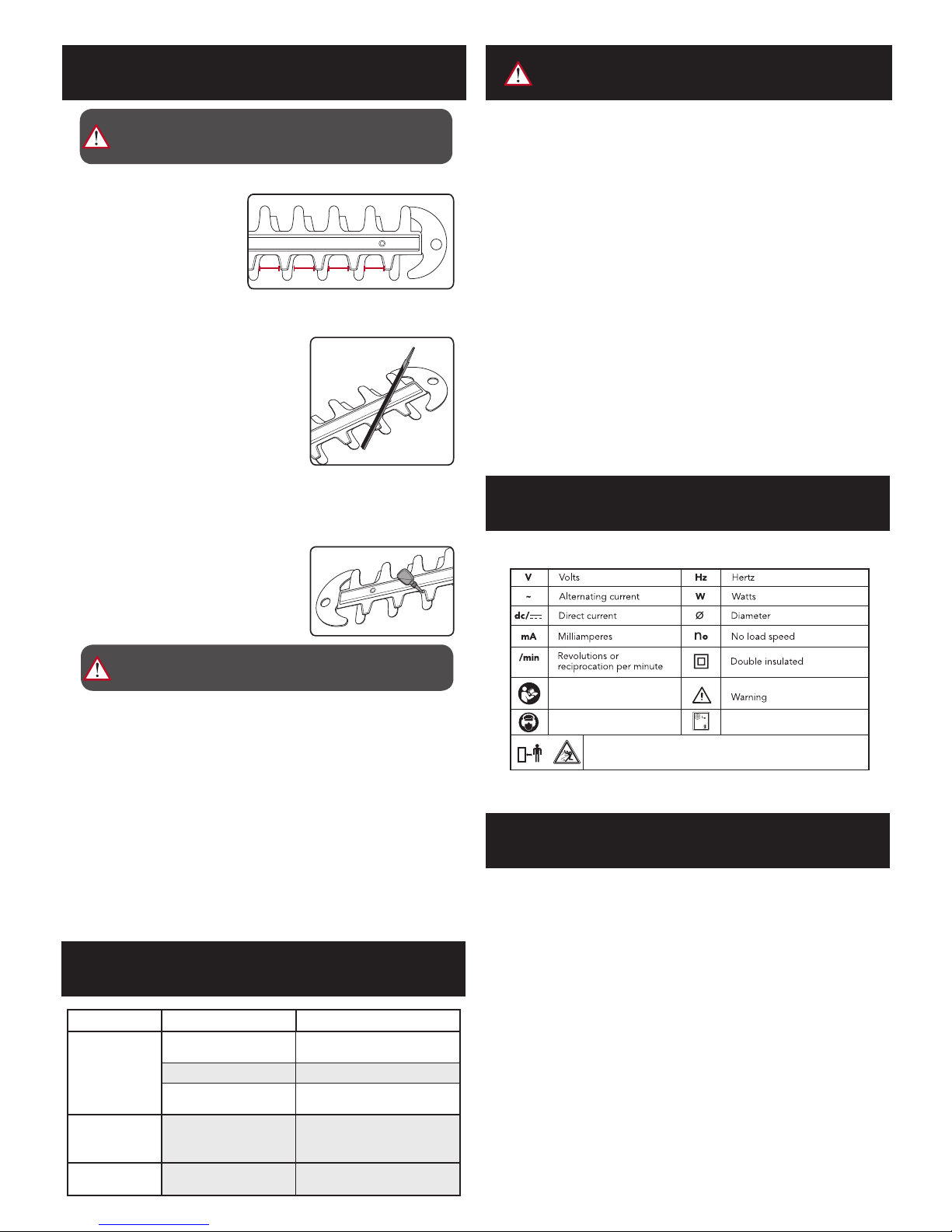

MAINTENANCE
DESCRIPTION OF SYMBOLS
TROUBLESHOOTING
SPARE PARTS
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR
BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the charger, battery pack and the product using the
battery pack.
2. This charger is not intended for any uses other than charging rechargeable batteries. Any other use may result in risk of re,
electric shock or electrocution.
3. Do not place any object on top of the charger or place the charger on a soft surface that may result in excessive internal heat.
Place the charger in a position away from any heat source.
4. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when disconnecting the charger.
5. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord could result in the risk of re,
electric shock or electrocution.
7. Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Have it checked by an
electrician or power tool repairer.
8. Do not disassemble charger. Take it to an electrician or power tool repairer when service or repair is required. Incorrect reas-
sembly may result in a risk of electric shock, electrocution or re.
9. To reduce risk of electric shock, unplug the charger from the outlet before attempting any cleaning. Removing the battery pack
will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed 40ºC (such as inside sheds or
metal buildings in summer).
12. The charger is designed to operate on standard household electrical power (240 volts). Do not attempt to use it on any other
voltage!
13. The battery pack is not fully charged out of the carton. First read the safety instructions and then follow the charging notes and
procedures.
14. The longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 18 -
24ºC. Do not charge the battery pack in an air temperature below 10ºC or above 40ºC. This is important and will prevent damage
to the battery pack.
15. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The battery can explode in a re.
16. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, immediately
discontinue use and do not recharge.
17. During charging, the battery must be placed in a well ventilated area.
BATTERY AND CHARGER SAFETY WARNINGS
Cleaning and Storage
• Keep air intake clean and air vents free of debris to avoid overheating the motor.
• Do not use cleaning agents to clean the plastic parts of the tool.
A mild detergent on a damp cloth is recommended. Water must never come into contact with
the tool.
• If the trimmer vibrates abnormally, stop motor immediately. Abnormal vibration usually indicates
a mechanical problem continued operation could lead to injury or damage.
• Always place the blade cover on the blade before storing or transporting the hedge trimmer. Use
caution to avoid the sharp teeth of the blade.
• Store the hedge trimmer indoors, in a dry place that is inaccessible to children.
WARNING! ALWAYS ENSURE THE TOOL HAS
COMPLETELY STOPPED AND THE BATTERY IS
REMOVED PRIOR TO ANY MAINTENANCE.
Problem Cause Remedy
Trimmer is not
starting
Possible clogging Clean the trimmer blade of any
leaves or debris.
Battery is low in charge Charge battery
Battery not inserted properly Insert battery pack correctly
Trimmer is not
operating at full
capacity
Possible clogging Clean the trimmer blade of any
leaves or debris.
Motor stops while
trimming
Battery has no power Charge battery
Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the
trimmer by an unauthorised person or by mishandling of the trimmer. This tool is designed for DIY use
- use in commercial or industrial environments will void the warranty.
Read instruction manual
Keep bystanders away. Do not operate whilst people especially
children or pets are in the area.
Wear eye and ear protection.
89
Decibel level
Sharpening the cutting blade
1. Start and stop your hedge
trimmer until the cutter blade
and the guard are slightly
offset.
2. Remove the battery pack from
your hedge trimmer.
3. Clamp the blade assembly in a vise and le the exposed cutting surface of each
blade tooth. Remove as
little material as possible.
4. Remove the hedge trimmer from
the vise and insert the battery pack. Repeat
steps 1-3 for the unsharpened edges of the
blade teeth.
Note: Do not operate your hedge trimmer with
dull or damaged cutting blades. This may cause
overload and will give unsatisfactory cutting
results.
Lubricating the blade
For best operation and longer blade life, lubricate the hedge trimmer blade with light
weight machine oil before and after each use.
1. Remove the battery pack from the hedge
trimmer.
2. Lay the hedge trimmer on a at surface. Apply
a light weight machine oil along the edge of
the top blade.
WARNING! DO NOT OIL WHILE THE HEDGE TRIMMER
IS RUNNING.
Spare parts can be ordered from the Special Orders Desk at your local
Bunnings Warehouse or Homebase store.
For further information, or any parts visit
www.ozito-diy.co.uk or contact Ozito Customer Service:
Great Britain: 0151 294 4488
Ireland: 1850 882711
E-mail: [e-mail]

• Keep all parts of the body away from the cutter blade. Do not remove cut
material or hold material to be cut when blades are moving. Make sure the switch is off when
clearing jammed material. A moment of inattention while operating the hedge trimmer may result
in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade
stopped. When transporting or storing the hedge trimmer always t the cutting device cover.
Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
• Hold the power tool by insulated gripping surfaces only, because the
cutter blade may contact hidden wiring. Cutter blades contacting a “live” wire may
make exposed metal parts of the power tool “live” and could give the operator an electric shock.
• Perform visual inspection on the hedge being trimmed. To ensure no wire
fences or foreign objects that the hedge trimmer may contact during operation.
• Never allow children or people unfamiliar with these instructions to use the Hedge Trimmer.
• Avoid using the Hedge Trimmer, while people, especially children or pets, are nearby.
• Use the Hedge Trimmer only in daylight or good articial light.
• Never operate the Hedge Trimmer with damaged guards or without guards in place.
• Switch on the Hedge Trimmer only when the hands and feet are away from the cutting blades.
• Use only the manufacturer’s recommended replacement parts and accessories.
• Always remove the battery from the Hedge Trimmer when leaving the Hedge Trimmer unattended.
• Always remove the battery from the Hedge Trimmer before carrying out maintenance or cleaning
work.
• Inspect and maintain the Hedge Trimmer regularly. Have the Hedge Trimmer repaired only by an
authorized repairer.
• When not in use, store the Hedge Trimmer out of the reach of children.
• Face the cutting blades away from yourself, other people and animals while the power is connected
to the Hedge Trimmer (especially during operation).
• Use both handles.
• Keep ventilation openings clear of debris. Keep handles dry, clean and free of oil and grease.
• Never reach underneath the Hedge Trimmer (the cutting blade area) until it has completely stopped
and the power has been disconnected.
WARNING! When servicing, use only identical replacement parts. Use of any other parts
may create a hazard or cause product damage. To ensure safety and reliability, all repairs
should be performed by a qualied service technician.
WARNING! This appliance is not intended for use by young or inrm persons unless
supervised by a responsible person to ensure that they can use the appliance safely. Young
children should be supervised to ensure that they do not play with the appliance.
WARNING! When using mains-powered tools, basic safety precautions, including
the following, should always be followed to reduce risk of fire, electric shock,
personal injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
Before you connect the charger to the mains supply make sure that the data on the rating plate are identical to the mains data.
This tools charger is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for
added protection against injury resulting from a possible electrical insulation failure within the tool.
The power supply for this products charger should be protected by a residual current device (rated at 30mA or less). A residual current
device reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
HEDGE TRIMMER SAFETY WARNINGS

size 445 x 210 mm
Danger! - Read the operating instructions to re-
duce the risk of inquiry
Do not expose the hedge trimmer to rain or wet
conditions!
Wear eye protection and ear plugs!
The reprinting or reproduction by any other me-
ans, in whole or in part, of documentation and
papers accompanying products is permitted only
with the express consent of the iSC GmbH.
Subject to technical changes
PXCHTS-018U
GB Additonal operating & safety instructions Cordless Hedge Trimmer
Service information
We have competent service partners in all countries named on the guarantee certicate whose contact
details can also be found on the guarantee certicate. These partners will help you with all service re-
quests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the
following parts are therefore also required for use as consumables.
Category Example
Wear parts* Blade guide, Battery
Consumables* Blade
Missing parts
* Not necessarily included in the scope of delivery!
In the eect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Plea-
se ensure that you provide a precise description of the problem and answer the following questions in all
cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Gao/Product-ManagementWeichselgartner/General-Manager
- 135 -
explains the following conformity according to EU directives and norms for
the following product
Cordless Hedge Trimmer PXCHTS-018U / Fast Charger PXCG-030U (Ozito)
2014/29/EU
2005/32/EC_2009/125/EC
2014/35/EU
2006/28/EC
X2014/30/EU
2014/32/EU
2014/53/EC
2014/68/EU
90/396/EC_2009/142/EC
89/686/EC_96/58/EC
X2011/65/EU
X2006/42/EC
Annex IV
Noti ed Body:
Noti ed Body No.:
Reg. No.:
X2000/14/EC_2005/88/EC
XAnnex V
Annex VI
Noise: measured LWA = 84,4 dB (A); guaranteed LWA = 89 dB (A)
P = KW; L/Ø = cm
Noti ed Body:
2004/26/EC
Emission No.:
Standard references: EN 60745-1; EN 60745-2-15; EN 62233; EN 60335-1;
EN 60335-2-29; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3;
Landau/Isar, den 19.08.2016
First CE: 16 Archive-File/Record: NAPR014995
Art.-No.: 34.106.68 I.-No.: 11016 Documents registrar: R. Gehard
Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Declaration of conrmity
Beiblatt_PXCHTS_018U.indd 1 22.08.2016 13:38:21

size 445 x 210 mm
Charger indicator / Fast Charger
Indicator status Explanations and actions
Red LED Green LED
O Flashing Ready for use
The charger is connected to the mains and is ready for use; there is no
battery pack in the charger
On O Charging
The charger is charging the battery pack in quick charge mode.
O On The battery is 85% -100% charged and ready for use.
(Charging time for 1.5 Ah battery: 30 min)
(Charging time for 2.0 Ah battery: 40 min)
(Charging time for 3.0 Ah battery: 60 min)
(Charging time for 4.0 Ah battery: 80 min)
(Charging time for 5.2 Ah battery: 105 min)
Action:
Take the battery pack out of the charger. Disconnect the charger from
the mains supply.
Flashing O Adapted charging
The charger is in gentle charging mode.
For safety reasons the charging is performed less quickly and takes
more than 1 hour.The reasons can be:
- The battery pack has not been used for a very long time or an already
at battery was further discharged (exhaustive discharge).
- The battery pack temperature is outside the ideal range (between 25°
C and 45° C).
Action:
Wait for the charging to be completed; you can still continue to charge
the battery pack.
Flashing Flashing Fault
Charging is no longer possible.The battery pack is defective.
Action:
Never charge a defective battery pack.
Take the battery pack out of the charger.
On On Temperature fault
The battery pack is too hot (e.g. due to direct sunshine) or too cold
(below 0° C).
Action:
Remove the battery pack and keep it at room temperature (approx. 20°
C) for one day .
Items supplied
Please check that the article is complete as
specied in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
• Open the packaging and take out the equip-
ment with care.
• Remove the packaging material and any
packaging and/or transportation braces
(if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for
transport damage.
• If possible, please keep the packaging until
the end of the guarantee period.
Battery and charger sold separately.
This tool is compatible with all 18V battery and
chargers from the Power X Change range.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suocating!
Proper use
This hedge trimmer is suitable for cutting hedges,
bushes and shrubs.
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse. The user/operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Technical data
Cutter rail length ..................................... 520 mm
Cutting length ......................................... 460 mm
Tooth spacing ........................................... 15 mm
Cutting thickness max. ............................. 11 mm
Cuts/min ...................................................... 2200
Sound pressure level, LpA ........................64.8 dB
Sound power level, LWA ............................84.8 dB
K uncertainty................................................. 3 dB
Vibration ahv ......................................... ≤ 2.5 m/s²
K uncertainty.............................................. 1.5 dB
Weight ........................................................2.0 kg
The machine may exceed 85 dB (A). The operator
will require noise protection measures if this is
the case.The noise was measured in accordance
with EN 60745-1. The value of the vibrations emit-
ted by the handle was determined in accordance
with EN 60745-1.
The specied vibration value was established in
accordance with a standardized testing method. It
may change according to how the electric equip-
ment is used and may exceed the specied value
in exceptional circumstances.
The specied vibration value can be used to
compare the equipment with other electric power
tools.
The specied vibration value can be used for initi-
al assessment of a harmful eect.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect wor-
king order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever
necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in ac-
cordance with instructions, certain residual
risks cannot be rules out. The following ha-
zards may arise in connection with the equip-
ment’s construction and layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear protecti-
on is used.
3. Health damage caused by hand-arm vibra-
tions if the equipment is used over a pro-
longed period or is not properly guided and
maintained.
For EU countries only
Never place any electric power tools in your
household refuse.
To comply with European Directive 2012/19/EC
concerning old electric and electronic equipment
and its implementation in national laws, old elec-
tric power tools have to be separated from other
waste and disposed of in an environment-friendly
fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to
the manufacturer, the owner of the electrical
equipment must make sure that the equipment
is properly disposed of if he no longer wants to
keep the equipment.The old equipment can be
returned to a suitable collection point that will
dispose of the equipment in accordance with the
national recycling and waste disposal regulations.
This does not apply to any accessories or aids
without electrical components supplied with the
old equipment.
This consignment contains lithium-ion batteries.
In accordance with special provision 188 this
consignment is not subject to the ADR regula-
tions. Handle with care. Danger of ignition in case
of damage to the consignment package. If the
consignment package is damaged: Check and
if necessary repackage. For further information
contact: 0049 1807 10 20 20 66 (xed network
14 ct/min, mobile phone max. 42 ct/min) Outside
Germany charges will apply instead for a regular
call to a landline number in Germany.
Beiblatt_PXCHTS_018U.indd 2 22.08.2016 13:38:21
