operating manual & parts list 82082A & 82102A
8″& 10″
BENCH GRINDER
Read carefully and follow all safety rules and operating instructions before first use of
this product.
32647.09-1010

DESCRIPTION
Palmgren Bench Grinders are equipped with a totally enclosed ball
bearing motor.Armature assembly is dynamically balanced for
smooth operation. Motor housing is compact so long pieces of
work can press against both wheels without touching the motor
frame. Removable wheel guards allow for easy changing of wheels.
Two-way tool rests are adjustable for wheel wear and angle grind-
ing. Grinders come complete with spark guards, safety eyeshields
and dust collection hose.
UNPACKING
Check for shipping damage.If damage has occurred, a claim must
be filed with the carrier immediately. Check for completeness.
Immediately report missing parts to dealer.
To be certain the grinding wheels have not been damaged in ship-
ment, strike the edges slightly with a metal object. A ringing sound
indicates a good wheel, but a dull noise may signal a fracture.
WARNING: If you suspect a wheel of being fractured, replace it
immediately. Fractured wheels may shatter, causing serious injury.
SPECIFICATIONS
82082A-8” Bench Grinder
Horsepower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3/4
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .220/440
Amperes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.2/1.1
Hertz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Three
RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3450
Rotation (viewed from left side) . . . . . . . . . . . . . . . . . . . . . . . . .Clockwise
Wheel diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8”
Wheel bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5/8”
82102A-10” Bench Grinder
Horsepower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .220/440
Amperes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.3/1.65
Hertz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Three
RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1725
Rotation (viewed from left side) . . . . . . . . . . . . . . . . . . . . . . . . .Clockwise
Wheel diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10”
Wheel bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1”
SAFETY RULES
WARNING: For your own safety, read operating instructions man-
ual before operating tool.
CAUTION: Always follow proper operating procedures as defined in
this manual even if you are familiar with use of this or similar tools.
Remember that being careless for even a fraction of a second can
result in severe personal injury.
WARNING: Some dust created by power sanding, sawing, grind-
ing, drilling and other construction activities contains chemicals
known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
•Lead from lead-based paints.
•Crystalline silica from bricks and cement and other masonry
products.
•Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures vary, depending on how often you
do this type of work.To reduce your exposure to these chemicals:
work in a well ventilated area and work with approved safety
equipment. Always wear OSHA/NIOSH approved, properly fitting
face mask or respirator when using such tools.
BE PREPARED FOR JOB
•Wear proper apparel. Do not wear loose clothing, gloves, neck-
ties, rings, bracelets or other jewelry which may get caught in
moving parts of machine.
•Wear protective hair covering to contain long hair.
•Wear safety shoes with non-slip soles.
•Wear safety glasses complying with United States ANSI Z87.1.
Everyday glasses have only impact resistant lenses.They are
NOT safety glasses.
•Wear face mask or dust mask if operation is dusty.
•Be alert and think clearly.Never operate power tools when
tired, intoxicated or when taking medications that cause
drowsiness.
PREPARE WORK AREA FOR JOB
•Keep work area clean. Cluttered work areas and work benches
invite accidents.
•Do not use power tools in dangerous environments. Do not use
power tools in damp or wet locations. Do not expose power
tools to rain.
•Work area should be properly lighted.
•Proper electrical plug should be plugged directly into properly
grounded, three-prong receptacle.
•Extension cords should have a grounding prong and the three
wires of the extension cord should be of the correct gauge.
•Keep visitors at a safe distance from work area.
•Keep children out of the workplace. Make workshop childproof.
Use padlocks, master switches or remove switch keys to pre-
vent any unintentional use of power tools.
TOOL SHOULD BE MAINTAINED
•Always unplug tool prior to inspection.
•Consult manual for specific maintaining and adjusting proce-
dures.
•Keep tool clean for safest operation.
•Remove adjusting tools. Form habit of checking to see that
adjusting tools are removed before turning machine on.
•Keep all parts in working order. Check to determine that the
guard or other parts will operate properly and perform their
intended function.
•Check for damaged parts. Check for alignment of moving parts,
binding of moving parts, breakage of parts, mounting and any
other condition that may affect a tool’s operation.
•A guard or other part that is damaged should be properly
repaired or replaced. Do not perform makeshift repairs. (Use
the parts list to order replacement parts.)
KNOW HOW TO USE TOOL
•Use right tool for job. Do not force tool or attachment to do a
job for which it was not designed.
•Disconnect tool from power when changing accessories such
as grinding wheels, buffing wheels and the like.
•Avoid accidental start-up. Make sure that the switch is in the off
position before plugging in.
•Do not force tool. It will work most efficiently at the rate for
which it was designed.
•Keep hands away from moving parts and grinding surfaces.
•Never leave a tool running unattended.Turn the power off and
do not leave tool until it comes to a complete stop.
2
Palmgren Operating Manual & Parts List 82082A & 82102A

3
•Do not overreach. Keep proper footing and balance.
•Never stand on tool. Serious injury could occur if tool is tipped
over.
•Know your tool. Learn the tool’s operation, application and spe-
cific limitations.
•Use recommended accessories. Understand and obey all safety
instructions supplied with accessories.The use of improper
accessories may cause risk of injury to persons.
•Do not over tighten wheel nut. Replace cracked wheel immedi-
ately. Use only flanges supplied with the grinder.
•Adjust distance between wheel and tool rest to maintain 1/16” or
less gap.
•Handle the workpiece correctly. Whenever possible, use tool
rest to support workpiece during grinding operation.Turn tool
off if it jams.
•Always use guards and eyeshields.
•Clean grinding dust from beneath tool frequently.
ASSEMBLY
Parts to be fastened to the unit should be located and accounted
for (See List and Figure 1).
IMPORTANT: Do not attempt assembly if parts are missing. Use
this manual to order replacement parts.
A3/8-16 x 3/4”Hex head bolt, 2 each
B3/8”Flat washer, 4 each
C Tool rest bracket (left & right), 2 each
D Tool rest (left & right), 2 each
E5/16”Flat washer, 2 each
F5/16-18 x 1”Knob, 2 each
G #10-24 x 3⁄8” Pan head screw, 4 each
H Upper eyeshield bracket (left & right), 2 each
I Eyeshield, 2 each
J Lower eyeshield bracket, 2 each
K1⁄4-20 x 1⁄2” Knob, 2 each
L Spark guard (left & right), 2 each
M3/8-16 x 1⁄2” Knob, 2 each
Dust collector hose not shown.
TOOL REST ASSEMBLY
•Place tool rest (D) over tool rest bracket and secure in position
with 5/16-18 x 1” knob (F).
•Attach tool rest bracket to the bottom of the left wheel guard
using one 3⁄8-16 x 3⁄4”hex head bolt (A) and one 3⁄8”flat washer
(B). Make sure that the slot of the braket is located over the
raised boss on the guard.Tight bolts finger tight.
•Position tool rest so that distance between tool rest and grind-
ing wheel is less than 1/16”. Reposition angle of tool rest if neces-
sary.Secure all knobs and bolts.
•Mount right tool rest in a similar manner.
EYESHIELD ASSEMBLY
•Attach spark guard (L) to left wheel guard using 3⁄8-16 x 1⁄2”
knob (M) and 3/8” flat washer (B).
•Mount left upper eyeshield bracket (H) to eyeshield (I) using
two #10-24 x 3⁄8”pan head screws (G) and lower eyeshield
bracket.
NOTE: Left upper eyeshield bracket is stamped“L”for identification.
•Slide 1/4-20 x 1/2” knob (K) through hole at top of left spark guard
(L) into upper upper eyeshield bracket (H) and secure in
position.
•Locate eyeshield in desired position for protecting operator
and secure all knobs and bolts.
•Mount right eyeshield assembly in a similar manner.
DUST COLLECTOR HOSE
•A dust collector hose has been provided with grinder. Slide
hoses onto sides of T-connector and flanges. Mount the hose
by sliding the flanges at each end over the exhaust ports on
the left and right wheel guards. Attach 2½” shop vacuum hose
to collector hose. Be sure hose is mounted securely.
DANGER: Be sure to empty shop vacuum of all flammable materi-
al (flammable liquids and vapors, paper, wood, plastic, etc.) before
connecting vacuum to grinder. Hot sparks from grinder may ignite
flammable materials in shop vacuum.
INSTALLATION
MOUNT GRINDER
•Mount grinder to a solid horizontal surface (hardware not pro-
vided). If mounted to metal pedestal, align mounting holes
with corresponding holes in pedestal. Insert a 1/4-20 x 1¼” hex
head bolt with flat washer through base of grinder. From bot-
tom of pedestal, place a 1/4” flat washer and 1/4”-20 hex nut onto
the bolt.Tighten only until space between grinder base and
pedestal is 1/8” (base should be flush for 82102A). Using second
nut on each bolt, jam tighten against the first to prevent loos-
ening by vibration.
•To mount grinder to wooden bench top, use 1/4x 1¼” wood
screws with flat washers beneath heads.Tighten screws until
space between grinder base and bench top is 1/8”(base should
be flush for 82102A).
GROUNDING INSTRUCTIONS
WARNING: Improper connection of equipment grounding con-
ductor can result in the risk of electrical shock. Equipment should
be grounded while in use to protect operator from electrical shock.
•Check with a qualified electrician if grounding instructions are
not understood or if in doubt as to whether the tool is properly
grounded.
•Inspect tool cords periodically, and, if damaged, have them
repaired by an authorized service facility.
Palmgren Operating Manual & Parts List 82082A & 82102A
J
G
C
B
B
D
E
F
A
K
LM
I
H
Figure 1 –Left Tool Rest and Eyeshield Assembly

4
INSTALLATION (CONTINUED)
•Green (or green and yellow) conductor in the cord is the
grounding wire. Never connect the green (or green and yellow)
wire to a live terminal.
•Many cover plate screws, water pipes and outlet boxes are not
properly grounded.To ensure a proper ground, the grounding
means must be tested by a qualified electrician.
EXTENSION CORDS
•The use of any extension cord will cause some drop in voltage
and loss of power.
•Wires of the extension cord must be of sufficient size to carry
the current and maintain adequate voltage.
•Running the unit on voltages which are not within ±10% of the
specified voltage may cause overheating and motor burn-out.
•Use the table to determine the minimum wire size (A.W.G.)
extension cord.
•If the extension cord is worn, cut or damaged in any way,
replace it immediately.
EXTENSION CORD LENGTH for Model 82082A
Wire Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A.W.G.
Up to 25 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
NOTE: Using extension cords over 25 ft. long is not recommended.
EXTENSION CORD LENGTH for Model 82102A
Wire Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A.W.G.
Up to 25 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
NOTE: Using extension cords over 25 ft. long is not recommended.
ELECTRICAL CONNECTIONS
WARNING: All electrical connections must be performed by a
qualified electrician. Make sure tool is off and disconnected from
power source while motor is mounted, connected, reconnected or
anytime wiring is inspected.
•Grinder is prewired at the factory for 220 volt, 3-phase
operation. See Figure 2 for wiring diagram.
•Grinder can be wired for 440 volt, 3-phase operation.
See Figure 2 for wiring diagram for 440 volt.
•Test grinder to be sure grinding wheels rotate downward
toward tool rests. Switch any two leads to reverse rotation
if needed.
OPERATION
WARNING: Always wear safety glasses complying with United
States ANSI Z87.1 (shown on package) before commencing power
tool operation.
•Keep a steady, moderate pressure on the work and keep it
moving at an even pace for smooth grinding.
•Pressing too hard overheats the motor and prematurely wears
down the grinding wheels.
•Note the original bevel angle on the item to be sharpened and
try to maintain that angle. Sharpening a cutting edge requires
removing burrs from edge.
•Deburring edge is done best by using the grinder to pull burr
from edge across the bevel angle.
•The grinding wheel should rotate into object being sharpened.
•Dip work into a coolant regularly to prevent overheating.
Overheating can weaken metals.
MAINTENANCE
•As wheels wear, tool rests should be positioned closer to the
face of the wheels.
•The gap between the wheel and the tool rest should not be
greater than 1/16”.When the wheels are worn to the extent that
the 1/16” maximum gap cannot be maintained, the wheels
should be replaced.
•Replacement wheels should have a minimum rated speed of at
least 3600 RPM for 82082A and 1800 RPM for 82102A.
•Maximum wheel diameter for 82082A is 8”, and 10” for 82102A.
•To loosen nuts holding the wheels, disconnect power and push
a wood wedge between the tool rest and the wheel to keep
the shaft from turning.The threads on the right side of the
grinder (facing unit) are right hand; threads on the left side are
left hand.Tighten nuts securely before operating the grinder.
•For grinding efficiency, wheels should be dressed periodically,
especially if they become clogged from grinding soft metals.
Palmgren Operating Manual & Parts List 82082A & 82102A

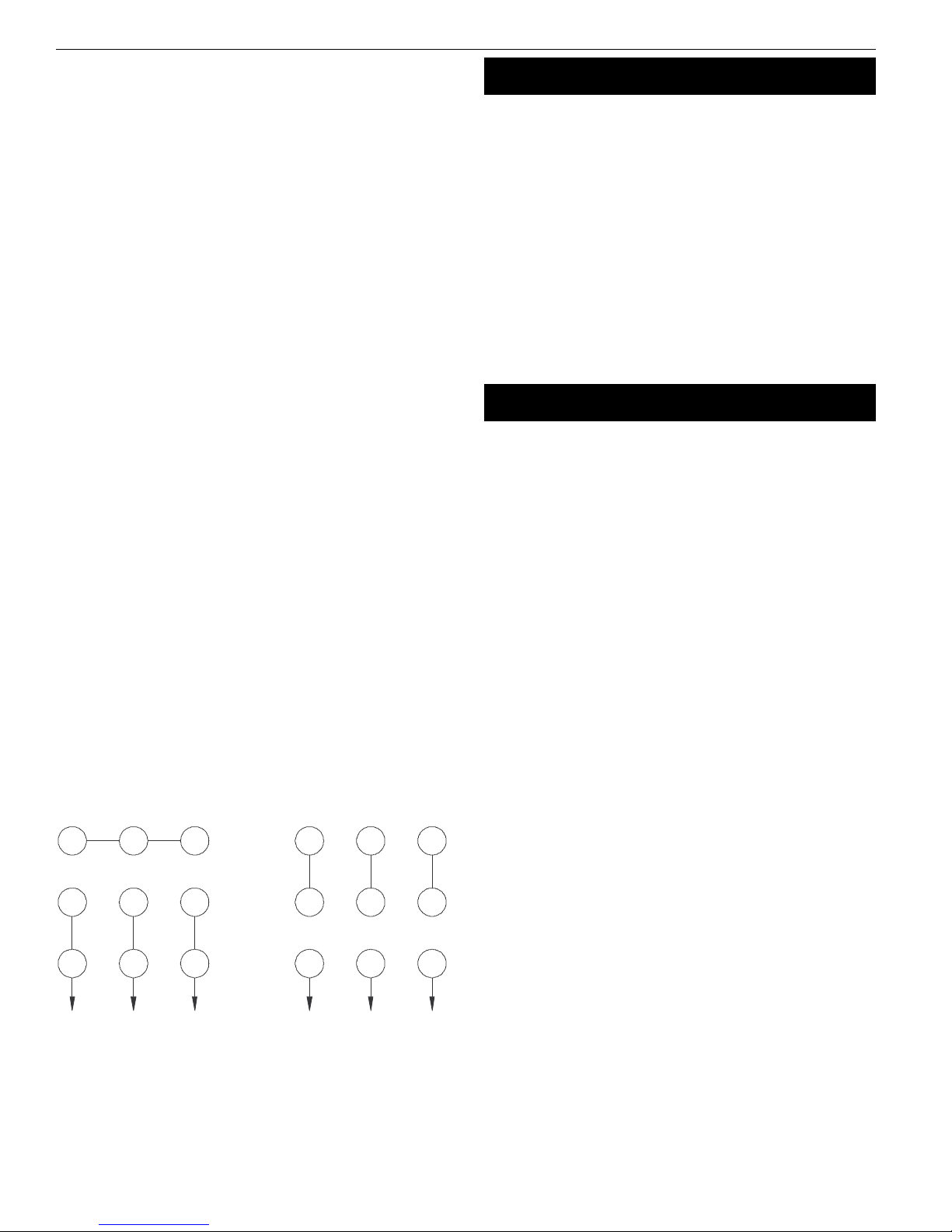

Figure 2 – Wiring Diagram
VOLTAGE CHANGE DIAGRAM
DISCONNECT FROM SUPPLY CIRCUIT BEFORE OPENING
220 VOLTS 440 VOLTS
4
1
78
23
9
654
1
78
23
9
65

5
SYMPTOM
Grinder won’t start
Excessive vibration
Motor overheating
Fuses are being blown or
circuit breakers are being tripped
Motor does not develop proper torque
POSSIBLE CAUSE(S)
1. Blown line fuse or tripped circuit breaker
2. Low line voltage
3. Material wedged between wheel
and guard
4. Defective switch
1. Improper mounting of grinder or
accessories
2. Grinding wheel out of balance
3. Improper wheel mounting
1. Excess pressure required to grind material
2. Grinding on side of wheel
3. Motor not turning freely (without power)
1. Overloading due to binding
2. Defective plug
3. Defective cord
4. Defective switch
5. Motor wired for different line voltage
6. Faulty internal wiring
1. Motor wired for different line voltage
CORRECTIVE ACTION
1. If fuse is blown, replace with fuse of
proper size.If breaker tripped, reset it
2. Check power supply for voltage and
correct as needed
3. Turn grinder off and remove material
4. Replace switch
1. Remount
2. Dress wheels or replace wheels
3. Remount wheels, but rotate one wheel
90º with respect to its previous position.
Other wheel should remain in its original
position
1. Dress wheel or replace wheel with one of
proper grit
2. Grind only on face of wheel
3. Clean around wheels and shaft and/or
replace bearings
1. Clean around wheels and shaft and/or
replace bearings
2. Replace plug
3. Replace cord
4. Replace switch
5. Rewire motor as per wiring diagram,
(See Installation, Page 4)
6. Contact your Palmgren distributor
1. Rewire motor as per wiring diagram,
(See Installation, Page 4)
TROUBLESHOOTING
Palmgren Operating Manual & Parts List 82082A & 82102A

6
Palmgren Operating Manual & Parts List 82082A
1
4
5
16
7
18
17
45
10
37
43
40
42
17 13
29
27
40
28
11
14
41
45
45
44 46
39
38
12
13
36
34
25
30 35
29
20
26
31
32
33
47
12
3
21
24
19
87
5
6
4
1
25
23
30
20
23
23
3
15
12
23
22
24
27
19
23
23
2
12
2
9

7
ΔNot Shown. † Not available as repair part. * Standard hardware item available locally.
Ref. Part No. Description Number Qty.
1 #10-24 x 1/2”Pan head screw * 10 2 3/8-16 x 3/4”Hex head bolt * 2 3 Spark guard (set of 2) 25815.00 1 4 Wheel guard cover 24496.02 2 5 Flange 24497.00 2 6 5/8”-11 Hex nut (LH thread) 00088.00 1 7 Inner wheel flange 24498.00 2 8 Grinding wheel (36 coarse grit) 02038.00 1 9 Grinding wheel (60 med. grit) 02037.00 1
10 Terminal block 16899.00 1 11 Bracket (left) 31447.00 1 12 3/8”Flat washer * 4 13 5/16-18 x 1”Knob 25812.00 2 14 Tool rest (left) 25813.00 1 15 Tool rest (right) 25825.00 1 16 5/8”-11 Hex nut (RH thread) 00087.00 1 17 5/16”Flat washer * 2 18 Bracket (right) 31448.00 1 19 1/4-20 x 1/2”Knob 25816.00 2 20 Wavy washer 16640.00 2 21 Upper eyeshield bracket (left) 25177.00 1 22 Upper eyeshield bracket (right) 25188.00 1 23 Eyeshield kit 32290.00 1 24 3/8-16 x 1/2”Knob 25817.00 2 25 Wheel guard 26056.00 2
Ref. Part No. Description Number Qty.
26 5-0.8 x 228mm Flange screw 16654.00 4 27 1/4-20 x 1/2”Flange screw – 6 28 5-0.8mm Hex nut * 4 29 Endshield 16627.02 2 30 Bearing 6204ZZ 00989.00 2 31 Motor fan 01620.00 1 32 Armature † 1 33 Stator with housing † 1 34 Grommet 01066.00 2 35 Line cord 08098.00 1 36 Strain relief 04055.00 1 37 #10-24 x1/2”Flange screw 03211.00 1 38 Base 24475.02 1 39 Switch 00100.00 1 40 #10 Serrated washer * 5 41 1/4”Lock washer * 2 42 1/4”-20 Hex nut * 2 43 Base bumper 23991.00 4 44 Base cover 24500.00 1 45 #10-24 x 1/4”Flange screw 03210.00 9 46 Switch plate 08099.00 1 47 Dust collector hose 08070.00 1
ΔOperators Manual 32647.09 1
Recommended Accessories
ΔCast iron Tool Stand 70101 1
REPLACEMENT PARTS LIST FOR 8”BENCH GRINDER
Palmgren Operating Manual & Parts List 82082A

1
4
5
7
18
17
16
14
45
10
37
37
40
42
17
12
2
11 14
41
45
45
44 46
39
38
12
13
36
34
24
30
35
29
28
27
25
41
26
31 32
33
43
20
12
15
3
21
27
41
19
87
5
6
4
1
25
23
30
29
28
23
23
3
12
23
22
20
19
23
23
2
9
8
Palmgren Operating Manual & Parts List 82102A
Figure 4 - Replacement Parts Illustration for 10” Bench Grinder

9
Palmgren Operating Manual & Parts List 82102A
Ref. Part No. Description Number Qty.
1 #10-24 x 3/4”Pan head screw * 10 2 3/8-16 x 3/4”Hex head bolt * 2 3 Spark guard (set of 2) 25815.00 1 4 Wheel guard cover 16911.02 2 5 Flange 24480.00 2 6 1”-8 Hex nut (LH thread) 00111.00 1 7 Inner wheel flange 24481.00 2 8 Grinding wheel (36 coarse grit) 02040.00 1 9 Grinding wheel (60 med. grit) 02039.00 1
10 Terminal block 16899.00 1 11 Bracket (left) 26290.00 1 12 3/8”Flat washer * 4 13 Tool rest (left) 25813.00 1 14 5/16-18 x 1”Knob 25812.00 2 15 Strain relief plate 08172.00 1 16 Tool rest (right) 25825.00 1 17 5/16”Flat washer * 2 18 Bracket (right) 26291.00 1 19 1/4-20 x 1/2”Knob 25816.00 2 20 3/8-16 x 1/2”Knob 25817.00 2 21 Upper eyeshield bracket (left) 25177.00 1 22 Upper eyeshield bracket (right) 25188.00 1 23 Eyeshield kit 32290.00 1 24 1”-8 Hex nut (RH thread) 00110.00 1 25 Wheel guard 26057.00 2
Ref. Part No. Description Number Qty.
26 Wavy washer 16620.00 1 27 5/16-18 x 5/8”Hex head bolt * 6 28 1/4-20 x 2”Flange screw * 8 29 Endshield 16913.02 2 30 Bearing 6206ZZ 00297.00 2 31 Motor fan 01639.00 1 32 Armature † 1 33 Stator with housing † 1 34 Grommet 16916.00 2 35 Line cord 08186.00 1 36 Strain relief 01601.00 1 37 #10-24 x 3/8”Flange screw * 3 38 Base 16917.02 1 39 Switch 00100.00 1 40 #10 Serrated washer * 1 41 5/16”Lock washer * 10 42 5/16”-18 Hex nut * 4 43 Dust collector hose 08070.02 1 44 Base cover 16919.00 1 45 #10-24 x 1/4”Flange screw * 9 46 Switch plate 08099.00 1
ΔOperators Manual 32647.09 1
Recommended Accessories
ΔCast iron Tool Stand 70101 1
REPLACEMENT PARTS LIST FOR 10”BENCH GRINDER
ΔNot Shown. † Not available as repair part. * Standard hardware item available locally.

10
NOTES
Palmgren Operating Manual & Parts List 82082A & 82102A

11
NOTES
Palmgren Operating Manual & Parts List 82082A & 82102A

WARRANTY
Palmgren warrants their products to be free of defects in material or workmanship.This warranty does not cover defects due
directly or indirectly to misuse, abuse, normal wear and tear, failure to properly maintain the product, heated, ground or otherwise altered, or
used for a purpose other than that for which it was intended.The warranty does not cover expendable and/or wear parts (i.e. v-belts, coated
screws, abrasives), damage to tools arising from alteration,abuse or use other than their intended purpose, packing and freight.The duration
of this warranty is expressly limited to one year parts and labor, unless otherwise noted below beginning from the date of delivery to the
original user.The Palmgren products carry the following warranties on parts with a 1 year warranty on labor:
•USA Machine vises – Lifetime
•IQ Machine vises – Lifetime
•Bench vises – Lifetime
•Positioning tables – Lifetime
•Bench grinders & buffers – 3 years
•Tapping machines – 2 years
•Drilling machines – 2 years
•Finishing machines – 2 years
•Band saws – 2 years
•Work stands – 2 years
•Arbor presses – 2 years
•Metal framing equipment – 2 years
•Accessories – 1 year
The obligation of Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part
that should prove deficient.Purchaser must lubricate and maintain the product under normal operating conditions at all times. Prior to oper-
ation
become familiar with product and the included materials, i.e. warnings, cautions and manuals. Failure to follow these instructions will void
the warranty.
This warranty is the purchaser’s exclusive remedy against Palmgren for any deficiency in its products. Under no circumstances is Palmgren
liable for any direct, indirect, incidental, special or consequential damages including lost profits in any way related to the use or inability to
use our products.This warranty gives you specific legal rights which may vary from state to state.
SERVICE & REPAIR
1. If a Palmgren product requires a repair or warranty service DO NOT return the product to the place of purchase.
2. All warranty related work must be evaluated and approved by Palmgren.
3. Prior to returning any item the user must obtain factory approval and a valid RGA number.
4. For instructions and RGA number call toll free [phone].
Palmgren Operating Manual & Parts List 82082A & 82102A
