operating manual & parts list 82121
12″
BENCH GRINDER WITH STAND
Read carefully and follow all safety rules and operating instructions before
first use of this product.
32664.09-1010

DESCRIPTION
Palmgren 12”Bench Grinder is equipped with a totally enclosed ball
bearing motor.Armature assembly is dynamically balanced for
smooth operation. Motor housing is compact so long pieces of
work can press against both wheels without touching the motor
frame. Removable wheel guards allow for easy changing of wheels.
Two-way tool rests are adjustable for wheel wear and angle grind-
ing. Grinder comes complete with magnetic push-button switch,
one 36 grit and one 60 grit grinding wheel, spark guards, safety eye-
shields,dust collection hose and stand.
UNPACKING
Check for shipping damage.If damage has occurred, a claim must
be filed with the carrier immediately. Check for completeness.
Immediately report missing parts to dealer.
To be certain the grinding wheels have not been damaged in ship-
ment, strike the edges slightly with a metal object. A ringing sound
indicates a good wheel, but a dull noise may signal a fracture.
WARNING: If you suspect a wheel of being fractured, replace it
immediately. Fractured wheels may shatter, causing serious injury.
SPECIFICATIONS
Horsepower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .240
Amperes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Hertz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Single
RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1800
Rotation (viewed from left side) . . . . . . . . . . . . . . . . . . . . . . . . .Clockwise
Wheel diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12”
Wheel bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11/4”
Wheel face width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2”
Shipping weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .280 lbs
SAFETY RULES
WARNING: For your own safety, read operating instructions man-
ual before operating tool.
CAUTION: Always follow proper operating procedures as defined in
this manual even if you are familiar with use of this or similar tools.
Remember that being careless for even a fraction of a second can
result in severe personal injury.
WARNING: Some dust created by power sanding, sawing, grind-
ing, drilling and other construction activities contains chemicals
known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
•Lead from lead-based paints.
•Crystalline silica from bricks and cement and other masonry
products.
•Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures vary, depending on how often you
do this type of work.To reduce your exposure to these chemicals:
work in a well ventilated area and work with approved safety
equipment. Always wear OSHA/NIOSH approved, properly fitting
face mask or respirator when using such tools.
BE PREPARED FOR JOB
•Wear proper apparel. Do not wear loose clothing, gloves, neck-
ties, rings, bracelets or other jewelry which may get caught in
moving parts of machine.
•Wear protective hair covering to contain long hair.
•Wear safety shoes with non-slip soles.
•Wear safety glasses complying with United States ANSI Z87.1.
Everyday glasses have only impact resistant lenses.They are
NOT safety glasses.
•Wear face mask or dust mask if operation is dusty.
•Be alert and think clearly.Never operate power tools when
tired, intoxicated or when taking medications that cause
drowsiness.
PREPARE WORK AREA FOR JOB
•Keep work area clean. Cluttered work areas and work benches
invite accidents.
•Do not use power tools in dangerous environments. Do not use
power tools in damp or wet locations. Do not expose power
tools to rain.
•Work area should be properly lighted.
•Proper electrical plug should be plugged directly into properly
grounded, three-prong receptacle.
•Extension cords should have a grounding prong and the three
wires of the extension cord should be of the correct gauge.
•Keep visitors at a safe distance from work area.
•Keep children out of the workplace. Make workshop childproof.
Use padlocks, master switches or remove switch keys to pre-
vent any unintentional use of power tools.
TOOL SHOULD BE MAINTAINED
•Always unplug tool prior to inspection.
•Consult manual for specific maintaining and adjusting proce-
dures.
•Keep tool clean for safest operation.
•Remove adjusting tools. Form habit of checking to see that
adjusting tools are removed before turning machine on.
•Keep all parts in working order. Check to determine that the
guard or other parts will operate properly and perform their
intended function.
•Check for damaged parts. Check for alignment of moving parts,
binding of moving parts, breakage of parts, mounting and any
other condition that may affect a tool’s operation.
•A guard or other part that is damaged should be properly
repaired or replaced. Do not perform makeshift repairs. (Use
the parts list to order replacement parts.)
KNOW HOW TO USE TOOL
•Use right tool for job. Do not force tool or attachment to do a
job for which it was not designed.
•Disconnect tool from power when changing accessories such
as grinding wheels, buffing wheels and the like.
•Avoid accidental start-up. Make sure that the switch is in the off
position before plugging in.
•Do not force tool. It will work most efficiently at the rate for
which it was designed.
•Keep hands away from moving parts and grinding surfaces.
•Never leave a tool running unattended.Turn the power off and
do not leave tool until it comes to a complete stop.
•Do not overreach. Keep proper footing and balance.
•Never stand on tool. Serious injury could occur if tool is tipped
over.
•Know your tool. Learn the tool’s operation, application and spe-
cific limitations.
•Use recommended accessories. Understand and obey all safety
instructions supplied with accessories.The use of improper
accessories may cause risk of injury to persons.
2
Palmgren Operating Manual & Parts List 82121

3
SAFETY RULES (CONTINUED)
•Do not over tighten wheel nut. Replace cracked wheel immedi-
ately. Use only flanges supplied with the grinder.
•Adjust distance between wheel and tool rest to maintain 1/16” or
less gap.
•Handle the workpiece correctly. Whenever possible, use tool
rest to support workpiece during grinding operation.Turn tool
off if it jams.
•Always use guards and eyeshields.
•Clean grinding dust from beneath tool frequently.
ASSEMBLY
Parts to be fastened to the unit should be located and accounted
for (See List and Figure 1).
IMPORTANT: Do not attempt assembly if parts are missing. Use
this manual to order replacement parts.
A 5/16-18 x 1¼”Carriage bolt, 4 each
B Tool rest bracket, 4 each
C*
3⁄8” Flat washer, 8 each
D*
3⁄8”-16 Hex nut, 2 each
E Tool rest, 2 each
F5⁄16” Flat washer, 4 each
G5⁄16”-18 Hex nut, 4 each
H*
3⁄8-16 x 1¼” Hex bolt, 6 each
I Knob, 2 each
J Spark guard, 2 each
K Eyeshield, 2 each
L *Lower eyeshield bracket, 2 each
M Upper eyeshield bracket, 2 each (left and right)
N #10-24 x 3⁄8” Pan head screw, 4 each
O 6-1.0 x 12mm Flange screw, 2 each
P 6mm Flat washer, 2 each
Q*
3⁄8”-16 Wing nut, 2 each
R *Wheel guard
S3⁄8-16 x 5⁄8”Hex bolt, 4 each
T *Wheel guard cover
Dust collector hose not shown.
NOTE: Parts marked with an asterisk (*) are mounted to the
grinder at the factory.
TOOL REST ASSEMBLY
•Slide 5⁄16-18” carriage bolts (A) into square holes in tool rest
brackets (B).
•Slide carriage bolts with brackets into holes on inside of tool
rest (E) as shown in Figure 1. Slide 5⁄16” flat washers (F) and 5⁄16”-
18 hex nuts (G) onto carriage bolts.Tighten nuts finger tight.
•Remove 3⁄8”hex nuts (D) and flat washers (C) from 3⁄8-16 x 1¼”
hex bolts (H) mounted to bottom front of left wheel guard (R).
•Slide slot in tool rest bracket (right side) over 3⁄8” bolts. Replace
flat washers and hex nuts. Position left side tool rest bracket
over threaded holes in wheel guard cover and secure with 3⁄8”
flat washers (C) and 3⁄8-16 x 5⁄8”hex bolts (S). Position tool rest
so that distance between tool rest and grinding wheel is less
than 1⁄16”. Secure all nuts and bolts.
•Mount right tool rest in a similar manner.
EYESHIELD ASSEMBLY
•Remove 3⁄8”wing nut (Q) and 3⁄8” flat washer (C) from 3⁄8-16 x
1¼”hex bolt (H) mounted to top front of left wheel guard (R).
•Slide slot in spark guard (J) over hex bolt and replace washer
and wing nut.
•Remove pan head screws (N) from eyeshield assembly. Mount
left upper eyeshield bracket (M) to eyeshield using pan head
screws and lower eyeshield bracket.
NOTE: Left upper eyeshield bracket is stamped“L”for identification.
•Slide 6-1.0 x 12mm flange screw (O) and 6mm flat washer (P)
through left upper eyeshield bracket (M) and through hole at
top of left spark guard (J) and secure with knob (I).
•Locate eyeshield in desired position for protecting operator
and secure all nuts and bolts.
•Mount right eyeshield assembly in a similar manner.
DUST COLLECTOR HOSE
A dust collector hose has been provided with grinder. Slide hoses
onto sides of T-connector and flanges. Mount the hose by sliding
the flanges at each end over the exhaust ports on the left and
right wheel guards. Attach 2½” shop vacuum hose to collector
hose. Be sure hose is mounted securely.
DANGER: Be sure to empty shop vacuum of all flammable materi-
al (flammable liquids and vapors, paper, wood, plastic, etc.) before
connecting vacuum to grinder. Hot sparks from grinder may ignite
flammable materials in shop vacuum.
OPTIONAL LIGHTED EYESHIELD(MODEL 82903)
Position eyeshield bracket assembly over bosses provided on
wheel guard.Bosses are tapped to receive two 1⁄4”-20 screws.
Fasten bracket assembly to wheel guard with two screws provided
with eyeshields.
Palmgren Operating Manual & Parts List 82121
Figure 1 – Left Tool Rest and Eyeshield Assembly
J
G
G
M
N
OP
Q*
C*
R* C*
C* B
B
D*
E
F
F
A
L* I
K
H*
S
T*

4
ASSEMBLY (CONTINUED)
STAND ASSEMBLY

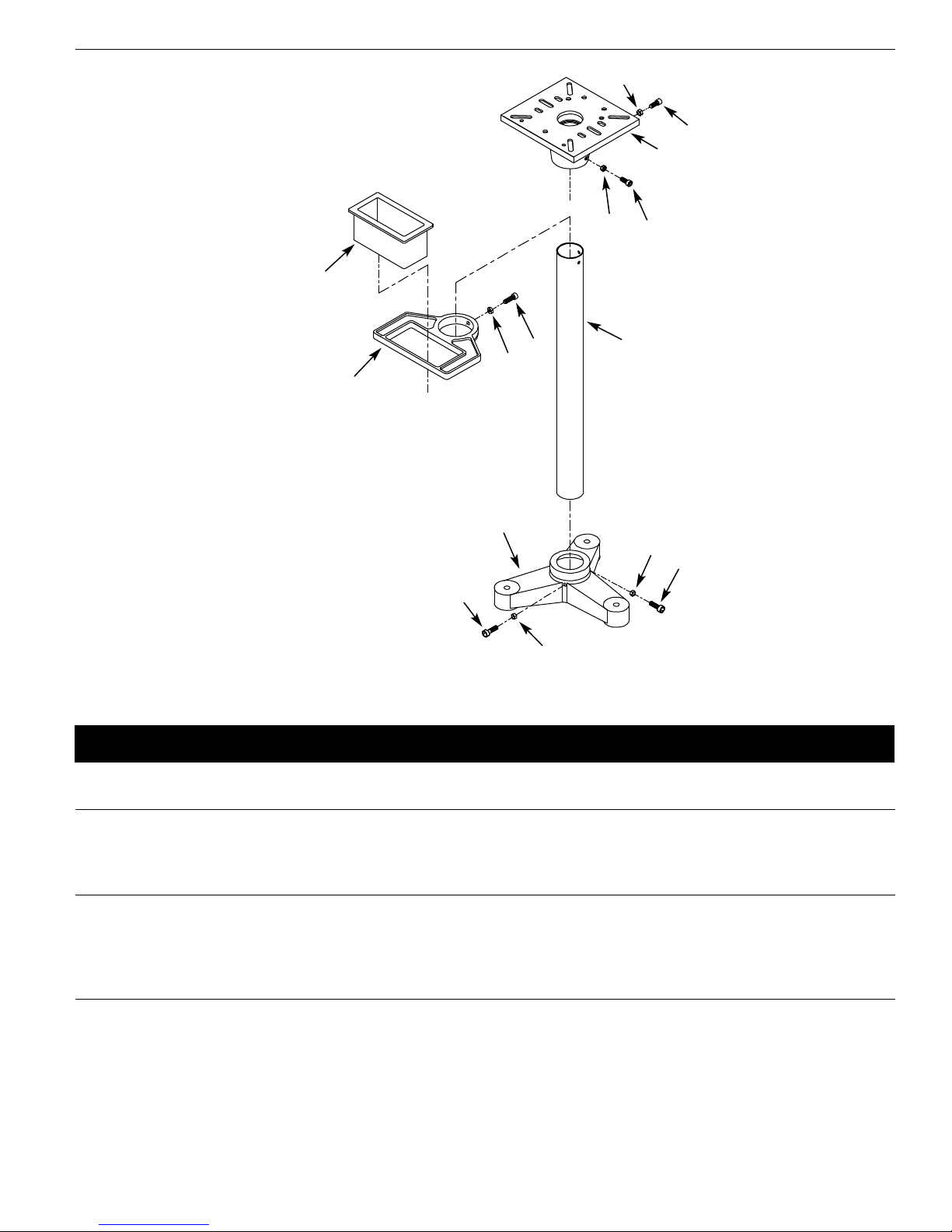

Parts to be assembled should be located and accounted for (See
List and Figure 2).
IMPORTANT: Do not attempt assembly if parts are missing. Use this
manual to order repair parts.
A Base, 1 each
B 10-1.5mm Hex nut, 5 each
C 10-1.5 x 30mm Socket head bolt, 5 each
D Column, 1 each
E Water pot holder, 1 each
F Water pot, 1 each
G Top, 1 each
•Slide column (D) into base (A); secure by tightening hex head
bolts (C) against column.Tighten hex nuts (B) against base to
secure bolts.
•Slide water pot holder (E) over column.Tighten hex head bolt
(C) and nut (B) to secure holder.
•Slide top (G) over column and secure with bolts (C) and nuts
(B).
•Slide water pot (F) into holder. Adjust pot holder height as
required.
•Secure base to floor for maximum stability and safety.
(Hardware not included.)
MOUNT GRINDER
Locate bag with following hardware:
8-1.25 x 45mm Hex head bolt, 4 each
8mm Flat washer, 8 each
8mm Lock washer, 4 each
8-1.25mm Hex nut, 4 each
•Place grinder on top of stand.
•Align mounting holes in grinder’s base with diagonal slots on
stand’s top.
•Use 8-1.25 x 45mm hex head bolts with 8mm flat washers,
8mm lock washers and 8-1.25mm hex nuts to secure grinder to
stand top.
INSTALLATION
MOUNT GRINDER
•Mount grinder to a solid horizontal surface (hardware not pro-
vided). If mounted to metal pedestal, align mounting holes
with corresponding holes in pedestal. Insert a 1/4-20 x 1¼” hex
head bolt with flat washer through base of grinder. From bot-
tom of pedestal, place a 1/4” flat washer and 1/4”-20 hex nut onto
the bolt.Tighten only until space between grinder base and
pedestal is 1/8” (base should be flush for 82101B). Using second
nut on each bolt, jam tighten against the first to prevent loos-
ening by vibration.
•To mount grinder to wooden bench top, use 1/4x 1¼”wood
screws with flat washers beneath heads.Tighten screws until
space between grinder base and bench top is 1/8”(base should
be flush for 82101B).
GROUNDING INSTRUCTIONS
WARNING: Improper connection of equipment grounding con-
ductor can result in the risk of electrical shock. Equipment should
be grounded while in use to protect operator from electrical shock.
•Check with a qualified electrician if grounding instructions are
not understood or if in doubt as to whether the tool is properly
grounded.
•This grinder is equipped with an approved 3-conductor cord
rated at 300V.
•Do not remove or alter grounding prong in any manner. In the
event of a malfunction or breakdown, grounding provides a
path of least resistance for electrical shock.
WARNING: Do not permit fingers to touch the terminals of plug
when installing or removing from outlet.
•Plug must be plugged into matching outlet that is properly
installed and grounded in accordance with all local codes and
ordinances. Do not modify plug provided. If it will not fit in out-
let, have proper outlet installed by a qualified electrician.
•Inspect tool cords periodically, and, if damaged, have repaired
by an authorized service facility.
•Green (or green and yellow) conductor in cord is the grounding
wire. If repair or replacement of the electric cord or plug is nec-
essary, do not connect the green (or green and yellow) wire to
a live terminal.
•The Palmgren 12”grinder is prewired for 240 volts, 60 Hz and
single-phase power. A qualified electrician should wire a 240
volt, 20 AMP, 3-prong plug to grinder line cord.
WARNING: This work should be performed by a qualified
electrician.
EXTENSION CORDS
•The use of any extension cord will cause some drop in voltage
and loss of power.
•Wires of the extension cord must be of sufficient size to carry
the current and maintain adequate voltage.
•Running the unit on voltages which are not within ±10% of the
specified voltage may cause overheating and motor burn-out.
•Use the table to determine the minimum wire size (A.W.G.)
extension cord.
•Use only 3-wire extension cords having 3-prong grounding
type plugs and 3-pole receptacles which accept the tool plug.
•If the extension cord is worn, cut or damaged in any way,
replace it immediately.
Palmgren Operating Manual & Parts List 82121
Figure 2 – Stand Assembly
F
G
BC
E
BC
D
A
BC

5
INSTALLATION (CONTINUED)
EXTENSION CORD LENGTH
Wire Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A.W.G.
Up to 100 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
100 to 200 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
200 to 300 ft. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
NOTE: Using extension cords over 300 ft. long is not recommended.
ELECTRICAL CONNECTIONS
WARNING: All electrical connections must be performed by a
qualified electrician. Make sure tool is off and disconnected from
power source while motor is mounted, connected, reconnected or
anytime wiring is inspected.
OPERATION
WARNING: Always wear safety glasses complying with United
States ANSI Z87.1 (shown on package) before commencing power
tool operation.
•Keep a steady, moderate pressure on the work and keep it
moving at an even pace for smooth grinding.
•Pressing too hard overheats the motor and prematurely wears
down the grinding wheels.
•Note the original bevel angle on the item to be sharpened and
try to maintain that angle. Sharpening a cutting edge requires
removing burrs from edge.
•Deburring edge is done best by using the grinder to pull burr
from edge across the bevel angle.
•The grinding wheel should rotate into object being sharpened.
•Dip work into a coolant regularly to prevent overheating.
Overheating can weaken metals.
MAINTENANCE
•As wheels wear, tool rests should be positioned closer to the
face of the wheels.
•The gap between the wheel and the tool rest should not be
greater than 1/16”.When the wheels are worn to the extent that
the 1/16” maximum gap cannot be maintained, the wheels
should be replaced.
•Replacement wheels must have a minimum rated speed of
1800 RPM.
•Maximum wheel diameter is 12”.
•To loosen nuts holding the wheels, disconnect power and push
a wood wedge between the tool rest and the wheel to keep
the shaft from turning.The threads on the right side of the
grinder (facing unit) are right hand; threads on the left side are
left hand.Tighten nuts securely before operating the grinder.
•For grinding efficiency, wheels should be dressed periodically,
especially if they become clogged from grinding soft metals.
Palmgren Operating Manual & Parts List 82121

6
SYMPTOM
Grinder won’t start
Excessive vibration
Motor overheating
Fuses are being blown or
circuit breakers are being tripped
POSSIBLE CAUSE(S)
1. Blown line fuse or tripped circuit breaker
2. Low line voltage
3. Material wedged between wheel
and guard
4. Defective switch
5. Defective, blown capacitor
1. Improper mounting of grinder or
accessories
2. Grinding wheel out of balance
3. Improper wheel mounting
1. Excess pressure required to grind material
2. Grinding on side of wheel
3. Motor not turning freely (without power)
1. Overloading due to binding
2. Defective plug
3. Defective cord
4. Defective switch
5. Motor wired for different line voltage
6. Faulty internal wiring
CORRECTIVE ACTION
1. If fuse is blown, replace with fuse of
proper size.If breaker tripped, reset it
2. Check power supply for voltage and
correct as needed
3. Turn grinder off and remove material
4. Replace switch
5. Replace capacitor
1. Remount
2. Dress wheels or replace wheels
3. Remount wheels, but rotate one wheel
90º with respect to its previous position.
Other wheel should remain in its original
position
1. Dress wheel or replace wheel with one of
proper grit
2. Grind only on face of wheel
3. Clean around wheels and shaft and/or
replace bearings
1. Clean around wheels and shaft and/or
replace bearings
2. Replace plug
3. Replace cord
4. Replace switch
5. Rewire motor as per wiring diagram,
(See Installation, Page 5)
6. Contact your Palmgren distributor
TROUBLESHOOTING
Palmgren Operating Manual & Parts List 82121

7
Palmgren Operating Manual & Parts List 82121
Figure 3 – Repair Parts Illustration for Bench Grinder Stand
2
3
1
4
5
6
6
7
7
6
7
6
7
7
6
REPLACEMENT PARTS LIST FOR STAND
Ref.
No. Description Part Number Qty.
1Top 04889.01 1
2 Column 24899.00 1
3Base 24898.00 1
4 Water pot holder 24954.00 1
5 Water pot 24955.00 1
6 10-1.5 x 30mm Socket head bolt * 5
7 10-1.5mm Hex nut * 5
Δ8-1.25 x 45mm Hex head bolt * 4
Δ8mm Flat washer * 8
Δ8mm Lock washer * 4
Δ8-1.25mm Hex nut * 4
ΔOperator’s Manual 32664.09 1
* Standard hardware item available locally.
ΔNot shown.

8
Palmgren Operating Manual & Parts List 82121
1
34
2
5
6
7
7
8
8
12
11
10
14
18
18
17
50
38
35
13
10
14
18
40
40
42
18
18
16
1
4
7
9
8
8
6
9
9
11
48
49
33
34
37
52
43
43 47
43 42
46
45
45
45
45
44
51
41
41
41
42
42
16
13
39
39
40
15
12
56
58
57
53
55
54
20
39
39
59
38
28
26
19
17
19
18
59
9
20
22
22
21
21
27
41
29
30
30
31 36
2
32
28
28
28
23
24
24
25
Figure 4 - Replacement Parts Illustration for 12” Bench Grinder

9
REPLACEMENT PARTS LIST FOR 12”BENCH GRINDER
Palmgren Operating Manual & Parts List 82121
ΔNot Shown. * Standard hardware item available locally. † Not available as a repair part.
Ref. Part No. Description Number Qty.
11⁄4-20 x 3⁄4”Pan head screw * 10
2 Wheel guard cover 24861.00 2 3 1”-8 Hex nut (LH thread) 00111.00 1 4 Flange 24862.00 2 5 Grinding wheel (36 coarse grit) 24863.00 1 6 Inner wheel flange 24864.00 2 75⁄16-18 x 5⁄8”Hex head bolt * 6
85⁄16” Lock washer * 4
93⁄8-16 x 1¼” hex head bolt * 6
10 Wheel guard 24865.00 2 11 Eye shield 24866.00 2 12 Lower eye shield bracket 24867.00 2 13 6-1.0 x 12mm Flange screw 16668.00 2 14 6mm Flat washer * 2 15 Upper eye shield bracket (left) 24868.00 1 16 #10-24 x 3⁄8” Pan head screw * 4
17 Spark guard (set of 2) 24869.00 1 18 3⁄8” Flat washer * 8
19 3⁄8”-16 Wing nut * 2 20 Knob 16714.00 2 21 End shield 24872.00 2 22 1⁄4-20 x 2” Flange screw * 8
23 Dust collector hose 08070.02 1 24 Bearing 6007ZZ 25313.00 2 25 Motor fan 24874.00 1 26 Stator with housing † 1 27 Armature † 1 28 #10-24 x 3⁄8” Flange screw 03207.00 7
29 Magnetic contactor 24883.00 1 30 1/4-20x5⁄8” Flat Head Screw * 2
31 Magnetic switch holder 24884.00 1
Ref. Part No. Description Number Qty.
32 Stationary switch 24885.00 1 33 Rotating switch 24886.00 1 34 Wavy washer 16620.00 1 35 Upper eye shield bracket (right) 24887.00 1 36 Grinding wheel (60 med. grit) 24888.00 1 37 1”-8 Hex nut (RH thread) 00110.00 1 38 Tool rest 24871.00 2 39 5⁄16-18 x 1¼” Carriage bolt * 4
40 5⁄16” Flat washer * 4 41 5⁄16”-18 Hex nut * 8 42 Tool rest upright 24870.00 4 43 3⁄8”-16 Hex nut * 4
44 #10 Serrated washer * 1 45 #10-24 x 1⁄4” Flange Screw * 12
46 Grommet 16916.00 1 47 Line cord 24882.00 1 48 Strain relief 24881.00 1 49 Strain relief plate 24880.00 1 50 Capacitor clamp 16918.00 1 51 Capacitor 08174.00 4 52 Capacitor cap 24879.00 1 53 Base cover 16919.00 1 54 Capacitor 24876.00 1 55 Terminal block 24877.00 1 56 Rivet 24878.00 2 57 Cover 24875.00 1 58 Base 16917.00 1 59 5⁄8-16 x 5⁄8”Hex head bolt * 4
Recommended Accessories
ΔLighted eyeshield 82903 1 ΔGrinding wheel dresser 82902 1

10
Service Record
Palmgren 12” Bench Grinder with Stand
Date Maintenance Performed Replacement Components Required
Palmgren Operating Manual & Parts List 82121

11
NOTES
Palmgren Operating Manual & Parts List 82121

Palmgren Operating Manual & Parts List 82121
WARRANTY
Palmgren warrants their products to be free of defects in material or workmanship.This warranty does not cover defects due
directly or indirectly to misuse, abuse, normal wear and tear, failure to properly maintain the product, heated, ground or otherwise altered, or
used for a purpose other than that for which it was intended.The warranty does not cover expendable and/or wear parts (i.e. v-belts, coated
screws, abrasives), damage to tools arising from alteration, abuse or use other than their intended purpose, packing and freight.The duration
of this warranty is expressly limited to one year parts and labor, unless otherwise noted below beginning from the date of delivery to the
original user.The Palmgren products carry the following warranties on parts with a 1 year warranty on labor:
•USA Machine vises – Lifetime
•IQ Machine vises – Lifetime
•Bench vises – Lifetime
•Positioning tables – Lifetime
•Bench grinders & buffers – 3 years
•Tapping machines – 2 years
•Drilling machines – 2 years
•Finishing machines – 2 years
•Band saws – 2 years
•Work stands – 2 years
•Arbor presses – 2 years
•Metal framing equipment – 2 years
•Accessories – 1 year
The obligation of Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair agent of any part
that should prove deficient.Purchaser must lubricate and maintain the product under normal operating conditions at all times. Prior to oper-
ation
become familiar with product and the included materials, i.e. warnings, cautions and manuals. Failure to follow these instructions will void
the warranty.
This warranty is the purchaser’s exclusive remedy against Palmgren for any deficiency in its products. Under no circumstances is Palmgren
liable for any direct, indirect, incidental, special or consequential damages including lost profits in any way related to the use or inability to
use our products.This warranty gives you specific legal rights which may vary from state to state.
SERVICE & REPAIR
1. If a Palmgren product requires a repair or warranty service DO NOT return the product to the place of purchase.
2. All warranty related work must be evaluated and approved by Palmgren.
3. Prior to returning any item the user must obtain factory approval and a valid RGA number.
4. For instructions and RGA number call toll free [phone].
