MIW DUAL SIGNAL BAY
LOOKING FOR CRYSTAL CLEAR PICTURE AND SOUND?
MAX®IN-WALL DUAL SIGNAL BAY
www.panamax.com
•MIW-DUALSIGNALBAY provides a discreet and code compliant solution for a professional
home theater installation.
•3 Year Product Warranty.
•May be used in conjunction with MIW-POWER-PRO and signal line modules
(sold separately).
•Accommodates two blank module inserts with pass-through plugs (included) or two In-Wall
protection modules (sold separately).
•Full metal housing.
•Enlarged faceplates (4.5” x 4.5”) to accommodate oversize wall cutouts.
•Fits into many two-gang outlet brackets (old-work, low-voltage, Caddy-brand outlet bracket
model MPAL2 included).
•14AWG, solid wire connection for bonding / grounding to In-WallAC units.
•Provides an elegant, convenient solution for connecting signal lines from the source device
to the display device when running cables within the building walls.
IN-WALL SIGNAL LINE MANAGEMENT

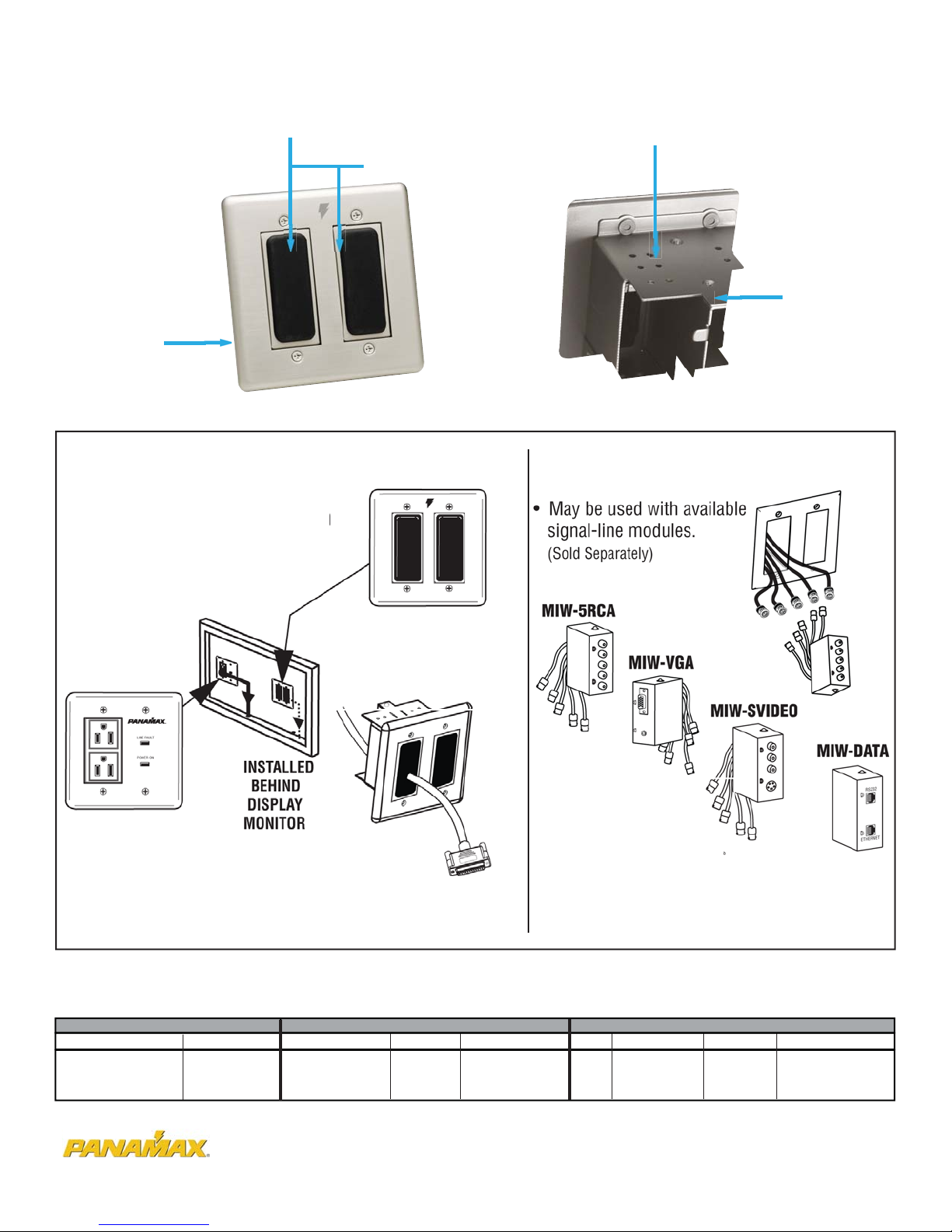

MAX® IN-WALL DUAL SIGNAL BAY FEATURES
1. Enlarged Faceplates (4.5” x
4.5”) to accommodate oversize
wall cutouts
4. Grounding Lug
14AWG, solid wire connection
for bonding / grounding to
In-WallAC units.
2. Signal Bay Pass-Throughs
Accommodates two blank module inserts with
pass-through plugs (included) or two In-Wall
protection modules (sold separately). 3. Full Metal Housing.
UPC’S, QUANTITIES, WEIGHTS & MEASUREMENTS FOR ORDERING & SHIPPING
MODEL MIW-DUAL SIGNAL BAY MASTER CARTON
UNIT CARTON
Dimensions Weight Dimensions Weight UPC Qty Dimensions Weight UPC
4.5” W x 3” D x 4.5”H 1.5 lbs 5” x 3.5” x 5” 1.5 lbs 0 50616 00811 2 8 14.5” x 10.5” x 6” 11 lbs. 5 00 50616 00811 7
1690 Corporate Circle, Petaluma, CA. 94954 800-472-5555 or 707-283-5900 Fax [phone] www.panamax.com
© 2007 Panamax, Inc. Panamax, MAX, and the Panamax logo are registered US trademarks of Panamax
Design and specifications subject to change without notice due to product improvement.
L585 REV B 5/07
MIW-POWER-PRO
or MIW-POWER-AV
(sold separately)
May be used in conjunction with
MIW-POWER-PRO or
MIW-POWER-AV
(sold separately)
MIW-DUAL SIGNAL BAY
Signal lines may be routed
through pass-throughs or by
cutting slits in the included rubber
plugs.
Contact your local Panamax
dealer for available modules.
