Panasonic F-P15EHH User manual

Additional Warranty
Thank you very much for purchasing Panasonic products.
Please refer to this guide in detail prior to use, together with correct use and good storage.
Please read “Safety Precautions” (P.2~4) carefully prior to use.
In order to ensure your rights, please ask the dealer to record the purchase date and dealer
name on the warranty.
“ ”
Preparation
Prior To Use
Method of Use
When Encountering
Difficulties
11 ~ 13
14 ~ 15
16 ~ 17
17
18
19
19
19
20
Page No.
Table of Contents
2 ~ 4Safety Precautions
5 ~ 6
Description of Names for
Each Part and Function
7 ~ 8
Method of Use
8
Method of Operation
9
Method of Cleaning
and Maintenance
10
When Suspecting Malfunctions
10
Method of Emergency Treatment
10
Optional Accessories

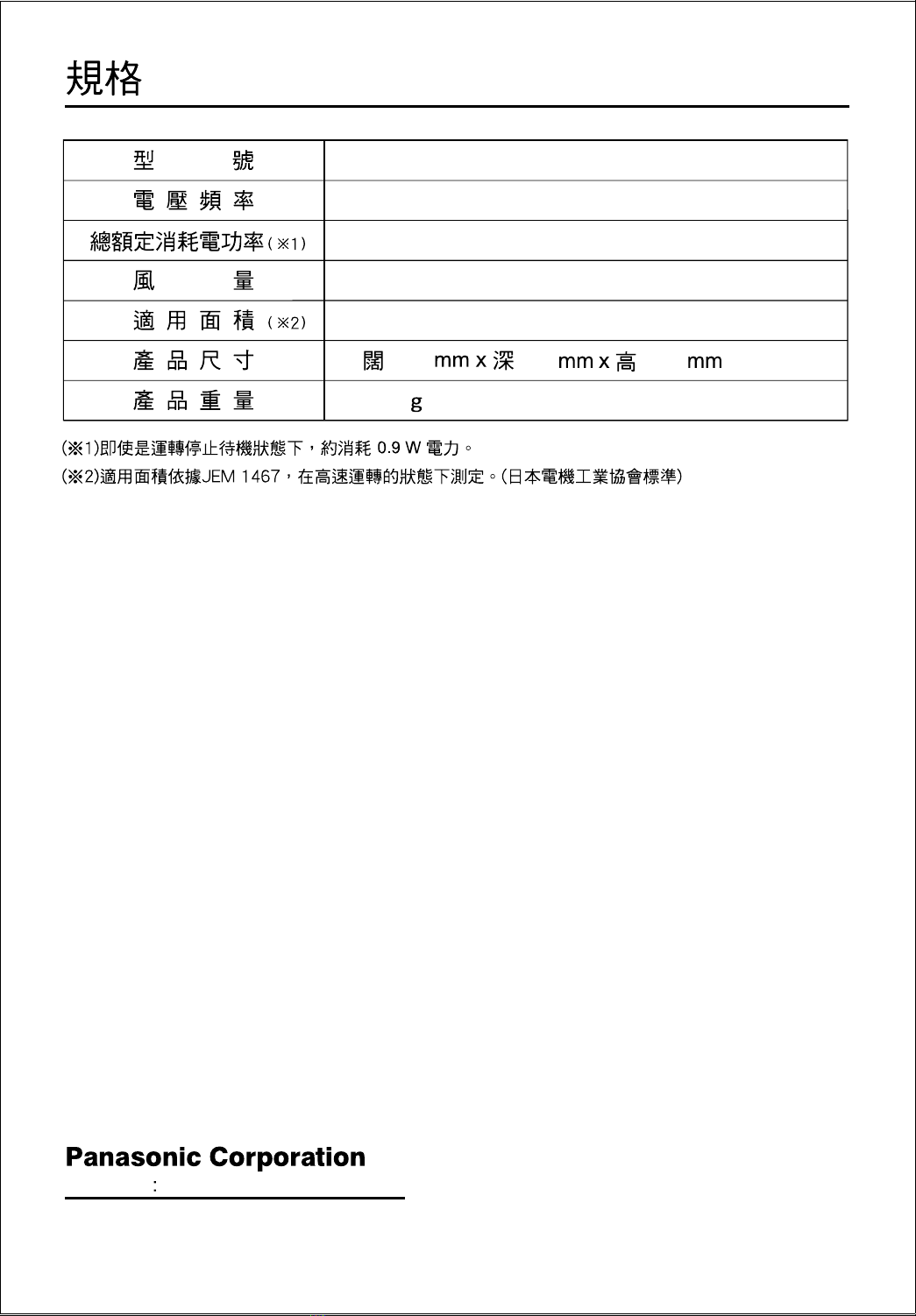

10Specifications
F-P15EHH
This Product Can Only Be Used Indoors
Model No.
Air Purifier
Operating Instructions

The degree of harm and damage due to ignorance of the representation content and according
incorrect usage is described separately by the following representation.
2

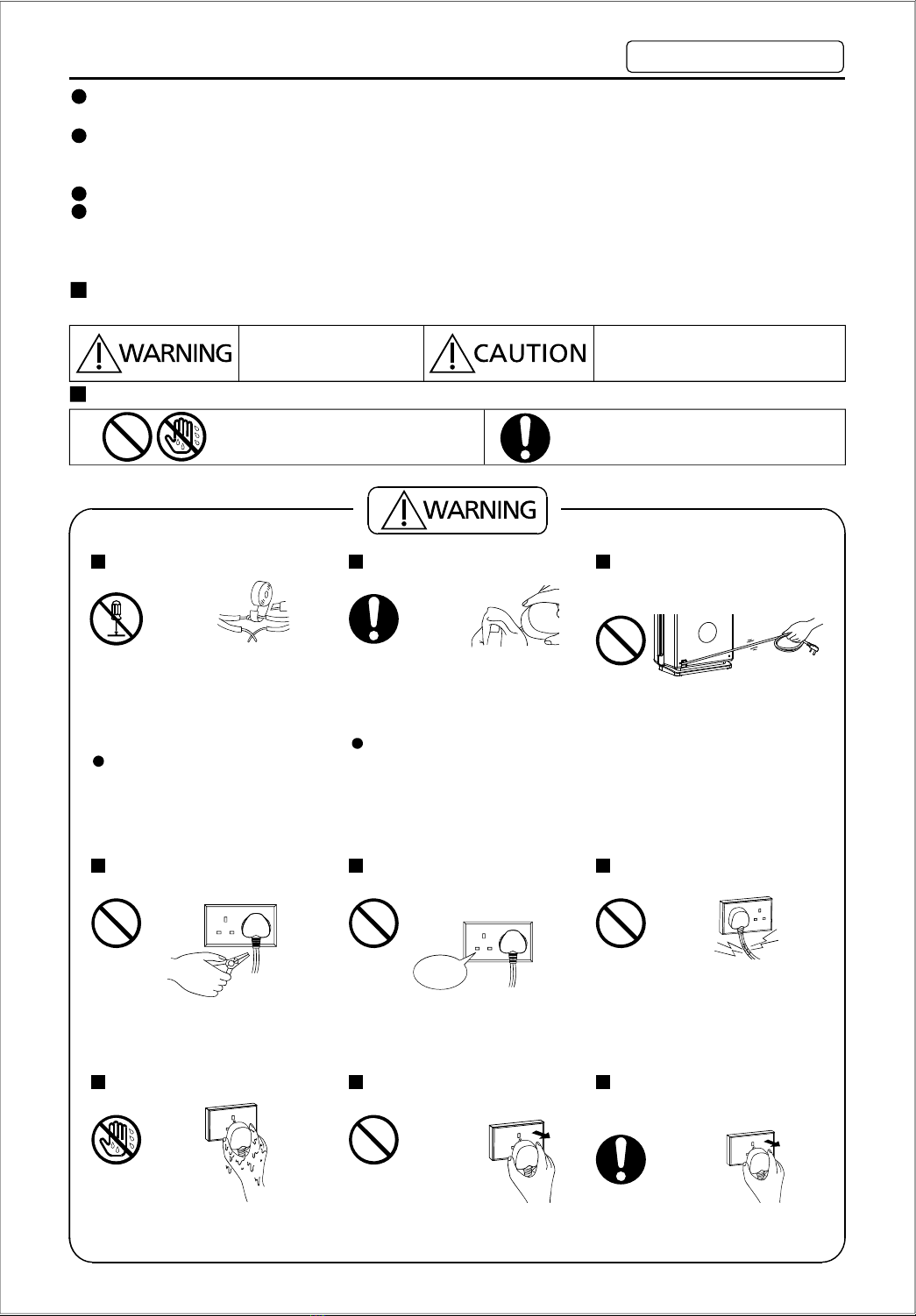

Safety Precautions Please always adhere to
This figure indicates “prohibition”. This figure indicates necessary
“mandatory” implementation.
The types of the content that shall be adhered to are described separately by the following figures.
The content indicated in
this column is “may cause
death or serious injury”.
The content indicated in this column
is “may cause harm or there may
be only financial damage”.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
This product is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experiences and knowledge, unless they have been given supervision
or instruction concerning use of the product by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the product.
Be sure to disconnect the power plug before cleaning the product.
In order to prevent from causing injury to users and damaging the property of others, the listed items
that shall be conformed to are described.
Avoid damage or processing
of the power cord.
Damage due to placement of
heavy object, heating, or pulling
may result in fire or electric shock.
220 V
Never use voltage which is
not specified.
Fire or electric shock may result
due to heat.
Never use a damaged power
cord.
Use of damaged power cords
may result in short circuit, fire, or
electric shock. Please contact
your nearest service station or
dealer.
Never remove plugs with a
wet hand.
Electric shock may result.
Never power off by
unplugging power plug.
Fire or electric shock may result
due to heat.
Shutdown is required and
power plug shall be
unplugged in cleaning.
There may be danger of electric
shock.
Never damage power cord,
power plug.
Never cut, process, bend
forcibly, pull, press with heavy
object or bundle with nylon strap
and iron wire. Continued use
after damage may result in short
circuit, fire or electric shock.
Damaged power cord, if any,
shall be replaced by manufac-
turer, its service office or
qualified person in order to
avoid hazard.
Clean dust and dirt from
power plug regularly.
Fire or electric shock may result
due to moisture accumulated
because of dust on power plug,
which causes ineffective
insulation layer of power plug.
Unplug power plug and
wipe it with a dry cloth. As
there is no need to use the
cleaner, remember definitely
to unplug power cord.
Do not pull the power cord
when carrying or storing
the product.
Otherwise, the power cord may
be damaged with the possibility
of fire or electric shock.

Please always adhere to
3
Safety Precautions
In case of the exception (as
with the smell of burning,
etc.), please unplug power
plug after shutdown.
Fire or electric shock may result
due to heat or other reasons.
Please contact your nearest
service station or dealer.
Never wash the machine
body with water directly.
Fire or electric shock may be
resulted due to electric leakage.
Never repair it by yourself.
Fire or electric shock may result.
As repair is required, please
contact your nearest service
station or dealer.
Never place foreign objects
such as fingers or sticks into
the air inlet / outlet or gaps.
Injury or electric shock may
result due to the high running
speed of inside fan.
Never use in a place where
there is direct sunlight or
wind and rain.
Fire or electric shock may result
due to heat.
Never let the current
exceed the rated current
of the power socket and
wiring device when in use.
If rated current is exceeded
due to use of too many
branch lines, fire or electric
shock may result due to heat.
Never pull wire forcibly
when unplugging power
plug.
Forcible pulling of power cord, if
any, may damage power cord and
result in short circuit, fire, or
electric shock.
Please place it on stable and
sturdy floor for use.
In order to prevent collapse, which
results in injury.
Please extract the product
from the rear handle hole,
and never extract the product
from the front panel.
In order to avoid the falling of the
main body of the product during
extraction, which hurts the foot or
damages the article injury.
Please extract from here
Never remove the front
panel and the filter while
the machine is running.
Foreign matters are prevented
from entering the article during
operation. At this time, the
internal fan rotates at a high
speed, which may cause injury
or electric shock.
Do not place the product
near combustible materials
such as lighted cigarette,
incense, etc.
Otherwise, these may be
absorbed into the product with
possibility of fire.
Please unplug power plug in
order for safety when the
machine is not used for a
long time.
Heat or fire may result due to dust
and foreign objects attached to
power plug, if any.

Please always adhere to
4

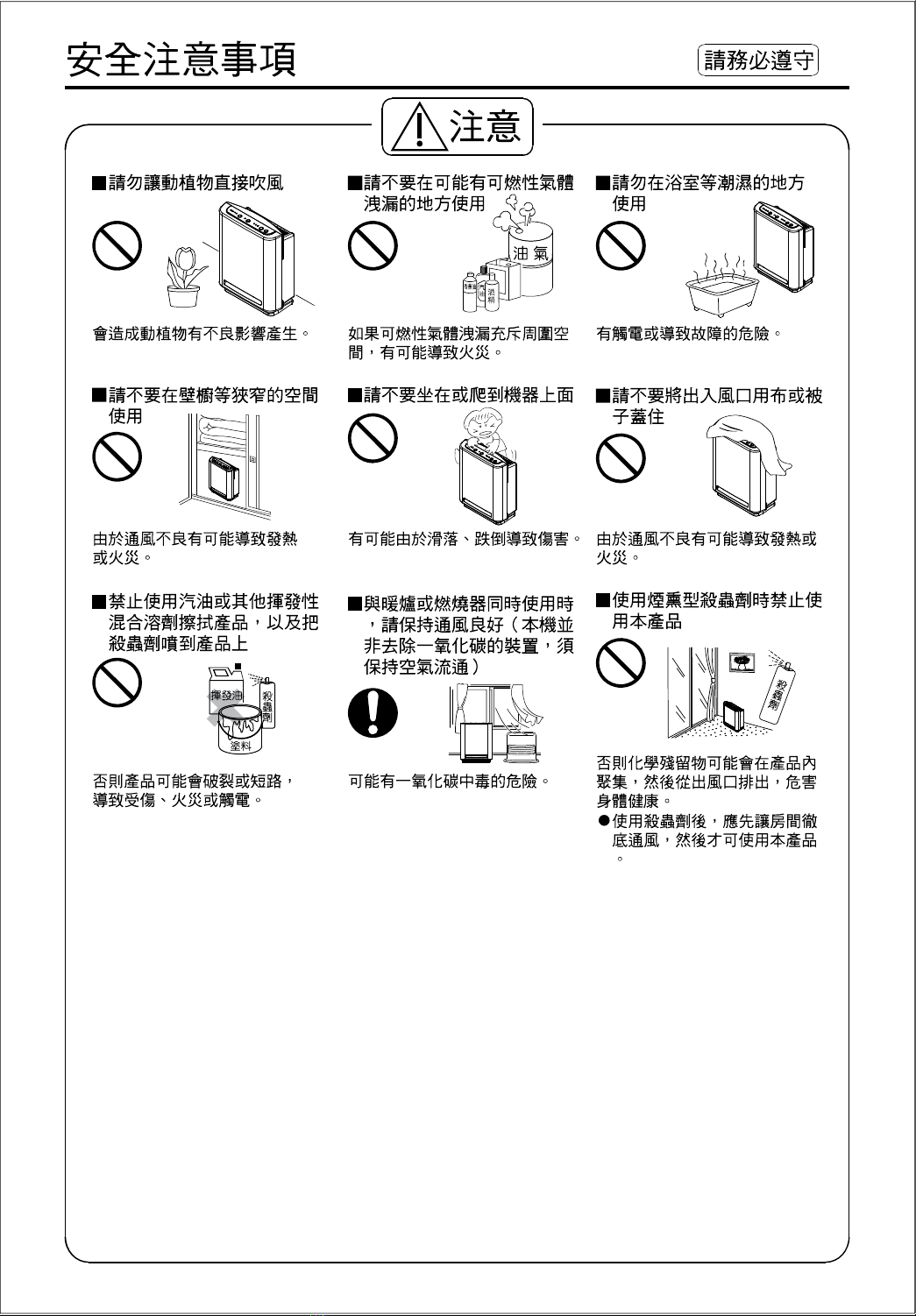

Safety Precautions
Never use in a narrow space
such as a closet.
Poor ventilation may result in
heat or fire.
Never sit or climb onto the
machine.
Injury may be resulted due to
slipping or falling.
Never block air inlet / outlet
with cloth or quilt.
Poor ventilation may result in
heat or fire.
Never allow animals and
plants to be situated under
direct wind blowing.
Adverse impact on animals and
plants will result.
Never use in a place where
there may be leakage of
flammable gas.
Fire may result if flammable gas
leaks into surrounding space.
Never use in a damp place
such as a bathroom.
There is risk of electric shock
or malfunction.
Oil Gas
Banana Oil
Alcohol
When it is used together with
a heater or burner, please
keep good ventilation (this
unit is not a device for
removing carbon monoxide
and ventilation shall be
kept.)
There may be danger of carbon
monoxide poisoning.
Do not operate this product
in places where indoor
fumigation type insecticides
are being uesd.
Chemical residue may build up
inside the product and discharge
from the air outlet, and cause
damage to health.
Ventilate the room with fresh
air thoroughly after using
insecticides before operating
the product.
Otherwise, the product may crack
or short circuit with the possibility
of injury, fire or electric shock.
Volatile
Oil
Coating
Insecticide
Do not clean the product
with gasoline or other
volatile mixture solvents,
and avoid contacting with
spray insecticides.
Insecticide

5
Handle
Air
Outlet
Air Inlet
(Both Sides)
Rear
Cover
Power
Cord
Power Plug
Description of
Names for Each Part and Function
Body
HEPA Dust Collection Filter
The filter is designed to filter out harmful
particles in the air effectively. A light green
filter in front may inhibit bacterial growth
effectively.
The activated carbon filter may remove
odors effectively.
Please remove
the filter from
the plastic bag
as it is just
purchased or
replaced.
Back

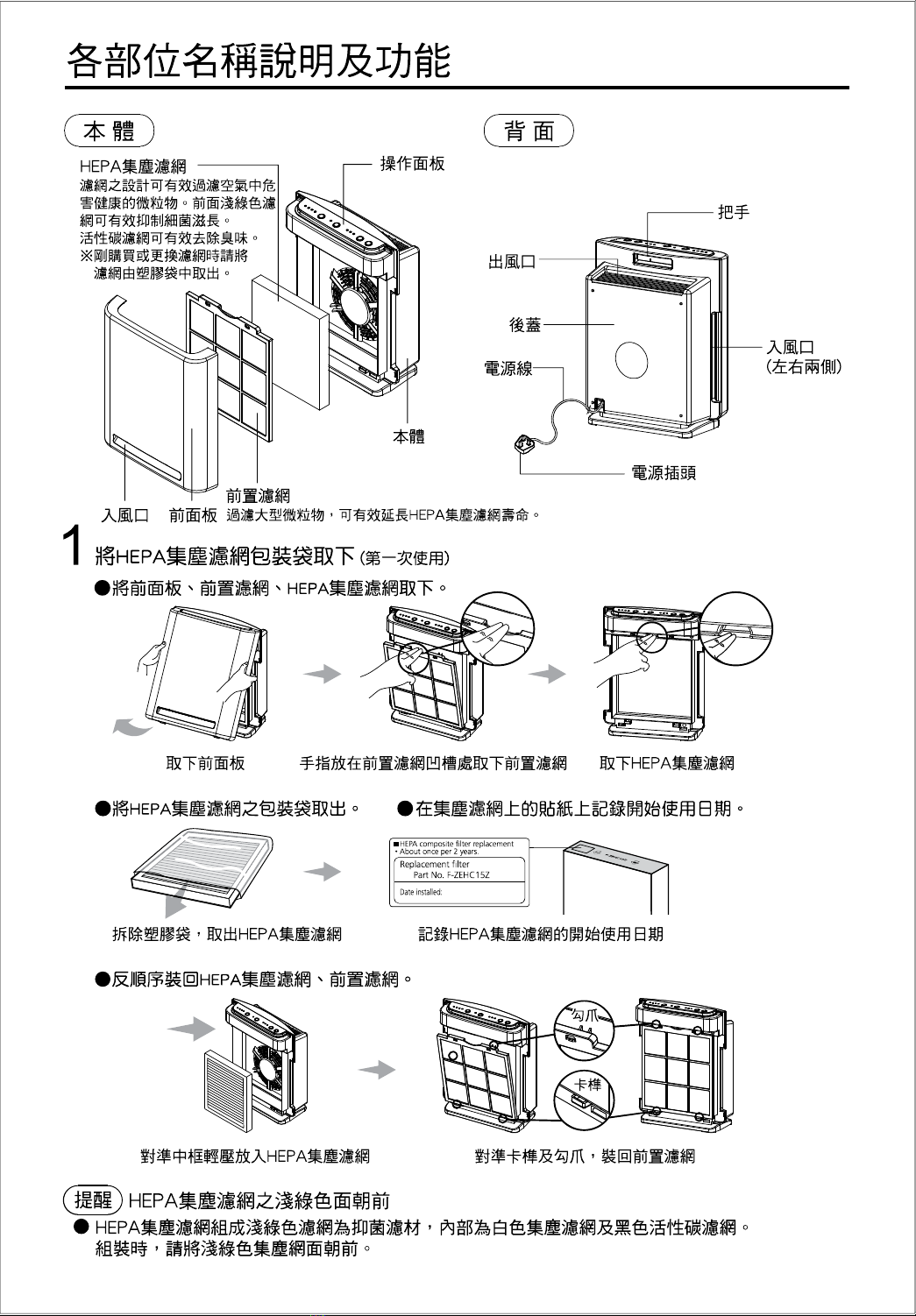

Operation
Panel
Body
Fore-filter
Air Inlet Front Panel
Filtration of large particulate matters can extend the
lifetime of HEPA dust collection filter effectively.
Remove the packing bag for the HEPA dust collection filter.(first use)
Remove front panel, fore-filter , and HEPA dust collection filter.
Remove the packing bag of the
HEPA dust collection filter.
Log the commencement date of use on
the sticker on the dust collection filter.
Remove the plastic bag and take
out the HEPA dust collection filter.
Log the commencement date of using the
HEPA dust collection filter.
Remove front panel. Place fingers on the groove of
the fore-filter to remove the
fore-filter.
Remove the HEPA dust
collection filter.
Reinstall the HEPA dust collection filter, the fore-filter in reverse order.
The light green part of the HEPA dust collection filter faces forward.
Notice
The HEPA dust collection filter forms a light green filter as a bacteriostatic filter material, within which there
are a white dust collection filter and a black activated carbon filter.When assembling, please have the light
green dust collection facing forward.
Align the middle frame with slight press
to place the HEPA dust collection filter.
Tenon
HookHook
Align the tenon with the hook and reinstall
the fore-filter.

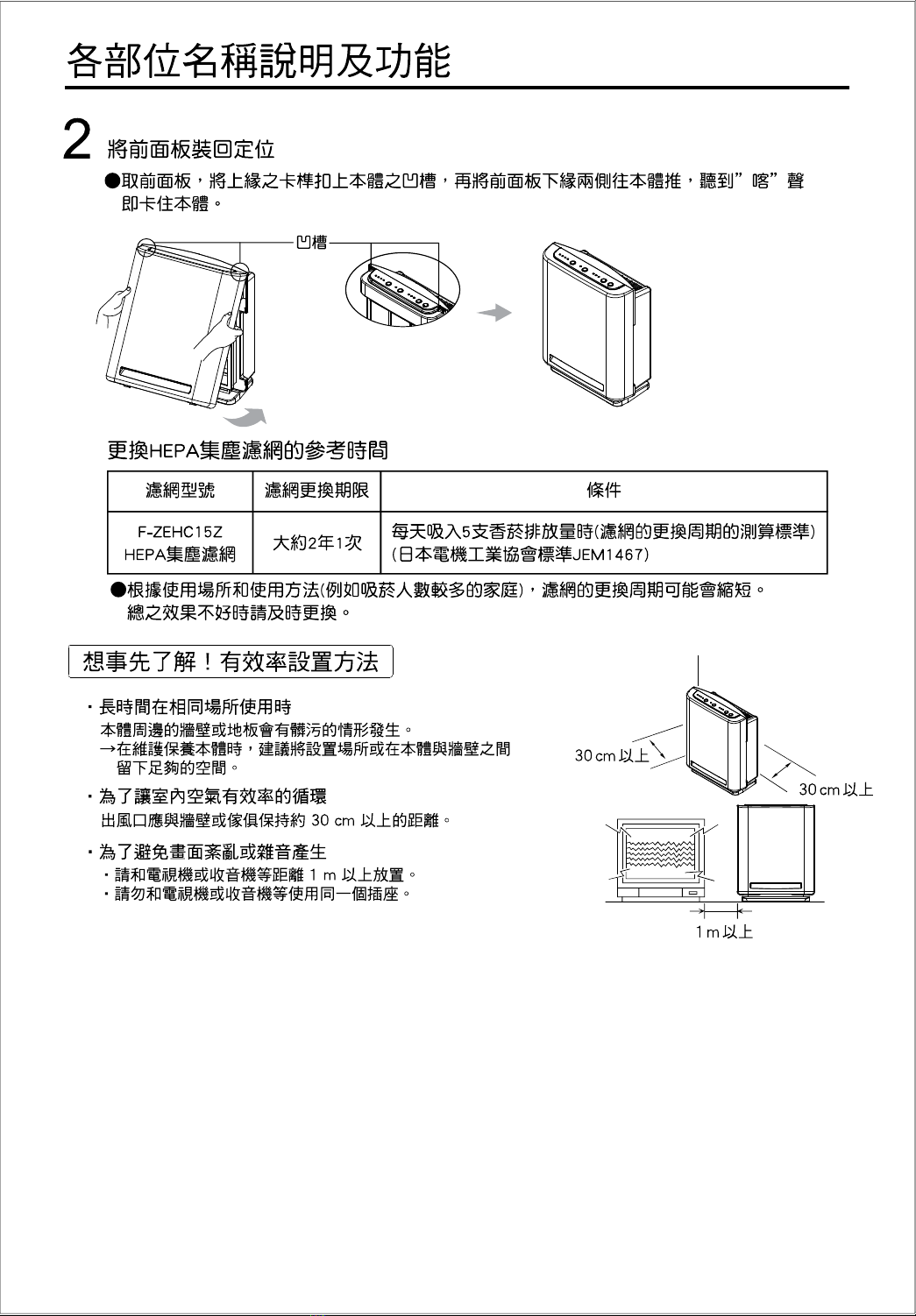

Description of
Names for Each Part and Function
Reinstall the front panel in position.
Take the front panel and fasten the tenon on the upper edge with the groove of the
body, followed by pushing the two sides of the lower edge of the front panel toward
the body until hearing the “click” sound and having the body secured.
Groove
Reference Time for Replacement of HEPA Dust Collection Filter.
Depending on the place and method of use (for example, houses with more smokers),
the cycle of replacing the filter may be shortened. In short, please replace it when the
effect is not good.
Filter Model
F-ZEHC15Z
HEPA Dust
Collection Filter.
About once every
2 years
As a discharge amount equivalent to 5 cigarettes is
absorbed every day (measurement standard for
cycle of replacing filter)
(JEM1467 Standard of Japan Electrical Manufactur-
ers' Association)
Expiration Date of Filter
Replacement Conditions
It is better to know in advance! Efficient Setup Method
In order for efficient indoor air circulation
The air outlet should be kept at a distance of more
than 30 cm from the wall or furniture.
In order to avoid clutter or noise
Please place it at a distance of 1 m or more from a TV or radio.
Never use the same socket with a TV or radio.
As it is used in the same place for a long time
The wall around the body or the floor may be dirty.
When maintaining the body, it is recommended to
leave enough space in the setup place or
between the body and the wall.
more than
30 cm more than
30 cm
more than 1 m
6

Method of Use

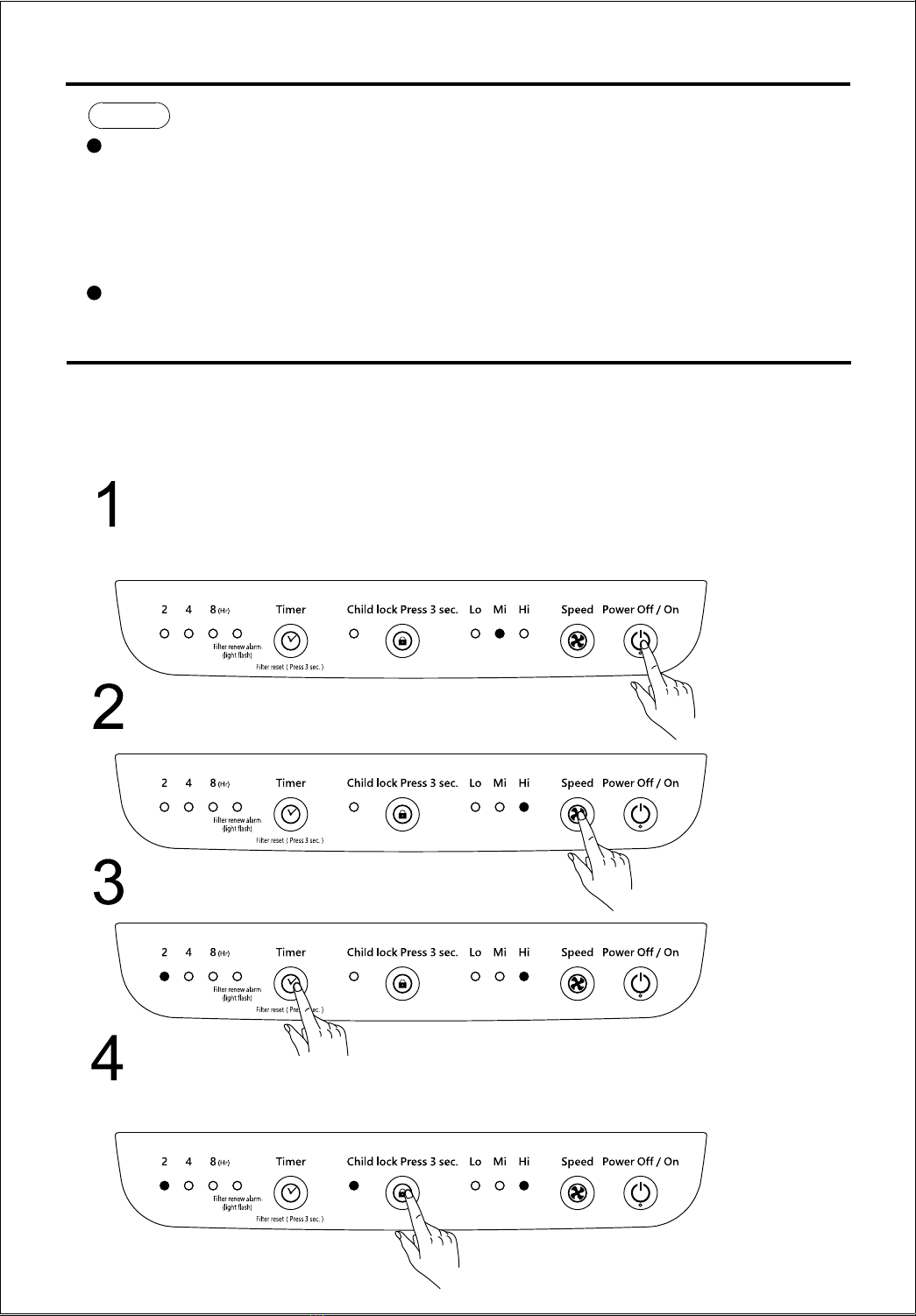

Operation Panel
Insert the power plug into the socket (220 V), followed by pressing the “ Power Off / On ” key
on the operation panel to start running of the product.
Preparation Actions
As the key is pressed for the first
time, the air volume indicator “ ”
lights up and the running starts.
Then, press this key for the machine
body to be powered off completely.
In running, it is switched as indicated in
the figure below for every press.
The indicator displays the remaining
time automatically as time elapses.
In running, the air volume is switched as
indicated in the figure below for every press.
Long press this key for 3 seconds to turn on
the child safety lock function, and the light is
on, otherwise, the child safety lock function is
turned off and the light is off.
Child safety lock
Function is turned on
Child safety lock
Function is turned off
Turned off 2 hours later Turned off 4 hours later
Continuous running Turned off 8 hours later
4 hours are set
2 hours
are elapsed 2 hours remain
Press the key (power on) Press key
Set running time
As the filter renew alarm light flashes (the
lifetime of the filter is about 2 years), it
indicates that the filter needs to be
replaced.
After the filter is replaced, long press this
key for 3 seconds in a power-off state until a
long tone sounds, which indicates that the
filter has been replaced and the lifetime of
the filter is recounted.
If the reminder light for filter renew alarm
flashes and this key is pressed for 3
seconds until a long tone sounds, the
lifetime of the filter will also be recounted.
Press key
Long press to open the child
safety lock
7
Function of Long pressing for 3
seconds to recount lifetime of filter

This product has a memory function. By pressing the Power Off / On key to stop the running of
the product, followed by pressing this key again to start the running, the product is configured to
the previous running mode automatically. (Timing is not within the memory range)
Example: If running at a medium speed is the original setting, 2-hour is timed, and the child
safety lock is on. As the timed condition is met for automatic shutdown, the child safety lock
must be off in order for booting to commence, after which running at the medium speed is
resumed.
This memory function disappears after the power plug is removed.
Notice
8
Method of Operation
There are unpleasant smells of smoke and odor in the air, as well as there are
children on the spot, the air volume is set to strong speed, the running lasts for 2
hours, and the child safety lock is turned on.
Example:
After inserting the power plug, the “ Power Off / On ” key on
the operation panel is pressed.
Press the “ Speed ” key to select strong speed.
Press the “ Timer ” key and select 2 hours.
Long press the “ Child lock Press 3 sec. ” key for 3 seconds to turn on
the child safety lock function.
Method of Use

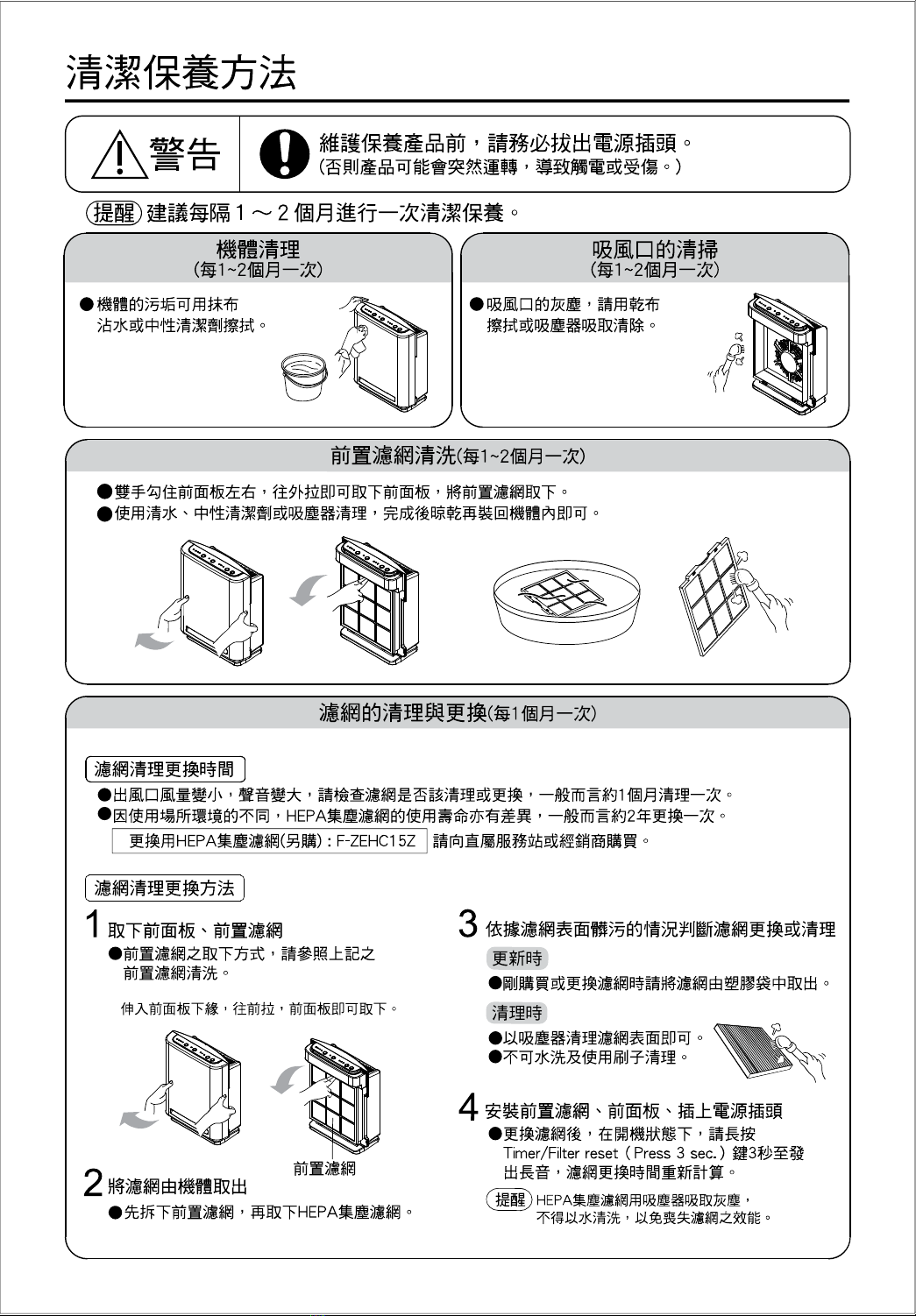

Make sure to disconnect the power plug before cleaning the product.
(Otherwise, the product might operate with the possibility of electric
shock or injury.
Hook the left and right sides of the front panel left with two hands, followed by pulling it out to remove
the panel and remove the fore-filter.
Use clean water, neutral detergent or dust cleaner for cleaning, followed by drying and reinstalling it in
the machine body.
The air volume at the air outlet becomes smaller and the sound becomes louder. Please check if it is
time to clean or replace the filter. Generally, it should be cleaned once every 1 month approximately.
Due to different environment for place of use, the service life of the HEPA dust collection filter also
differs. Generally, it should be replaced once every 2 years approximately.
For the approach of removing the fore-filter,
please refer to Cleaning of Fore-filter
mentioned above.
Reach in the lower edge of the front panel
and pull forward to remove the front panel.
As a reminder, use dust cleaning to suck
dust for the HEPA dust collection filter, and
never wash it with water in order not to lose
function of the filter.
9
HEPA dust collection filter for replacement (optional) : F-ZEHC15Z Please purchase it from your
nearest service station or dealer.
Time for cleaning and replacement of filter
Method for cleaning and replacement of filter
Remove the front panel, fore-filter.
After replacing the filter, in the power-on state,
please long press the Timer/Filter reset (press
3 sec) key for 3 seconds until a long tone
sounds, and the replacement time for the filter
is recounted.
Simply clean the surface of the filter with a dust
cleaner.
Please remove the filter from the plastic bag as
it is just purchased or replaced.
Never use water washing and
brush for cleaning.
Replacement or cleaning of the filter is
determined according to the dirty conditions
on the surface of the filter.
Install fore-filter, front panel, plug in the
power plug.
In renewal
In cleaning
Remove the fore-filter prior to removal of the
HEPA dust collection filter.
Take the filter out of the machine body.
Cleaning of Fore-filter (every 1~2 months.)
Cleaning and replacement of filter(every 1 month.)
Remind
Dirt on the machine body
may be wiped by using a
cloth dampened with
water or a neutral
detergent.
For dust in the air suction
vent, please wipe it with a
dry cloth or clear it with a
dust cleaner.
Cleaning of machine body.
(every 1~2 months.)
As a reminder, it is recommended to perform cleaning and maintenance.
Notice
Method of Cleaning and Maintenance
Fore-filter
(every 1~2 months.)
Sweep of the air suction vent.

10
When Suspecting Malfunction
Malfunction Condition
The machine body does
not run as the “Power
Off/On” key is pressed
Too small air volume is
perceived
As the noise is too loud
Is the power plug plugged into the socket properly?
Is the filter too dirty such that ventilation does not work
due to blocking?
Is the level of the desktop, ground surface where the
machine body is placed horizontally is not flat?
Are the air inlet and the air outlet of the machine blocked?
Is there no fuse switch at home or is the fuse blown out?
Is there power outage?
Optional Accessories
Part Name Model Please purchase it from
your nearest service
station or dealer.
HEPA dust collection filter for replacement F-ZEHC15Z
F-P15EHH
220 V~ 50 Hz
3.5 k
29 W
1.6 m3/min
13 m2
Specifications
Model Name
Voltage Frequency
Total rated power consumption
Air Volume
Applicable Area
310 mm (Width) x 165 mm (Depth) x 385 mm (Height)Dimensions
Product Weight
A power of 0.9 W is still consumed even in a standby state in which the running is stopped.
Usable area tool JEM 1467 is measured at a high-speed running state.
(Standard of Japan Electrical Manufacturers' Association)
Method of Emergency Treatment
Stop running immediately in case of the following symptoms, followed by
unplugging the power plug and consulting your nearest service station or dealer.
As there is no fuse switch or fuse is tripped or blown out frequently.
As unintentionally introduce foreign object or water into the machine.
As power cord or plug is exceptionally heated.
As power cord is damaged and needs to be exchanged, please send it to your
nearest service station or dealer in order for safety.
As there is an exception (smell of burning, etc.), the running function shall be
stopped and the power plug shall be removed.
Never conduct repair work by yourself. Poor repair is a cause of fire and electric
shock.

11
220 V

12

13

14

15

Timer
Filter renew alarm
(light flash)
2 4 8(Hr)
Filter renew alarm
(light flash)
2 4 8(Hr)
Filter renew alarm
(light flash)
2 4 8(Hr)
Filter renew alarm
(light flash)
2 4 8(Hr)
Filter renew alarm
(light flash)
2 4 8(Hr)
Filter renew alarm
(light flash)
2 4 8(Hr)
Filter renew alarm
(light flash)
2 4 8(Hr)
Speed
Power Off / On
16
Filter renew alarm
(light flash)
Timer Child lock Press 3 sec. Speed Power Off / OnLo Mi Hi2 4 8(Hr)
Child lock Press 3 sec.
Child lock Press 3 sec. Child lock Press 3 sec.
Mi

17

18

19

20
F-P15EHH
220 V~ 50 Hz
3.5 k
29 W
1.6 m3/min
13 m2
165310 385
Web Site http://www.panasonic.com/
© Panasonic Ecology Systems Co.,Ltd. 2018
PFP15EHH02A
2018.10
