Panasonic CS-C7CKP User manual

1 Features 2
2 Functions 3
3 Product Specifications 6
4 Dimensions 14

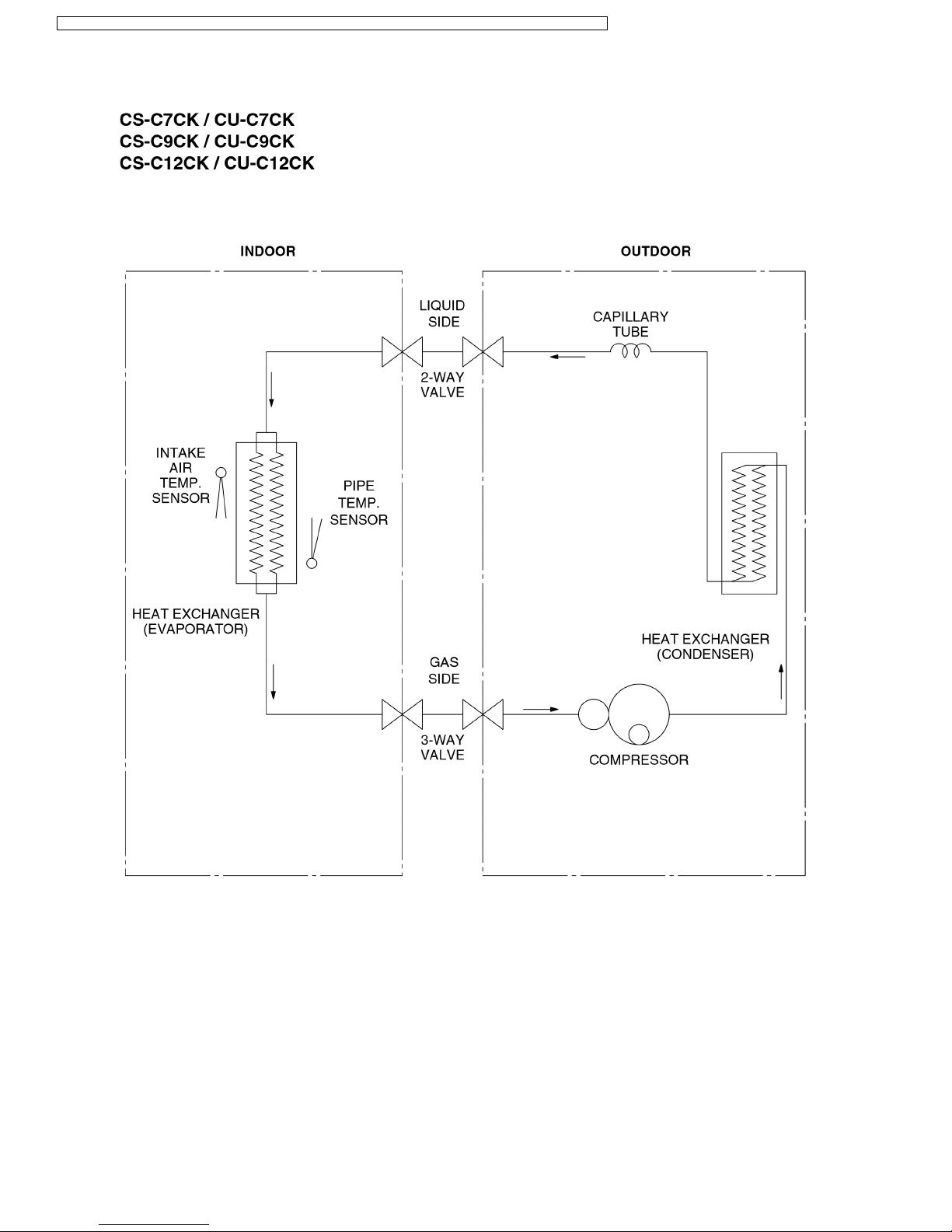

5 Refrigeration Cycle Diagram 16
6 Block Diagram 17
7 Wiring Diagram 18
8 Operation Details 19
9 Operating Instructions 32
10 Installation Instructions 37
© 2002 Matsushita Industrial Corp. Sdn. Bhd.
(11969-T). All rights reserved. Unauthorized copying
and distribution is a violation of law.
CS-C7CKP CU-C7CKP5
CS-C9CKP CU-C9CKP5
CS-C9CKP CU-C9CKP6
CS-C12CKP CU-C12CKP5
CS-C12CKP CU-C12CKP6
11 2-way, 3-way Valve 47
12 Servicing Information 60
13 Troubleshooting Guide 64
14 Technical Data 66
15 Exploded View 70
16 Replacement Parts List 71
17 Exploded View 72
18 Replacement Parts List 73
19 Electronic Circuit Diagram 75
Room Air Conditioner
CONTENTS
Page Page
Order No. MAC0208023C8

• High Efficiency
• Compact Design
• Comfort Environment
− Ionizer control for generate negative ion in discharge air
− Air filter with function to reduce dust and smoke
− Wider range of horizontal discharge air
• Auto Restart
− Random auto restart after power failure for safety restart
operation
• Removable and Washable Front Panel
• Remote Control Self-illuminating Button
• Catechin Air Purifying Filter
− Trap dust, tobacco smoke and tiny particles
− Prevent the growth of bacteria and viruses trapped
• Triple Deodorizing Filter
− Absorb odours produced by wall paper, construction
material and living environment
• Quality Improvement
− Gas leakage protection
− Prevent compressor reverse cycle
− 2-stage OLP to protect compressor
− Noise prevention during soft dry operation
− Blue Coated Condenser (Gold Coated Condenser for
Panama only)
− High resistance to corrosion.
• Operation Improvement
− Quiet mode to provide extra quiet operation
− Powerful mode to reach the desired room temperature
quickly
• Long Installation Piping
− CS/CU-C7CK, CS/CU-C9CK, long piping up to 10 meter
− CS/CU-C12CK, long piping up to 15 meter
• 24-hour Timer Setting
1 Features
2
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

2 Functions
Remote Control
Operation OFF / ON
OFF / ON IRoom Temperature Setting
TEMP.
Operation Mode Selection
•AUTO Automatic Operation Mode
•COOL Cooling Operation Mode
•DRY Soft Dry Operation Mode
•FAN Air Circulation Mode
MODE
TIME Time / Timer Setting
• Hours and minutes setting.
Clock Setting
• Current time setting.
Ionizer Operation OFF / ON
Indoor Fan Speed Selection
FAN SPEED
•FAN Low Fan Speed
•FAN Medium Fan Speed
•FAN High Fan Speed
•AUTO Automatic Fan Speed
FAN
Vertical Airflow Direction Control
• 24-hour, OFF / ON Real Timer Setting.
ON-TIMER
OFF-TIMER Timer Operation Selection
SET
CANCEL Timer Operation Set / Cancel
• ON Timer and OFF Timer setting and
cancellation.
CLOCK
AIR SWING
•AUTO Automatic Vertical Airflow
Direction Control
•MANUAL Vertical Airflow Direction
Manual Control (5 stages of
adjustment)
Powerful Mode Operation OFF/ON
POWERFUL
Quiet Mode Operation OFF/ON
QUIET
Cooling, Soft Dry, Air Circulation Operation.
• Temperature Setting (16°C to 30°C)
Automatic Operation
•Operation with 2°C higher than
standard temperature.
• Operation with standard temperature.
•Operation with 2°C lower than
standard temperature.
Self illuminating
button
3
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

Indoor Unit
Ionizer Control
•Ionizer control for generate negative ion in
discharge air.
Indoor Fan Speed Control
•High, Medium and Low.
•Automatic Fan Speed Mode
–Cooling : Fan rotates at Hi, Me and SLo
speed. Deodorizing control is
available.
–Soft Dry : Fan rotates at Lo- speed.
Deodorizing control is
available.
•Automatic air swing and manual adjusted
by remote control for vertical airflow.
•Manually adjusted by hand for horizontal
airflow.
Airflow Direction Control
Automatic Operation Button
•Press for < 5s to operate Automatic
operation mode.
(Used when the remote control cannot be used.)
•Press continuously for 5s or < 10s to
operate Test Run/Pump down. “Beep”
sound will be heard at the 5th second.
(Used when test running or servicing.)
•Press continuously for 10s and above to
omit or resume the remote control signal
receiving sound. “Beep, beep”sound will
be heard at the 10th second.
AUTO
OFF / ON
Operation Indication Lamps (LED)
• POWER (Green) ......... Lights up in operation,
blinks in Automatic
Operation Mode judging.
• QUIET (Orange) ......... Lights up in Quiet Mode
Operation.
• TIMER (Orange) ......... Lights up in Timer
Setting.
• POWERFUL (Orange) ... Lights up in Powerful
Mode Operation.
• (Green) ............ Lights up in Ionizer
Mode Operation.
Operation Mode
•Cooling, Soft Dry, Air Circulation and
Automatic Mode.
Powerful Operation
•Reaches the desired room temperature
quickly.
Time Delay Safety Control
•Restarting is inhibited for appro. 3
minutes.
Starting Current Control
Quiet Operation
•To provide extra quiet operation.
7 Minutes Time Save Control
•Cooling Operation only.
•Fan motor is delayed for 1.6 seconds when
compressor starts simultaneously.
Random Auto Restart Control
•Operation is restarted randomly after power
failure at previous setting mode.

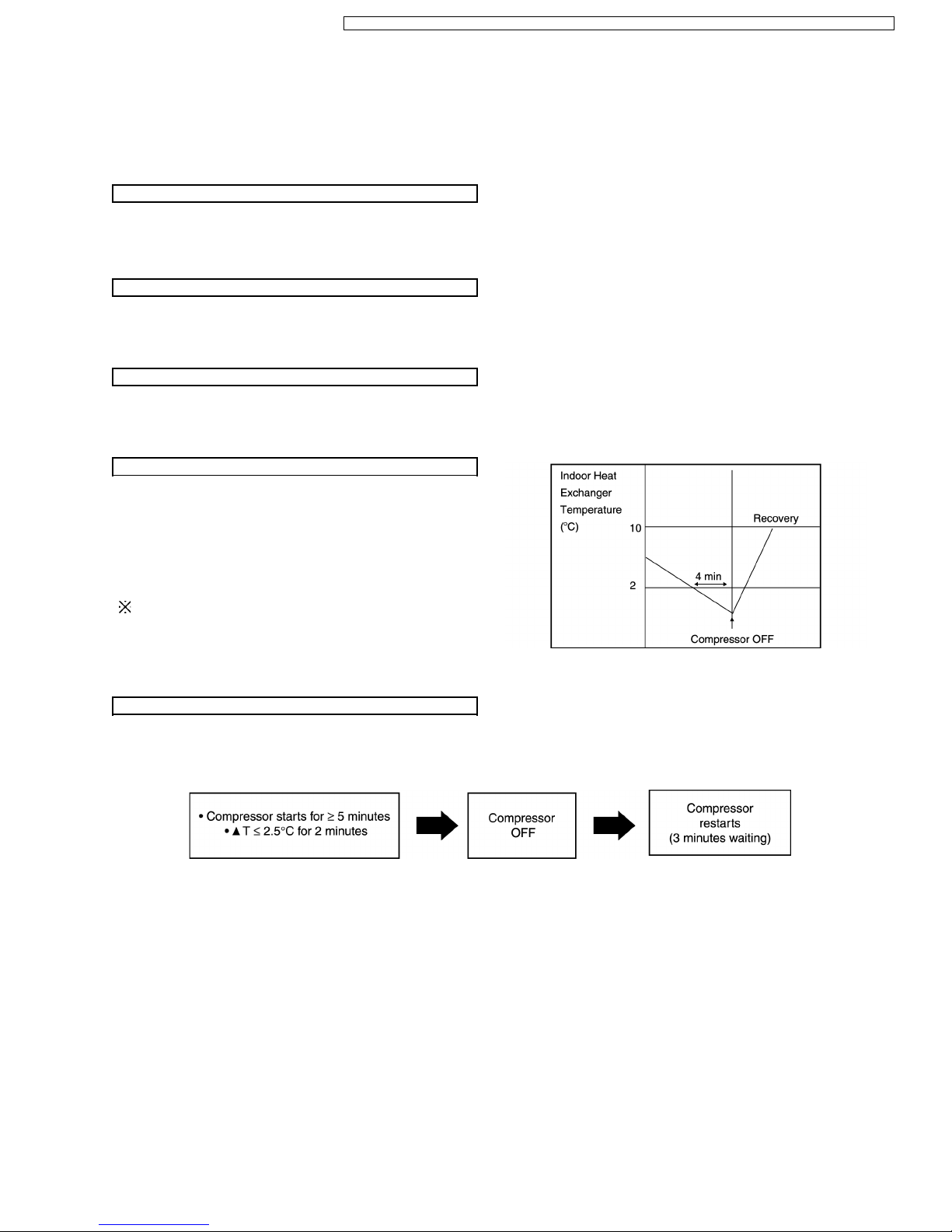

Anti-Freezing Control
•Anti-Freezing control for indoor heat
exchanger. (Cooling and Soft Dry)
4
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

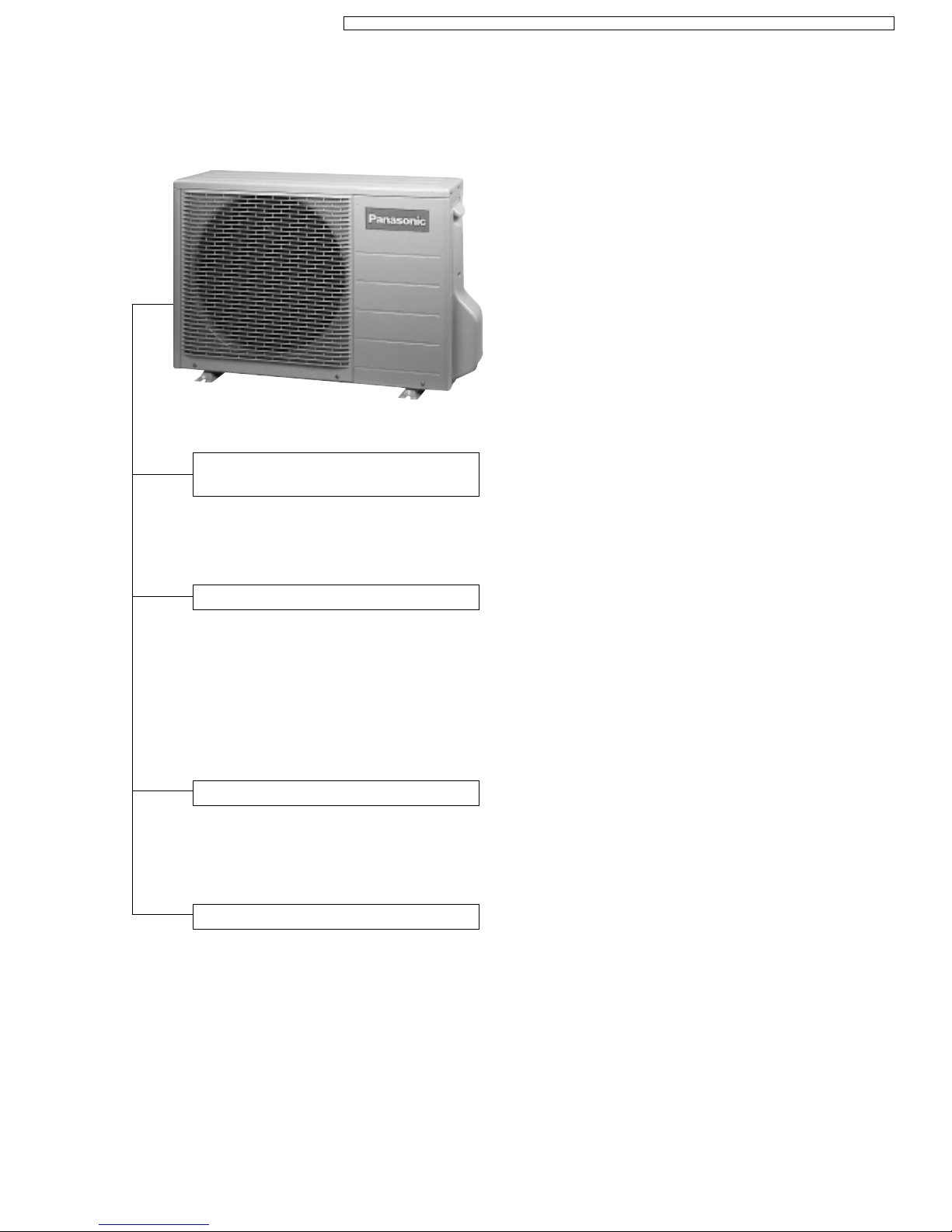

Outdoor Unit
•To protect compressor from reverse
rotation when there is a instantaneous
power failure.
60 Secs. Forced Operation Control
•Once the compressor is activated, it
does not stop within the first 60 secs.
However, it stops immediately with
remote control stop signal.
Overload Protector
•2-Stage OLP to protect the compressor.
Overload Protector will trip when
–Temperature of compressor increases
to 120°C.
–High temperature or high current flows
to compressor.
(Refer circuit diagram for OLP
characteristic)
Compressor Reverse Rotation
Protection Control
Outdoor Fan Operation Control
•Temperature Fuse.
5
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

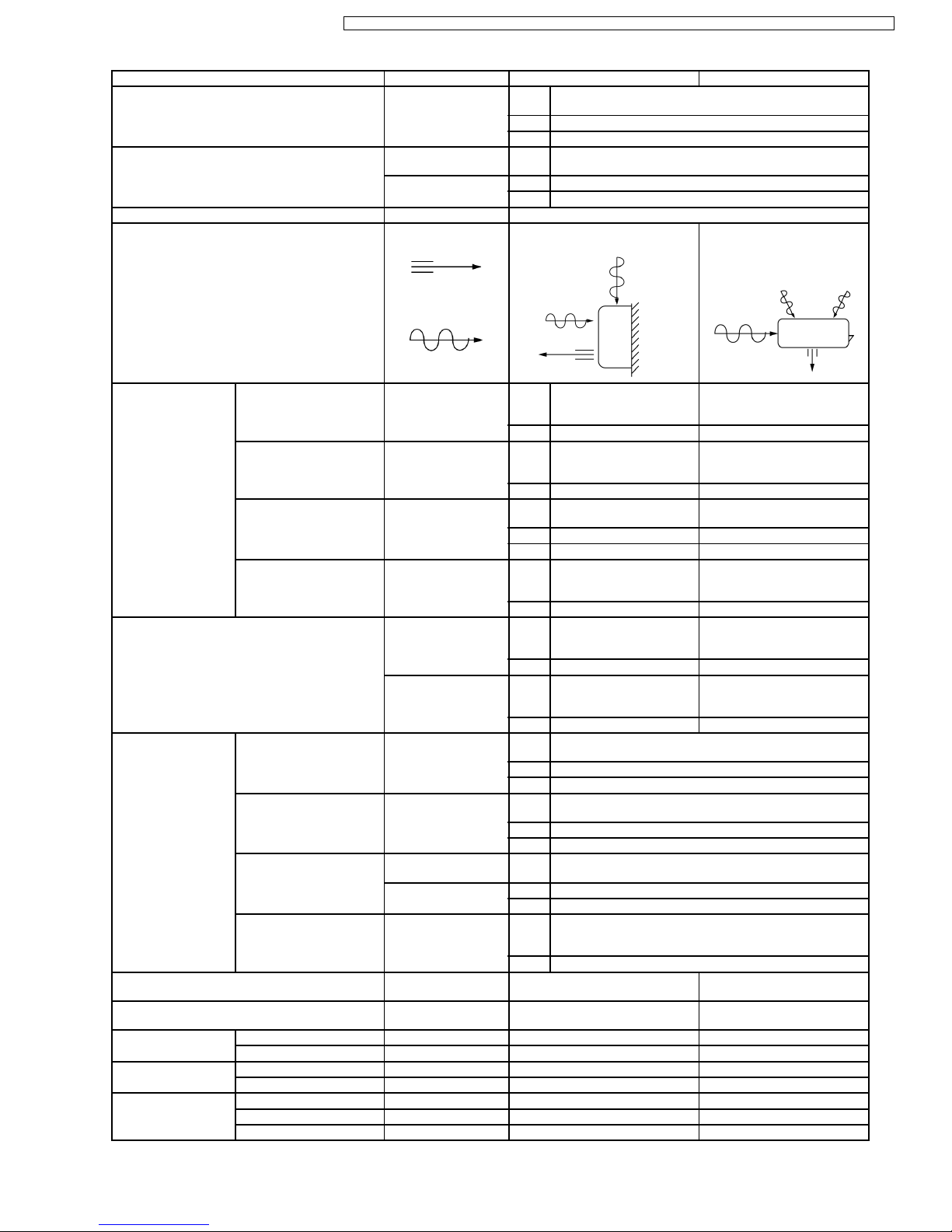

3 Product Specifications
Unit CS-C7CK CU-C7CK
Power Source Phase, Voltage, Cycle (1) Single, 220 - 230, 50 Hz
(3) Single, 220 - 240, 50 Hz
Cooling Capacity kW (kcal/h) (1) 2.00 - 2.10 (1,720 - 1,800)
kW (BTU/h) (3) 2.00 - 2.05 (6,820 - 6,990)
Moisture Removal l/h (Pint/h) 1.3 (2.7)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) 6.4 (230) - 6.4 (230) —
Indoor Air (Me) m3/min (cfm) 7.4 (260) - 7.4 (260) —
Indoor Air (Hi) m3/min (cfm) (1) 8.5 (300) - 8.5 (300) 32.2 (1,140) - 33.0 (1,160)
(3) 8.5 (300) - 8.5 (300) 32.2 (1,140) - 33.8 (1,190)
Indoor Air (SHi) m3/min (cfm) 9.4 (330) - 9.4 (330) —
Noise Level dB (A) High 33 - 33, Low 26 - 26 High 46 - 47
Power level dB High 45 - 45 High 61 - 62
Electrical Data Input Power W(1) 550 - 600
(3) 580 - 640
Running Current A(1) 2.7 - 2.7
(3) 2.7 - 2.8
EER W/W (kcal/hW) (1) 3.64 - 3.50 (3.13 - 3.00)
WW (BTU/hW) (3) 3.45 - 3.20 (11.8 - 10.9)
Starting Current A11.8
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 3/8”
L ; Half Union 1/4”
G ; 3-way valve 3/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m1.9 —
Number of core-wire 3 (1.0 mm2)—
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
Net Weight lb (kg) 20 (9.0) 62 (28)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W—500
6
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

Note:
Unit CS-C7CK CU-C7CK
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W44.8 - 53.5 52.0 - 59.0
Rate Output W15 30
Fan Speed Low rpm 780 - 780 —
Medium rpm 900 - 900 —
High rpm (1) 1,030 - 1,030 820 - 830
(3) 1,030 - 1,030 820 - 845
SuperHigh rpm 1,140 - 1,140 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue Coat)
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 1×20
FPI 19 16
Size (W × H × L) mm 610 × 315 × 25.4 841 × 508 × 22
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (cm3) — SUNISO 4GDID or ATMOS
M60 (260)
Refrigerant (R-22) g (oz) —685 (24.2)
Thermostat Electronic Control —
Protection Device —2 Stage Overload Protector
Capillary Tube Length mm —655
Flow Rate l/min —9.5
Inner Diameter mm —1.4
Air Filter Material
Style
P.P.
Honeycomb
—
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —25 µF, 370VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400VAC 2.0 µF, 450VAC
• Specifications are subject to change without notice for further improvement.
• (1) — CS-C7CKP/CU-C7CKP5 (Europe & CIS).
• (3) — CS-C7CKP-2/CU-C7CKP5-2 (Oceania).
7
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

Unit CS-C9CK CU-C9CK
Power Source Phase, Voltage, Cycle (1)
(4)
Single, 220 - 230, 50 Hz
(2) Single, 220, 60 Hz
(3) Single, 220 - 240, 50 Hz
Cooling Capacity kW (kcal/h) (1)
(4)
2.65 - 2.75 (2,280 - 2,360)
kW (BTU/h) (2) 2.65 (9,000)
(3) 2.65 - 2.70 (9,040 - 9,200)
Moisture Removal l/h (Pint/h) 1.6 (3.4)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) (1)
(3)
(4)
6.8 (240) - 6.8 (240) —
(2) 6.8 (240) —
Indoor Air (Me) m3/min (cfm) (1)
(3)
(4)
8.0 (280) - 8.0 (280) —
(2) 8.0 (280) —
Indoor Air (Hi) m3/min (cfm) (1)
(4)
9.9 (350) - 9.9 (350) 32.2 (1,140) - 33.0 (1,160)
(3) 9.9 (350) - 9.9 (350) 32.2 (1,140) - 33.8 (1,190)
(2) 9.9 (350) 32.4 (1,140)
Indoor Air (SHi) m3/min (cfm) (1)
(3)
(4)
10.9 (380) - 10.9 (380) —
(2) 10.9 (380) —
Noise Level dB (A) (1)
(3)
(4)
High 36 - 36, Low 26 - 26 High 46 - 47
(2) High 36, Low 26 High 48
Power level dB (1)
(3)
(4)
High 49 - 49 High 61 - 62
(2) High 49 High 63
Electrical Data Input Power W(1)
(4)
740 - 785
(2) 750
(3) 780 - 820
Running Current A(1)
(3)
(4)
3.6 - 3.5
(2) 3.7
EER W/W (kcal/hW) (1)
(4)
3.58 - 3.50 (3.08 - 3.00)
W/W (BTU/hW) (2) 3.53 (12.0)
(3) 3.40 - 3.29 (11.6 - 11.2)
Starting Current A(1)
(3)
(4)
16.4
(2) 23.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 3/8”
L ; Half Union 1/4”
G ; 3-way valve 3/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
G ; (gas side) 3/8”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m1.9 —
Number of core-wire 3 (1.0 mm2)—
8
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

Unit CS-C9CK CU-C9CK
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
Net Weight lb (kg) (1)
(3)
(4)
20 (9.0) 71 (31.0)
(2) 20 (9.0) 62 (28.0)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W(1)
(3)
(4)
—700
(2) —600
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W(1)
(3)
(4)
44.8 - 53.5 60.2 - 67.5
(2) 44.8 - 53.5 72.4 - 78.9
Rated Output W15 30
Fan Speed Low rpm (1)
(3)
(4)
780 - 780 —
(2) 780 —
Medium rpm (1)
(3)
(4)
920 - 920 —
(2) 920 —
High rpm (1)
(4)
1,140 - 1,140 820 - 830
(2) 1,140 820
(3) 1,140 - 1,140 820 - 845
SuperHigh rpm (1)
(3)
(4)
1,250 - 1,250 —
(2) 1,250 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue/Gold Coat)
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 1×20
FPI 19 16
Size (W ×H×L) mm 610 ×315 ×25.4 841 ×508 ×22
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (cm3)(1)
(3)
(4)
—
SUNISO 4GDID or ATMOS
M60 (320)
(2) —SUNISO 4GDID or ATMOS
M60 (290)
Refrigerant (R-22) g (oz) (1)
(3)
(4)
—815 (28.8)
(2) —890 (31.4)
Thermostat Electronic Control —
Protection Device —2 Stage Overload Protector
Capillary Tube Length mm —720
Flow Rate l/min —11.0
Inner Diameter mm —1.5
Air Filter Material
Style
P.P.
Honeycomb
—
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC (1)
(3)
(4)
—30 µF, 370VAC
(2) —15 µF, 370VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400VAC 2.0 µF, 450VAC
9
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

Note:
• Specifications are subject to change without notice for further improvement.
• (1) —CS-C9CKP/CU-C9CKP5 (Europe & CIS).
• (2) —CS-C9CKP-1/CU-C9CKP6-1 (Panama).
• (3) —CS-C9CKP-2/CU-C9CKP5-2 (Oceania).
• (4) —CS-C9CKP-6/CU-C9CKP5-6 (Turkey & Tunisia).
10
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

Unit CS-C12CK CU-C12CK
Power Source Phase, Voltage, Cycle (1)
(4)
Single, 220 - 230, 50 Hz
(2) Single, 220, 60 Hz
(3) Single, 220 - 240, 50 Hz
Cooling Capacity kW (kcal/h) (1)
(4)
3.52 - 3.65 (3,030 - 3,140)
kW (BTU/h) (2) 3.56 (12,100)
(3) 3.52 - 3.57 (12,000 - 12,170)
Moisture Removal l/h (Pint/h) 2.1 (4.4)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) (1)
(3)
(4)
7.3 (260) - 7.3 (260) —
(2) 7.3 (260) —
Indoor Air (Me) m3/min (cfm) (1)
(3)
(4)
8.7 (310) - 8.7 (310) —
(2) 8.7 (310) —
Indoor Air (Hi) m3/min (cfm) (1)
(4)
10.2 (360) - 10.2 (360) 30.3 (1,070) - 30.8 (1,090)
(2) 10.2 (360) 32.4 (1,140)
(3) 10.2 (360) - 10.2 (360) 30.3 (1,070) - 31.3 (1,100)
Indoor Air (SHi) m3/min (cfm) (1)
(3)
(4)
10.5 (370) - 10.5 (370) —
(2) 10.5 (370) —
Noise Level dB (A) (1)
(3)
(4)
High 39 - 39, Low 29 - 29 High 48 - 49
(2) High 39, Low 29 High 48
Power level dB (1)
(3)
(4)
High 52 - 52 High 62 - 63
(2) High 52 High 63
Electrical Data Input Power kW (1)
(4)
1.05 - 1.10
(2) 1.11
(3) 1.10 - 1.15
Running Current A(1)
(4)
5.1 - 5.0
(2) 5.3
(3) 5.1 - 4.9
EER W/W (kcal/hW) (1)
(4)
3.35 - 3.32 (2.89 - 2.85)
W/W (BTU/hW) (2) 3.21 (10.9)
(3) 3.20 - 3.10 (10.9 - 10.6)
Starting Current A(1)
(3)
(4)
16.9
(2) 33.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m1.9 —
Number of core-wire 3 (1.0 mm2)—
Dimensions Height inch (mm) 10 - 13/16 (275) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 8 - 9/32 (210) 11 - 3/8 (289)
11
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

Unit CS-C12CK CU-C12CK
Net Weight lb (kg) (1)
(3)
(4)
20 (9.0) 77 (35.0)
(2) 20 (9.0) 73 (33.0)
Compressor Type —Rotary (1 cylinder) rolling
piston type
Motor Type —Induction (2-poles)
Rated Output kW (1)
(3)
(4)
—1.10
(2) —0.85
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% PP Resin
Motor Type Induction (4-poles) Induction (6-poles)
Input W(1)
(3)
(4)
44.8 - 53.5 67 - 75
(2) 44.8 - 53.5 72.4 - 78.9
Rated Output W(1)
(3)
(4)
15 35
(2) 15 30
Fan Speed Low rpm (1)
(3)
(4)
900 - 900 —
(2) 900 —
Medium rpm (1)
(3)
(4)
1,080 - 1,080 —
(2) 1,080 —
High rpm (1)
(4)
1,260 - 1,260 830 - 840
(2) 1,260 830
(3) 1,260 - 1,260 830 - 855
SuperHigh rpm (1)
(3)
(4)
1,300 - 1,300 —
(2) 1,300 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium (Blue/Gold Coat)
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
(2) 2×15 1×20
(1)
(3)
(4)
2×15 2×24
FPI 21 16
Size (W ×H×L) mm (2) 610 ×315 ×25.4 841 ×508 ×22
(1)
(3)
(4)
610 ×315 ×25.4 720 ×504 ×22
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (cm3)(1)
(3)
(4)
—SUNISO 4GSI (410)
(2) —SUNISO 4GDID or ATMOS
M60 (350)
Refrigerant (R-22) g (oz) (1)
(3)
(4)
—950 (33.5)
(2) —780 (27.5)
Thermostat Electronic Control —
Protection Device —2 Stage Overload Protector
12
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

Note:
Unit CS-C12CK CU-C12CK
Capillary Tube Length mm —605
Flow Rate l/min —15.7
Inner Diameter mm —1.7
Air Filter Material
Style
P.P.
Honeycomb
—
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —30 µF, 400VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400VAC 2.0 µF, 450VAC
• Specifications are subject to change without notice for further improvement.
• (1) —CS-C12CKP/CU-C12CKP5 (Europe & CIS).
• (2) —CS-C12CKP-1/CU-C12CKP6-1 (Panama).
• (3) —CS-C12CKP-2/CU-C12CKP5-2 (Oceania).
• (4) —CS-C12CKP-6/CU-C12CKP5-6 (Turkey & Tunisia).
13
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

4 Dimensions
14
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

15
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

5 Refrigeration Cycle Diagram
16
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

6 Block Diagram
17
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

REMARKS
B:BLUE
BR : BROWN
BL : BLACK
G: GREEN
GRY : GRAY
O: ORANGE
P: PINK
R:RED
W: WHITE
Y: YELLOW
Y/G : YELLOW/GREEN
Resistance of Indoor Fan Motor Windings
MODEL CS-C7CK
CS-C9CK
CS-C12CK
CONNECTION CWA921060
BLUE-YELLOW 371.0 Ω
YELLOW-RED 386.6 Ω
Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-C7CK CU-C12CK
CONNECTION CWA951088 CWA951120
BLUE-YELLOW 217.3 Ω200.4 Ω
YELLOW-RED 198.5 Ω252.5 Ω
MODEL CU-C9CK
CU-C12CK
CU-C9CK
CONNECTION CWA951128 CWA951118
BLUE-YELLOW 210.7 Ω203.5 Ω
YELLOW-RED 196.5 Ω190.3 Ω
Note: Resistance at 20°C of ambient temperature.
Resistance of Compressor Windings
MODEL CU-C7CK
CONNECTION 2RS110D5DA04
C-R 5.382 Ω
C-S 5.328 Ω
Note: Resistance at 20°C of ambient temperature.
MODEL CU-C9CK
CONNECTION 2PS146D3AA04 2R13C236BSC
C-R 3.941 Ω3.298 Ω
C-S 3.499 Ω5.500 Ω
Note: Resistance at 20°C of ambient temperature.
MODEL CU-C12CK
CONNECTION QJ208PAA 2P19S236A1L
C-R (Main) 3.31 Ω2.237 Ω
C-S (Sub) 4.72 Ω2.710 Ω
Note: Resistance at 25°C/20°C of ambient temperature.
7 Wiring Diagram
18
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

Cooling in operation according to Remote Control setting.
Time Delay Safety Control (3 minutes)
7 minutes Time Save Control
Starting Current Control
Anti-Freezing Control
• If the temperature of the indoor heat exchanger falls
continuously below 2°C for 4 minutes or more, the
compressor turns off to protect the indoor heat exchanger
from freezing. The fan speed setting remains the same.
• Compressor will restart again when the indoor heat
exchanger temperature rises to 10°C (Recovery).
3 minutes waiting of Time Delay Safety Control is valid for
Cooling Operation.
Compressor Reverse Rotation Protection Control
8 Operation Details
8.1. Cooling Mode Operation
• When the compressor is stopped by Remote Control, it restarts after 3 minutes when the Remote Control is turned ON.
• When the setting temperature is reached during cooling operation, the compressor stops and it will not start for 3 minutes.
• The compressor will start automatically if it has stopped for 7 minutes even if the room temperature is between the compressor
ON temperature and OFF temperature.
• When the compressor outdoor fan motor and indoor fan motor are simultaneously started, the indoor fan motor will operate 1.6
second later.
• If the compressor is operating continuously for 5 minutes or longer and the temperature difference between intake air and
indoor heat exchanger is 2.5°C or less for 2 minutes, compressor will stop and restart automatically.
(Time Delay Safety Control is valid)
▲T = Intake air temperature - Indoor heat exchanger temperature
This is to protect reverse rotation of the compressor when there is a instantaneous power failure.
19
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6

Automatic Fan Speed Mode
Cooling Operation Time Diagram
When Automatic Fan Speed is selected at Remote Control during cooling operation.
• Fan speed rotates in the range of Hi to Me.
• Deodorizing Control.
20
CS-C7CKP CU-C7CKP5 / CS-C9CKP CU-C9CKP5 / CS-C9CKP CU-C9CKP6 / CS-C12CKP CU-C12CKP5 / CS-C12CKP CU-C12CK P6
